Colorimeter LT-CM501

Labtro Colorimeter is a lightweight, easy-to-use tristimulus device with white LED illumination and a 2-second measurement interval. It offers optional USB cable and software, stores up to 9 target colors, and includes automatic shutdown and a low battery indicator.

Sara235
Télécharger la présentation

Colorimeter LT-CM501

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

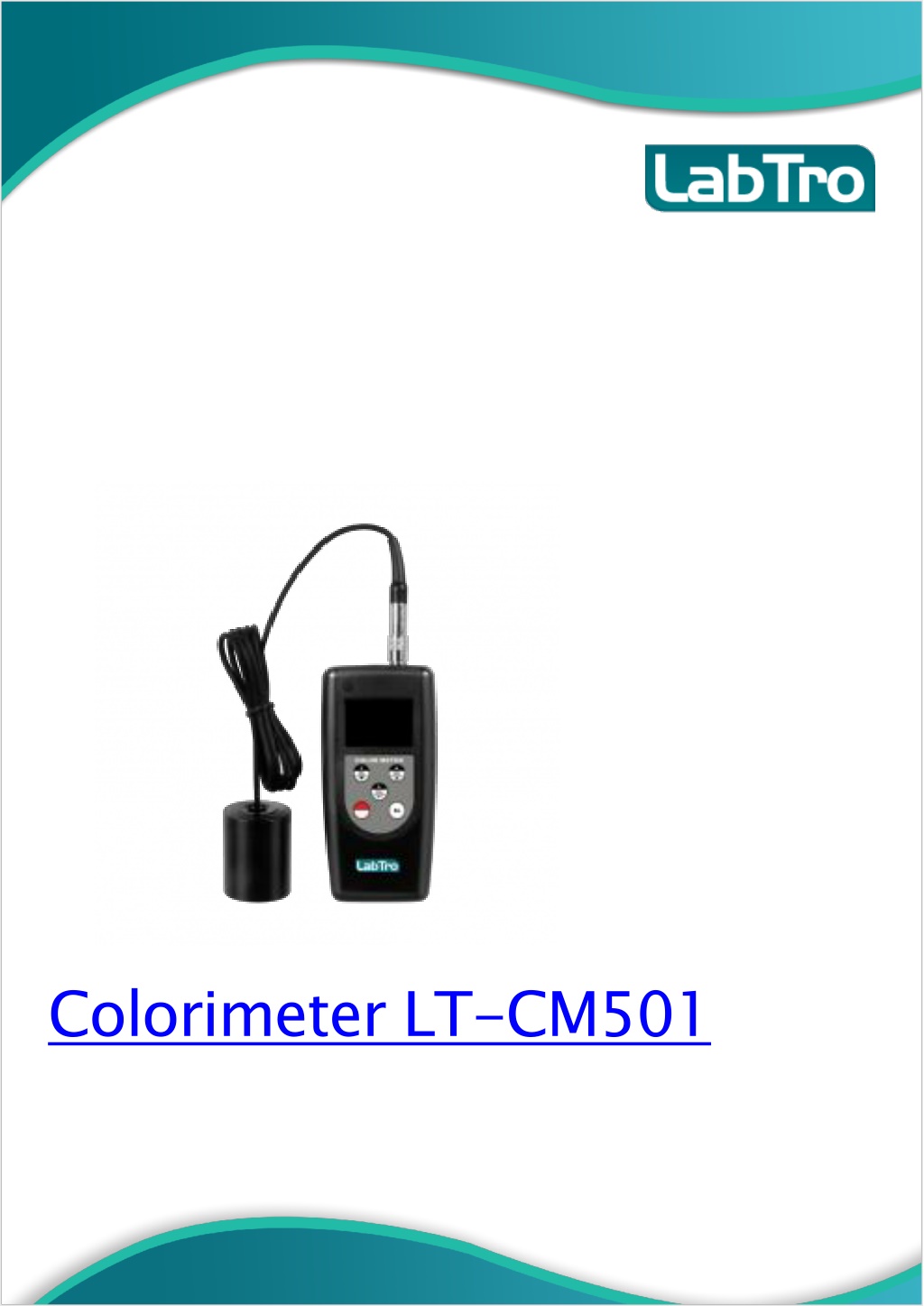

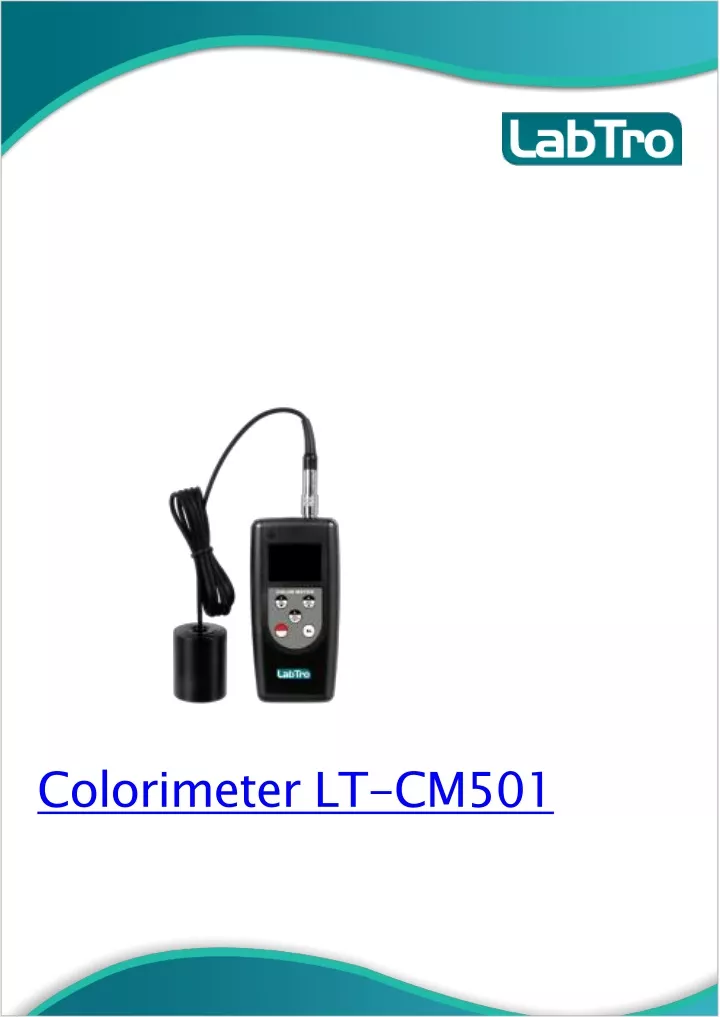

  1. Colorimeter LT-CM501

  2. Description : Colorimeter LT-CM501 is lightweight and easy to use tristimulus colorimeter. It is an extremely compact colorimeter which is specially designed for measuring the color difference between two colors. Features high accuracy measuring with wide measuring area and small size. It can automatically store up-to 99 sets with read function. Presence of 4-digital backlit LCD display. Shut down automatically after 3 minutes. Data can be transferred to computer through USB communication interface. Specifications: Monitor Three4-digitLCDdisplays Data memory capacity 99 groups (read directly on LCD) Low battery power indicator √ Lighting/View Geometry 45°/0°: illuminated at 45°, measured at 0° Measuring area About Φ10mm Display mode Color difference: Δ(L*,a*,b*),Δ(E*ab, C*ab, H*ab),Δ(Y,x,y),Δ(X,Y,Z),Δ( Rs, Gs, Bs) or Δ(WI, YI, Tw) Color coordinates: (L*,a*,b*),(L*,C*ab, hab),(Y,x,y),(X,Y,Z),(Rs,Gs,Bs) or( WI, YI, Tw) Targetcolormemory 9; set by measurement or input Measuring Range L*: 5 to 100

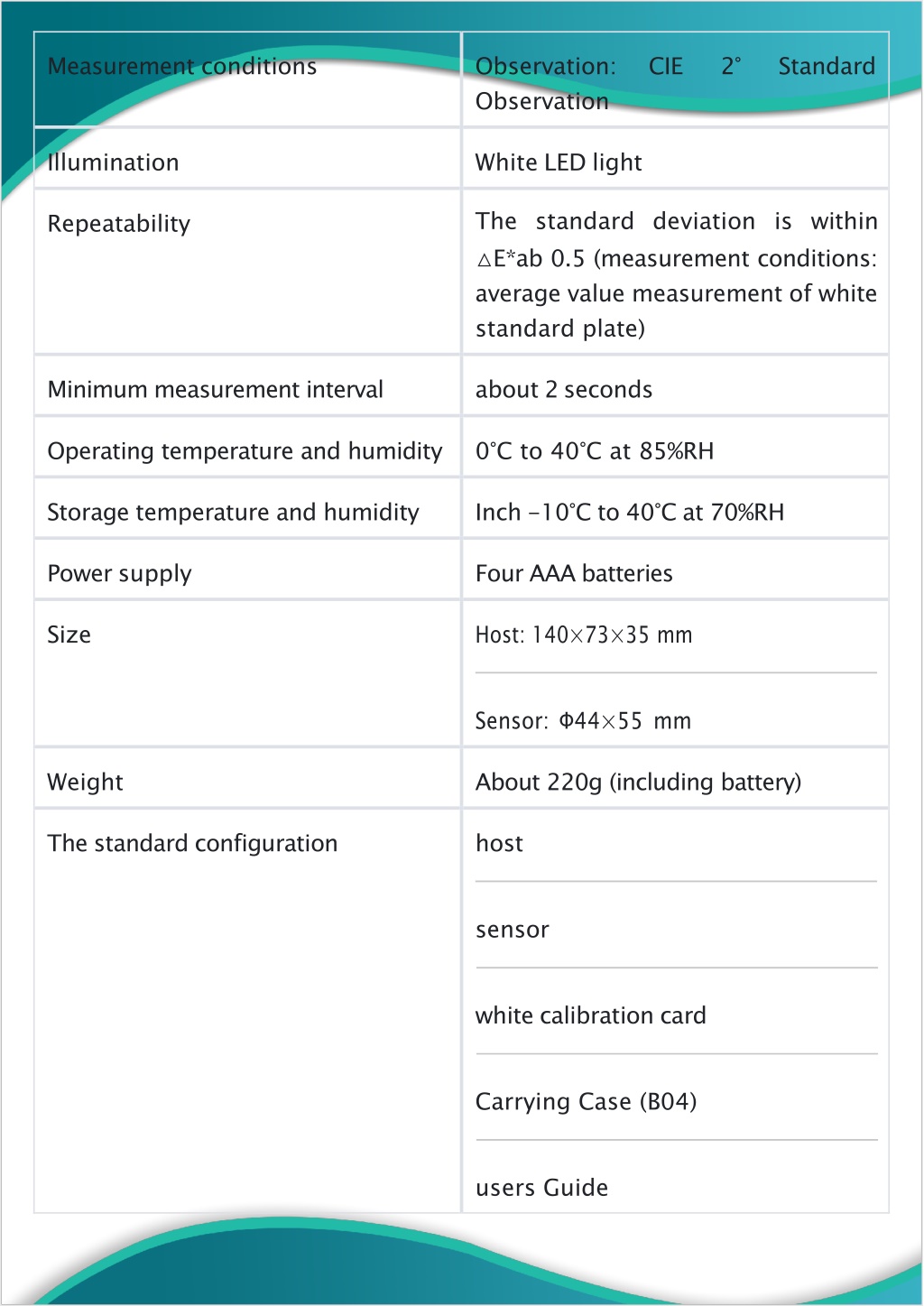

  3. Measurement conditions Observation: Observation CIE 2° Standard Illumination White LED light The standard deviation is within △E*ab 0.5 (measurement conditions: average value measurement of white standard plate) Repeatability Minimum measurement interval about 2 seconds Operating temperature and humidity 0°C to 40°C at 85%RH Storage temperature and humidity Inch -10°C to 40°C at 70%RH Power supply Four AAA batteries Size Host: 140×73×35 mm Sensor:Φ44×55mm Weight About 220g (including battery) The standard configuration host sensor white calibration card Carrying Case (B04) users Guide

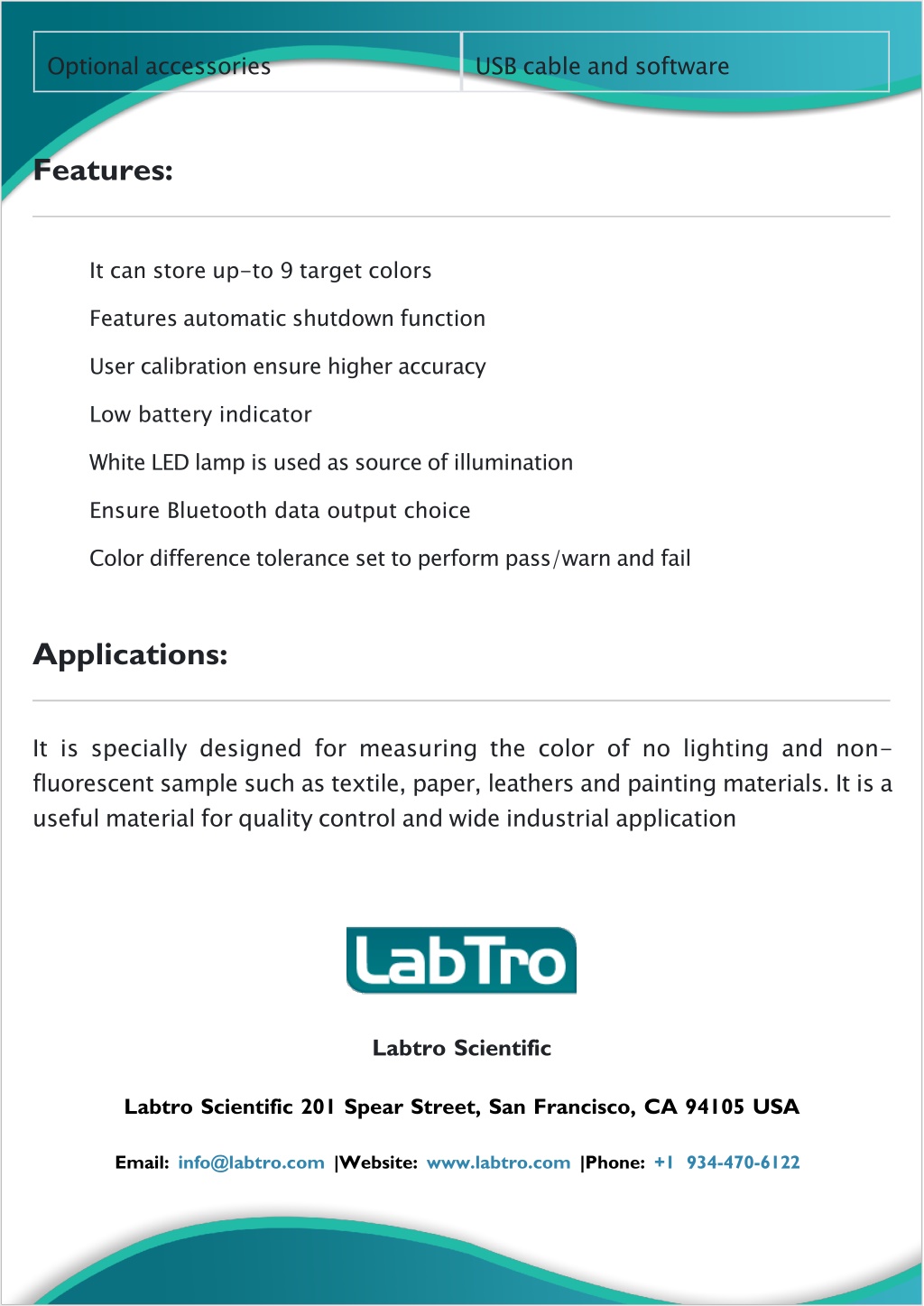

  4. Optional accessories USB cable and software Features: It can store up-to 9 target colors Features automatic shutdown function User calibration ensure higher accuracy Low battery indicator White LED lamp is used as source of illumination Ensure Bluetooth data output choice Color difference tolerance set to perform pass/warn and fail Applications: It is specially designed for measuring the color of no lighting and non- fluorescent sample such as textile, paper, leathers and painting materials. It is a useful material for quality control and wide industrial application Labtro Scientific Labtro Scientific 201 Spear Street, San Francisco, CA 94105 USA Email: info@labtro.com |Website: www.labtro.com |Phone: +1 934-470-6122
