SharePoint Backup and Restore – Prepare for the worst …

Solomon avatar
Solomon
15 diapositives · 1.1K Views · Mar 04, 2011

SharePoint Backup and Restore – Prepare for the worst …. Marc Pollentier, Phoenix Solutions Joris Poelmans, Dolmen. Agenda. Backup, Restore Demo Document, attachment recovery Undelete – different options Resources. What Gets Backed Up?. All SQL databases Index files and sps.edb

#sharepoint server
SharePoint Backup and Restore – Prepare for the worst … - slide 1
01 / 15SharePoint Backup and Restore – Prepare for the worst …
1 / 17

Télécharger la présentation

SharePoint Backup and Restore – Prepare for the worst …
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. SharePoint Backup and Restore – Prepare for the worst … Marc Pollentier, Phoenix Solutions Joris Poelmans, Dolmen

  2. Agenda • Backup, Restore • Demo • Document, attachment recovery • Undelete – different options • Resources

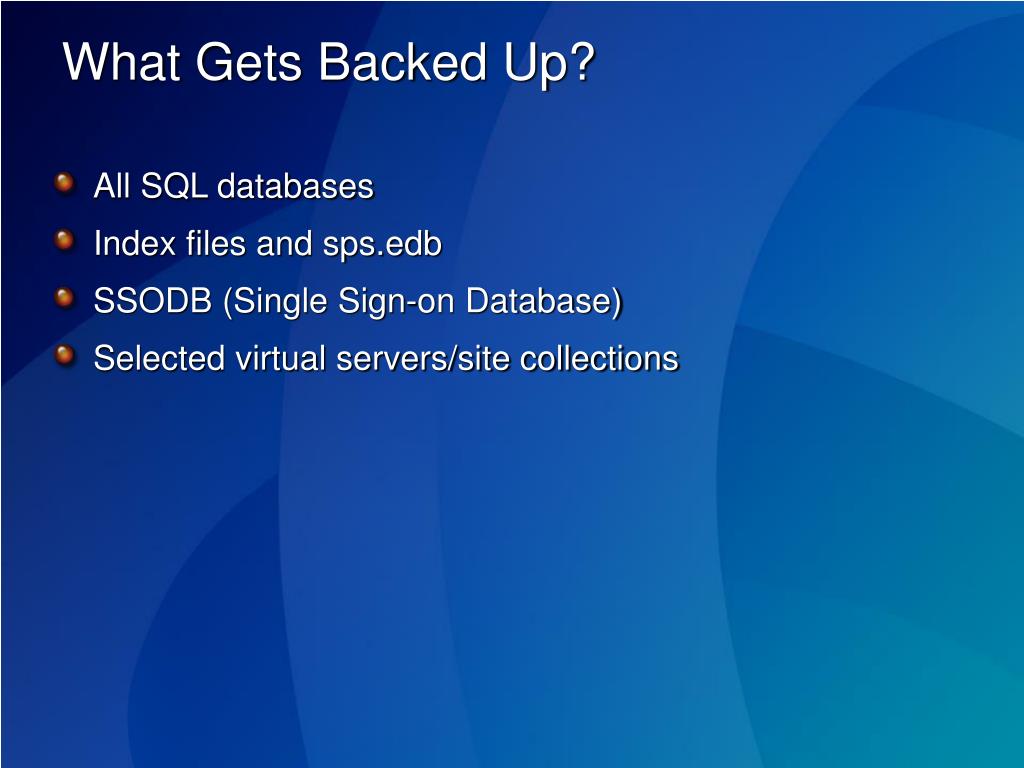

  3. What Gets Backed Up? • All SQL databases • Index files and sps.edb • SSODB (Single Sign-on Database) • Selected virtual servers/site collections

  4. What Should Be Backed Up Separately? • All customizations such as templates, web part Files, and other file-based information • Operating system and binaries • System State Data • IIS, Virtual Servers and Metabase

  5. Three Steps to a Full Farm Backup • First, backup your portals, including the Index • Using SQL Server + File System will not adequately backup the index due to the index files’ connection to sps.edb • Second, backup the IIS Metabase on each Web Server • Third, backup the virtual server files for each virtual server

  6. Last slide before demo! PORTAL IIS METABASE VIRTUAL SERVER DIRECTORIES BACKUP RESTORE

  7. Demo Portal Restore

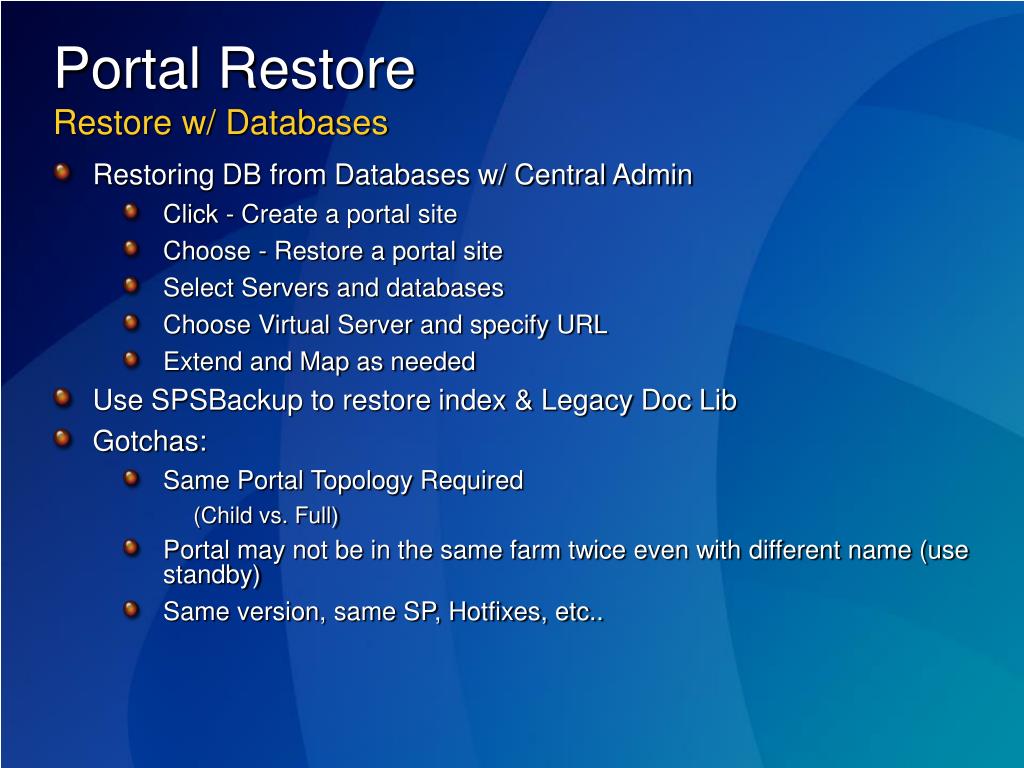

  8. Portal RestoreRestore w/ Databases • Restoring DB from Databases w/ Central Admin • Click - Create a portal site • Choose - Restore a portal site • Select Servers and databases • Choose Virtual Server and specify URL • Extend and Map as needed • Use SPSBackup to restore index & Legacy Doc Lib • Gotchas: • Same Portal Topology Required (Child vs. Full) • Portal may not be in the same farm twice even with different name (use standby) • Same version, same SP, Hotfixes, etc..

  9. What to Backup • SharePoint SQL Databases • Config, Content, Prof & Serv Databases • SharePoint Server(s) Drives & System State • IIS Metabase • Web Part Packages (Assemblies) • IIS Home Directories & VDirs • Program Files & Common File Customizations • Portal Web Stores • SPS Indexes (Jet db) & Legacy Doc Libraries

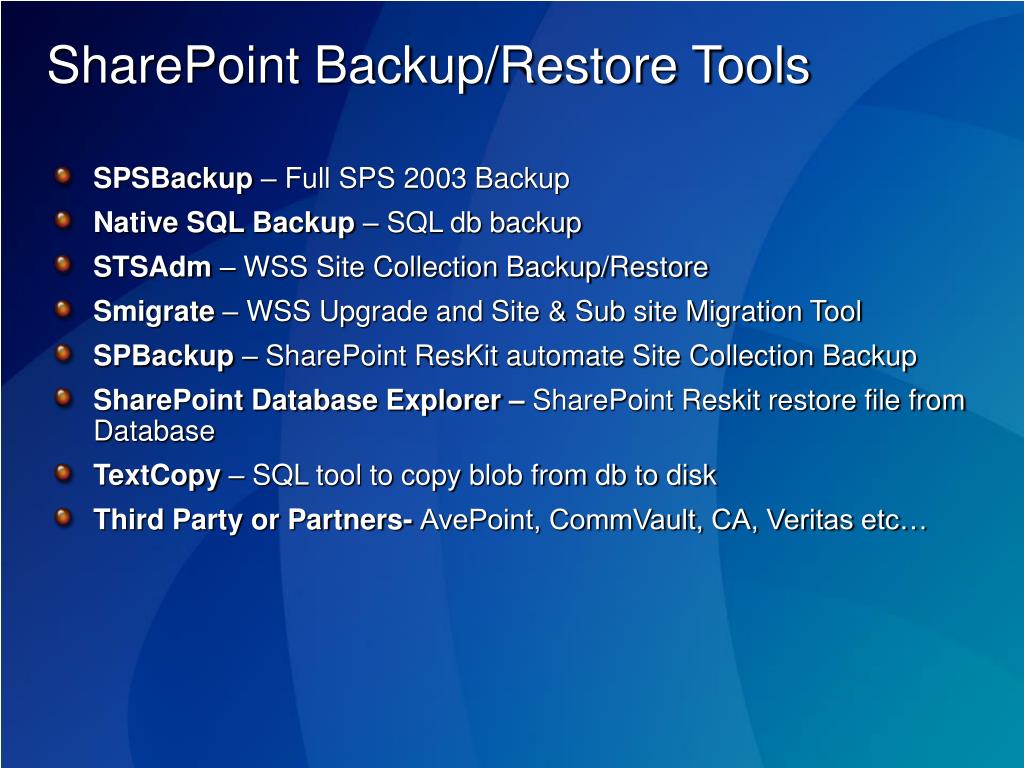

  10. SharePoint Backup/Restore Tools • SPSBackup – Full SPS 2003 Backup • Native SQL Backup – SQL db backup • STSAdm – WSS Site Collection Backup/Restore • Smigrate – WSS Upgrade and Site & Sub site Migration Tool • SPBackup – SharePoint ResKit automate Site Collection Backup • SharePoint Database Explorer – SharePoint Reskit restore file from Database • TextCopy – SQL tool to copy blob from db to disk • Third Party or Partners- AvePoint, CommVault, CA, Veritas etc…

  11. SPSBackup Full Farm Backup Spsbackup.exe /all /file <Backup path and file> Central Portal Index Backup example: Spsbackup.exe /portal http://portal /service index /file \\server\share\backup /overwrite • Databases • Legacy Doc Lib • SPS Indexes • XML manifest • schema version • portal GUID • Path to DB backup file • Result * Most common issues are write permissions on destination for service account or conflict with other SharePoint jobs

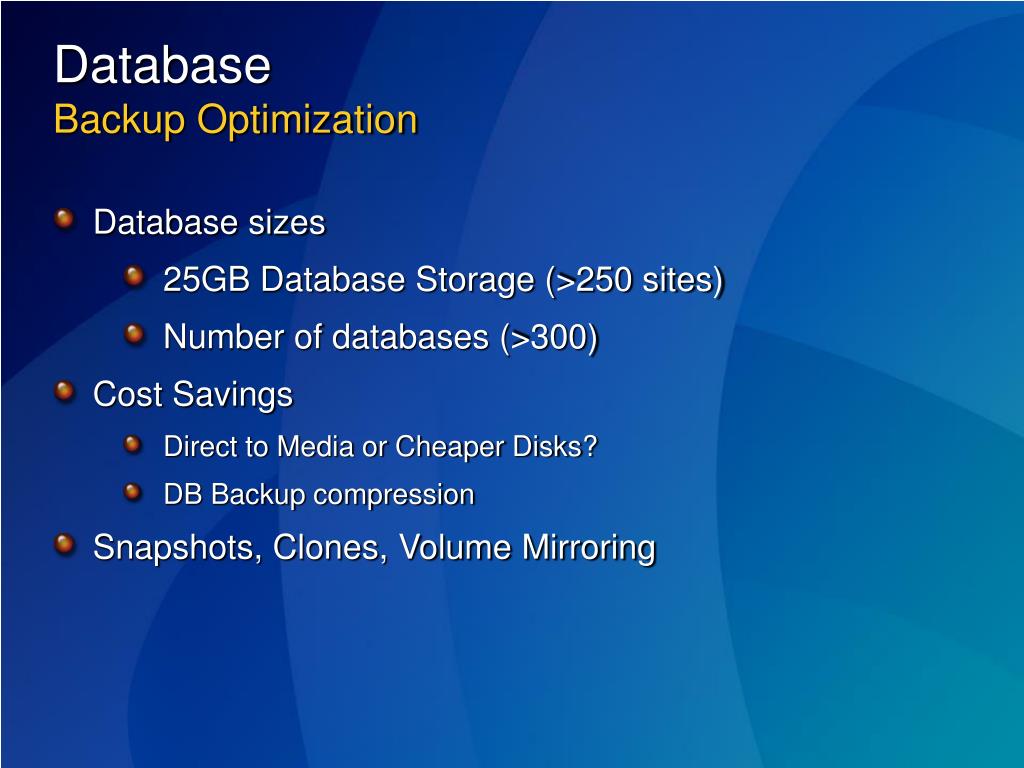

  12. DatabaseBackup Optimization • Database sizes • 25GB Database Storage (>250 sites) • Number of databases (>300) • Cost Savings • Direct to Media or Cheaper Disks? • DB Backup compression • Snapshots, Clones, Volume Mirroring

  13. Undelete options • Add a recycle bin to Windows SharePoint Services http://msdn.microsoft.com/msdnmag/issues/05/02/RecycleBinforWSS/ • Deleted items document library http://mindsharpblogs.com/todd/archive/2005/10/06/719.aspx • SharePoint Recycle Bin http://www.gotdotnet.com/Workspaces/Workspace.aspx?id=8437a203-f377-401c-b23d-ae59e6f05b80

  14. Backup your frontend webservers • IIS metabase • Root directories of WSS-extended virtual servers • Custom web part assemblies • Custom templates • Addin software

  15. Resources • Be Prepared a guide to SharePoint Disaster Prevention and Recovery http://www.microsoft.com/technet/technetmag/issues/2005/11/BePrepared/default.aspx • Backup and Restore Options for Windows SharePoint Services http://www.microsoft.com/resources/documentation/wss/2/all/adminguide/en-us/stsf20.mspx • SharePoint Resource Kit – Chapter 28 : Disaster Recovery in SharePoint Products and technologies • MSD2D: Backing up Sharepoint Portal Server 2 (by James Edelen). (5/2/2003) http://www.msd2d.com/Content/Tip_viewitem.aspx?section=Sharepoint&category=Administration&id=425b6c89-886e-4f94-98ee-2a90d57cfdf7
