  1. Web Application NDOR on line SuperLoad Oversize/OverweightTruck Permitting System By Steve Brown P.E. Nebraska Dept. of Roads April 2006

  2. Overview of the NAPTS System • Nebraska Automated Truck permitting System (NATPS) • Self issued permits • Open to the public • Overload permit application • Payment type • Permit delivery • What is next Area III/IV HEEP Conference 2006 Ames Iowa

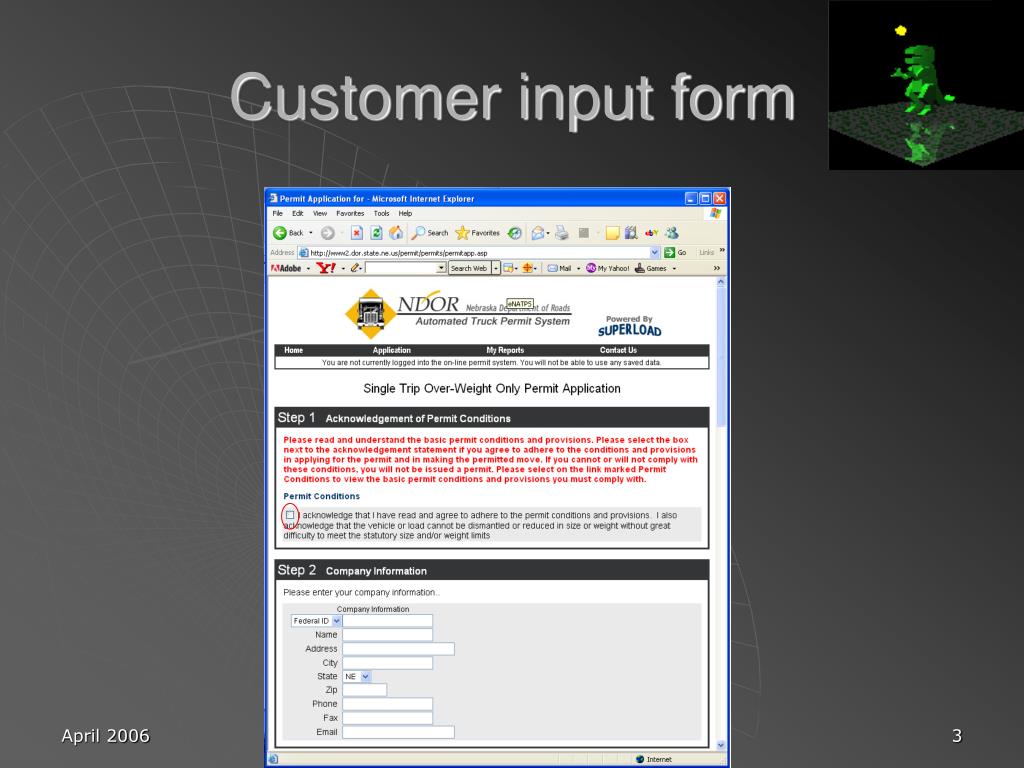

  3. Customer input form

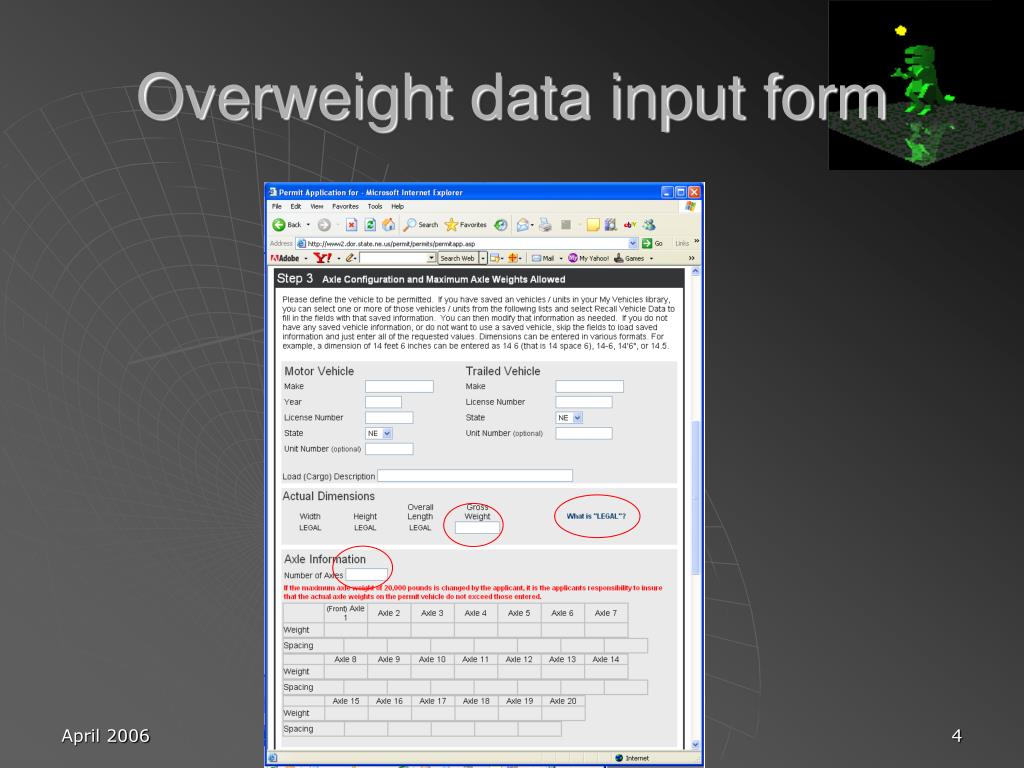

  4. Overweight data input form

  5. Axle spacing and loads

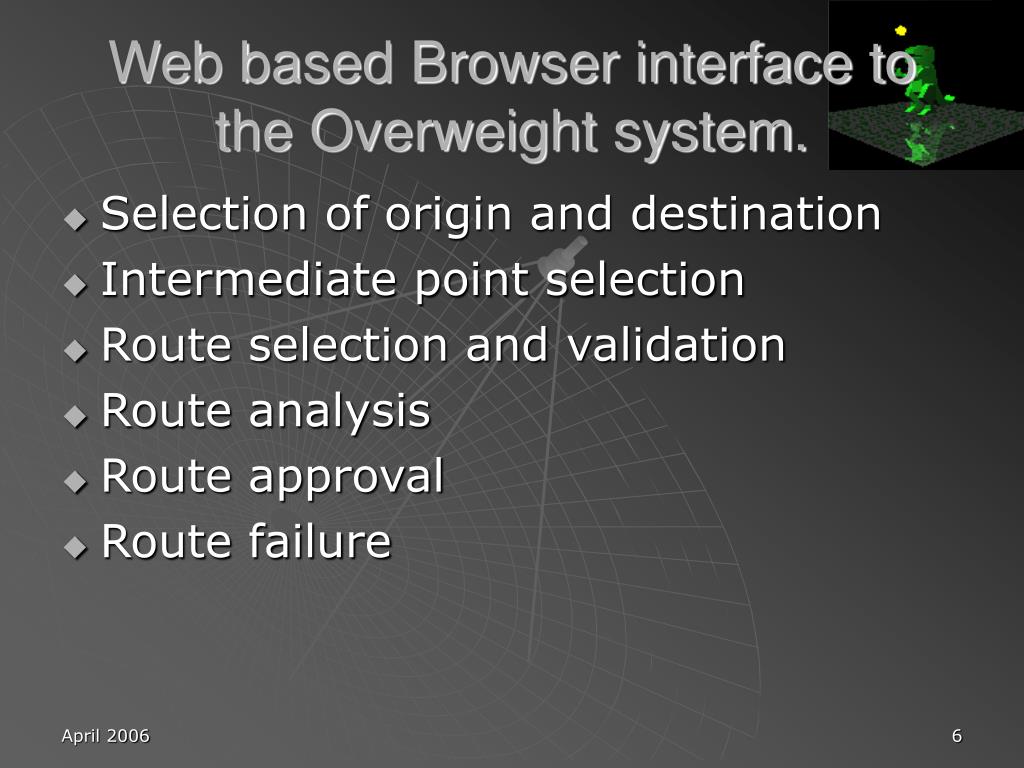

  6. Web based Browser interface to the Overweight system. • Selection of origin and destination • Intermediate point selection • Route selection and validation • Route analysis • Route approval • Route failure

  7. Origin and Destination

  8. Select desired route

  9. Route Analysis

  10. Overview of the route approval process • Live load analysis is computed for each structure crossed • Bars influence lines are used in a structural analysis for each structure • The vehicle axels and loads are used in the rating analysis

  11. Discussion of an unsuccessful route selection

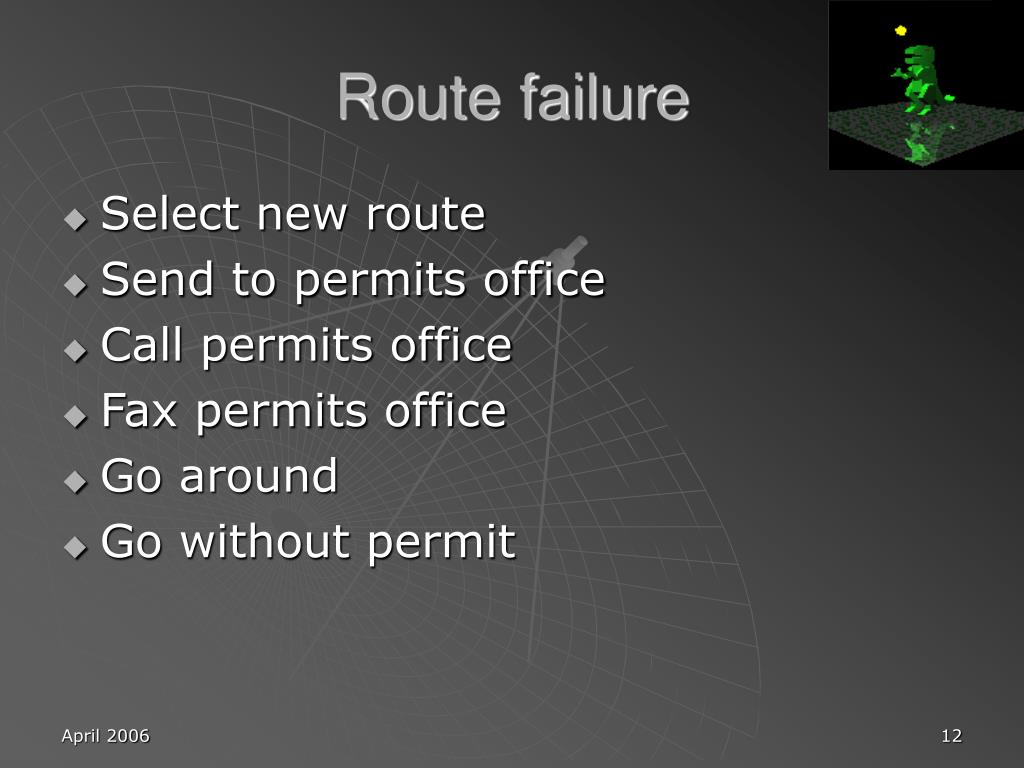

  12. Route failure • Select new route • Send to permits office • Call permits office • Fax permits office • Go around • Go without permit

  13. Route failure • Request is sent to the Bridge division Permits Engineer • Permits engineers’ tools • Superload tools for structural analysis • Analysis reports • Hand computations • Engineering judgment and experience • Other software tools when needed

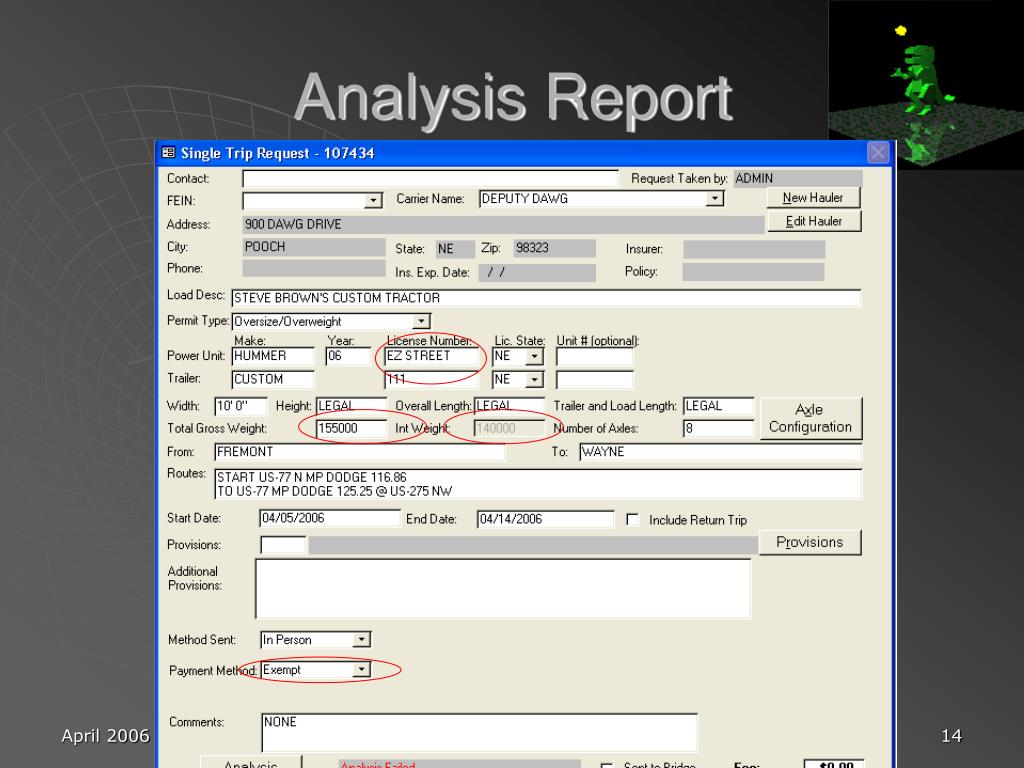

  14. Analysis Report

  15. Bridge rating analysis tools • SuperLoad

  16. Analysis reports

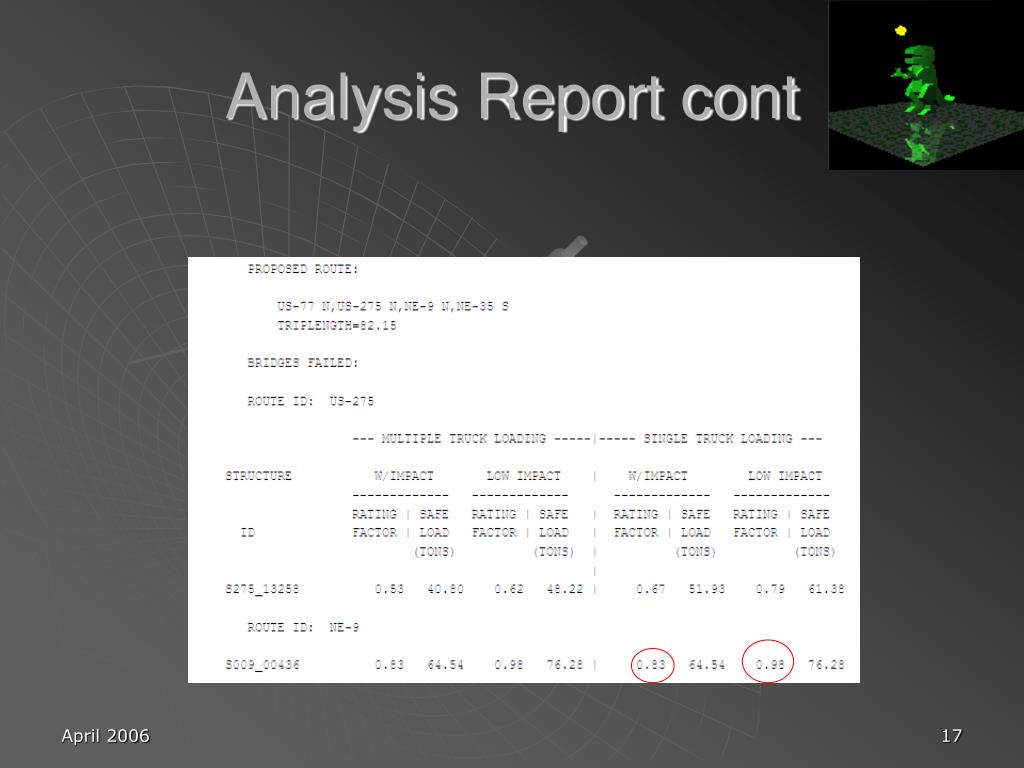

  17. Analysis Report cont

  18. Analysis Report cont

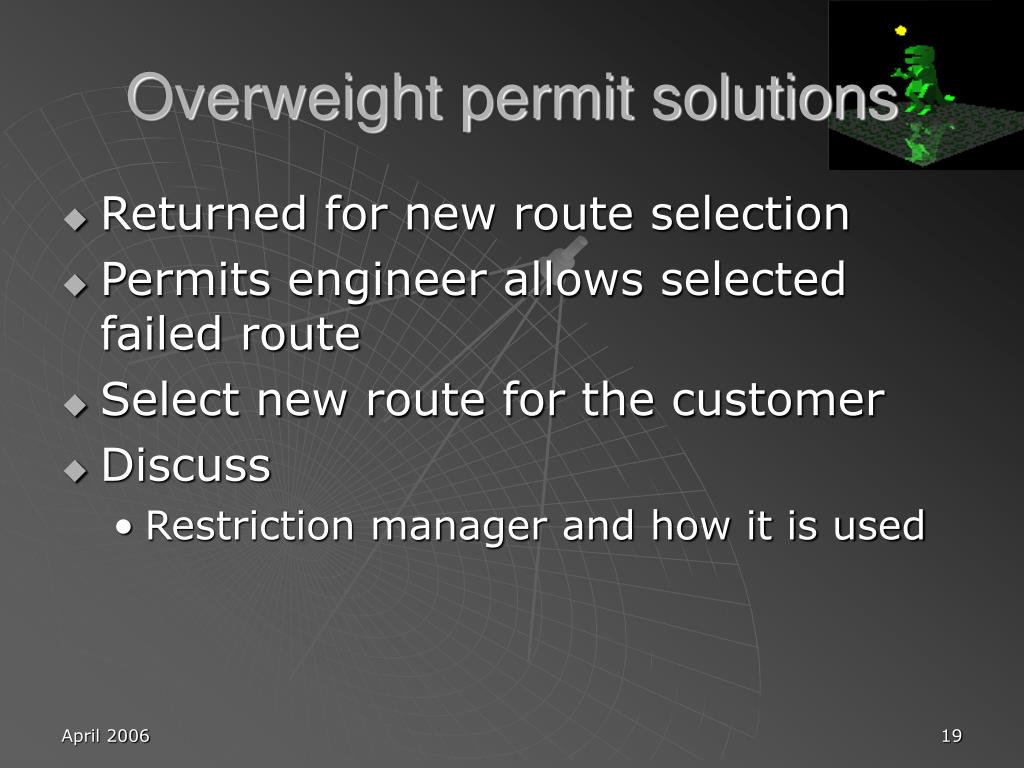

  19. Overweight permit solutions • Returned for new route selection • Permits engineer allows selected failed route • Select new route for the customer • Discuss • Restriction manager and how it is used

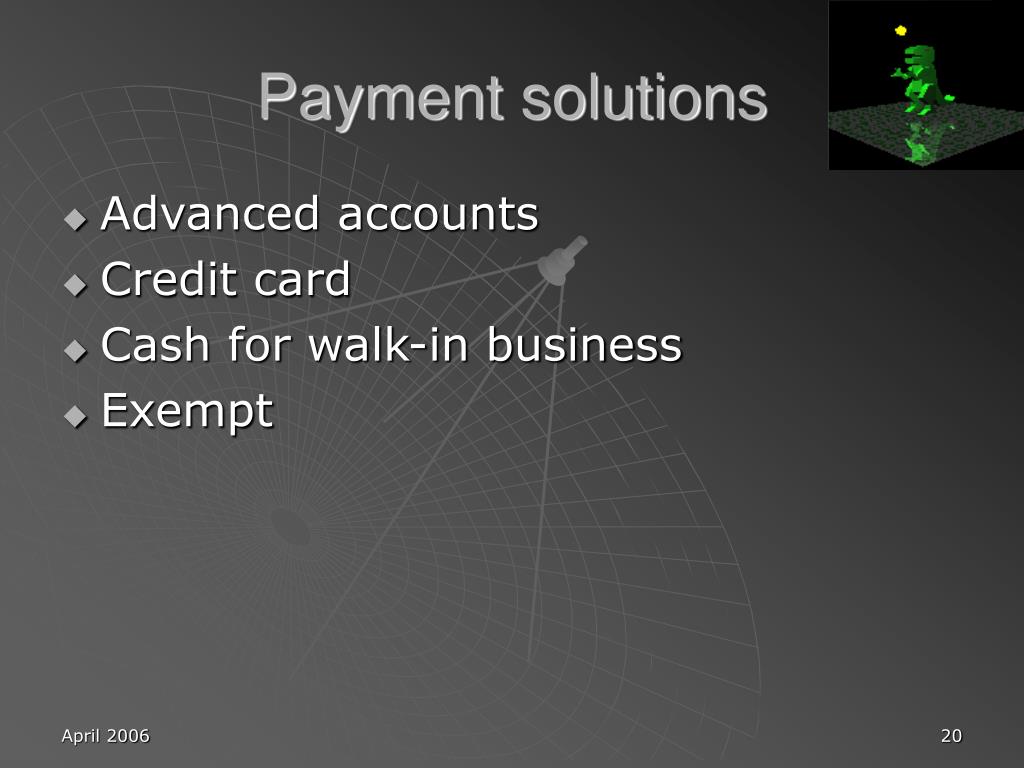

  20. Payment solutions • Advanced accounts • Credit card • Cash for walk-in business • Exempt

  21. Permit delivery methods • Fax • Email • Postal Mail

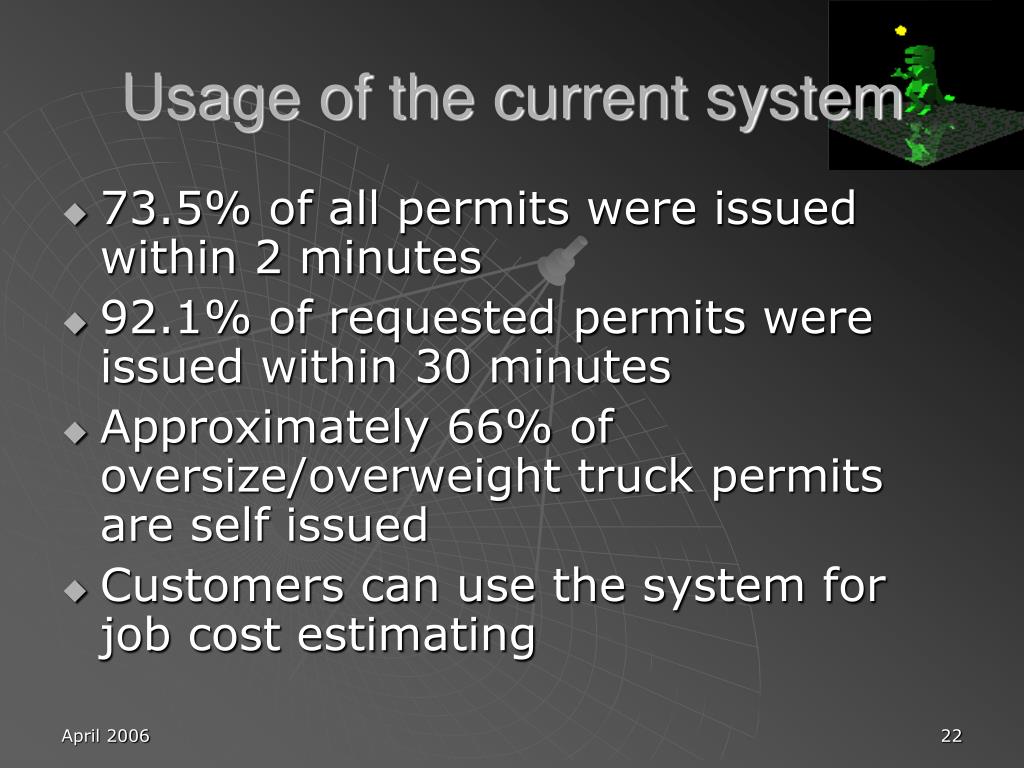

  22. Usage of the current system • 73.5% of all permits were issued within 2 minutes • 92.1% of requested permits were issued within 30 minutes • Approximately 66% of oversize/overweight truck permits are self issued • Customers can use the system for job cost estimating

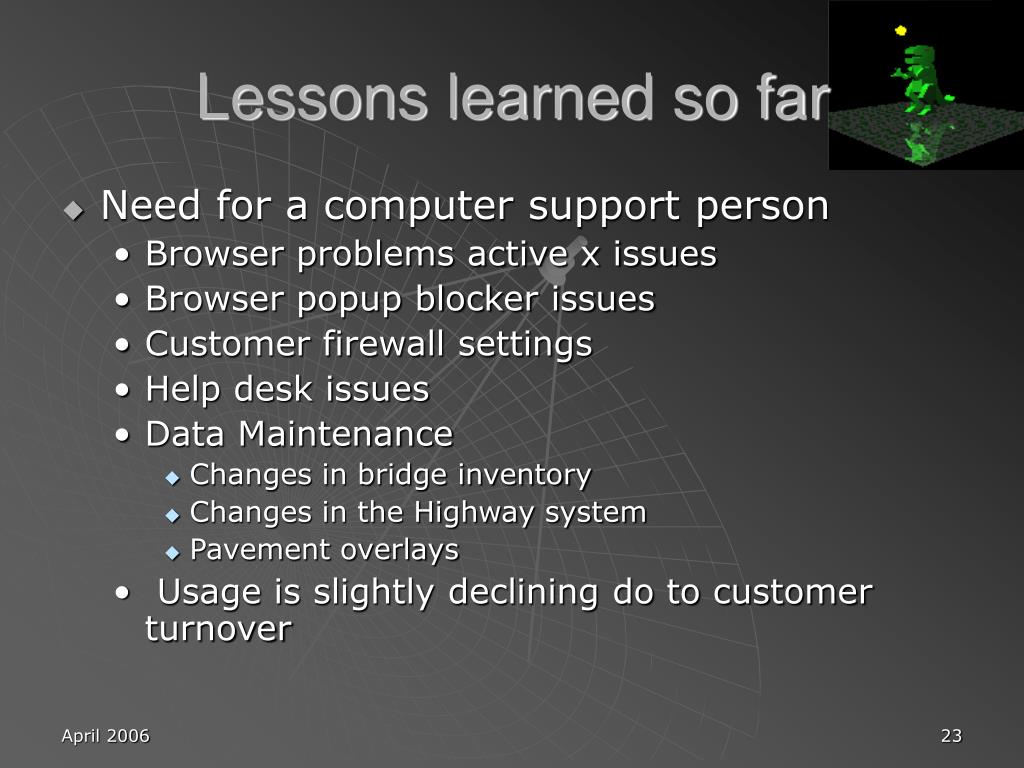

  23. Lessons learned so far • Need for a computer support person • Browser problems active x issues • Browser popup blocker issues • Customer firewall settings • Help desk issues • Data Maintenance • Changes in bridge inventory • Changes in the Highway system • Pavement overlays • Usage is slightly declining do to customer turnover

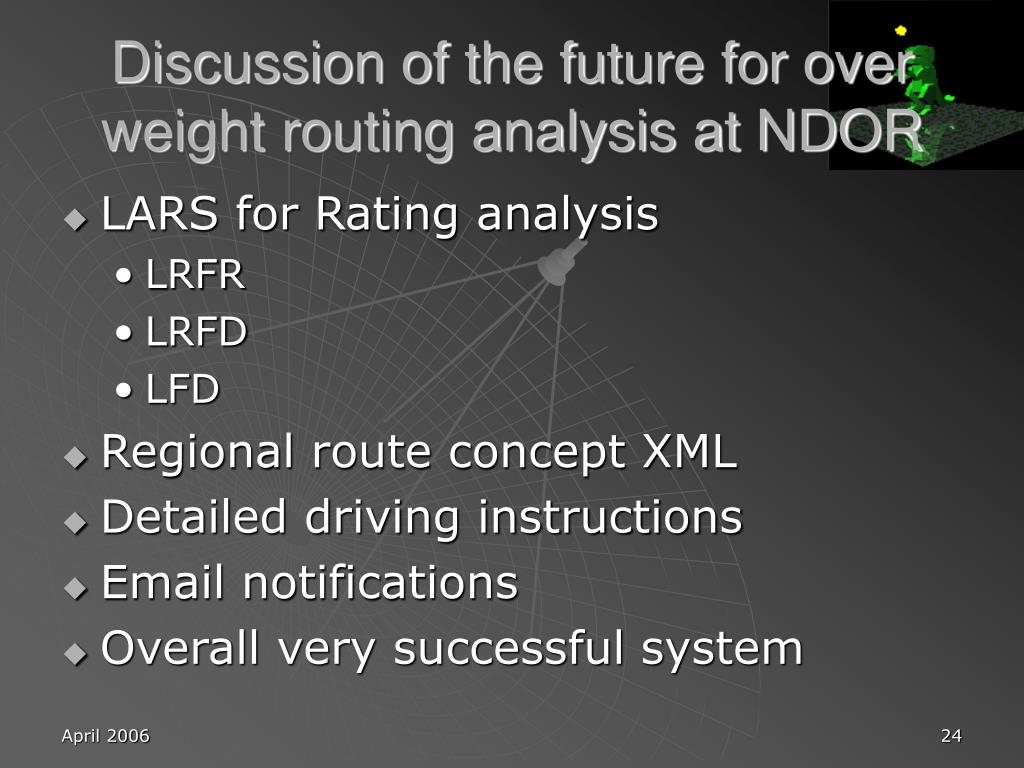

  24. Discussion of the future for over weight routing analysis at NDOR • LARS for Rating analysis • LRFR • LRFD • LFD • Regional route concept XML • Detailed driving instructions • Email notifications • Overall very successful system

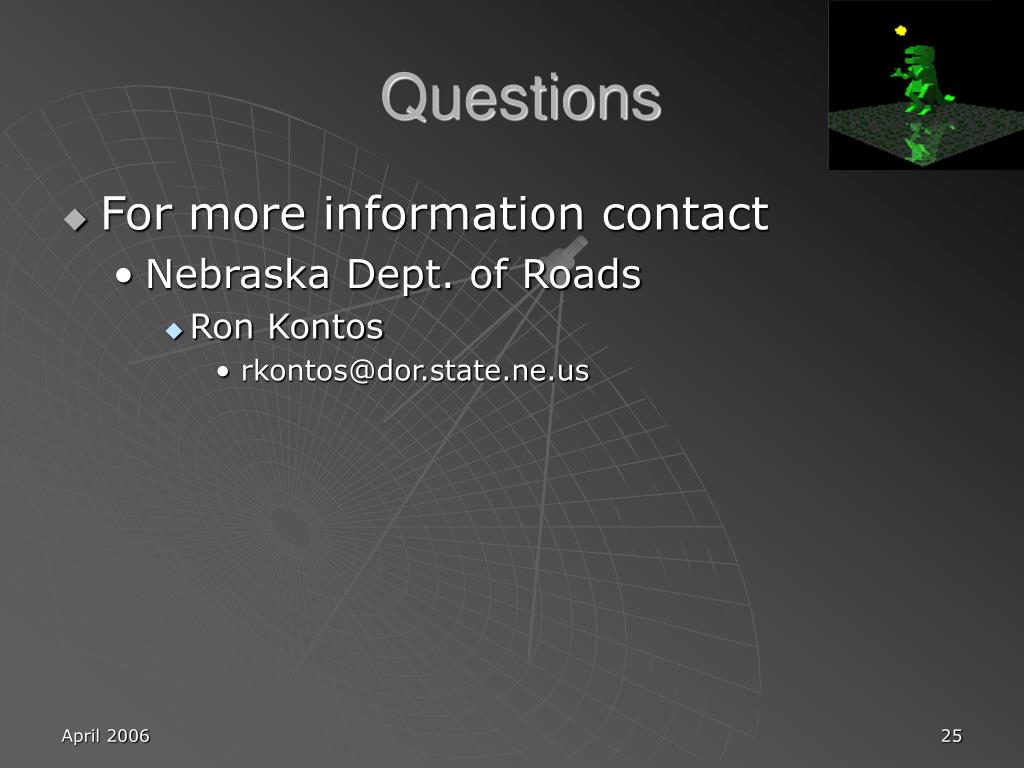

  25. Questions • For more information contact • Nebraska Dept. of Roads • Ron Kontos • rkontos@dor.state.ne.us
