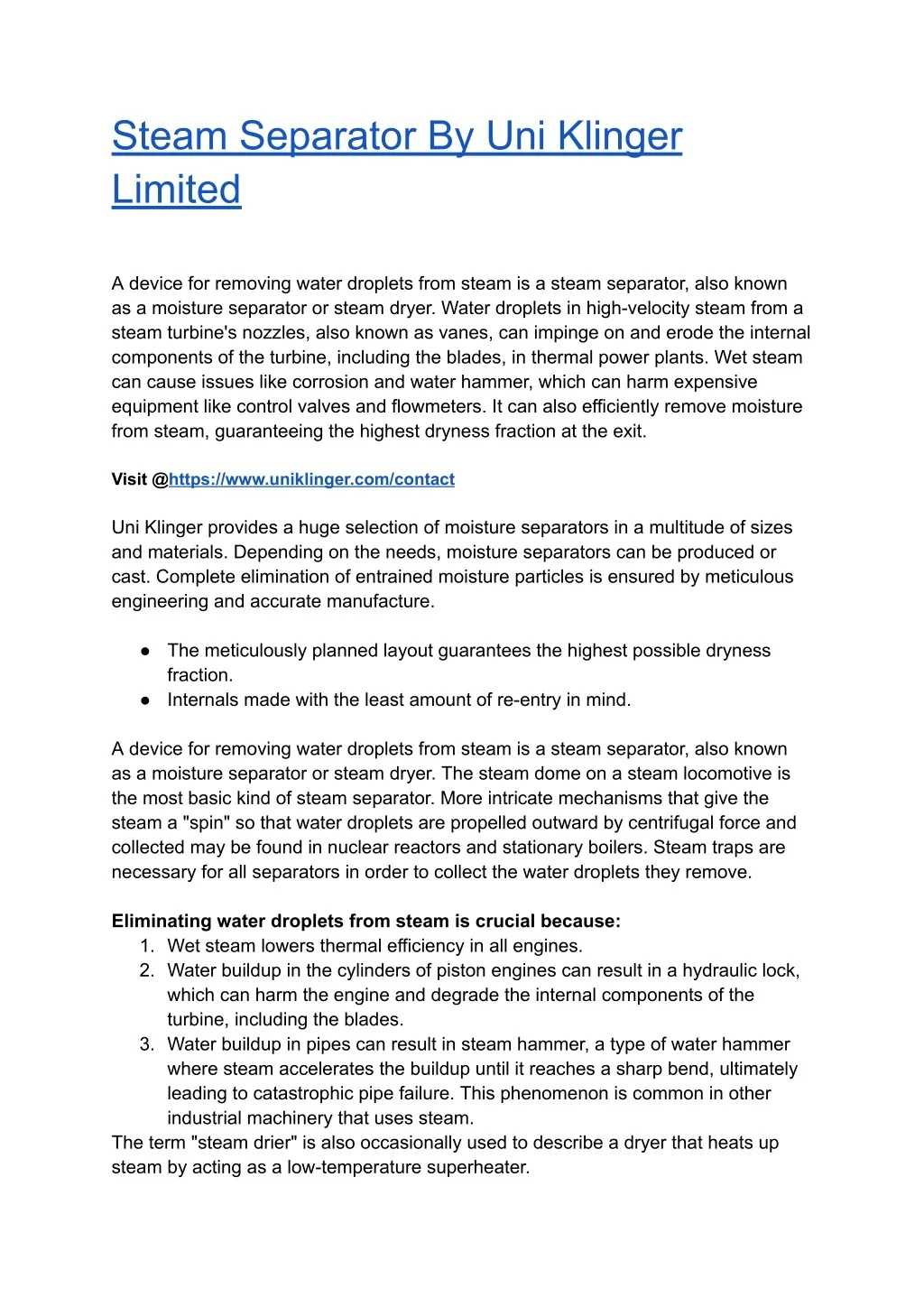

1. Steam Separator By Uni Klinger Limited A device for removing water droplets from steam is a steam separator, also known as a moisture separator or steam dryer. Water droplets in high-velocity steam from a steam turbine's nozzles, also known as vanes, can impinge on and erode the internal components of the turbine, including the blades, in thermal power plants. Wet steam can cause issues like corrosion and water hammer, which can harm expensive equipment like control valves and flowmeters. It can also efficiently remove moisture from steam, guaranteeing the highest dryness fraction at the exit. Visit @ https://www.uniklinger.com/contact Uni Klinger provides a huge selection of moisture separators in a multitude of sizes and materials. Depending on the needs, moisture separators can be produced or cast. Complete elimination of entrained moisture particles is ensured by meticulous engineering and accurate manufacture. ● The meticulously planned layout guarantees the highest possible dryness fraction. ● Internals made with the least amount of re-entry in mind. A device for removing water droplets from steam is a steam separator, also known as a moisture separator or steam dryer. The steam dome on a steam locomotive is the most basic kind of steam separator. More intricate mechanisms that give the steam a "spin" so that water droplets are propelled outward by centrifugal force and collected may be found in nuclear reactors and stationary boilers. Steam traps are necessary for all separators in order to collect the water droplets they remove. Eliminating water droplets from steam is crucial because: 1. Wet steam lowers thermal efficiency in all engines. 2. Water buildup in the cylinders of piston engines can result in a hydraulic lock, which can harm the engine and degrade the internal components of the turbine, including the blades. 3. Water buildup in pipes can result in steam hammer, a type of water hammer where steam accelerates the buildup until it reaches a sharp bend, ultimately leading to catastrophic pipe failure. This phenomenon is common in other industrial machinery that uses steam. The term "steam drier" is also occasionally used to describe a dryer that heats up steam by acting as a low-temperature superheater.

2. Benefits of Steam Separator - ● It is possible to prevent damage to expensive equipment like flow meters and control valves by installing moisture separators before such equipment. ● Using moisture separators guarantees good heat transfer rates, dependable operation, and general health of the steam system. SELECTED Feature: 1. Condensate may be removed with excellent efficiency and dependability because to the multi-baffle construction. 2. Large flow regions are typically provided by contoured body designs, which guarantee minimal pressure drops. 3. It is also possible to effectively remove moisture from compressed air lines by using this method. 4. Dimensions: 40mm x 250mm 5. Range of Pressure: PN63 6. Cast carbon steel was used as construction material. Steam separators come in three primary varieties: mechanical coalescence, centrifugal, and baffle. To get greater efficiency, two distinct types of separators are frequently combined. 1. Baffle Separator: The design and operation of this kind of moisture separator are straightforward. The separator's one or more interior baffles aid to divert the steam in one or more separate ways. The heavier condensate droplets are eliminated from the steam as a result of this redirection of the steam flow. To remove this heavy condensate, a drain mechanism (control valve or steam trap station) is used. The baffle separator is a common device in basic applications even though it is not as effective as more sophisticated models. 2. Centrifugal Separator: This type uses centrifugal force to extract the entrained condensate from the steam, as the name implies. Accurate measurements of the pressure and steam flows are necessary for centrifugal separator sizing. The centrifugal motion cannot be lowered in order to achieve excellent separation performance. 3. Mechanical Coalescing/Centrifugal Separator: Moisture is removed in two steps using this kind of separator. After passing through a stainless steel mesh, the steam condenses into bigger droplets in the first stage. A centrifugal element then removes these larger droplets in the second step. The effectiveness of this technique in removing moisture is very great. Generally 99.9% effective.

3. In order to manage the moisture content in some systems, a steam separator is necessary; otherwise, the following operational issues may occur: ● Abrasion ● decrease in the system's efficiency ● Failure of the system's constituent parts ● Figure drawing ● Control valves and flow meters not working properly ● reduction in the system's total productivity Read Full Blog@ https://www.uniklinger.com/blog-detail/steam-separator For More Information Visit: www.uniklinger.com
