Cyclone Separator

Cyclone Separator. The cyclone separator is used to separate combustion gases from ash. Consider the following scenario . combustion gases mixed with ash. ash-free combustion gases leave the cyclone. weight fraction of ash = 0.001.

dakota
Télécharger la présentation

Cyclone Separator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

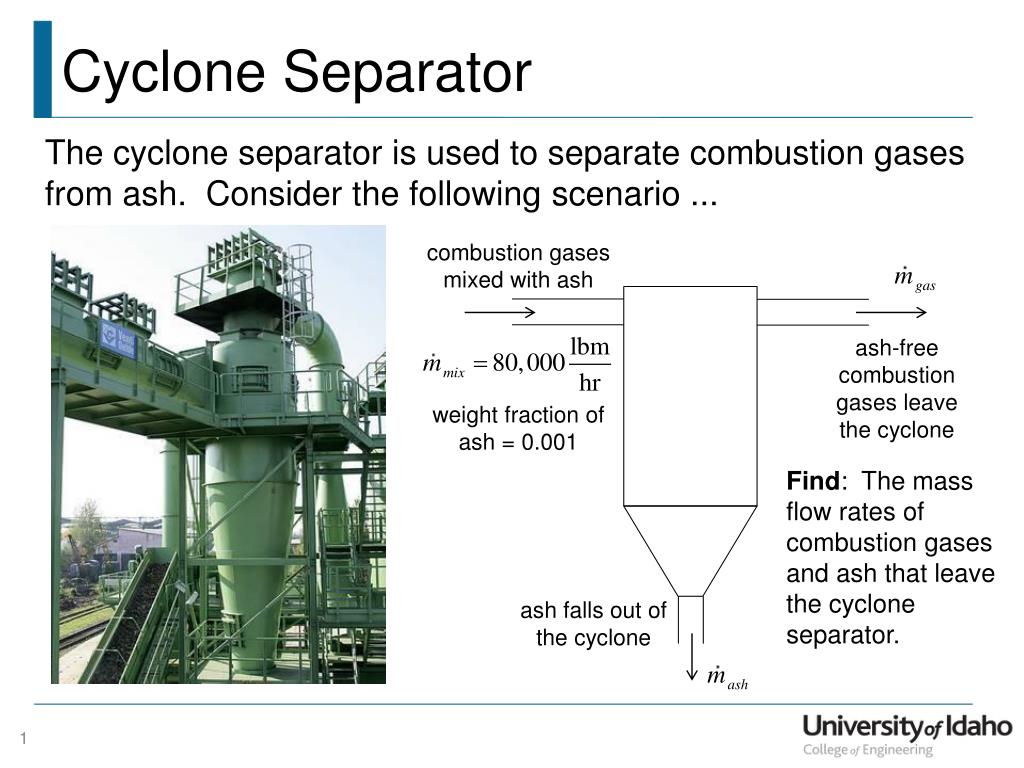

  1. Cyclone Separator The cyclone separator is used to separate combustion gases from ash. Consider the following scenario ... combustion gases mixed with ash ash-free combustion gases leave the cyclone weight fraction of ash = 0.001 Find: The mass flow rates of combustion gases and ash that leave the cyclone separator. ash falls out of the cyclone

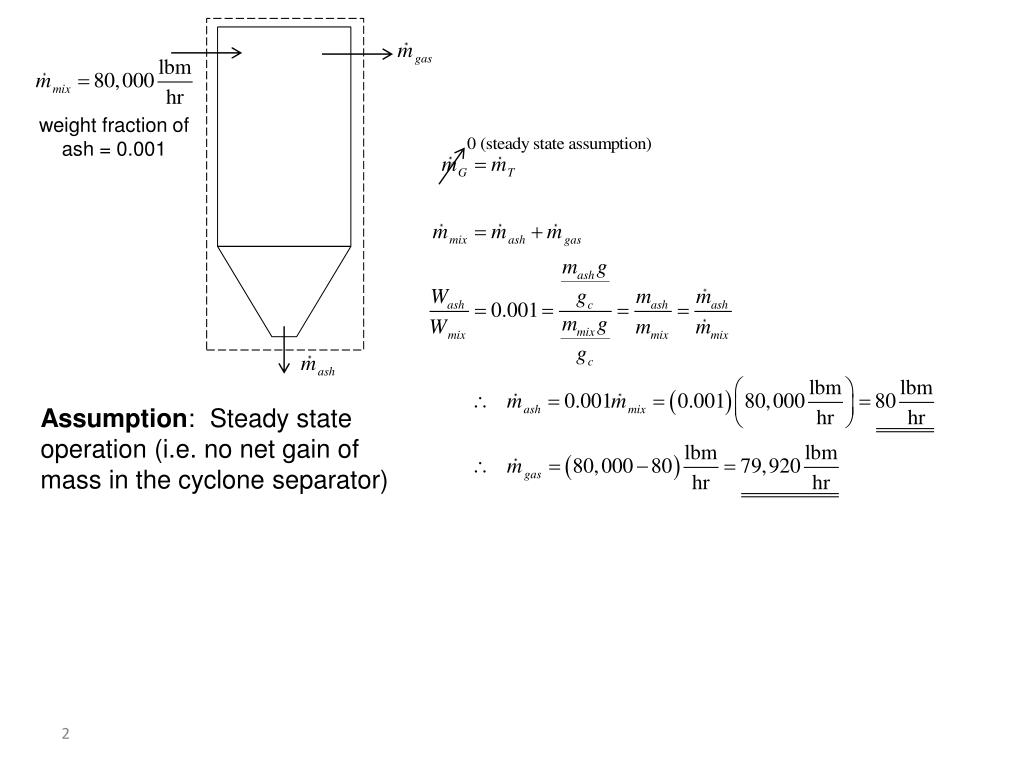

  2. weight fraction of ash = 0.001 Assumption: Steady state operation (i.e. no net gain of mass in the cyclone separator)
