Automatic Gel Imaging System
Automatic Gel Imaging System is a highly integrated full-automated system designed for nucleic acid detection and <br>documentation, with a simple and practical interface and time control guide. It has an F1.2, 8 u2013 48 mm motorized lens and <br>a high resolution camera with 5.03 megapixels to produce 16 bit images.
Automatic Gel Imaging System
E N D
Presentation Transcript

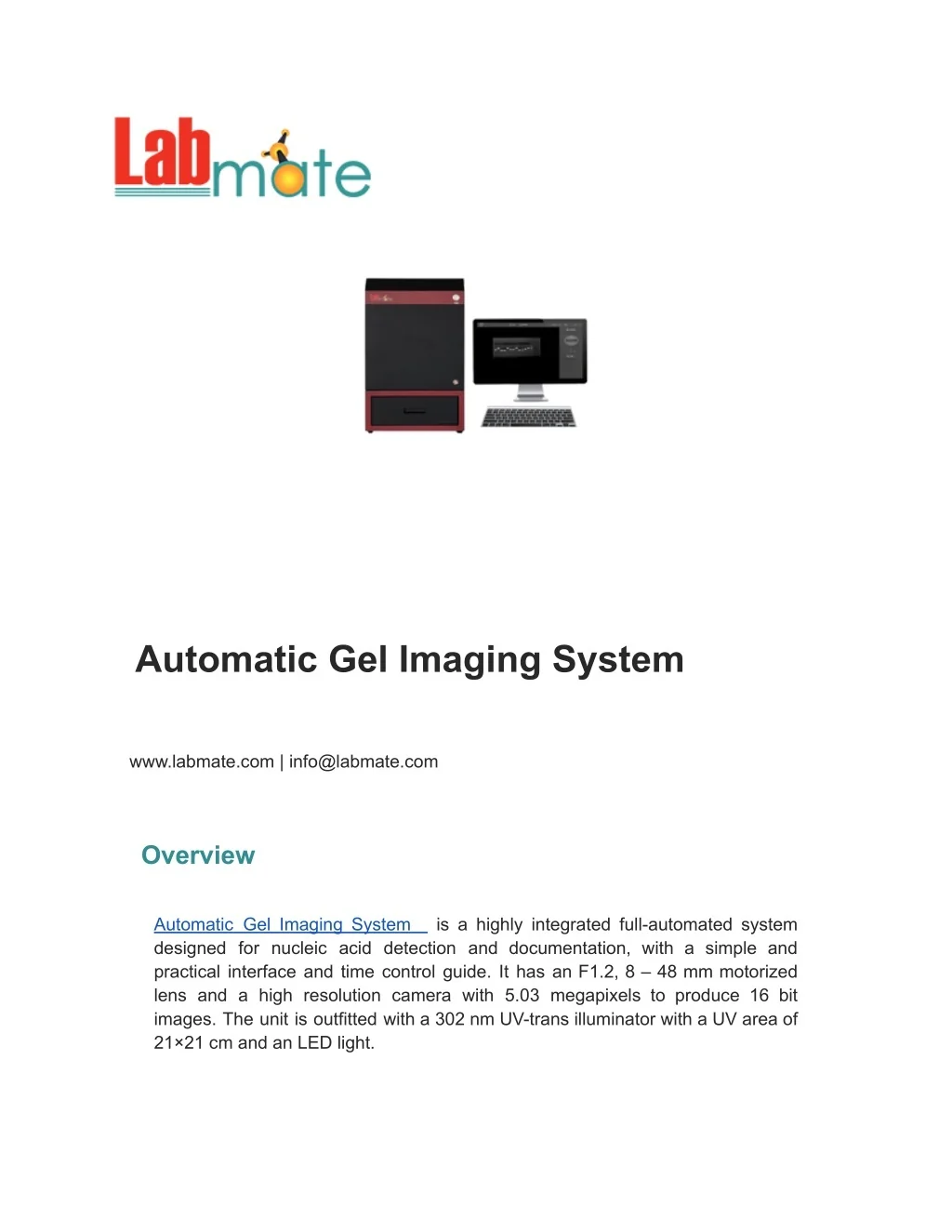

Automatic Gel Imaging System www.labmate.com | info@labmate.com Overview Automatic Gel Imaging System designed for nucleic acid detection and documentation, with a simple and practical interface and time control guide. It has an F1.2, 8 – 48 mm motorized lens and a high resolution camera with 5.03 megapixels to produce 16 bit images. The unit is outfitted with a 302 nm UV-trans illuminator with a UV area of 21×21 cm and an LED light. is a highly integrated full-automated system

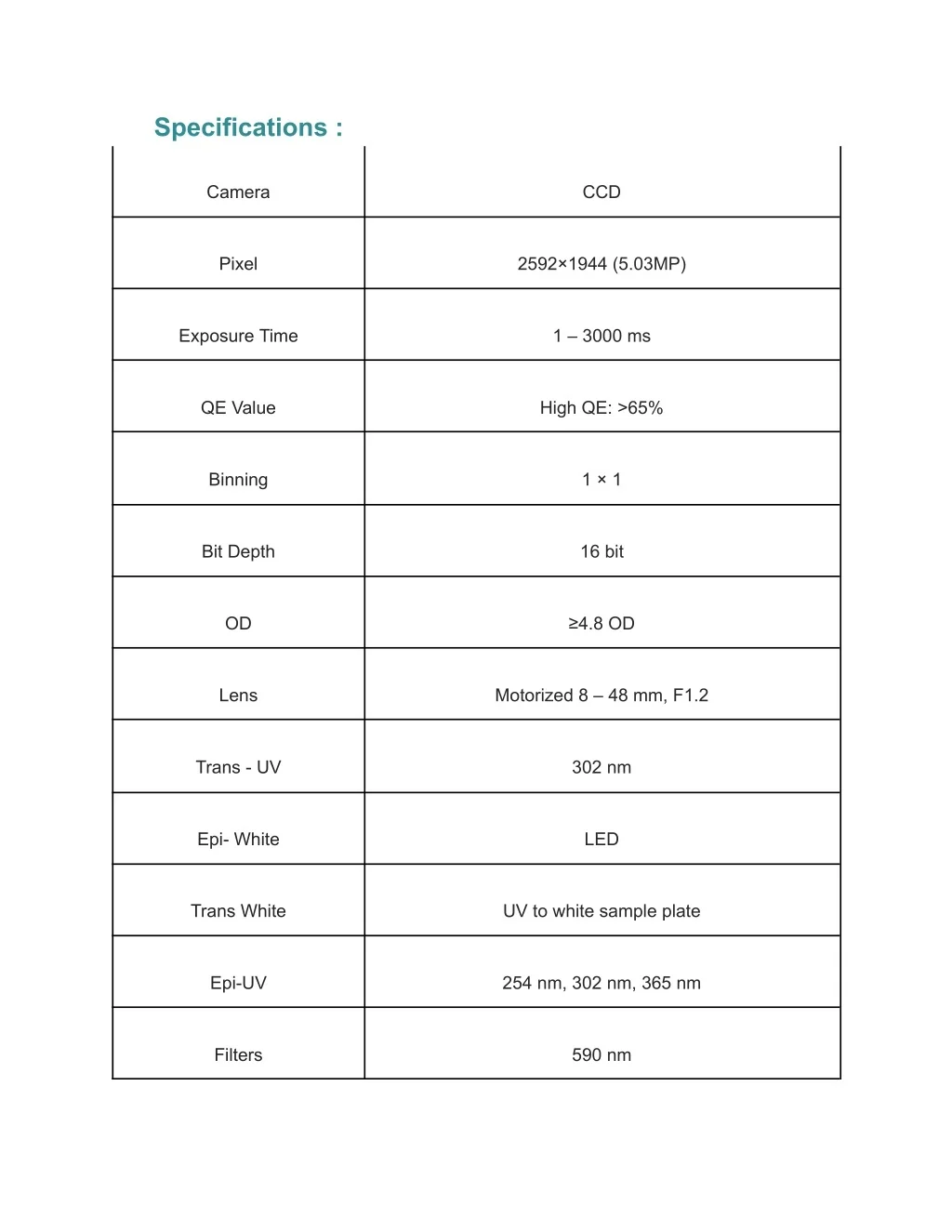

Specifications : Camera CCD Pixel 2592×1944 (5.03MP) Exposure Time 1 – 3000 ms QE Value High QE: >65% Binning 1 × 1 Bit Depth 16 bit OD ≥4.8 OD Lens Motorized 8 – 48 mm, F1.2 Trans - UV 302 nm Epi- White LED Trans White UV to white sample plate Epi-UV 254 nm, 302 nm, 365 nm Filters 590 nm

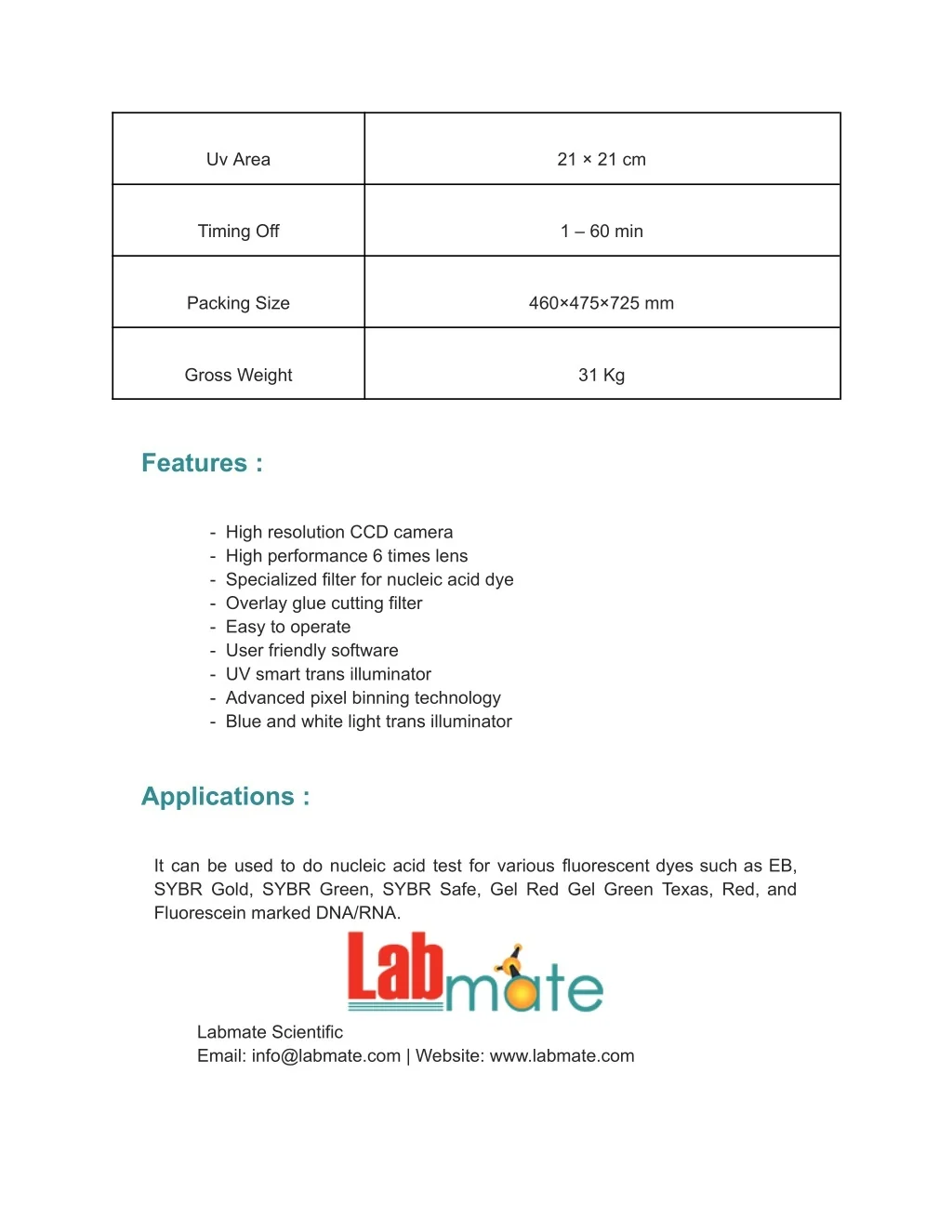

Uv Area 21 × 21 cm Timing Off 1 – 60 min Packing Size 460×475×725 mm Gross Weight 31 Kg Features : - High resolution CCD camera - High performance 6 times lens - Specialized filter for nucleic acid dye - Overlay glue cutting filter - Easy to operate - User friendly software - UV smart trans illuminator - Advanced pixel binning technology - Blue and white light trans illuminator Applications : It can be used to do nucleic acid test for various fluorescent dyes such as EB, SYBR Gold, SYBR Green, SYBR Safe, Gel Red Gel Green Texas, Red, and Fluorescein marked DNA/RNA. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
