Flame Photometer

DESCRIPTION

Flame Photometer is a scientific tool used to quantify the concentration of specific chemical substances particularly alkali and alkaline earth metals in a <br>solution. It functions using the fundamental ideas of flame emission spectroscopy, which includes sample ingestion at a rate of 6 mL per min. Especially <br>beneficial for analyzing elements with strong atomic emission lines, which include sodium (Na) and potassium(K). <br>

Télécharger la présentation

Flame Photometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

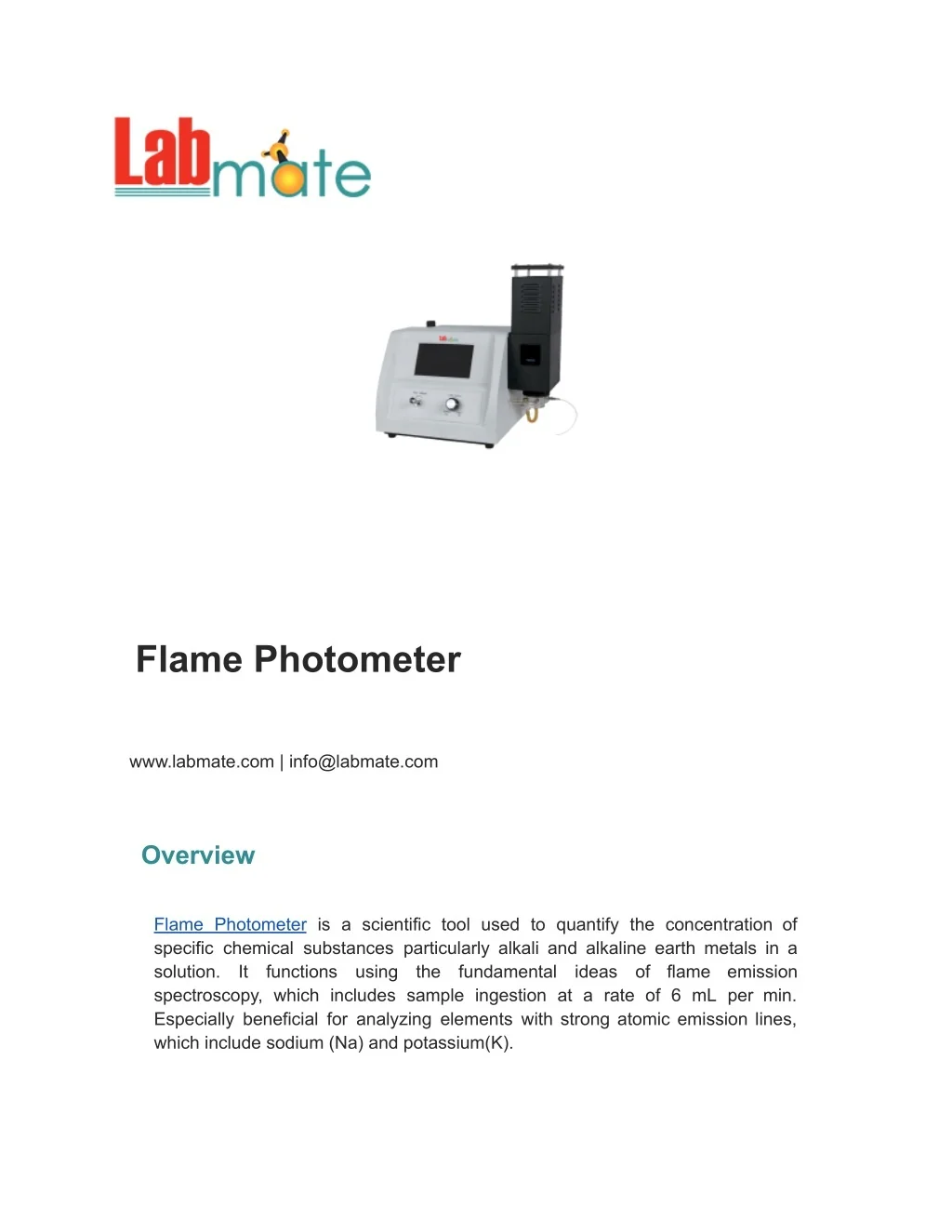

  1. Flame Photometer www.labmate.com | info@labmate.com Overview Flame Photometer is a scientific tool used to quantify the concentration of specific chemical substances particularly alkali and alkaline earth metals in a solution. It functions using the fundamental spectroscopy, which includes sample ingestion at a rate of 6 mL per min. Especially beneficial for analyzing elements with strong atomic emission lines, which include sodium (Na) and potassium(K). ideas of flame emission

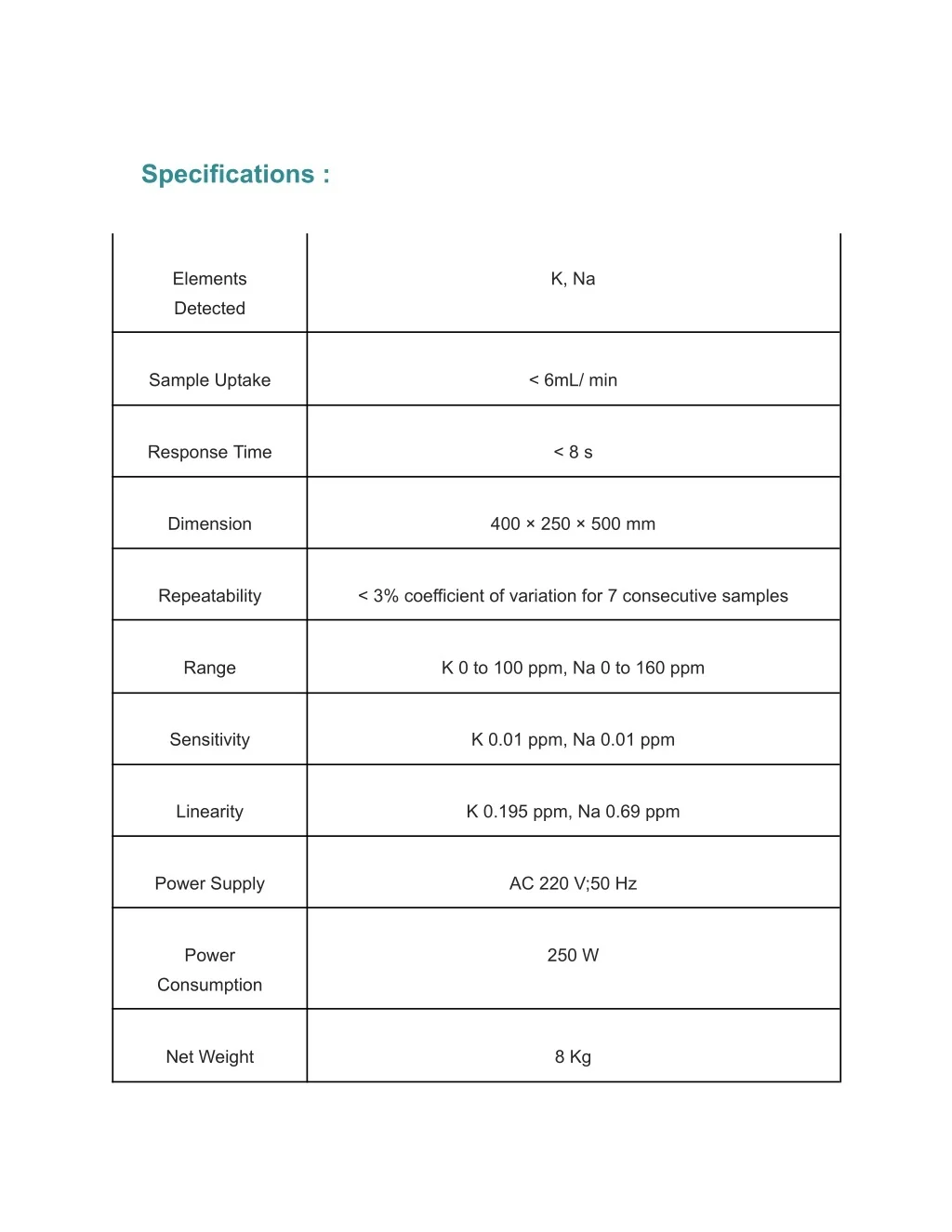

  2. Specifications : Elements K, Na Detected Sample Uptake < 6mL/ min Response Time < 8 s Dimension 400 × 250 × 500 mm Repeatability < 3% coefficient of variation for 7 consecutive samples Range K 0 to 100 ppm, Na 0 to 160 ppm Sensitivity K 0.01 ppm, Na 0.01 ppm Linearity K 0.195 ppm, Na 0.69 ppm Power Supply AC 220 V;50 Hz Power 250 W Consumption Net Weight 8 Kg

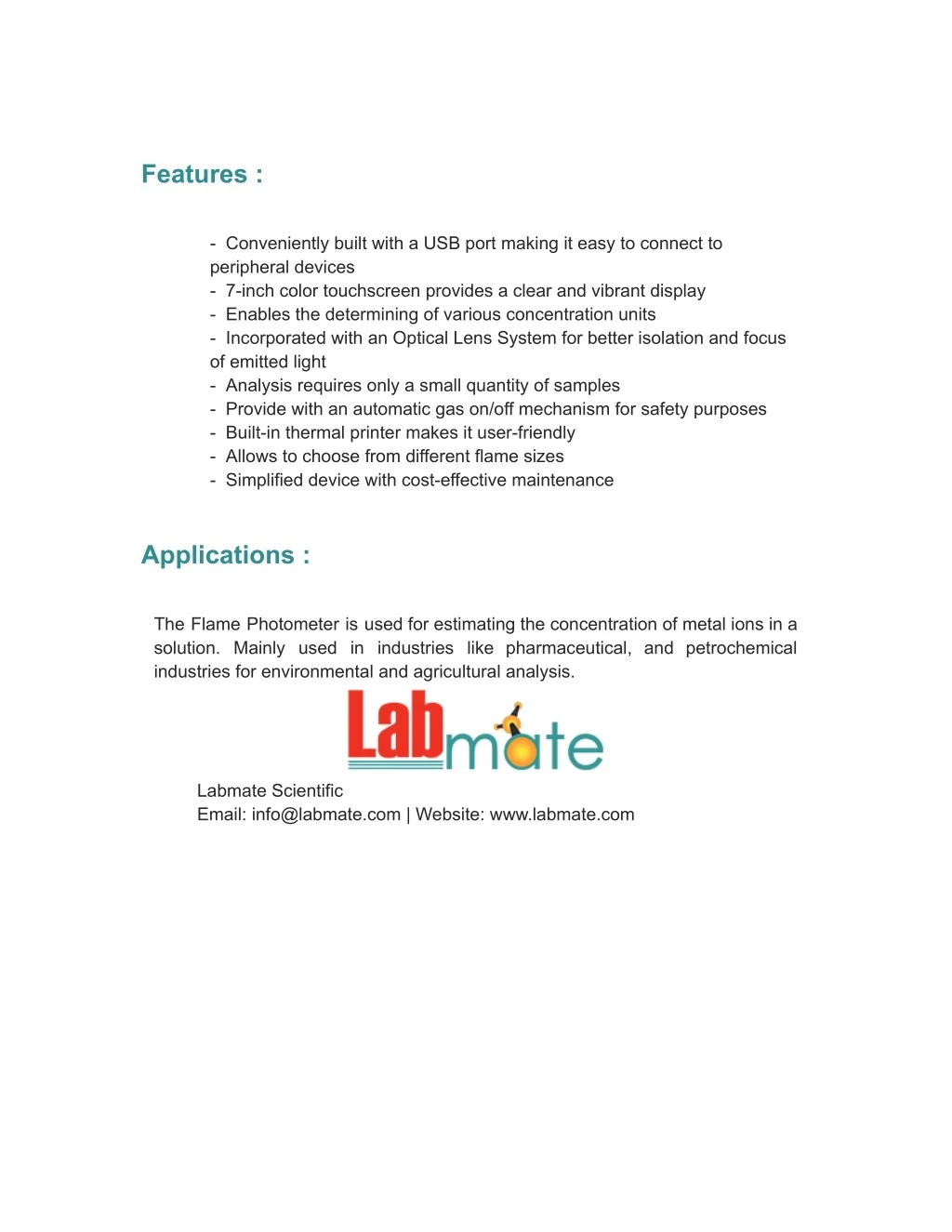

  3. Features : - Conveniently built with a USB port making it easy to connect to peripheral devices - 7-inch color touchscreen provides a clear and vibrant display - Enables the determining of various concentration units - Incorporated with an Optical Lens System for better isolation and focus of emitted light - Analysis requires only a small quantity of samples - Provide with an automatic gas on/off mechanism for safety purposes - Built-in thermal printer makes it user-friendly - Allows to choose from different flame sizes - Simplified device with cost-effective maintenance Applications : The Flame Photometer is used for estimating the concentration of metal ions in a solution. Mainly used in industries like pharmaceutical, and petrochemical industries for environmental and agricultural analysis. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
