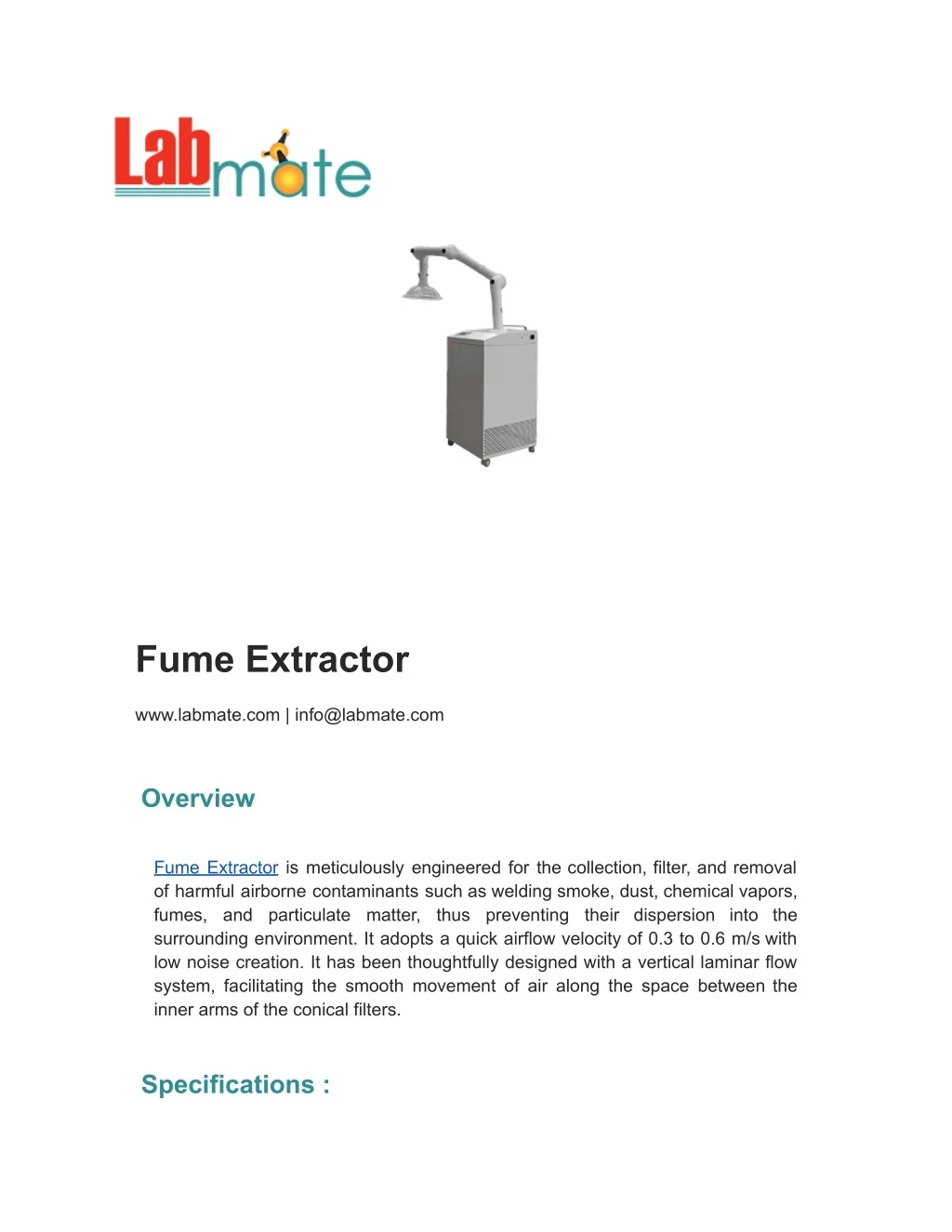

1. Fume Extractor www.labmate.com | info@labmate.com Overview Fume Extractor is meticulously engineered for the collection, filter, and removal of harmful airborne contaminants such as welding smoke, dust, chemical vapors, fumes, and particulate matter, thus preventing their dispersion into the surrounding environment. It adopts a quick airflow velocity of 0.3 to 0.6 m/s with low noise creation. It has been thoughtfully designed with a vertical laminar flow system, facilitating the smooth movement of air along the space between the inner arms of the conical filters. Specifications :

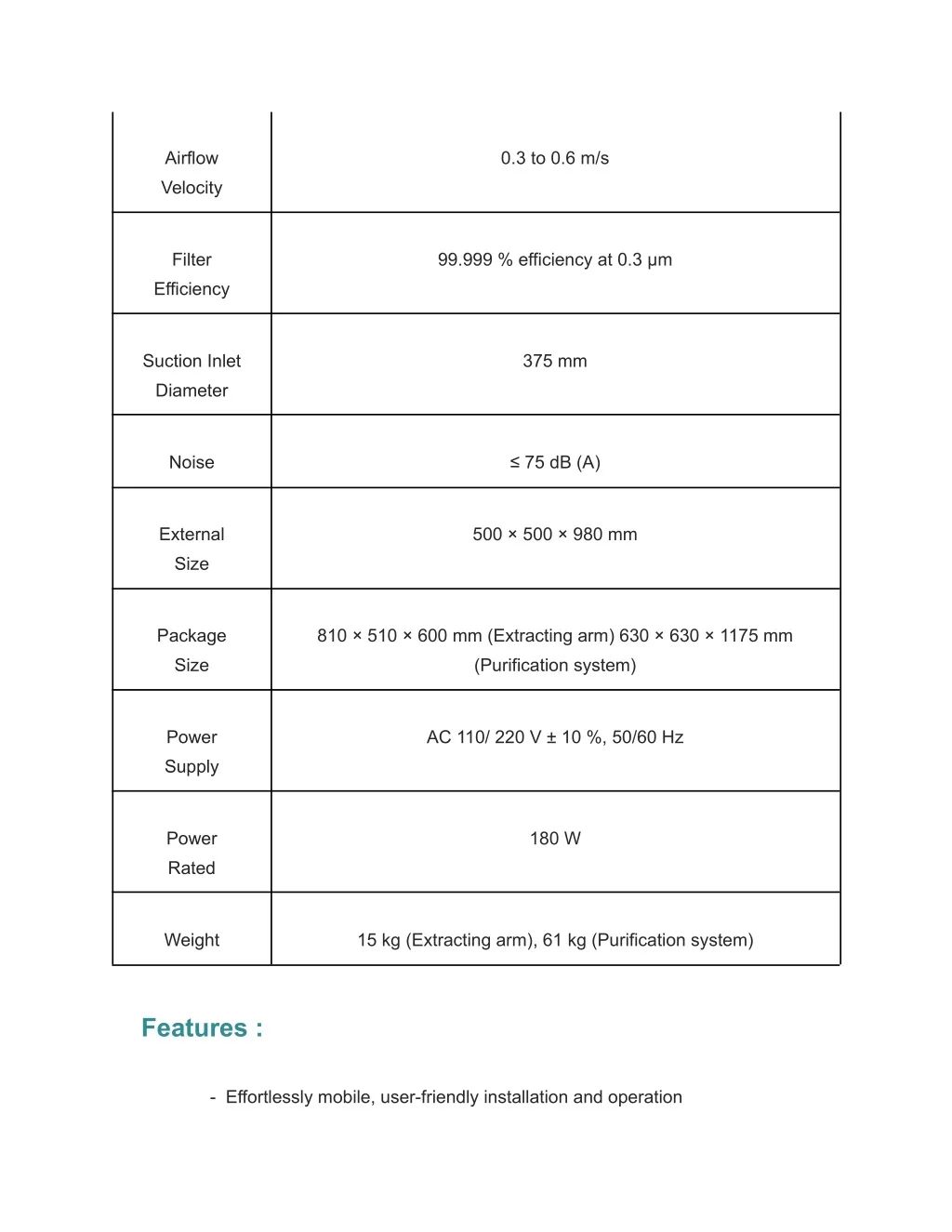

2. Airflow 0.3 to 0.6 m/s Velocity Filter 99.999 % efficiency at 0.3 µm Efficiency Suction Inlet 375 mm Diameter Noise ≤ 75 dB (A) External 500 × 500 × 980 mm Size Package 810 × 510 × 600 mm (Extracting arm) 630 × 630 × 1175 mm Size (Purification system) Power AC 110/ 220 V ± 10 %, 50/60 Hz Supply Power 180 W Rated Weight 15 kg (Extracting arm), 61 kg (Purification system) Features : - Effortlessly mobile, user-friendly installation and operation

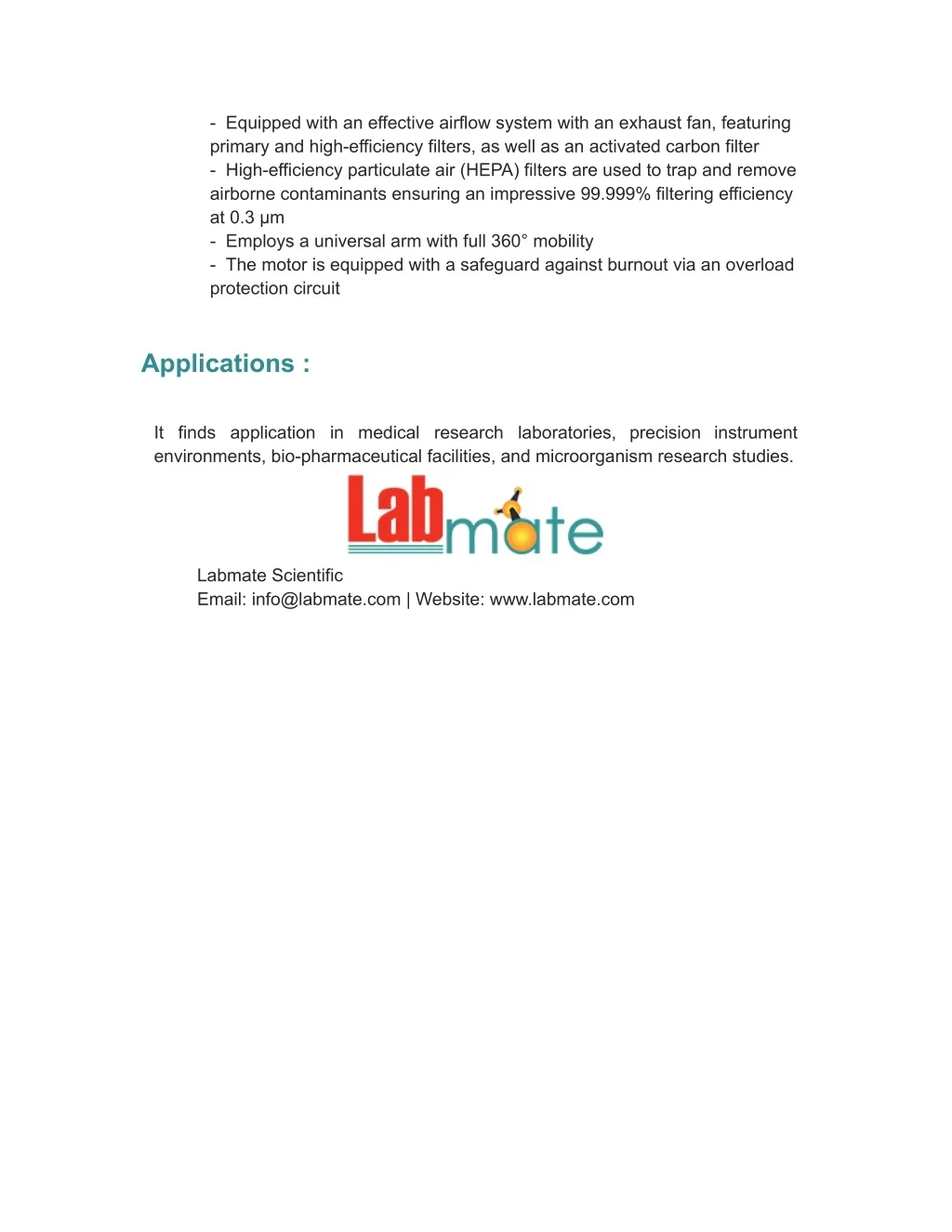

3. - Equipped with an effective airflow system with an exhaust fan, featuring primary and high-efficiency filters, as well as an activated carbon filter - High-efficiency particulate air (HEPA) filters are used to trap and remove airborne contaminants ensuring an impressive 99.999% filtering efficiency at 0.3 µm - Employs a universal arm with full 360° mobility - The motor is equipped with a safeguard against burnout via an overload protection circuit Applications : It finds application in medical research laboratories, precision instrument environments, bio-pharmaceutical facilities, and microorganism research studies. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
