Portable Multi Gas Detector

DESCRIPTION

Portable Multi Gas Detector boasts effortless usability with its single-button operation, ensuring compliance with ten gases: Ou2082, CHu2084, COu2082, <br>VOC, CO, Hu2082S, SOu2082, CLu2082, NOu2082, and NHu2083. Within a quick response time of less than 10 seconds, this detector ensures detailed information on <br>selectable gases. It's a portable and easy-to-use detector with high-precision sensors for accurate gas detection.<br>

Télécharger la présentation

Portable Multi Gas Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

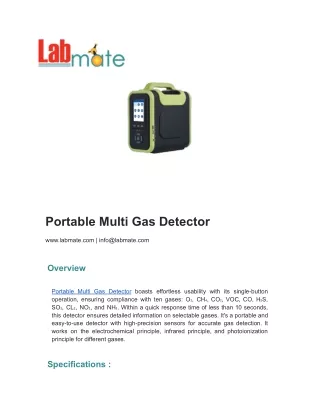

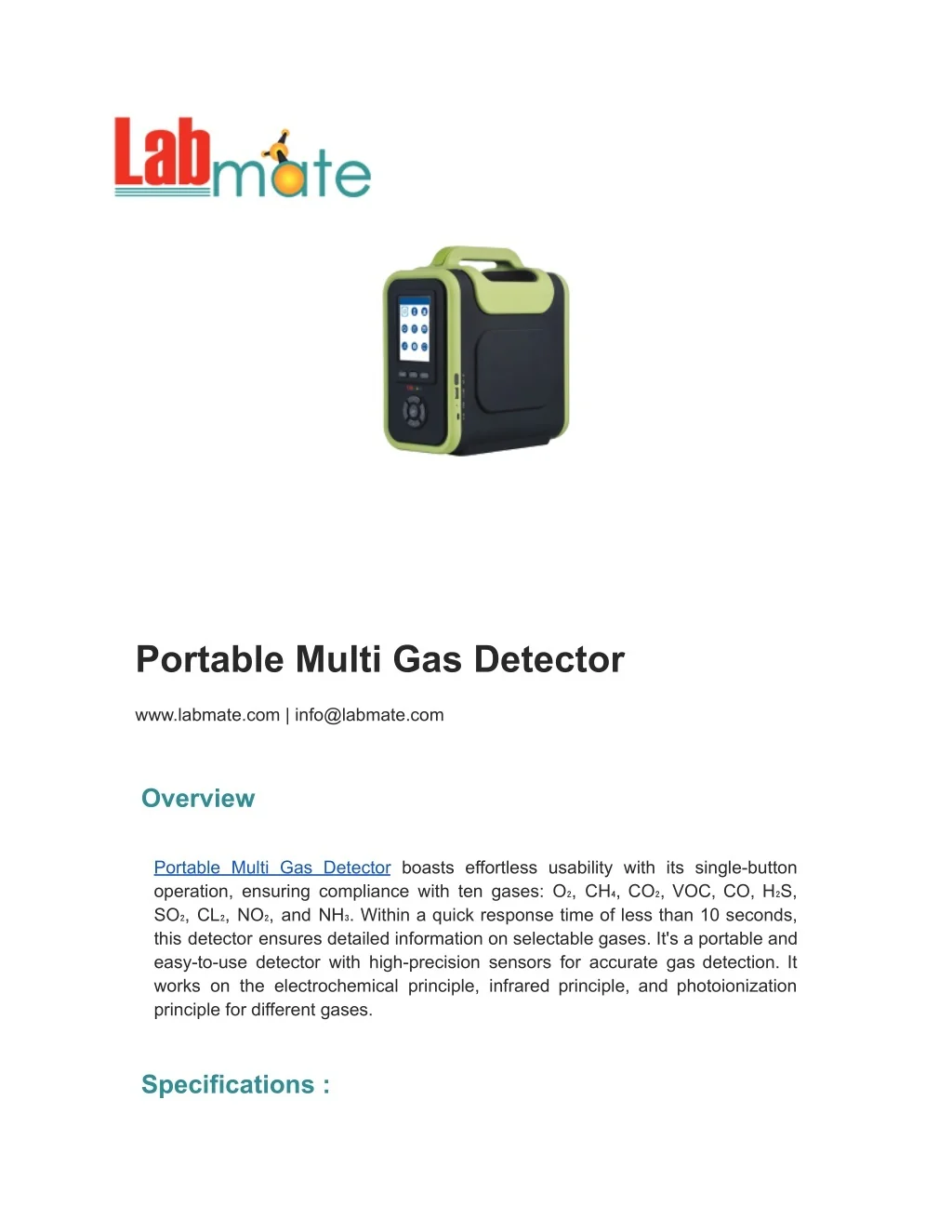

  1. Portable Multi Gas Detector www.labmate.com | info@labmate.com Overview Portable Multi Gas Detector boasts effortless usability with its single-button operation, ensuring compliance with ten gases: O₂, CH₄, CO₂, VOC, CO, H₂S, SO₂, CL₂, NO₂, and NH₃. Within a quick response time of less than 10 seconds, this detector ensures detailed information on selectable gases. It's a portable and easy-to-use detector with high-precision sensors for accurate gas detection. It works on the electrochemical principle, infrared principle, and photoionization principle for different gases. Specifications :

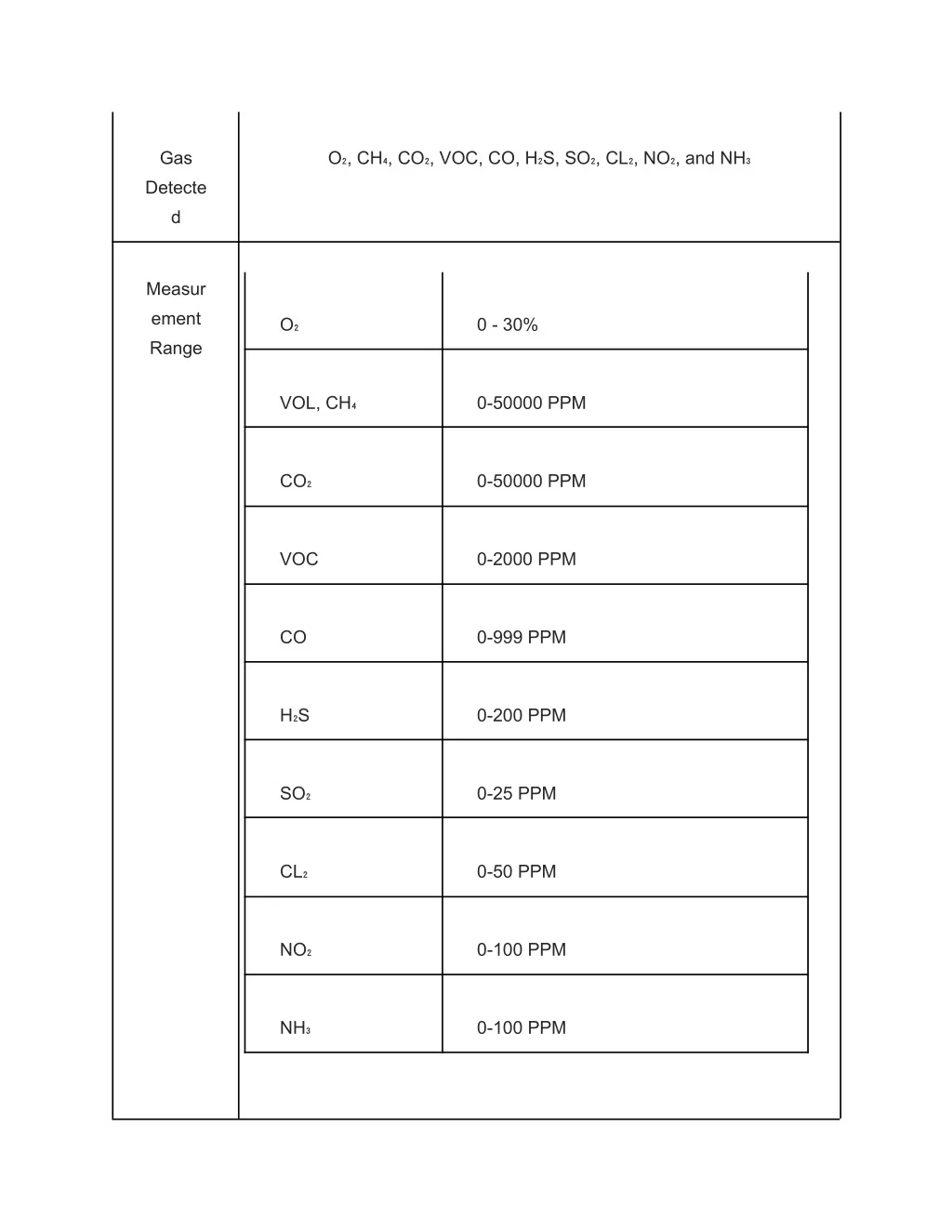

  2. Gas O₂, CH₄, CO₂, VOC, CO, H₂S, SO₂, CL₂, NO₂, and NH₃ Detecte d Measur ement O₂ 0 - 30% Range VOL, CH₄ 0-50000 PPM CO₂ 0-50000 PPM VOC 0-2000 PPM CO 0-999 PPM H₂S 0-200 PPM SO₂ 0-25 PPM CL₂ 0-50 PPM NO₂ 0-100 PPM NH₃ 0-100 PPM

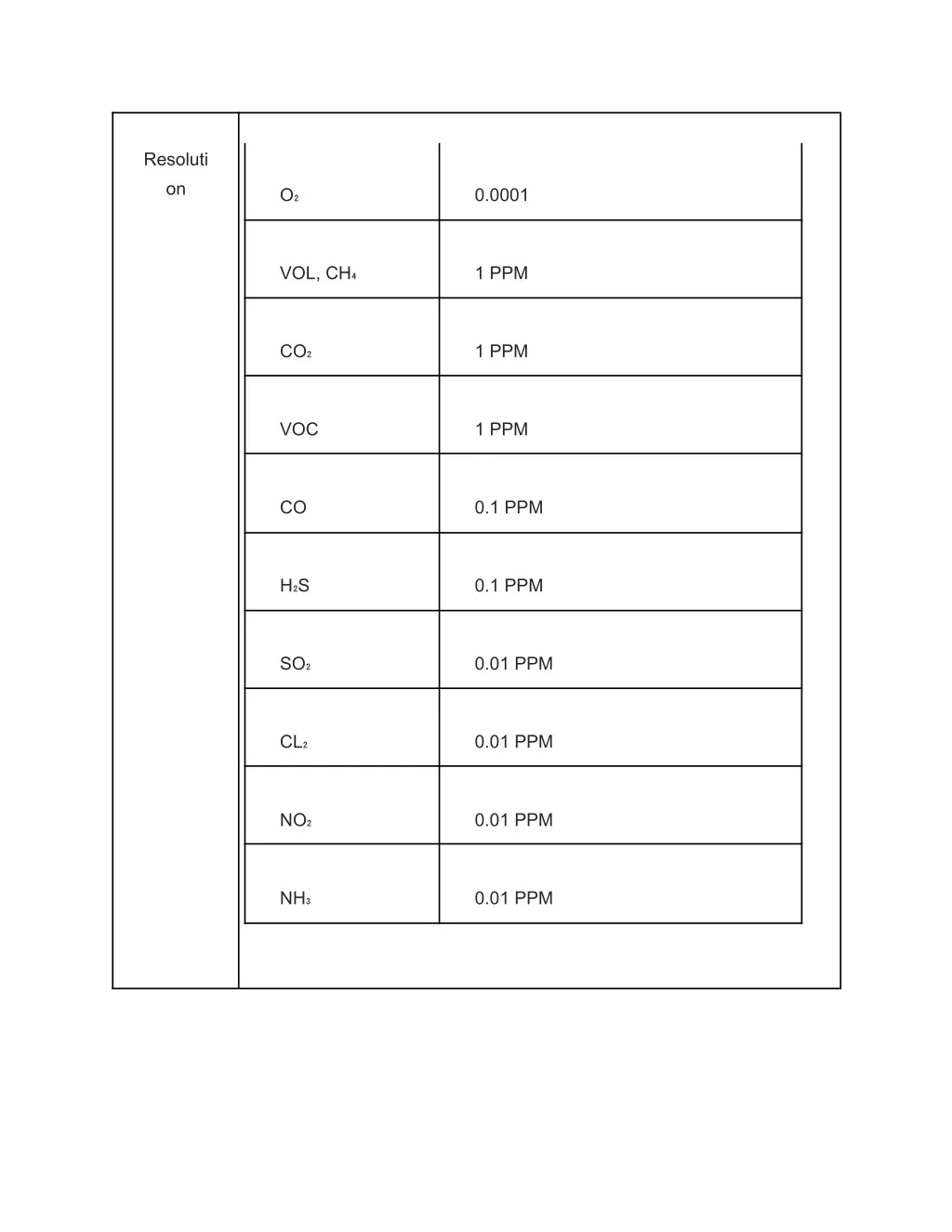

  3. Resoluti on O₂ 0.0001 VOL, CH₄ 1 PPM CO₂ 1 PPM VOC 1 PPM CO 0.1 PPM H₂S 0.1 PPM SO₂ 0.01 PPM CL₂ 0.01 PPM NO₂ 0.01 PPM NH₃ 0.01 PPM

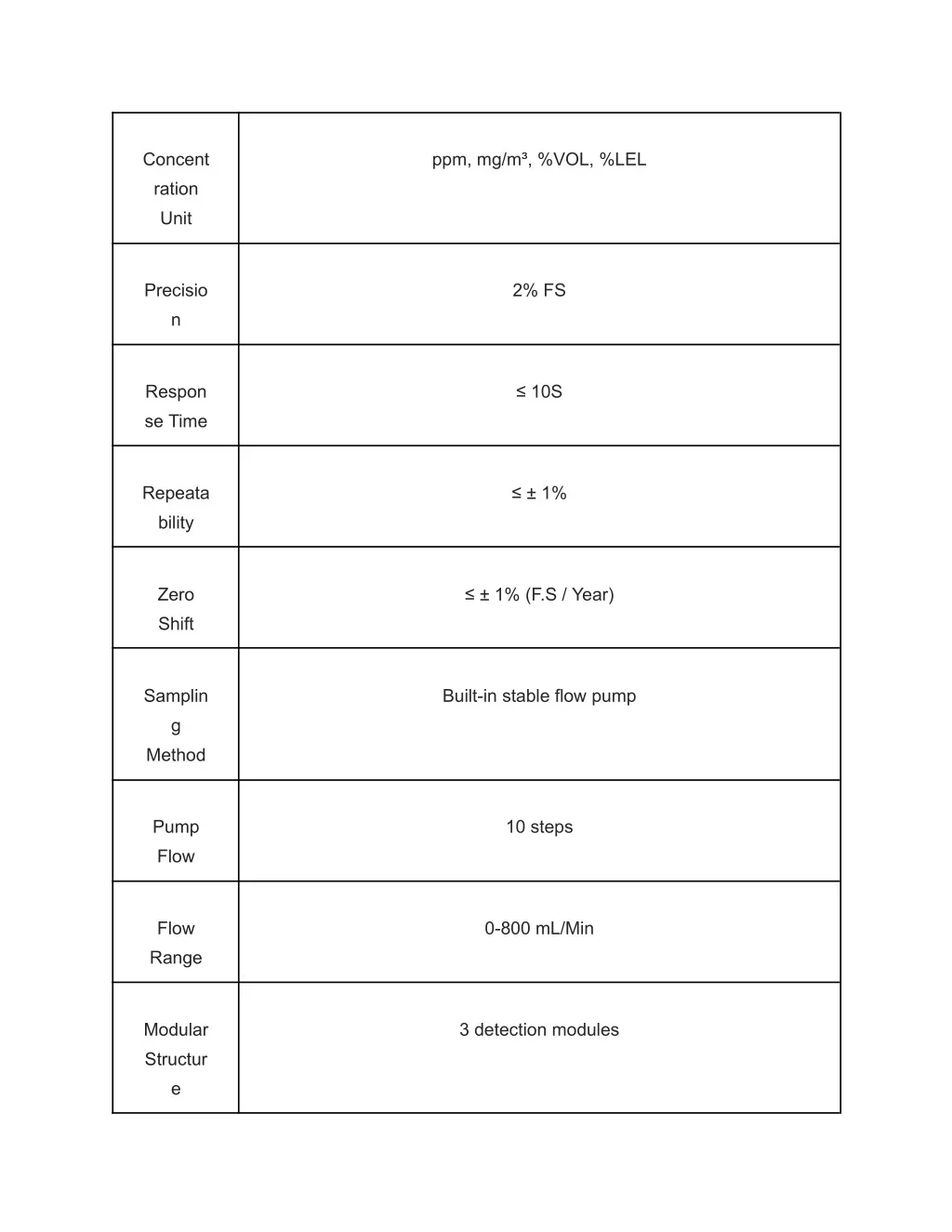

  4. Concent ppm, mg/m³, %VOL, %LEL ration Unit Precisio 2% FS n Respon ≤ 10S se Time Repeata ≤ ± 1% bility Zero ≤ ± 1% (F.S / Year) Shift Samplin Built-in stable flow pump g Method Pump 10 steps Flow Flow 0-800 mL/Min Range Modular 3 detection modules Structur e

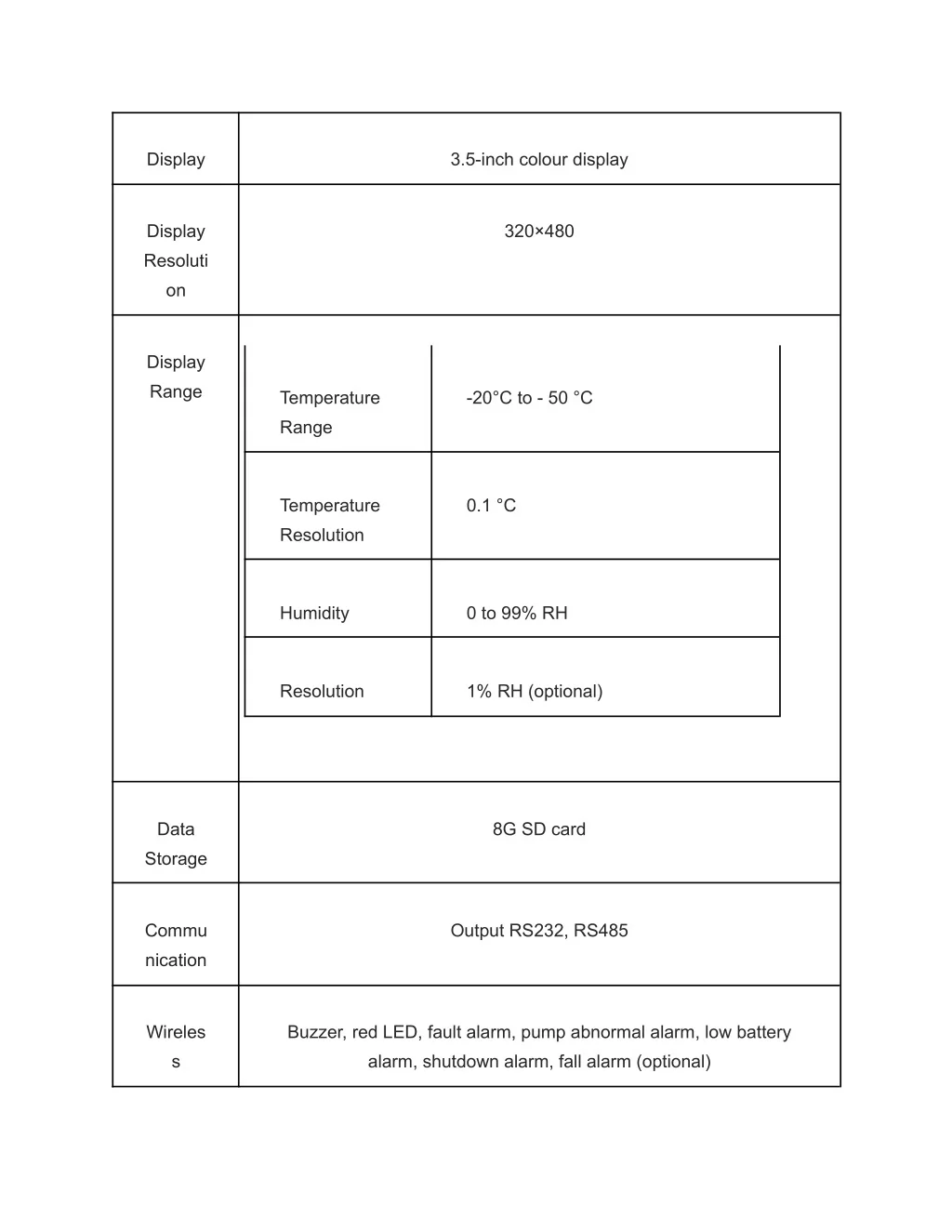

  5. Display 3.5-inch colour display Display 320×480 Resoluti on Display Range Temperature -20°C to - 50 °C Range Temperature 0.1 °C Resolution Humidity 0 to 99% RH Resolution 1% RH (optional) Data 8G SD card Storage Commu Output RS232, RS485 nication Wireles Buzzer, red LED, fault alarm, pump abnormal alarm, low battery s alarm, shutdown alarm, fall alarm (optional)

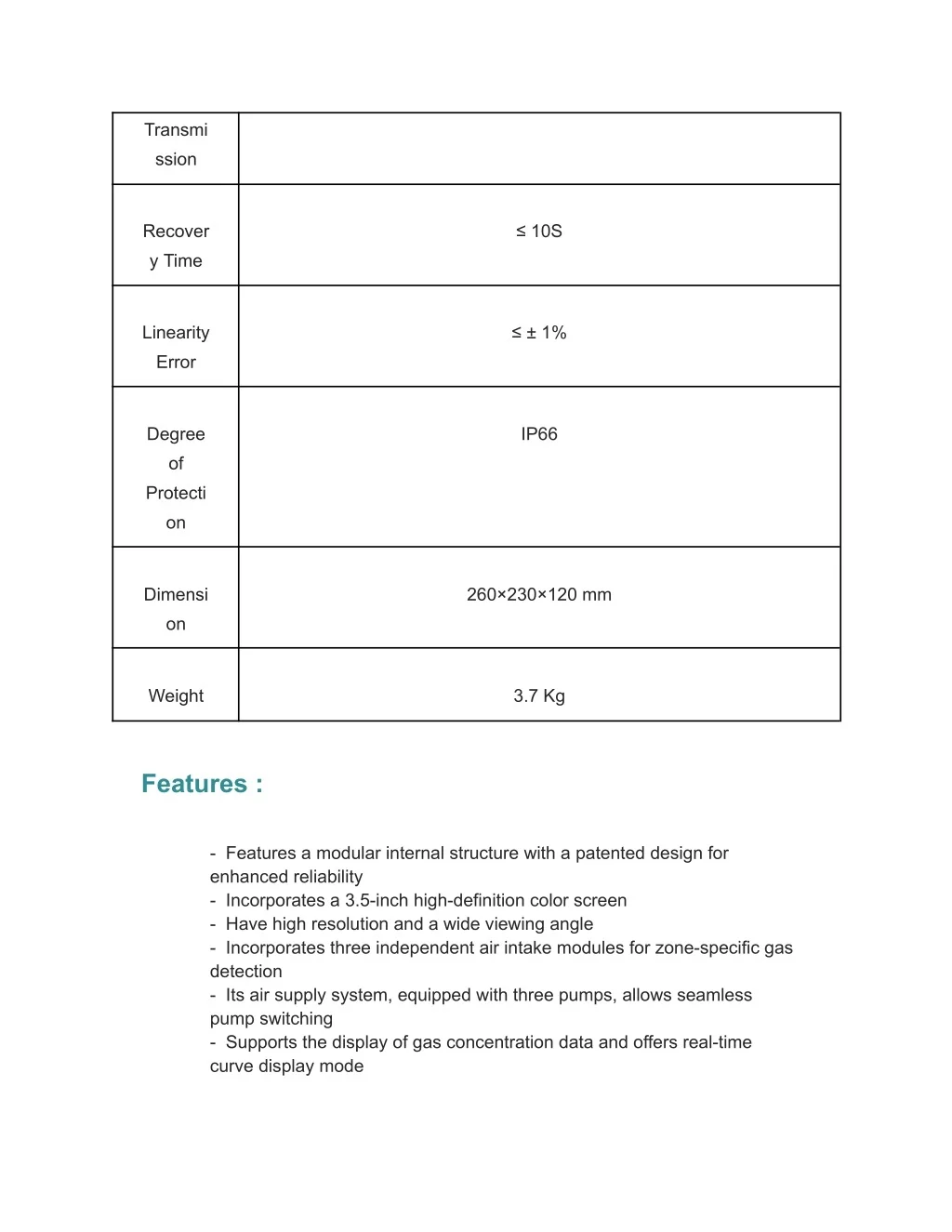

  6. Transmi ssion Recover ≤ 10S y Time Linearity ≤ ± 1% Error Degree IP66 of Protecti on Dimensi 260×230×120 mm on Weight 3.7 Kg Features : - Features a modular internal structure with a patented design for enhanced reliability - Incorporates a 3.5-inch high-definition color screen - Have high resolution and a wide viewing angle - Incorporates three independent air intake modules for zone-specific gas detection - Its air supply system, equipped with three pumps, allows seamless pump switching - Supports the display of gas concentration data and offers real-time curve display mode

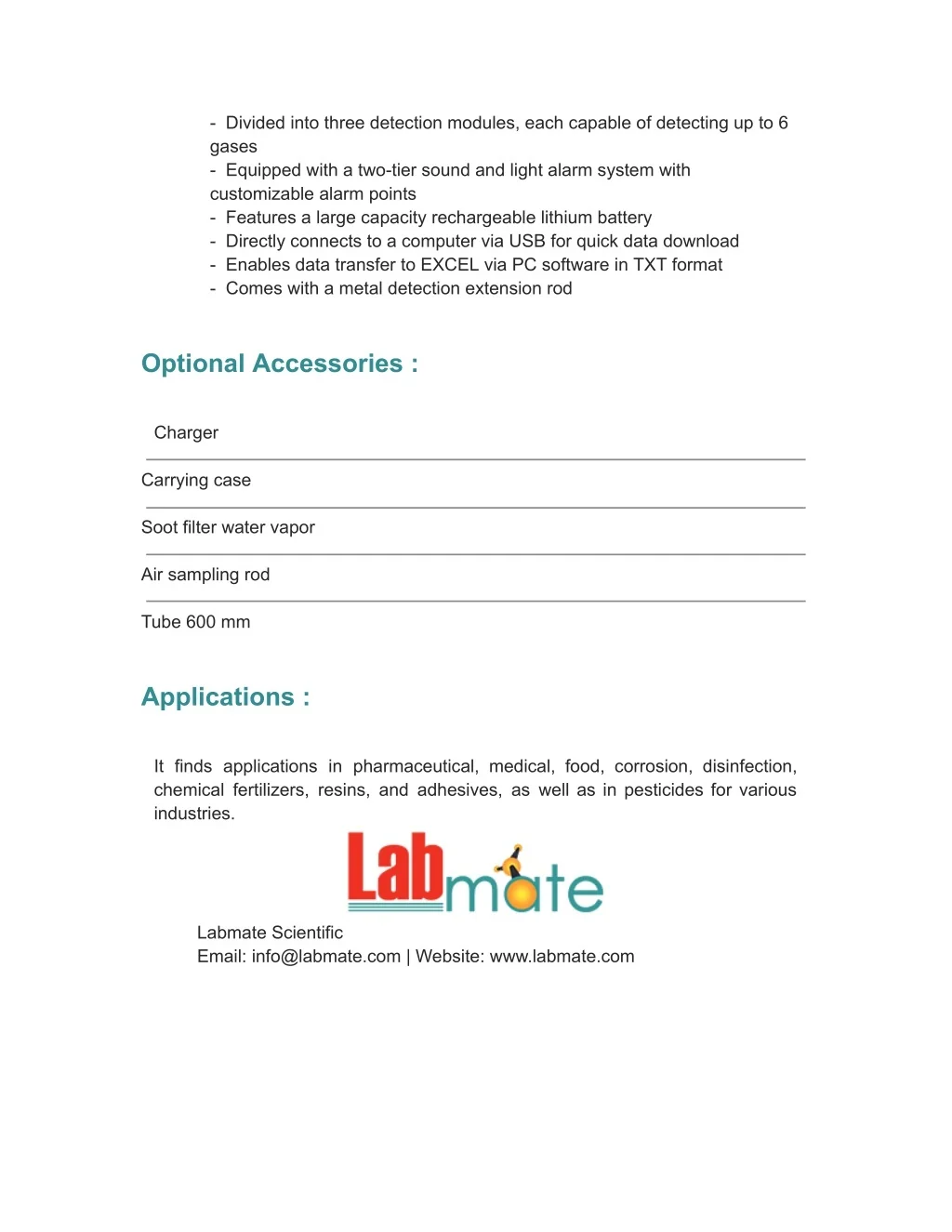

  7. - Divided into three detection modules, each capable of detecting up to 6 gases - Equipped with a two-tier sound and light alarm system with customizable alarm points - Features a large capacity rechargeable lithium battery - Directly connects to a computer via USB for quick data download - Enables data transfer to EXCEL via PC software in TXT format - Comes with a metal detection extension rod Optional Accessories : Charger Carrying case Soot filter water vapor Air sampling rod Tube 600 mm Applications : It finds applications in pharmaceutical, medical, food, corrosion, disinfection, chemical fertilizers, resins, and adhesives, as well as in pesticides for various industries. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
