Re-Circulating Chiller

DESCRIPTION

Re-Circulating Chiller line is designed for analytical, medical, and industrial use, providing accurate temperature control and equipped with a durable and strong frame against <br>the outdoor working environment. The device's working temperature range of -20u00b0C to -30u00b0C, R134A refrigerant, copper cooling coil, circulating pump with a flow rate of 8-10L/min, <br>and tank volume of 4.8Liters make it a versatile instrument.

Télécharger la présentation

Re-Circulating Chiller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

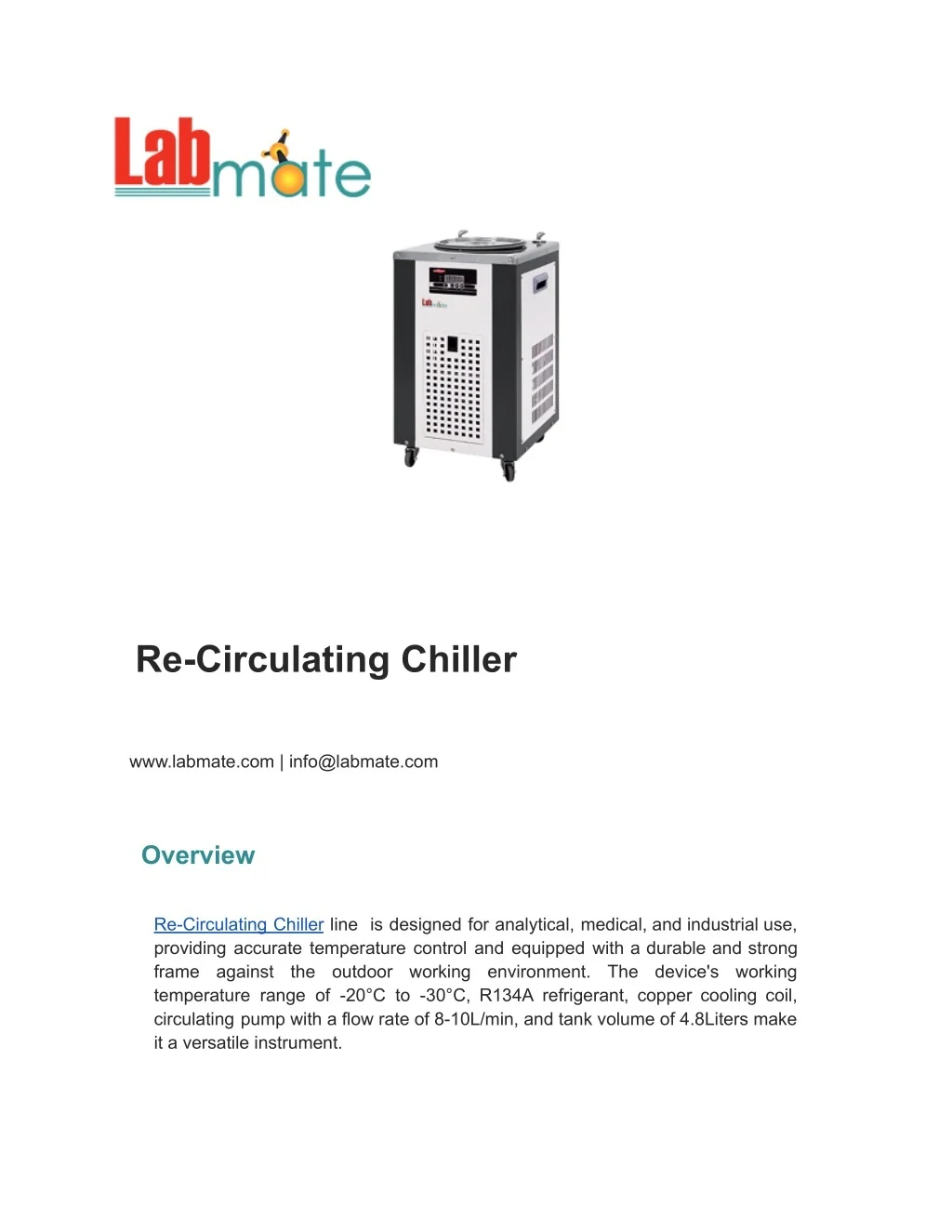

  1. Re-Circulating Chiller www.labmate.com | info@labmate.com Overview Re-Circulating Chiller line is designed for analytical, medical, and industrial use, providing accurate temperature control and equipped with a durable and strong frame against the outdoor working temperature range of -20°C to -30°C, R134A refrigerant, copper cooling coil, circulating pump with a flow rate of 8-10L/min, and tank volume of 4.8Liters make it a versatile instrument. environment. The device's working

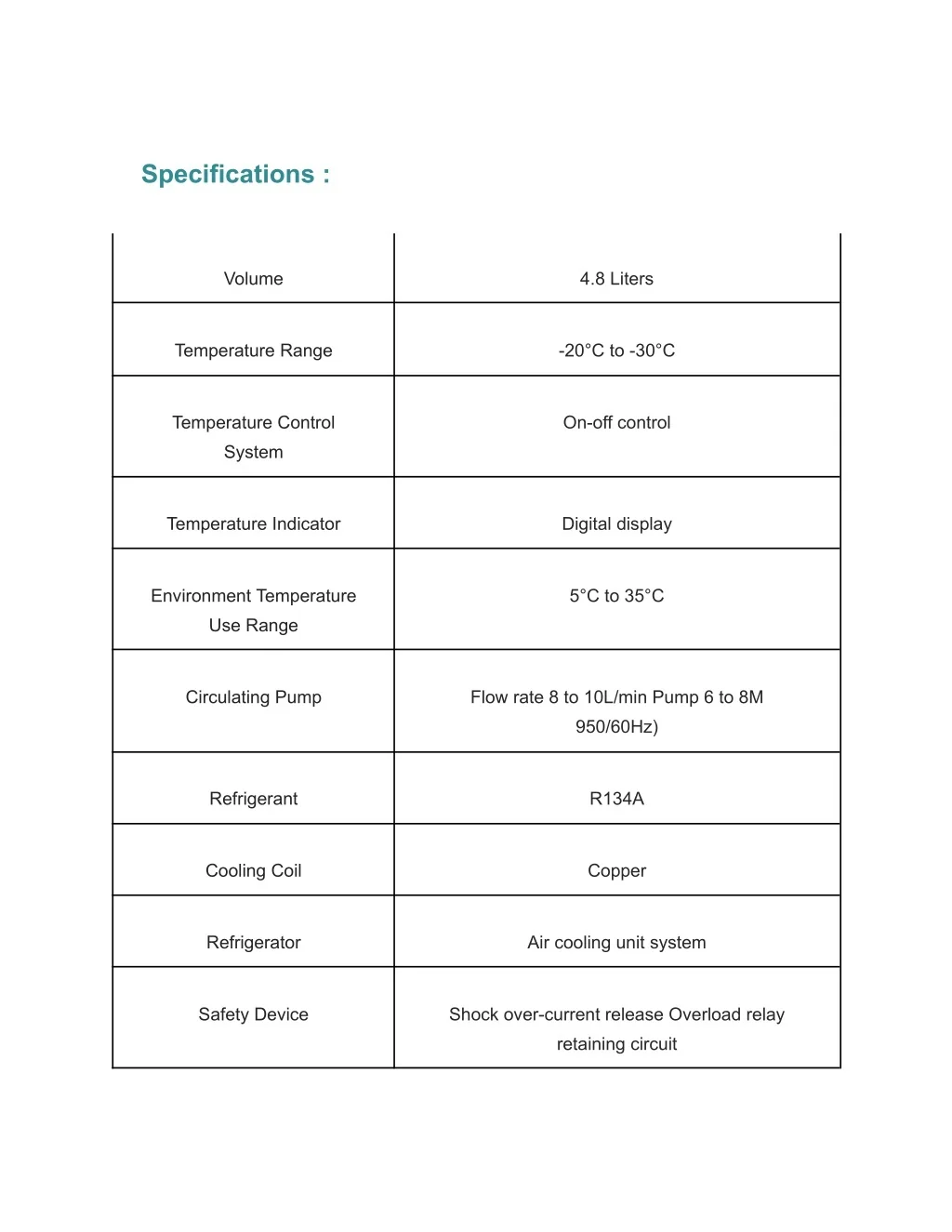

  2. Specifications : Volume 4.8 Liters Temperature Range -20°C to -30°C Temperature Control On-off control System Temperature Indicator Digital display Environment Temperature 5°C to 35°C Use Range Circulating Pump Flow rate 8 to 10L/min Pump 6 to 8M 950/60Hz) Refrigerant R134A Cooling Coil Copper Refrigerator Air cooling unit system Safety Device Shock over-current release Overload relay retaining circuit

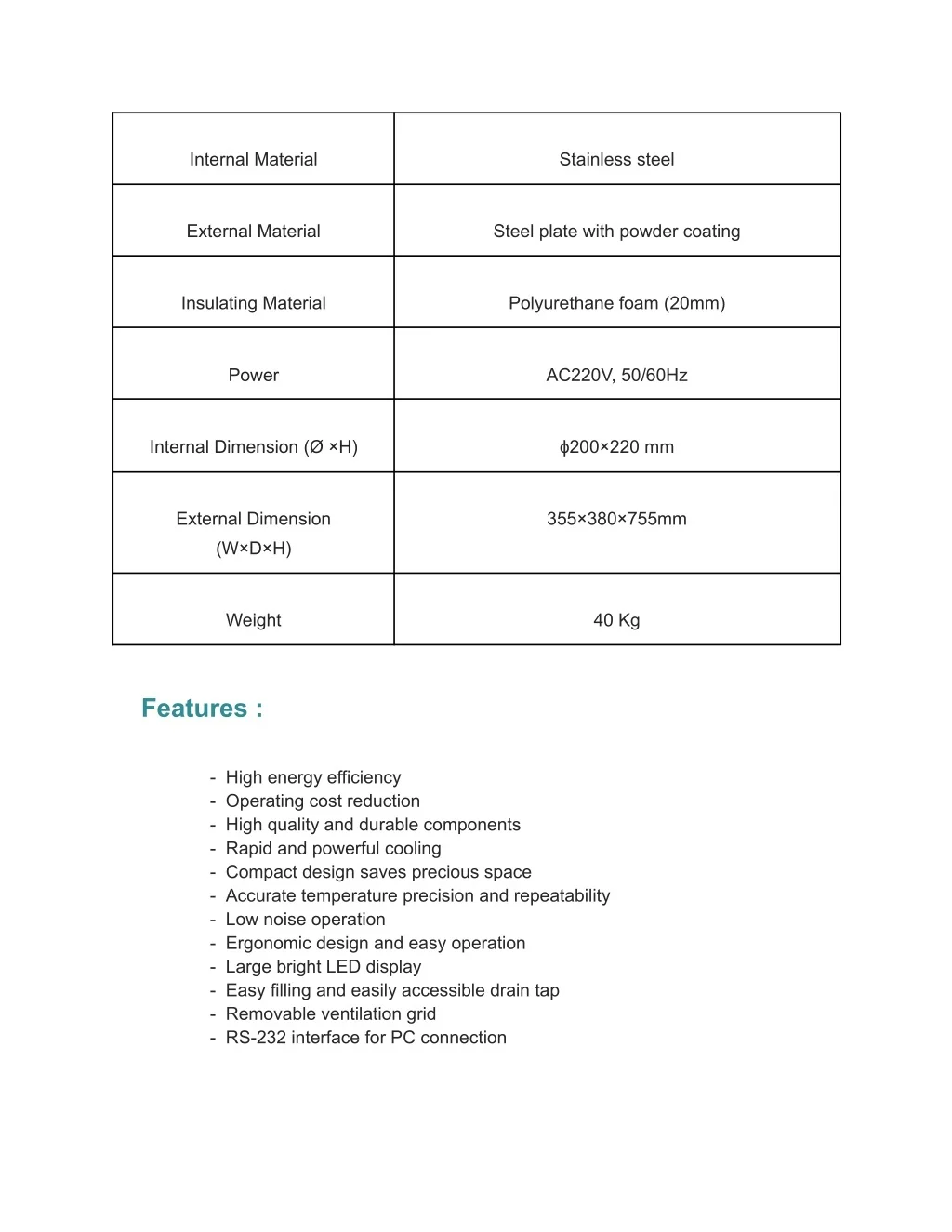

  3. Internal Material Stainless steel External Material Steel plate with powder coating Insulating Material Polyurethane foam (20mm) Power AC220V, 50/60Hz Internal Dimension (Ø ×H) ɸ200×220 mm External Dimension 355×380×755mm (W×D×H) Weight 40 Kg Features : - High energy efficiency - Operating cost reduction - High quality and durable components - Rapid and powerful cooling - Compact design saves precious space - Accurate temperature precision and repeatability - Low noise operation - Ergonomic design and easy operation - Large bright LED display - Easy filling and easily accessible drain tap - Removable ventilation grid - RS-232 interface for PC connection

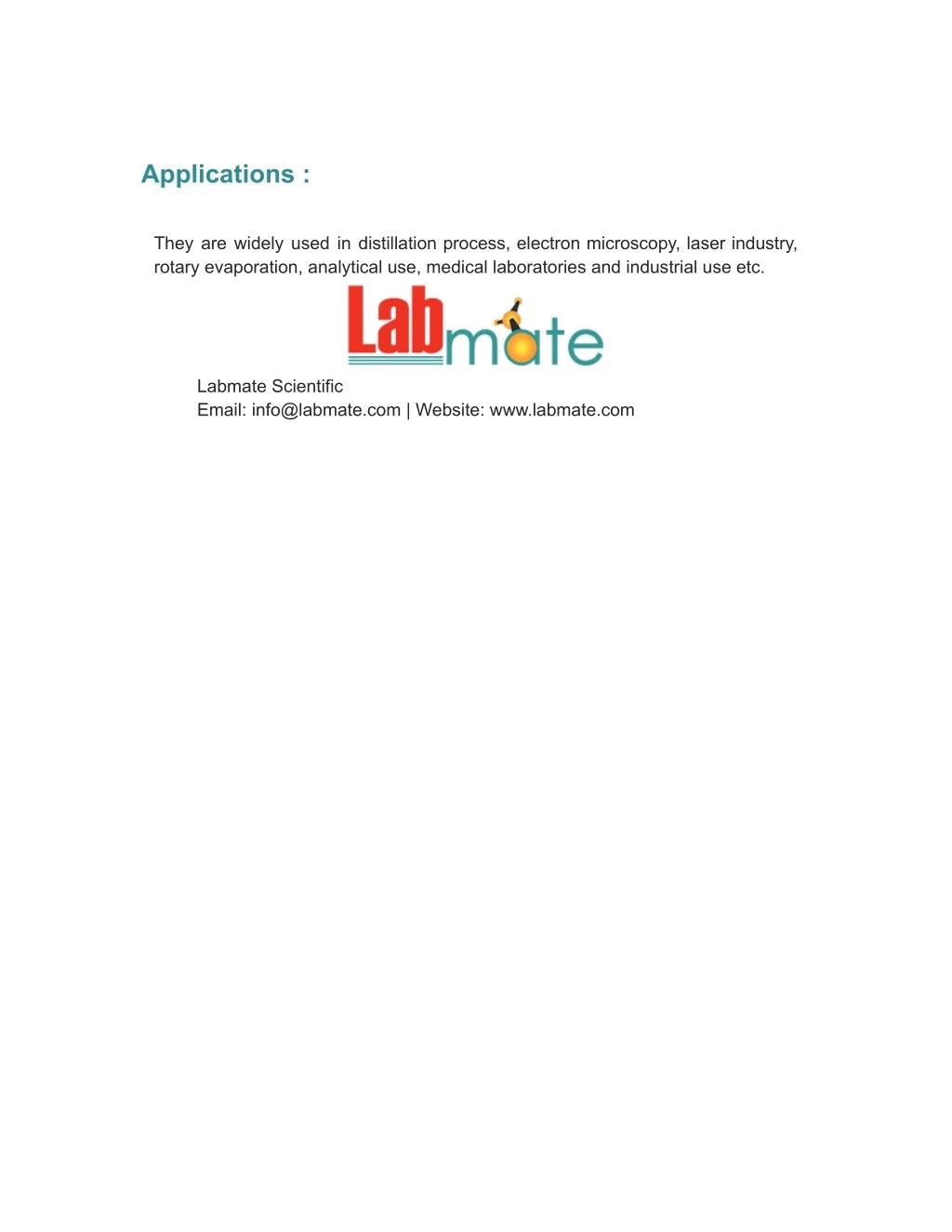

  4. Applications : They are widely used in distillation process, electron microscopy, laser industry, rotary evaporation, analytical use, medical laboratories and industrial use etc. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
