Semi-automatic-Biochemistry-Analyzer

DESCRIPTION

Semi-Automatic Biochemistry Analyzers a tabletop unit that analyzes using unit kinetics, end point, and two-point methods. <br>It has an absorbance range of 0 to 2.5 abs and a hermetic solid-state optical system as well as eight hard membrane filters. <br>With a titanium alloy flow cell and a dot-matrix back light LCD display for easy parameter observation, the unit is designed <br>with an easy-to-use serial interface for accurate data monitoring at regular intervals.<br><br>

Télécharger la présentation

Semi-automatic-Biochemistry-Analyzer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

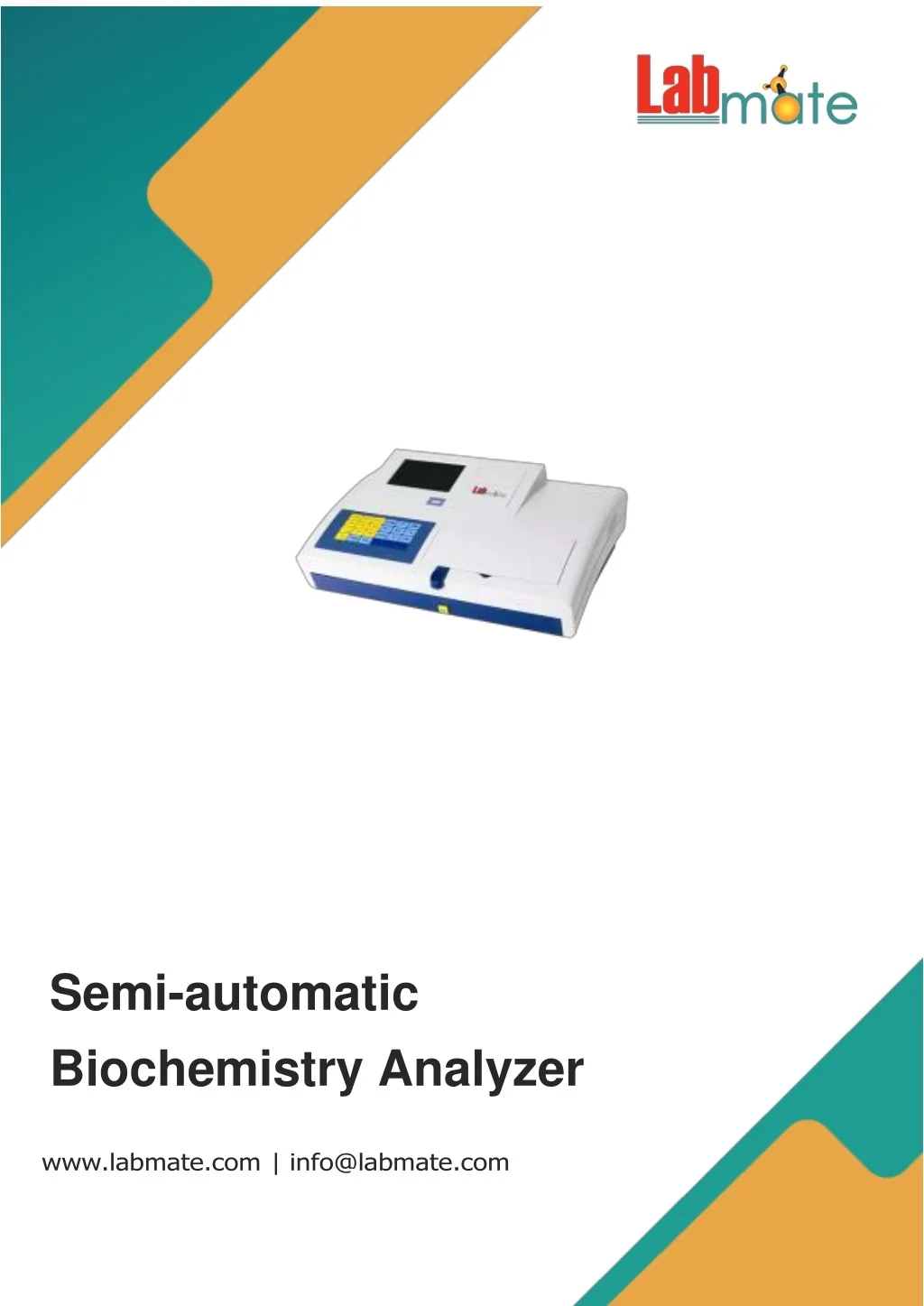

  1. Semi-automatic Biochemistry Analyzer www.labmate.com | info@labmate.com

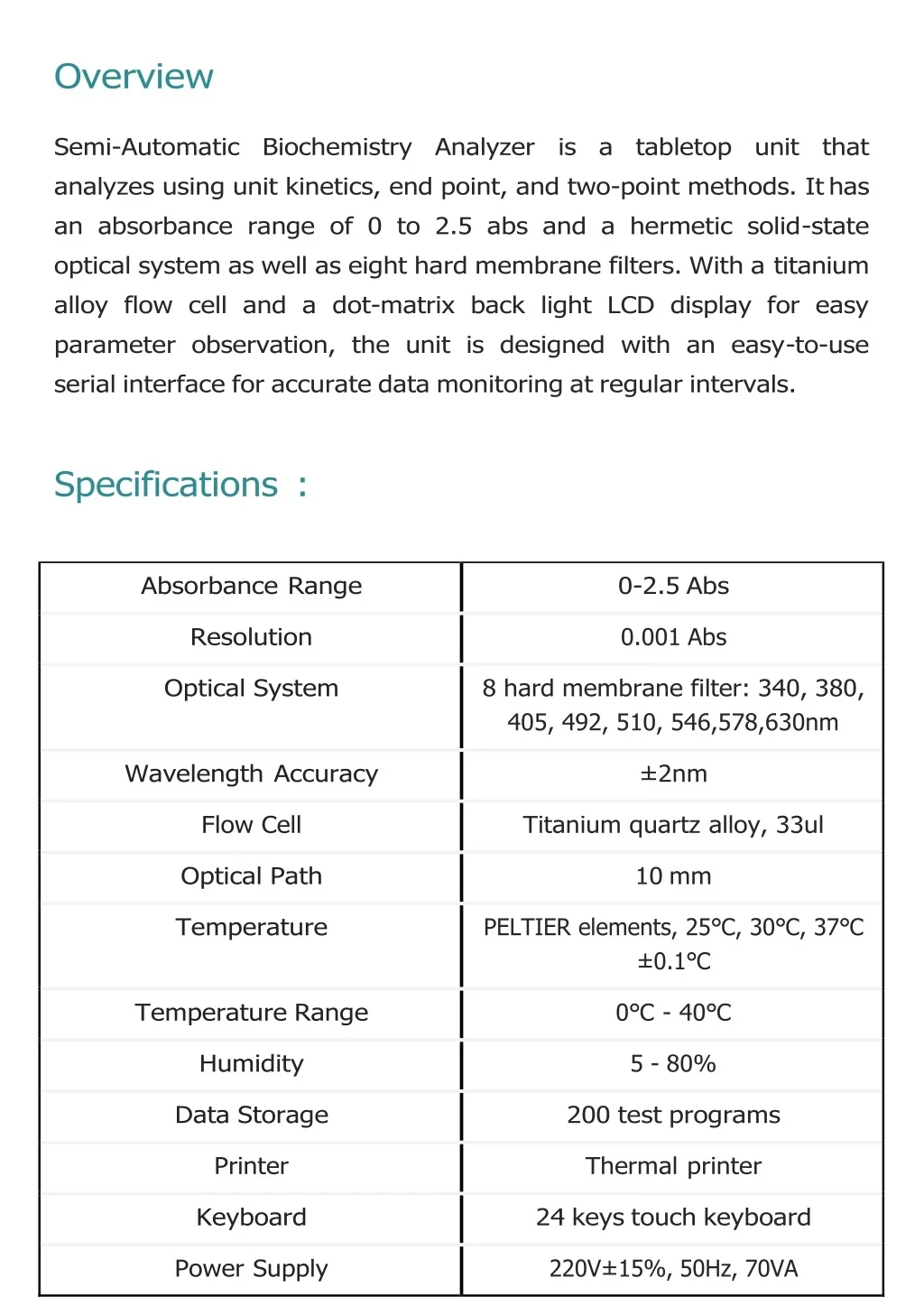

  2. Overview Semi-Automatic Biochemistry Analyzer is a tabletop unit that analyzes using unit kinetics, end point, and two-point methods. It has an absorbance range of 0 to 2.5 abs and a hermetic solid-state optical system as well as eight hard membrane filters. With a titanium alloy flow cell and a dot-matrix back light LCD display for easy parameter observation, the unit is designed with an easy-to-use serial interface for accurate data monitoring at regular intervals. Specifications : Absorbance Range 0-2.5 Abs Resolution 0.001 Abs Optical System 8 hard membrane filter: 340, 380, 405, 492, 510, 546,578,630nm Wavelength Accuracy ±2nm Flow Cell Titanium quartz alloy, 33ul Optical Path 10 mm Temperature PELTIER elements, 25℃,30℃,37℃ ±0.1℃ Temperature Range 0℃ - 40℃ Humidity 5 - 80% Data Storage 200 test programs Printer Thermal printer Keyboard 24 keys touch keyboard Power Supply 220V±15%, 50Hz, 70VA

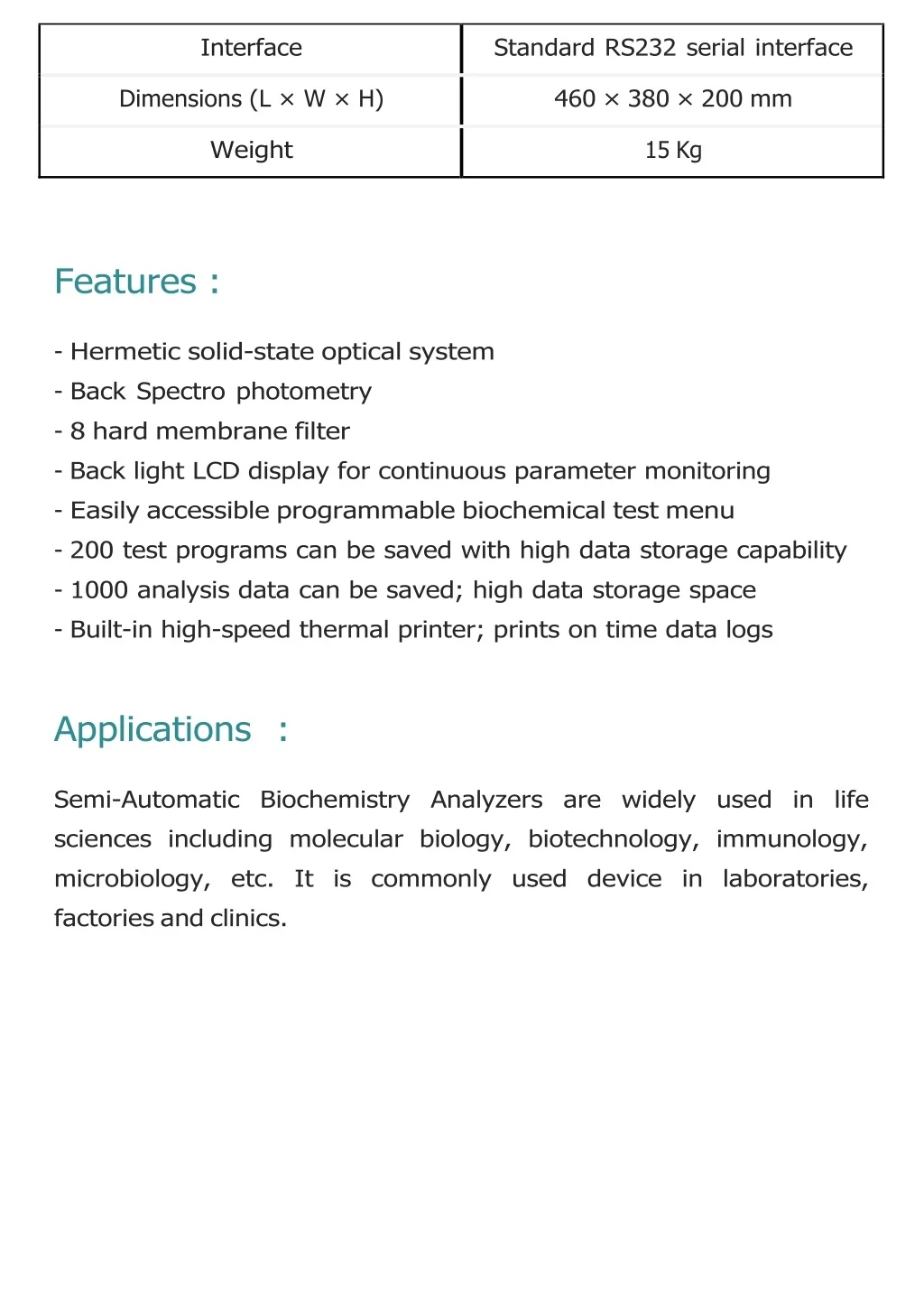

  3. Interface Standard RS232 serial interface Dimensions (L × W × H) 460 × 380 × 200 mm Weight 15 Kg Features : -Hermetic solid-state optical system -Back Spectro photometry -8 hard membrane filter -Back light LCD display for continuous parameter monitoring -Easily accessible programmable biochemical test menu -200 test programs can be saved with high data storage capability -1000 analysis data can be saved; high data storage space -Built-in high-speed thermal printer; prints on time data logs Applications : Semi-Automatic Biochemistry Analyzers are widely used in life sciences including molecular biology, biotechnology, immunology, microbiology, etc. It is commonly used device in laboratories, factories and clinics.

  4. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
