Single Automated Stainer Fluorescence

DESCRIPTION

Single Automated Stainer Fluorescence offers swift and consistent results for a wide range of specimens through its <br>fully automated system. 1 to 10 slides can be fitted in a carousel. It has advanced technology which ensures better <br>function and results in comparison to manual staining. Each slide undergoes automated staining, decolorization, and <br>counterstaining in a remarkably short span of 13 to 18 minutes.

Télécharger la présentation

Single Automated Stainer Fluorescence

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

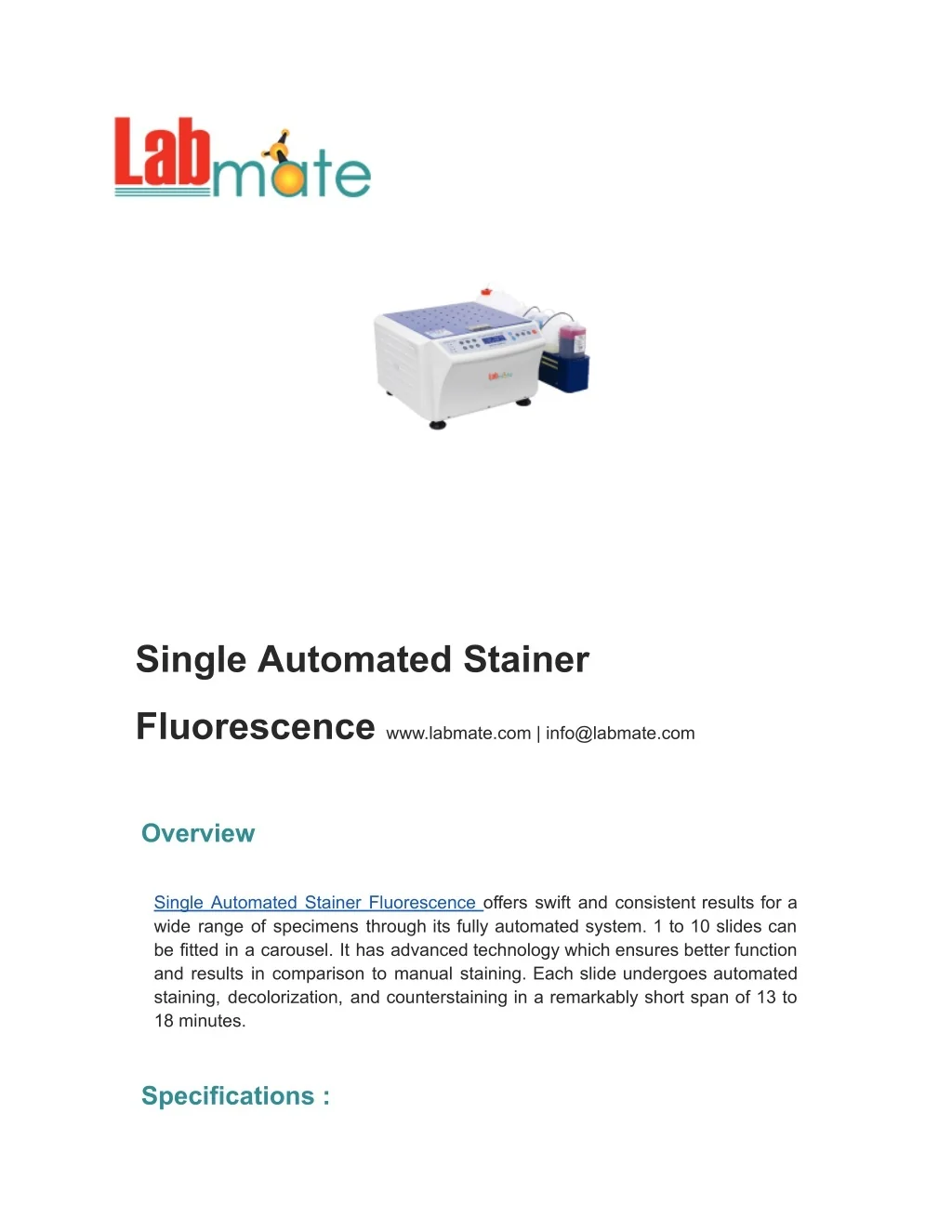

  1. Single Automated Stainer Fluorescence www.labmate.com | info@labmate.com Overview Single Automated Stainer Fluorescence offers swift and consistent results for a wide range of specimens through its fully automated system. 1 to 10 slides can be fitted in a carousel. It has advanced technology which ensures better function and results in comparison to manual staining. Each slide undergoes automated staining, decolorization, and counterstaining in a remarkably short span of 13 to 18 minutes. Specifications :

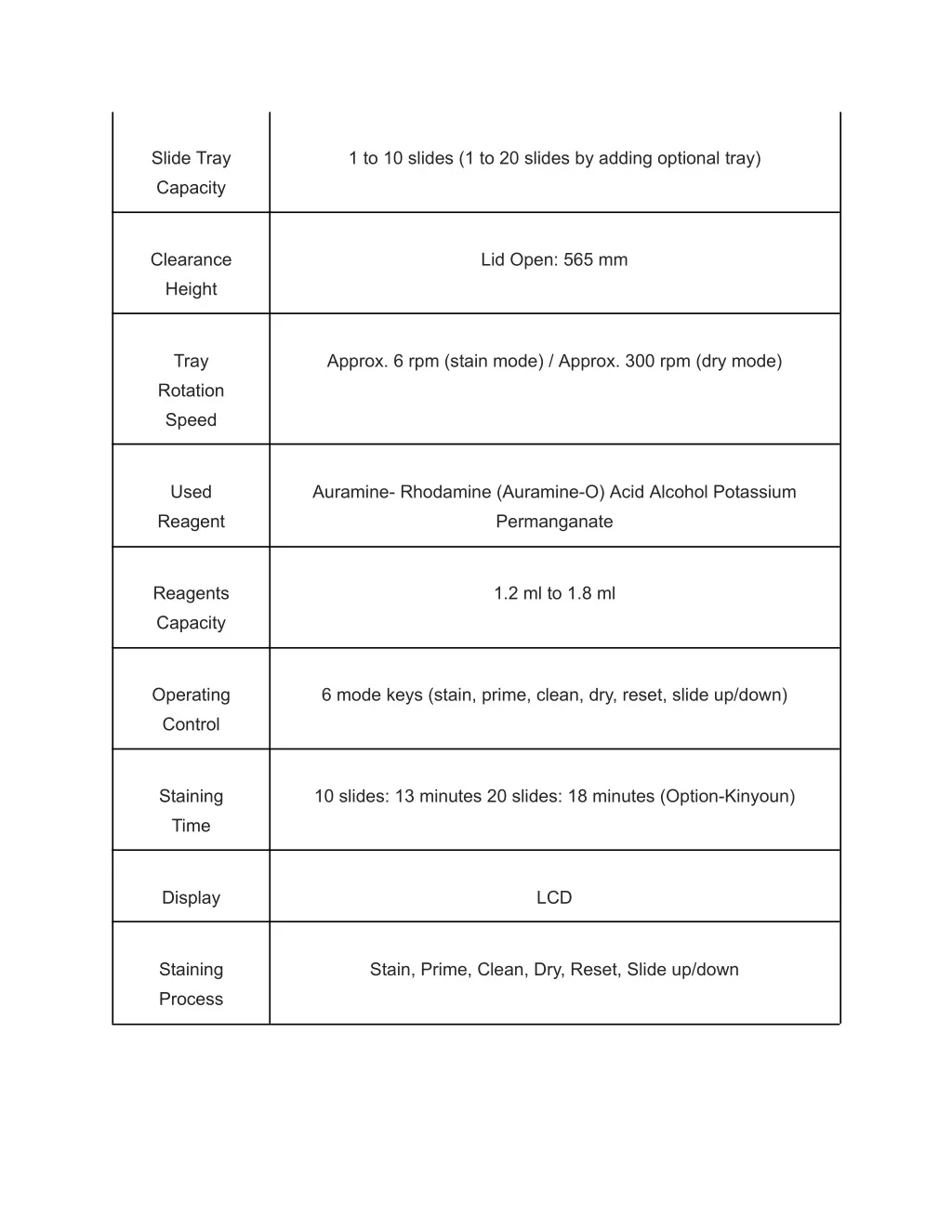

  2. Slide Tray 1 to 10 slides (1 to 20 slides by adding optional tray) Capacity Clearance Lid Open: 565 mm Height Tray Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Rotation Speed Used Auramine- Rhodamine (Auramine-O) Acid Alcohol Potassium Reagent Permanganate Reagents 1.2 ml to 1.8 ml Capacity Operating 6 mode keys (stain, prime, clean, dry, reset, slide up/down) Control Staining 10 slides: 13 minutes 20 slides: 18 minutes (Option-Kinyoun) Time Display LCD Staining Stain, Prime, Clean, Dry, Reset, Slide up/down Process

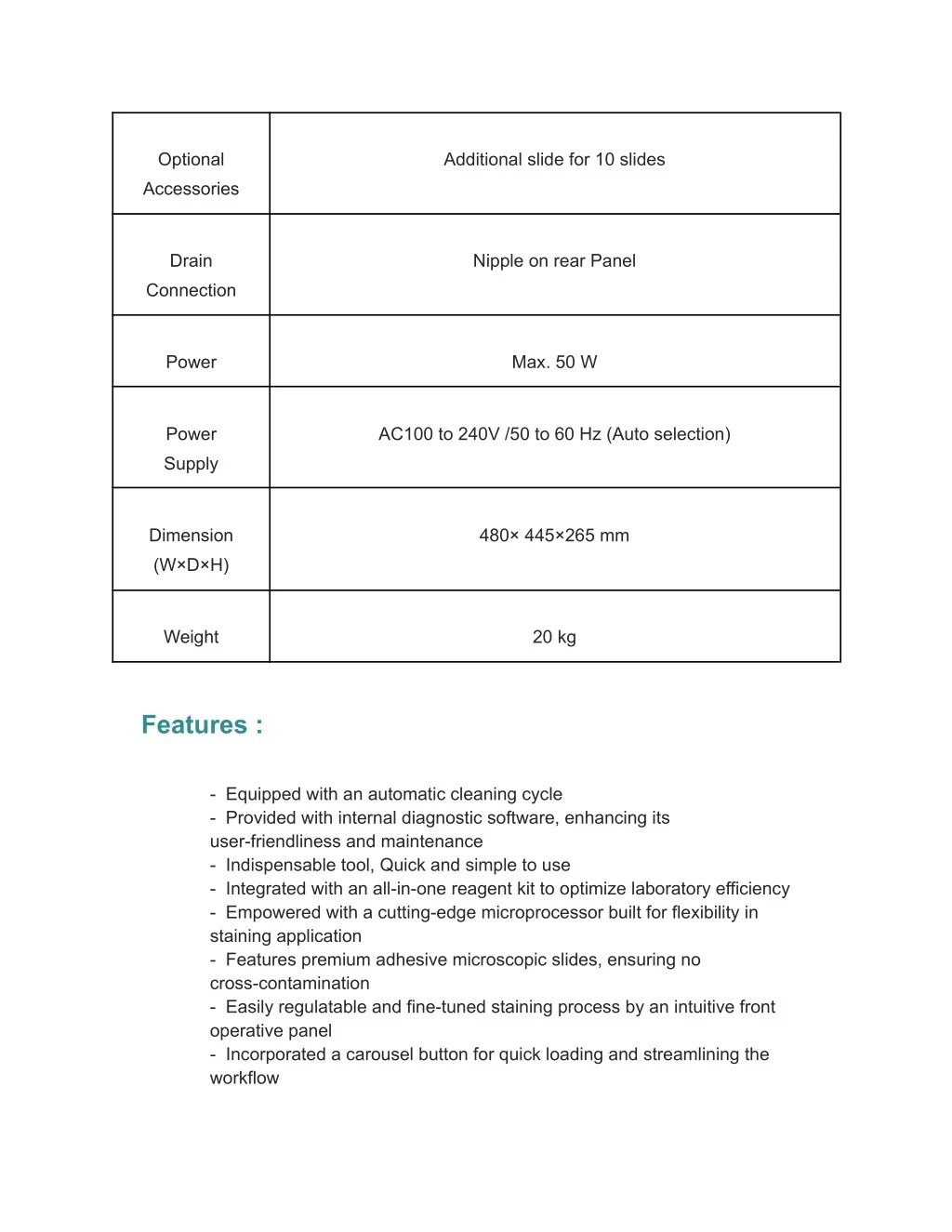

  3. Optional Additional slide for 10 slides Accessories Drain Nipple on rear Panel Connection Power Max. 50 W Power AC100 to 240V /50 to 60 Hz (Auto selection) Supply Dimension 480× 445×265 mm (W×D×H) Weight 20 kg Features : - Equipped with an automatic cleaning cycle - Provided with internal diagnostic software, enhancing its user-friendliness and maintenance - Indispensable tool, Quick and simple to use - Integrated with an all-in-one reagent kit to optimize laboratory efficiency - Empowered with a cutting-edge microprocessor built for flexibility in staining application - Features premium adhesive microscopic slides, ensuring no cross-contamination - Easily regulatable and fine-tuned staining process by an intuitive front operative panel - Incorporated a carousel button for quick loading and streamlining the workflow

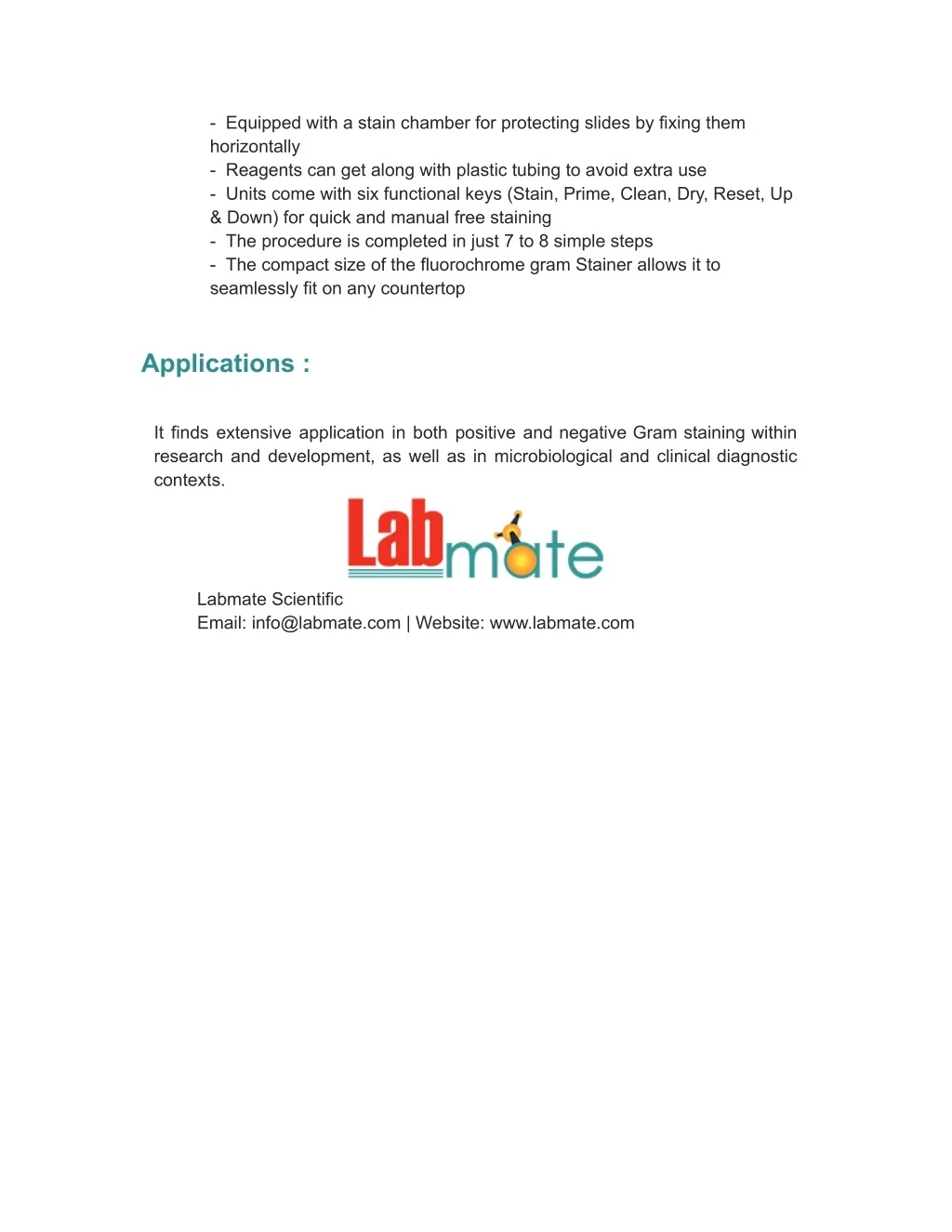

  4. - Equipped with a stain chamber for protecting slides by fixing them horizontally - Reagents can get along with plastic tubing to avoid extra use - Units come with six functional keys (Stain, Prime, Clean, Dry, Reset, Up & Down) for quick and manual free staining - The procedure is completed in just 7 to 8 simple steps - The compact size of the fluorochrome gram Stainer allows it to seamlessly fit on any countertop Applications : It finds extensive application in both positive and negative Gram staining within research and development, as well as in microbiological and clinical diagnostic contexts. Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
