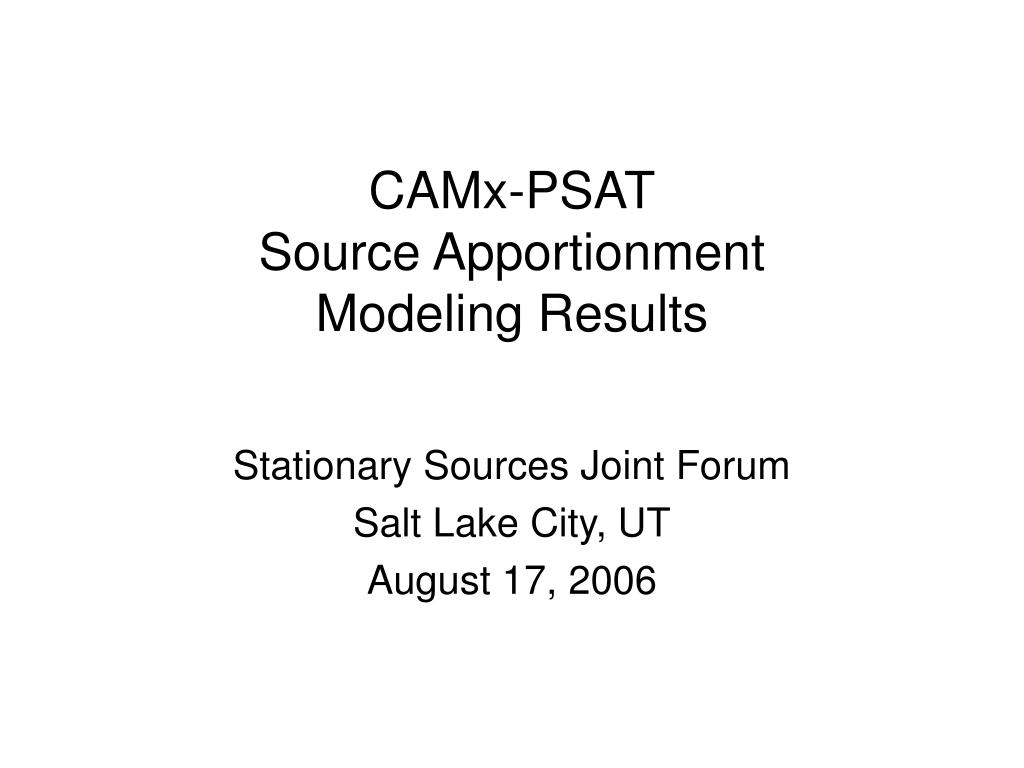

  1. CAMx-PSATSource ApportionmentModeling Results Stationary Sources Joint Forum Salt Lake City, UT August 17, 2006

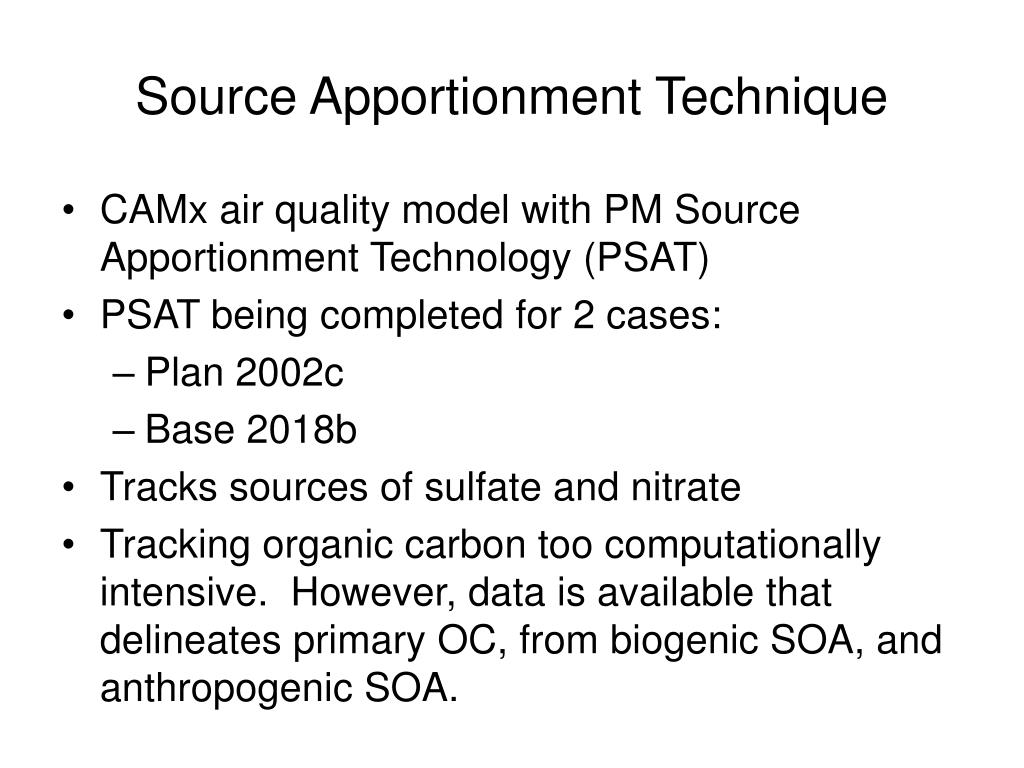

  2. Source Apportionment Technique • CAMx air quality model with PM Source Apportionment Technology (PSAT) • PSAT being completed for 2 cases: • Plan 2002c • Base 2018b • Tracks sources of sulfate and nitrate • Tracking organic carbon too computationally intensive. However, data is available that delineates primary OC, from biogenic SOA, and anthropogenic SOA.

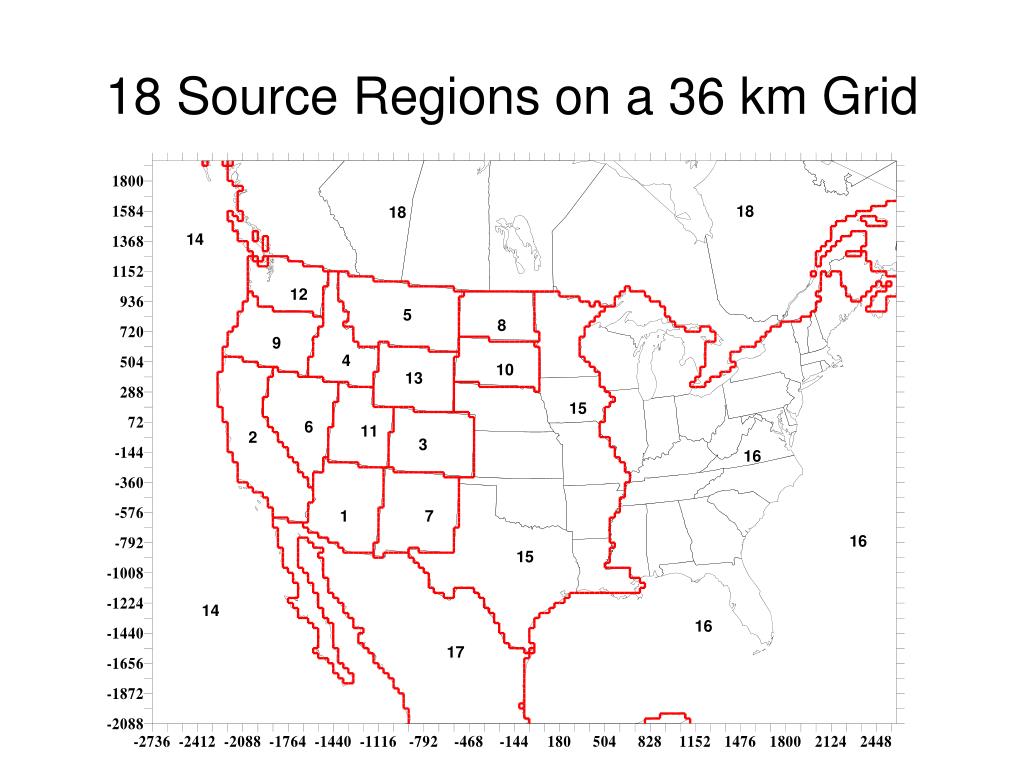

  3. 18 Source Regions on a 36 km Grid

  4. Eight Source Categories • Examples of PSAT “sources”: • MV_CO = mobile sources in Colorado • PT_CE = point sorces in CENRAP • BCON = transport from modeling domain boundaries (derived from GEOS-CHEM)

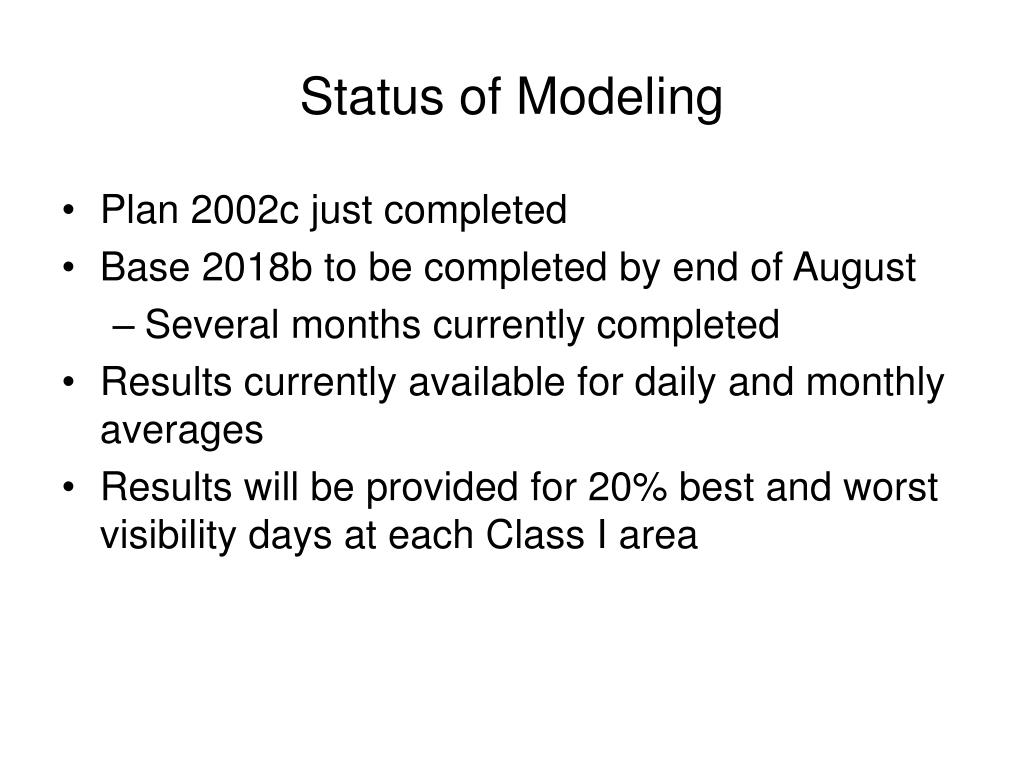

  5. Status of Modeling • Plan 2002c just completed • Base 2018b to be completed by end of August • Several months currently completed • Results currently available for daily and monthly averages • Results will be provided for 20% best and worst visibility days at each Class I area

  6. Alternative Formats forPresenting Results • All examples are for July SO4 • All examples pair 2002 and 2018 on same chart • Format 1: Top 10 sources (TONT, GRCA, ROMO, BADL) • Format 2: By source region (BADL) • Format 3: By source category (BADL) • Format 4: By source “controlability” (BADL)

  7. Current Format

  8. Alternate Format 1 – Top 10 Sources

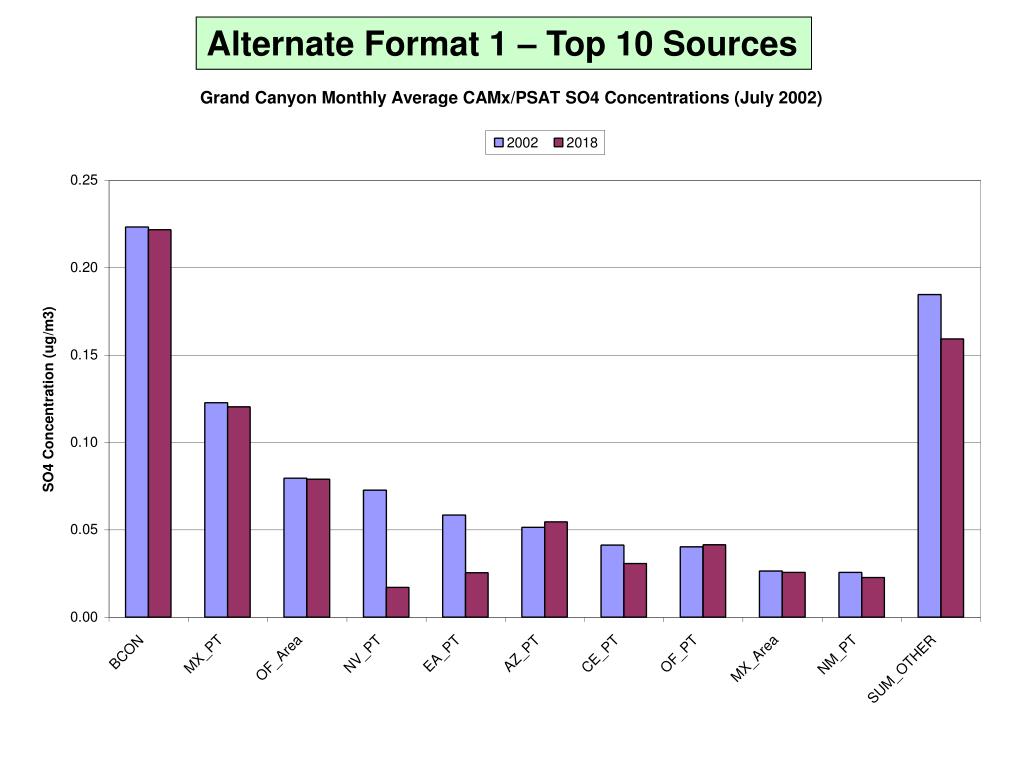

  9. Alternate Format 1 – Top 10 Sources

  10. Alternate Format 1 – Top 10 Sources

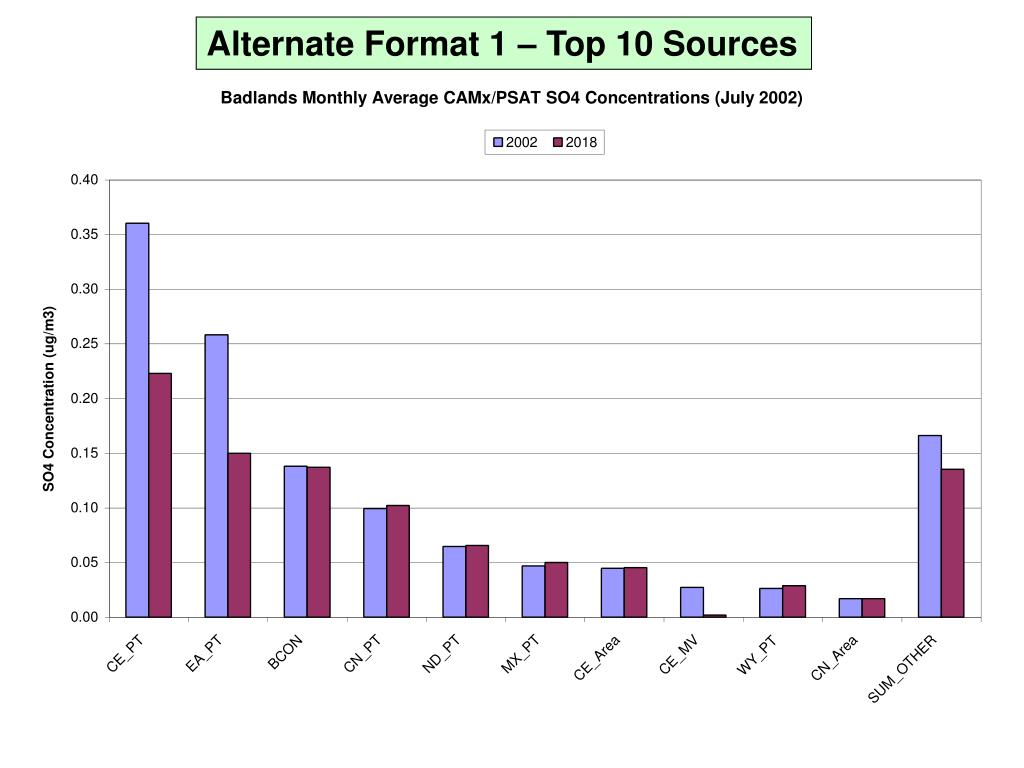

  11. Alternate Format 1 – Top 10 Sources

  12. Alternate Format 2 – By Region

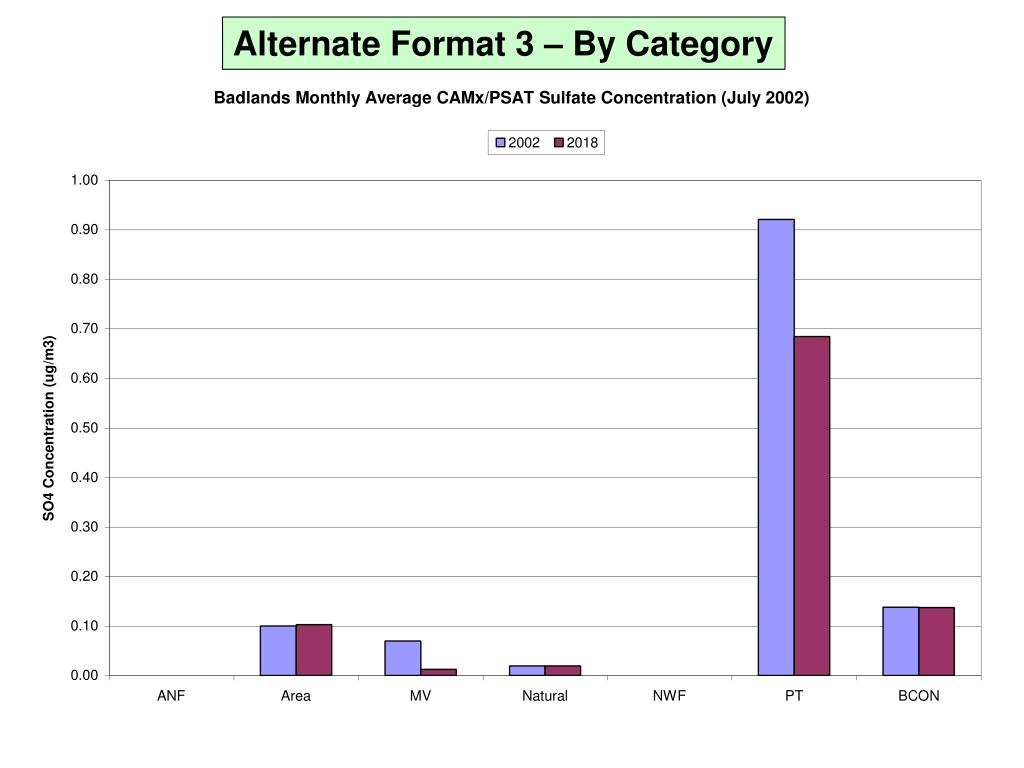

  13. Alternate Format 3 – By Category

  14. Alternate Format 4 – By “Controlability”

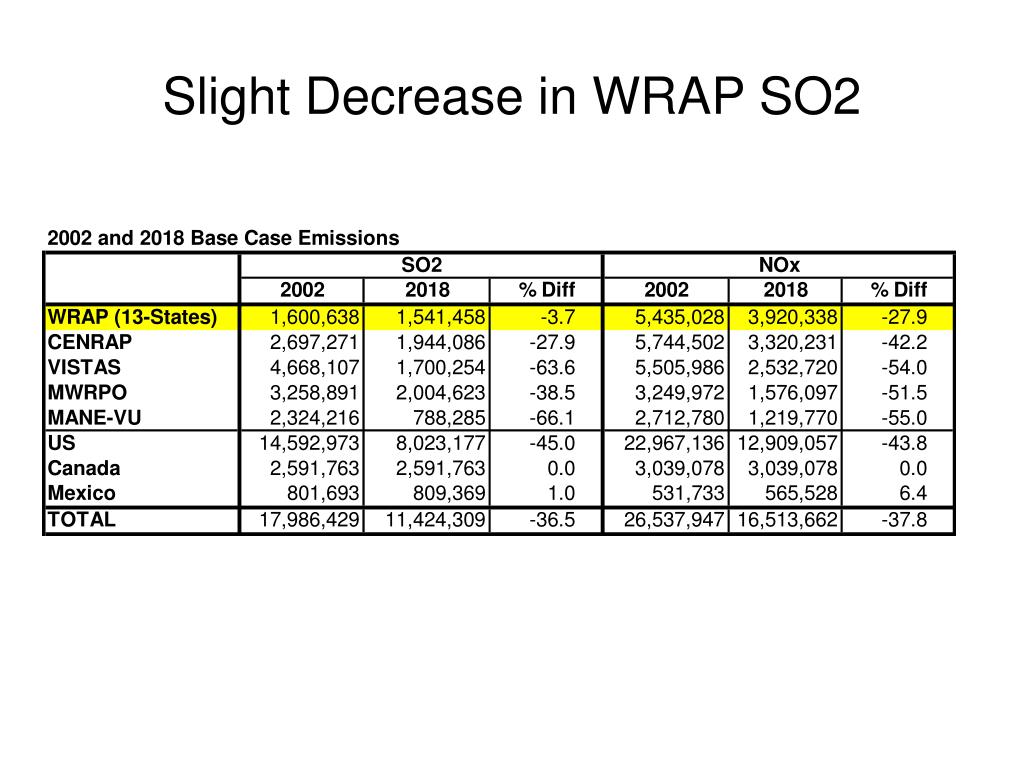

  15. Slight Decrease in WRAP SO2

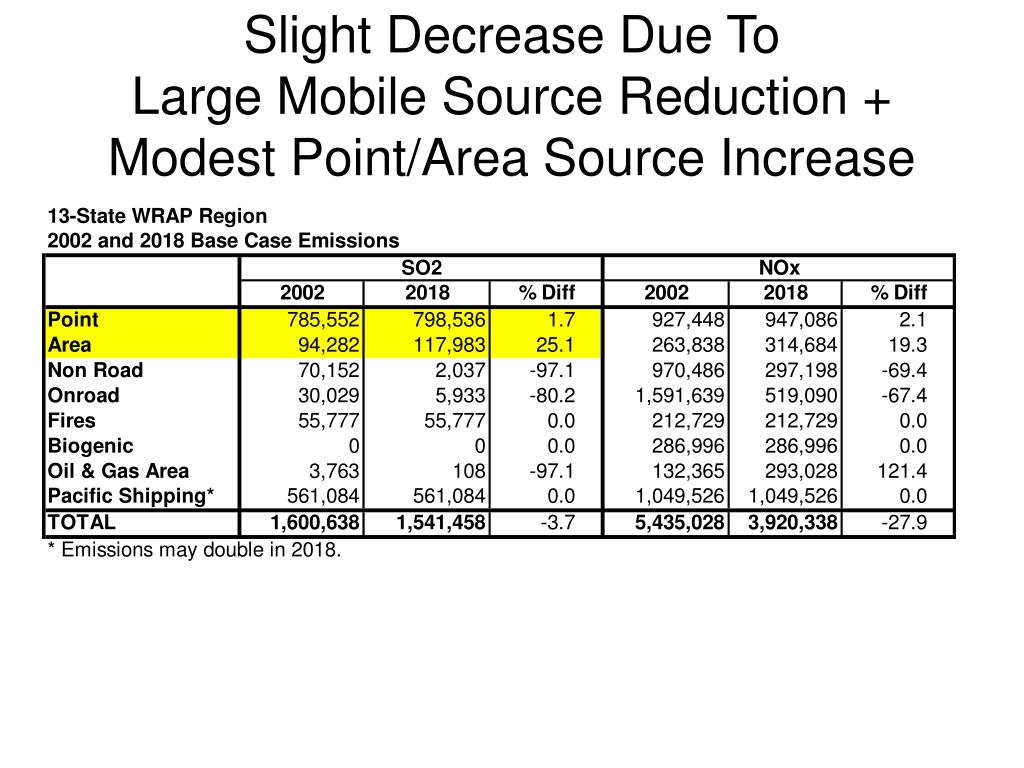

  16. Slight Decrease Due ToLarge Mobile Source Reduction + Modest Point/Area Source Increase

  17. Why Do Area Sources Increase?

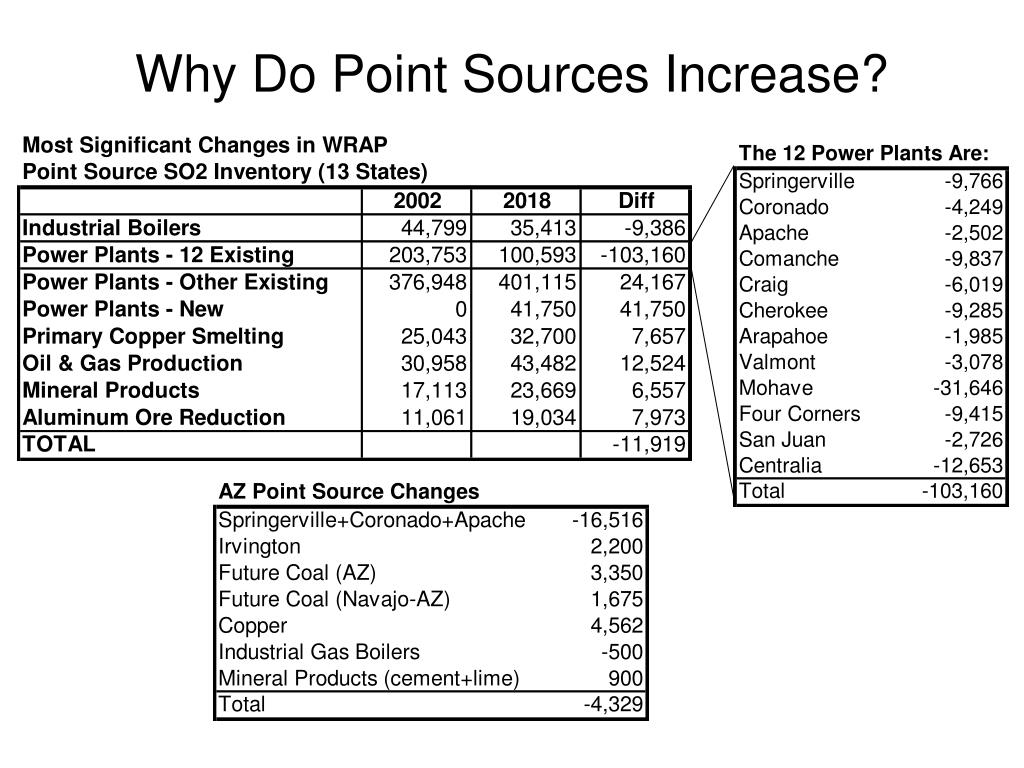

  18. Why Do Point Sources Increase?

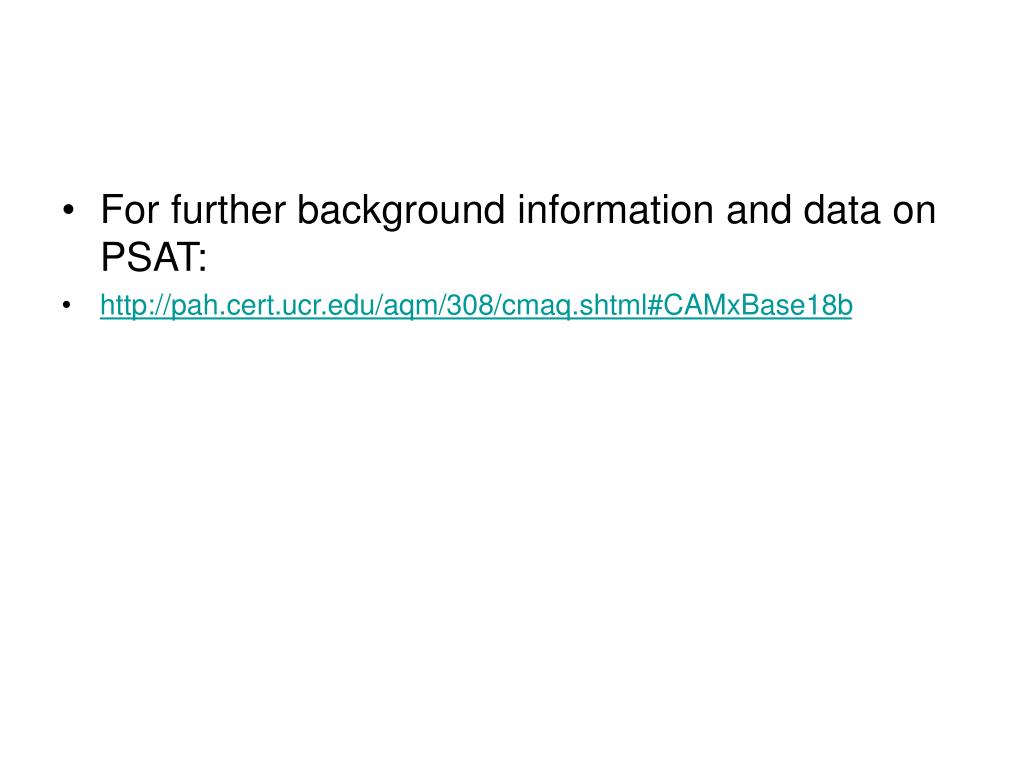

  19. For further background information and data on PSAT: • http://pah.cert.ucr.edu/aqm/308/cmaq.shtml#CAMxBase18b
