  1. Energy Chapter 12.3

  2. Learning Target To distinguish between potential energy and kinetic energy!

  3. Work and energy • Whenever work is done, energy is transferred • Energy is the ability to do work • Therefore, energy is also measured in Joules!

  4. What is potential energy?? • What does it mean to have potential? • Potential energy—energy stored due to the position of an object that can be used at a later time “energy of position” • Ex: Stretched back rubber band!

  5. Two Types of Potential Energy • Elastic Potential Energy—energy stored in any type of stretched or compressed elastic material • Ex: A stretched out slinky! • Gravitational Potential Energy—energy stored from the position of an object from the ground • Ex: An apple on a tree branch!

  6. Gravitational Potential Energy • GPE depends on mass and height • Equation to know: • Gravitational Potential Energy = mass x free-fall acceleration x height • PE = mgh g = 9.8 m/s²

  7. Gravitational Potential Energy Practice! • A 65 kg rock climber ascends a cliff. What is the climber’s gravitational potential energy at a point 35 m above the base of the cliff? • PE = mgh • PE = (65kg)(9.8 m/s^2)(35) • PE = 2.2 x 10^4 J

  8. Kinetic Energy • Remember the kinetic theory? • Kinetic energy  energy of a moving object due to the object’s motion • KE depends on mass and speed • Equation to know: • KE = ½mv²

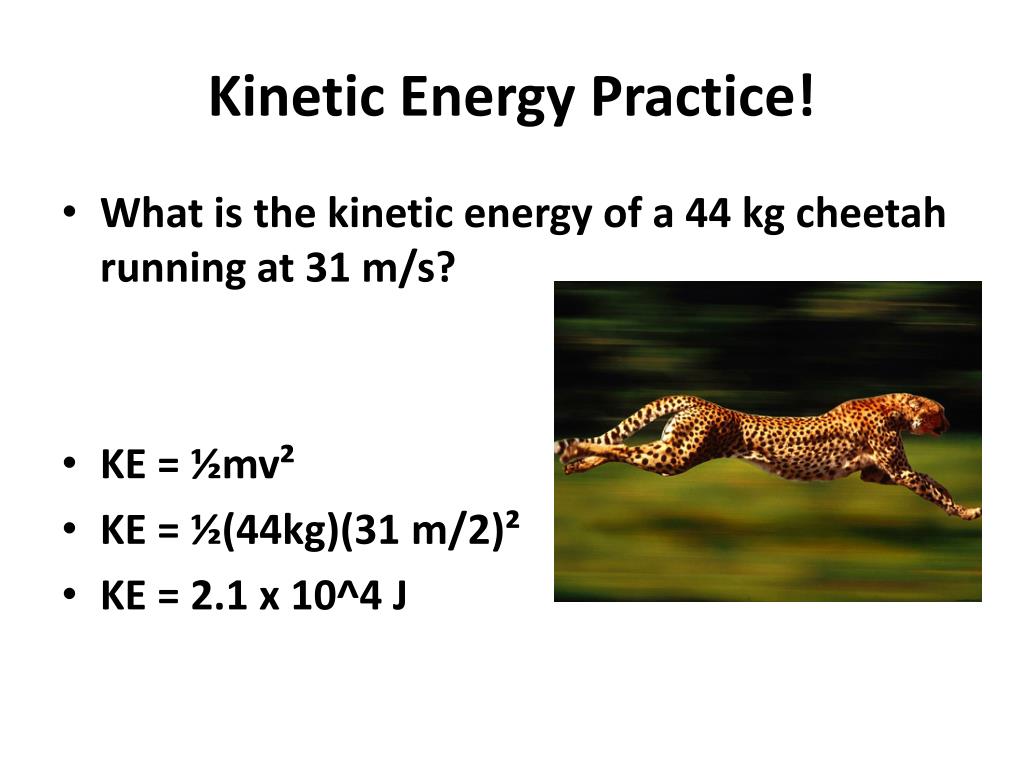

  9. Kinetic Energy Practice! • What is the kinetic energy of a 44 kg cheetah running at 31 m/s? • KE = ½mv² • KE = ½(44kg)(31 m/2)² • KE = 2.1 x 10^4 J

  10. Kinetic and Potential Energy • Law of Conservation of Energy energy cannot be created nor destroyed, just rearranged • Hence, potential energy is converted into kinetic energy!

  11. Bill Nye?

  12. Practice! • http://www.staff.fcps.net/AWEGER/science/document/qefworksheet.pdf
