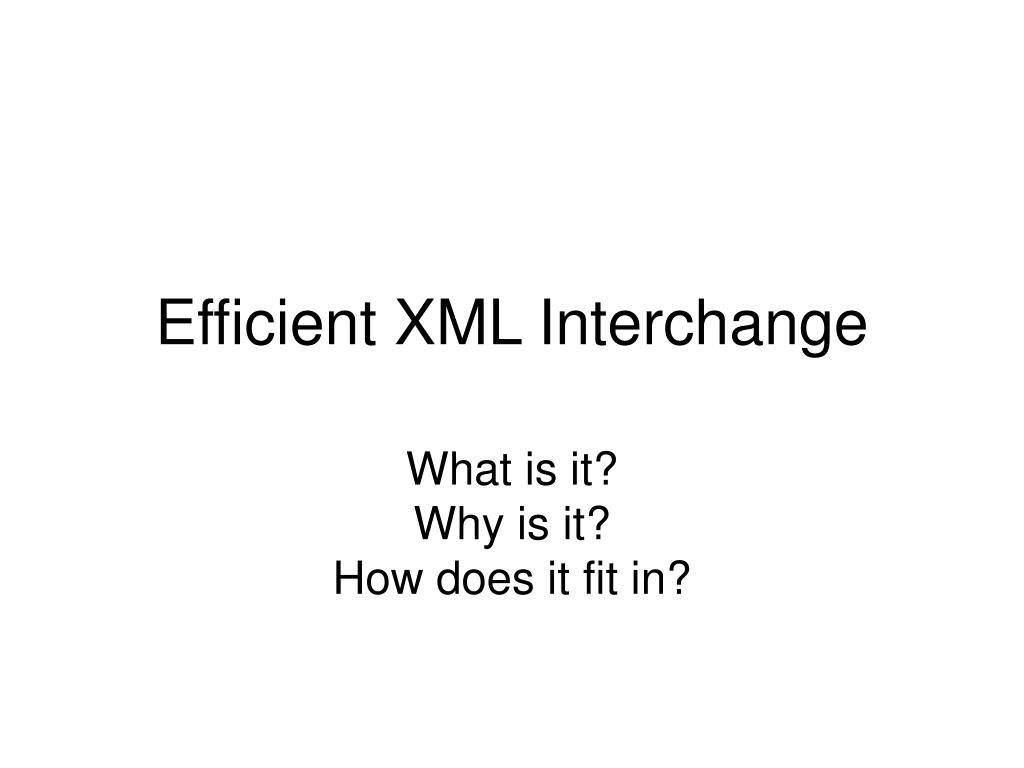

  1. Efficient XML Interchange What is it?Why is it?How does it fit in?

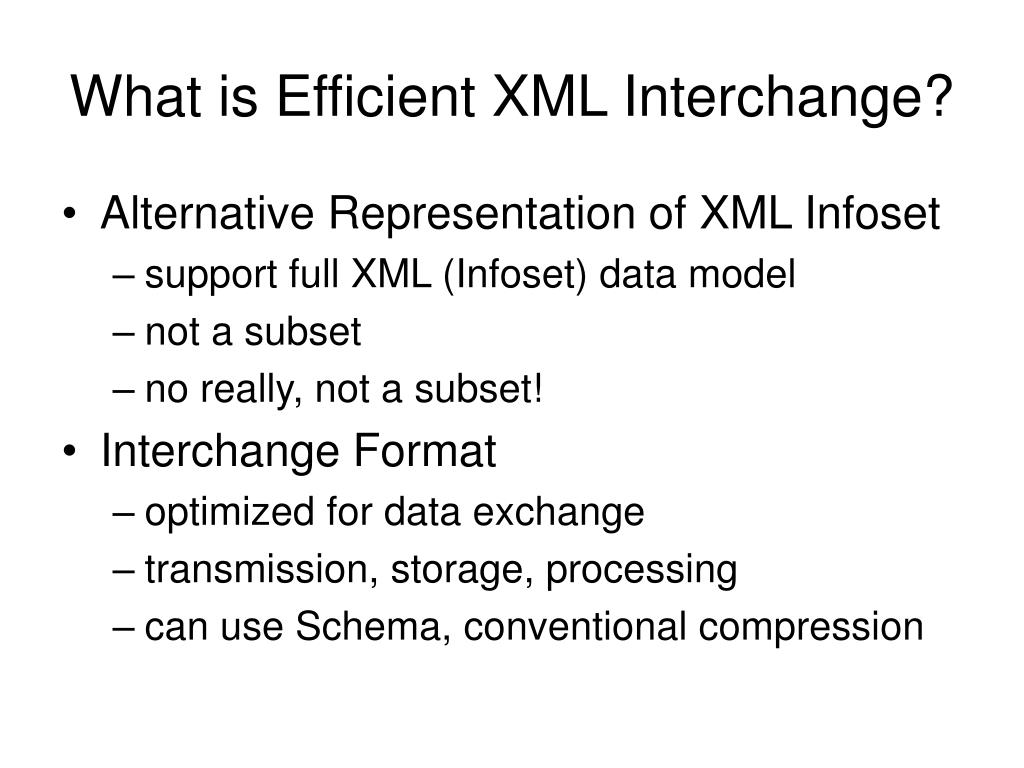

  2. What is Efficient XML Interchange? • Alternative Representation of XML Infoset • support full XML (Infoset) data model • not a subset • no really, not a subset! • Interchange Format • optimized for data exchange • transmission, storage, processing • can use Schema, conventional compression

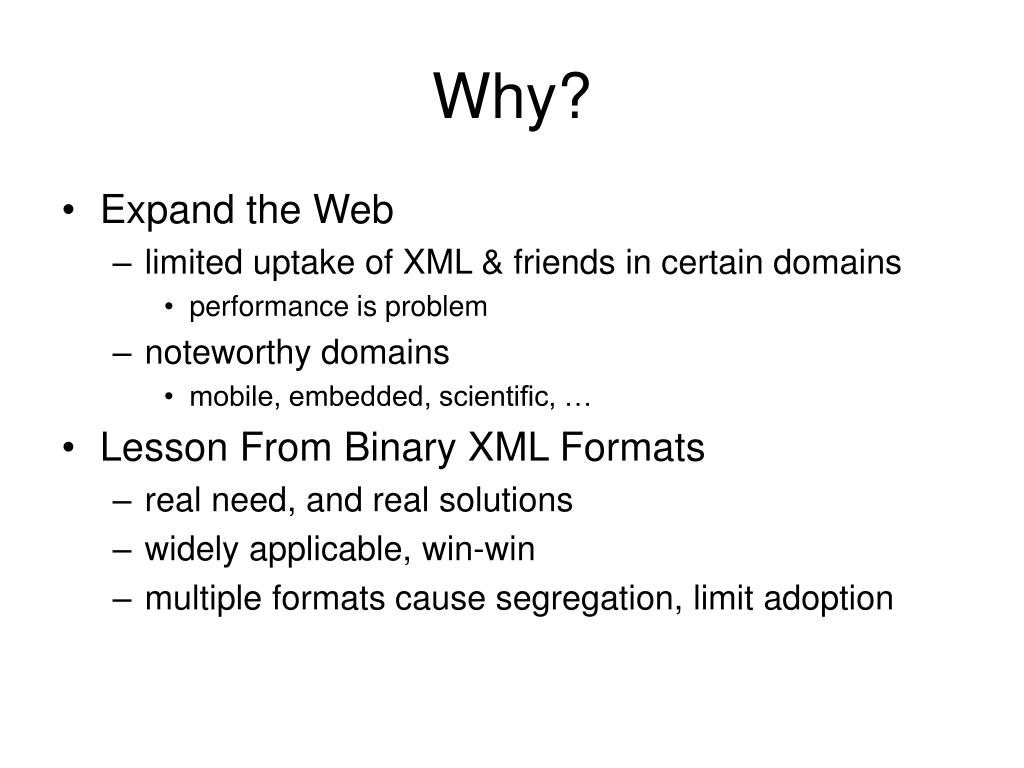

  3. Why? • Expand the Web • limited uptake of XML & friends in certain domains • performance is problem • noteworthy domains • mobile, embedded, scientific, … • Lesson From Binary XML Formats • real need, and real solutions • widely applicable, win-win • multiple formats cause segregation, limit adoption

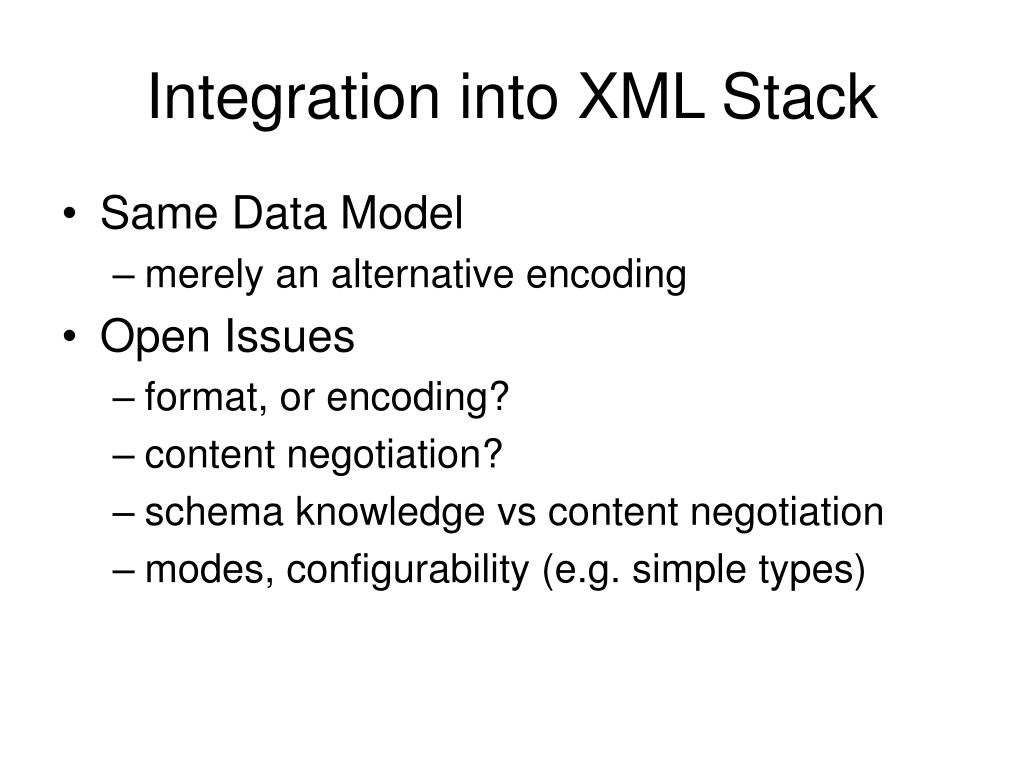

  4. Integration into XML Stack • Same Data Model • merely an alternative encoding • Open Issues • format, or encoding? • content negotiation? • schema knowledge vs content negotiation • modes, configurability (e.g. simple types)

  5. WebAPI / EXI? • Impact on… • APIs • initalisation: encoding modes, schema info? • XMLHttpRequest • again: modes, schema info? • diversity of formats? • Are data models in sync? • HTML as XML? • REX • fragment support?

  6. Efficient XML Interchange Format Basics

  7. Efficient XML Interchange • Goal(s) • maintain XML (Infoset) data model • seamless integration into XML software stack • improve compaction AND processing • Observation: • ‘smallness’ has multiple benefits • e.g. energy consumption during transmission • allows XML deployment in new scenarios • Underlying Philosophy: • exploit a-priori knowledge of (likely) content

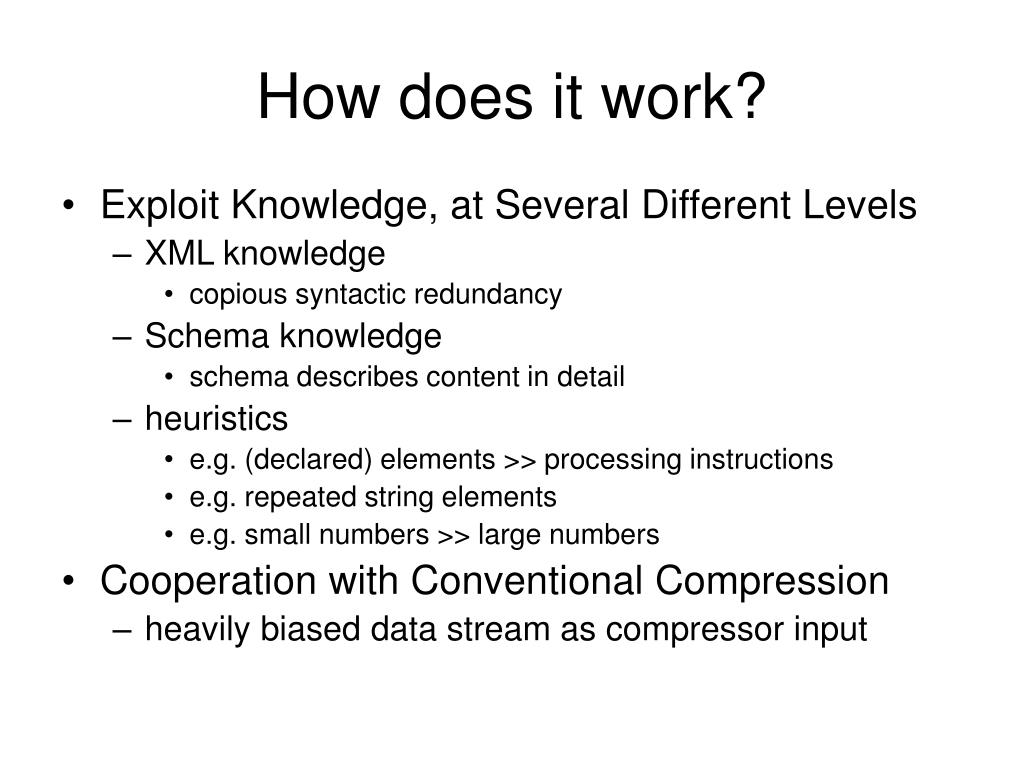

  8. How does it work? • Exploit Knowledge, at Several Different Levels • XML knowledge • copious syntactic redundancy • Schema knowledge • schema describes content in detail • heuristics • e.g. (declared) elements >> processing instructions • e.g. repeated string elements • e.g. small numbers >> large numbers • Cooperation with Conventional Compression • heavily biased data stream as compressor input

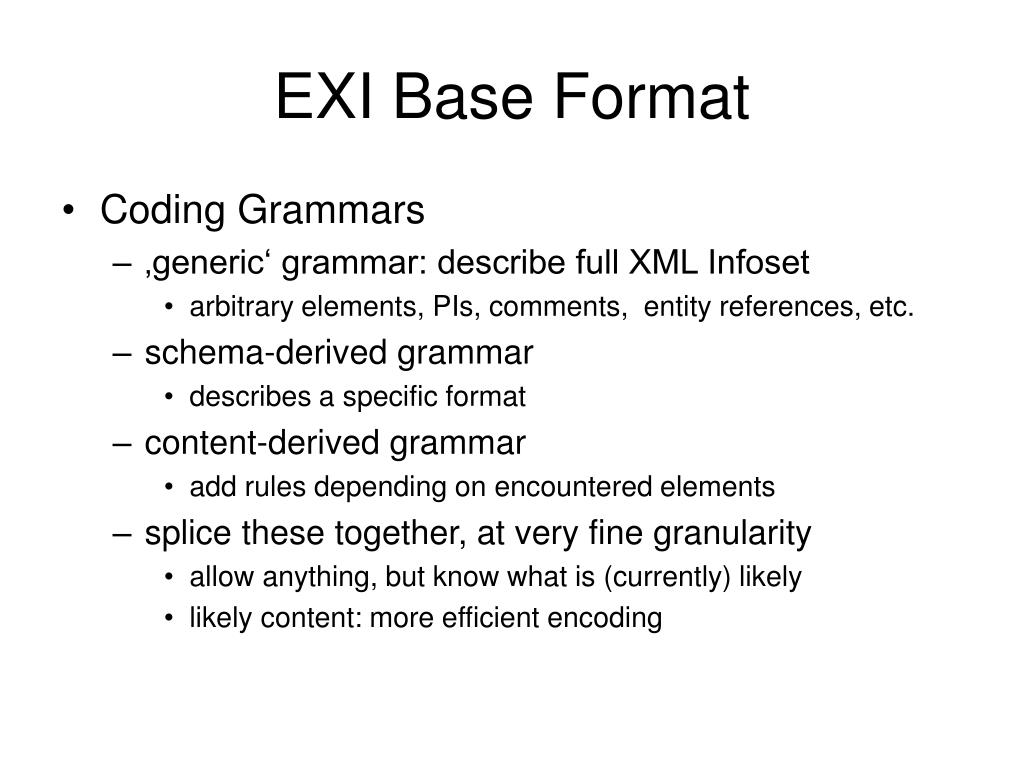

  9. EXI Base Format • Coding Grammars • ‚generic‘ grammar: describe full XML Infoset • arbitrary elements, PIs, comments, entity references, etc. • schema-derived grammar • describes a specific format • content-derived grammar • add rules depending on encountered elements • splice these together, at very fine granularity • allow anything, but know what is (currently) likely • likely content: more efficient encoding

  10. SE(*), CH, ER, CM, PI SE(*)CHERCMPI Element StartTag AT(*)NS EE EE EXI Base FormatBuilt-in, Generic Element Grammar

  11. SE(quantity) SE(price) SE(quantity) AT(color) SE(desc) SE(desc) EE SE(quantity) EXI Base FormatA Schema-Based Grammar • Element Content Model: • (optional) attribute “color” • (optional) element “desc” • (mandatory) elements quantity, price

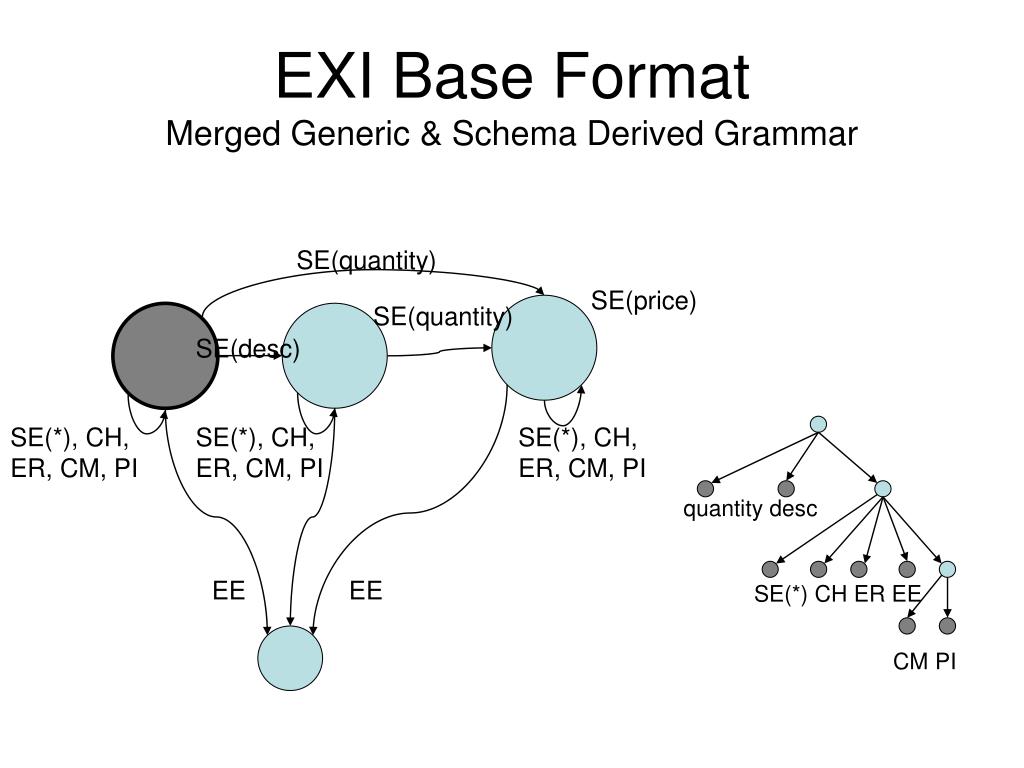

  12. quantity desc SE(*) CH ER EE CM PI EXI Base FormatMerged Generic & Schema Derived Grammar SE(quantity) SE(price) SE(quantity) SE(desc) SE(*), CH, ER, CM, PI SE(*), CH, ER, CM, PI SE(*), CH, ER, CM, PI EE EE

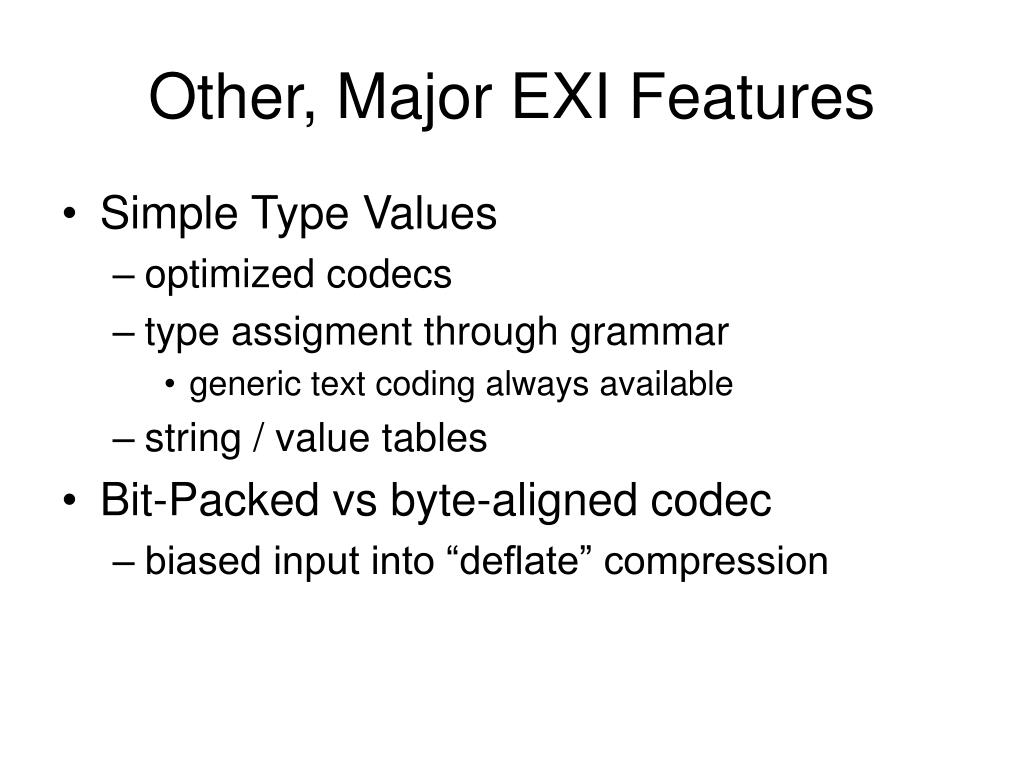

  13. Other, Major EXI Features • Simple Type Values • optimized codecs • type assigment through grammar • generic text coding always available • string / value tables • Bit-Packed vs byte-aligned codec • biased input into “deflate” compression

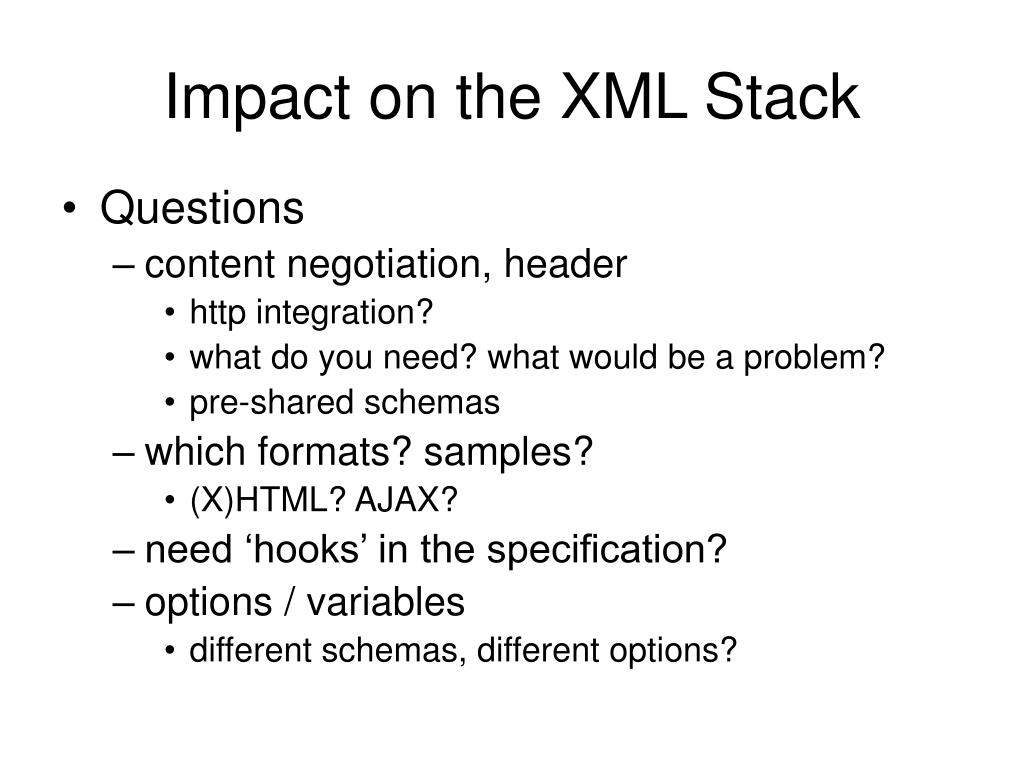

  14. Impact on the XML Stack • Questions • content negotiation, header • http integration? • what do you need? what would be a problem? • pre-shared schemas • which formats? samples? • (X)HTML? AJAX? • need ‘hooks’ in the specification? • options / variables • different schemas, different options?
