  1. OASIS Adoption Forum Ditton Manor, October 29th-30th 2007 Reliable Messaging in the Real World Paul Fremantle Co-chair, OASIS WS-RX TC VP and Founder, WSO2 Inc

  2. Introductions • Paul Fremantle • Co-chair of WS-RX Technical Committee • Co-founder and VP/Technical Sales, WSO2 • WSO2 • 60 employees in Colombo, London, Mountain View • Pure Open Source company • Enterprise Service Bus, Registry • Support for OASIS standards in J2EE, C, PHP • Funded by Intel Capital

  3. Strong Requirement for Reliability • Strongest demand – after Security • The requirement is not just for “SOAP services” • Customers are usually looking for a Secure Reliable Channel • Binary data (MTOM) is a key capability

  4. Too much or too little choice? WS-RM WS-Reliability ebMS AMQP JMS MQSeries ActiveMQ

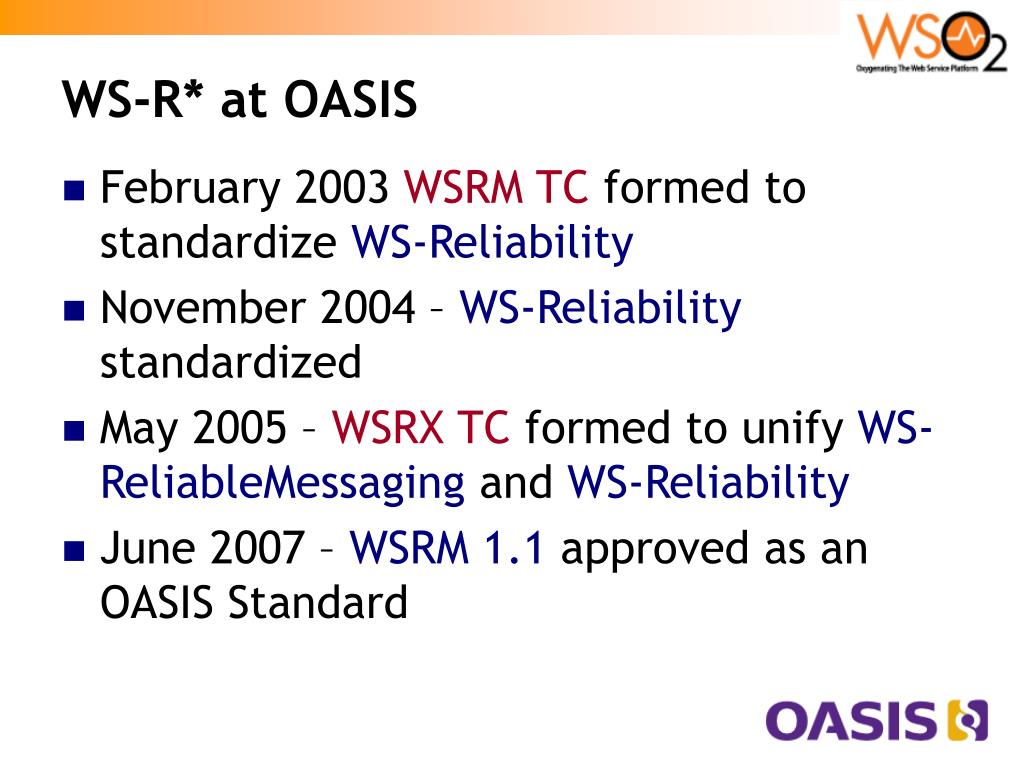

  5. WS-R* at OASIS • February 2003 WSRM TC formed to standardize WS-Reliability • November 2004 – WS-Reliability standardized • May 2005 – WSRX TC formed to unify WS-ReliableMessaging and WS-Reliability • June 2007 – WSRM 1.1 approved as an OASIS Standard

  6. Aims of WS-ReliableMessaging 1.1 • Allow interoperable systems to exchange messages with assured delivery • In particular Exactly-Once In Order • Or both sides alerted to failure • Composable with other standards • WS-Addressing, WS-Security, WS-SecureConversation, SSL/TLS, WS-Policy • Support one-way and two-way exchanges • Optionally support two-way exchanges with NAT, firewalls, Internet configuration BUT NOT wire-level compatible between WSRM1.0/1.1

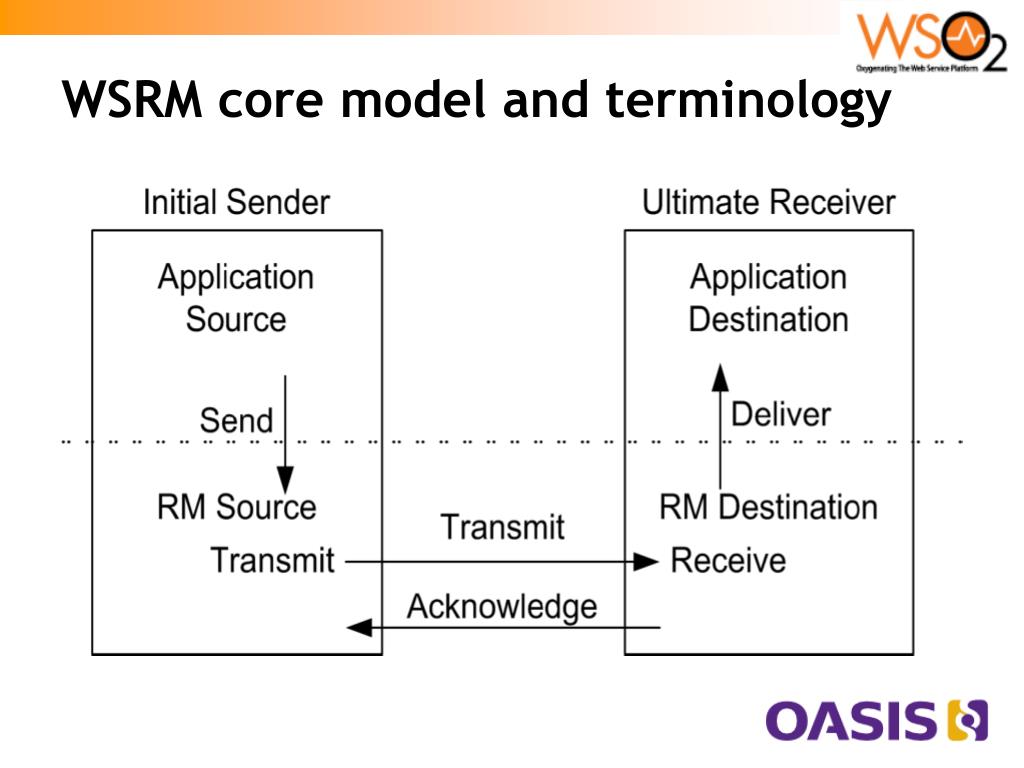

  7. WSRM core model and terminology

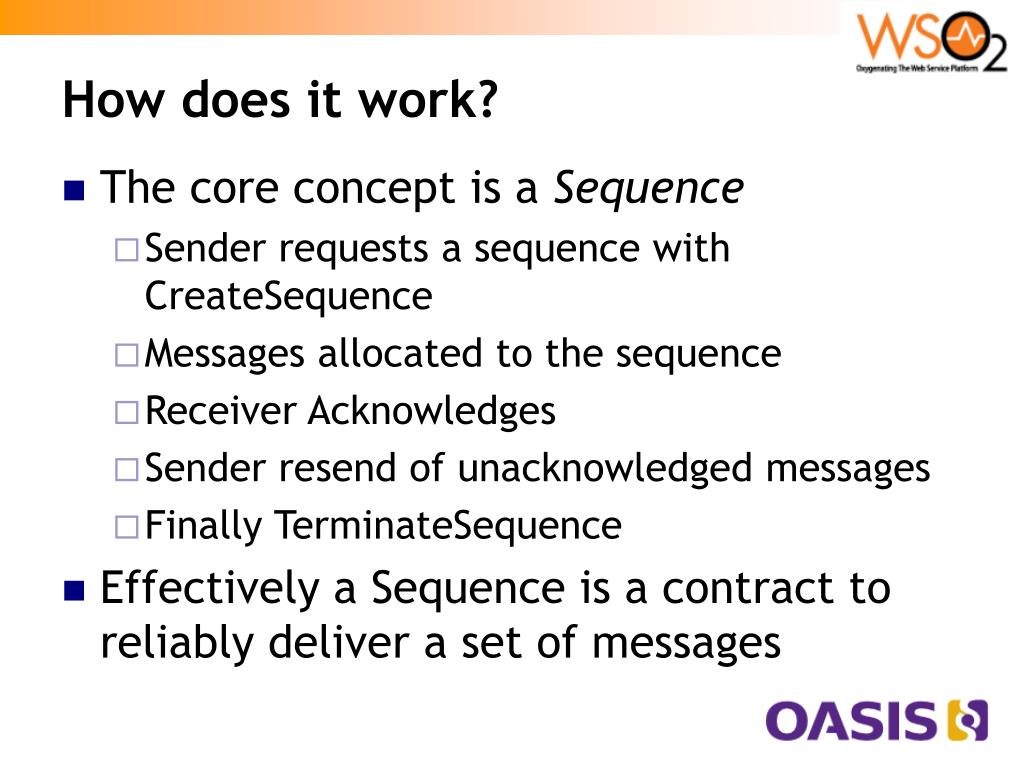

  8. How does it work? • The core concept is a Sequence • Sender requests a sequence with CreateSequence • Messages allocated to the sequence • Receiver Acknowledges • Sender resend of unacknowledged messages • Finally TerminateSequence • Effectively a Sequence is a contract to reliably deliver a set of messages

  9. Simple example

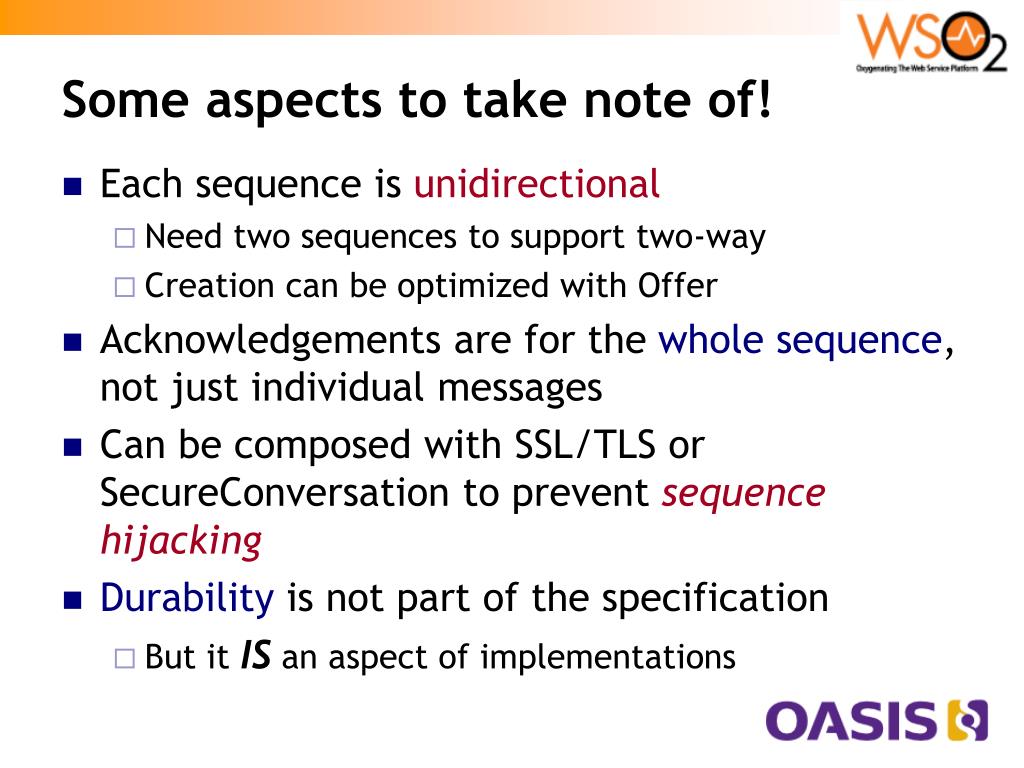

  10. Some aspects to take note of! • Each sequence is unidirectional • Need two sequences to support two-way • Creation can be optimized with Offer • Acknowledgements are for the whole sequence, not just individual messages • Can be composed with SSL/TLS or SecureConversation to prevent sequence hijacking • Durability is not part of the specification • But it IS an aspect of implementations

  11. Sequence Hijacking and Security • Concern that the sequence itself may be attacked • Famously happened to TCP/IP • Prevented by “binding” a sequence to a specific security context • Only the creator of the sequence can post messages, request acknowledgements, terminate the sequence • Explicit support for binding to: • SSL/TLS session • SecureConversation

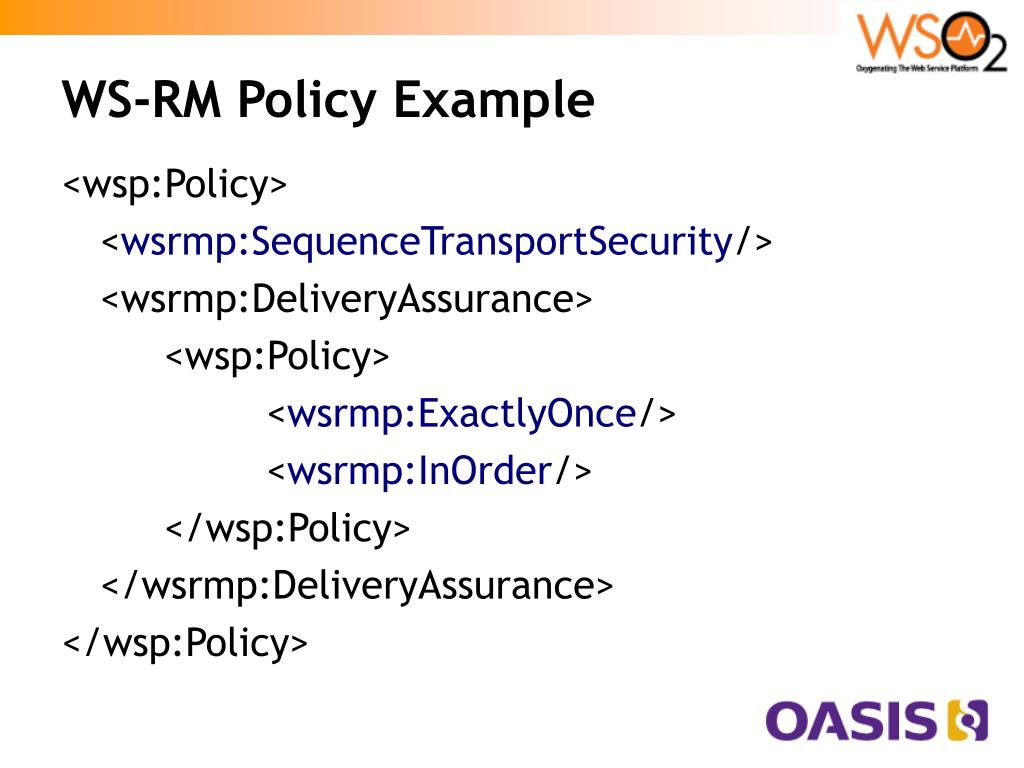

  12. WS-RM Policy Example <wsp:Policy> <wsrmp:SequenceTransportSecurity/> <wsrmp:DeliveryAssurance> <wsp:Policy> <wsrmp:ExactlyOnce/> <wsrmp:InOrder/> </wsp:Policy> </wsrmp:DeliveryAssurance> </wsp:Policy>

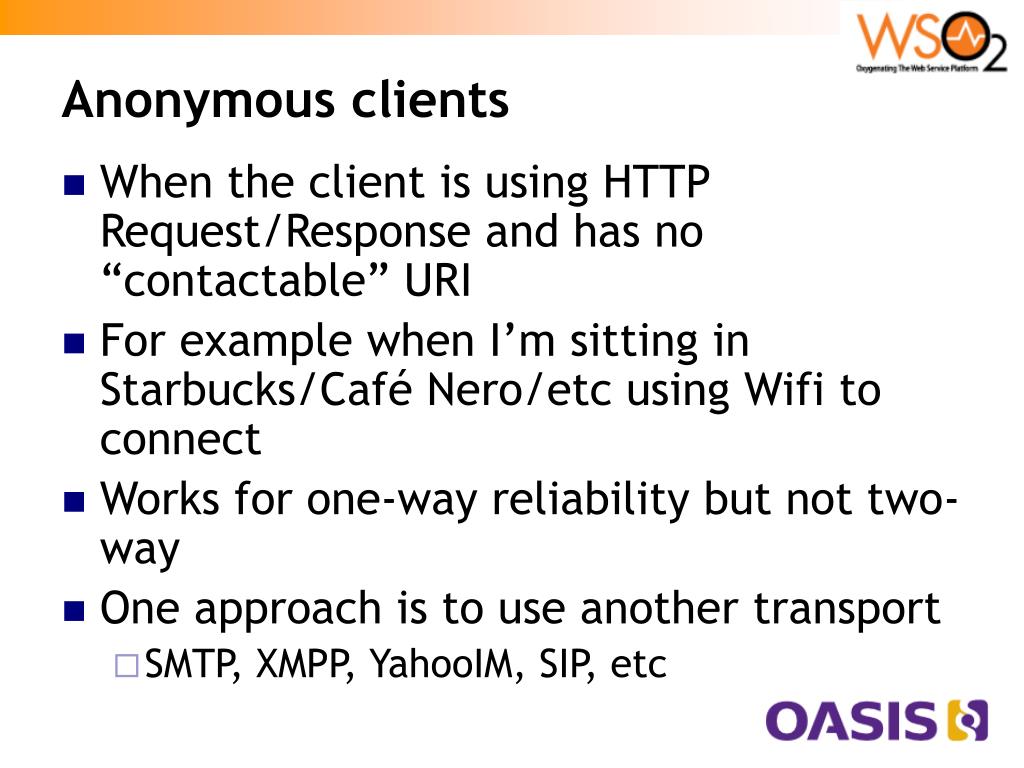

  13. Anonymous clients • When the client is using HTTP Request/Response and has no “contactable” URI • For example when I’m sitting in Starbucks/Café Nero/etc using Wifi to connect • Works for one-way reliability but not two-way • One approach is to use another transport • SMTP, XMPP, YahooIM, SIP, etc

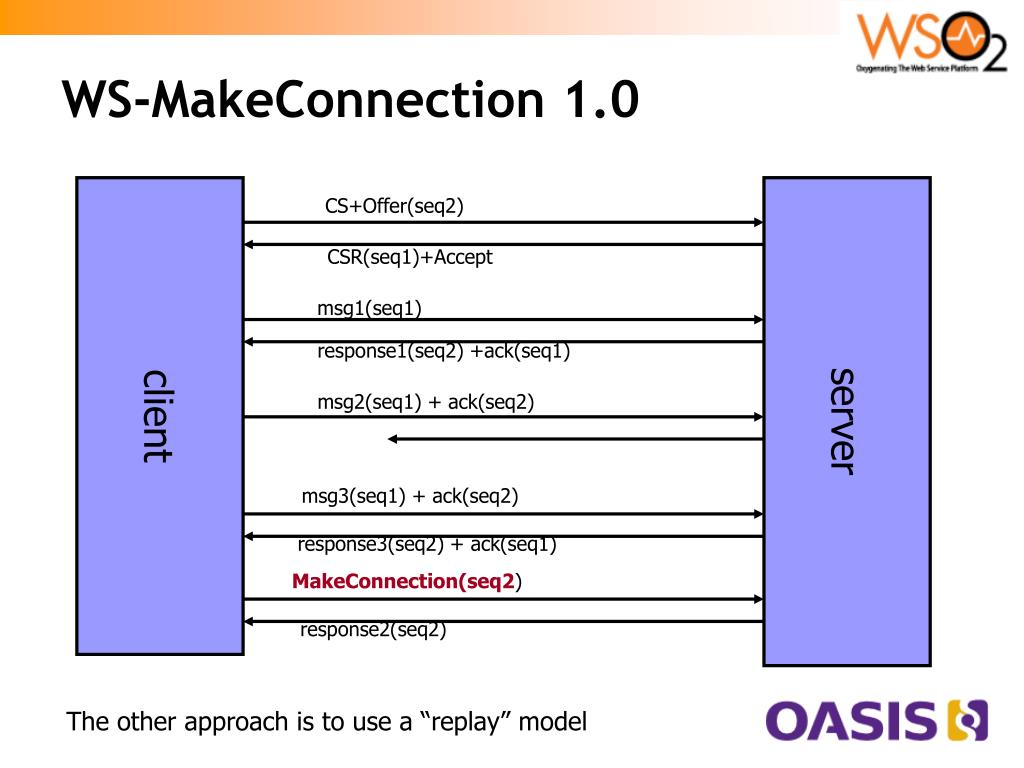

  14. WS-MakeConnection 1.0 client server CS+Offer(seq2) CSR(seq1)+Accept msg1(seq1) response1(seq2) +ack(seq1) msg2(seq1) + ack(seq2) msg3(seq1) + ack(seq2) response3(seq2) + ack(seq1) MakeConnection(seq2) response2(seq2) The other approach is to use a “replay” model

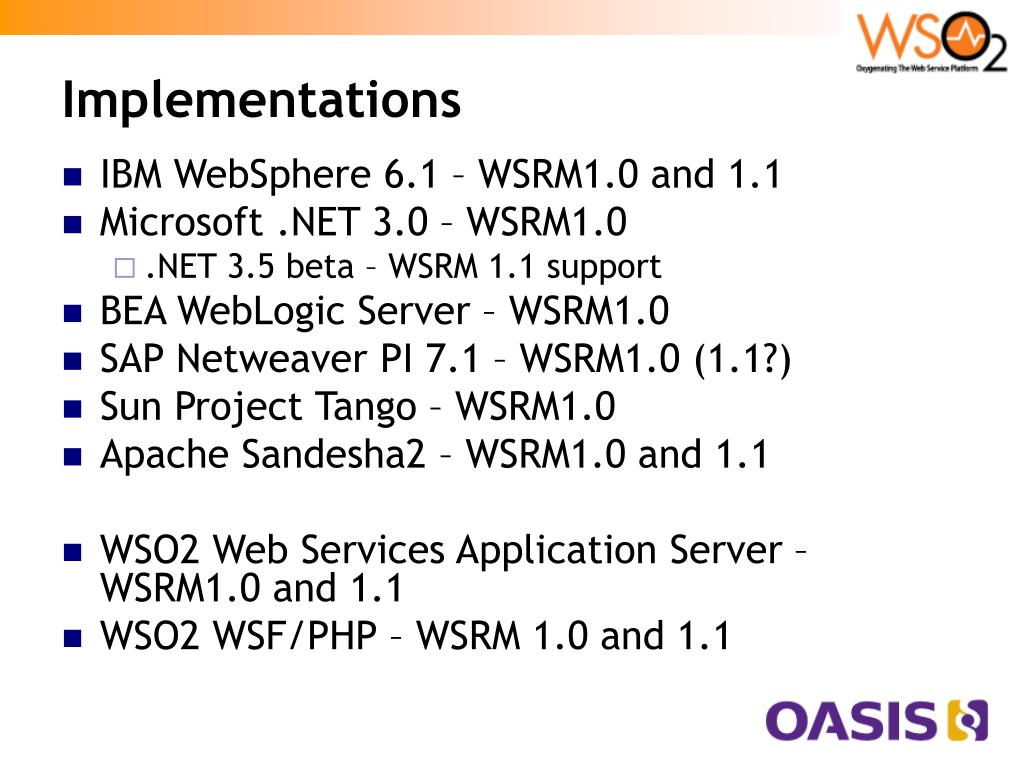

  15. Implementations • IBM WebSphere 6.1 – WSRM1.0 and 1.1 • Microsoft .NET 3.0 – WSRM1.0 • .NET 3.5 beta – WSRM 1.1 support • BEA WebLogic Server – WSRM1.0 • SAP Netweaver PI 7.1 – WSRM1.0 (1.1?) • Sun Project Tango – WSRM1.0 • Apache Sandesha2 – WSRM1.0 and 1.1 • WSO2 Web Services Application Server – WSRM1.0 and 1.1 • WSO2 WSF/PHP – WSRM 1.0 and 1.1

  16. Real-world interoperability • PRESTO • French government sponsored interop • WSRM 1.0 + WS-Security + MTOM • Danish Government OIO SOI • WSRM 1.0, Replay model • HTTP and SMTP • WS-Security • .NET 3.0 and Apache Axis2/Sandesha2

  17. Futures • I predict much greater uptake of WSRM 1.1 in 2008 • Based on more implementations and further “real-world” interop • WS-I RSP • The OASIS TC is still open • Minor updates and errata • Conformance with WS-Policy 1.5 • Likely to produce a 1.1.1/1.2

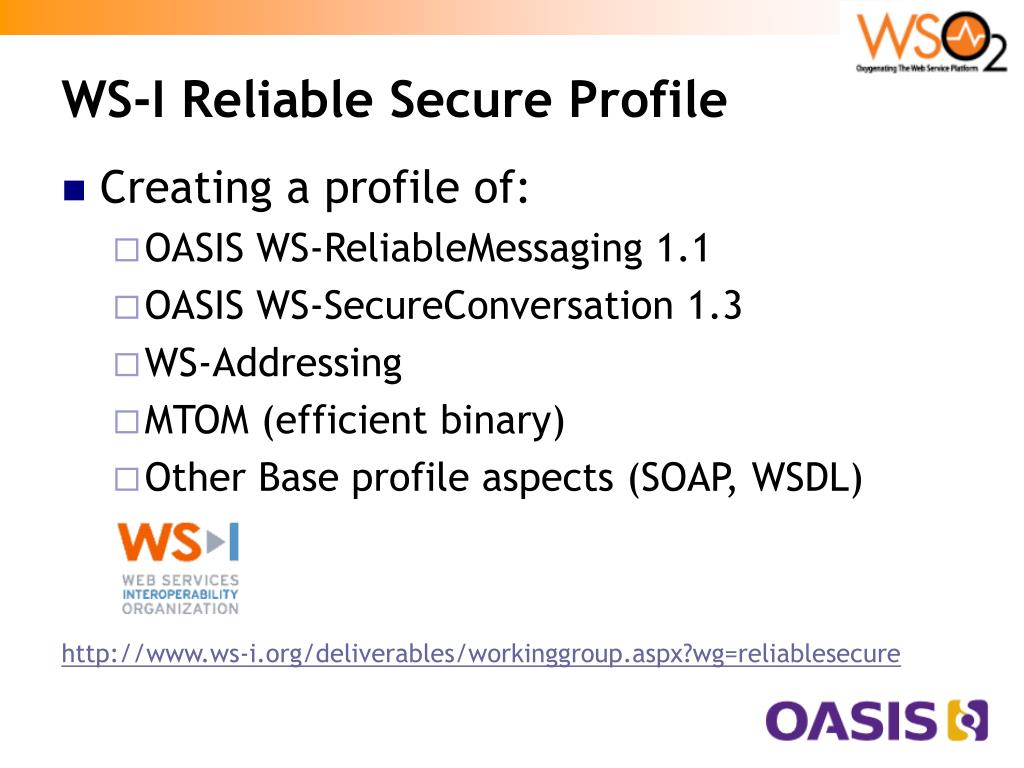

  18. WS-I Reliable Secure Profile • Creating a profile of: • OASIS WS-ReliableMessaging 1.1 • OASIS WS-SecureConversation 1.3 • WS-Addressing • MTOM (efficient binary) • Other Base profile aspects (SOAP, WSDL) http://www.ws-i.org/deliverables/workinggroup.aspx?wg=reliablesecure

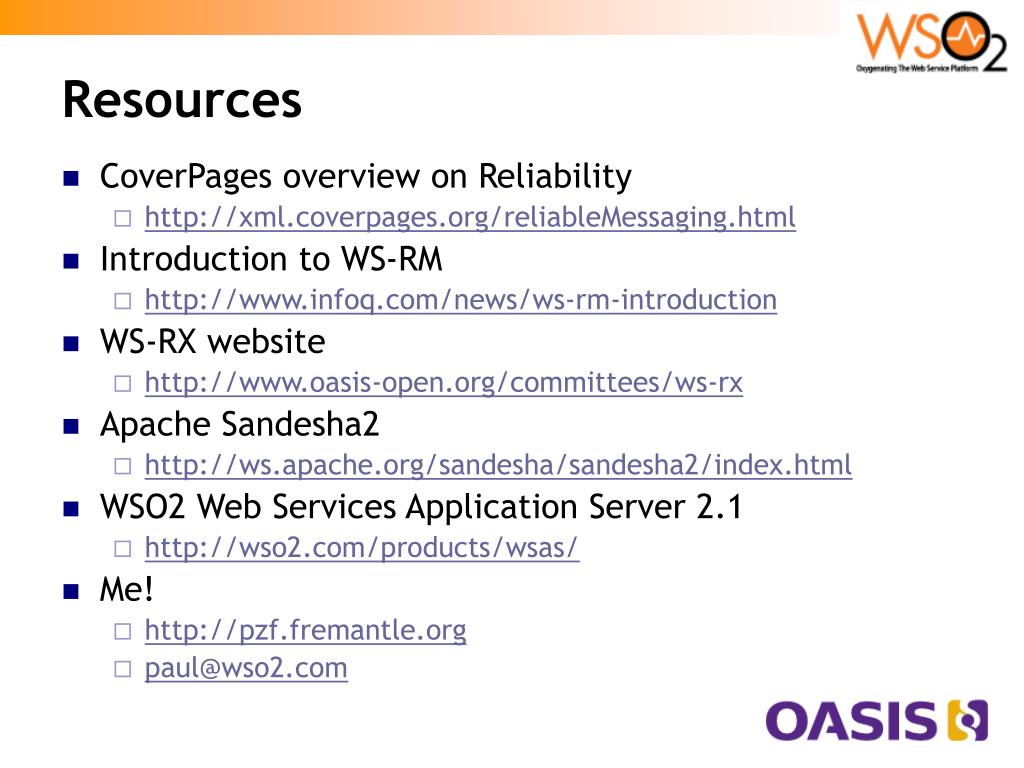

  19. Resources • CoverPages overview on Reliability • http://xml.coverpages.org/reliableMessaging.html • Introduction to WS-RM • http://www.infoq.com/news/ws-rm-introduction • WS-RX website • http://www.oasis-open.org/committees/ws-rx • Apache Sandesha2 • http://ws.apache.org/sandesha/sandesha2/index.html • WSO2 Web Services Application Server 2.1 • http://wso2.com/products/wsas/ • Me! • http://pzf.fremantle.org • paul@wso2.com
