Presentation Transcript

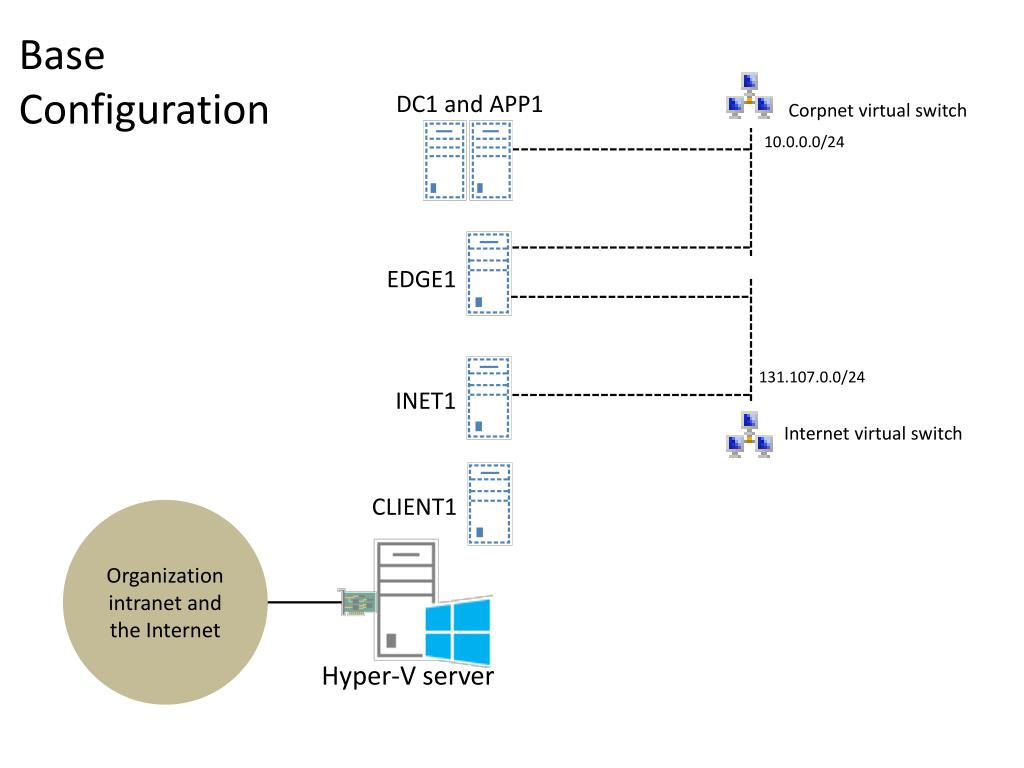

  1. Base Configuration DC1 and APP1 Corpnet virtual switch 10.0.0.0/24 EDGE1 131.107.0.0/24 INET1 Internet virtual switch CLIENT1 Organization intranet and the Internet Hyper-V server

  2. Base Configuration for Public Cloud Physical network adapter virtual switch DC1 and APP1 Organization intranet and the Internet CLIENT1 Hyper-V server

  3. SharePoint Server 2013 3-tier farm DC1 Corpnet virtual switch 10.0.0.0/24 WFE1, APP1, SQL1 Three-tier farm CLIENT1 Organization intranet and the Internet Hyper-V server

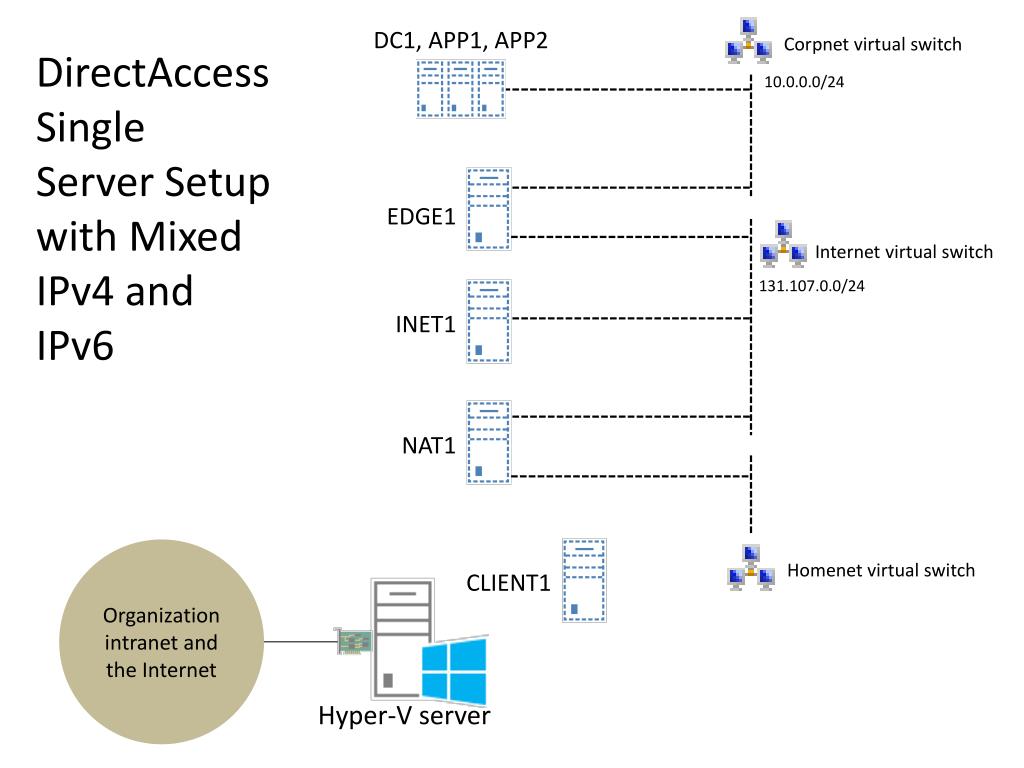

  4. DC1, APP1, APP2 Corpnet virtual switch DirectAccess Single Server Setup with Mixed IPv4 and IPv6 10.0.0.0/24 EDGE1 Internet virtual switch 131.107.0.0/24 INET1 NAT1 Organization intranet and the Internet Homenet virtual switch CLIENT1 Hyper-V server

  5. DC1 and APP1 Corpnet virtual switch Branch Office 10.0.0.0/24 RTR1 Wannet virtual switch 192.168.1.0/24 RTR2 BOAPP1 10.2.0.0/24 Organization intranet and the Internet Branchnet virtual switch CLIENT1 Hyper-V server

  6. Corpnet2 virtual switch IPv6 10.0.2.0/24 DC1 Corpnet virtual switch APP1 10.0.0.0/24 EDGE1 131.107.0.0/24 INET1 Internet virtual switch CLIENT1 Organization intranet and the Internet Hyper-V server
