  1. Lecture 18 Augers, Hp & Adjustments

  2. Augers (screw augers) • portable •  grain or wagons •  permanent (under bins) •  conveying feed (flexible) •  sweep augers •  stirring devices

  3. Theoretical capacity CFTHR = (D2 - d2) * P * RPM 36.6 CFTHR = cubic feet / hour material moved D = diameter of screw, inches d = diameter of shaft, inches P = pitch of auger, inches (usually = to D) RPM = revolutions per minute of shaft. Note- actual capacity is usually 1/3 to ½ the theoretical capacity

  4. Horsepower CHP = C * L * W * F    33,000 CHP = computed horsepower C = conveyer capacity, (ft3 / min L = length of conveyer (ft) W = Bulk weight of material (lb/ft3) F = material factor (table 6.1)

  5. Adjustments to horsepower if CHP < 1, HP = 2.0 * CHP if 1<=CHP <2, HP = 1.5 * CHP if 2<=CHP <4, HP = 1.25 * CHP if 4<=CHP <5, HP = 1.1 * CHP if CHP >5, HP =1.0 * CHP

  6. Augers •  Tube & U trough augers •  Most common, U trough operates at slower speeds than tube augers. •  U-trough = less damage to your grain •  tube augers are less expensive •  Portable augers •  Diameters = 6" to 12" •  Length = 27' to 81' •  45 degree or less is practical

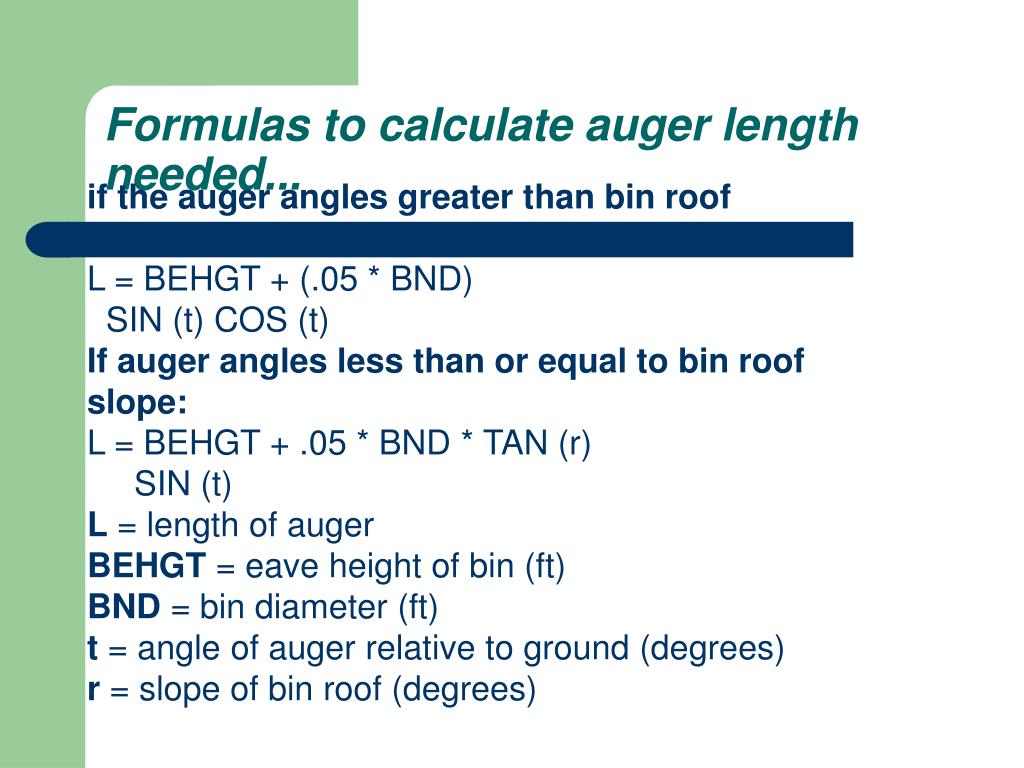

  7. Formulas to calculate auger length needed... if the auger angles greater than bin roof slope: L = BEHGT + (.05 * BND)   SIN (t) COS (t) If auger angles less than or equal to bin roof slope: L = BEHGT + .05 * BND * TAN (r)      SIN (t) L = length of auger BEHGT = eave height of bin (ft) BND = bin diameter (ft) t = angle of auger relative to ground (degrees) r = slope of bin roof (degrees)
