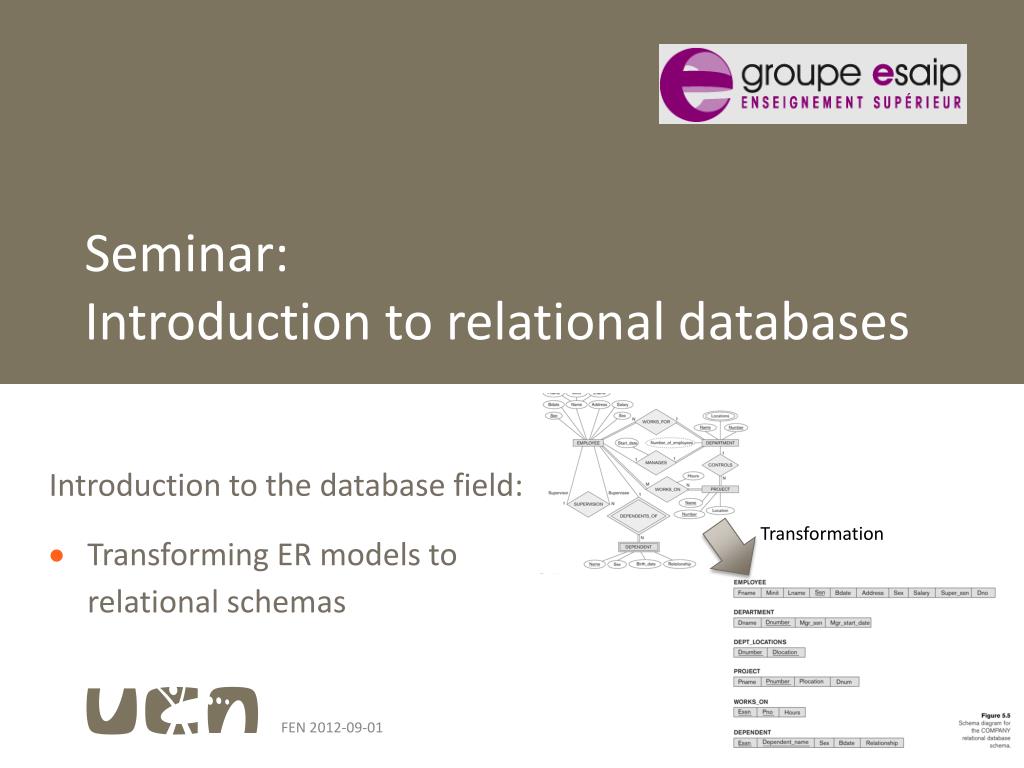

  1. Seminar:Introduction to relational databases Introduction to the database field: Transforming ER models torelational schemas Transformation FEN 2012-09-01

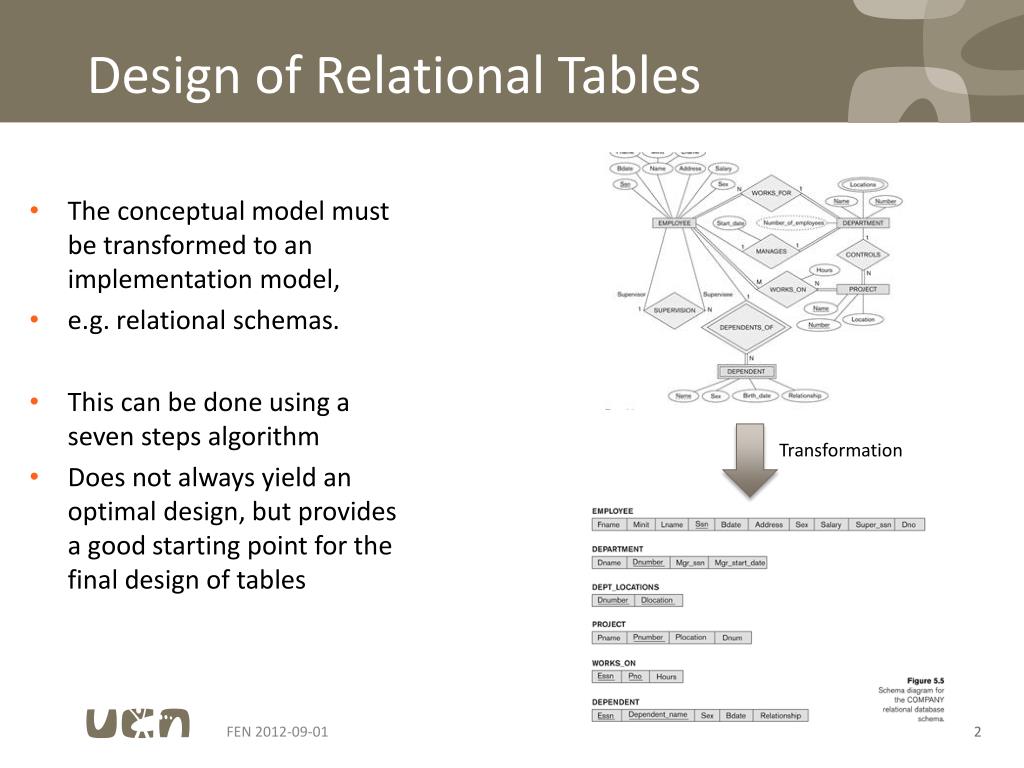

  2. Design of Relational Tables • The conceptual model must be transformed to an implementation model, • e.g. relational schemas. • This can be done using a seven steps algorithm • Does not always yield an optimal design, but provides a good starting point for the final design of tables Transformation FEN 2012-09-01

  3. Design of Relational Tables Step 1: For each regular entity create a table: • For composite attributes only the components are included. • Multi-value attributes are not included (they are considered in step 6). • Choose a primary key. FEN 2012-09-01

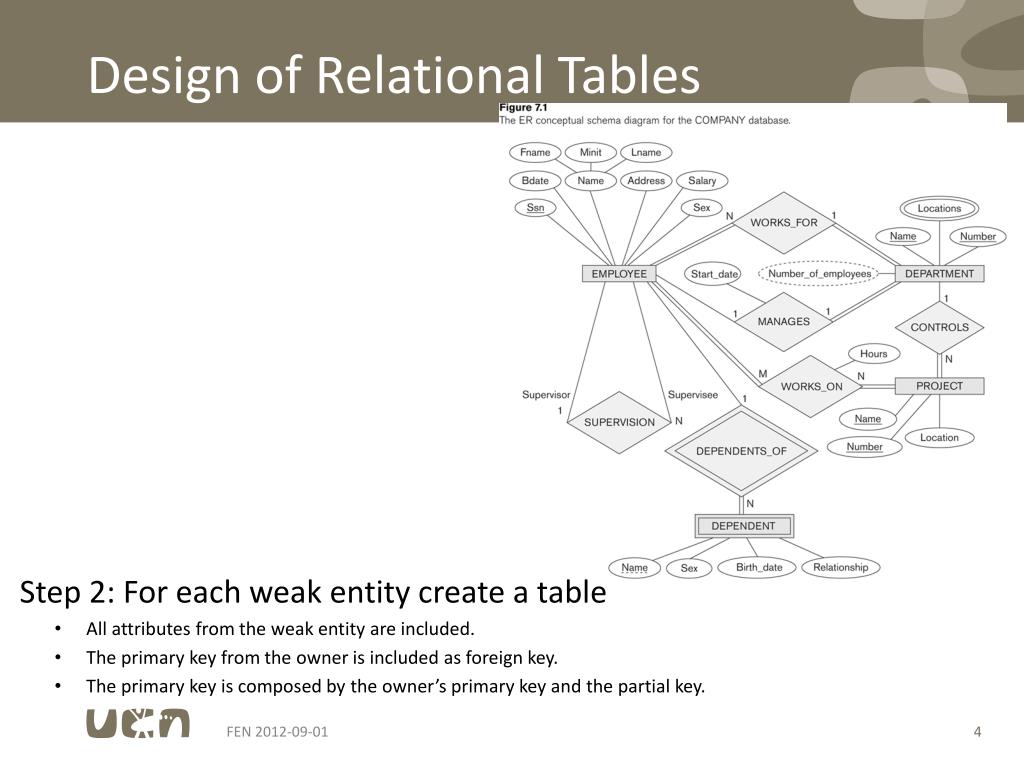

  4. Design of Relational Tables Step 2: For each weak entity create atable • All attributes from the weak entity are included. • The primary key from the owner is included as foreign key. • The primary key is composed by the owner’s primary key and the partial key. FEN 2012-09-01

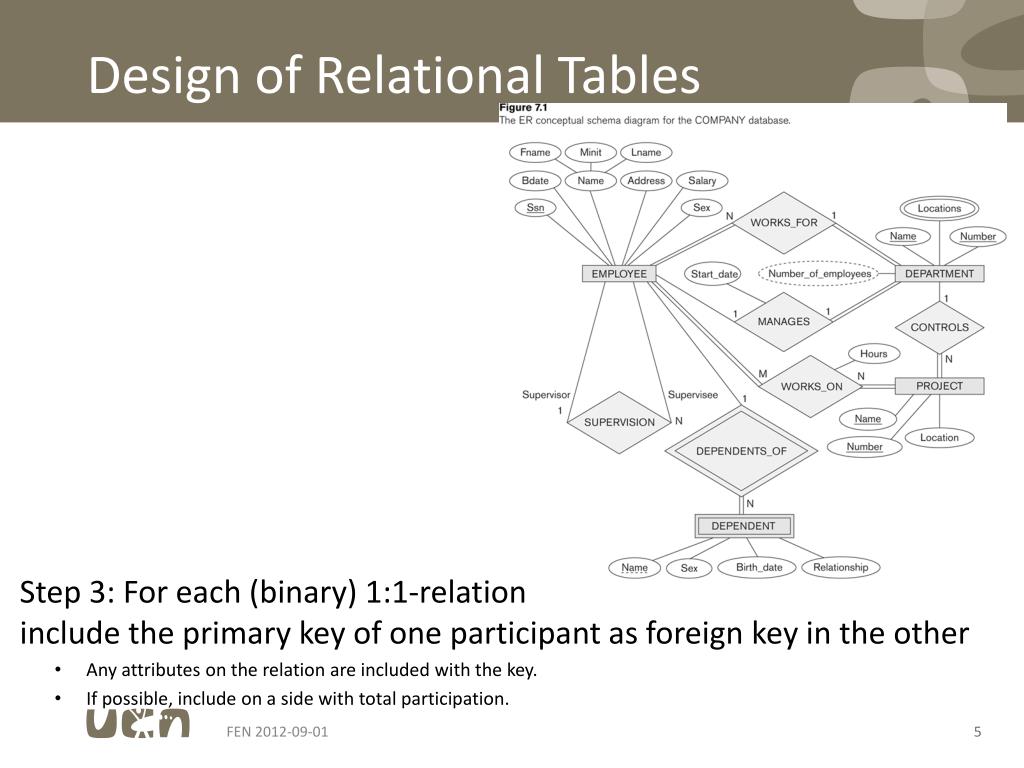

  5. Design of Relational Tables Step 3: For each (binary) 1:1-relationinclude the primary key of one participant as foreign key in the other • Any attributes on the relation are included with the key. • If possible, include on a side with total participation. FEN 2012-09-01

  6. Design of Relational Tables Step 4: For each (binary) 1:n relationinclude primary key of 1-side as foreign key on n-side • Any attributes on the relation are included with the key on the n-side. FEN 2012-09-01

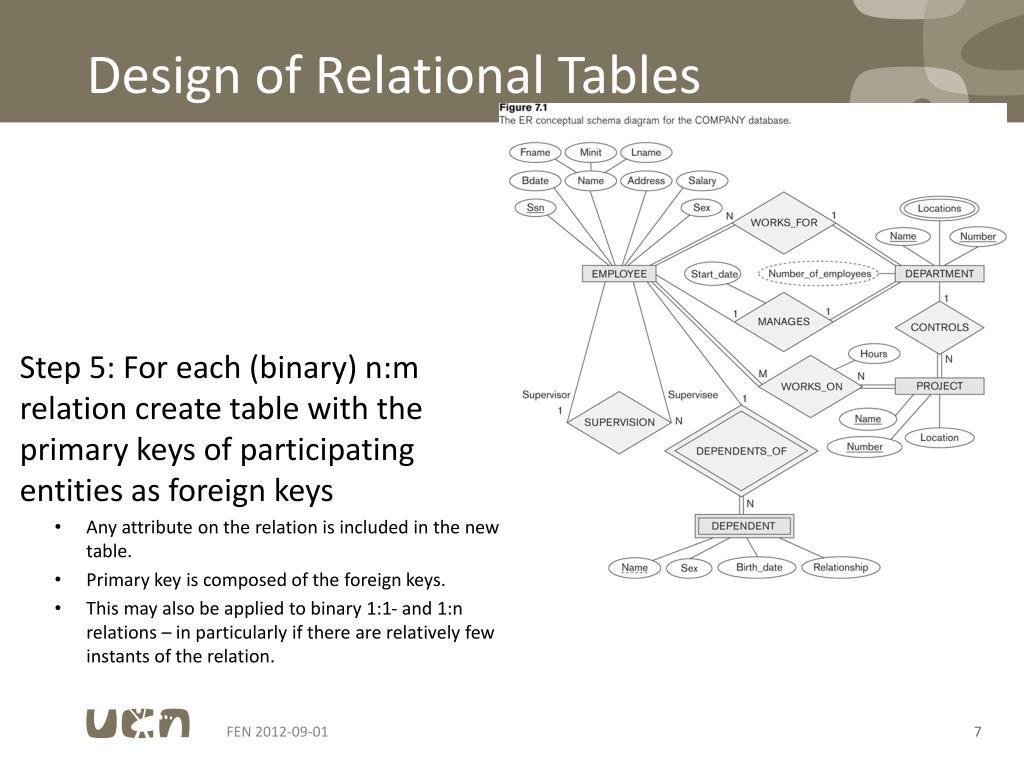

  7. Design of Relational Tables Step 5: For each (binary) n:m relation create table with the primary keys of participatingentities as foreign keys • Any attribute on the relation is included in the new table. • Primary key is composed of the foreign keys. • This may also be applied to binary 1:1- and 1:n relations – in particularly if there are relatively few instants of the relation. FEN 2012-09-01

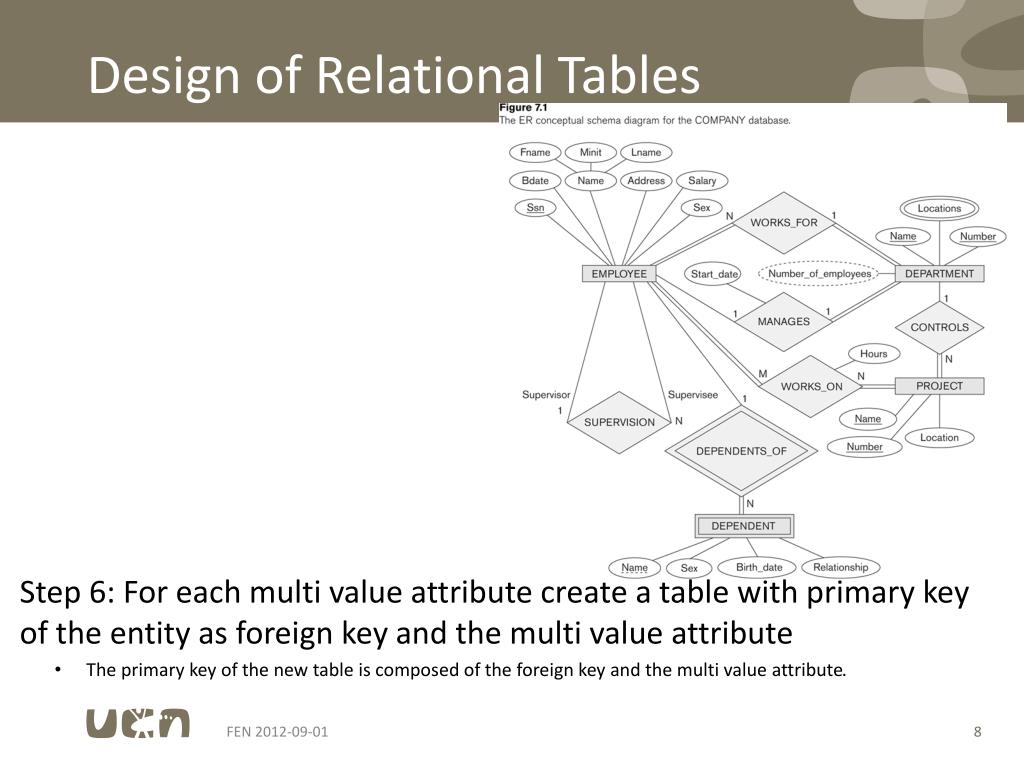

  8. Design of Relational Tables Step 6: For each multi value attribute create a table with primary key of the entity as foreign key and the multi value attribute • The primary key of the new table is composed of the foreign key and the multi value attribute. FEN 2012-09-01

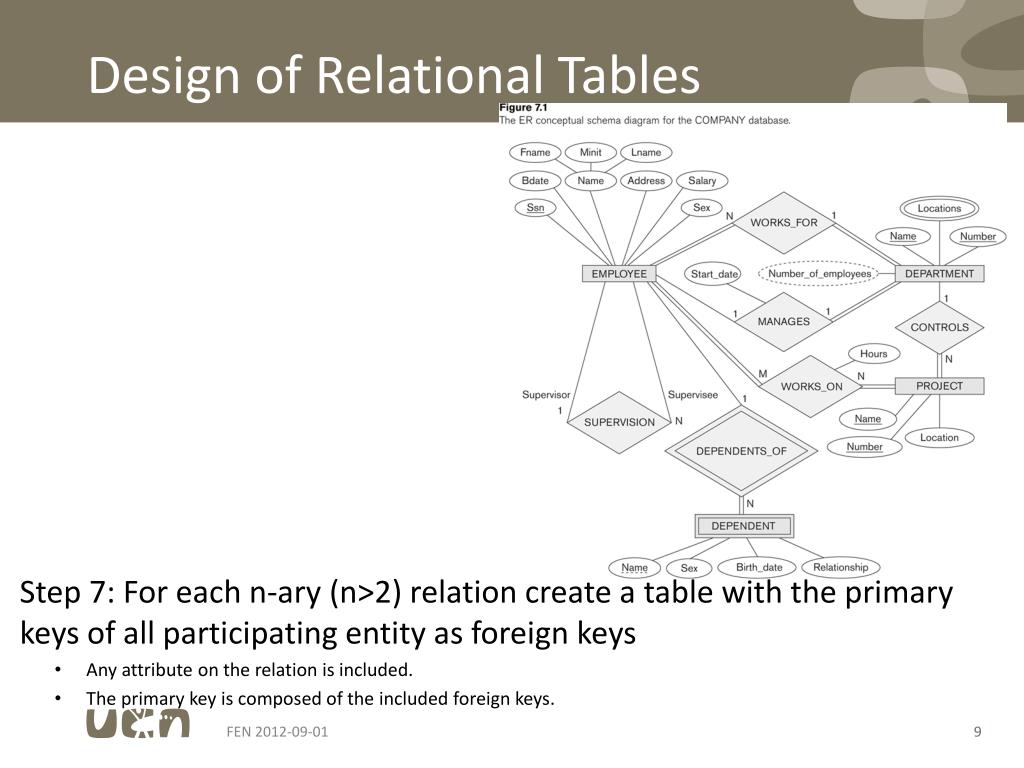

  9. Design of Relational Tables Step 7: For each n-ary (n>2) relation create a table with the primary keys of all participating entity as foreign keys • Any attribute on the relation is included. • The primary key is composed of the included foreign keys. FEN 2012-09-01

  10. Design of Relational Tables Result: FEN 2012-09-01

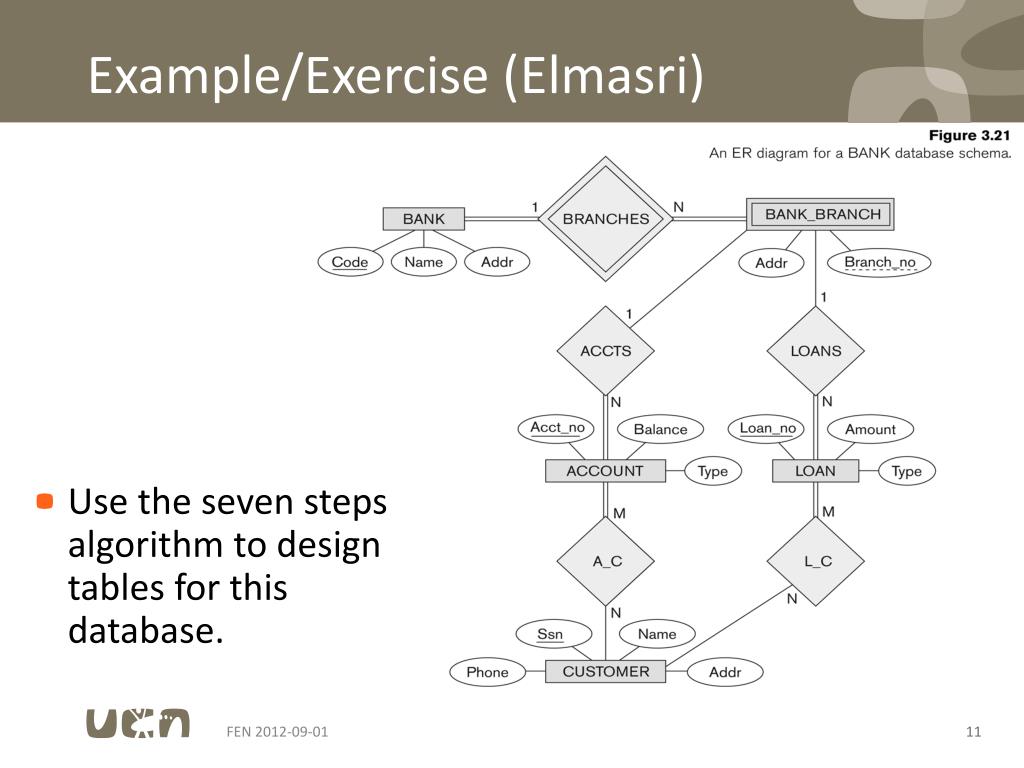

  11. Example/Exercise (Elmasri) • Use the seven steps algorithm to design tables for this database. FEN 2012-09-01
