Condition 1

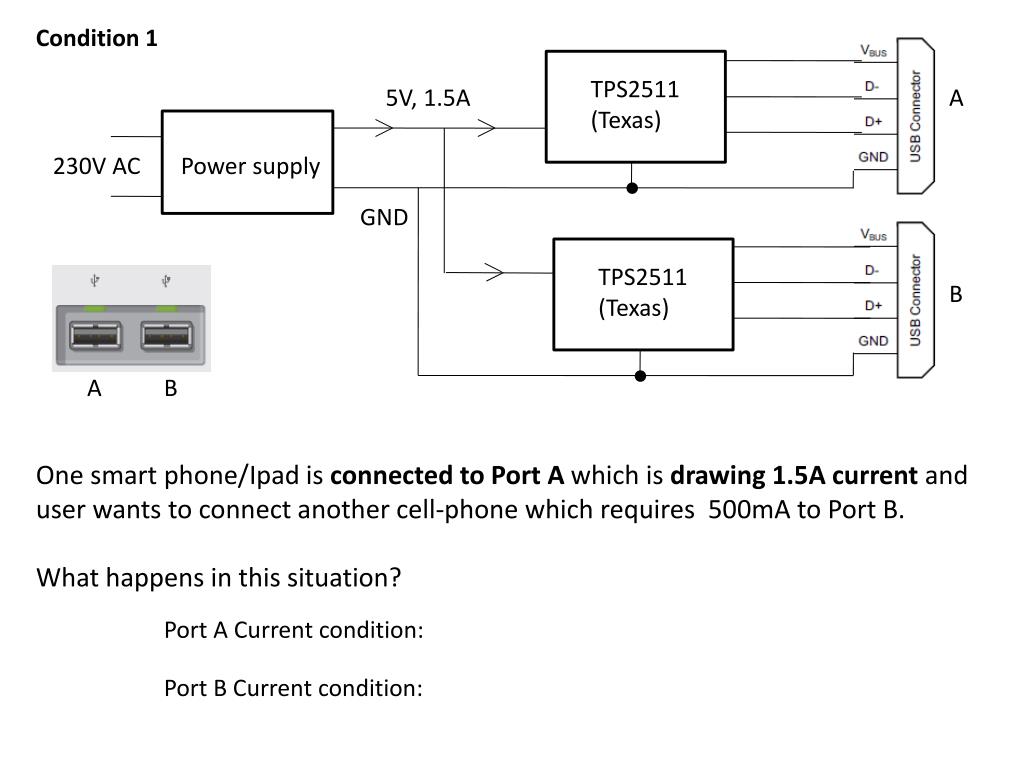

Condition 1. TPS2511 (Texas). 5V, 1.5A. A. 230V AC. Power supply. GND. TPS2511 (Texas). B. A. B. One smart phone/ Ipad is connected to P ort A which is drawing 1.5A current and user wants to connect another cell-phone which requires 500mA to P ort B.

abrial
Télécharger la présentation

Condition 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Condition 1 TPS2511 (Texas) 5V, 1.5A A 230V AC Power supply GND TPS2511 (Texas) B A B One smart phone/Ipadis connected to Port Awhich is drawing 1.5A current and user wants to connect another cell-phone which requires 500mA to Port B. What happens in this situation? Port A Current condition: Port B Current condition:

  2. Condition 2 TPS2511 (Texas) 5V, 1.5A A 230V AC Power supply GND TPS2511 (Texas) B B A B One Cell-phone is connected to Port Awhich is drawing 800mA current and user wants to connect another smart phone which requires 1.5A current to Port B. What happens in this situation? Port A Current condition: Port B Current condition:

  3. Condition 3 TPS2511 (Texas) 5V, 1.5A A 230V AC Power supply GND TPS2511 (Texas) B B A B One Cell-phone is connected to Port A which is drawing 800mA current and now user wants to connect another cell-phone which requires 800mA current to Port B. What happens in this situation? Port A Current condition: Port B Current condition:
