UA Welder Certification Program. WELD TEST COUPON VISUAL REJECTS. The following photographs are of weld test coupons that were visually accepted by Local Union Authorized Testing Representatives.

abril
Télécharger la présentation

UA Welder Certification Program

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. UA Welder Certification Program WELD TEST COUPON VISUAL REJECTS

  2. The following photographs are of weld test coupons that were visually accepted by Local Union Authorized Testing Representatives. However, the coupons were subsequently rejected visually for gross weld defects by the UA’s Independent Testing Laboratory.

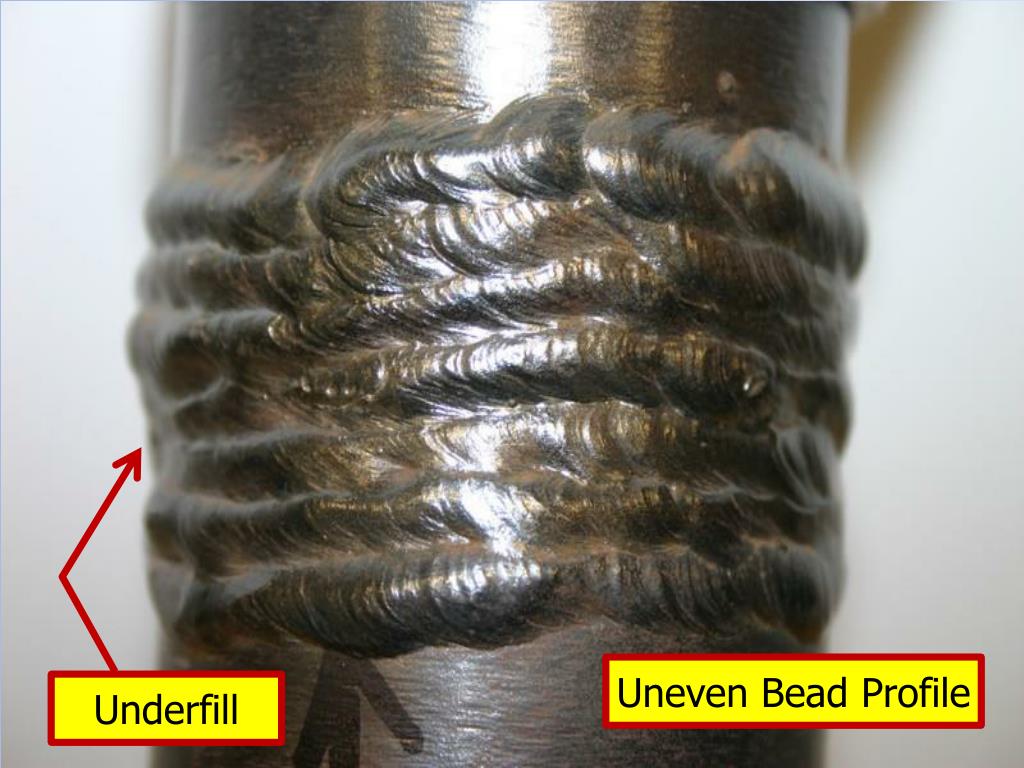

  3. Uneven Bead Profile Underfill

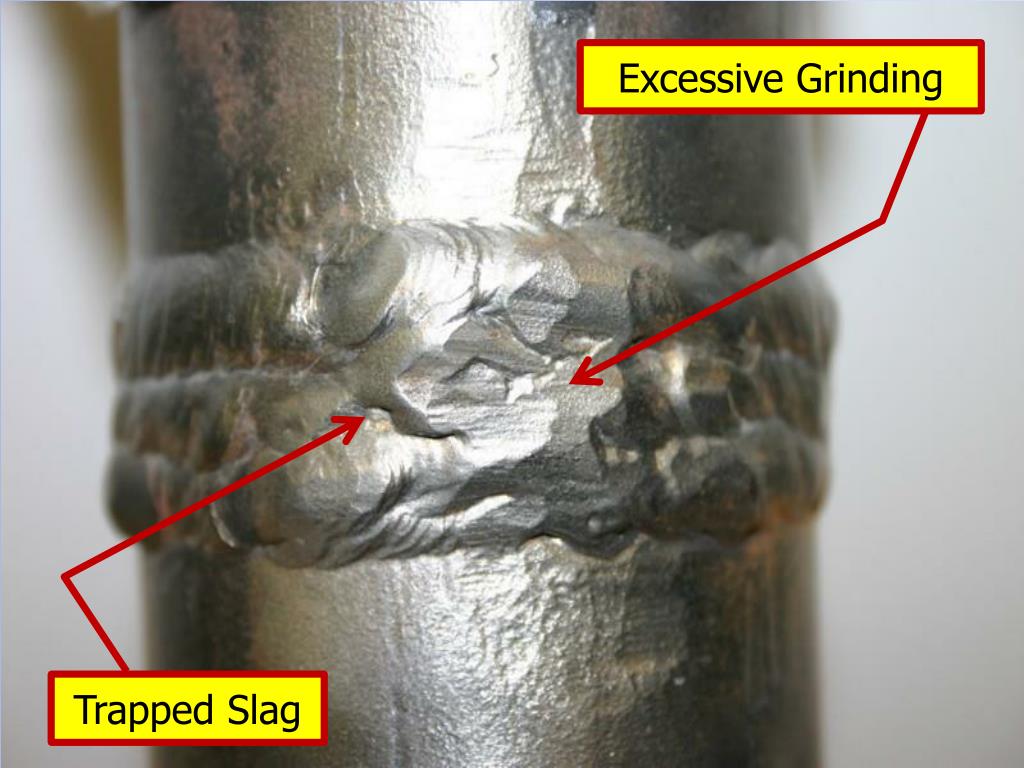

  4. Excessive Grinding Trapped Slag

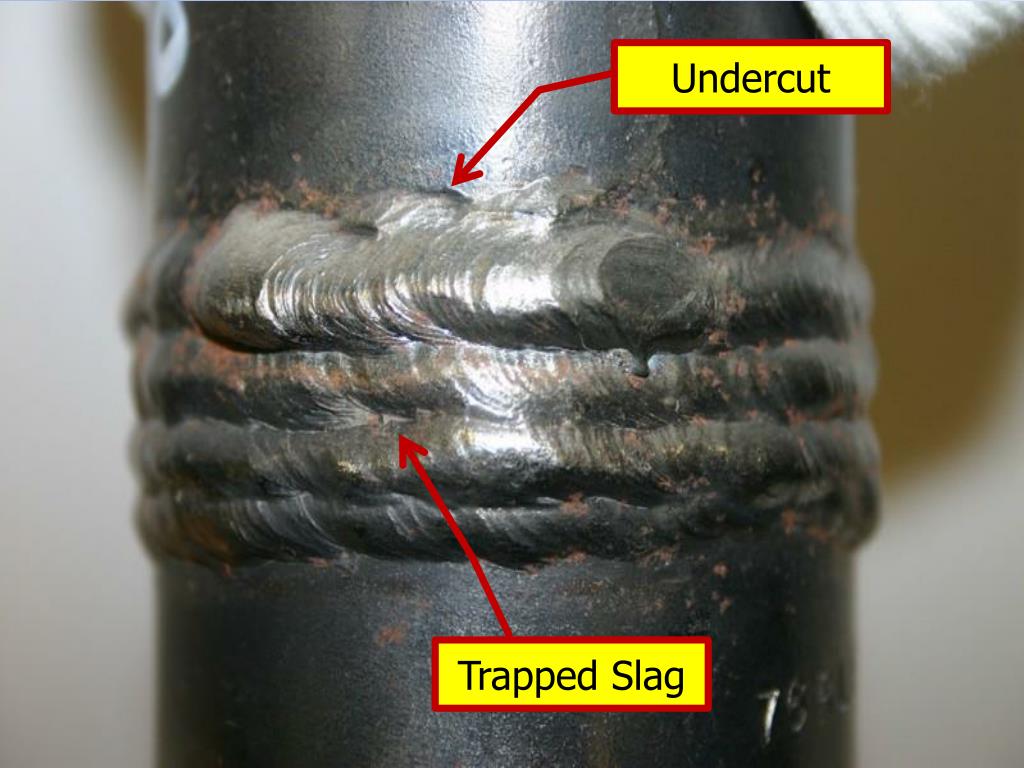

  5. Undercut Trapped Slag

  6. Cold Lap Porosity Underfill

  7. Uneven Bead Profile Cold Lap Underfill

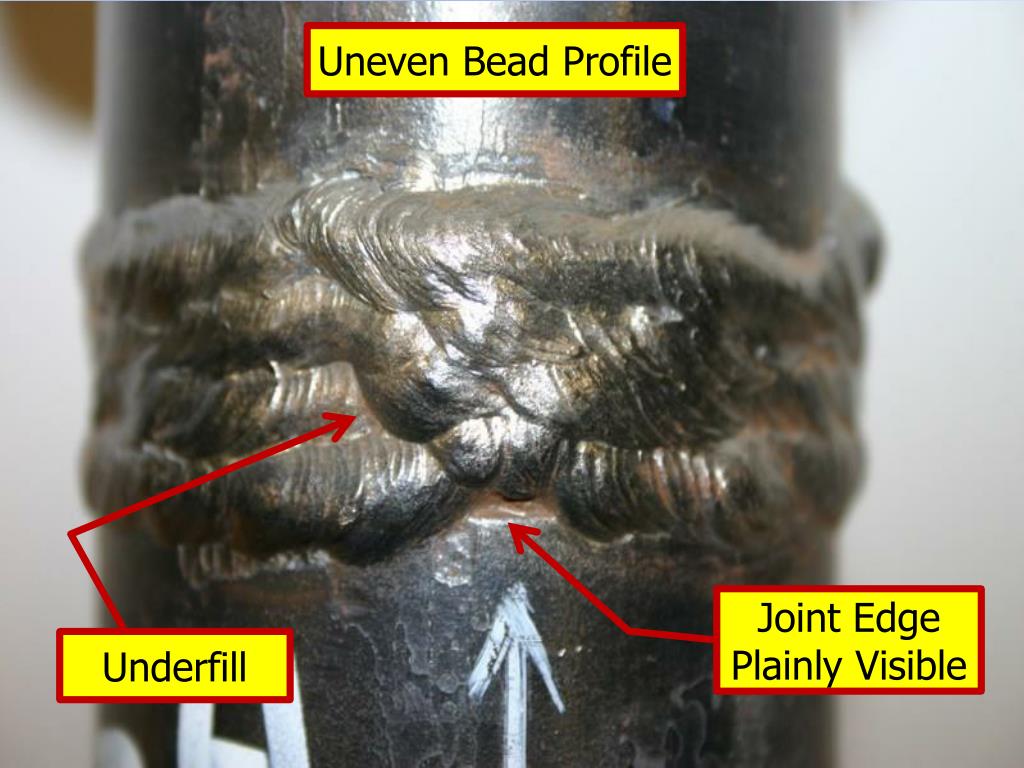

  8. Uneven Bead Profile Joint Edge Plainly Visible Underfill

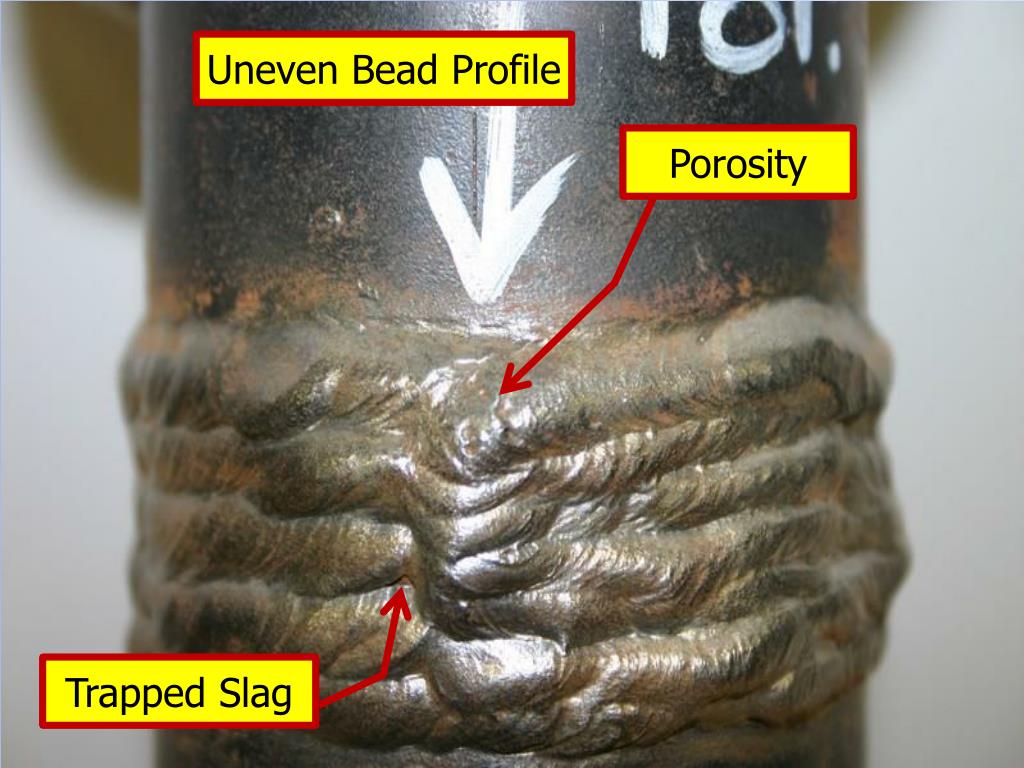

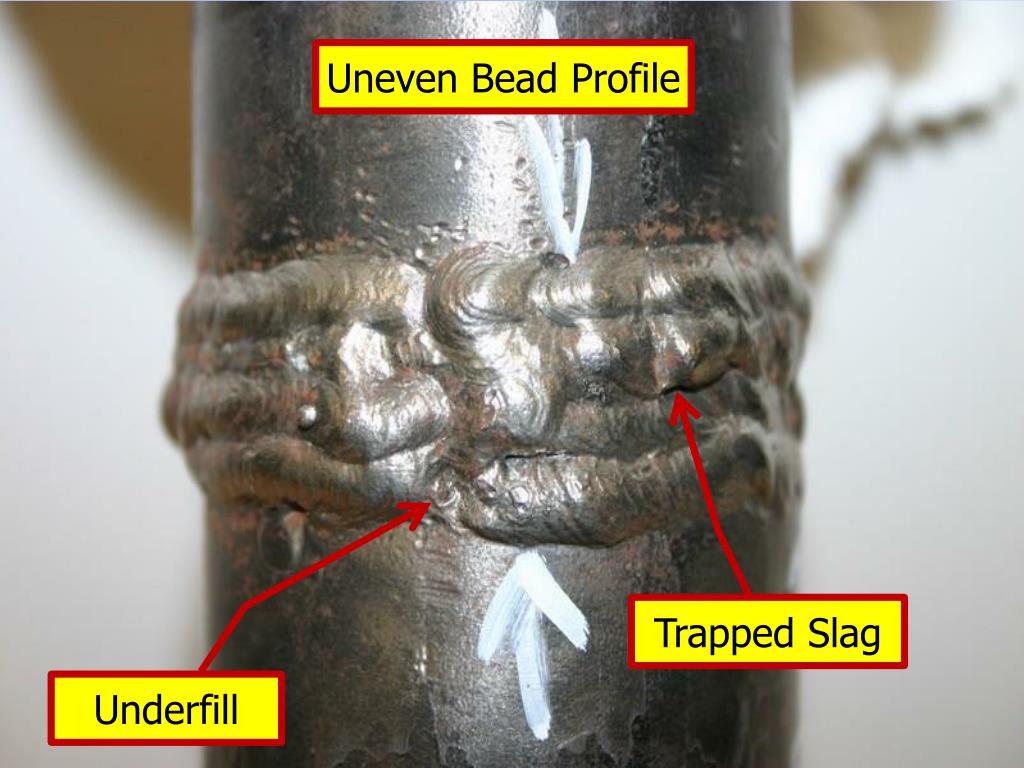

  9. Uneven Bead Profile Porosity Trapped Slag

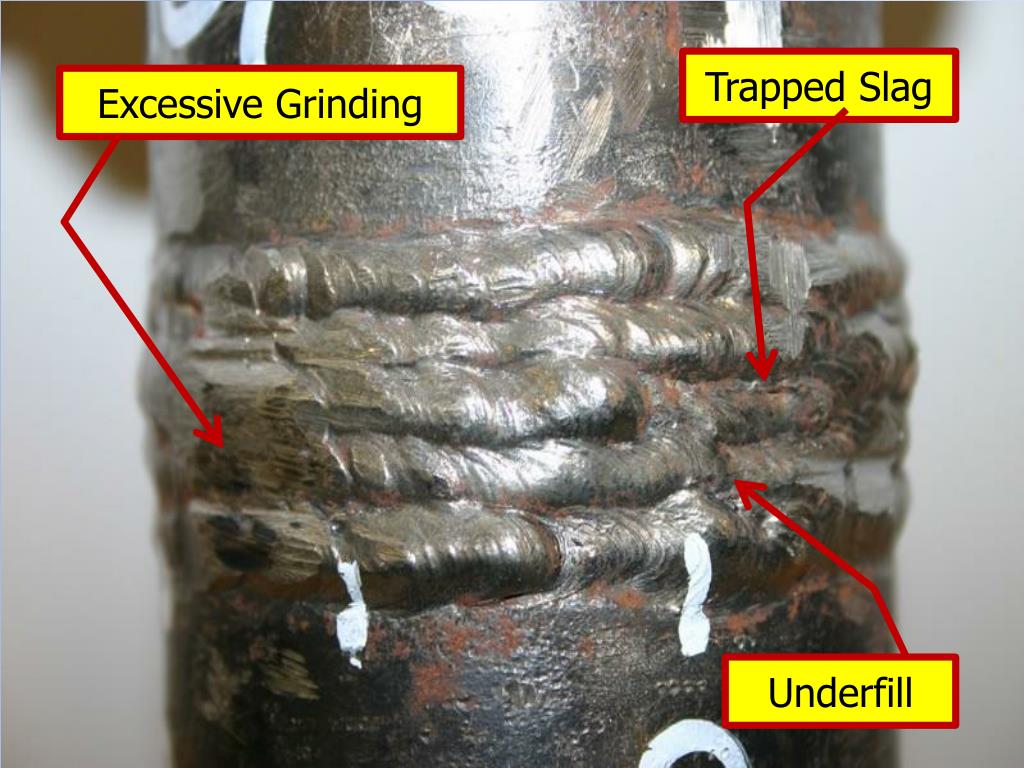

  10. Trapped Slag Excessive Grinding Underfill

  11. Undercut Porosity Underfill

  12. Uneven Bead Profile Trapped Slag Underfill

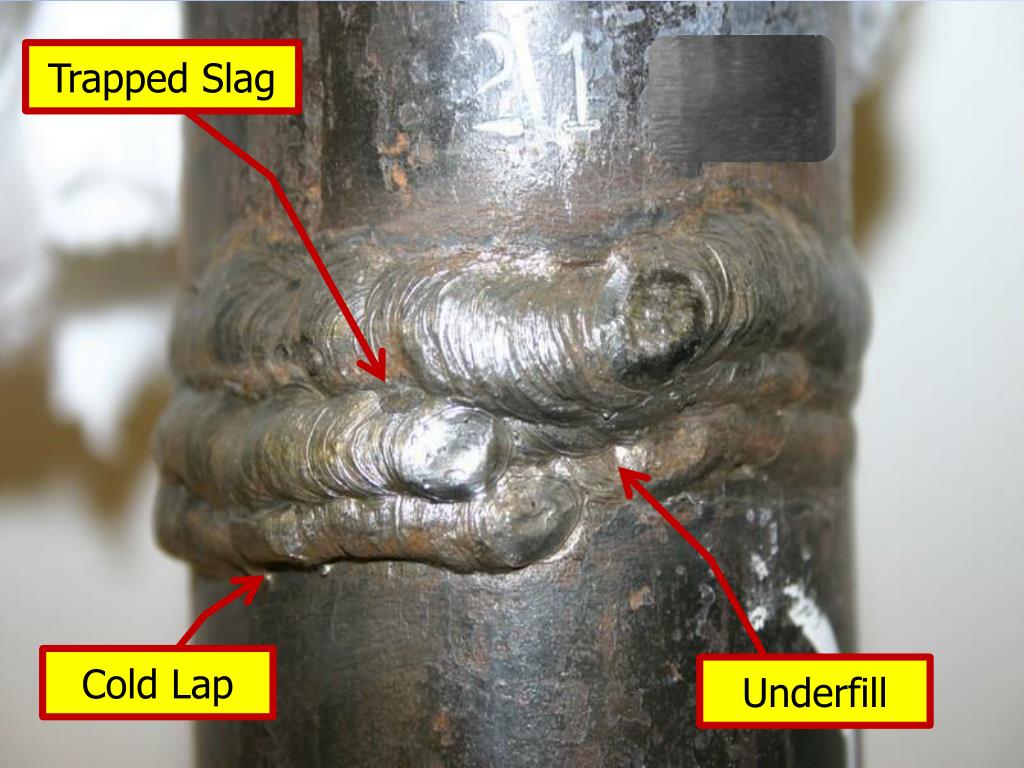

  13. Trapped Slag Cold Lap Underfill

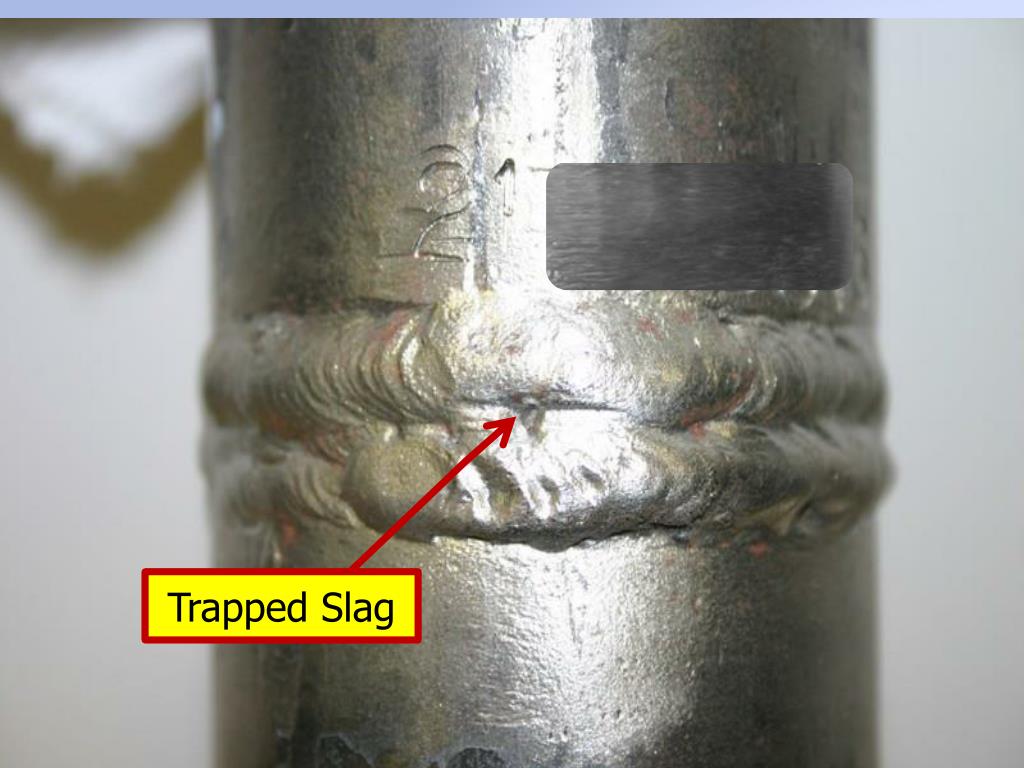

  14. Trapped Slag

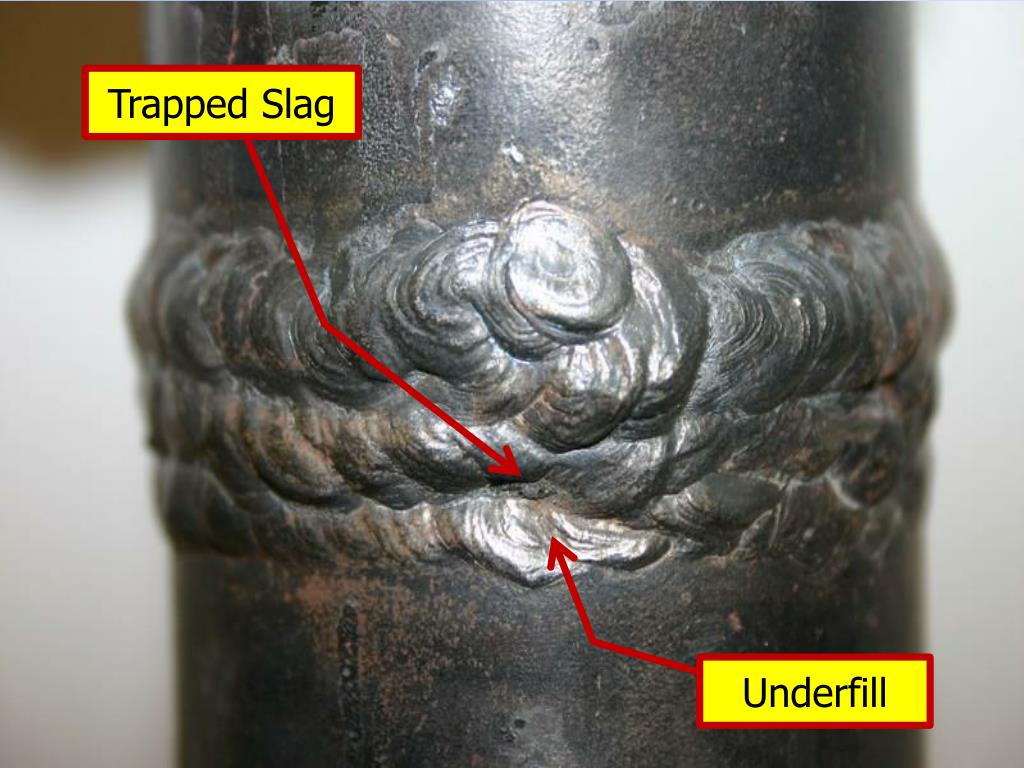

  15. Trapped Slag Underfill

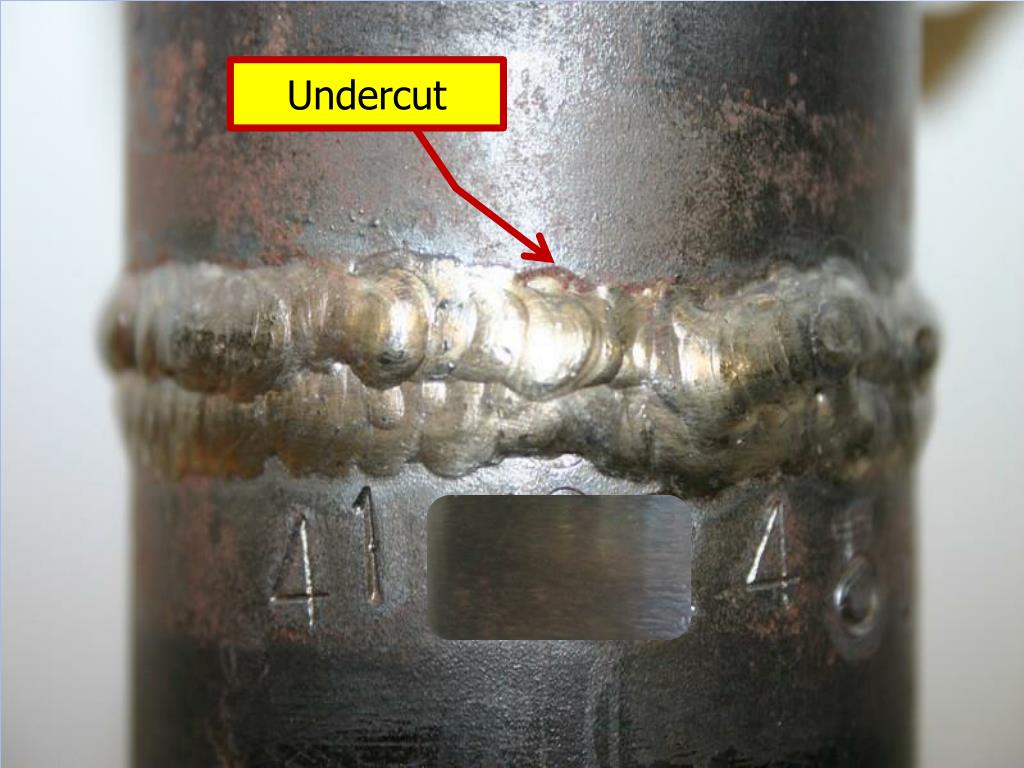

  16. Undercut

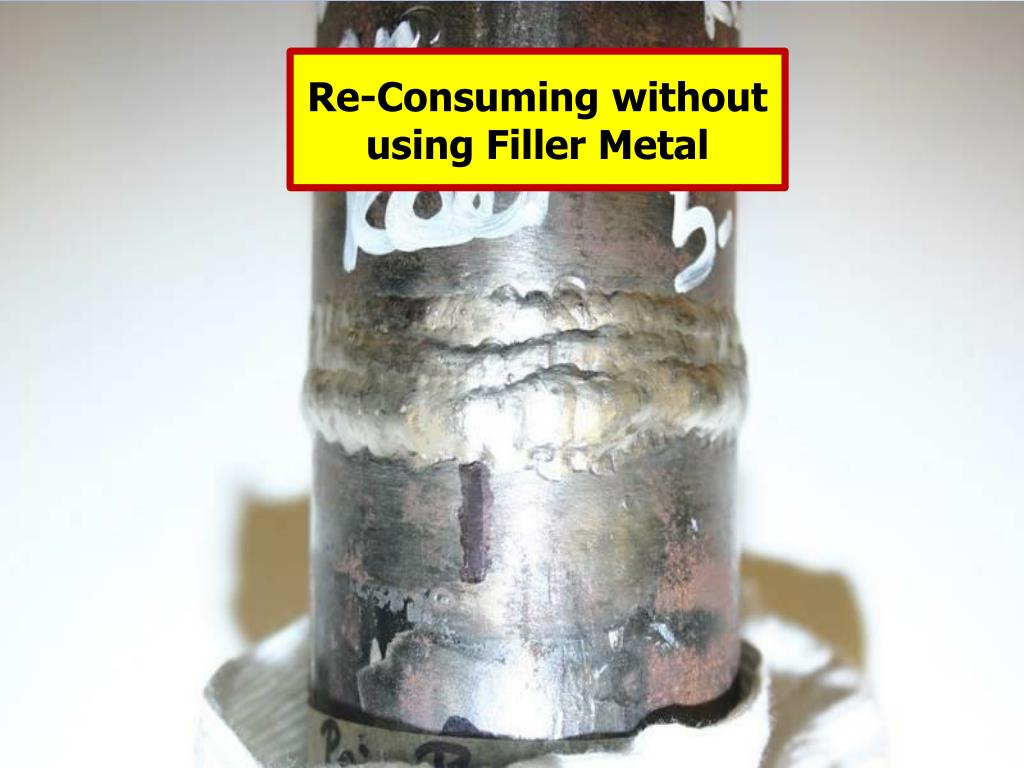

  17. Re-Consuming without using Filler Metal

  18. Grinding on Base Metal and Cap

  19. Stainless Steel Coupon Overheated Concavity

  20. Underfill

  21. Trapped Slag Underfill

More Related
