Experimental Nuclear Physics Some Recent Activities

abrucker avatar
abrucker
15 diapositives · 244 Views · Jan 04, 2020

Experimental Nuclear Physics Some Recent Activities 1. Development of a detector for low-energy neutrons a. Hardware -- A Novel Design Idea b. Measure the light response at low energy c. Measure the neutron-proton scattering cross section

#experimental nuclear physics some recent activities #experimental nuclear physics some recent activities ppt #powerpoint #presentation
Experimental Nuclear Physics Some Recent Activities - slide 1
01 / 15Experimental Nuclear Physics Some Recent Activities
1 / 17

Télécharger la présentation

Experimental Nuclear Physics Some Recent Activities
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

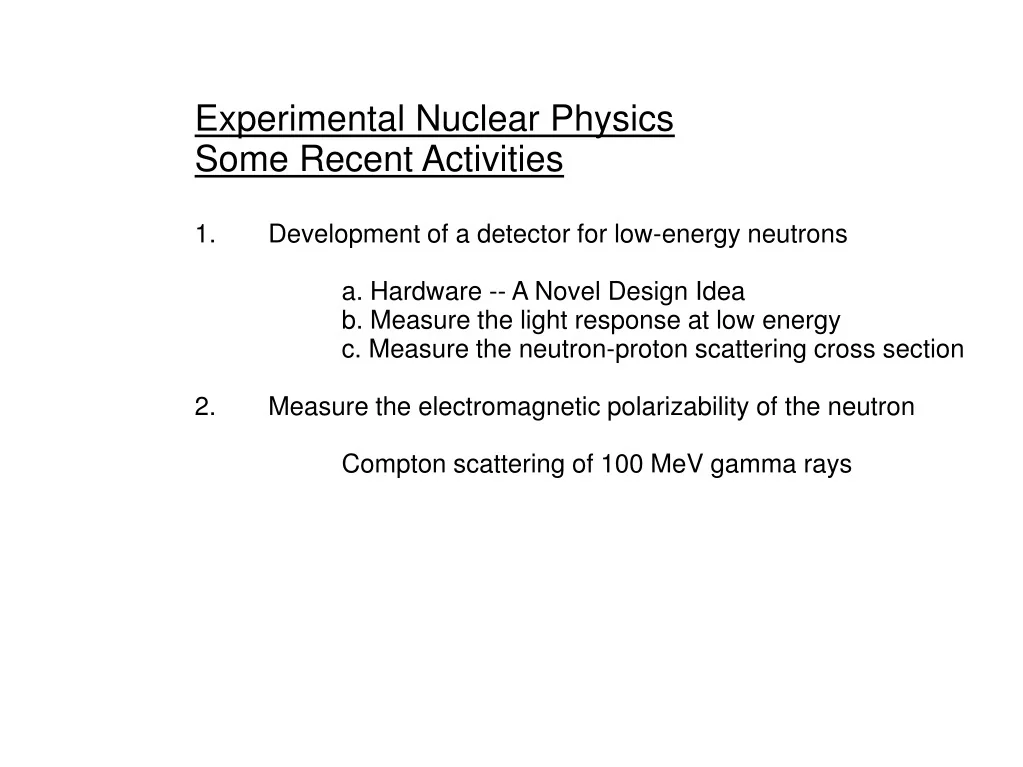

  1. Experimental Nuclear Physics Some Recent Activities 1. Development of a detector for low-energy neutrons a. Hardware -- A Novel Design Idea b. Measure the light response at low energy c. Measure the neutron-proton scattering cross section 2. Measure the electromagnetic polarizability of the neutron Compton scattering of 100 MeV gamma rays

  2. Experimental Nuclear Physics - Some Recent Activities 1. Development of a detector for low-energy neutrons a. Hardware -- A Novel Design Idea Developed in Lexington b. Measure the light response at low energy UKy accelerator/Los Alamos accelerator c. Measure the neutron-proton scattering cross section UKy accelerator 2. Measure the electromagnetic polarizability of the neutron Compton scattering of 100 MeV gamma rays MAX-lab accelerator in Lund, Sweden

  3. A scintillation detector for neutrons below 1 MeV with gamma-ray rejection Scintillators are 3 mm BC408, 10 layers total Adjacent layers are optically isolated Active scint. area approx. 10 cm x 10 cm in this prototype Each PMT discriminator triggered near top of 1 photoelectron distribution L-R and T-B thresholds approx. 10 keVee; Coincidence requirement removes noise

  4. Low energy neutrons produce recoil protons of very small range, unlike the electrons created by gamma rays. For a 3 mm scintillator thickness, no recoil protons from np scattering cross into adjacent cells. But, some low energy scattered neutrons do rescatter in other cells -- usually not triggering the discriminators. Therefore, NEUTRON TRIGGER: (T and B) or (L and R) Most gamma rays fire all 4 PMTs.

  5. Detector Construction Top Left: The assembled detector. (The bottom PMT is hidden by the table.) Bottom Left: An inside view of five of the scintillators mounted in one light guide. Above: The assembled scintillator box, with five horizontal and five vertical scintillators. Each set is attached to two PMTs operated in coincidence.

  6. Gamma-Ray Rejection These 60Co spectra were gated by all 4 PMTs firing (“Gamma Rays Selected”), and by only 1 pair of PMTs firing (“Gamma Rays Rejected”).

  7. In-Beam Tests @ WNR/15R August, 2010 Pulse height “Low Energy Neutrons”: Cut on TOF for E<1.4 MeV; Cut on single-plane events

  8. Measure the Light Produced by Recoiling Protons • neutron beam impinges on the active target (BC-418; 2mm thick) • energy of beam particles is determined from their time-of-flight • when neutron is elastically scattered in the active target (AT) the recoil proton (Ep = f Ebeam) is detected in AT in coincidence with elastically scattered neutron detected in neutron detector (NE-213 2x2 inch cylinder) (En= (1-f) Ebeam ) • f is function of scattering angle (=0.11 for Θ=20°; =0.5 for Θ=45°; ) • analog signal from AT integrated by LeCroy 4300B FERA QDC

  9. most of the beam neutrons with energies ~ 1-5 MeV • time-of-flight to AT for 1 MeV neutron is ~ 1.2 us • time resolution ~ 2ns => high energy-resolution counts Ebeam [MeV] • events of neutron elastic scattering in AT selected from 2D-plot of ToF(AT=>ND) vs. Ebeam => defined by complete kinematics elastic scattering ToF(AT=>ND) [ns] Ebeam [MeV]

  10. Experimental results light respons [A.U.] light respons [A.U.] high gain low gain Ep-recoil [MeV] Ep-recoil [MeV] Ep-recoil = 100 ±10 keV Ep-recoil = 250 ±25 keV counts counts light respons [A.U.] light respons [A.U.]

  11. Experimental results Smith et al. (68) 241Am (59.54 keV) NEW! 133Ba (~31 keV) • measurement of the BC-418 light response to both protons and electrons reaches new low energy limits for plastic scintillators

  12. Measuring n-p Scattering at Low Energy There are few measurements of the n-p total cross section below 500 keV. Brian Daub Massachusetts Institute of Technology

  13. Transmission Measurement Setup for Transmission Measurement at UKy 85 cm from LiF to Sample 287 cm from LiF to Neutron Detector Brian Daub Massachusetts Institute of Technology

  14. Transmission Measurement Neutron time of flight spectra, showing deficit of neutrons. γ-flash from LiF target neutrons produced from LiF target Brian Daub Massachusetts Institute of Technology

  15. First Results - Hydrogen • Total n-p scattering cross sections with Endf tabulation and other data in range. Most results ~10-15% difference with Endf. Brian Daub Massachusetts Institute of Technology
