Increasing Application Performance In Virtual Environments Through Run-time Inference and Adaptation

1. Increasing Application Performance In Virtual Environments Through Run-time Inference and Adaptation Ananth I. Sundararaj Ashish Gupta Peter A. Dinda Prescience Lab Department of Computer Science Northwestern University http://virtuoso.cs.northwestern.edu

2. Summary • Dynamically adapt unmodified applications on unmodified operating systems in virtual environments to available resources • The adaptation mechanisms are application independent and controlled automatically without user or developer help • Demonstrate the feasibility of adaptation at the level of collection of VMs connected by Virtual Networks • Show that its benefits can be significant for two classes of applications

3. Outline • Virtual machine grid computing • Virtuoso system • Networking challenges in Virtuoso • Enter VNET • VNET, VTTIF Adaptive virtual network • Evaluation • Summary

4. Virtual Machine Grid Computing Aim Deliver arbitrary amounts of computational power to perform distributed and parallel computations 1 Traditional Paradigm New Paradigm 2 5 Grid Computing using virtual machines Resource multiplexing using OS level mechanism Grid Computing 4 3a 3b 6a Problem1: 6b Virtual Machines What are they? Complexity from resource user’s perspective Solution Problem2: How to leverage them? Complexity from resource owner’s perspective

5. Virtual Machines Virtual machine monitors (VMMs) • Raw machine is the abstraction • VM represented by a single • image • VMware GSX Server

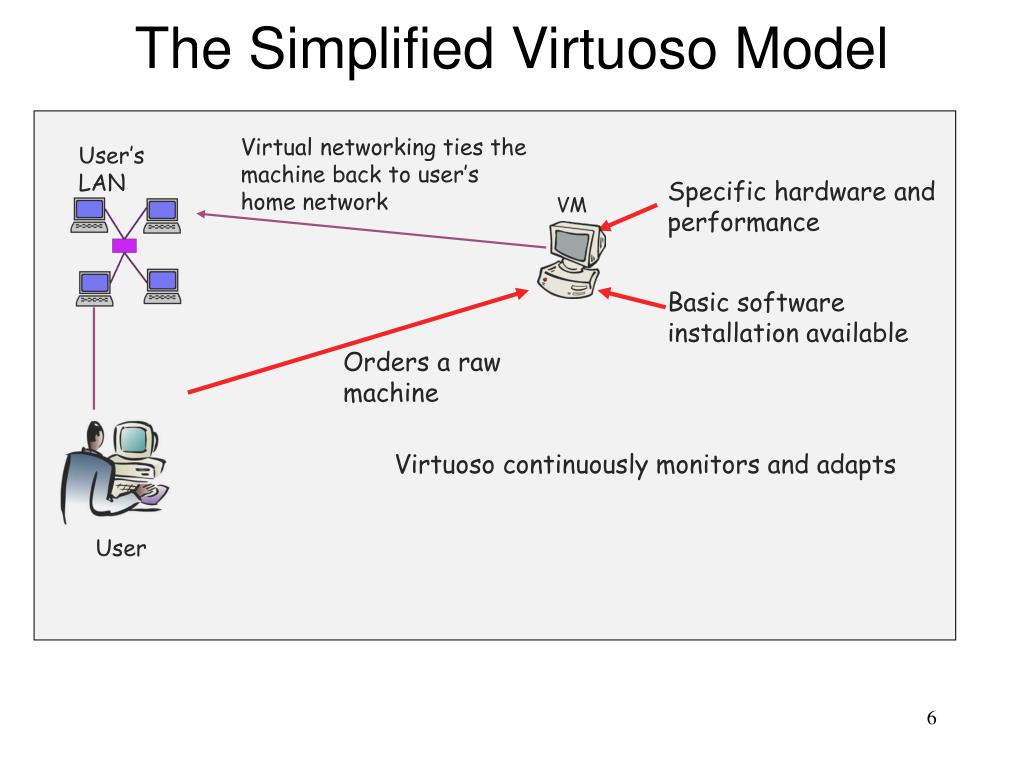

6. The Simplified Virtuoso Model Virtual networking ties the machine back to user’s home network User’s LAN Specific hardware and performance VM Basic software installation available Orders a raw machine Virtuoso continuously monitors and adapts User

7. User’s View in Virtuoso Model User’s LAN VM User

8. Outline • Virtual machine grid computing • Virtuoso system • Networking challenges in Virtuoso • Enter VNET • VNET, VTTIF Adaptive virtual network • Evaluation • Summary

9. Virtual Networks VM traffic going out on foreign LAN Foreign hostile LAN X User’s friendly LAN IP network Virtual Machine Host • A machine is suddenly plugged into a foreign network. What happens? • Does it get an IP address? • Is it a routeable address? • Does firewall let its traffic • through? To any port? Proxy VNET: A bridge with long wires

10. A VNET Link VM 2 “eth0” Ethernet Packet Captured by Interface in Promiscuous mode First link Second link (to proxy) “Host Only” Network VM 1 “eth0” ethy ethz vmnet0 vmnet0 IP Network VNET VNET Ethernet Packet Tunneled over TCP/SSL Connection Host Host Ethernet Packet is Matched against the Forwarding Table on that VNET Ethernet Packet is Matched against the Forwarding Table on that VNET Local traffic matrix inferred by VTTIF Periodically sent to the VNET on the Proxy

11. Virtual Topology and Traffic Inference Framework (VTTIF) Operation Ethernet-level traffic monitoring Application topology is recovered using normalization and pruning algorithms VNET daemons collectively aggregate a global traffic matrix for all VMs

12. Dynamic Topology Inference by VTTIF VNET Daemons on Hosts Aggregated Traffic Matrix VNET Daemon at Proxy 2. Low Pass Filter Aggregation Smoothed Traffic Matrix 1. Fast updates 3. Threshold change detection Topology change output

13. Outline • Virtual machine grid computing • Virtuoso system • Networking challenges in Virtuoso • Enter VNET • VNET, VTTIF Adaptive virtual network • Evaluation • Summary

14. Adaptation Applications • BSP • Transactional ecommerce Application performance measure • Application throughput • VTTIF • Network monitoring Monitoring and inference • Single hop • Worst fit Optimization metric • Single metric • Combined metric Adaptation algorithm • Overlay topology • Forwarding rules • VM migration Adaptation mechanisms

15. Optimization Problem (1/2) Topology Only Informally stated: • Input • Network traffic load matrix of application • Output • Overlay topology connecting hosts • Forwarding rules on the topology • Such that the application throughput is maximized The algorithm is described in detail in the paper

16. Illustration of Topology Adaptation in Virtuoso Fast-path links amongst the VNETs hosting VMs Resilient Star Backbone User’s LAN Foreign host LAN 1 VM 1 Host 1 + VNET IP network Proxy+ VNET Merged matrix as inferred by VTTIF Foreign host LAN 2 VM 2 VM 4 VM 3 Host 3 + VNET Host 4 + VNET Host 2 + VNET Foreign host LAN 4 Foreign host LAN 3

17. Evaluation • Reaction time of VNET • Patterns: A synthetic BSP benchmark • Benefits of adaptation (performance speedup) • Eight VMs on a single cluster, all-all topology • Eight VMs spread over WAN, all-all topology Wide-Area testbed DOT Network CMU Northwestern VM 6 VM 8 Proxy University of Chicago VM 5 … VM 1 VM 7

18. Reaction Time

19. Benefits of Adaptation Benefits accrued as a function of the number of fast-path links added • Patterns has an all-all topology • Eight VMs are used • All VMs are hosted on the same cluster

20. Benefits of Adaptation Benefits accrued as a function of the number of fast-path links added • Patterns has an all-all topology • Eight VMs are used • VMs are spread over WAN

21. Optimization Problem (2/2) Topology + Migration Informally stated: • Input • Network traffic load matrix of application • Topology of the network • Output • Mapping of VMs to hosts • Overlay topology connecting hosts • Forwarding rules on the topology • Such that the application throughput is maximized The algorithm is described in detail in the paper

22. Evaluation • Applications • Patterns: A synthetic BSP benchmark • TPC-W: Transactional web ecommerce benchmark • Benefits of adaptation (performance speedup) • Adapting to compute/communicate ratio • Adapting to external load imbalance

23. Effect on BSP Application Throughput of Adapting to Compute/Communicate Ratio

24. Effect on BSP Application Throughput of Adapting to External Load Imbalance

25. TPCW Throughput (WIPS) With Image Server Facing External Load

26. Outline • Virtual machine grid computing • Virtuoso system • Networking challenges in Virtuoso • Enter VNET • VNET, VTTIF Adaptive virtual network • Evaluation • Summary

27. Summary • Dynamically adapt unmodified applications on unmodified operating systems in virtual environments to available resources • The adaptation mechanisms are application independent and controlled automatically without user or developer help • Demonstrate the feasibility of adaptation at the level of collection of VMs connected by Virtual Networks • Show that its benefits can be significant for two classes of applications

28. For More Information • Future Work • Free network measurement (Wren) – Collaboration with CS, W&M • Applicability of a single optimization scheme • Related Talk at HPDC 2005 • J. Lange, A. Sundararaj, P. Dinda, “Automatic Dynamic Run-time Optical Network Reservations” • Wednesday, July 27, 2:00 P.M. • Please visit • Prescience Lab(Northwestern University) • http://plab.cs.northwestern.edu • Virtuoso: Resource Management and Prediction for Distributed Computing using Virtual Machines • http://virtuoso.cs.northwestern.edu • VNET is publicly available from above URL
