  1. Data Mining Rajagopal Sukumar Cognizant Technology Solutions

  2. Agenda • What is Data Mining ? • Data Mining Techniques • Data Mining Process • Our work in Data Mining • Tools available in the market

  3. What is Data Mining ? • Data mining is the search for relationships and global patterns that exist in large databases but are `hidden' among the vast amount of data • These relationships represent valuable knowledge about the database and the objects in the database and, if the database is a faithful mirror, of the real world registered by the database.

  4. What is Data Mining ? • The analogy with the mining process is described as: • Data mining refers to "using a variety of techniques to identify nuggets of information or decision-making knowledge in bodies of data, and extracting these in such a way that they can be put to use in the areas such as decision support, prediction, forecasting and estimation. The data is often voluminous, but as it stands of low value as no direct use can be made of it; it is the hidden information in the data that is useful"

  5. Why do we need Data Mining ? • We need it because everybody needs it ! • To uncover strategic competitive insight to drive market share and profits

  6. What can we do with our data ? • Derive Quantitative Information • How many people bought our products last month ? • Explain Past Results • Why did my monthly sales for our products have declined sharply ? • Discover Hidden Patterns • Houses with a male HOH (Head of the HHLD) are more likely to have both cats and dogs than those with a female. The actual ratio is 7:3. • Predict Future Results • So those household in our customer base that have a male Head of Household are likely to have both cats and dogs. If we are a pet food supplier, think about the value of this prediction ?

  7. Transforming Data Data Facts/Information Knowledge Recommendations/Decisions

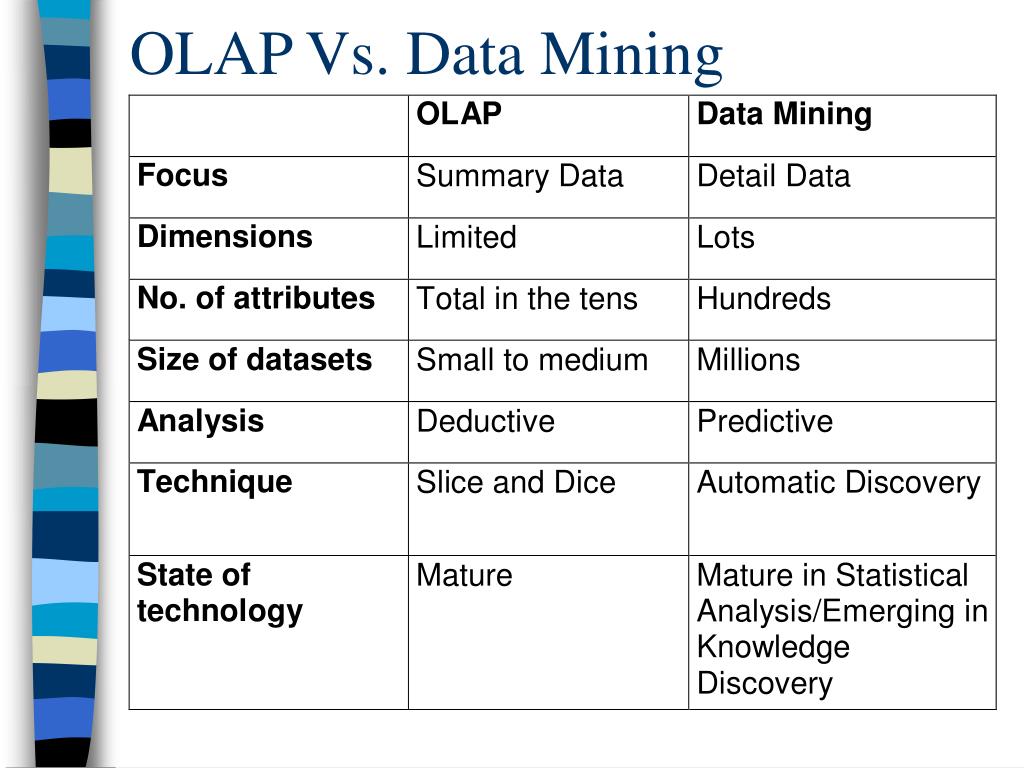

  8. OLAP Vs. Data Mining

  9. Data Mining Methods • Decision Trees • Case Based Reasoning • Neural Networks • Genetic Algorithms • Linear and Non Linear Regression Analysis

  10. Decision Tree

  11. Case based Reasoning (CBR) • Finds the closest situation that occurred in the past and adopts the same solution that was the right one • Disadvantage is that CBR systems do not create rules or models summarizing the past experiences • Example: Help Desk Support Systems

  12. Neural Networks • Mimic the way learning occurs in the brain • They are used extensively in the business world as predictive models • Each neuron takes many inputs and generates an output that is a non-linear function of the weighted sum of inputs

  13. Neural Networks Toy Type n1 Buyer Sex Good n2 Quantity Bad n3 Sale Month n4 Location

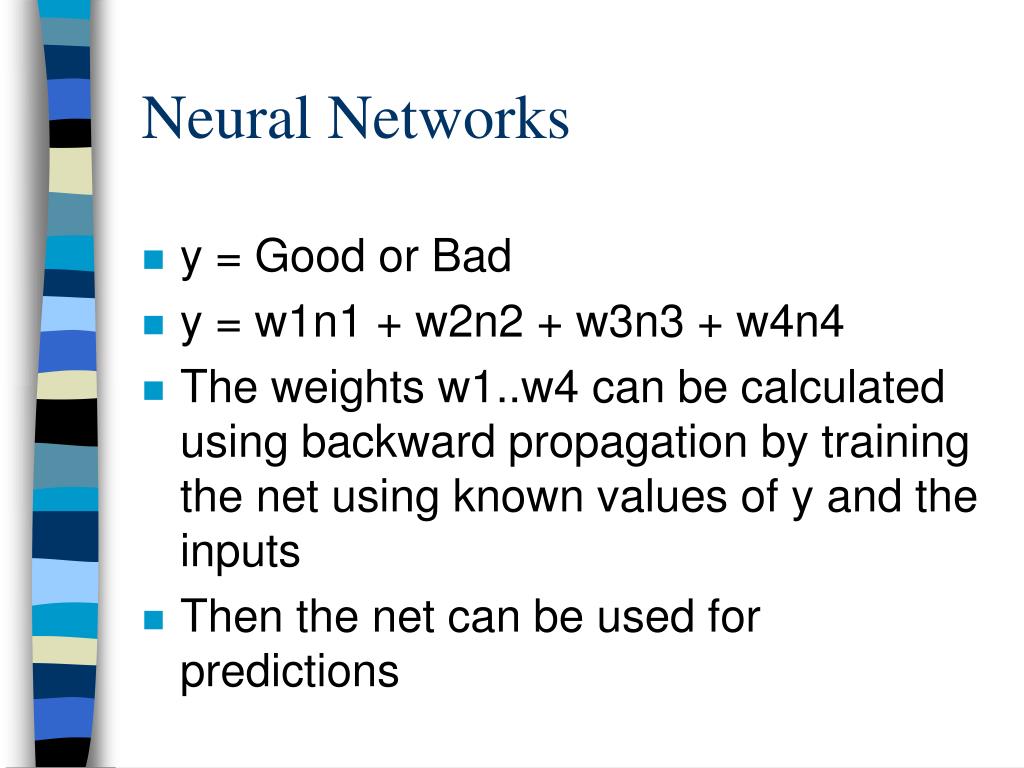

  14. Neural Networks • y = Good or Bad • y = w1n1 + w2n2 + w3n3 + w4n4 • The weights w1..w4 can be calculated using backward propagation by training the net using known values of y and the inputs • Then the net can be used for predictions

  15. Genetic Algorithms • Mimic the evolutionary process of natural selection • It has a fitness function that determines those solutions that are better fits • Then genetic operations mutations and mating are performed to generate more solutions • Currently in research mode rather than in practical applications

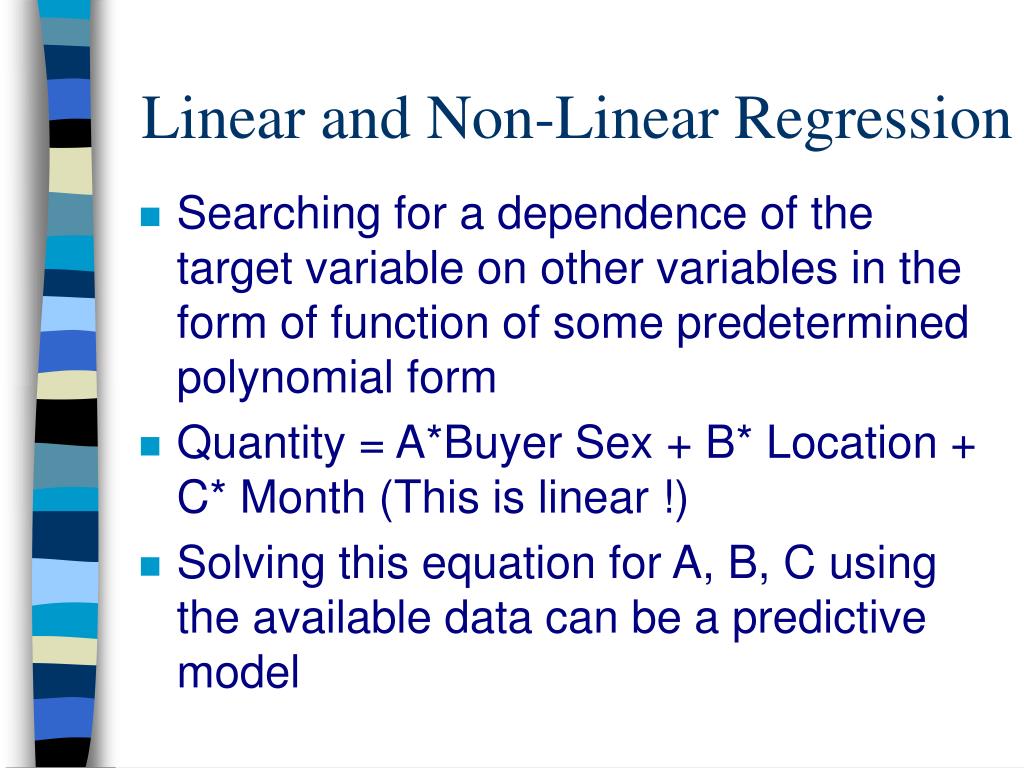

  16. Linear and Non-Linear Regression • Searching for a dependence of the target variable on other variables in the form of function of some predetermined polynomial form • Quantity = A*Buyer Sex + B* Location + C* Month (This is linear !) • Solving this equation for A, B, C using the available data can be a predictive model

  17. Usage • Clustering • Grouping data into disjoint sets that are similar in some respect. It also attempts to place dissimilar data in different clusters. • For example, in the context of super market data, clustering of sale items to perform effective shelf space organization is a typical application • Clustering algorithms typically use a distance function to separate data

  18. Usage • Classification • Classifies data into distinctive groups • For example, people can be categorized into the classifications of babies, children, teenagers, adults, and elderly. • The attribute age two years or younger can be mapped to babies. • Once data is classified, traits of these groups can be summarized

  19. Usage • Deviation Detection • Extracting anomalies or deviations in the data • An anomaly may show a new fact of great interest

  20. Usage • Association Rules • Extracting associations between data items. Can be used to predict the value of one object based on the value of another. • Find a model that identifies the most predictive characteristics of people buying toy pickup trucks ? • Answer - During summer vacation, single parent families with certain income levels buy toy pickup trucks

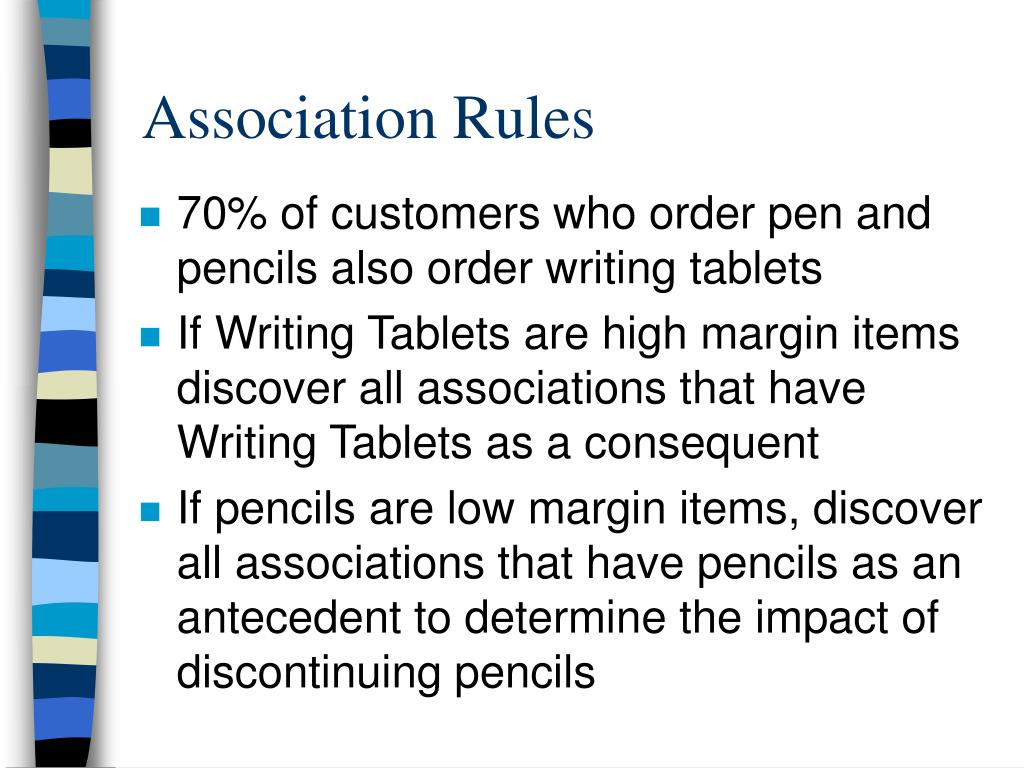

  21. Association Rules • 70% of customers who order pen and pencils also order writing tablets • If Writing Tablets are high margin items discover all associations that have Writing Tablets as a consequent • If pencils are low margin items, discover all associations that have pencils as an antecedent to determine the impact of discontinuing pencils

  22. Data Mining Process • Data Preparation • Most Important Phase GIGO ! • Defining a Study • Reading the data and building a model • Understanding the model • Prediction

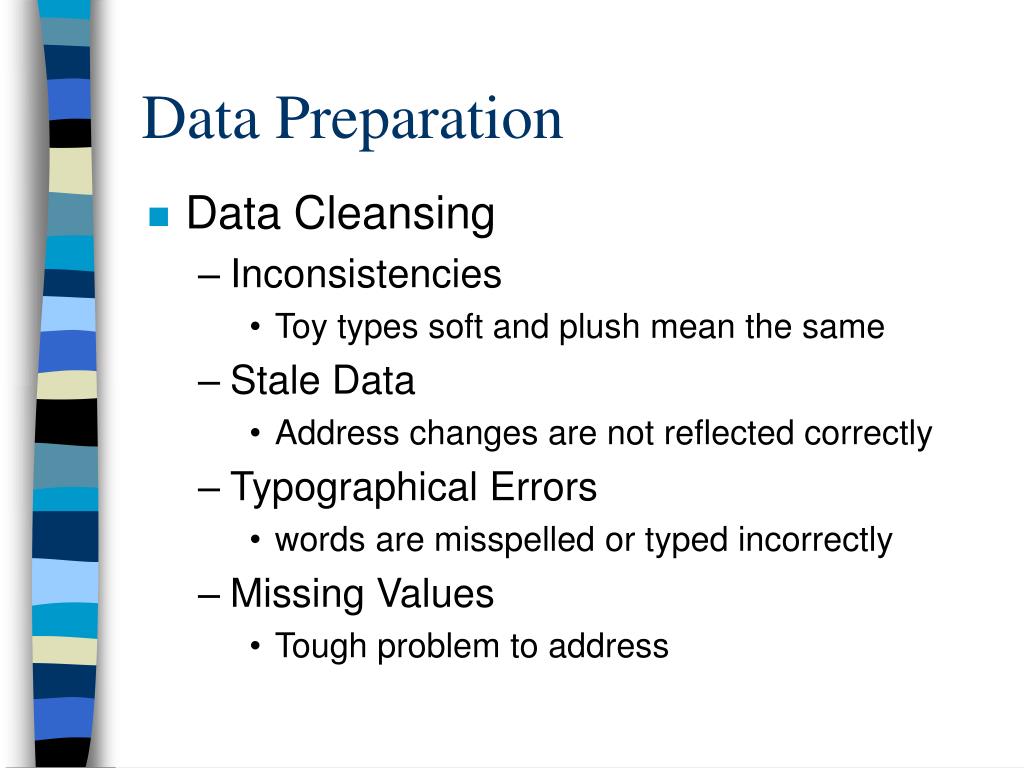

  23. Data Preparation • Data Cleansing • Inconsistencies • Toy types soft and plush mean the same • Stale Data • Address changes are not reflected correctly • Typographical Errors • words are misspelled or typed incorrectly • Missing Values • Tough problem to address

  24. Data Cleansing - Missing Values • Treatment of missing numeric values is more difficult • Artificial assignment change distribution and statistics of the field • Assign using average values • Segment data using another variable and assign segment averages • Build a model and impute the missing values (the best method)

  25. Data Transformation • Ratio Variables • Time derivatives • Discretization using quantiles • Discretization using other mathematical transforms

  26. Ratio Variables

  27. Time Derivatives • Variation of data over time is very important to understand • For example, toy sales time series = toy sales of current month - toy sales of previous month • Cyclic Association Rules can be identified • monthly sales of goods may have different correlations based on the season

  28. Discretization using quantiles • Discretization of numeric data using quantiles is a very good way to normalize data. Makes the data easier to interpret. • For example, the quantile break points we can use for toy sales quantity could be 10, 25, 50, 75, and 90.

  29. Discretization using other mathematical transforms • Range transformations • Logarithmic transforms • used for highly skewed distributions • Polynomial transforms • Used to linearize variable if the data is continuously distributed

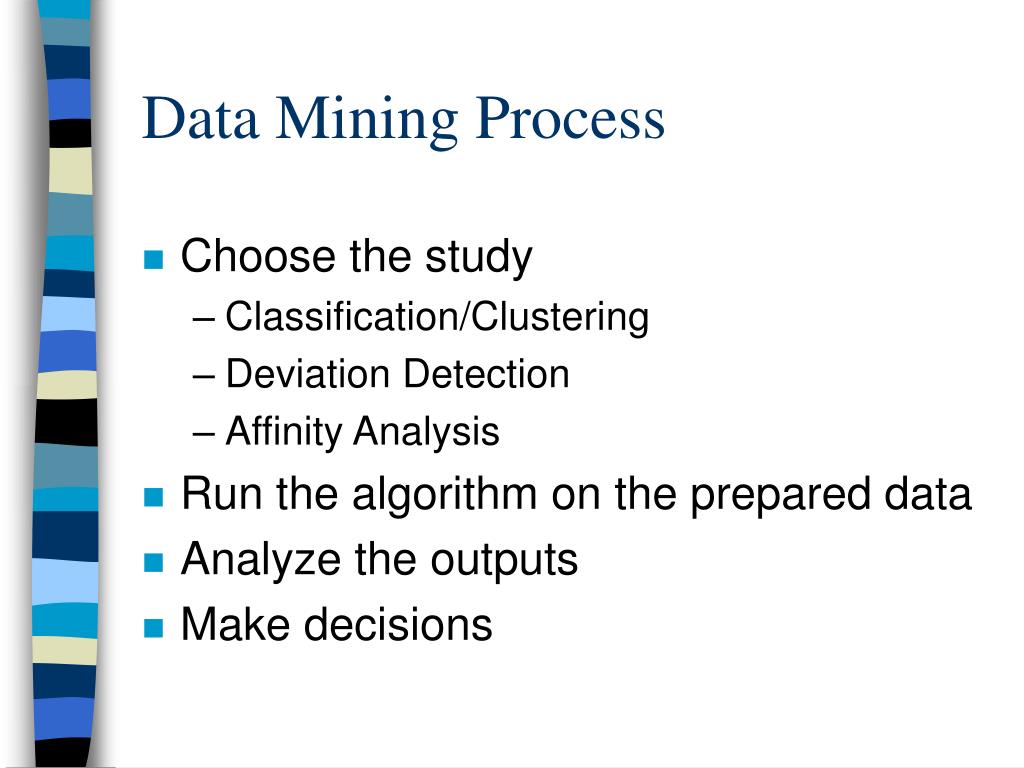

  30. Data Mining Process • Choose the study • Classification/Clustering • Deviation Detection • Affinity Analysis • Run the algorithm on the prepared data • Analyze the outputs • Make decisions

  31. Our Approach • Demystification of Data Mining • Built a Windows based Prototype to demonstrate decision trees • Working on adding a module to our Adhoc Query Generator - Extempore

  32. Sample Study • I want to understand what makes certain types of customers buy more • Is it related to their salary levels ? • Or is it related to their age ? • Or is it related to their sex ? Subject Field Associated Fields

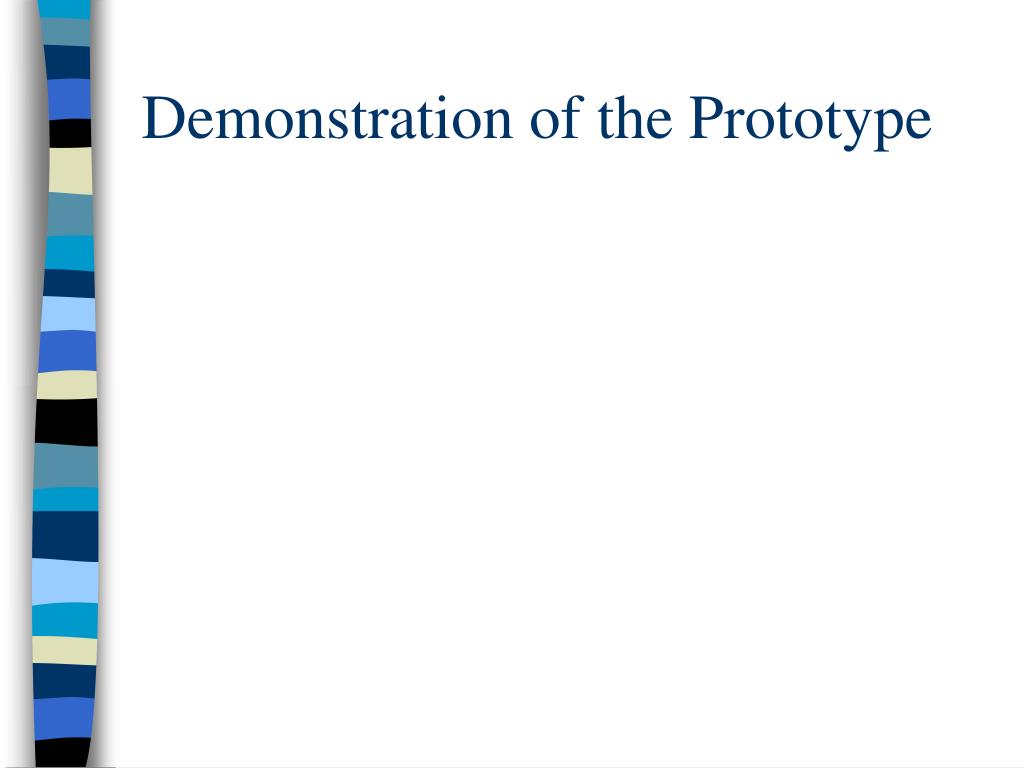

  33. Demonstration of the Prototype

  34. What is Extempore ? • EXTract M204 and Process On REquest • Generates native M204 UL code • Reports generated on multiple M204 files without any M204 coding • Complex report formatting with the help of reporting tools like info-maker • Provides user friendly GUI • Dynamically generates customized reports

  35. What is Extempore ? • Structured user interface • Point & click methodology • Limited M204 knowledge required to use • Quick access to M204 data • Reports can be copied/saved and reused • Data retrieved can be saved in formats like excel, CSV or HTML tables to be used by other systems • Online & batch modes of execution

  36. Extempore Architecture Sybase routes client RPC to M204 Hidden connection from M204 to Sybase to read report specification RPC to Sybase & results from RPC to client Extempore / Infomaker Model 204 Sybase Database JANUS CT LIB

  37. Tools in the market • IBM Intelligent Miner • Data Mind Corp’s Data Mind Professional Edition • Angoss Software’s Knowledge Seeker • Neuralware’s Neuralworks Predict • Pilot Software’s Discovery Server • Redbrick Systems’ Data Mine • Thinking Machines Corp’s Darwin

  38. Web sites • Excellent reference sites • http://www.thearling.com • http://www.kdnuggets.com • Source code sites • C4.5 Decision Tree Algorithm • htttp://ftp.cs.su.oz.au/pub/ml/ • OC1 Decision Tree Algorithm • http:/www.cs.jhu.edu/

  39. Thank You !
