Software Inspections of Requirements Specifications

1. Software Inspections of Requirements Specifications Smita Chaganty Brandon Vega

2. Overview • What are inspections? • Reviews and walkthroughs • Inspection teams • Steps to Formal Inspection • Detection methods • Usage Based Reading (UBR) • UBR Vs CBR (Checklist Based Reading) • Defects in Use Case models • Study & results

3. Importance of Requirements • Software Requirements Specifications (SRS) used as input to Planning, Estimating, Design, and Testing • “contract” between customers and developers • “Use-case Driven” • Quality of requirements documents is important

4. What are Inspections? - 1 • A means for detecting defects and violation of development standards • Improve quality in software documents • Team of reviewers reads SRS, and identify as many defects as possible • Defects are sent to the document’s author for repair

5. What are Inspections? - 2 • Objectives of an inspection: • verify that the software element(s) satisfy its specifications, • verify that the software element(s) conform to applicable standards, • identify deviation from standards and specifications, and • collect software engineering data (such as defect and effort data).

6. Reviews and Walkthroughs - 1 • REVIEWS • Manual process • Multiple readers • Checks for anomalies and omissions • Representatives of stakeholders should participate in a review

7. Reviews and Walkthroughs - 2 • Walkthrough • Peer group review • Several people involved • Typically a walkthrough involves at least one person (usually the author) • Reviews for consensus and walkthroughs for training

8. Inspection team consists of… • Moderator – leads inspections, schedules meetings, controls meetings….. • Author – creates or maintains the product being inspected • Reader - describes the sections of work product to the team as they proceed • Recorder – classifies and records defects and issues raised • Inspector – attempts to find errors in the product

9. Formal inspection consists of… • Planning • Overview meeting • Preparation • Inspection meeting • Casual analysis • Rework • Follow-up

10. Detection Methods - 1 • A set of procedures coupled with the assignment of responsibilities to individual reviewers • Methods: • Ad Hoc • Checklist • Scenario-based • Formal proofs of correctness (e.g.. Z)

11. Detection Methods - 2 • Ad Hoc • Informal, non-systematic detection technique • No explicit assignment of reviewer responsibility • Relies on knowledge and experience of inspector • Checklist • Most popular method • Reuse of “lessons learned” • Defines reviewer responsibilities • Suggests ways for reviewers to identify defects

12. Detection Methods - 3 • Checklist (continued) • Reviewers answer a list of questions based on knowledge from previous inspections / ad hoc technique no guidance provided

13. Checklist Example- 1 • Does the development team understand the Use Cases that this design supports? • Can every member of the development team trace a Use Case Scenario through the designs using a small number of high level components? • Are the bulk of the Class names understandable and recognizable by the domain experts? • Do the Class names reflect the overall responsibility of the Class with respect to the Use Cases and the design? • Does the name of every Message reflect the intended outcome of the Method? (There should be no actions that could not be inferred from the Message name.) • Does the purpose of the Method match the overall responsibility of the Class that it is in? (Should the method be moved to another class, or does it belong in a different place in the inheritance hierarchy?) • Have the Class diagrams been drawn to emphasize the Classes used by a set of Use Cases? • Have Packages been used to group related Classes, and are dependencies between packages noted? • Are all parameters specified for every message on the interaction diagrams, and is there a way for the sending object to know the parameters it is passing?

14. Checklist Example- 2 • Is flow of control obvious and correct within the interaction diagrams? (Hyperspace leaps are not allowed.) • Do Object names on Interaction Diagrams conform to coding guidelines? • Do Parameter names in Messages conform to coding guidelines? • For cases when there are more than one message to the same object, could this set of messages be replaced with a single message? • Is the design supposed to conform to the Law Of Demeter? (An object can only send Messages to Itself, It’s Attributes and passed parameters) • Does each Method have a set of Unit Tests defined? • Are all of the Failure Conditions from each Use Case tested for? • Does the implementation of every Method on a Class use at least one attribute or method in that class? (If a Method does not refer to it’s object, then it is just a utility function attached to the class, so it should be moved elsewhere.) • Overall, is the an even balance of responsibilities between the classes? (No Workaholics allowed) • Do the bulk of the Classes have an even balance of methods and attributes? (Trivial accessor methods do not count.) • For Messages with similar groups of parameters, can a simple data holder class be defined to simplify the message?

15. Checklist Example- 3 • Whenever Inheritance is used, is the phrase "Sub-class is a kind of Super-class" correct for the life of the object? • Does Interface Inheritance make more sense than Implementation Inheritance? • Even where inheritance is not applicable, are consistent names used for similar Methods? • Are all Attributes private? • Is the visibility of Methods appropriate? (If a Method is not invoked from outside the class it should be private.) • Are there any unused Attributes or Methods on a Class? (Unused implies untested which implies code defects.) • Is Run Time Type Information used to switch behavior? (This is only needed for interaction with non-object systems.) • Are the Classes partitioned so that as many Classes as possible are platform independent? • Is the persistence and transaction policy defined? • For containers, is ownership of the contained objects defined? (If the container is deleted, are the contents also deleted?) • Has the design been tested by the development of an Executable Architecture?

16. Detection Methods – 4 • Ad Hoc and Checklist Methods: • Non-systematic approaches • Reviewers responsibilities - both general and identical

17. Detection Methods – 5 • Scenario • Defect specific procedures • Used to detect particular classes of defects • Each reviewer executes a single scenario, therefore, • Multiple reviewers are needed to achieve broad coverage of the document • Each review has a distinct responsibility

18. Results of an experiment using different detection methods • Scenario approach increased defect detection rate as compared to Ad Hoc and Checklist • Performance of reviewers: • reviewers using Scenarios found more defects than those who used Ad Hoc or Checklist • Ad Hoc and Checklist techniques were equivalent

19. Inspections of requirements specification • Problems with ad hoc and checklist techniques – use scenario-based • Why? – checklist is used as starting point for more elaborate technique • Scenario based technique • teaches the instructors how to read requirements for defect detection • Offers a strategy for decomposition

20. Usage Based Reading (UBR) • Assumes that UC and scenarios have been defined earlier in the development process • Utilizes UC to focus the inspection effort • Steps: • Prioritize the UC in order of importance • Select the UC with the highest priority • Track the UC scenarios through the document under inspection • Ensure the document fulfills the UC goal • Select next use case and repeat from step 3

22. Usage Based Reading (UBR) vs. Checklist Based Reading (CBR) • Study: Compare the effectiveness( # of defects) and efficiency (time to find defects) • 23 CIS graduate students, many with software engineering experience • 11 used UBR, 12 used CBR • Taxi fleet management system • Defects were ranked as A (Crucial), B (Important), or C (Unimportant)

24. Usage Based Reading (UBR) vs. Checklist Based Reading (CBR) • Results: UBR is significantly more efficient and effective than CBR • UBR finds more faults per time unit for crucial and important faults • UBR finds a larger share of faults • UBR reviewers spent an average of 6.5 minutes less in preparation and 4 minutes less in inspection • UBR reviewers found twice as many crucial faults per hour as CBR reviewers • UBR reviewers identified average of 21% more faults than CBR reviewers • CBR discovered 63% more unimportant faults • Which means…CBR wastes effort searching for issues

25. Defects in Use Case Models • To create an inspection technique for UC models, knowledge of typical defects and their consequences is needed

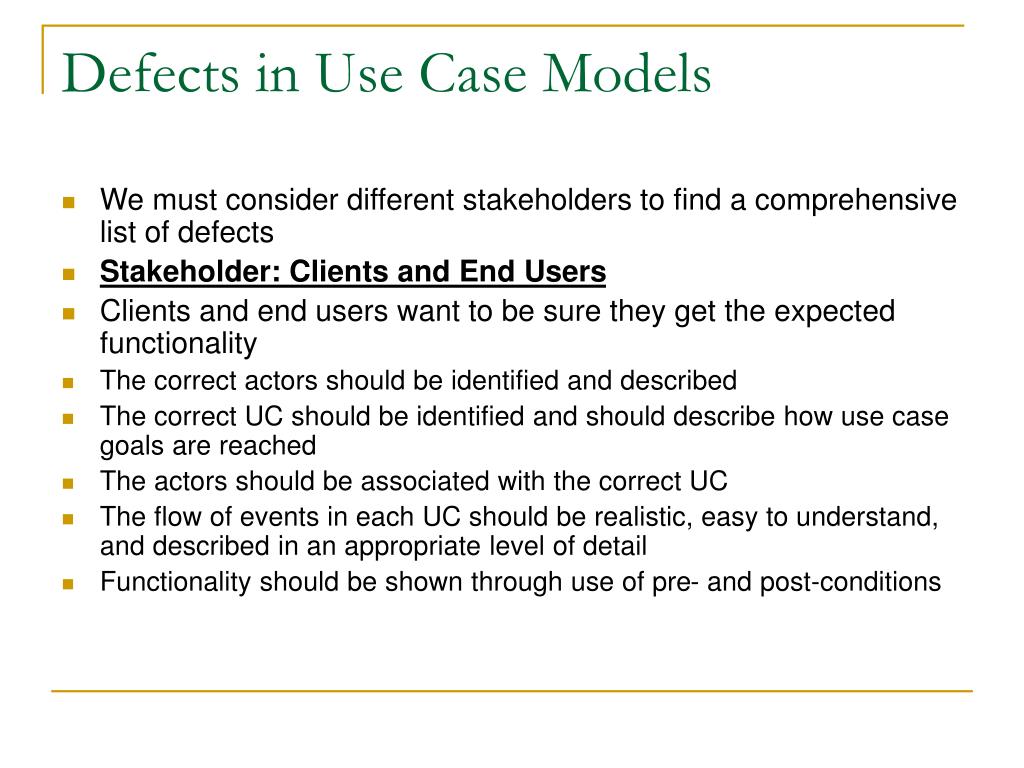

27. Defects in Use Case Models • We must consider different stakeholders to find a comprehensive list of defects • Stakeholder: Clients and End Users • Clients and end users want to be sure they get the expected functionality • The correct actors should be identified and described • The correct UC should be identified and should describe how use case goals are reached • The actors should be associated with the correct UC • The flow of events in each UC should be realistic, easy to understand, and described in an appropriate level of detail • Functionality should be shown through use of pre- and post-conditions

28. Defects in Use Case Models • Stakeholder: Project Manager • Managers need to plan projects • To support the planning: • UC model should cover all functional requirements • All interaction between actor and system that are relevant to the user should be described

29. Defects in Use Case Models • Stakeholder: Designers • Designers will apply UC models to produce an OO design, therefore: • Terminology should be consistent throughout the UC descriptions • UC descriptions should be described at a suitable level of detail

30. Defects in Use Case Models • Stakeholder: Testers • Testers apply UC models to test that the functionality is correctly implemented, therefore: • Pre-conditions and post-conditions for the execution of a UC should be testable, and • All terms in UC descriptions should be testable

31. Defects in Use Case Models • UC can be described in many different formats • The actual format may have an impact on defect detection • Inspection techniques must be tailored to the actual format used

32. Study 1 • No inspection technique exists that is specific to UC models • Studies: Anda & Sjoberg - Create a checklist based inspection technique for UC models • Students organized into teams of clients and developers • Each team clients for one system and developers for the other system • Client teams created informal textual requirements specifications • Developer teams constructed UC models • Fall 2000: Client teams evaluated UC models and found very few defects despite the presence of many defects • Fall 2001: Client and development teams evaluated UC models using the checklist method

33. Study 1 Results • With checklist almost all teams found defects and suggested corrections • Very few defects were missed • The clients found twice as many defects as developers • Very few common defects were found between clients and developers...Why? • There is a large difference between what is considered a defect in a UC model • Difference in defects found suggests a technique based on different perspectives may be useful • May also be useful to involve different stakeholders in the inspections

34. Study 2 • Fall 2001: 45 students received textual requirements for a hospital roster management system • Defects were inserted into the UC by authors • Half used checklist, half used ad hoc • Inspections performed individually

35. Study 2 Results • Checklist group found slightly more defects regarding the actors in the UC • Ad hoc group found more defects in the other categories • Overall the difference in detected defects was negligible • Checklist method found to be more time consuming • Many defects relating to flow of events not found by either group indicating that these defects are difficult to detect • Conclusion: checklist may not be useful when inspectors have good knowledge of defects they are expected to find (the students had recently performed similar inspections) and… • Experienced inspectors may be more efficient without a checklist

36. Study 3 • Porter & Vatta 1994 • Hypothesized that systematic approaches such as scenario based will increase the overall effectiveness of an inspection • Remember, scenarios target a specific class of defects • Results: the scenario detection method had highest defect detection rate followed by ad hoc and checklist (keep in mind, the checklist is the industry standard) • Conclusion: reviewers are able to focus on the specific class of defects which facilitates a higher rate of defect detection

37. Study 4 • Lanubile & Visaggio replicated the previous study • Hypothesis: Scenario based methods would result in more defect detection • Conclusions: The team defect detection rate when using the Scenario technique was not significantly different from those obtained with Ad Hoc or Checklist techniques • Why?: • Subjects were asked to learn too many new things • Defects in the introductory parts create confusion • Training was unfair • Subjects who had trouble with the Scenario approach used different techniques to execute the task. • Time limit was too short

38. Conclusions… • The quality of requirements specification is important for the quality of the resulting product. • Different methods can be used for software inspections, however the best are the ones that are systematic and are inspected by experienced inspectors. • Poorly designed inspection method can lead to poor inspection performance • UBR is significantly more efficient and effective that CBR • To create an inspection technique for UC models, knowledge of typical defects and their consequences is needed.

39. References • Towards Inspection Technique for use Case Models, Bente Anda & Dag I. K Sjoberg http://portal.acm.org • Software Inspection of Requirements Specification Documents: A Pilot Study, Tereza G. Kirner & Janaina C. Abib http://portal.acm.org • An Experiment to Assess Different Defect Detection methods for Software Requirements, A. A. Porter & L. G Votta www.acm.org/pubs/citations/proceedings/sotf/257734/p103-porter/ • Prioritized Use Cases as a vehicle for Software inspections, Thomas Thelin & Per Runeson http://computer.org/publication/dlib • Optimizing Software inspections, Tom Glib http://216.239.41.104/search?q=cache:P6xvIMfH4VEJ:www.gilb.com/Download/Crosstalk.pdf+how+to+do+software+inspections&hl=en&ie=UTF-8 • Assessing Defect Detection methods for Software requirements Inspections Through External Replication, Filippo Lanubile & Giuseppe Visaggio http://216.239.39.104/search?q=cache:D7H45enpweYJ:www2.umassd.edu/SWPI/ISERN/isern-96-1.pdf+assessing+defect+detection+methods+for+software+requirements+inspections+through+external+replication&hl=en&ie=UTF-8
