Density Meter NDSM-101 – Density Sensor
Labnics Density Meter measures 0 to 3 g/cmu00b3 with 0.001 g/cc resolution for liquid analysis. It supports viscosity testing from 0 to 20,000 cP with a built-in PT100 sensor for controlled temperature monitoring. SS316L wetted parts provide strong corrosion resistance and extended service life.
Density Meter NDSM-101 – Density Sensor
E N D
Presentation Transcript

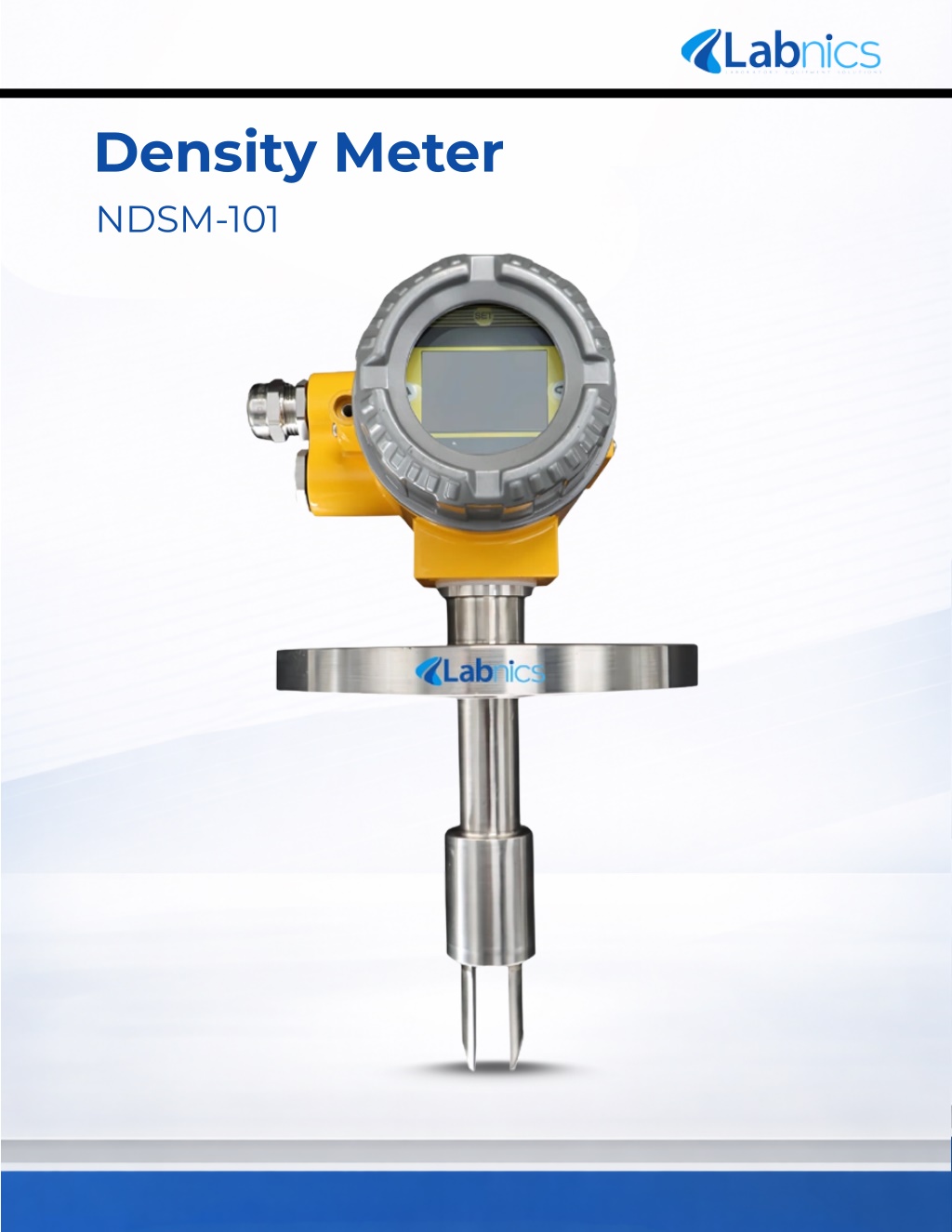

Density Meter NDSM-101
Overview Density Meter NDSM-101 covers a measurement range of 0 to 3 g/cm³. It supports viscosity measurement from 0 to 20,000 cP, making it suitable for a wide variety of samples. The unit includes a built-in PT100 temperature sensor for temperature monitoring and allows temperature settings to be adjusted as required. All wetted parts are made from SS316L stainless steel, offering strong resistance to corrosion and extended operational life. Specifications Measurement range 0 to 3000 kg/m³ (0 to 3 g/cm³) Accuracy 0.001 g/cc (±1 kg/m³) Viscosity 0 to 2000 cP Four-wire (24 VDC, 4 to 20 mA) + RS485 Signal Output Working pressure 0 to 4 MPa Temperature sensor Built-in PT100 Fork sensor length 150 mm Weight 5 Kg

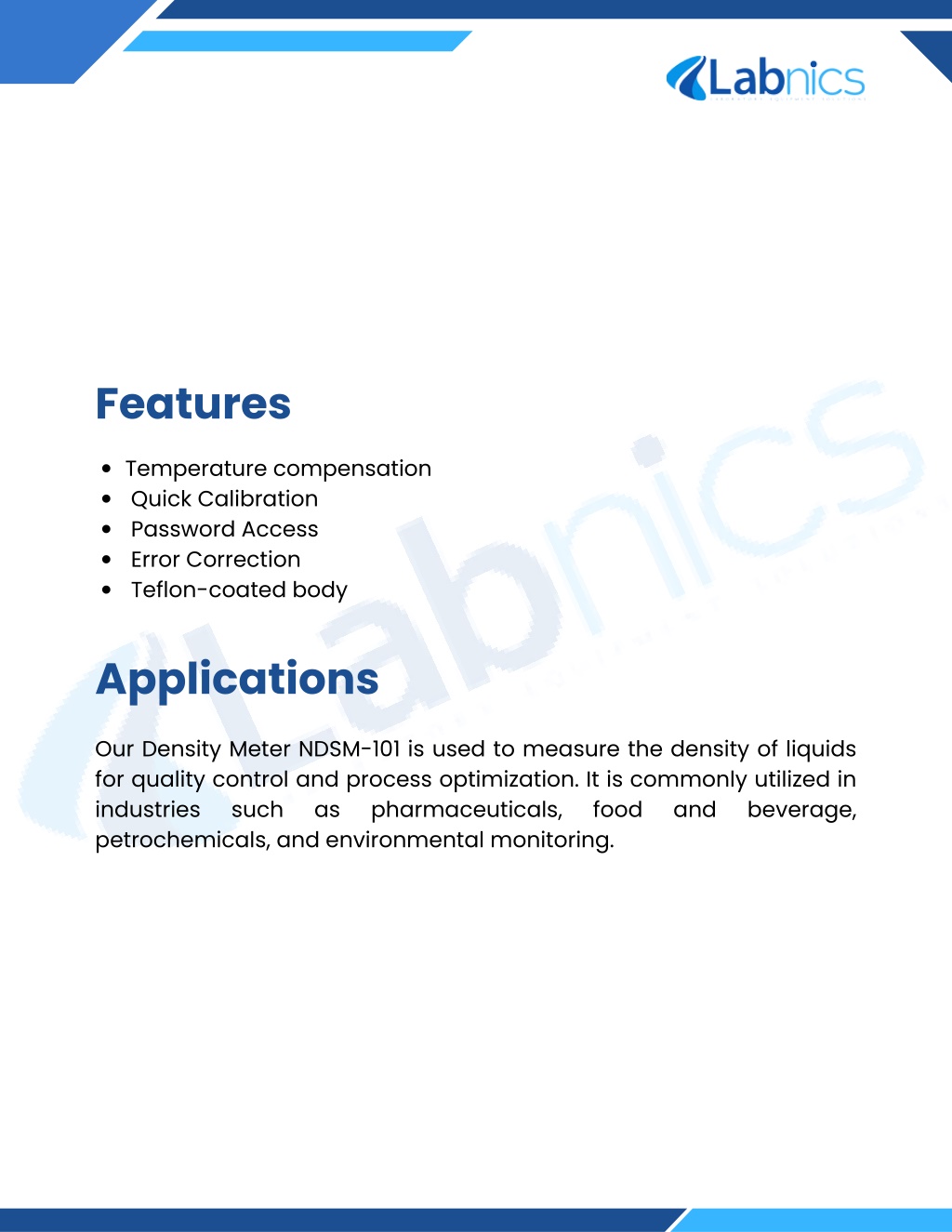

Features Temperature compensation Quick Calibration Password Access Error Correction Teflon-coated body Applications Our Density Meter NDSM-101 is used to measure the density of liquids for quality control and process optimization. It is commonly utilized in industries such as pharmaceuticals, petrochemicals, and environmental monitoring. food and beverage,

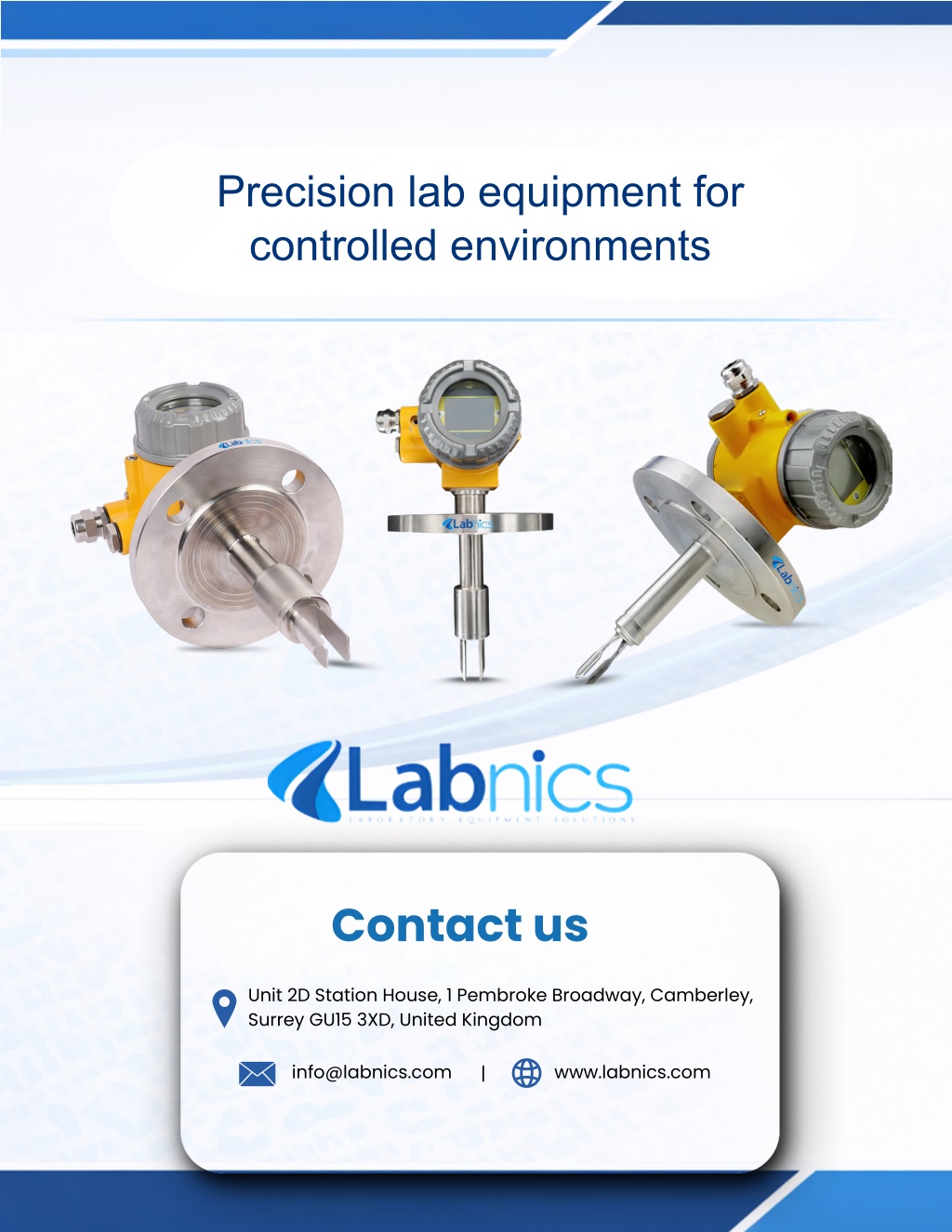

Precision lab equipment for controlled environments Contact us Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD, United Kingdom info@labnics.com www.labnics.com |
