CUT-FILL Volume Calculation

CUT-FILL Volume Calculation. Example Cut and Fill . EXCAVATION (CUT). EMBANKMENT (FILL). Earthwork. 0+00. The horizontal dimensions of a project are dimensioned in stations. One station equals 25m. 25m. 0+25. Calculation Formular. Area: rectangular(AxB), triangular Simpson’s Volume

adamina
Télécharger la présentation

CUT-FILL Volume Calculation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CUT-FILLVolume Calculation

  2. Example Cut and Fill EXCAVATION (CUT) EMBANKMENT (FILL)

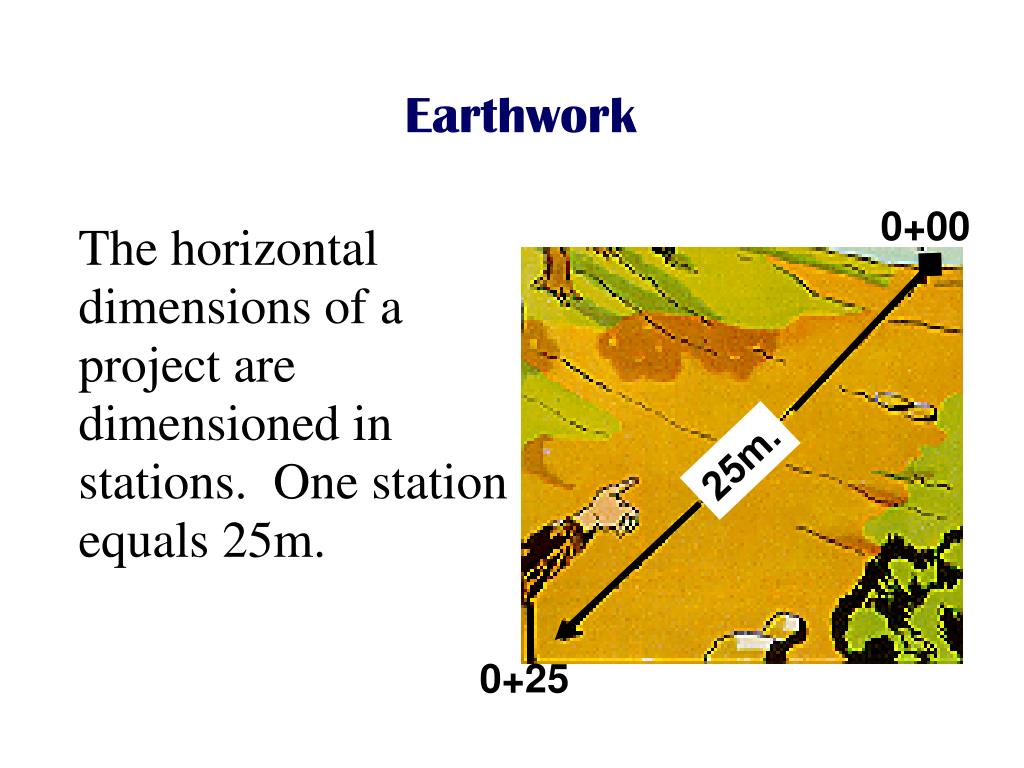

  3. Earthwork 0+00 The horizontal dimensions of a project are dimensioned in stations. One station equals 25m. 25m. 0+25

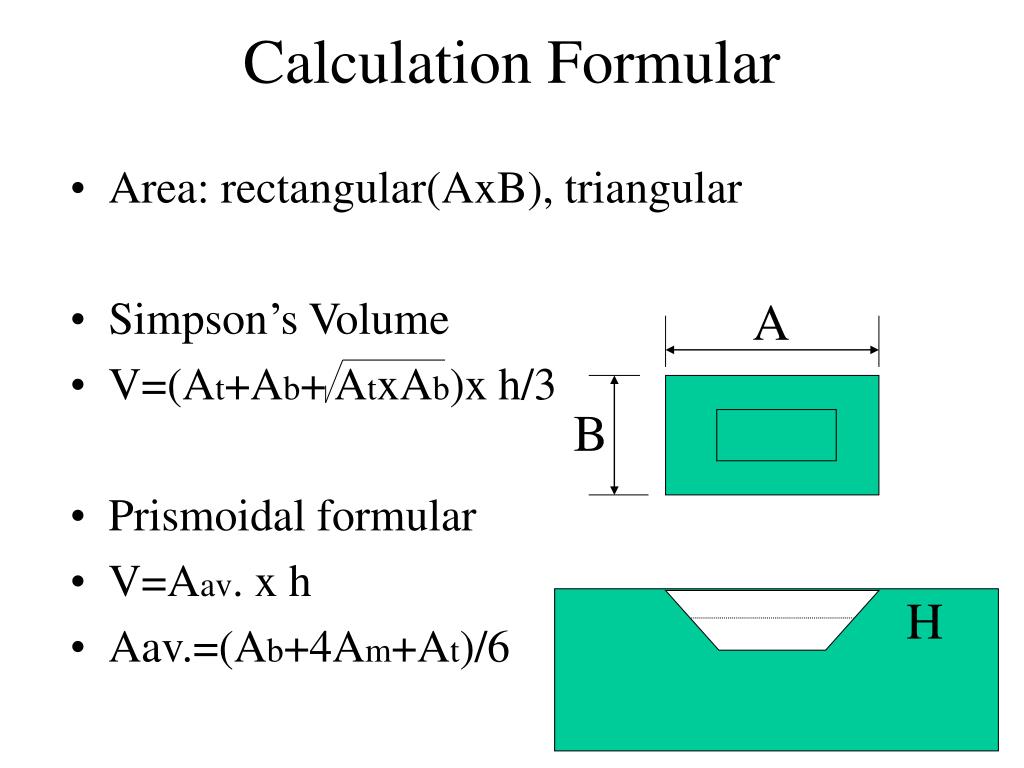

  4. Calculation Formular • Area: rectangular(AxB), triangular • Simpson’s Volume • V=(At+Ab+ AtxAb)x h/3 • Prismoidal formular • V=Aav. x h • Aav.=(Ab+4Am+At)/6 A B H

  5. Example Cut and Fill Calculate the weight of the solid particles which make up the embankment (fill). Project specifications require the embankment be compacted to a dry unit weight (d) of 1.6 T/m3 net section, embankment is 30,000 m3

  6. Example Cut and Fill Weight of the solid particles which make up the embankment (fill). a dry unit weight (d) of 1.6 T/m3 30,000 m3 embankment Volume = 30,000 m3 x1.6 T/m3 It is not easy like this.

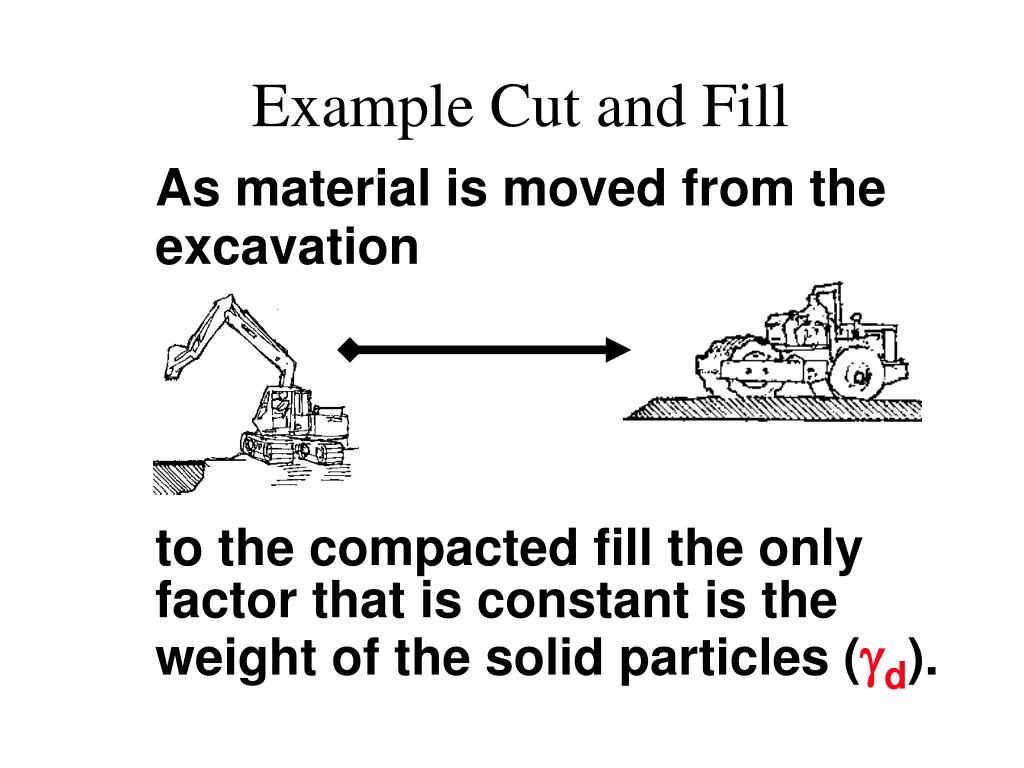

  7. Example Cut and Fill As material is moved from the excavation to the compacted fill the only factor that is constant is the weight of the solid particles (d).

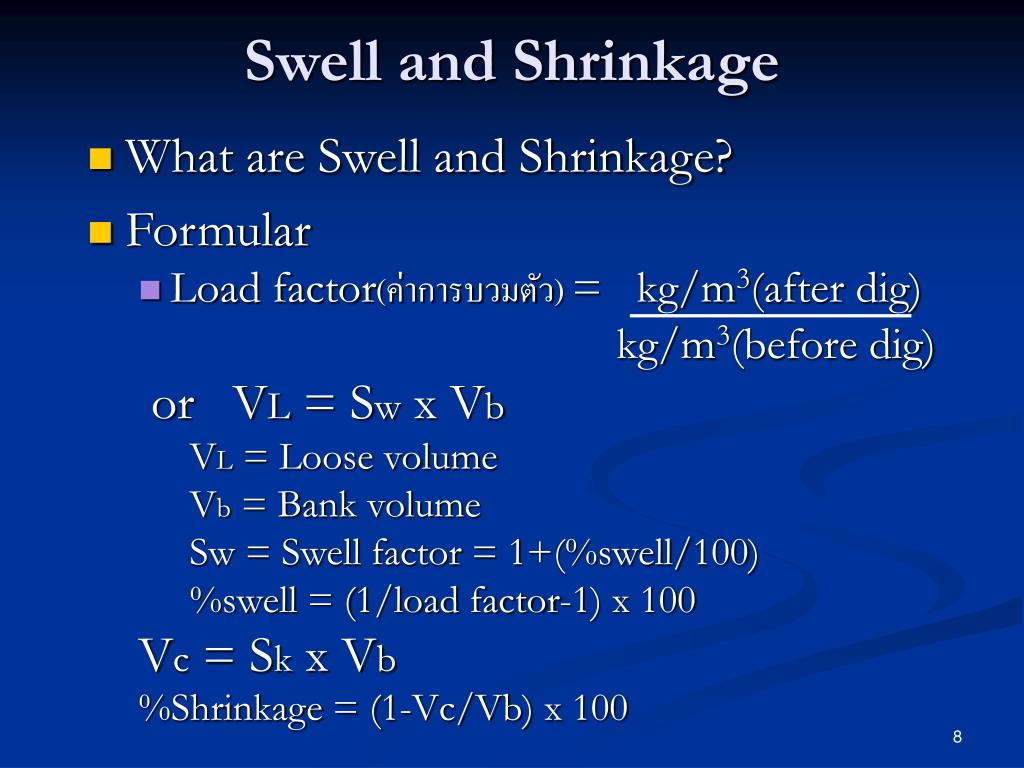

  8. Swell and Shrinkage • What are Swell and Shrinkage? • Formular • Load factor(ค่าการบวมตัว) = kg/m3(after dig) kg/m3(before dig) or VL = Sw x Vb VL = Loose volume Vb = Bank volume Sw = Swell factor = 1+(%swell/100) %swell = (1/load factor-1) x 100 Vc = Sk x Vb %Shrinkage = (1-Vc/Vb) x 100

  9. Table

  10. Example • Filling back with sand at a bridge. • From cross section, filled volume = 10,000 m3. • %Shrinkage and % Swell are same as 12 %. • Empty Truck weight = 10 T. • Truck capacity = 16 m3 • As Highway Authority, total weight of truck is not more than 21 T. • Find Volume after and before excavation • How many trip by Highway A. , Truck capacity

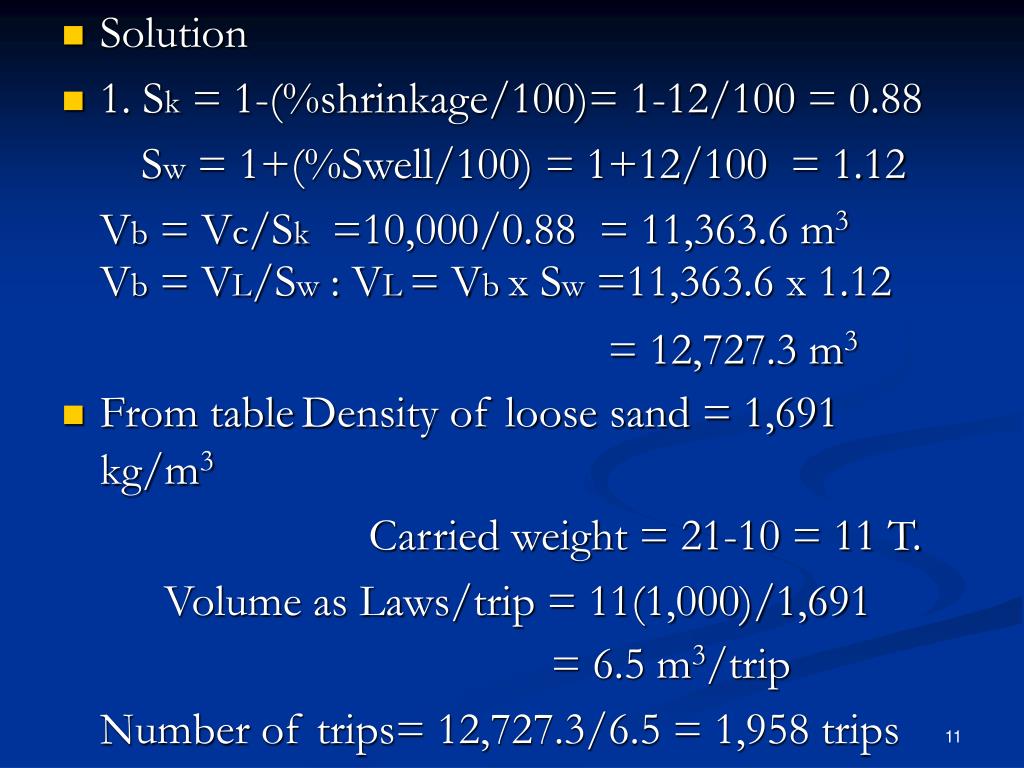

  11. Solution • 1. Sk = 1-(%shrinkage/100)= 1-12/100 = 0.88 Sw = 1+(%Swell/100) = 1+12/100 = 1.12 Vb = Vc/Sk =10,000/0.88 = 11,363.6 m3 Vb = VL/Sw : VL= Vb x Sw =11,363.6 x 1.12 = 12,727.3 m3 • From tableDensity of loose sand = 1,691 kg/m3 Carried weight = 21-10 = 11 T. Volume as Laws/trip = 11(1,000)/1,691 = 6.5 m3/trip Number of trips= 12,727.3/6.5 = 1,958 trips

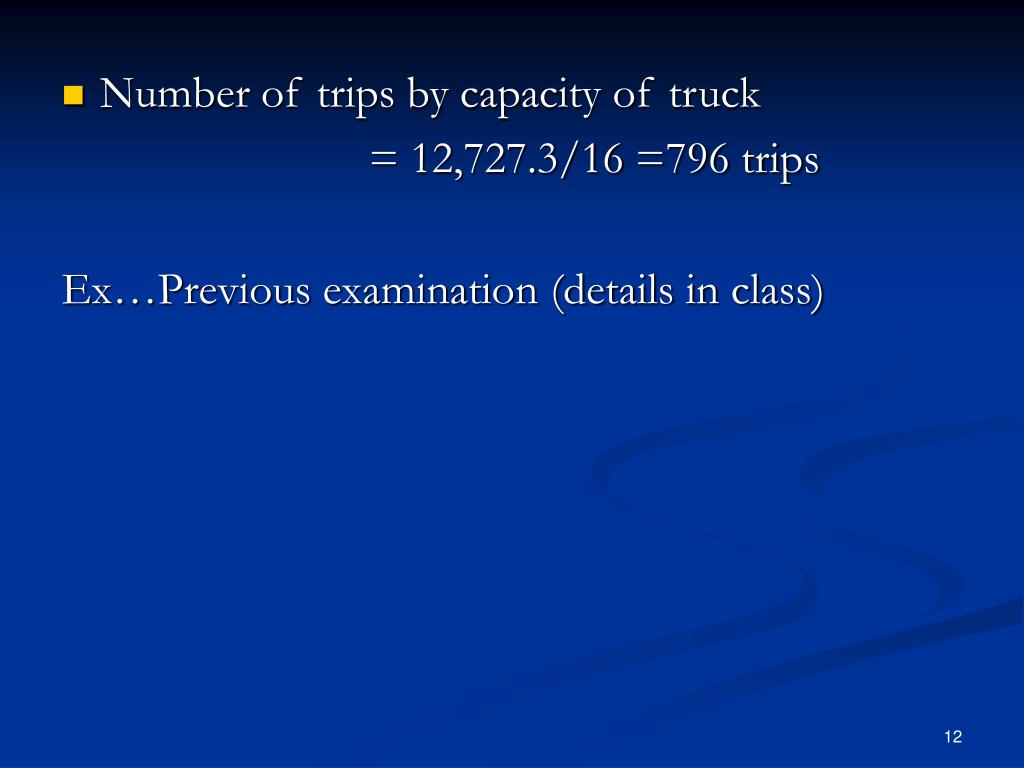

  12. Number of trips by capacity of truck = 12,727.3/16 =796 trips Ex…Previous examination (details in class)
