IP Phone Chip System Design

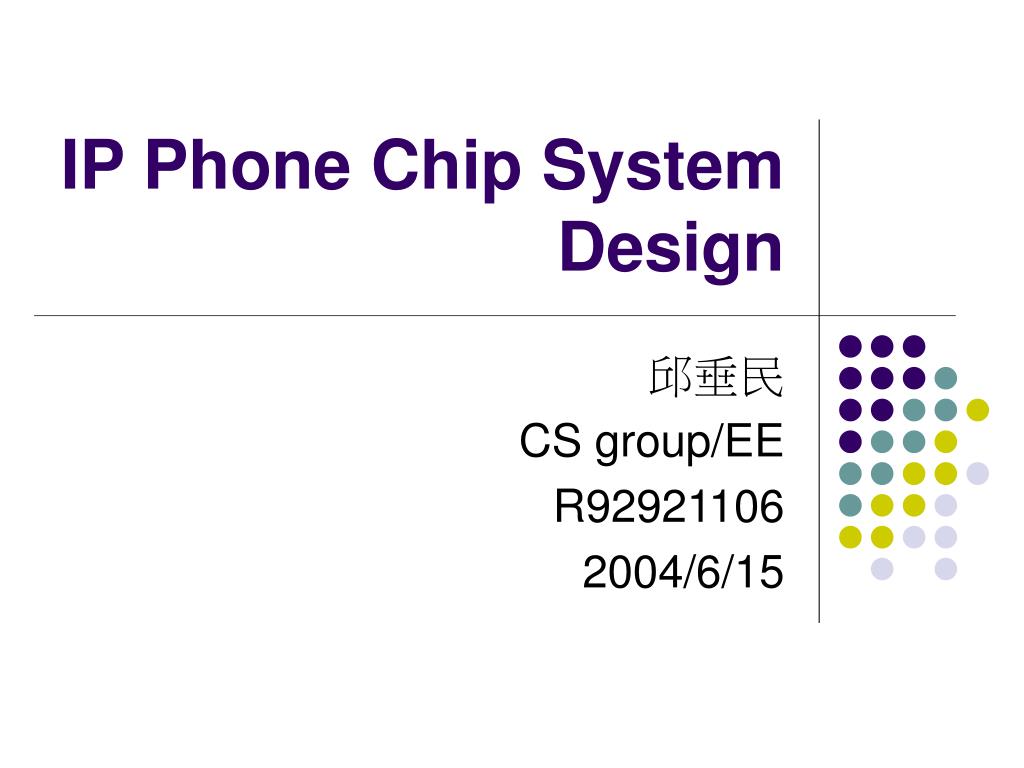

1. IP Phone Chip System Design 邱垂民 CS group/EE R92921106 2004/6/15

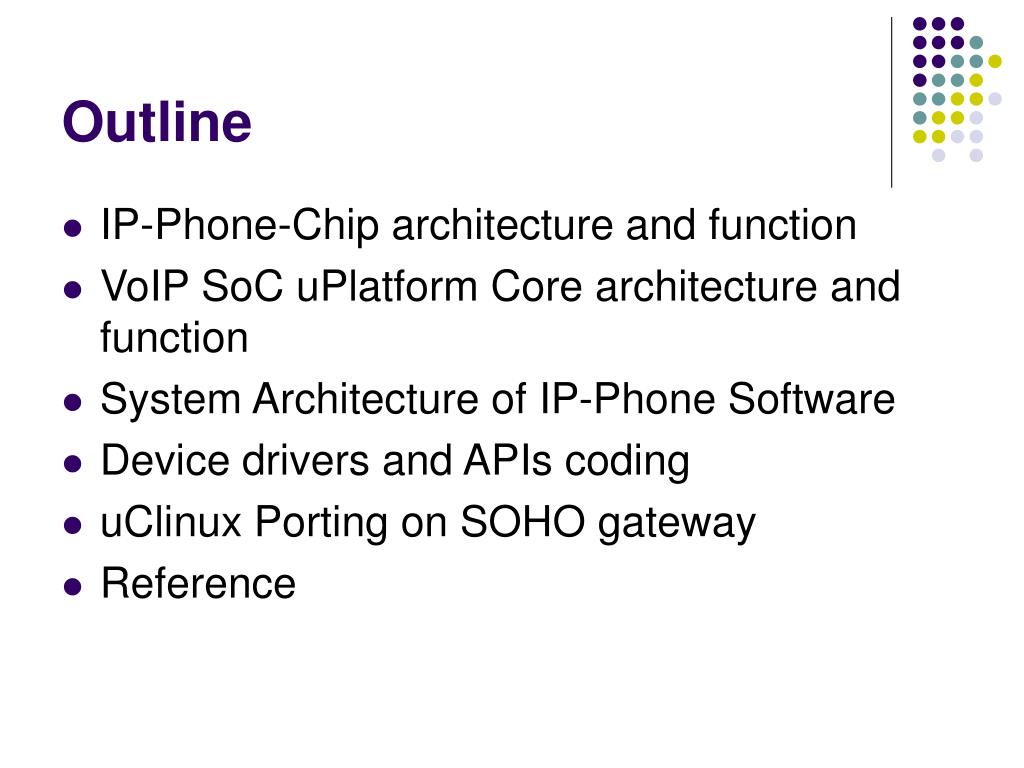

2. Outline • IP-Phone-Chip architecture and function • VoIP SoC uPlatform Core architecture and function • System Architecture of IP-Phone Software • Device drivers and APIs coding • uClinux Porting on SOHO gateway • Reference

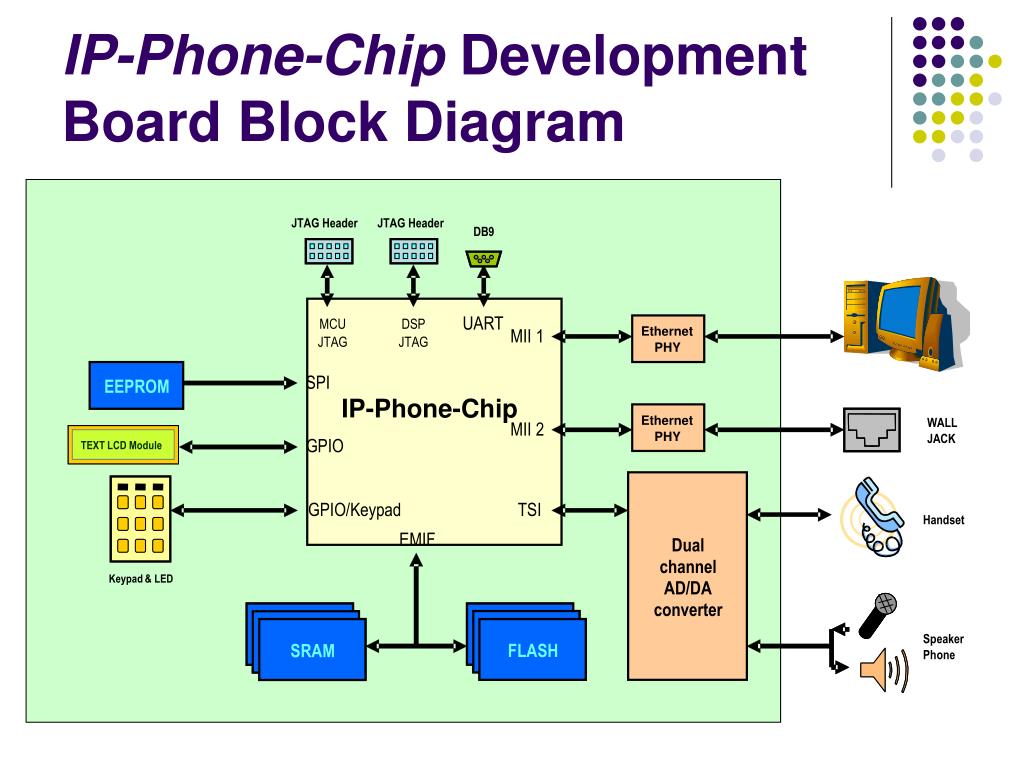

3. JTAG Header JTAG Header DB9 UART MCU DSP Ethernet MII 1 JTAG JTAG PHY SPI EEPROM IP-Phone-Chip Ethernet WALL MII 2 PHY JACK GPIO TEXT LCD Module TEXT LCD Module GPIO/Keypad TSI Handset EMIF Dual channel Keypad & LED AD/DA converter Speaker FLASH FLASH SRAM SRAM Phone IP-Phone-Chip Development Board Block Diagram

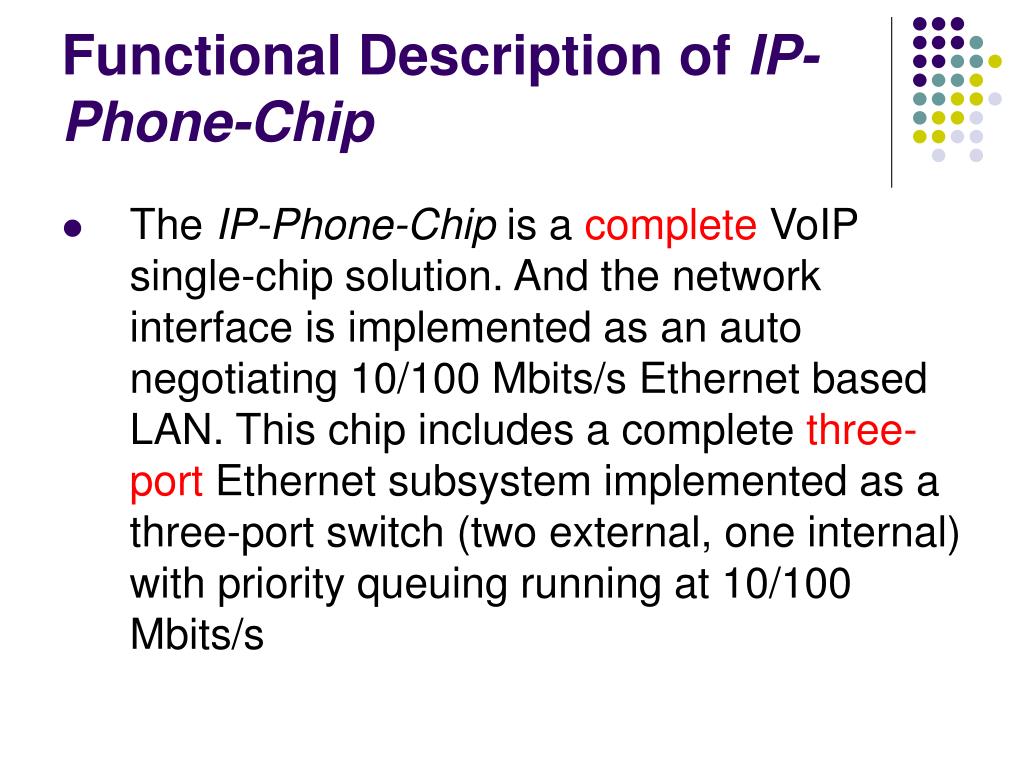

4. Functional Description of IP-Phone-Chip • The IP-Phone-Chip is a complete VoIP single-chip solution. And the network interface is implemented as an auto negotiating 10/100 Mbits/s Ethernet based LAN. This chip includes a complete three-port Ethernet subsystem implemented as a three-port switch (two external, one internal) with priority queuing running at 10/100 Mbits/s

5. Instruction Instruction cache MMU SDRAM Controller TSI ARM9TDMI Core SRAM Controller Embedded ICE DSP Core Flash Controller Data Data Cache MMU Internal HBI Memory Write Buffer AMBA Bus I/F AMBA Bus I/F MIPS4Kc DSP Timer/Counter 0 UART 0 Timer/Counter 1 UART 1 Timer/Counter 2 IP-Phone-Chip Function Block Diagram EMIF EMIF Reset Reset JTAG Instruction Instruction Instruction Instruction cache cache MMU MMU 10/100 10/100 SDRAM SDRAM Mbits/s Mbits/s Controller Controller TSI TSI three three - - port port ARM9TDMI Core ARM9TDMI Core SRAM SRAM Ethernet Ethernet Controller Controller CLOCK / PLL CLOCK / PLL Switch Switch IRQ & POWER & POWER Embedded ICE Embedded ICE Controller Controller DSP Core DSP Core Controller Flash Flash Controller Controller Data Data Data Data Cache Cache MMU MMU Internal Internal HBI HBI Memory Memory Write Buffer Write Buffer Internal Internal Ethernet Ethernet AMBA Bus I/F AMBA Bus I/F AMBA Bus I/F AMBA Bus I/F SRAM SRAM DMA DMA DSP DSP AHB Bridge & DMA APB Timer/Counter 0 Timer/Counter 0 Serial UART 0 UART 0 Watchdog GPIO / Keypad GPIO / Keypad RTC Peripheral Timer/Counter 1 Timer/Counter 1 Timer controller controller Interface UART 1 UART 1 Timer/Counter 2 Timer/Counter 2

6. Architecture Overview of VoIP SoC uPlatform Core • The VoIP SoC uPlatform Core is an integration platform incorporating MIPS 4Kc to implement system-on-a-chip design. The VoIP SoC uPlatform Core is designed for meeting VoIP application that combines peripheral support functions, and follows the AMBA 2.0 on-chip-bus interface to link with. The VoIP SoC uPlatform Core also supports a wide range of memory type and the configurable peripherals to meet system-on-a-chip integration requirements.

7. Brief Specification of VoIP SoC uPlatform Core (1) • AHB BUS • CPU: MIPS4Kc • 16Kbyte Instruction cache and 16Kbyte data cache. • DSP: Improv’s 32-bit Jazz DSP. • VLIW processor architecture. • Jazz Host Bus Interface with AMBA Bus Wrapper • 1 IRQ Controller • 1 clock generator with PLL • 1 Interrupt controller support external interrupt source • External memory interface (EMI) for SDRAM, FLASH, SRAM devices • JTAG test and debug control. • Dual 10/100 Mbits/s Ethernet MACs. • 10/100 Mbits/s three-port Ethernet switch (two external, one internal) with DMA. (TBD) • PCI or USB for WLAN module (TBD)

8. Brief Specification of VoIP SoC uPlatform Core (2) • APB BUS • SPI: 1 SPI • RTC: 1RTC with calendar • Watchdog Timer: 1 Watchdog Timer • UART: 1 UART • GPIO: 4 ports/ 32 pins • Timers/Counters: Two , 32-bit Timers/Counters • Bridge: with 2channel DMA

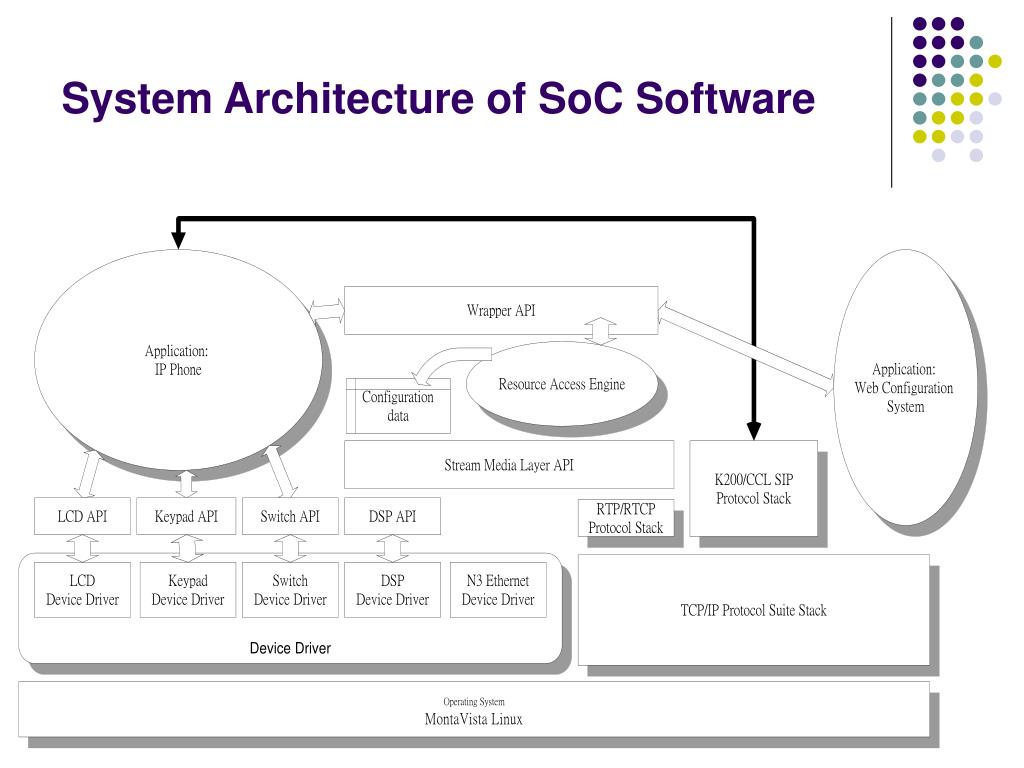

9. System Architecture of SoC Software

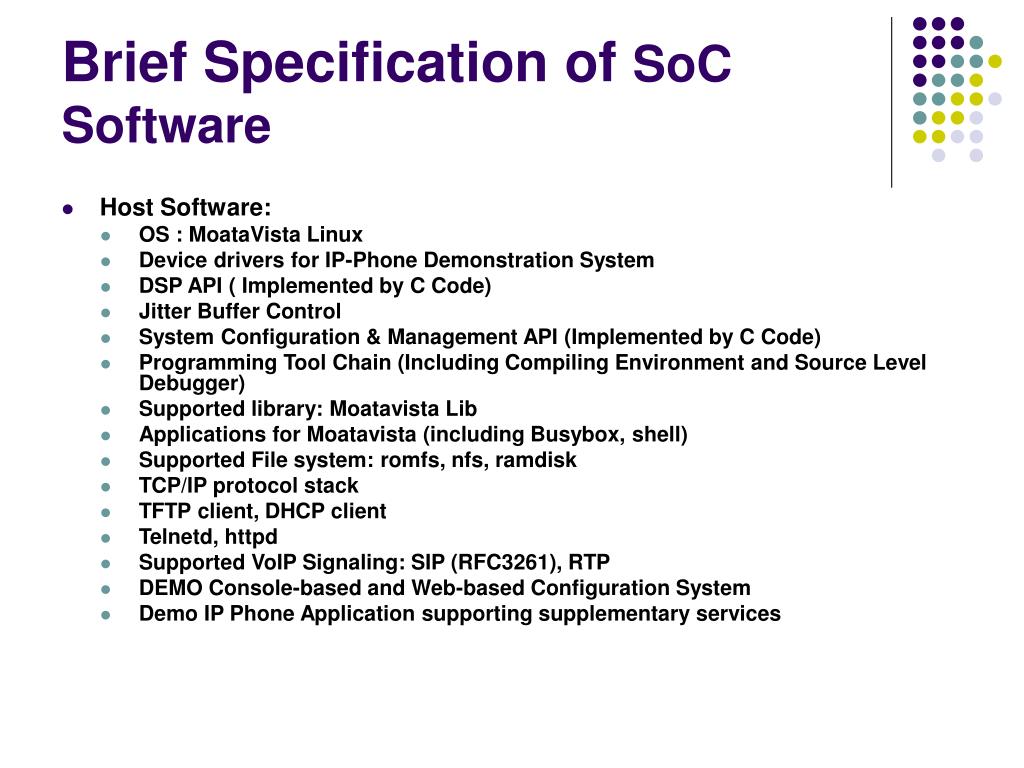

10. Brief Specification of SoC Software • Host Software: • OS : MoataVista Linux • Device drivers for IP-Phone Demonstration System • DSP API ( Implemented by C Code) • Jitter Buffer Control • System Configuration & Management API (Implemented by C Code) • Programming Tool Chain (Including Compiling Environment and Source Level Debugger) • Supported library: Moatavista Lib • Applications for Moatavista (including Busybox, shell) • Supported File system: romfs, nfs, ramdisk • TCP/IP protocol stack • TFTP client, DHCP client • Telnetd, httpd • Supported VoIP Signaling: SIP (RFC3261), RTP • DEMO Console-based and Web-based Configuration System • Demo IP Phone Application supporting supplementary services

11. MCU ICE UART/ Console Header LCD JTAG Header DB9 Peripheral DB Ether-Switch +MAC DB Keypad /LED Header CPU + Peripheral IPs Main Board (APB Extension) (AHB Extension) RJ45 PC PHY EB RJ45 WALL JACK Speaker-Phone JTAG Header Jack stackable DSP DB CODEC EB Handset RJ11 DSP ICE IP-Phone Demonstration System

12. Device drivers and APIs coding • Keypad/LED • LCD • DSP • Ethernet

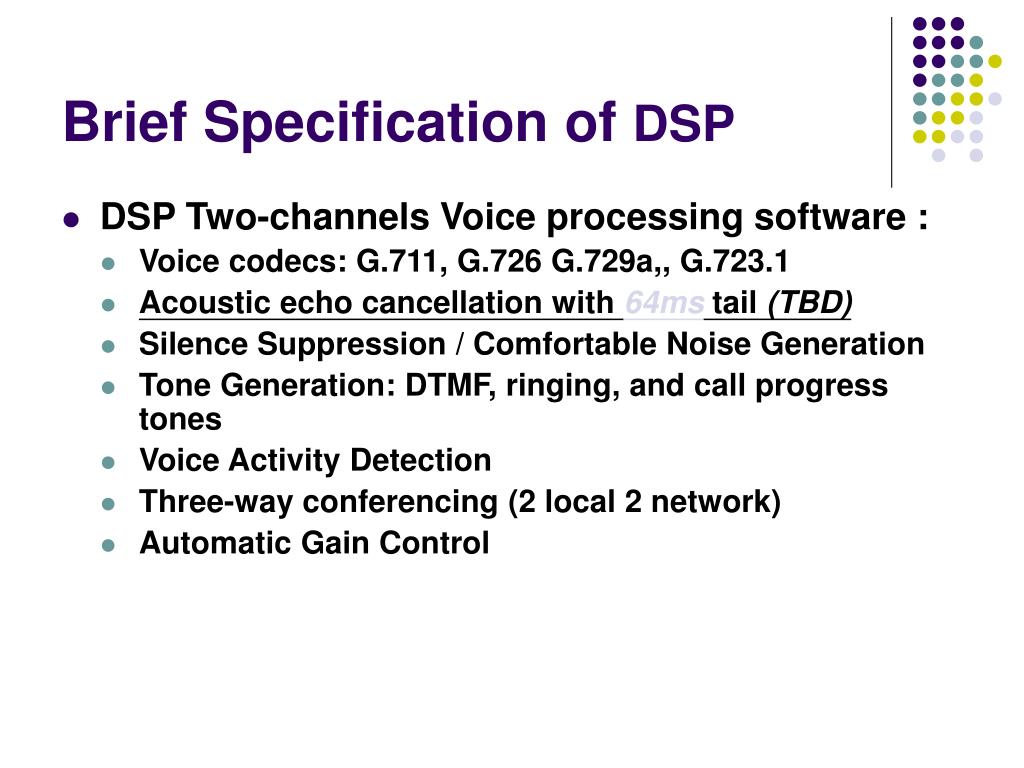

13. Brief Specification of DSP • DSP Two-channels Voice processing software : • Voice codecs: G.711, G.726 G.729a,, G.723.1 • Acoustic echo cancellation with 64ms tail (TBD) • Silence Suppression / Comfortable Noise Generation • Tone Generation: DTMF, ringing, and call progress tones • Voice Activity Detection • Three-way conferencing (2 local 2 network) • Automatic Gain Control

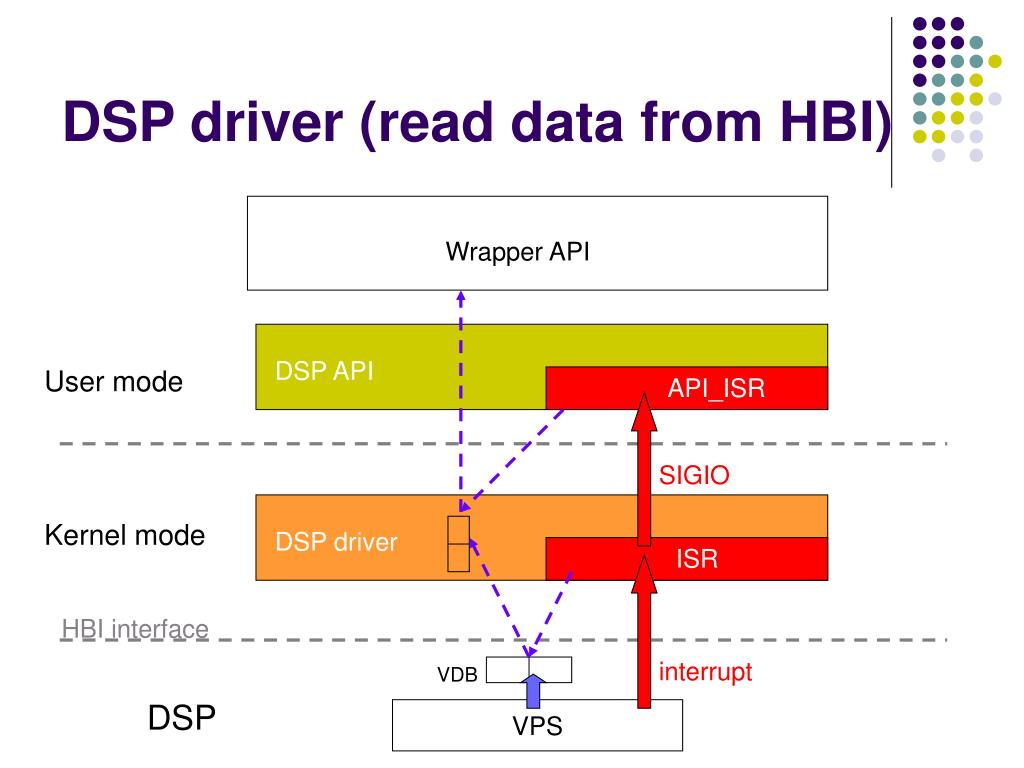

14. DSP driver (read data from HBI) Wrapper API DSP API User mode API_ISR SIGIO Kernel mode DSP driver ISR HBI interface interrupt VDB DSP VPS

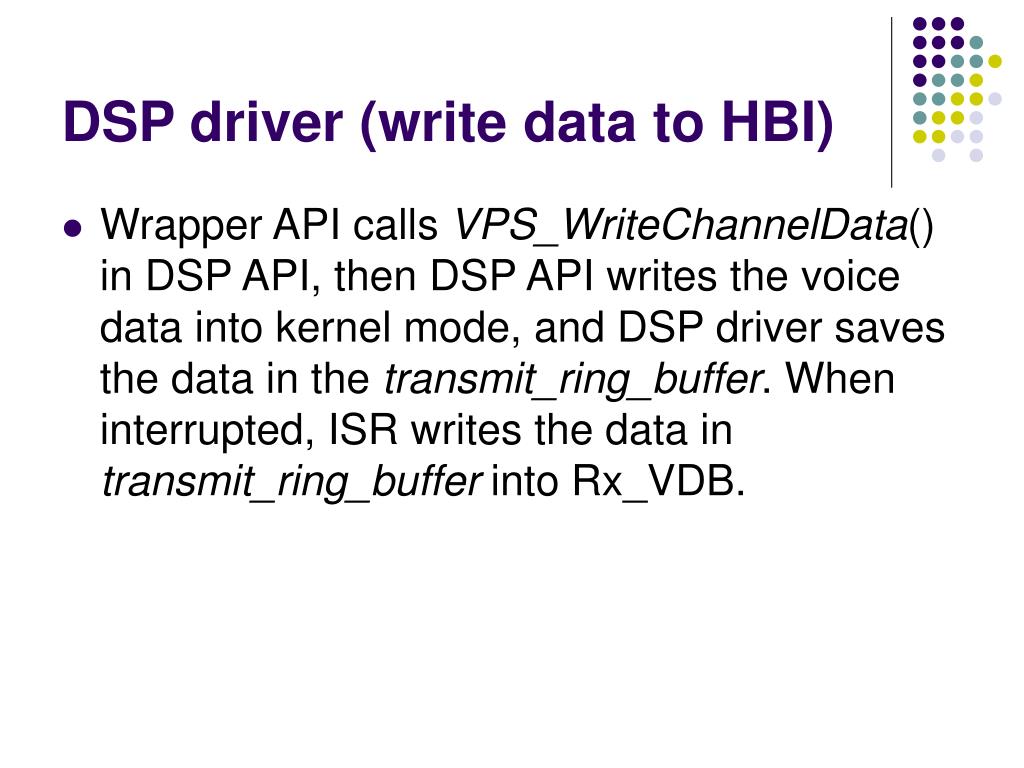

15. DSP driver (write data to HBI) • Wrapper API calls VPS_WriteChannelData() in DSP API, then DSP API writes the voice data into kernel mode, and DSP driver saves the data in the transmit_ring_buffer. When interrupted, ISR writes the data in transmit_ring_buffer into Rx_VDB.

16. Eth driver (1) • esw_init_module() • register_netdev() • esw_init() • switch_init() to set up ARL decision register(04h) to zero to disable all port first • ether_setup() to assign some of the fields • set MAC address in net_device data structure • write MAC address to hardware via ARL decision register (30h, 34h) • set net_device methods (open, stop, do_ioctl, get_stats, tx_timeout, hard_start_xmit) • set net_device data members (watchdog_timeo, irq, dma)

17. Eth driver (2) • esw_open() • Disable esw irqs (ESW_IRQ_FS_RCV_OK, ESW_IRQ_TS_TX_OK, ESW_IRQ_TS_QUEUE_EMPTY, ESW_IRQ_FS_QUEUE_FULL) • Register ESW • init fs, ts ring buffers • enable_irq() • Start the transmit queue • enable switch dma interrupts via BASE_ADDR_INT_REGS(04h) • enable from-switch dma function via BASE_ADDR_DMA_REGS(04h) • set up ARL decision register(04h) to ARL_DECISION_VALUE

18. Eth driver (3) • esw_get_stats() • return esw_private->esw_stats • esw_tx_timeout() • esw_show_state() to print some items for debugging • esw_start_xmit() • Check if there are enough space • Calculate the TS descriptor entry • Trigger the command unit resume (BASE_ADDR_DMA_REGS(00h) To Switch Enable)

19. Eth driver (4) • esw_fs_rcv_ok_interrupt(): Packet from switch received OK • Clear FS_RCV_OK status register bit by write 1 (BASE_ADDR_INT_REGS(00h)) • Check for a rare out-of-memory case • dev_alloc_skb(): allocate an skbuff for sending • skb_reserve(): Align IP on 16 byte boundaries • eth_type_trans(): Determine the packet's protocol ID • netif_rx(): queues a received packet for the upper (protocol) levels to process • enable from switch interrupt again

20. Eth driver (5) • esw_ts_tx_ok_interrupt(): Packet to switch transmitted OK • esw_ts_buffer_gc(): Free the original skb • dev_kfree_skb_irq(): raise softirq • esw_tsqe_interrupt(): TS Queue Empty Interrupt • Clear TSQE status register bit by write 1 (BASE_ADDR_INT_REGS(00h)) • netif_wake_queue(): test_and_clear_bit dev->state

21. Eth driver (6) • esw_fsqf_interrupt(): FS Queue Full Interrupt • Clear FSQF status register bit by write 1 (BASE_ADDR_INT_REGS(00h)) • esw_init_fs_desc_ring() • init from switch (rx) ring • write FS base addr and fssd to hardware (BASE_ADDR_DMA_REGS(14h,0Ch)) • disable fs dma first • enable from-switch dma function

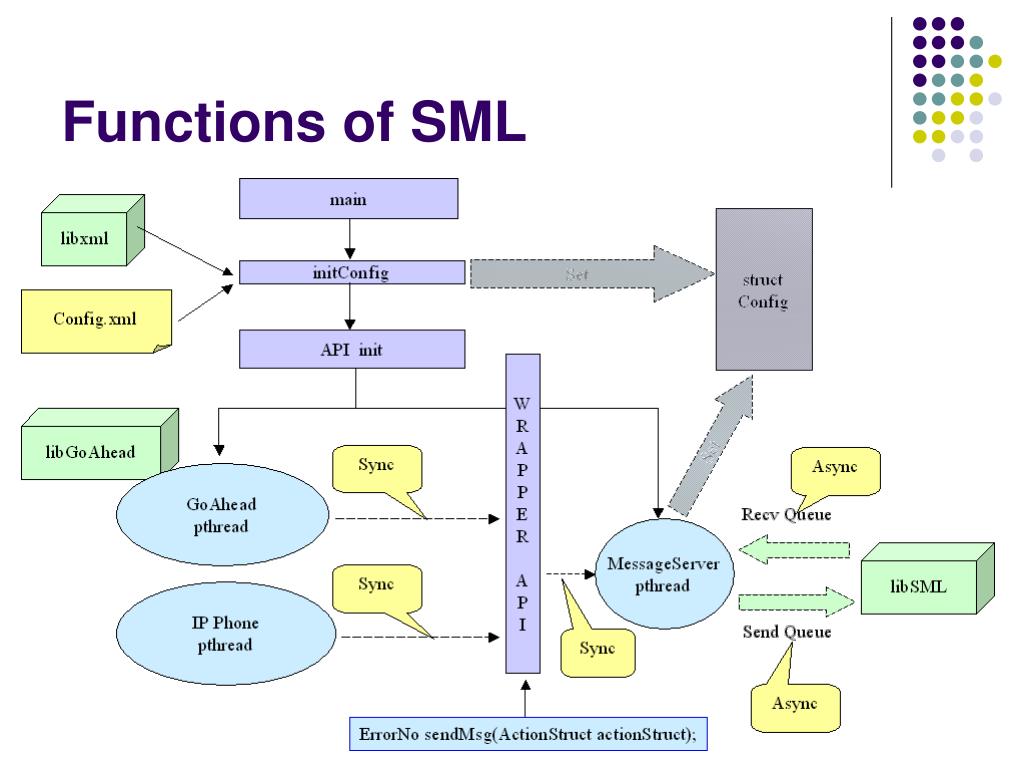

22. Functions of SML

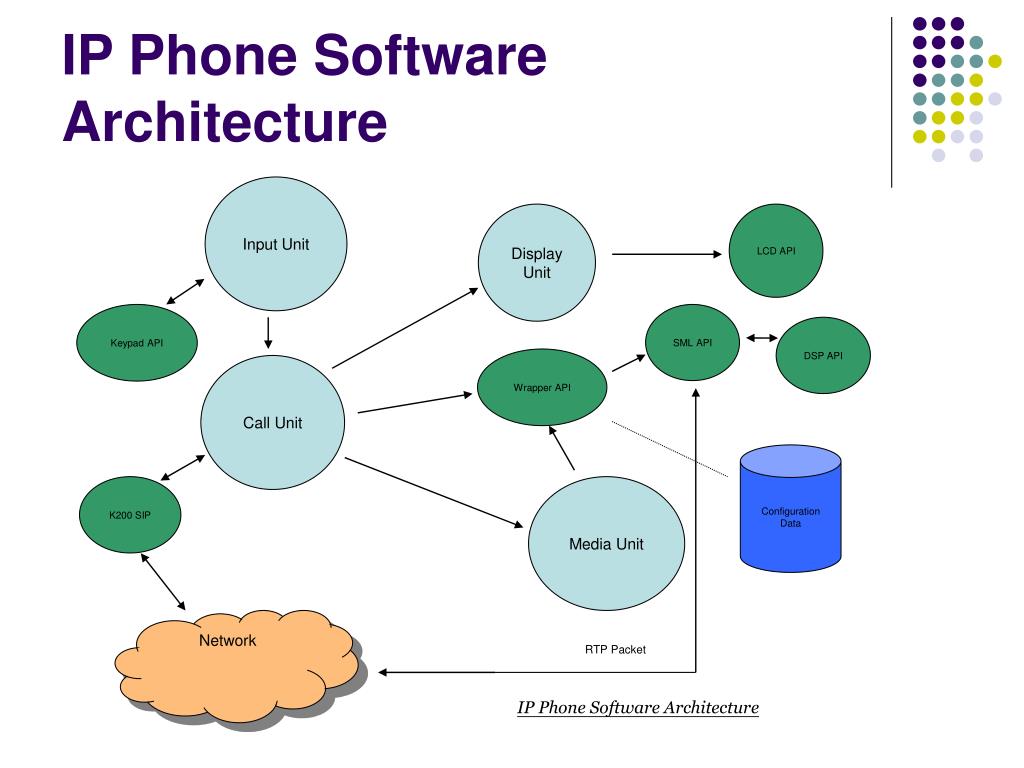

23. Input Unit Display Unit LCD API Keypad API SML API DSP API Wrapper API Call Unit Configuration Data Media Unit K200 SIP Network RTP Packet IP Phone Software Architecture IP Phone Software Architecture

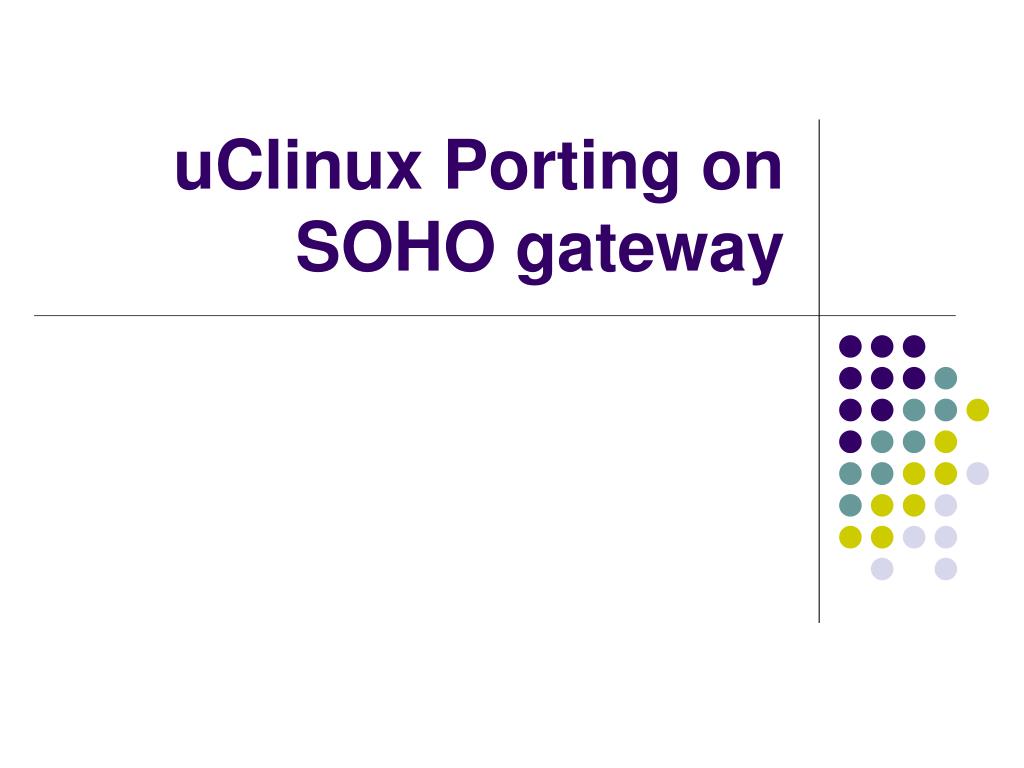

24. uClinux Porting on SOHO gateway

25. Brief Specification of SOHO gateway • The SOHO gateway inherit from Samsung4510A • Fully 16/32-bit RISC architecture • ARM7TDMI core • JTAG-based debug solution • External bus for ROM/SRAM, flash memory, DRAM and external I/O • Unified Instruction/Data Cache • Ethernet controller • DMA engine with burst mode • 100/10-Mbit per second operation • DMA controller • UARTs • Timers • Programmable I/O • Interrupt controller

26. Steps of porting • Download a uClinux distribution for Samsung 4510B • Build ARM toolchain based on gcc-2.95.3 • Modify some kernel files according to your platform • Build the big endian kernel • Using TRACE32 to download image file onto the SDRAM on SOHO gateway and debug the kernel

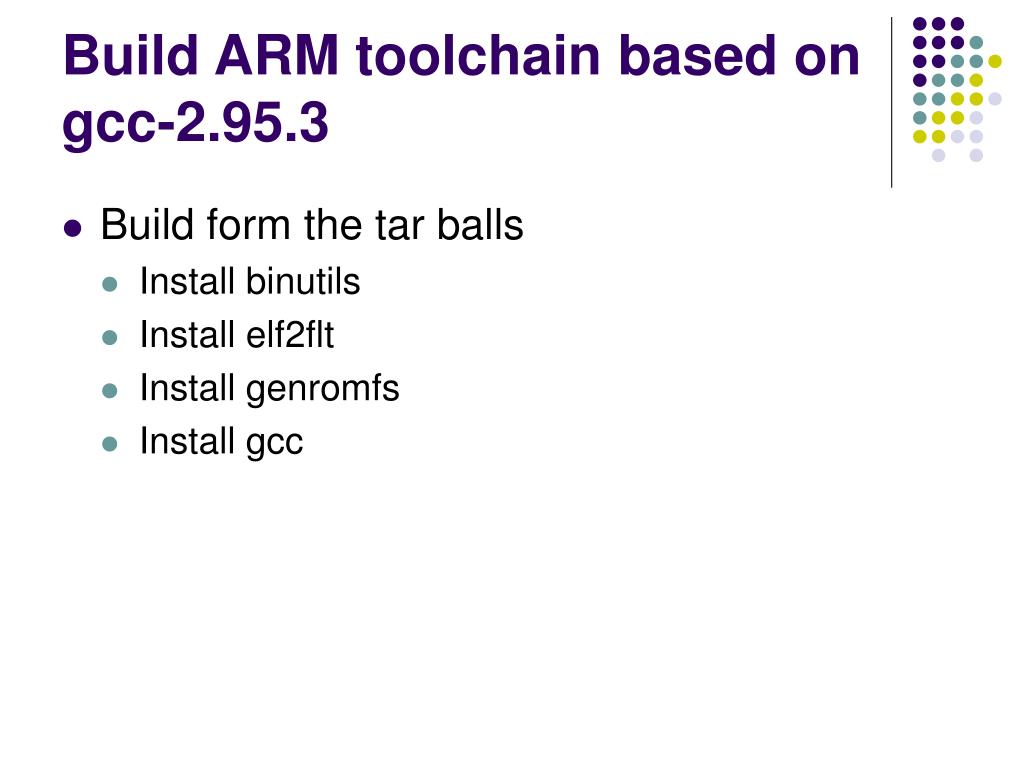

27. Build ARM toolchain based on gcc-2.95.3 • Build form the tar balls • Install binutils • Install elf2flt • Install genromfs • Install gcc

28. Build kernel • Make menuconfig • Make dep • Make lib_only • Make user_only • Make romfs • Make image • Make

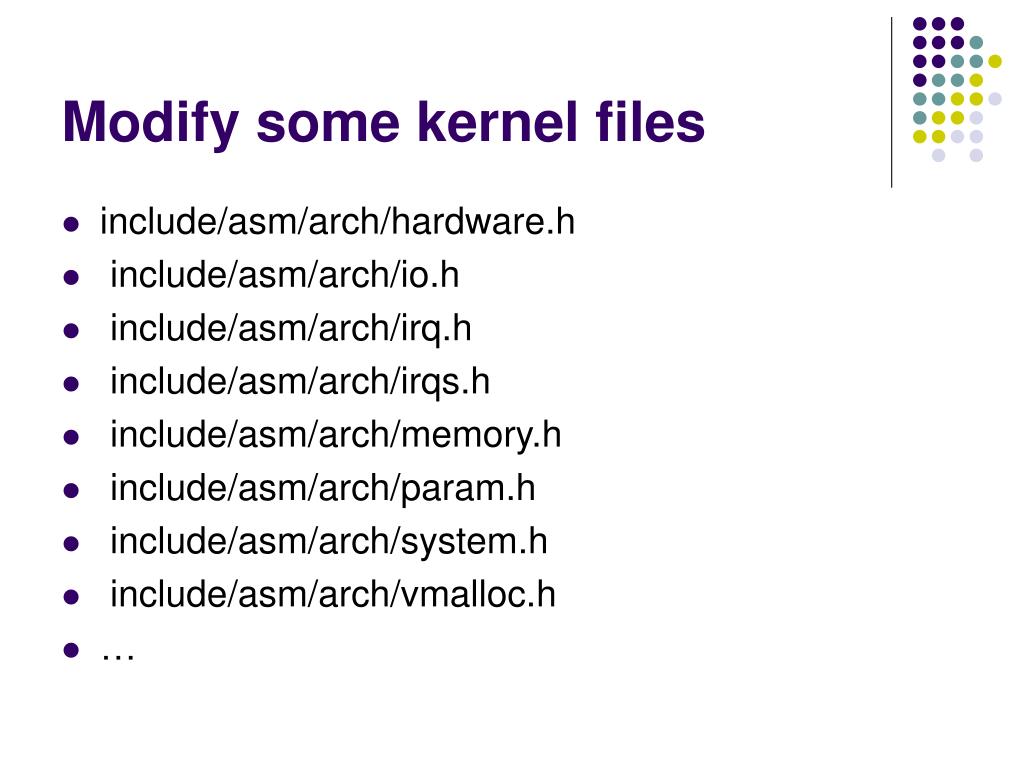

29. Modify some kernel files • include/asm/arch/hardware.h • include/asm/arch/io.h • include/asm/arch/irq.h • include/asm/arch/irqs.h • include/asm/arch/memory.h • include/asm/arch/param.h • include/asm/arch/system.h • include/asm/arch/vmalloc.h • …

30. Reference • MontaVista Linux User’s Guide • The Wookey’s “Porting the Linux Kernel to a New ARM platform” • The Wookey’s “GNU Toolchain for ARM targets HOWTO”. • Listing of GCC releases. • Documents in the kernel source tree. • google
