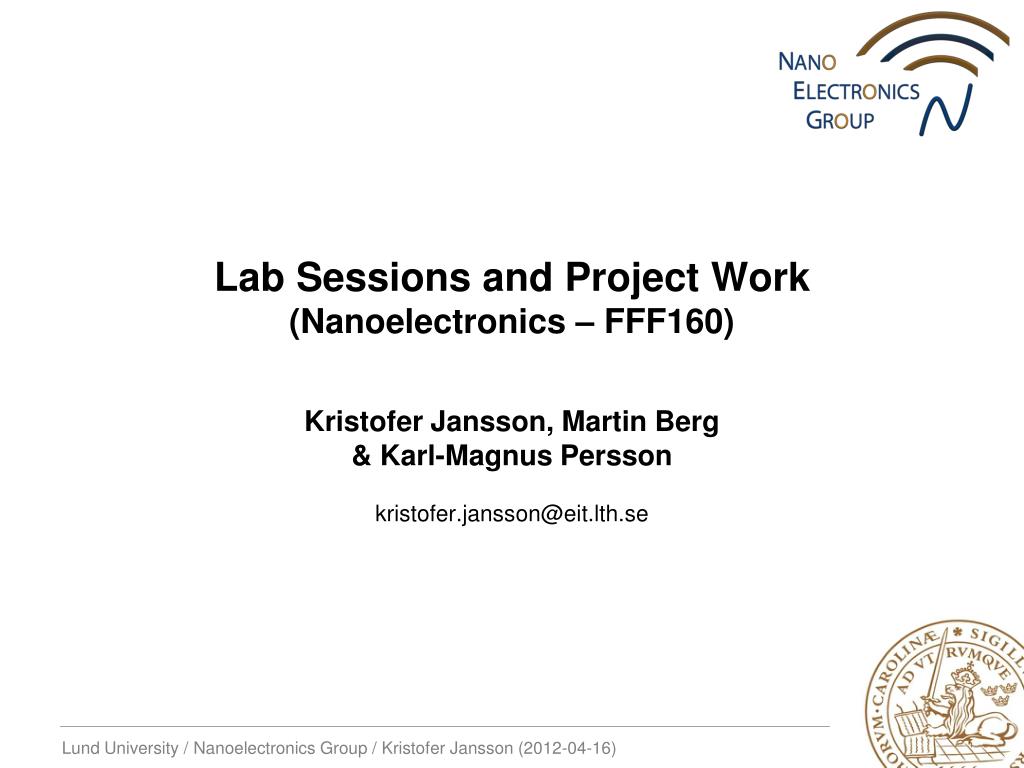

  1. Lab Sessions and Project Work(Nanoelectronics – FFF160)

  2. Schedule • 1 lab session (Sign up for one occasion) • Monday 23/4, 8.15 – 12.00 • Tuesday 24/4, 13.15 – 17.00 • Supervised project work • Tuesday 24/4, 13.15 – 17.00 • Wednesday 2/5,8.15 – 12.00 • Tuesday 8/5, 13.15 – 17.00 • Written report and presentation • Deadline for report: ? • Date for presentation: ?

  3. Lab sessions • Introduction to Cadence simulations • Mandatory participation on one occasion • Lab manual is found on the course web site • (http://www.eit.lth.se/kurs/fff160) • Preparations need to be done before the lab • Found on the web site • No lab report

  4. Project • Project is done in Cadence • Analysis of a simple circuit with nanoelectronic components • Inverter • Amplifier • Mixer • Sample&Hold • etc.. • Mandatory project report and presentation

  5. Where? E building, second floor Blåtunga/Rödnäbba (E:2435b)
