  1. Integrating Heterogeneous Components in Software Supply Chains Herman Hartmann, Aart Matsinger, Tim Trew Virage Logic, The Netherlands Mila Keren, Julia Rubin, Tali Yatzkar-Haham IBM Research - Haifa, Israel

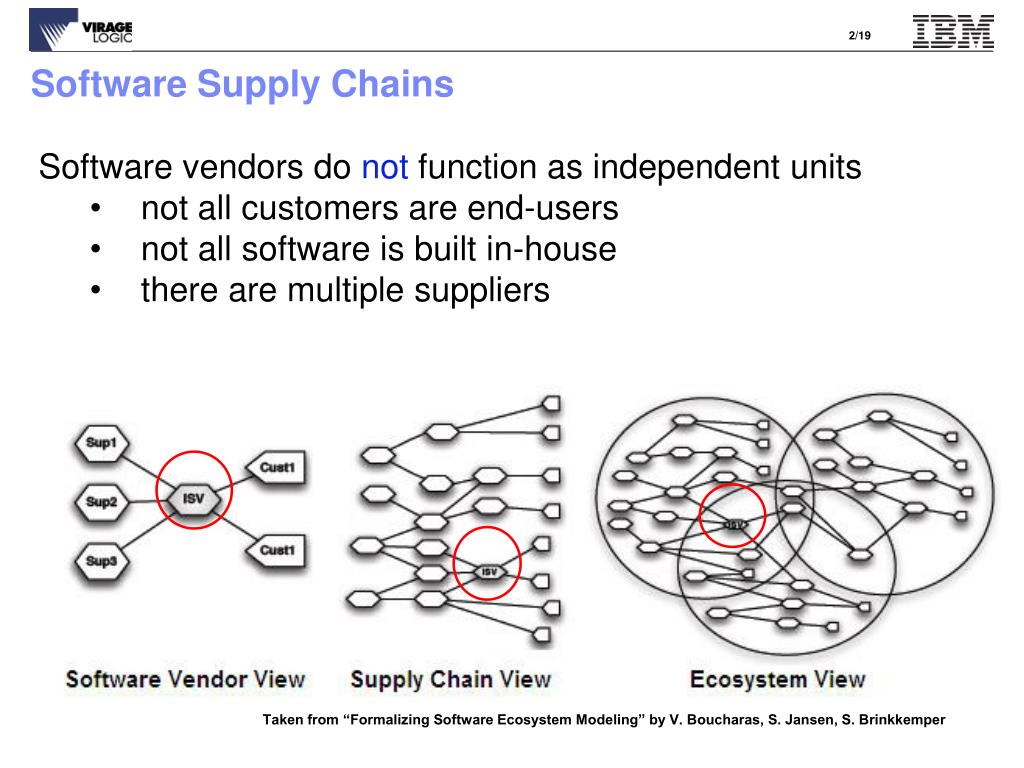

  2. Taken from “Formalizing Software Ecosystem Modeling” by V. Boucharas, S. Jansen, S. Brinkkemper Software Supply Chains • Software vendors do not function as independent units • not all customers are end-users • not all software is built in-house • there are multiple suppliers

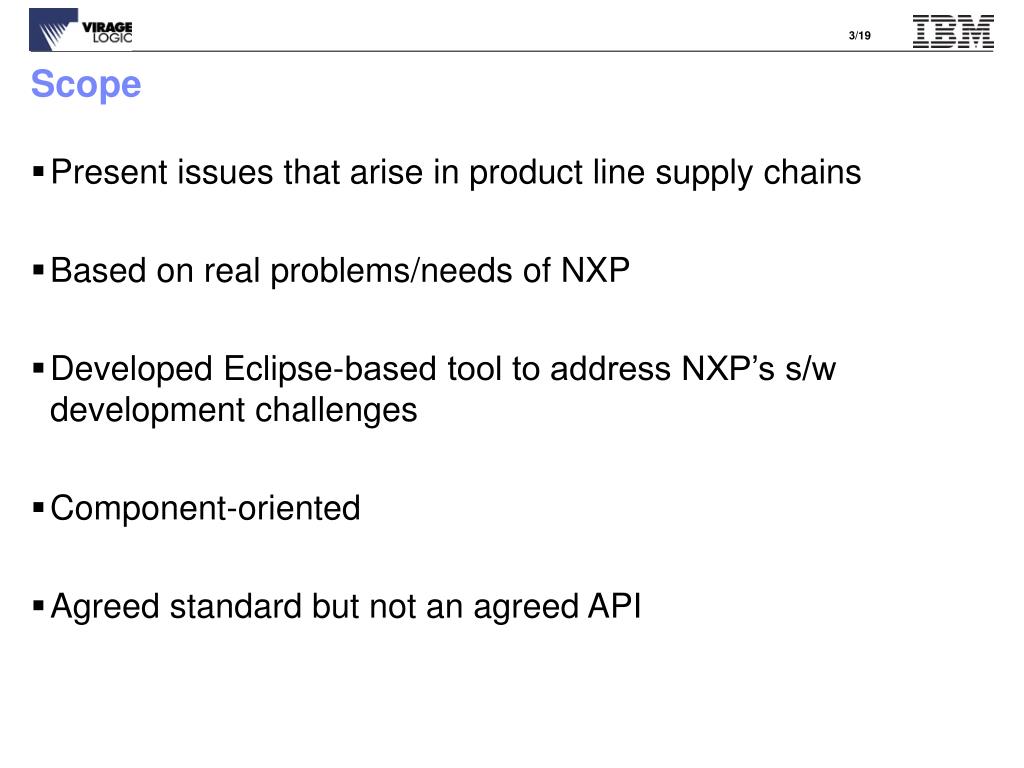

  3. Scope • Present issues that arise in product line supply chains • Based on real problems/needs of NXP • Developed Eclipse-based tool to address NXP’s s/w development challenges • Component-oriented • Agreed standard but not an agreed API

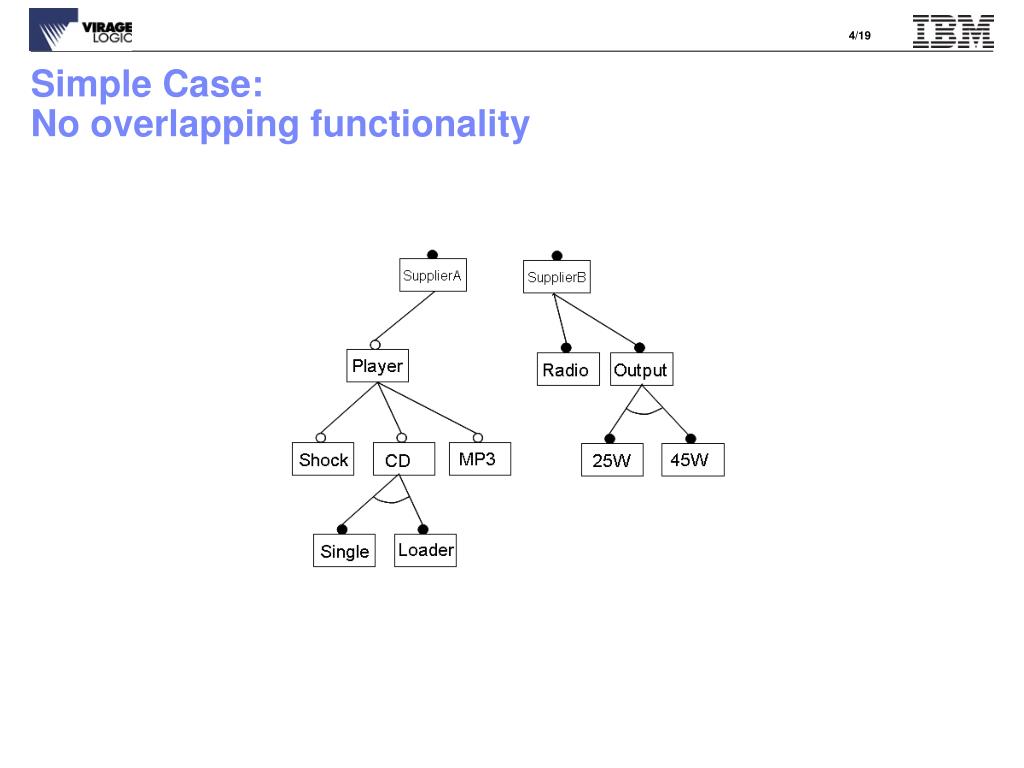

  4. Simple Case: No overlapping functionality

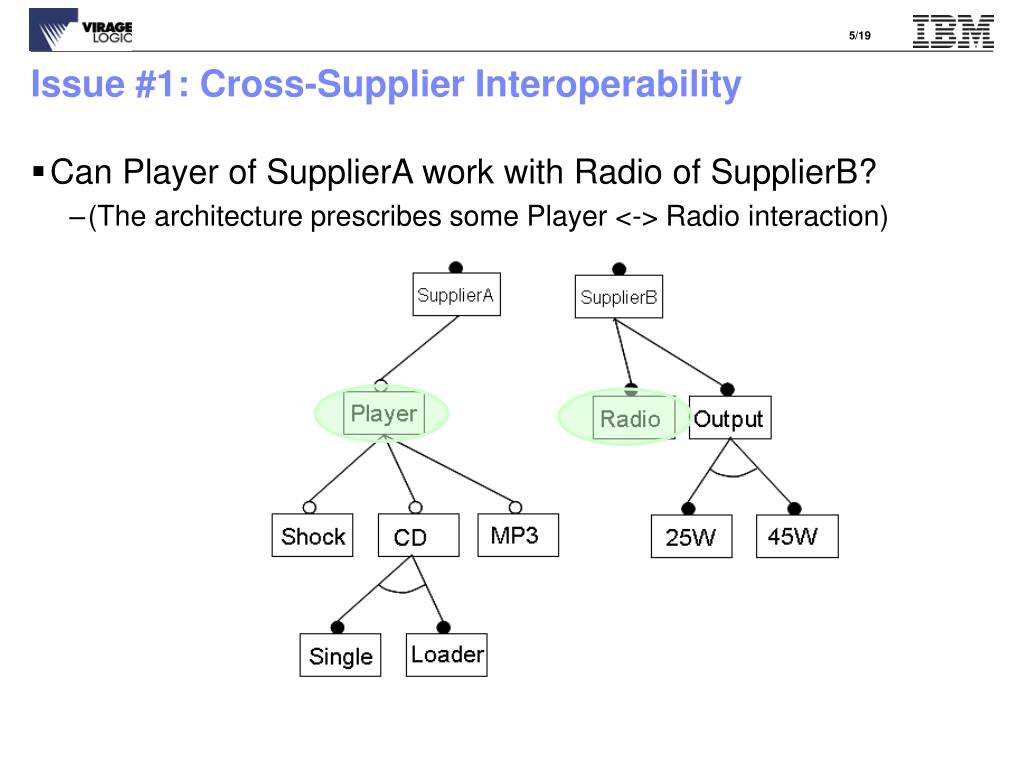

  5. Issue #1: Cross-Supplier Interoperability • Can Player of SupplierA work with Radio of SupplierB? • (The architecture prescribes some Player <-> Radio interaction)

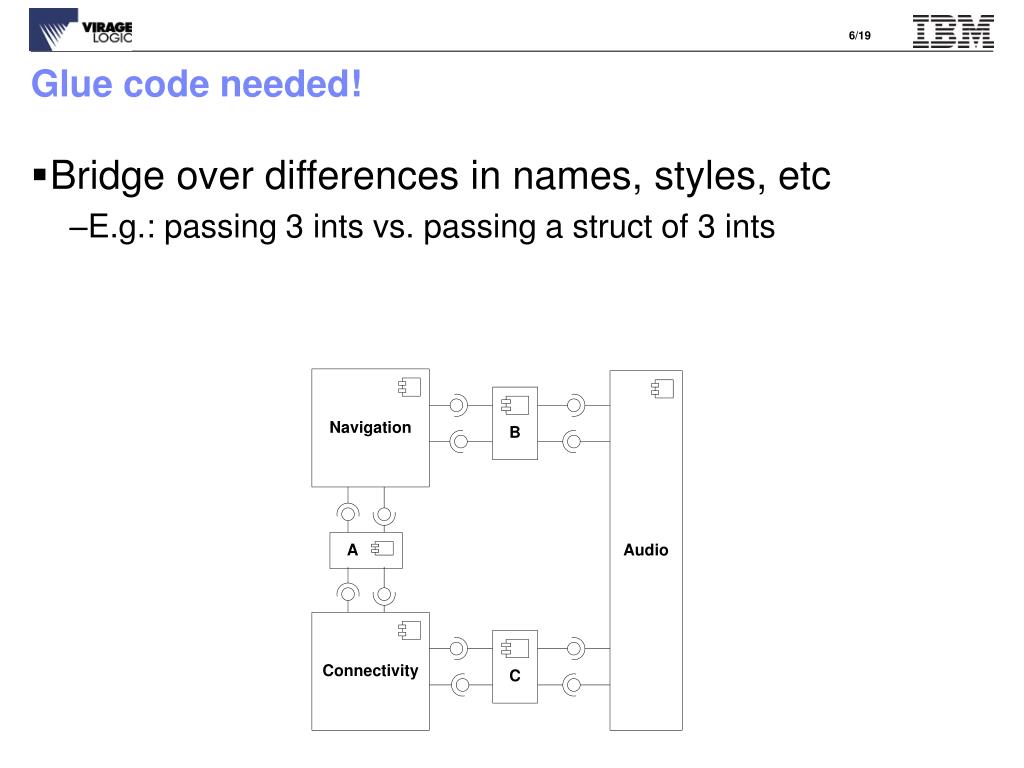

  6. Glue code needed! • Bridge over differences in names, styles, etc • E.g.: passing 3 ints vs. passing a struct of 3 ints

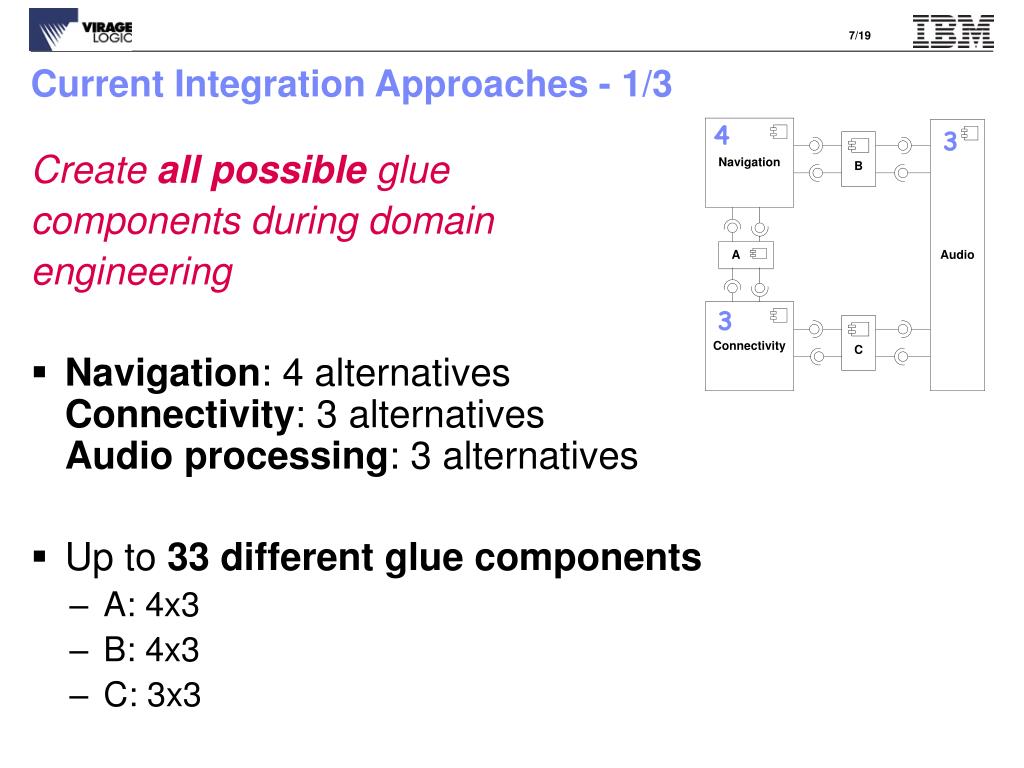

  7. Current Integration Approaches - 1/3 4 3 Create all possible glue components during domain engineering • Navigation: 4 alternativesConnectivity: 3 alternatives Audio processing: 3 alternatives • Up to 33 different glue components • A: 4x3 • B: 4x3 • C: 3x3 3

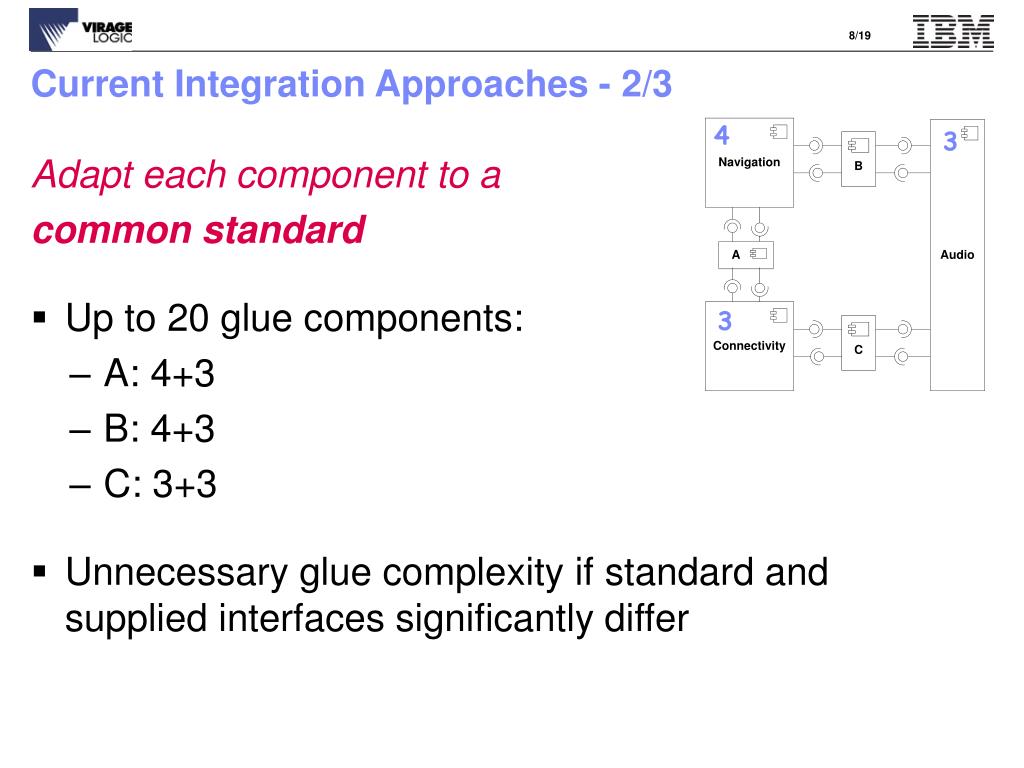

  8. Current Integration Approaches - 2/3 4 3 Adapt each component to a commonstandard • Up to 20 glue components: • A: 4+3 • B: 4+3 • C: 3+3 • Unnecessary glue complexityif standard and supplied interfaces significantly differ 3

  9. Current Integration Approaches - 3/3 4 3 Create the required glue component during application engineering • glue is defined late in the development process 3

  10. Issue #2: Overlapping Functionality – Feature Selection Logic is Complicated

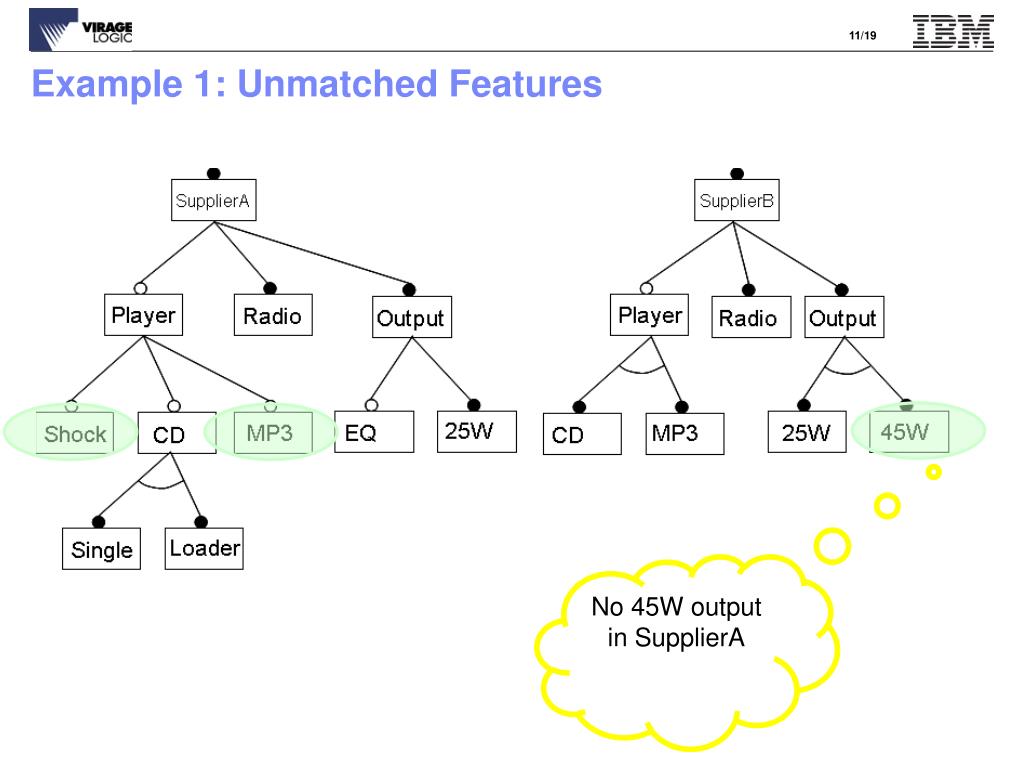

  11. Example 1: Unmatched Features No 45W output in SupplierA

  12. E.g. 2: Contradictions MP3 in SupplierB requires a CD

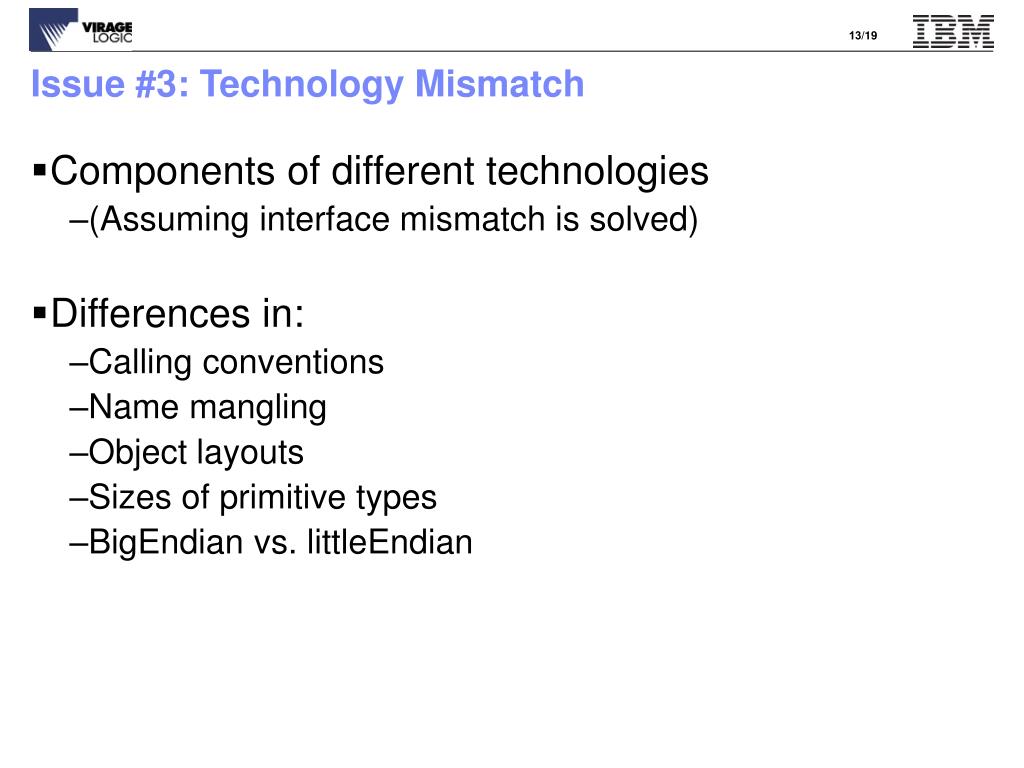

  13. Issue #3: Technology Mismatch • Components of different technologies • (Assuming interface mismatch is solved) • Differences in: • Calling conventions • Name mangling • Object layouts • Sizes of primitive types • BigEndian vs. littleEndian

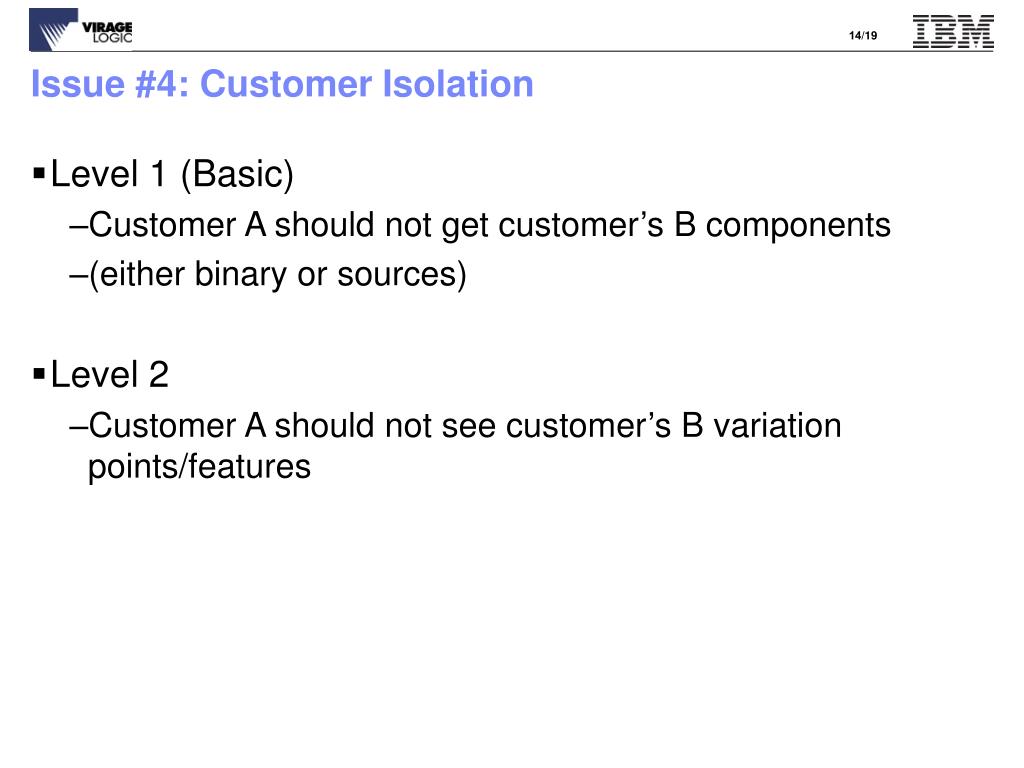

  14. Issue #4: Customer Isolation • Level 1 (Basic) • Customer A should not get customer’s B components • (either binary or sources) • Level 2 • Customer A should not see customer’s B variation points/features

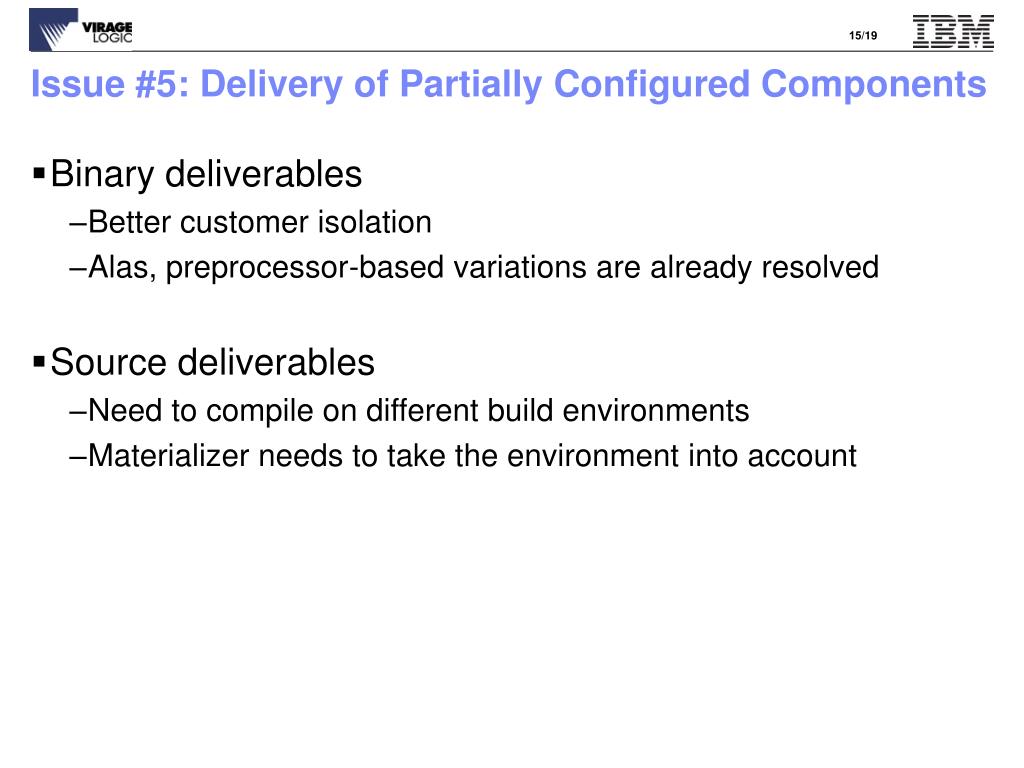

  15. Issue #5: Delivery of Partially Configured Components • Binary deliverables • Better customer isolation • Alas, preprocessor-based variations are already resolved • Source deliverables • Need to compile on different build environments • Materializer needs to take the environment into account

  16. The Zigbee Architecture • There is a standard but not an API • (However, the API is likely to be similar across suppliers) • Customer want to mix layer from different suppliers

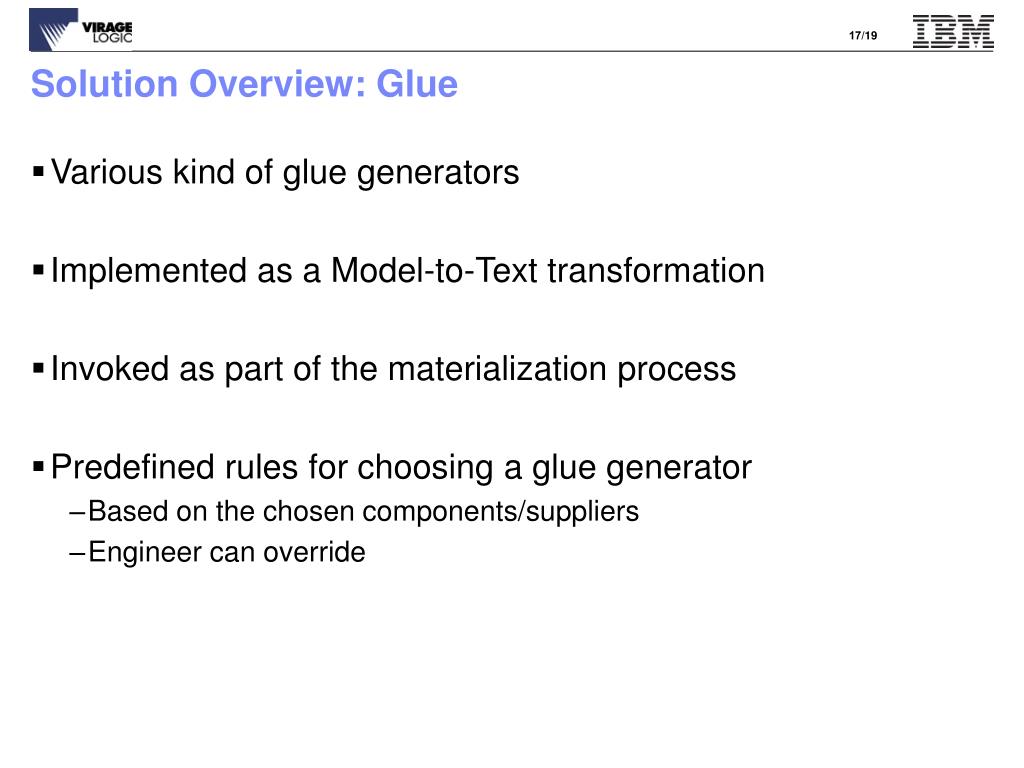

  17. Solution Overview: Glue • Various kind of glue generators • Implemented as a Model-to-Text transformation • Invoked as part of the materialization process • Predefined rules for choosing a glue generator • Based on the chosen components/suppliers • Engineer can override

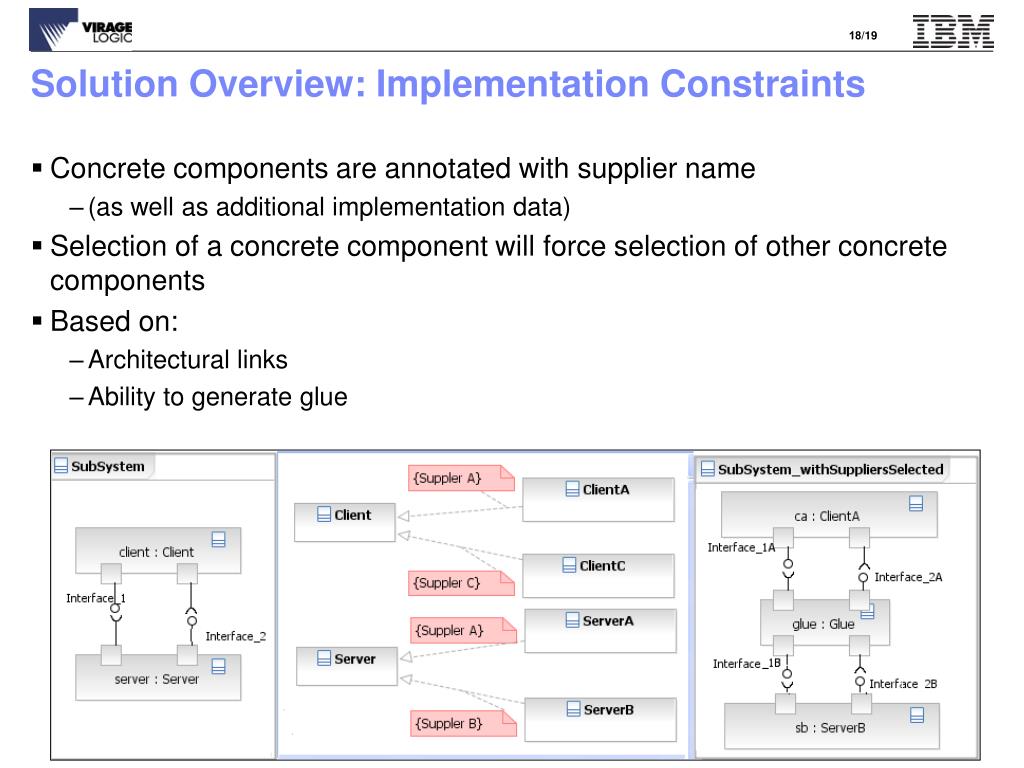

  18. Solution Overview: Implementation Constraints • Concrete components are annotated with supplier name • (as well as additional implementation data) • Selection of a concrete component will force selection of other concrete components • Based on: • Architectural links • Ability to generate glue

  19. Thank You!
