  1. Rockwell Automation OCS connectivity to (aka the Evil Empire)

  2. A-B Connectivity What if I want more than an Ethernet/IP I/O Connection and its 256 Byte limit? • There are several options for communicating with A-B products • DF1 full duplex serial is available as a downloadable serial protocol • With an affordable external device, Allen-Bradley Ethernet and Ethernet/IP are also an option

  3. A-B Protocol Families PCCC & CIP are the two Protocol families supported by Rockwell • What is PCCC? • It is the application layer message packet of DF1 • It allows you to issue poll/response messages to arrays of A-B data (register/table/file) • It is the core message that moves easily between DF1, DH485, DH+, AB/Ethernet & Ethernet/IP with PCCC encapsulation • What is CIP? • As discussed - Common Industrial Protocol • Used in ControlLogix & CompactLogix CPUs • It is Object Oriented - services are sent to specific instances of objects. It is not based on accessing arrays of file data.

  4. A-B Protocols A summary of A-B protocols existing over a variety of media • RS-232 • DF1 Full Duplex. The core protocol spoken by most A-B PLCs. Is proprietary but published. • DF1 Half Duplex. Very slow and rarely used. • DF1 Radio. Recently added in approx. 2003. • DF1 to Logix CPU. Encapsulates fragmented CIP messages within DF1. Not documented. • RS-485 • DH485. A proprietary (closed), token passing network allowing slaves to talk directly to one another. Does not work over Ethernet or radio due to token speed. Some 3rd parties attempt to support it in a “single master” mode - which often doesn’t work.

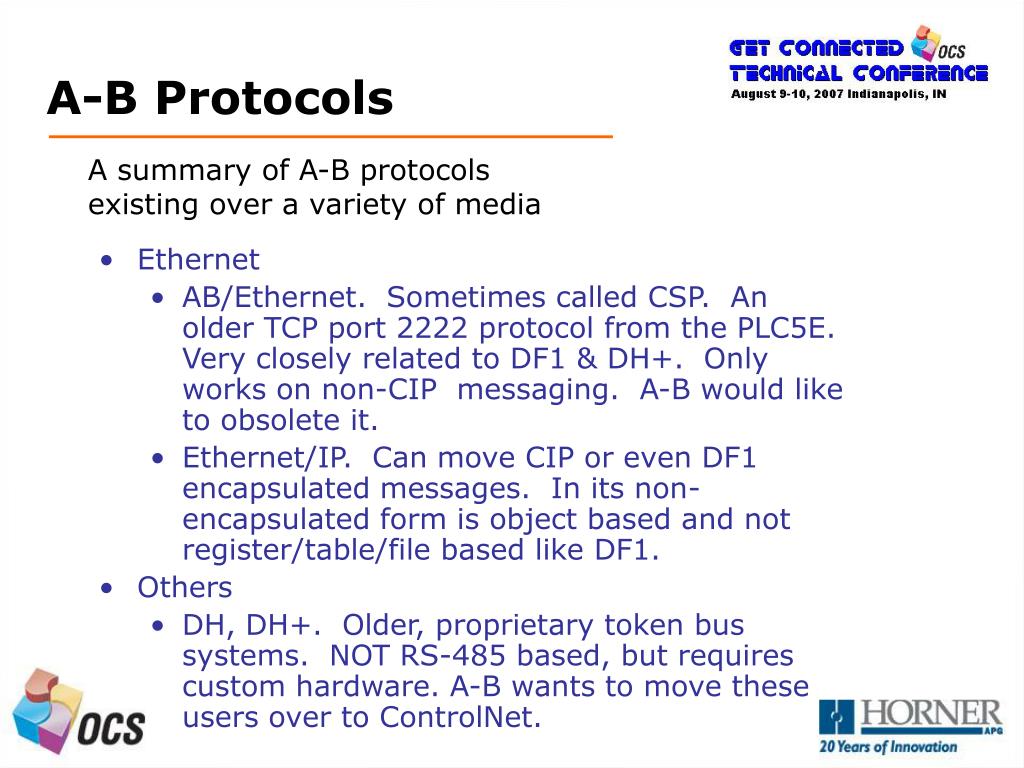

  5. A-B Protocols A summary of A-B protocols existing over a variety of media • Ethernet • AB/Ethernet. Sometimes called CSP. An older TCP port 2222 protocol from the PLC5E. Very closely related to DF1 & DH+. Only works on non-CIP messaging. A-B would like to obsolete it. • Ethernet/IP. Can move CIP or even DF1 encapsulated messages. In its non-encapsulated form is object based and not register/table/file based like DF1. • Others • DH, DH+. Older, proprietary token bus systems. NOT RS-485 based, but requires custom hardware. A-B wants to move these users over to ControlNet.

  6. NX OCS XLe OCS SLC 5 MicroLogix OCS Connectivity to A-B DF1 Serial DF1 Protocol Dialog • Directly supported through OCS Downloadable Protocol • Lowest Cost • Works with virtually all A-B PLCs • Good solution for MicroLogix, SLC

  7. PLC-5E SLC 5/05 OCS Connectivity to A-B A-B/Ethernet • Indirectly supported - requires an economical gateway solution (IAP Gateway) • Connection at OCS end can be either serial OR Ethernet LX OCS AB/Ethernet DF1 RS-232 IAP Gateway CompactLogix ControlLogix

  8. OCS Connectivity to A-B Ethernet/IP (non CIP based) • IAP Gateway re-configures and re-routes Modbus/TCP messages to/from A-B PLC via Ethernet/IP • A-B PLC responds to traffic as if it were coming from another A-B product QX OCS CompactLogix Ethernet/IP Modbus/TCP IAP Gateway ControlLogix
