  1. Substituted Hydrocarbons and Their Reactions Section 22.1Alkyl Halides and Aryl Halides Section 22.2Alcohols, Ethers, and Amines Section 22.3Carbonyl Compounds Section 22.4Other Reactions of Organic Compounds Section 22.5 Polymers Click a hyperlink or folder tab to view the corresponding slides. Exit Chapter Menu

  2. Section 22.1 Alkyl Halides and Aryl Halides Define functional group, and give examples. aliphatic compound: a nonaromatic hydrocarbon, such as an alkane, an alkene, or an alkyne Compare and contrast alkyl and aryl halide structures. Evaluate the boiling points of organic halides. Section 22-1

  3. Section 22.1 Alkyl Halides and Aryl Halides (cont.) functional group halocarbon alkyl halide aryl halide plastic substitution reaction halogenation A halogen atom can replace a hydrogen atom in some hydrocarbons. Section 22-1

  4. Functional Groups In an organic molecule, a functional group is an atom or group of atoms that always reacts in a certain way. Addition of a functional group to a hydrocarbon always produces a substance with different chemical and physical properties. Double and triple bonds between carbon atoms are considered functional groups. Section 22-1

  5. Functional Groups (cont.) Section 22-1

  6. Organic Compounds Containing Halogens Any organic compound that contains a halogen substituent is called a halocarbon. An alkyl halideis an organic compound containing a halogen atom covalently bonded to an aliphatic carbon atom. An aryl halideis an organic compound containing a halogen bonded to an aromatic group. Section 22-1

  7. Organic Compounds Containing Halogens (cont.) In naming halocarbons, a prefix indicates which halogen is present. If there is more than a single halogen, they are listed alphabetically. Section 22-1

  8. Organic Compounds Containing Halogens (cont.) Halocarbons have higher boiling points because they have an increasing tendency to form temporary dipoles. Dipoles attract each other, and require more energy to separate. A plasticis a polymer that can be heated and molded while relatively soft. Section 22-1

  9. Organic Compounds Containing Halogens (cont.) Section 22-1

  10. Substitution Reactions Nearly all synthetic organic compounds begin with petroleum. A substitution reaction is one in which one atom or a group of atoms in a molecule is replaced by another atom or group of atoms Hydrogen atoms in an alkane can be replaced by atoms of halogens in a process called halogenation. Section 22-1

  11. Substitution Reactions (cont.) Section 22-1

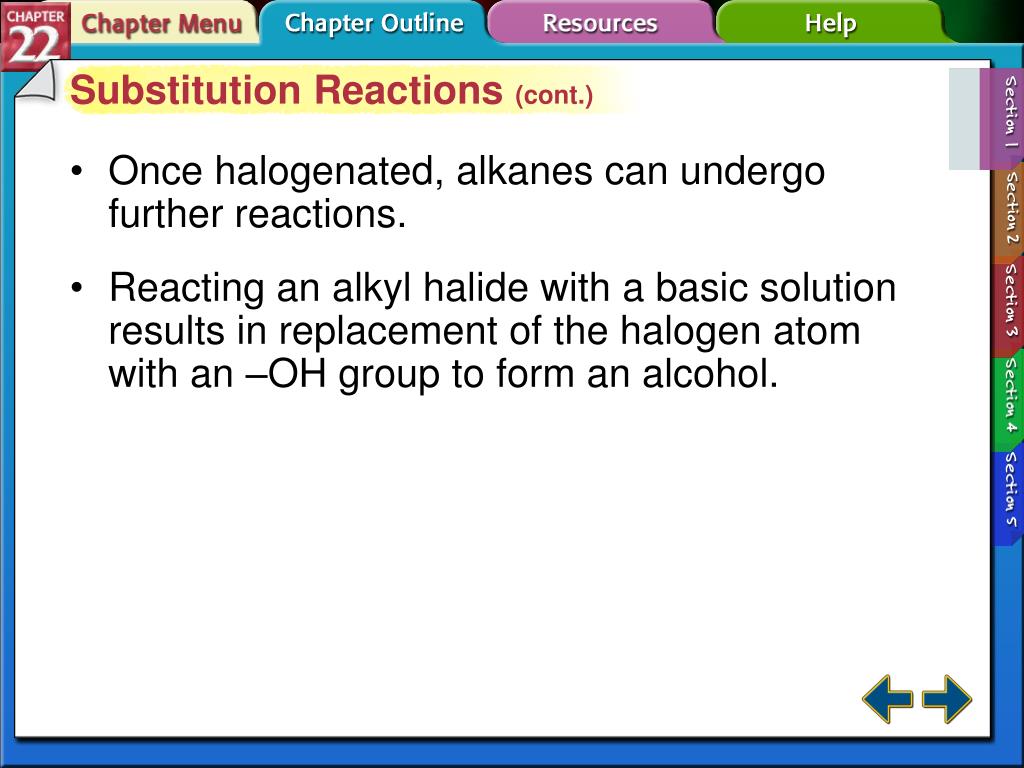

  12. Substitution Reactions (cont.) Once halogenated, alkanes can undergo further reactions. Reacting an alkyl halide with a basic solution results in replacement of the halogen atom with an –OH group to form an alcohol. Section 22-1

  13. A B C D Section 22.1 Assessment Which of the following is NOT an alkyl halide? A.2-fluorobutane B.1,3-dichlorobenzene C.sodium chloride D.bromoethane Section 22-1

  14. A B C D Section 22.1 Assessment An alkane with one or more halogen substituents is called what? A.aryl halide B.metal halide C.chlorofluorocarbon D.alkyl halide Section 22-1

  15. End of Section 22-1

  16. Section 22.2 Alcohols, Ethers, and Amines Identify the functional groups that characterize alcohols, ethers, and amines. miscible: describes two liquids that are soluble in each other Draw the structures of alcohols, ethers, and amines. Discuss the properties and uses of alcohols, ethers, and amines. Section 22-2

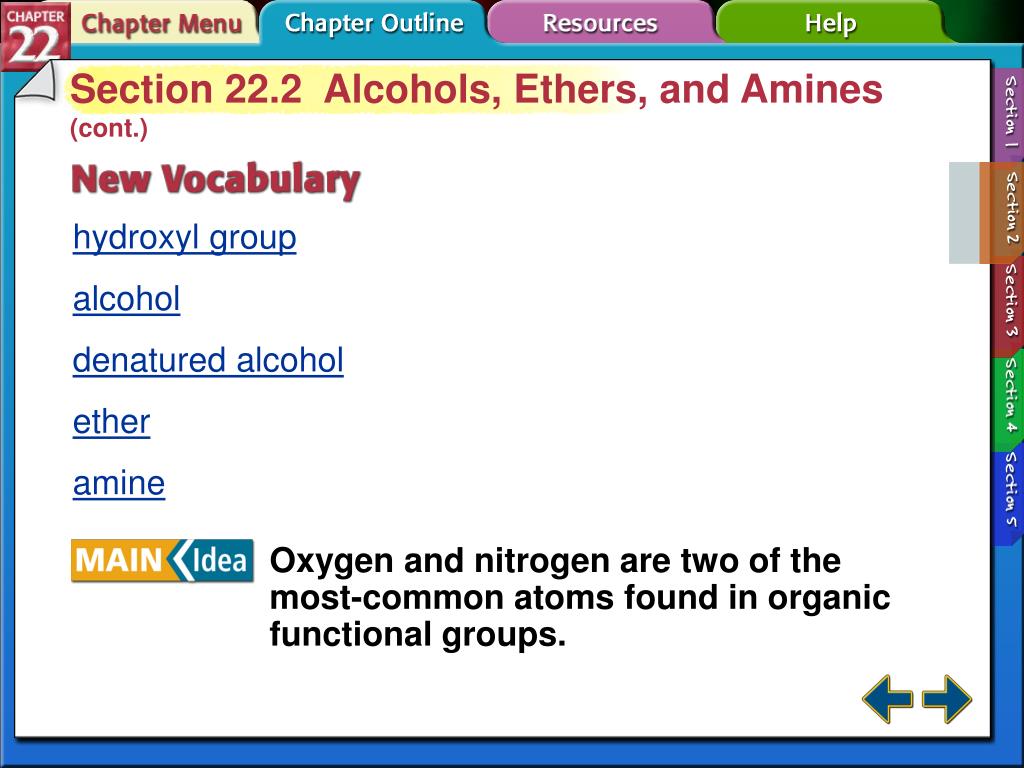

  17. Section 22.2 Alcohols, Ethers, and Amines (cont.) hydroxyl group alcohol denatured alcohol ether amine Oxygen and nitrogen are two of the most-common atoms found in organic functional groups. Section 22-2

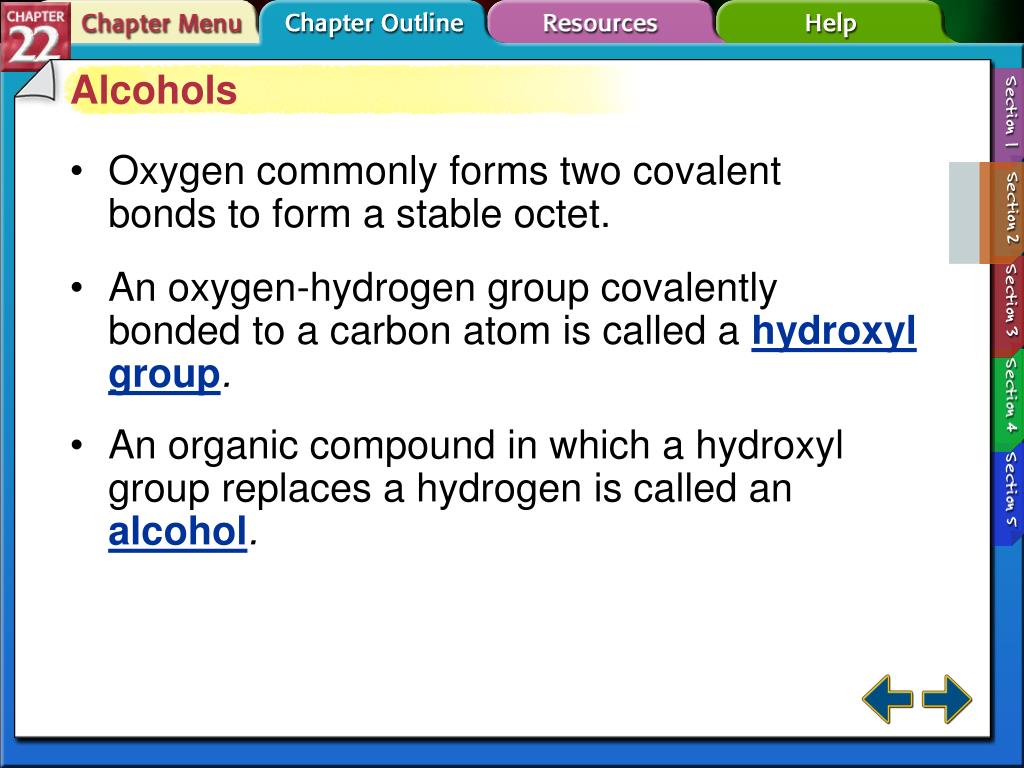

  18. Alcohols Oxygen commonly forms two covalent bonds to form a stable octet. An oxygen-hydrogen group covalently bonded to a carbon atom is called a hydroxyl group. An organic compound in which a hydroxyl group replaces a hydrogen is called an alcohol. Section 22-2

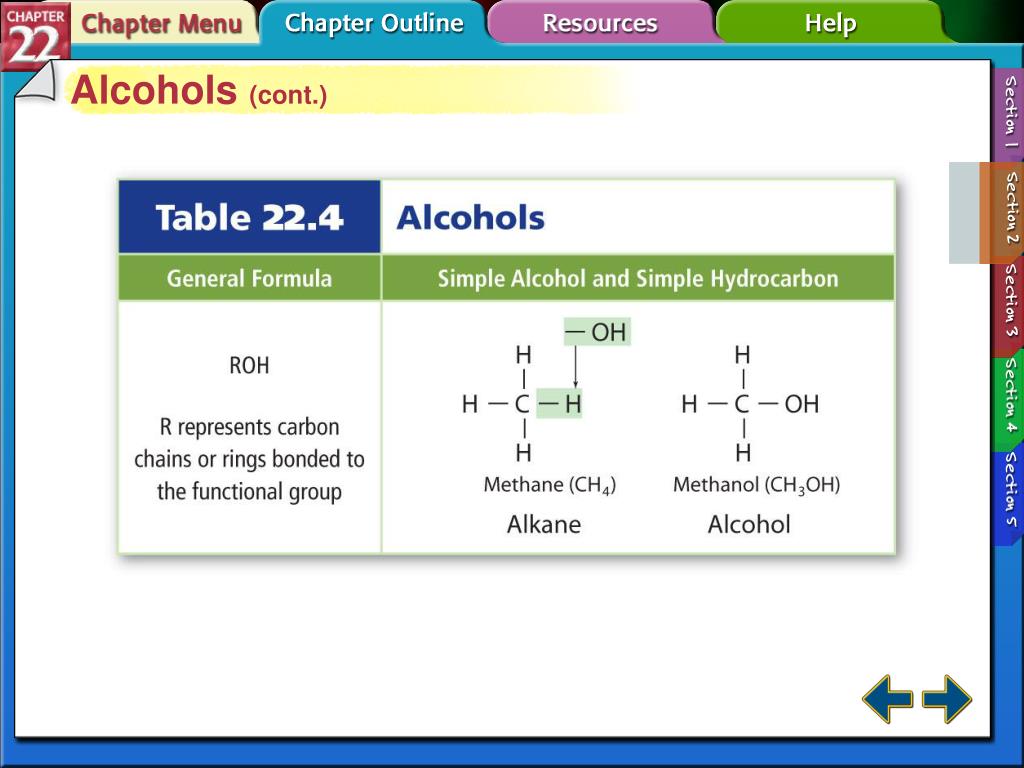

  19. Alcohols (cont.) Section 22-2

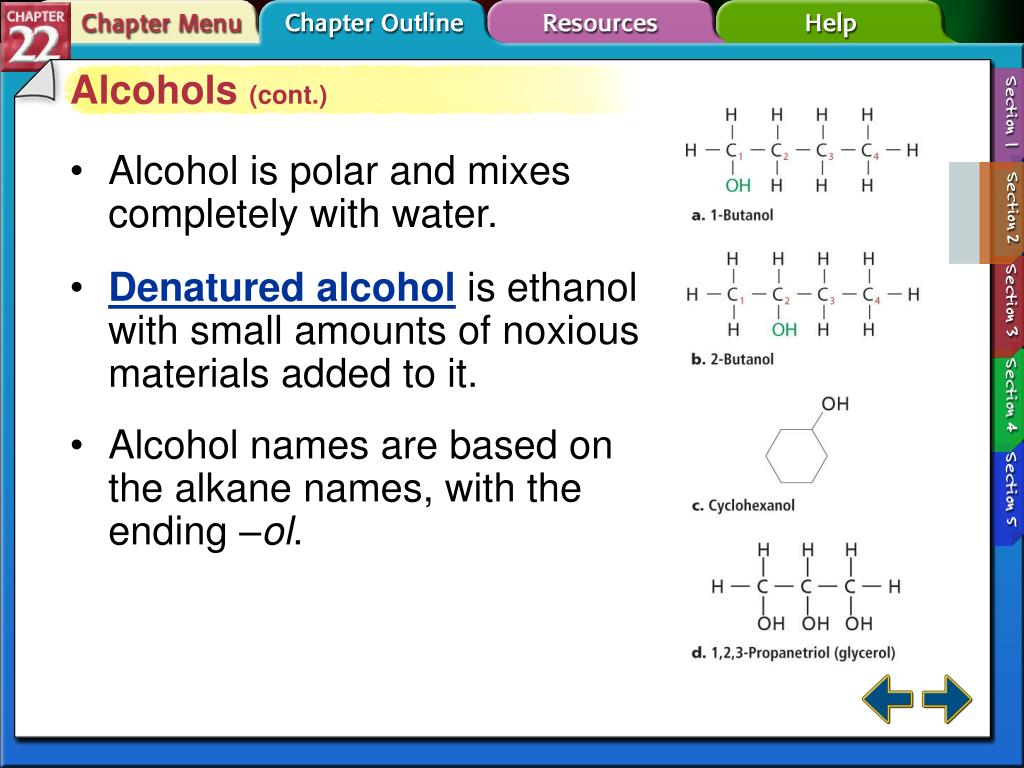

  20. Alcohols (cont.) Alcohol is polar and mixes completely with water. Denatured alcoholis ethanol with small amounts of noxious materials added to it. Alcohol names are based on the alkane names, with the ending –ol. Section 22-2

  21. Ethers An ether is an organic compound containing an oxygen bonded to two carbon atoms. Section 22-2

  22. Ethers (cont.) Ethers have no hydrogen atoms bonded to their oxygen atoms, so they cannot form hydrogen bonds with each other. Ethers are volatile and have low boiling points. Ethers with identical chains are named by the chain followed by the word ether. Ethers with different chains are named in alphabetical order followed by ether. Section 22-2

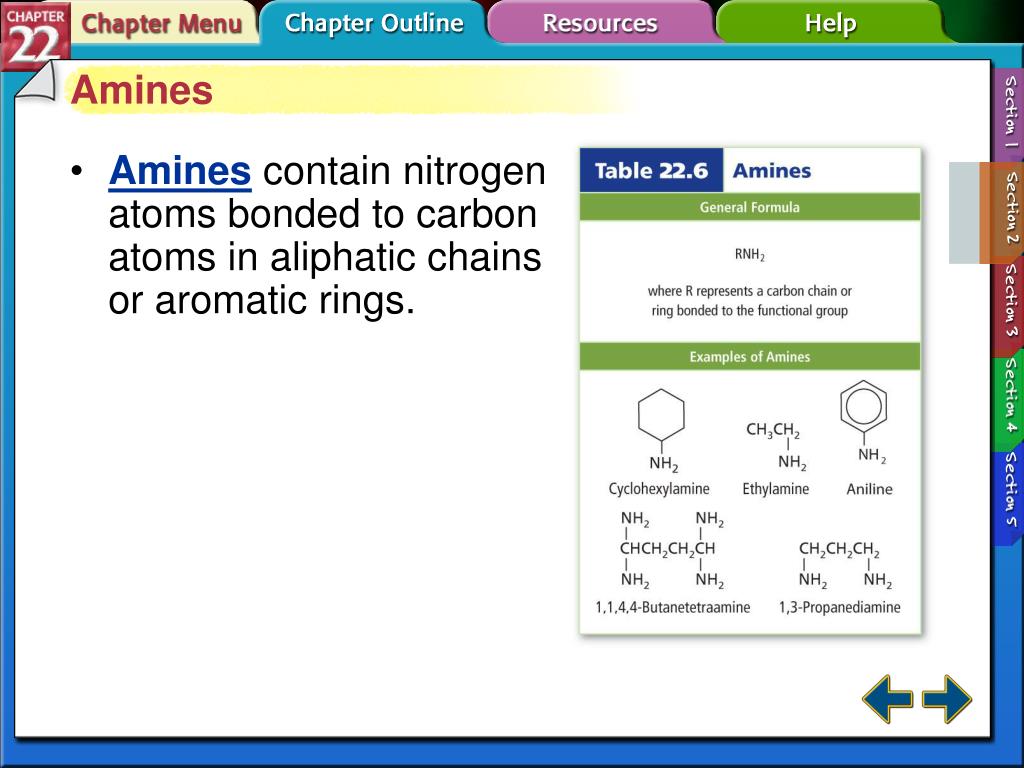

  23. Amines Aminescontain nitrogen atoms bonded to carbon atoms in aliphatic chains or aromatic rings. Section 22-2

  24. Amines (cont.) Amines are primary, secondary, or tertiary depending on if there are one, two, or three hydrogen atoms replaced by organic groups. Amines have the suffix –amine. Section 22-2

  25. A B C D Section 22.2 Assessment Which of the following is an alcohol? A.cyclohexamine B.1-chlorobutanol C.bromobutene D.butylpropyl ether Section 22-2

  26. A B C D Section 22.2 Assessment Which functional group is present in an alcohol? A.hydroxyl group B.halogen C.aromatic ring D.amino group Section 22-2

  27. End of Section 22-2

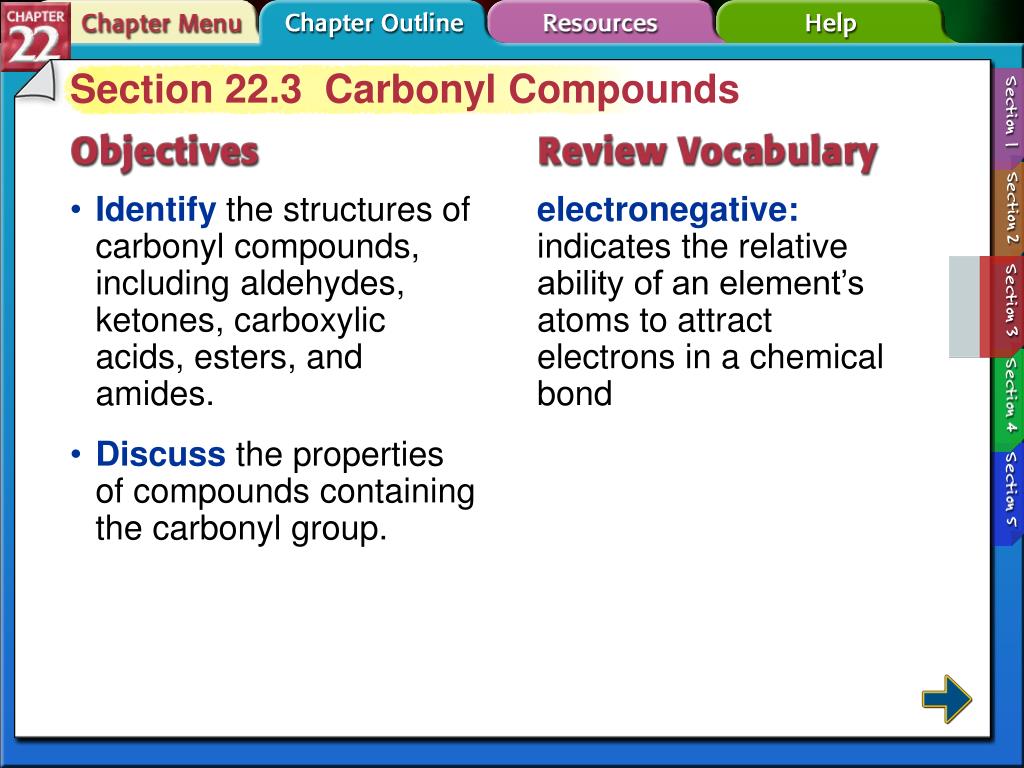

  28. Section 22.3 Carbonyl Compounds Identify the structures of carbonyl compounds, including aldehydes, ketones, carboxylic acids, esters, and amides. electronegative: indicates the relative ability of an element’s atoms to attract electrons in a chemical bond Discuss the properties of compounds containing the carbonyl group. Section 22-3

  29. Section 22.3 Carbonyl Compounds (cont.) carbonyl group aldehyde ketone carboxylic acid carboxyl group ester amide condensation reaction Carbonyl compounds contain a double-bonded oxygen in the functional group. Section 22-3

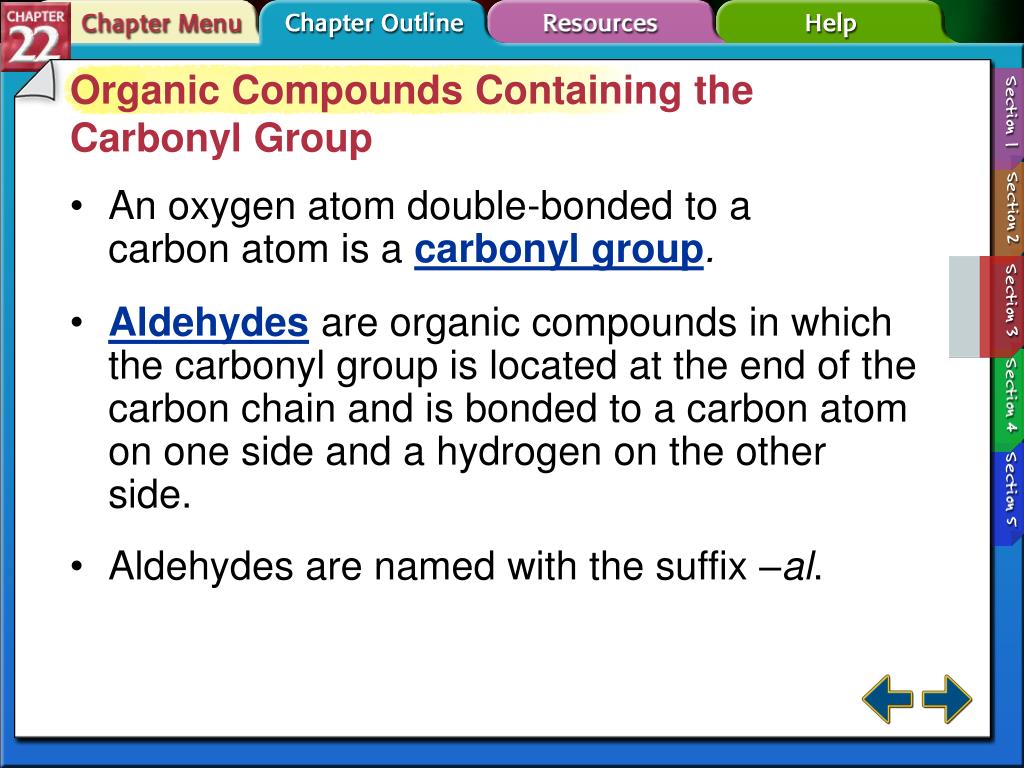

  30. Organic Compounds Containing the Carbonyl Group An oxygen atom double-bonded to a carbon atom is a carbonyl group. Aldehydes are organic compounds in which the carbonyl group is located at the end of the carbon chain and is bonded to a carbon atom on one side and a hydrogen on the other side. Aldehydes are named with the suffix –al. Section 22-3

  31. Organic Compounds Containing the Carbonyl Group (cont.) Section 22-3

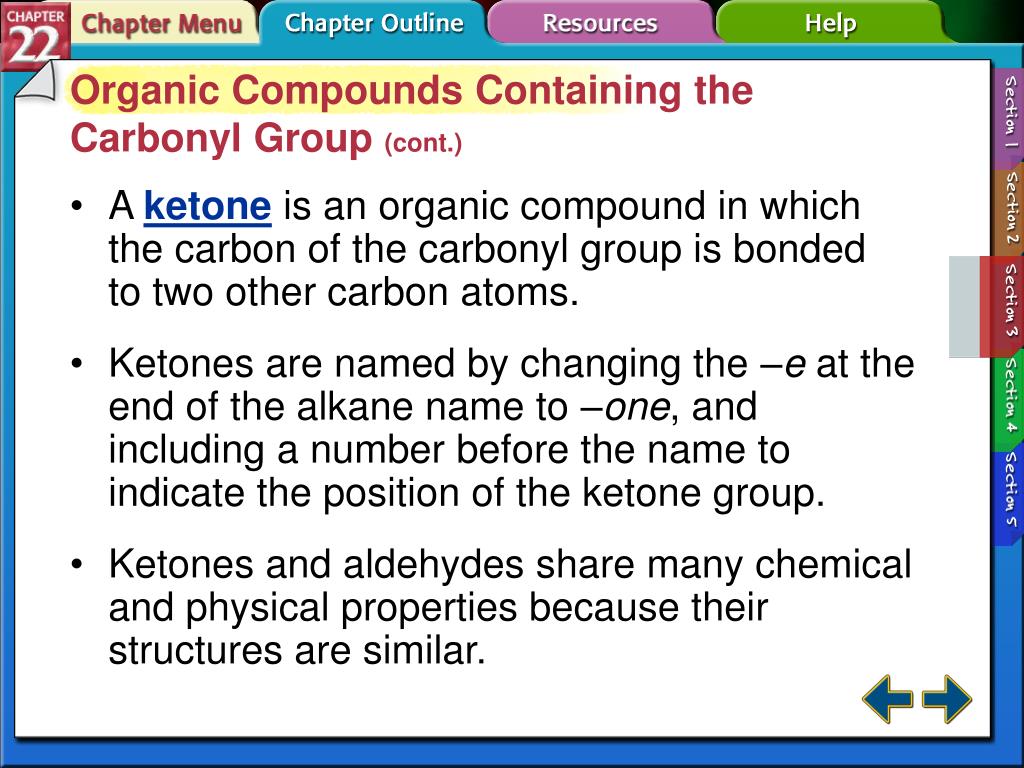

  32. Organic Compounds Containing the Carbonyl Group (cont.) A ketone is an organic compound in which the carbon of the carbonyl group is bonded to two other carbon atoms. Ketones are named by changing the –e at the end of the alkane name to –one, and including a number before the name to indicate the position of the ketone group. Ketones and aldehydes share many chemical and physical properties because their structures are similar. Section 22-3

  33. Organic Compounds Containing the Carbonyl Group (cont.) Ketones are popular solvents for moderately polar substances. Ketones are somewhat soluble in water. Section 22-3

  34. Organic Compounds Containing the Carbonyl Group (cont.) Section 22-3

  35. Carboxylic Acids Carboxylic acidsare organic compounds that have a carboxyl group. Carboxyl groups are carbonyls bonded to a hydroxyl group Carboxylic acids are named by changing the –ane to –anoic acid. Section 22-3

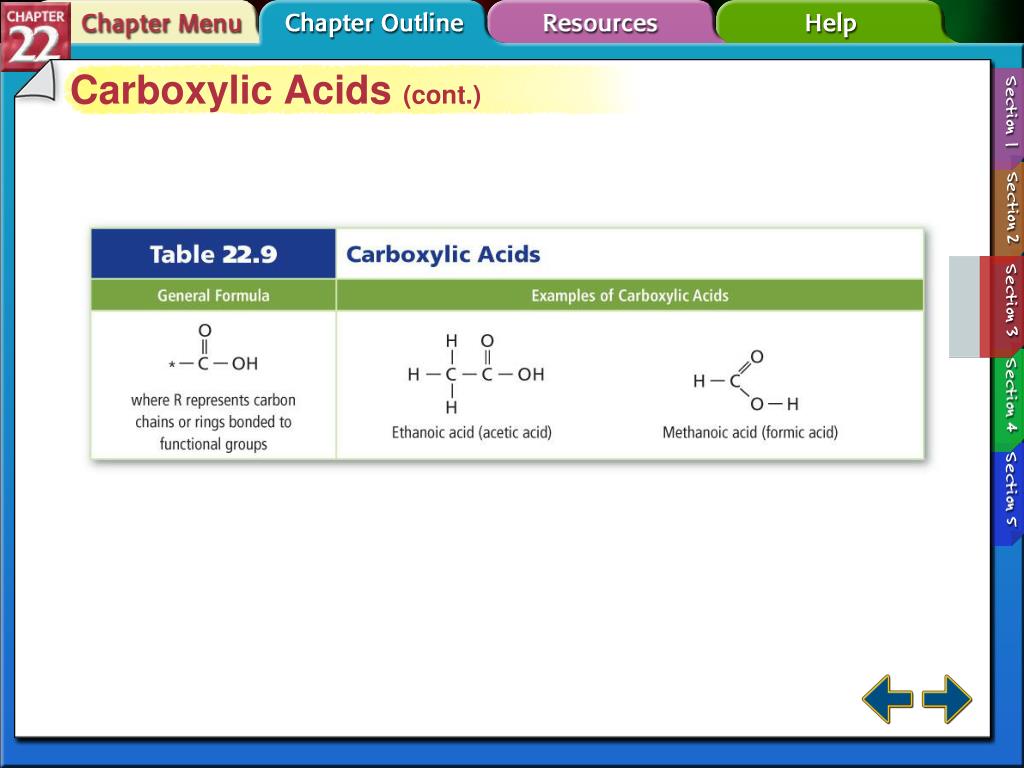

  36. Carboxylic Acids (cont.) Section 22-3

  37. Carboxylic Acids (cont.) Carboxylic groups are represented by –COOH. Carboxylic acids are polar and reactive, and ionize in water to form acids. Section 22-3

  38. Organic Compounds Derived from Carboxylic Acids An ester is any organic compound with a carboxyl group in which the hydrogen in the hydroxyl group is replaced by an alkyl chain. Section 22-3

  39. Organic Compounds Derived from Carboxylic Acids (cont.) To name an ester, write the alkyl group followed by the name of the acid with the –oic acid ending replaced with –oate. Esters are polar molecules and many are volatile and sweet smelling. Many esters are found in fruits and flowers. Section 22-3

  40. Organic Compounds Derived from Carboxylic Acids (cont.) An amide group is an organic compound in which the –OH group of a carboxylic acid is replaced by a nitrogen atom bonded to other atoms. Section 22-3

  41. Organic Compounds Derived from Carboxylic Acids (cont.) The amide functional group is found repeated many times in natural proteins and some synthetic materials. Section 22-3

  42. Condensation Reactions In a condensation reaction, two smaller organic molecules combine to form a more complex molecule, accompanied by the loss of a small molecule such as water. Condensation reactions are elimination reactions that form bonds between two atoms not previously bonded. Section 22-3

  43. A B C D Section 22.3 Assessment Which of the following is the carbonyl group? A.COOH B.C=O C.CONH2 D.R-O-R′ Section 22-3

  44. A B C D Section 22.3 Assessment Which of the following does NOT contain a carbonyl group? A.ketones B.esters C.amines D.aldehydes Section 22-3

  45. End of Section 22-3

  46. Section 22.4 Other Reactions of Organic Compounds Classify an organic reaction into one of five categories: substitution, addition, elimination, oxidation-reduction, or condensation. Use structural formulas to write equations for reactions of organic compounds. Predict the products of common types of organic reactions. catalyst: a substance that increases the rate of a chemical reaction by lowering activation energies but is not consumed in the reaction Section 22-4

  47. Section 22.4 Other Reactions of Organic Compounds (cont.) elimination reaction dehydrogenation reaction dehydration reaction addition reaction hydration reaction hydrogenation reaction Classifying the chemical reactions of organic compounds makes predicting products of reactions much easier. Section 22-4

  48. Classifying Reactions of Organic Substances Using combinations of reactions allows chemical industries to convert simple molecules from petroleum and natural gas into large, complex organic molecules. Section 22-4

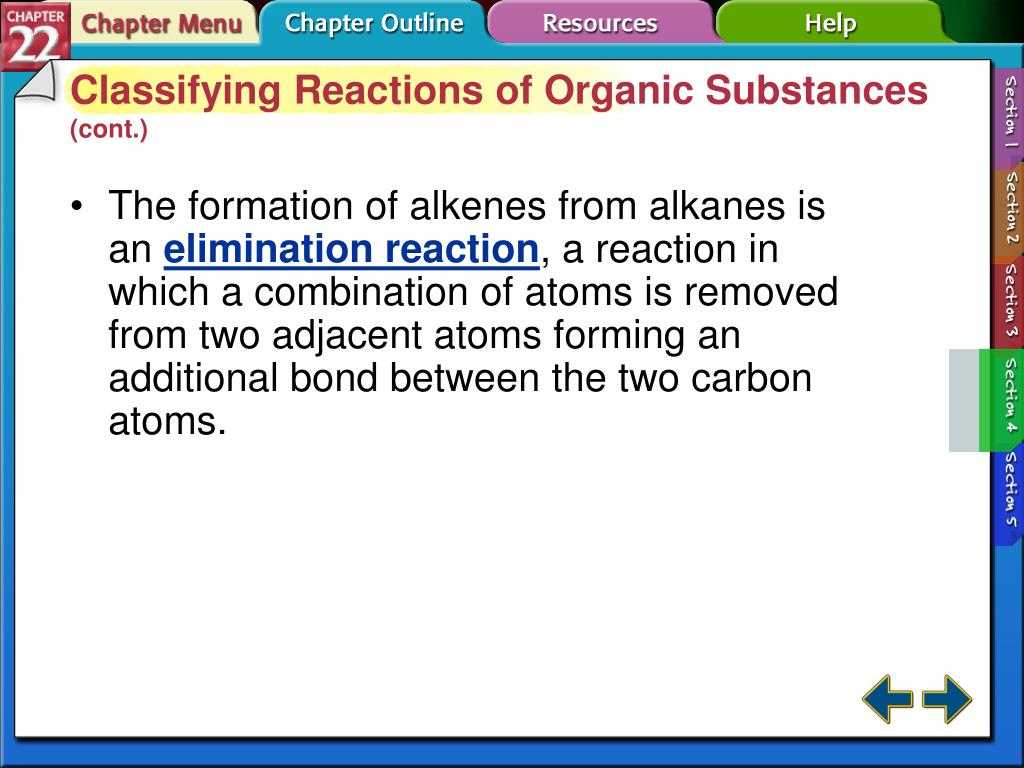

  49. Classifying Reactions of Organic Substances (cont.) The formation of alkenes from alkanes is an elimination reaction, a reaction in which a combination of atoms is removed from two adjacent atoms forming an additional bond between the two carbon atoms. Section 22-4
