  1. New Field-Map extensions and toolsVersions 12, 13 IFER – Monitoring and Mapping Solutions Ltd.http://www.field-map.com

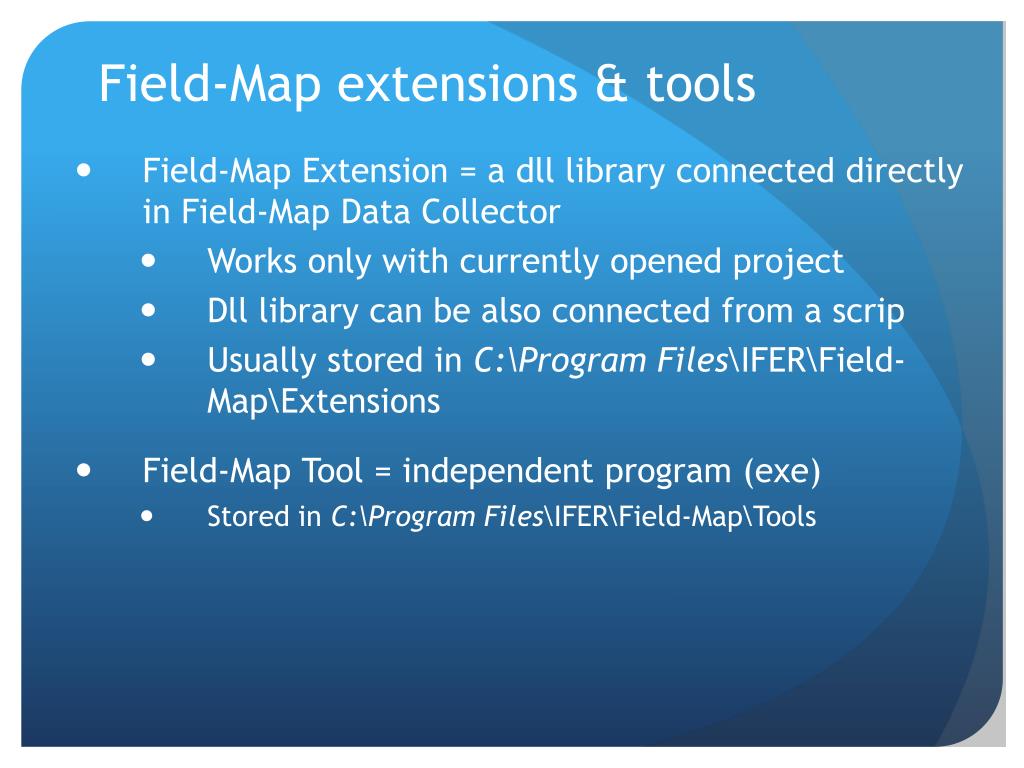

  2. Field-Map extensions & tools • Field-Map Extension = a dll library connected directly in Field-Map Data Collector • Works only with currently opened project • Dll library can be also connected from a scrip • Usually stored in C:\Program Files\IFER\Field-Map\Extensions • Field-Map Tool = independent program (exe) • Stored in C:\Program Files\IFER\Field-Map\Tools

  3. Extension 12 Field-Map Data Printer • An extension for printing data from Field-Map projects (Field-Map databases) • It is suitable for printing regular reports since the actual printing can be done by one click of a button (provided base on printout template) • Allows users to design printout forms with tables and other printout objects, such as tree maps, DH charts, images, memo fields or text rows.

  4. Extension 12 FM Data Printer – printout template

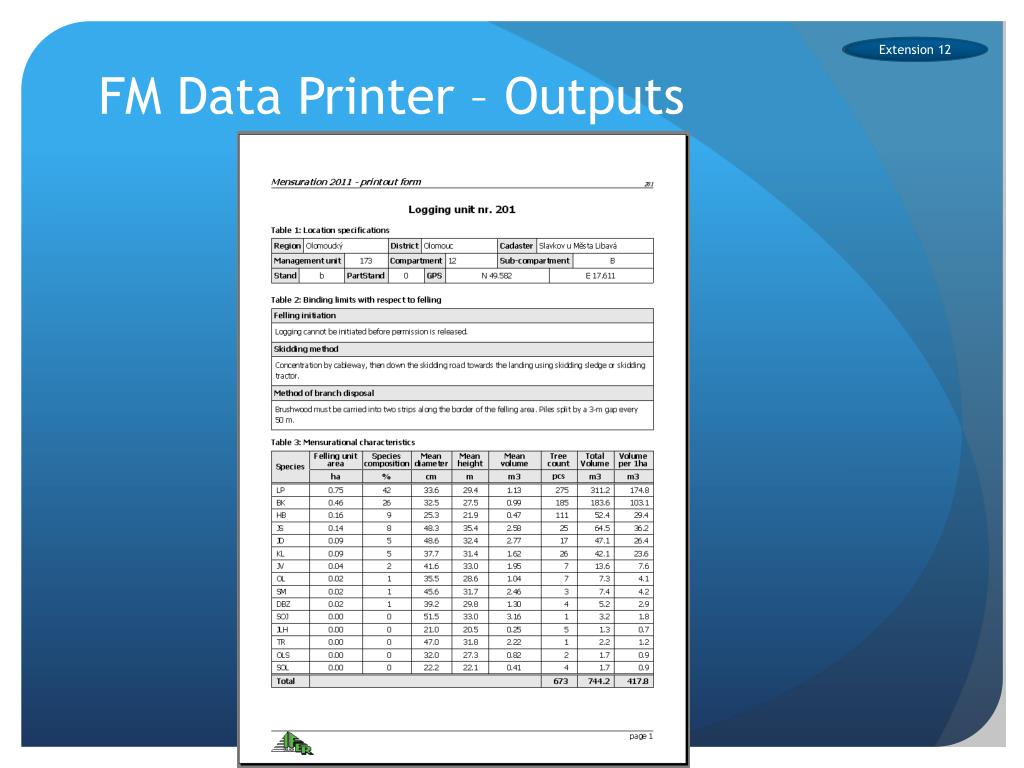

  5. Extension 12 FM Data Printer – Outputs

  6. Extension 12 FM Data Printer – Outputs

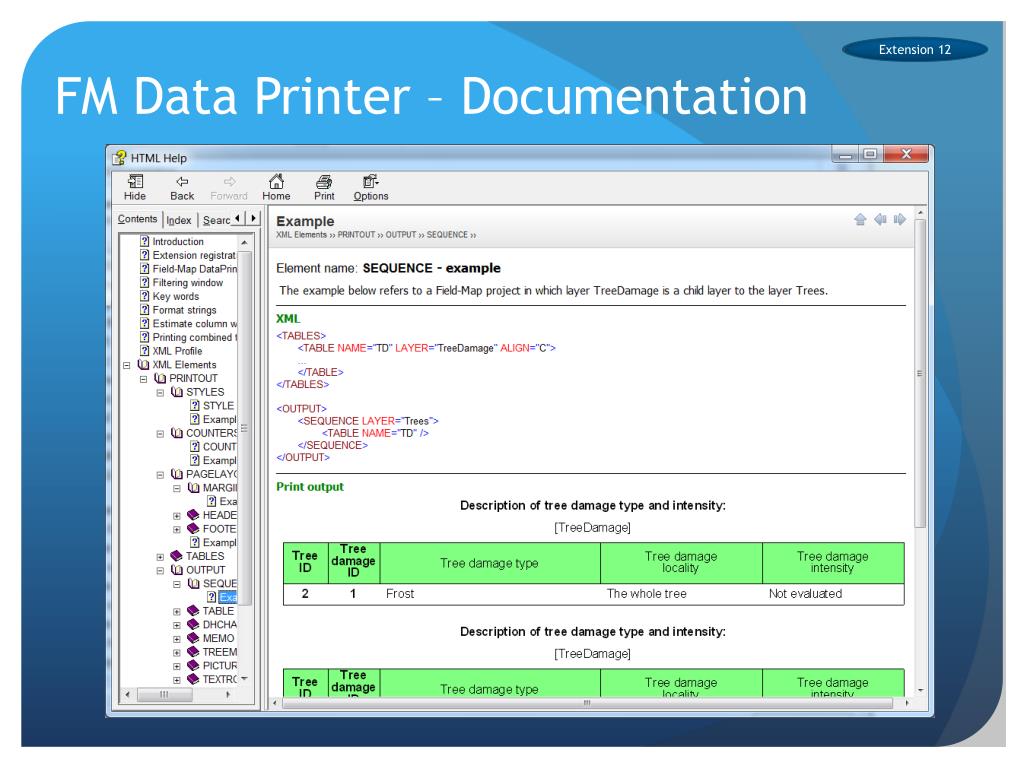

  7. Extension 12 FM Data Printer – Documentation

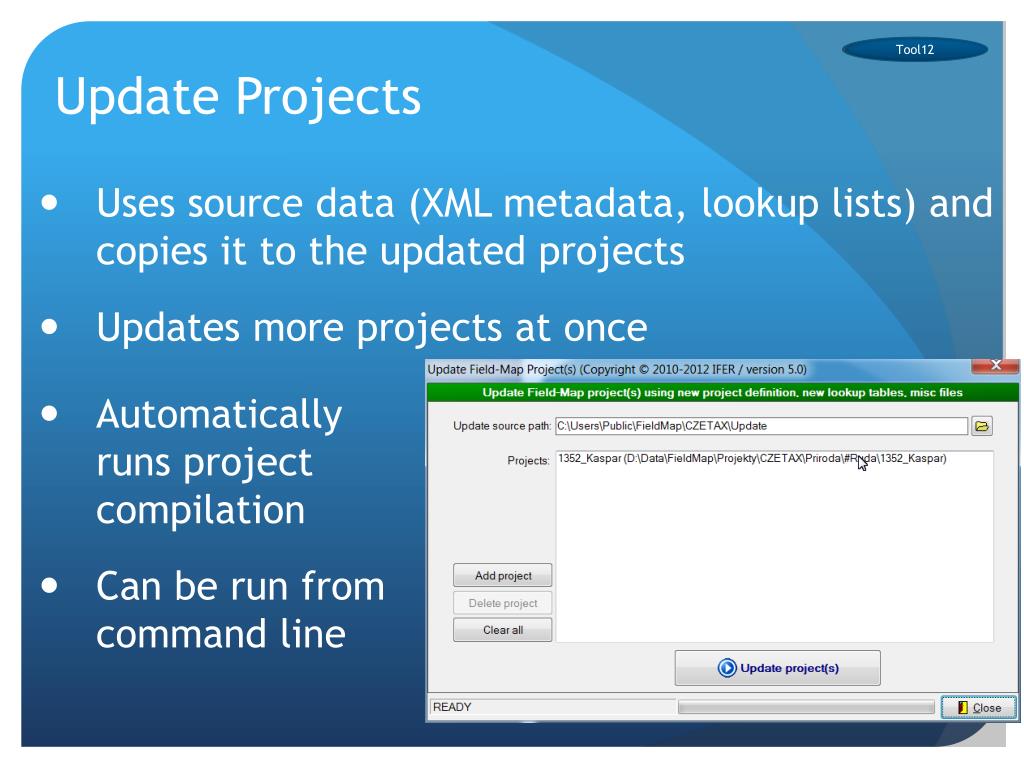

  8. Tool12 Update Projects • Uses source data (XML metadata, lookup lists) and copies it to the updated projects • Updates more projects at once • Automatically runs project compilation • Can be run from command line

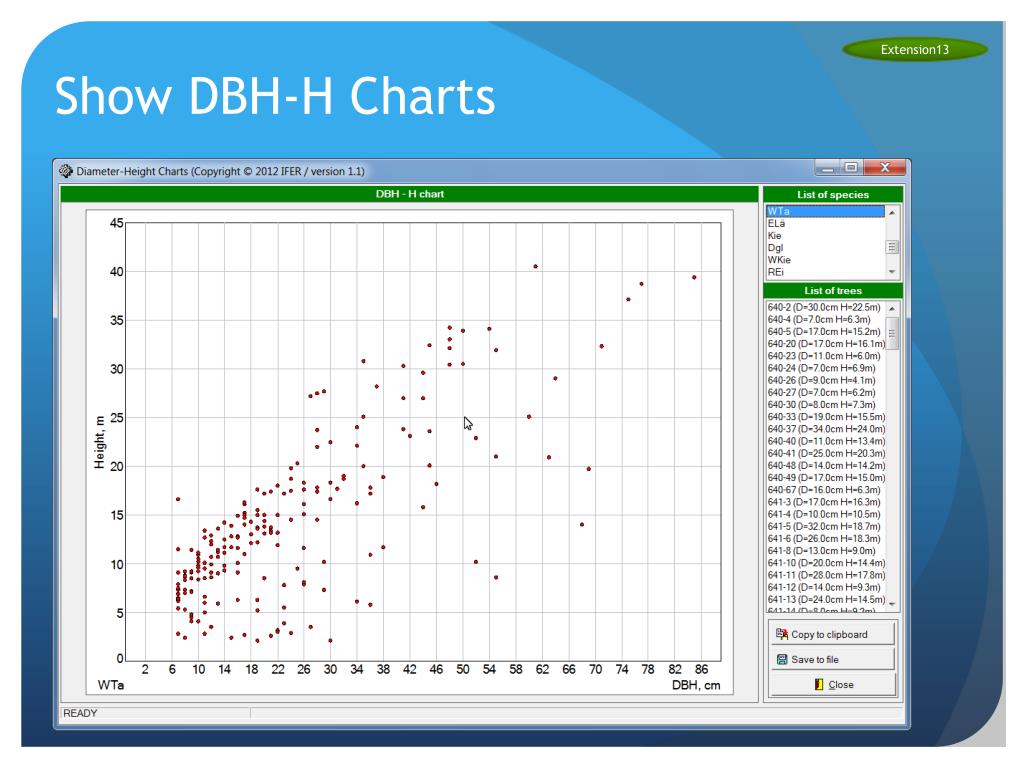

  9. Extension13 Show DBH-H Charts

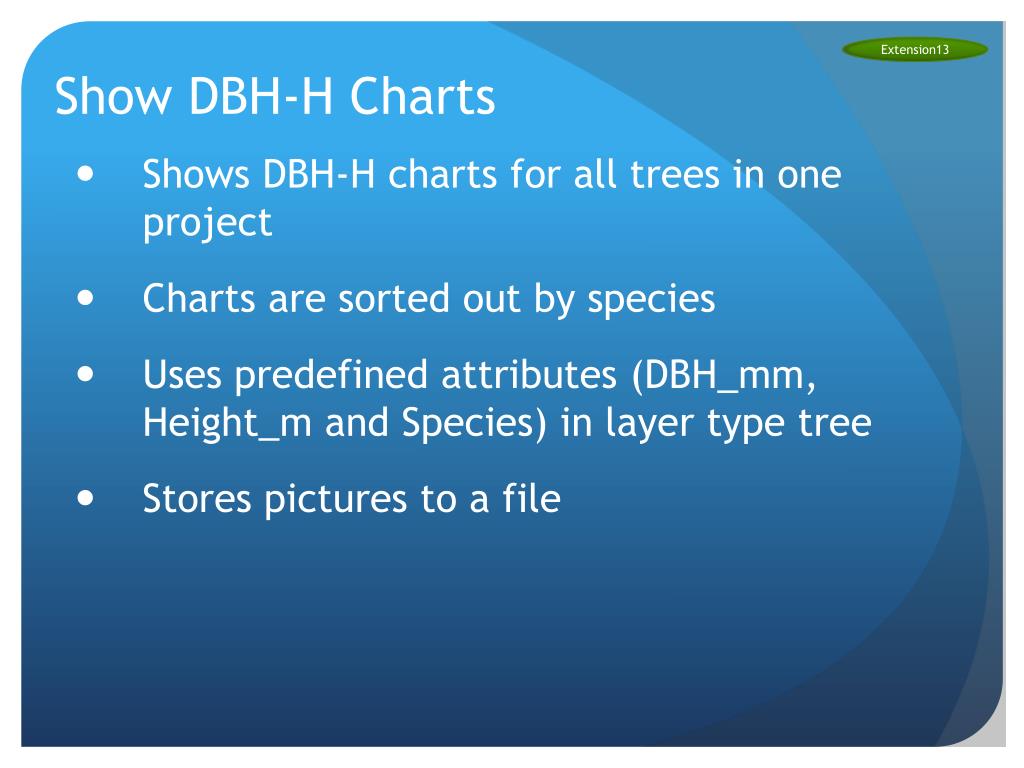

  10. Extension13 Show DBH-H Charts • Shows DBH-H charts for all trees in one project • Charts are sorted out by species • Uses predefined attributes (DBH_mm, Height_m and Species) in layer type tree • Stores pictures to a file

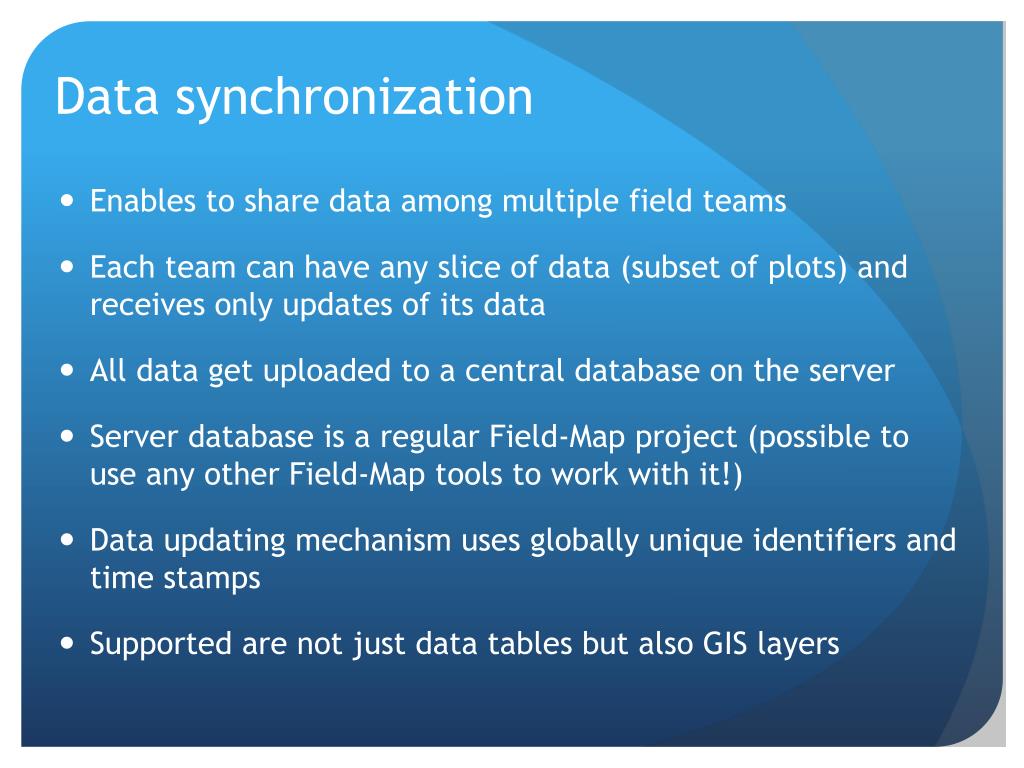

  11. Data synchronization Enables to share data among multiple field teams Each team can have any slice of data (subset of plots) and receives only updates of its data All data get uploaded to a central database on the server Server database is a regular Field-Map project (possible to use any other Field-Map tools to work with it!) Data updating mechanism uses globally unique identifiers and time stamps Supported are not just data tables but also GIS layers

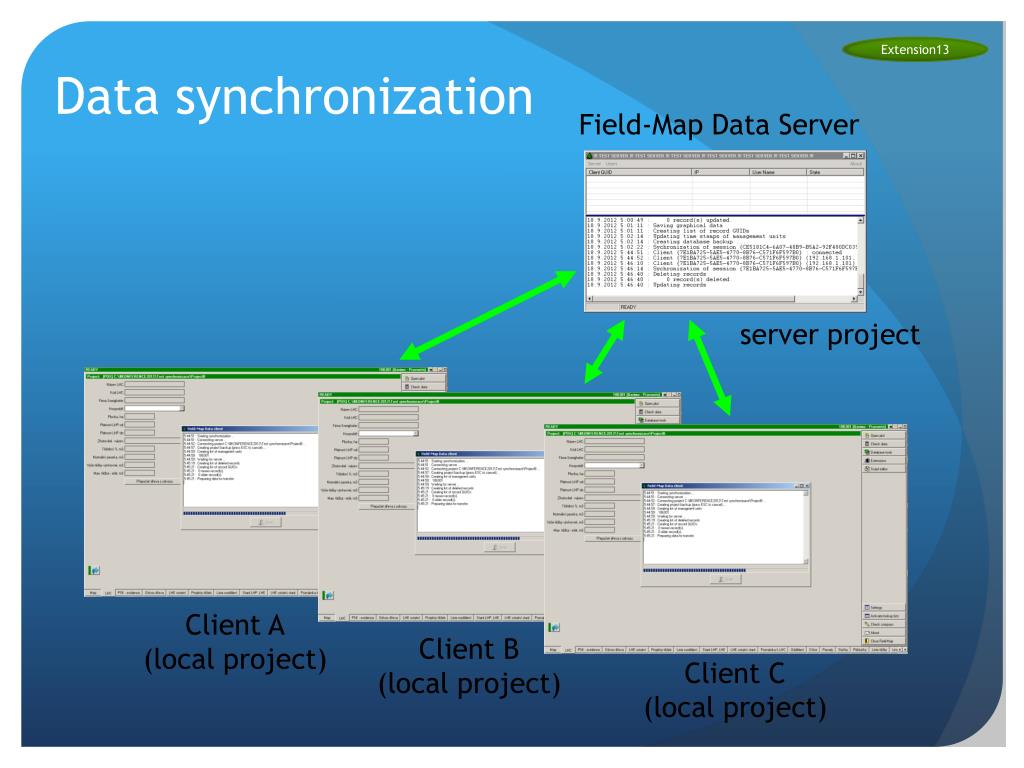

  12. Extension13 Data synchronization Field-Map Data Server server project Client A (local project) Client B (local project) Client C (local project)

  13. Extension13 Report generator • Generate reports base on predefined templates and export them to the MS Excel format • Set columns for output in template file • Filter data by period or date • Automatically count sums for selected numerical attributes • Remote connection to the server

  14. Tools 13 Report generator

  15. Extension13 Edit lookup lists • Enables to add, edit or delete values from selected lookup lists directly in Data Collector

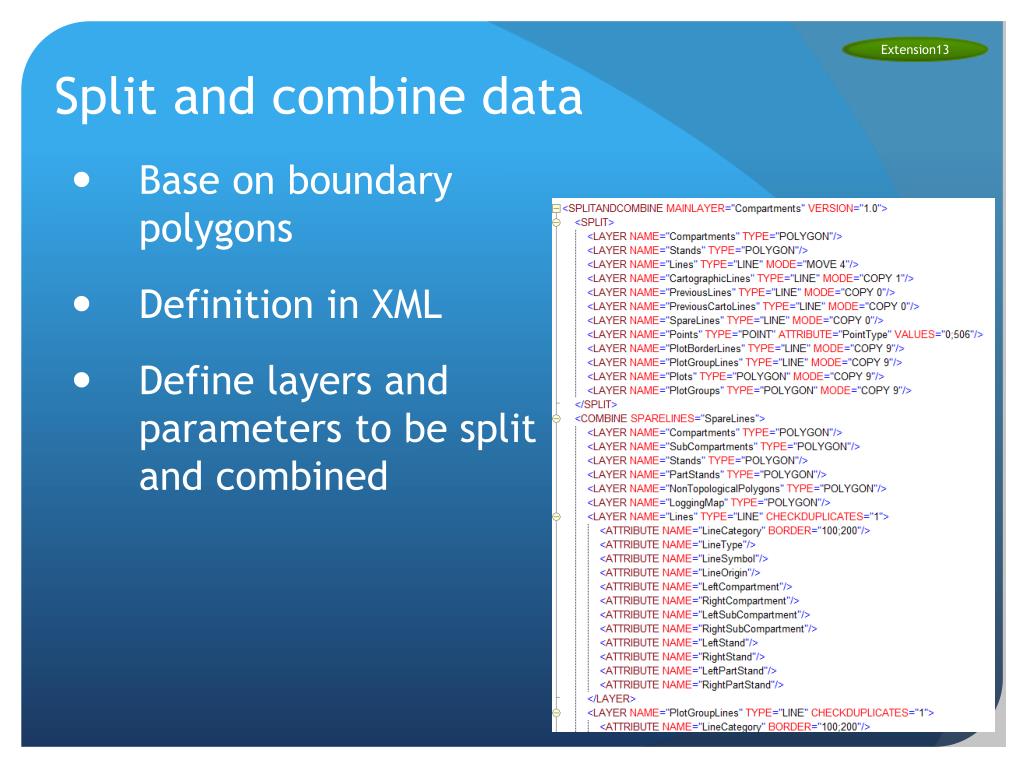

  16. Extension13 Split and combine data • Base on boundary polygons • Definition in XML • Define layers and parameters to be split and combined

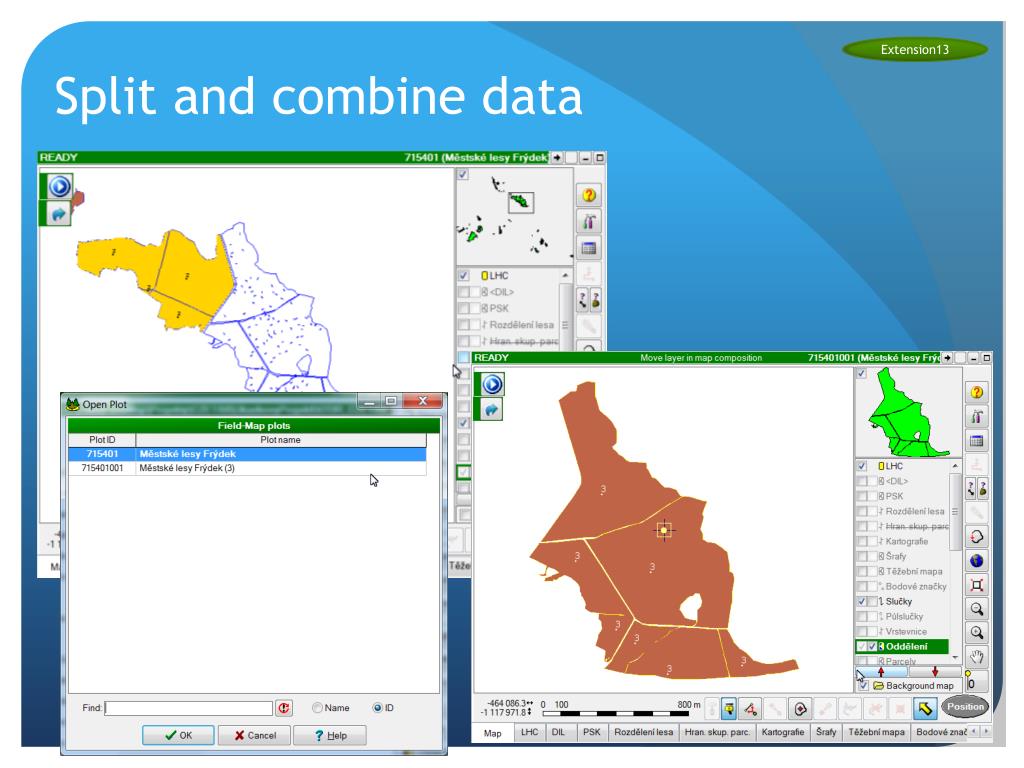

  17. Extension13 Split and combine data

  18. Extension13 Split and combine data

  19. Extension13 Split and combine data
