  1. RMS2 Rapid Motion Scanner

  2. RMS2 – Rapid Motion Scanner • RMS2 2 Rapid Motion Scanner High Speed Remote Access C-Scan Imaging System

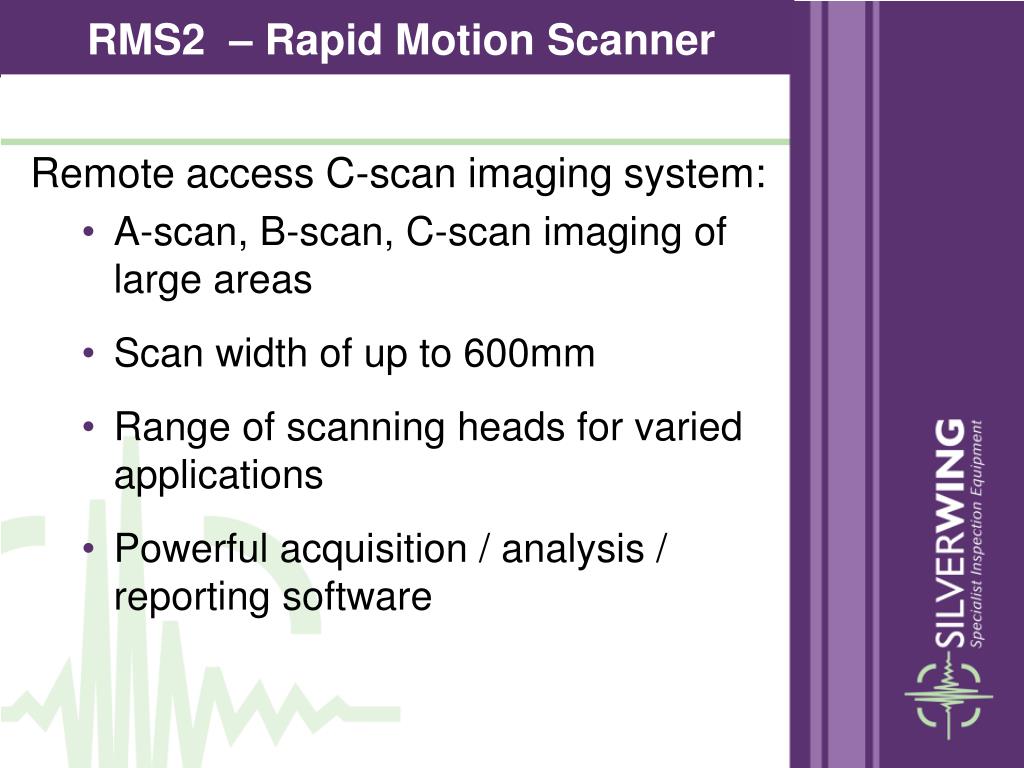

  3. RMS2 – Rapid Motion Scanner Remote access C-scan imaging system: • A-scan, B-scan, C-scan imaging of large areas • Scan width of up to 600mm • Range of scanning heads for varied applications • Powerful acquisition / analysis / reporting software

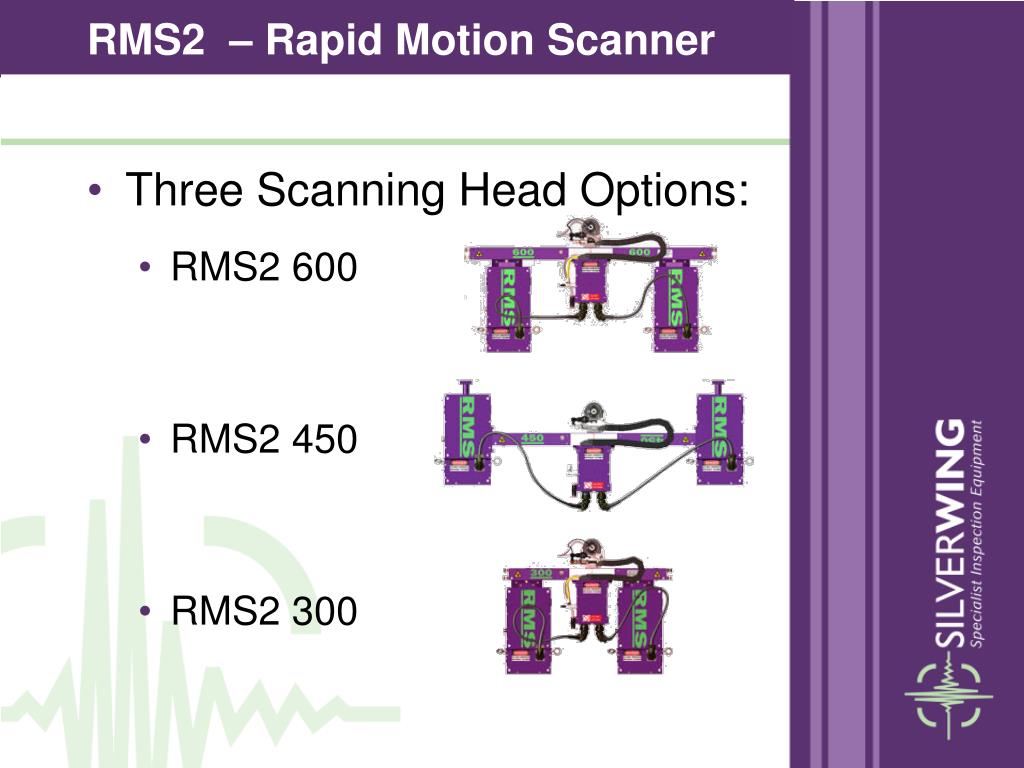

  4. RMS2 – Rapid Motion Scanner • Three Scanning Head Options: • RMS2 600 • RMS2 450 • RMS2 300

  5. RMS2 – Rapid Motion Scanner • RMS2 600 • 600mm maximum scan width • Longitudinal scanning • Minimum Diameter 5.5 metres • Circumferential scanning around large pipes / vessels • Minimum diameter 650mm

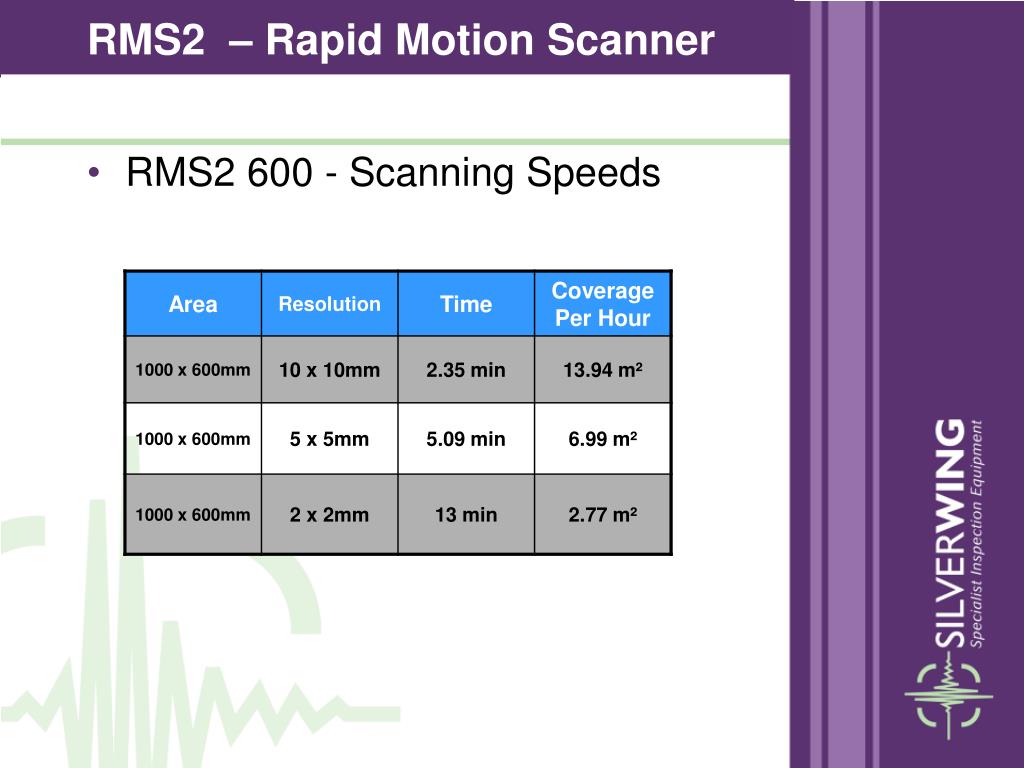

  6. RMS2 – Rapid Motion Scanner • RMS2 600 - Scanning Speeds

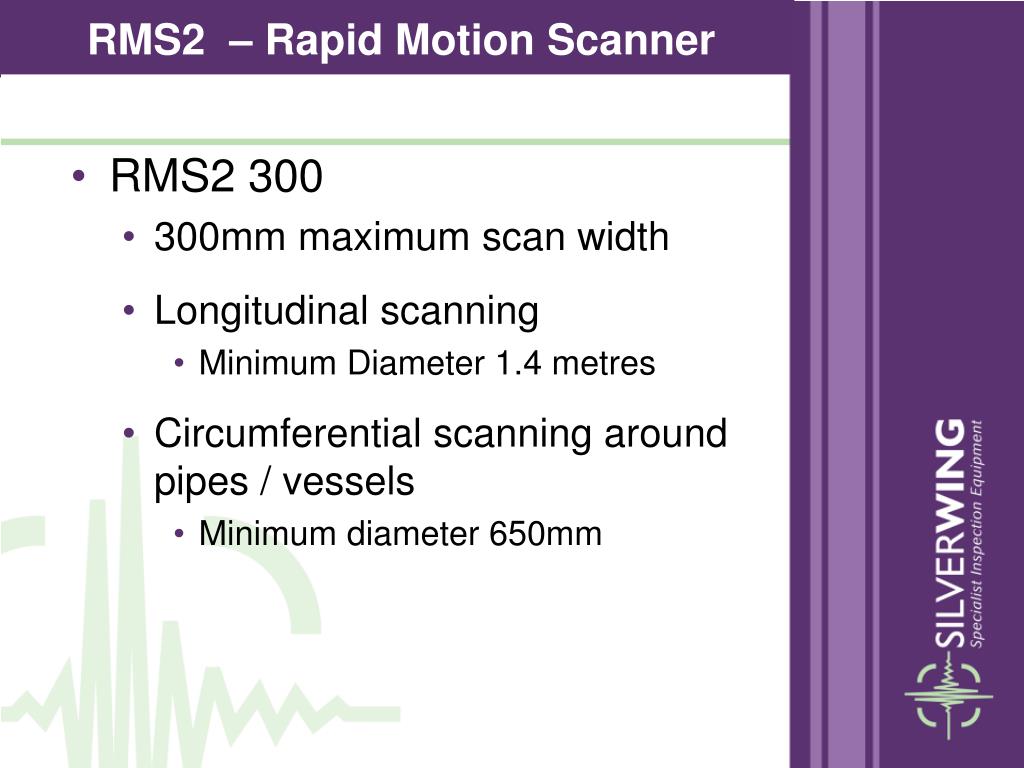

  7. RMS2 – Rapid Motion Scanner • RMS2 300 • 300mm maximum scan width • Longitudinal scanning • Minimum Diameter 1.4 metres • Circumferential scanning around pipes / vessels • Minimum diameter 650mm

  8. RMS2 – Rapid Motion Scanner • RMS2 300 - Scanning Speeds

  9. RMS2 – Rapid Motion Scanner • RMS2 450 • 450mm maximum scan width • Designed for circumferential scans around smaller pipe-work / vessels • Minimum diameter 152mm • Capable of longitudinal scans on large diameter structures or flat plate

  10. RMS2 – Rapid Motion Scanner • RMS2 450 - Scanning Speeds

  11. RMS2 – Rapid Motion Scanner • Ruggedized, low maintenance scanning heads • Scanner mounted video camera for live video feed from the RMS2 scanner

  12. RMS2 – Rapid Motion Scanner • Magnetic wheels provide 100kg pull-off force • 5 times the weight of the tractor unit

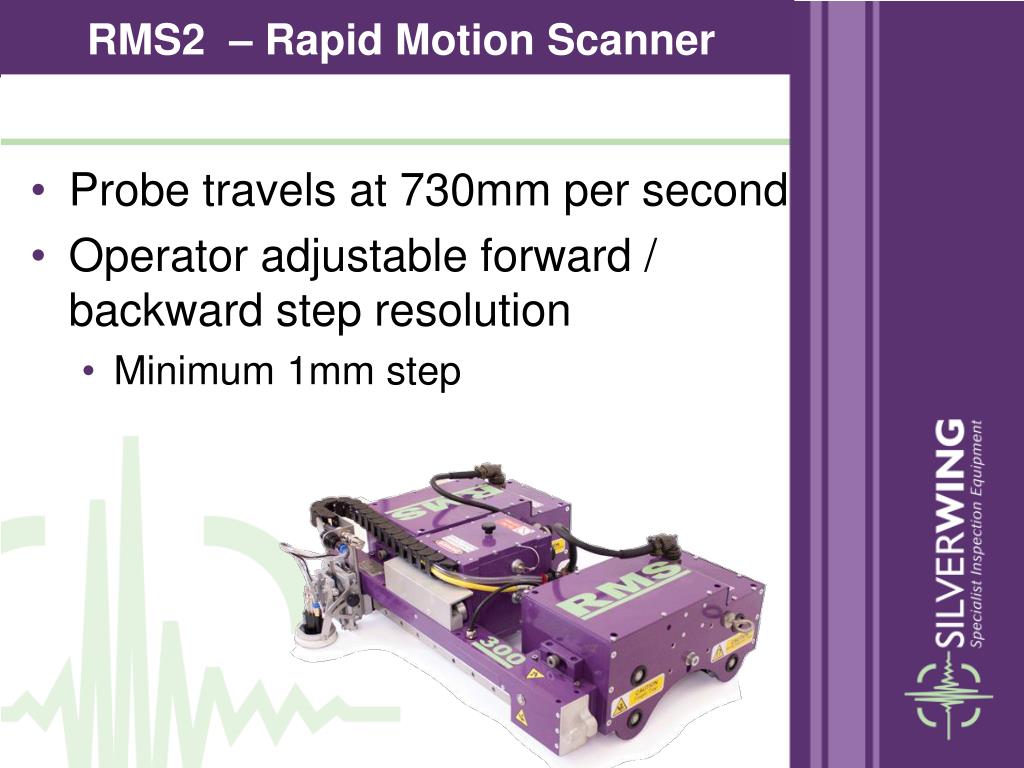

  13. RMS2 – Rapid Motion Scanner • Probe travels at 730mm per second • Operator adjustable forward / backward step resolution • Minimum 1mm step

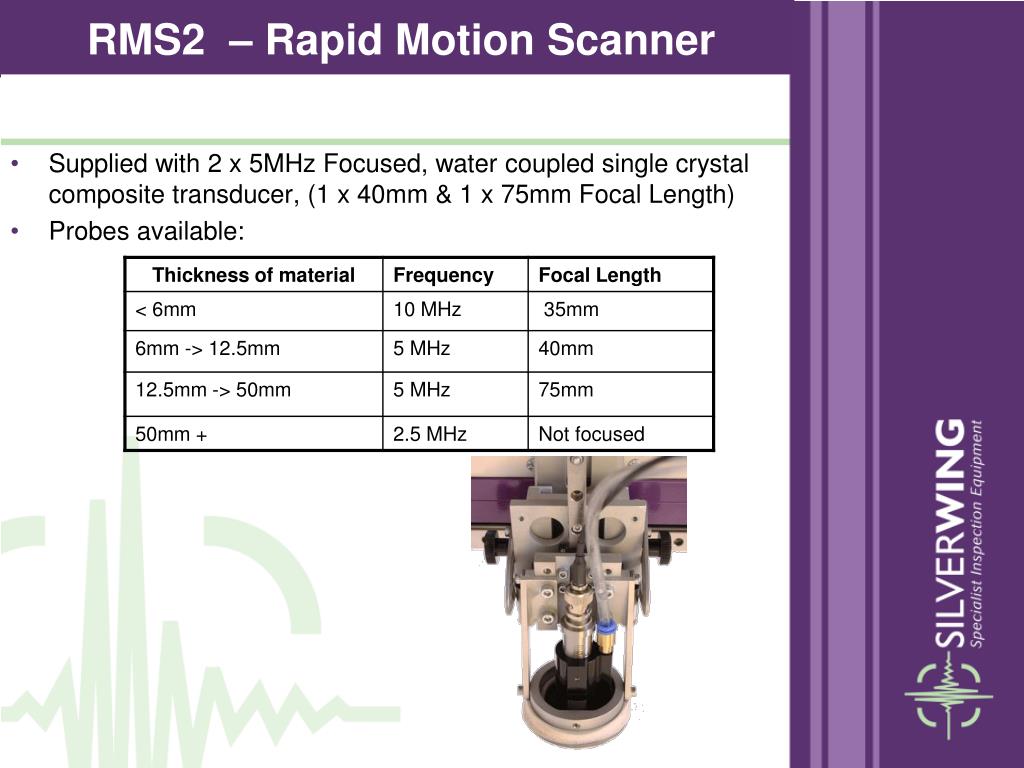

  14. RMS2 – Rapid Motion Scanner • Supplied with 2 x 5MHz Focused, water coupled single crystal composite transducer, (1 x 40mm & 1 x 75mm Focal Length) • Probes available:

  15. RMS2 – Rapid Motion Scanner • Water column technique and multiple gates allows external & internal corrosion mapping in one scan. • Fully gimballed probe holder to ride surface irregularities.

  16. RMS2 – Rapid Motion Scanner • Ruggedized UT / Electronics module with laptop recess

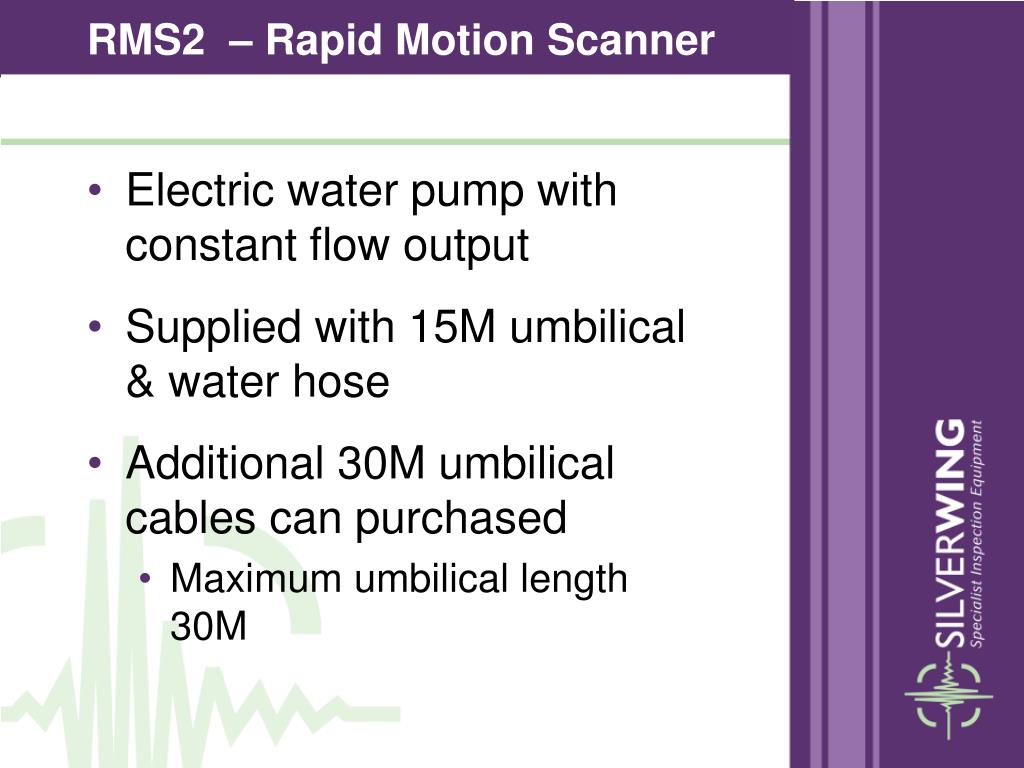

  17. RMS2 – Rapid Motion Scanner • Electric water pump with constant flow output • Supplied with 15M umbilical & water hose • Additional 30M umbilical cables can purchased • Maximum umbilical length 30M

  18. RMS2 – Rapid Motion Scanner • Full Steering control built into software • Secondary / backup steering control via manual joystick

  19. RMS2 – Software • Powerful, intuitive software suite • Seamlessly integrated scanner control, data acquisition, analysis and reporting tools

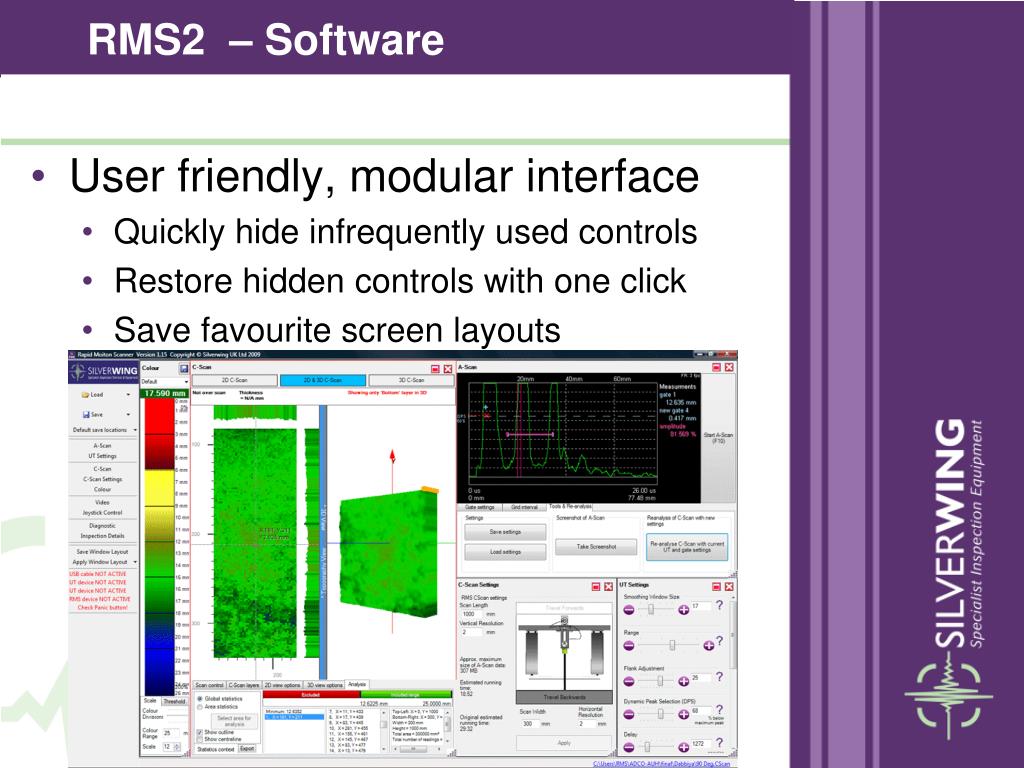

  20. RMS2 – Software • User friendly, modular interface • Quickly hide infrequently used controls • Restore hidden controls with one click • Save favourite screen layouts

  21. RMS2 – Software • Real-time A-scan and C-Scan display during scan

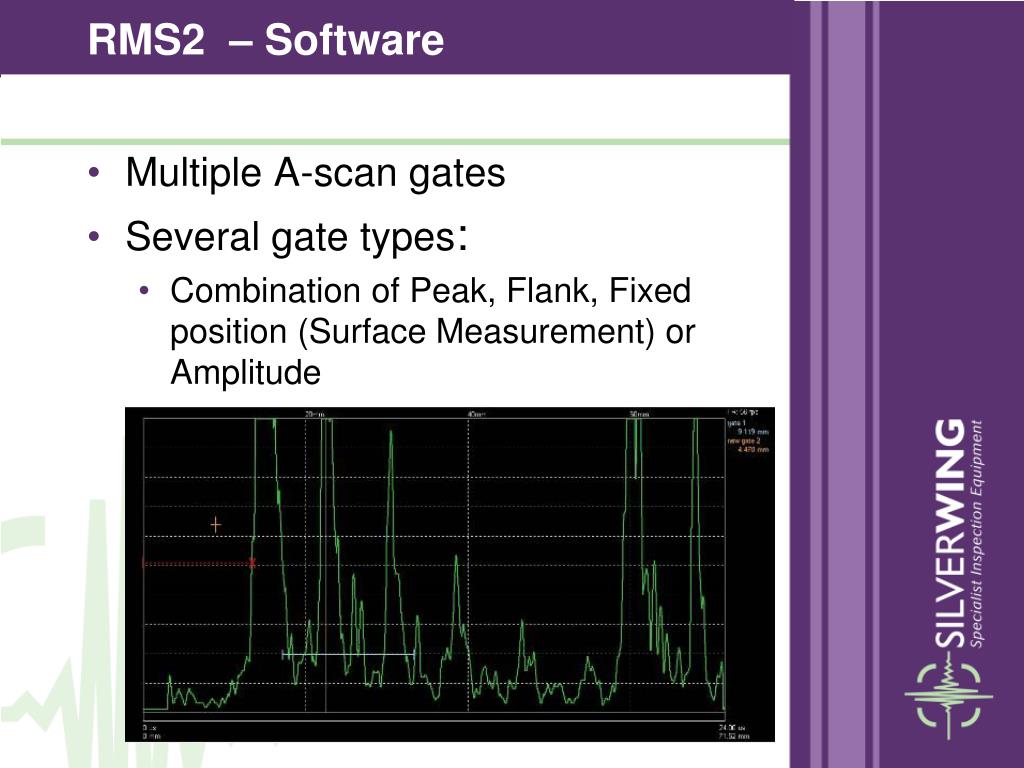

  22. RMS2 – Software • Multiple A-scan gates • Several gate types: • Combination of Peak, Flank, Fixed position (Surface Measurement) or Amplitude

  23. RMS2 – Software • Fully captured A-scan and adjustable gate configuration for accurate post inspection analysis

  24. RMS2 – Software • Full scan replay with multiple gates: • Near side (external) defect sizing • Far side (internal) defect sizing • Composite analysis

  25. RMS2 – Software • 2D C-scan view with custom colour palettes

  26. RMS2 – Software • Rotating 3D C-scan view

  27. RMS2 – Software • Cross sectional B-scan view taken from cursor position of C-scan

  28. RMS2 – Software • Cross sectional B-scan view taken from cursor position of C-scan

  29. RMS2 – Software • Save C-Scan data along with A-Scan and gates • Export A-scan, B-scan, C-scan and 3D views as digital images • Export C-Scan data as .CSV files for MS Excel • Comprehensive report printing options

  30. RMS2 – Technical Specification

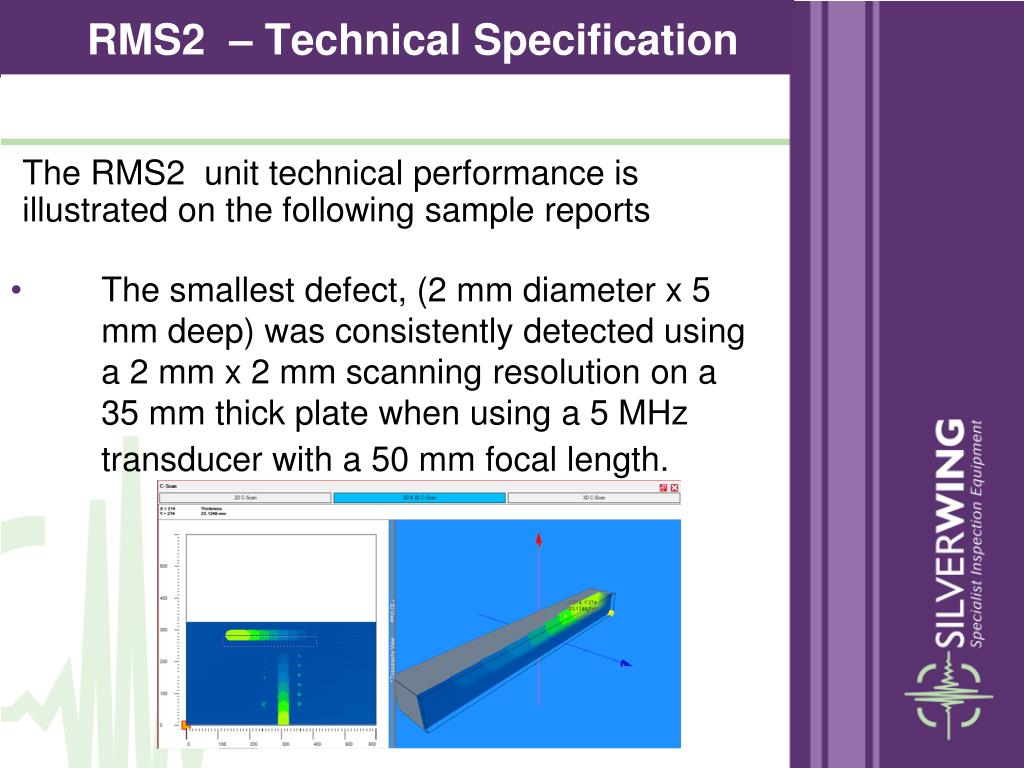

  31. RMS2 – Technical Specification • The smallest defect, (2 mm diameter x 5 mm deep) was consistently detected using a 2 mm x 2 mm scanning resolution on a 35 mm thick plate when using a 5 MHz transducer with a 50 mm focal length.  The RMS2 unit technical performance is illustrated on the following sample reports

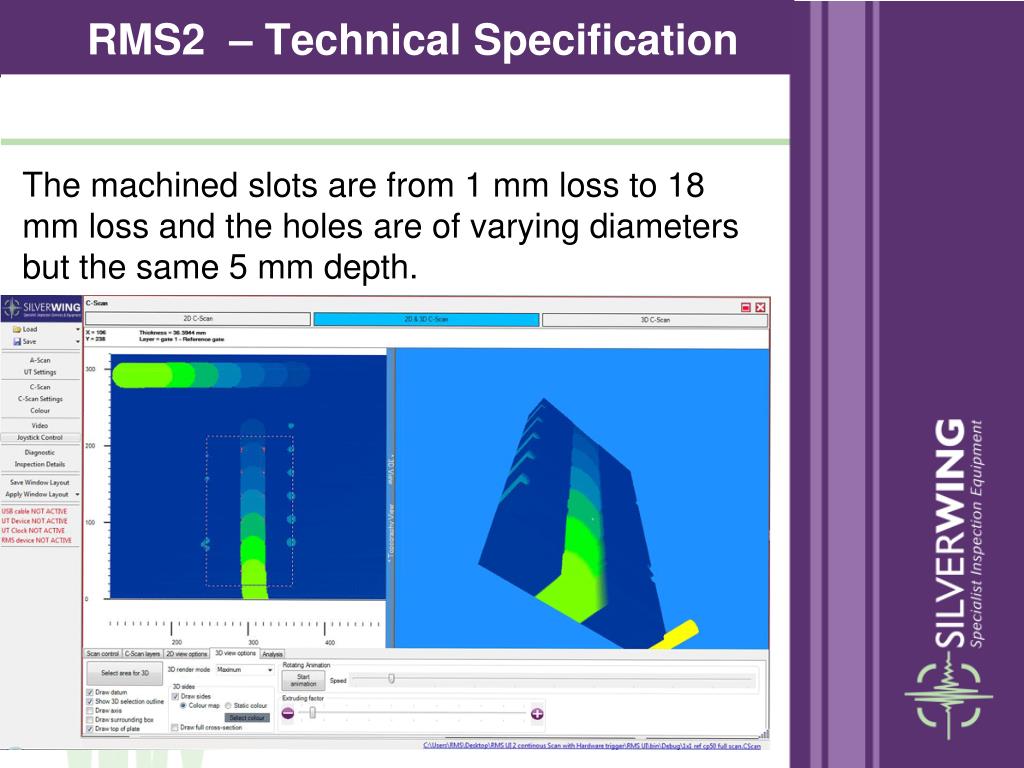

  32. RMS2 – Technical Specification The machined slots are from 1 mm loss to 18 mm loss and the holes are of varying diameters but the same 5 mm depth.

  33. RMS2 – Technical Specification • Typical speeds for different resolutions are: • 300 mm per second scanning at 1 mm x 1 mm resolution • 730 mm per second scanning at 2 mm x 2 mm resolution • Amplitude based analysis is able to define 0.004” loss (0.1 mm) • The 3D reporting feature ensures hydrogen blistering and similar type defects can be readily identified rather than just assumed as is the case with just 2D C-scan imaging.

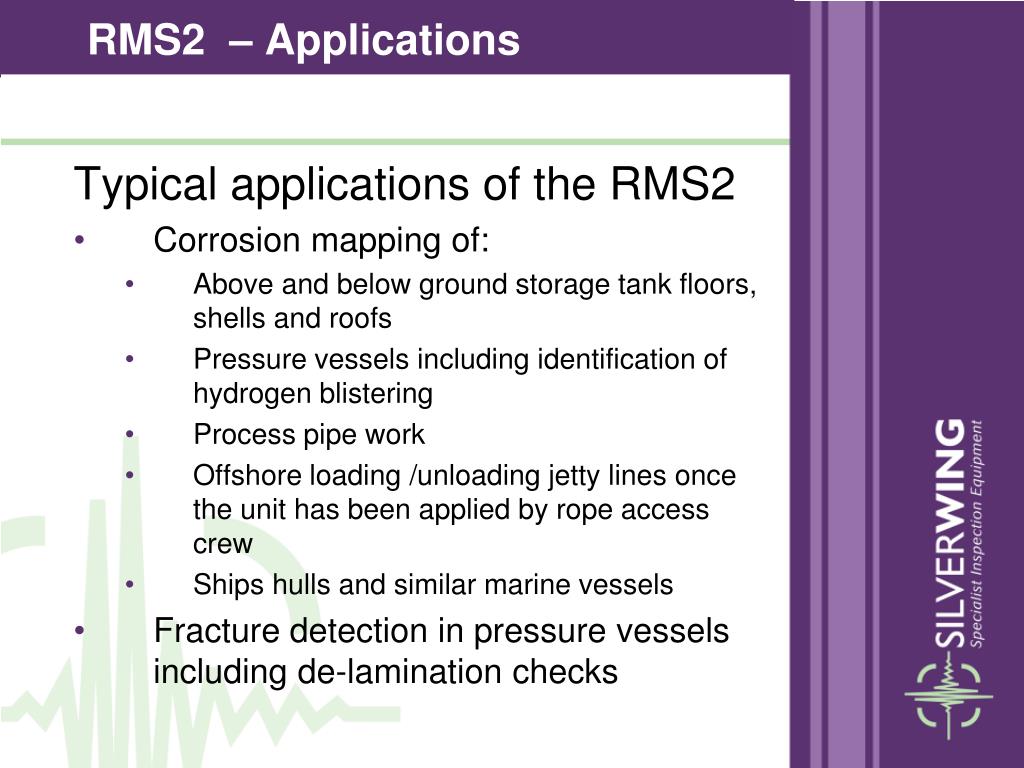

  34. RMS2 – Applications Typical applications of the RMS2 • Corrosion mapping of: • Above and below ground storage tank floors, shells and roofs • Pressure vessels including identification of hydrogen blistering • Process pipe work • Offshore loading /unloading jetty lines once the unit has been applied by rope access crew • Ships hulls and similar marine vessels • Fracture detection in pressure vessels including de-lamination checks

  35. USER BENEFITS - STORAGE TANKS RMS2 – Applications • An RMS2 inspection of a tank shell or roof provides a detailed C scan report and improved coverage of the area targeted for inspection. • Eliminating the need to use scaffolding or rope access to perform manual UT thickness gauging inspection • Maximise the ability to detect corrosion by taking 600 mm wide scan from bottom to top • Permanent hard and soft copy record of the results which can be retrieved at any future date.

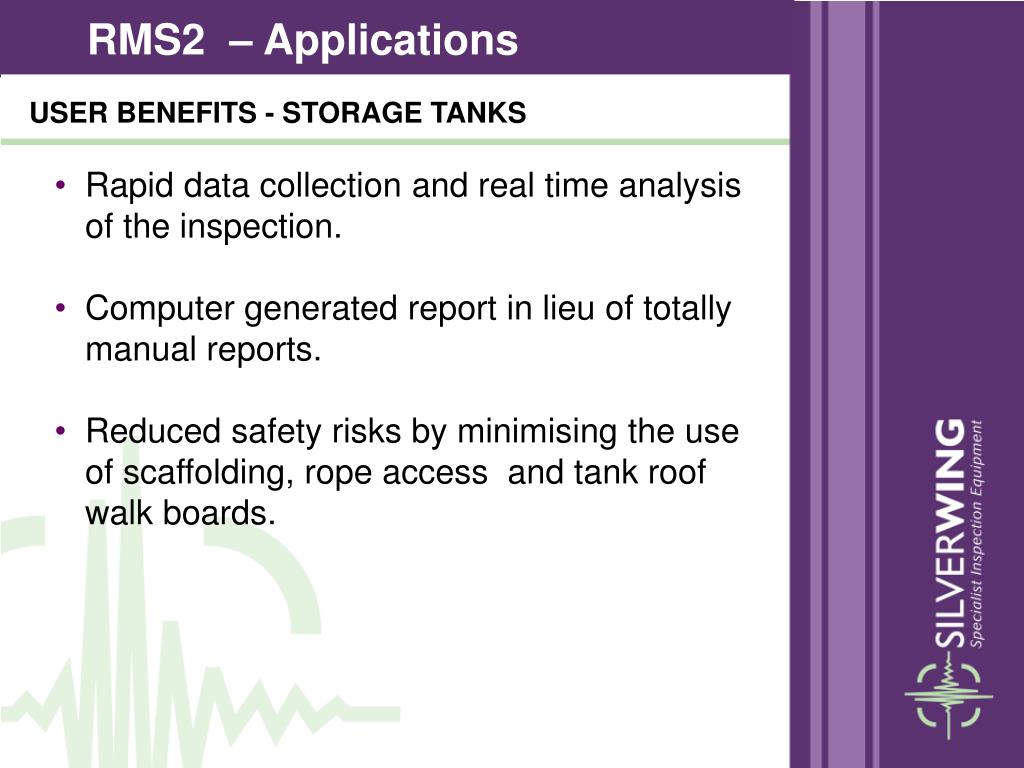

  36. RMS2 – Applications USER BENEFITS - STORAGE TANKS • Rapid data collection and real time analysis of the inspection. • Computer generated report in lieu of totally manual reports. • Reduced safety risks by minimising the use of scaffolding, rope access and tank roof walk boards.

  37. RMS2 – Applications Corrosion Mapping - Storage Tank Shell or Roof Outlined area illustrating cross section of corroded area for 3D view

  38. RMS2 – Applications Corrosion Inspection - Pressure Vessels or Heat Exchanger Shells

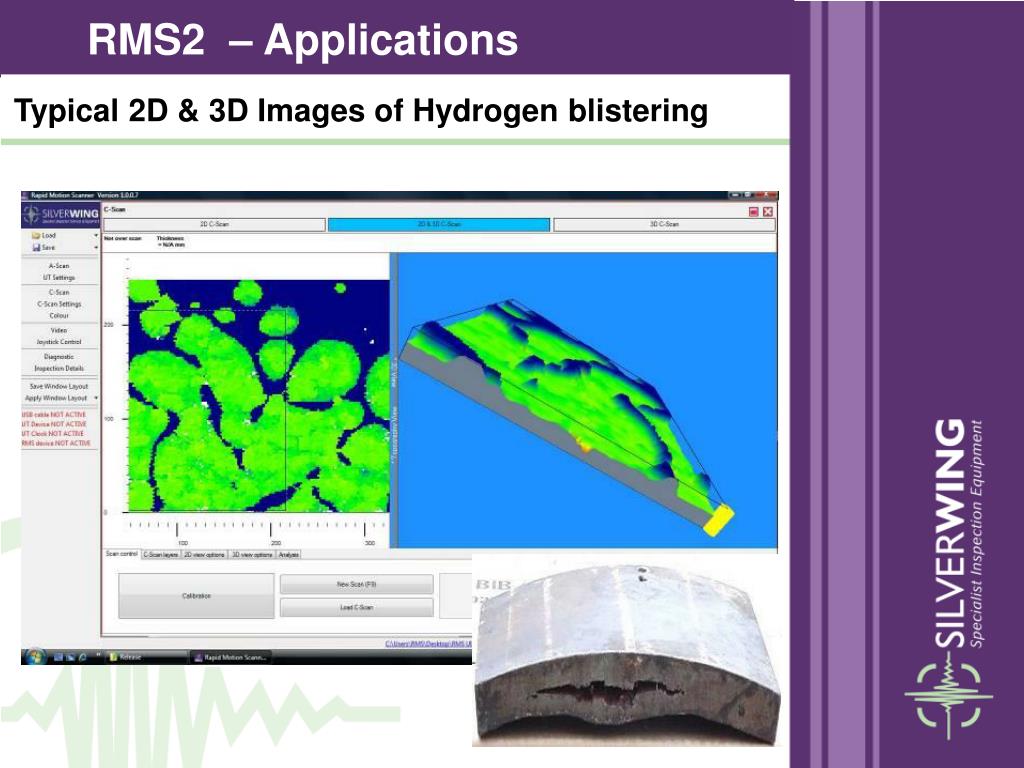

  39. RMS2 – Applications Typical 2D & 3D Images of Hydrogen blistering

  40. RMS2 – Applications Typical A scan, 2D & 3D Reporting Images of Hydrogen blistering

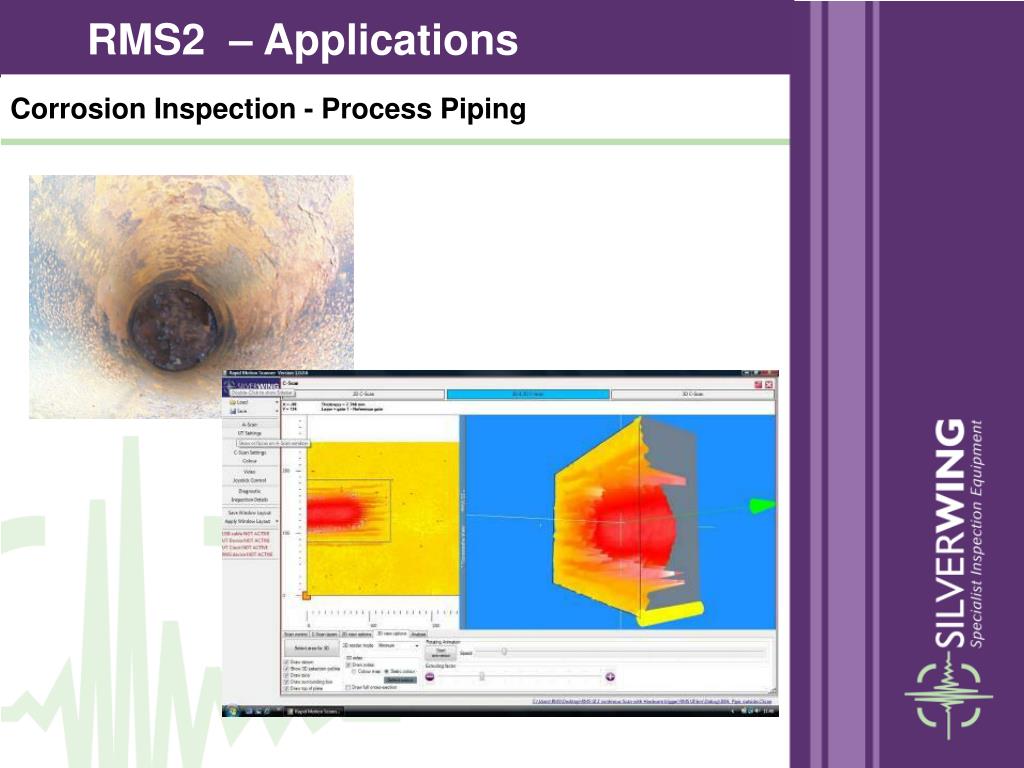

  41. RMS2 – Applications Corrosion Inspection - Process Piping

  42. RMS2 – Applications Corrosion Inspection - loading and unloading Jetty line Pipe work

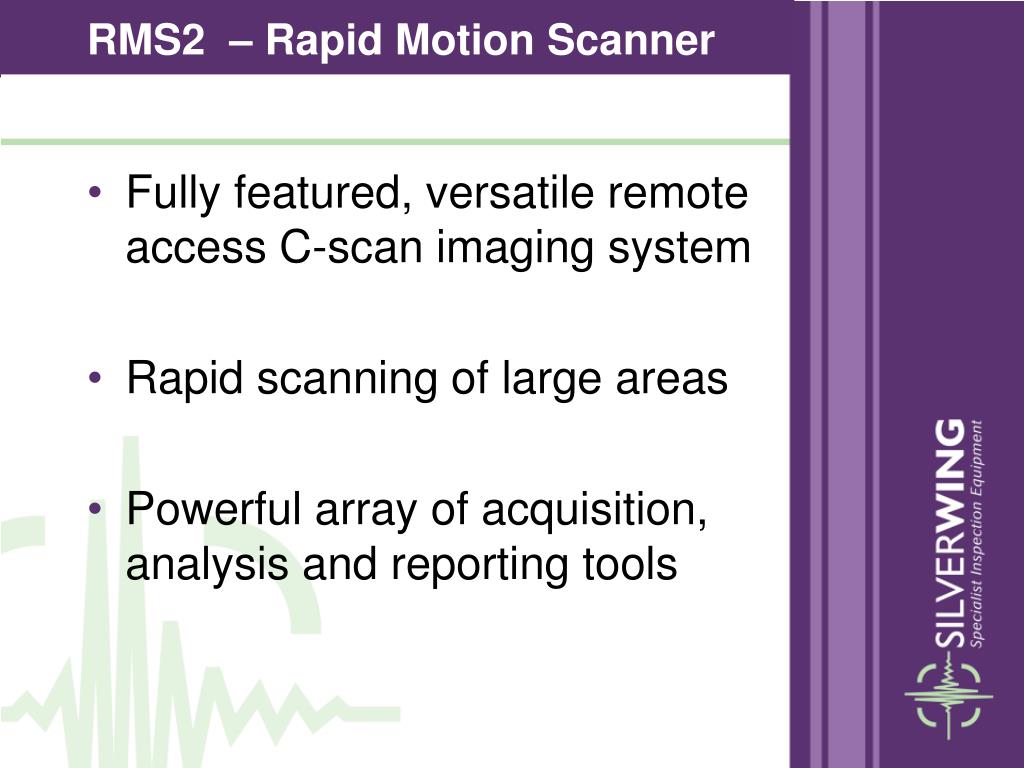

  43. RMS2 – Rapid Motion Scanner • Fully featured, versatile remote access C-scan imaging system • Rapid scanning of large areas • Powerful array of acquisition, analysis and reporting tools

  44. www.silverwinguk.com Silverwing NOT OPERATOR DEPENDENT TECHNOLOGY DRIVEN
