  1. IEG Portfolio(Scenario A and B) US-NATO Information Sharing (UNIS) TEM6 2 December 2009 Leon Schenkels NC3A Core Applications Core Enterprise Services (CAT7) NATO UNCLASSIFIED

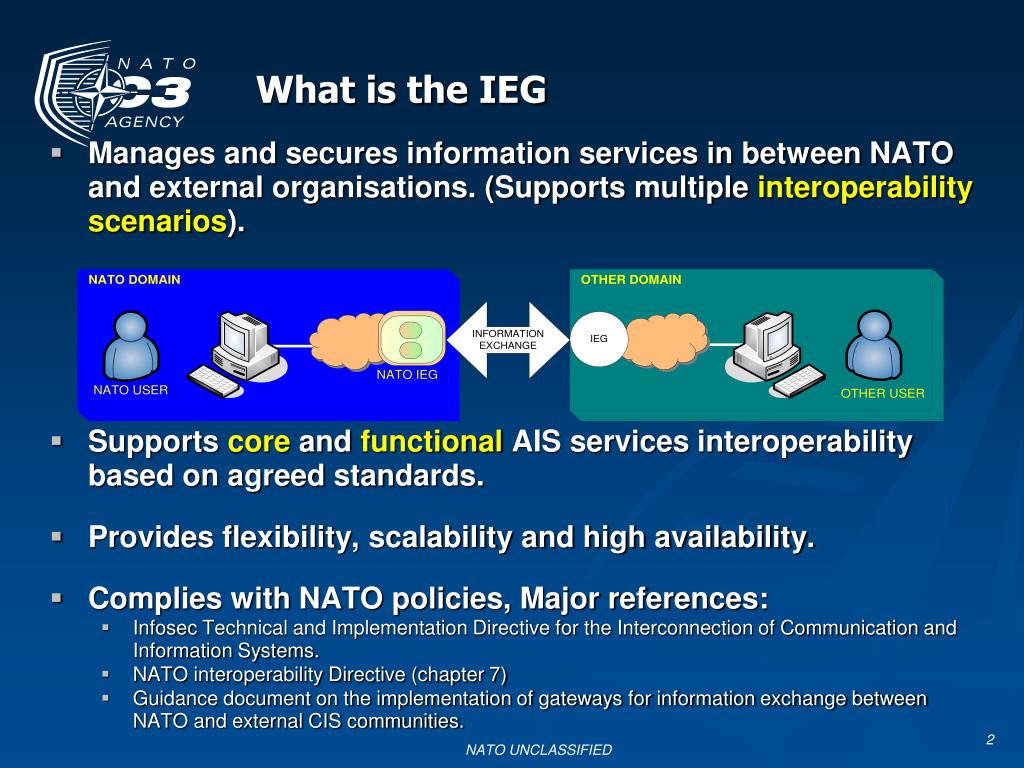

  2. What is the IEG • Manages and secures information services in between NATO and external organisations. (Supports multiple interoperability scenarios). • Supports core and functional AIS services interoperability based on agreed standards. • Provides flexibility, scalability and high availability. • Complies with NATO policies, Major references: • Infosec Technical and Implementation Directive for the Interconnection of Communication and Information Systems. • NATO interoperability Directive (chapter 7) • Guidance document on the implementation of gateways for information exchange between NATO and external CIS communities. NATO UNCLASSIFIED

  3. What are the IEG scenarios • NATO standardised approach to cross domain information exchange • Several scenarios • A: NS ↔ NS (Enclave) • B: NS ↔ NATO Nation Secret • C: NS ↔ Mission Secret • D: NS ← (↔) NNN/IO • Supports Core and Functional services NATO UNCLASSIFIED

  4. IEG Architectural Approach • IEG developed as discrete components supported by generic infrastructure. • Advantages: • Re-uses the core services infrastructure • Accreditation tasks are simplified (fewer components). • Maintainable (minimises the number of additional proxies) NATO UNCLASSIFIED

  5. WEB Proxy Information Exchange Gateway case A+BSymmetric IEGs NATO Nation N A T O B P D B P D Z Z MTA MTA DSA DSA Proxy WEB IDS IDS NATO UNCLASSIFIED

  6. IEG Scenario B (RIEG) NATO UNCLASSIFIED

  7. Phased approach to NATO RIEGs • Phased increase in security protection • Step 1 (Scenario A implementation) • Build network level infrastructure (Firewall, IDS) • Local/central management as required • Add web proxy services first, then email (through Email Upgrade project). • May require some waivers for IATO • Step 2, 3 etc (Scenario B Implementation) • Add formal messaging and directory services • Directory Services for Email may be added by Email Upgrade project (GAL Sync) • Add other services when authorised e.g. TDL NATO UNCLASSIFIED

  8. Case A IEG Project Status • Case A IEG Project - Authorisation for 6 NATO Regional IEGs & 18 National IEGs • Stage 2 Authorisation Request 3Q07 • Contract award 2Q08 • Regional IEGs installation completed 2Q09 • National Site Surveys commence 3Q09 • National IEGs installation begins 1Q10 • Final Acceptance Test 4Q10 NATO UNCLASSIFIED

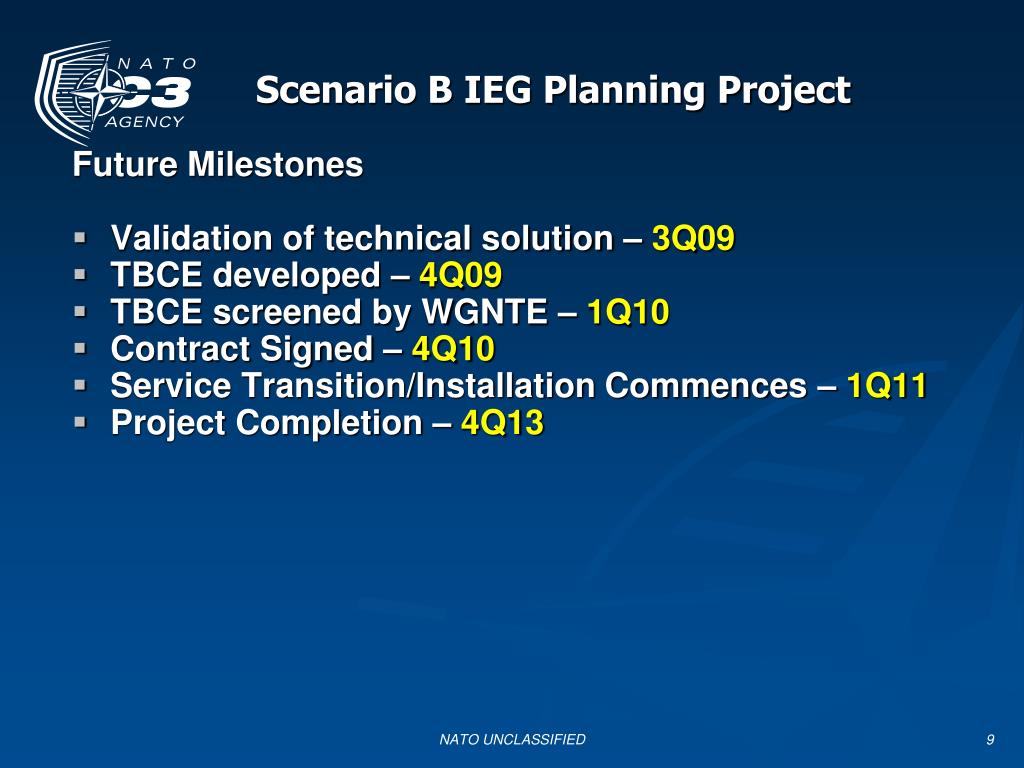

  9. Scenario B IEG Planning Project Future Milestones • Validation of technical solution – 3Q09 • TBCE developed – 4Q09 • TBCE screened by WGNTE – 1Q10 • Contract Signed – 4Q10 • Service Transition/Installation Commences – 1Q11 • Project Completion – 4Q13 NATO UNCLASSIFIED

  10. Email Upgrade • Email Upgrade – Programmatic • Proposals received – Oct 2007 • Price evaluation completed – Dec 2007 • Technical evaluation commencement – Mar 2008 • Contract award - 2Q09 • Compliance Tests – 4Q09 • Commence deployment in– 2Q10 • Complete deployment in – 3Q10 NATO UNCLASSIFIED

  11. NATO Messaging System - Phase 1 • NMS Phase 1 • Factory Acceptance Testing complete – Feb 2006 • Certification Testing complete – Oct 2006 • Alternate Solution Evaluation • Compliance Testing complete – Feb 2007 • Usability Testing complete – Mar 2007 • Evaluation report – Jul 2007 • NMS Phase 1 contract amended - April 2009 • Phase 1 Amendment coordination • Award Amendment contract –1Q09 • Regression testing of upgrades – 1Q10 • Site surveys and preparations – 3Q09 - 4Q09 • Begin Phase 1 deployment (surveys and installation) – 2Q10 – 4Q10 • IOC (System Acceptance for Phase 1) –2Q11 NATO UNCLASSIFIED

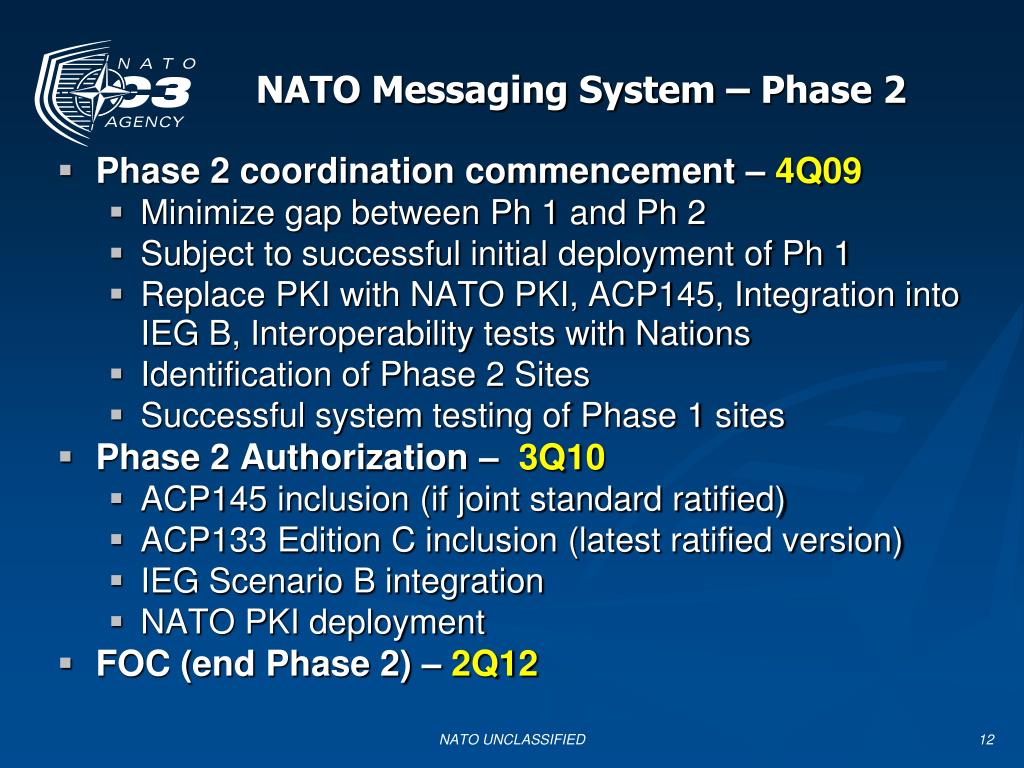

  12. NATO Messaging System – Phase 2 • Phase 2 coordination commencement – 4Q09 • Minimize gap between Ph 1 and Ph 2 • Subject to successful initial deployment of Ph 1 • Replace PKI with NATO PKI, ACP145, Integration into IEG B, Interoperability tests with Nations • Identification of Phase 2 Sites • Successful system testing of Phase 1 sites • Phase 2 Authorization – 3Q10 • ACP145 inclusion (if joint standard ratified) • ACP133 Edition C inclusion (latest ratified version) • IEG Scenario B integration • NATO PKI deployment • FOC (end Phase 2) – 2Q12 NATO UNCLASSIFIED

  13. NATO Enterprise Directory Service (NEDS) • NEDS Project Status • Phase 1 completed – Sep 2008 • Phase 2 Authorization Request – Nov 2008 • Information for Bidders release – 3Q09 • Contract Award – 1Q10 • Site Surveys – 2Q10 • Initial Operational Concept commencement – 1Q11 • Final System Acceptance – 2Q11 NATO UNCLASSIFIED

  14. IEG A project milestones IEG C project milestones The IEG portfolio IEG B project milestones IEMS Email DS R-IEG IEG Web NMS Ph 1 NEDS* IEG-B PTC Enhancements IEG-C+ KFOR IEG-C KFOR NMS Ph 2 ARH BMTA N-IEG S.S IEMS Email DS N-IEG FOC N-IEG D’ploy 2011 2012 2010 2009 NATO UNCLASSIFIED Now * Information Provider Only
