  1. B A BGP Routing examples COS 461: Computer Networks Precept on Apr 7, 2011 http://www.cs.princeton.edu/courses/archive/spring11/cos461/

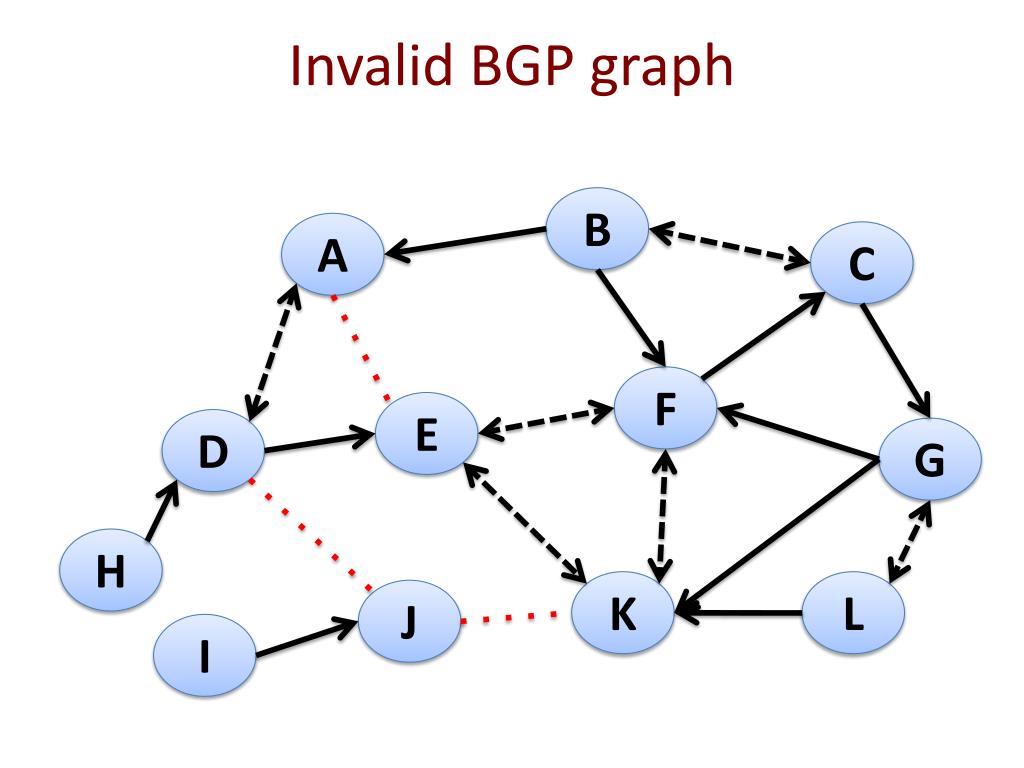

  2. Invalid BGP graph B A C F E D G H K L J I

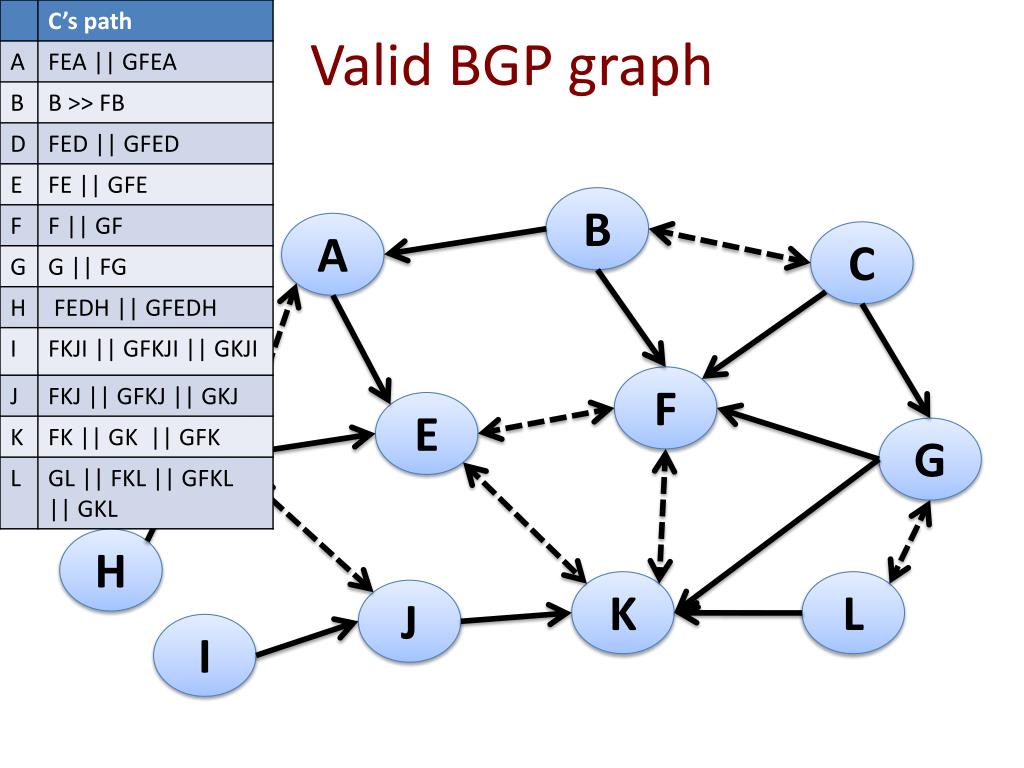

  3. Valid BGP graph B A C F E D G H K L J I

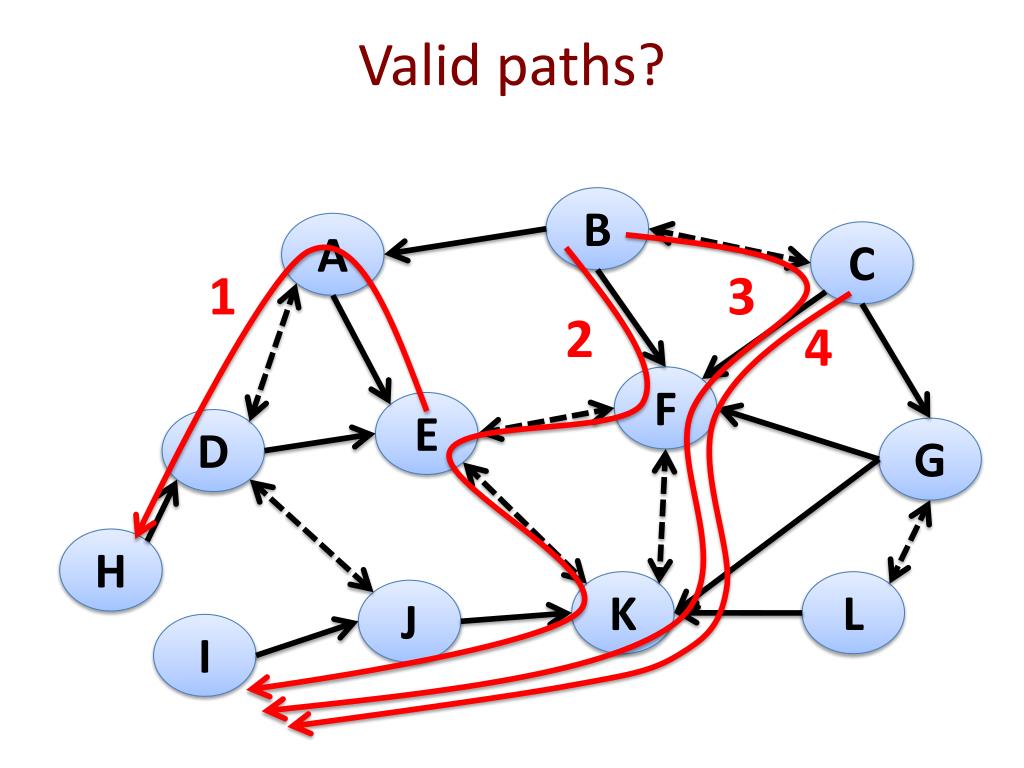

  4. Valid paths? B A C 1 3 2 4 F E D G H K L J I

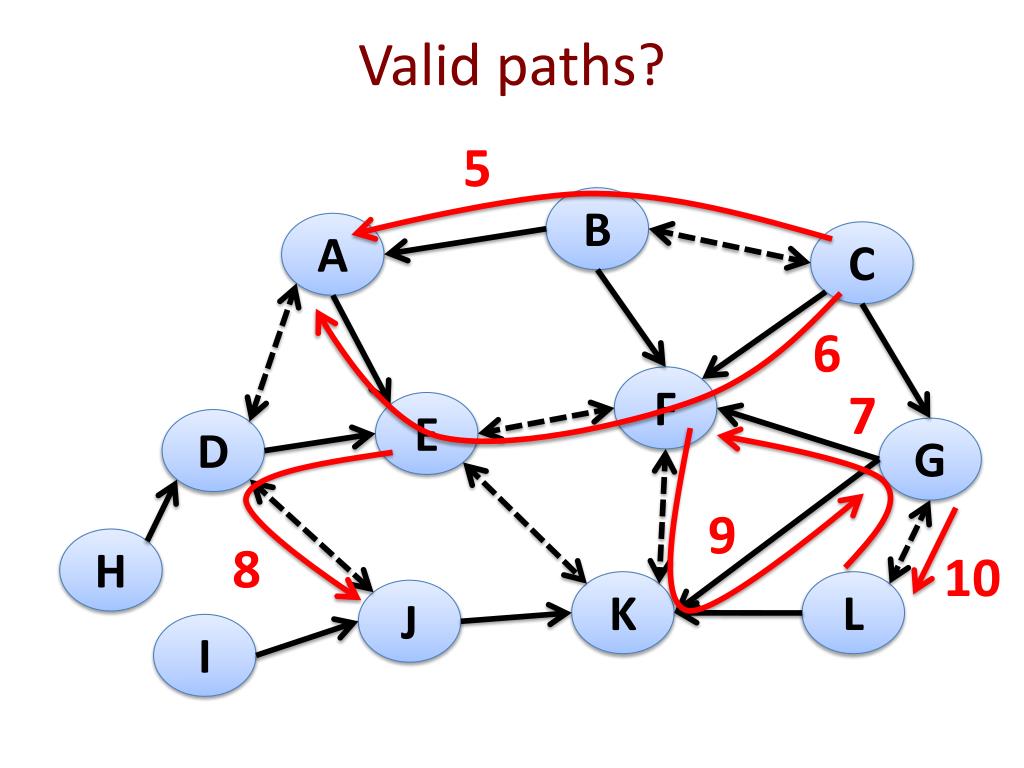

  5. Valid paths? 5 B A C 6 F 7 E D G 9 H 8 10 K L J I

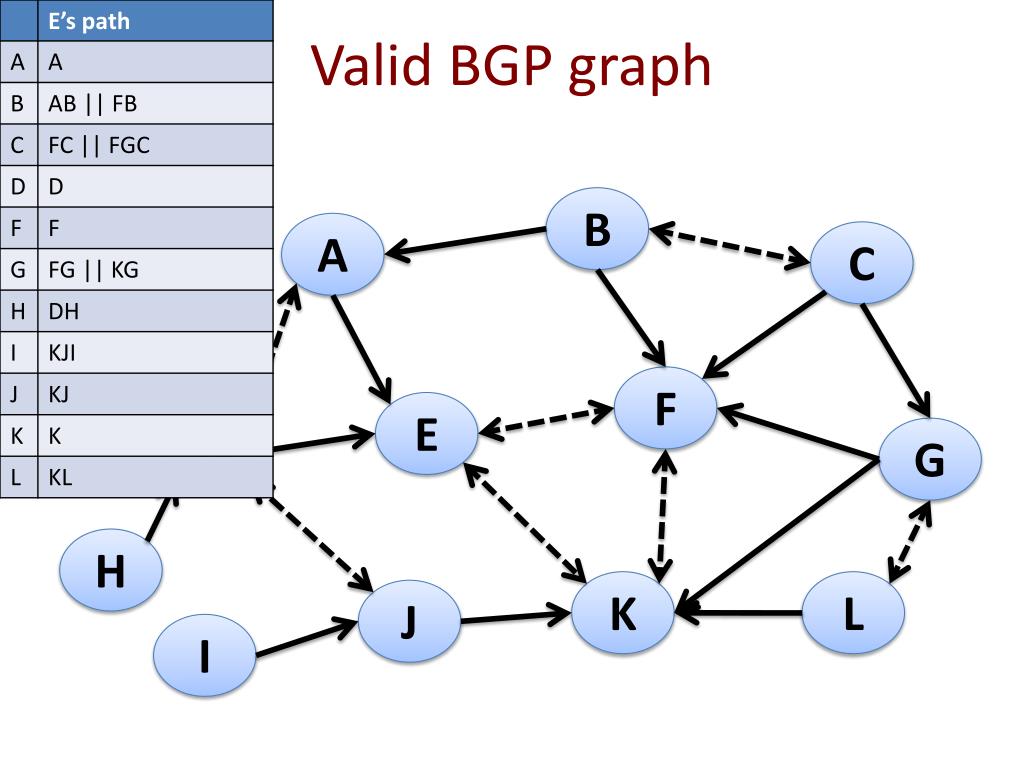

  6. Valid BGP graph B A C F E D G H K L J I

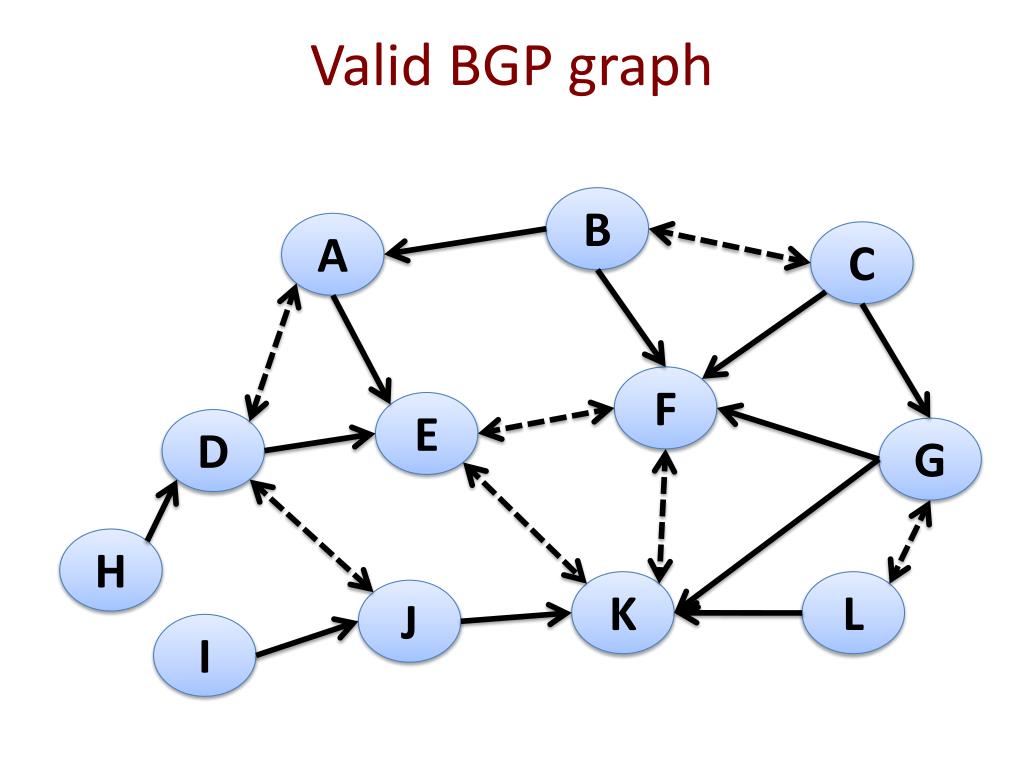

  7. Valid BGP graph B A C F E D G H K L J I
