Inter-Domain Routing: BGP

Inter-Domain Routing: BGP Brad Karp UCL Computer Science (drawn mostly from lecture notes by Hari Balakrishnan and Nick Feamster, MIT) CS 6007/GC15/GA07 18th March, 2009

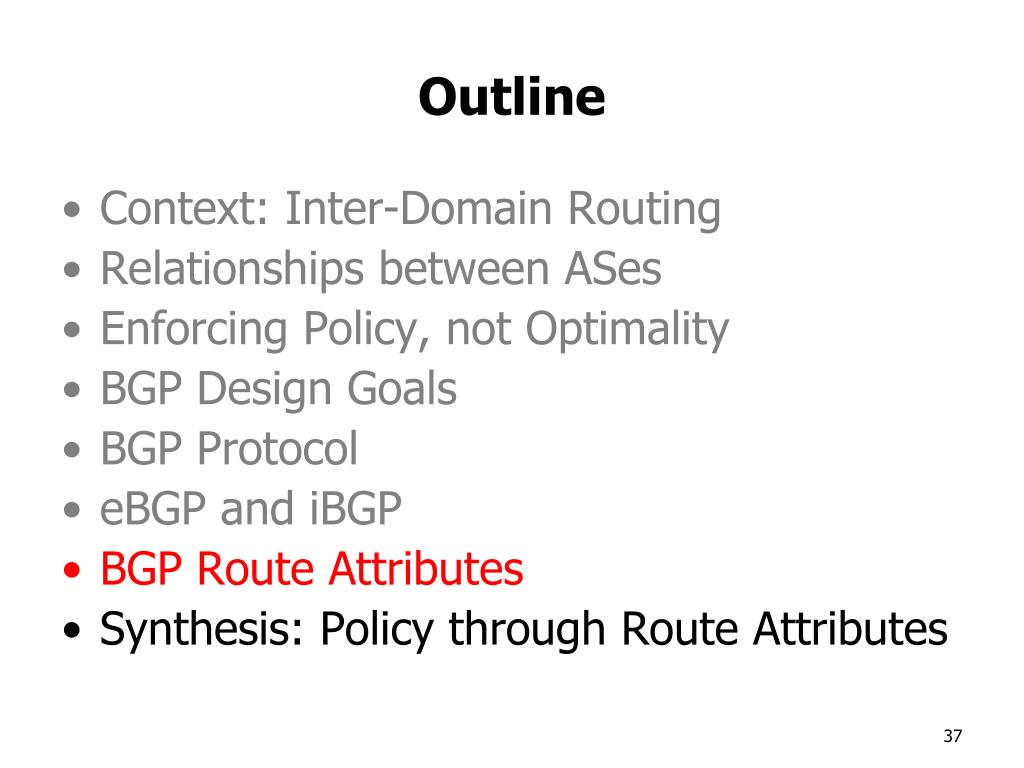

Outline • Context: Inter-Domain Routing • Relationships between ASes • Enforcing Policy, not Optimality • BGP Design Goals • BGP Protocol • eBGP and iBGP • BGP Route Attributes • Synthesis: Policy through Route Attributes

Context: Inter-Domain Routing • So far, have studied intra-domain routing • Domain: group of routers owned by a single entity, typically numbering at most 100s • Distance Vector, Link State protocols: types of Interior Gateway Protocol (IGP) • Today’s topic: inter-domain routing • Routing protocol that binds domains together into global Internet • Border Gateway Protocol (BGP): type of Exterior Gateway Protocol (EGP)

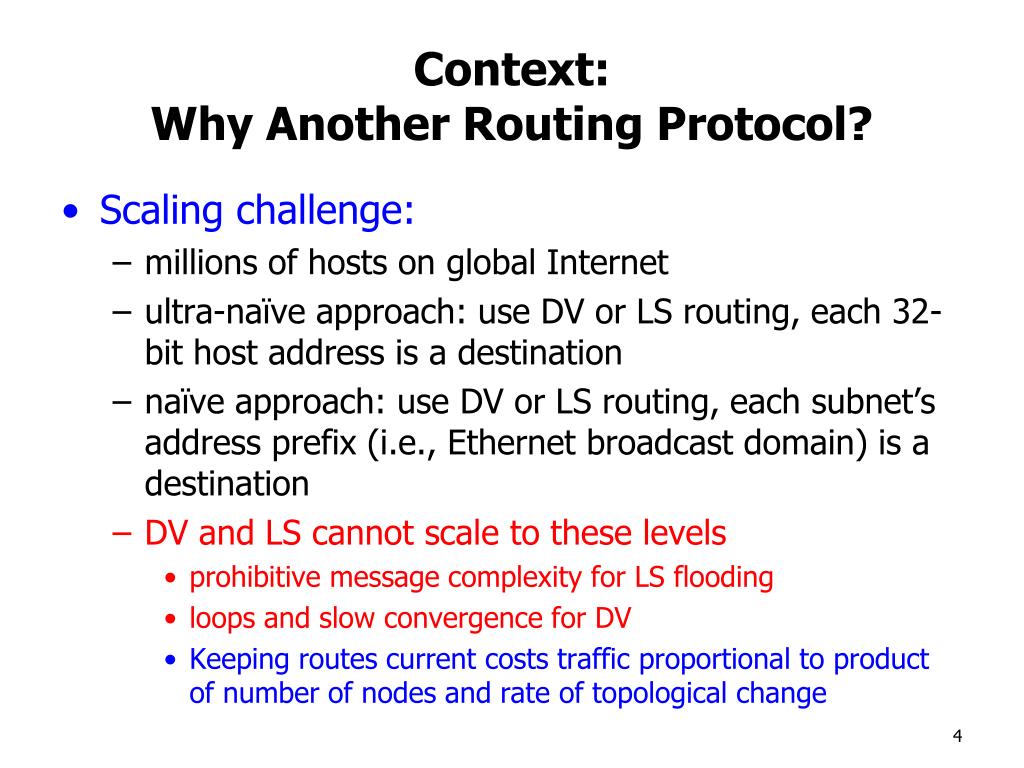

Context:Why Another Routing Protocol? • Scaling challenge: • millions of hosts on global Internet • ultra-naïve approach: use DV or LS routing, each 32-bit host address is a destination • naïve approach: use DV or LS routing, each subnet’s address prefix (i.e., Ethernet broadcast domain) is a destination • DV and LS cannot scale to these levels • prohibitive message complexity for LS flooding • loops and slow convergence for DV • Keeping routes current costs traffic proportional to product of number of nodes and rate of topological change

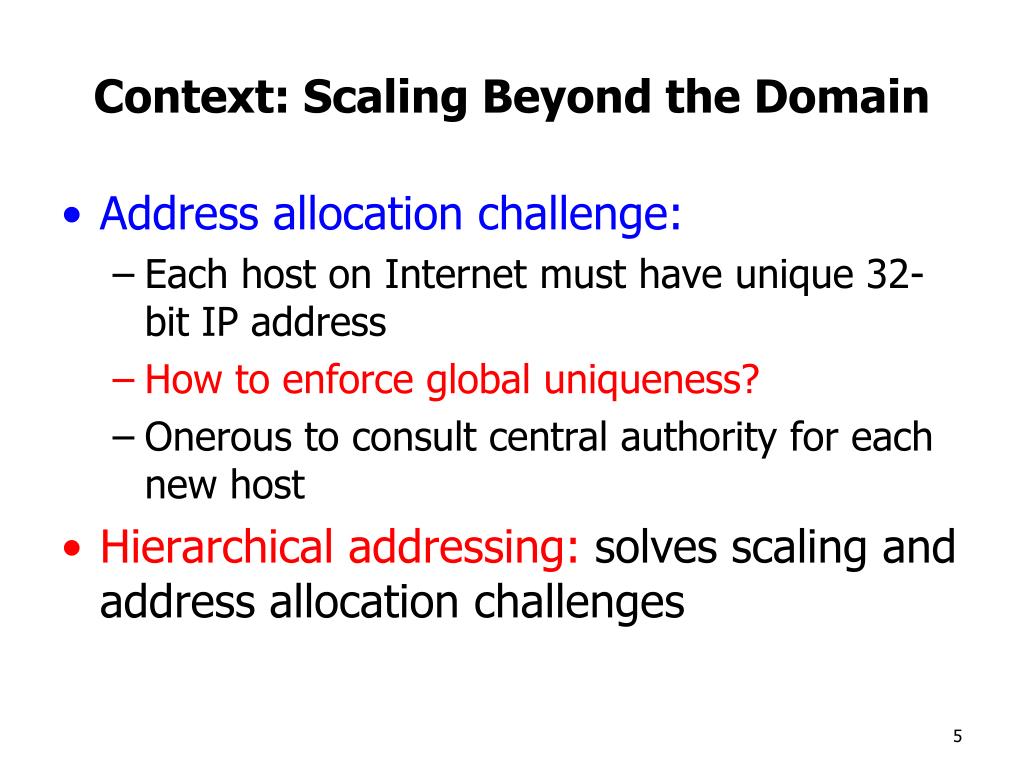

Context: Scaling Beyond the Domain • Address allocation challenge: • Each host on Internet must have unique 32-bit IP address • How to enforce global uniqueness? • Onerous to consult central authority for each new host • Hierarchical addressing: solves scaling and address allocation challenges

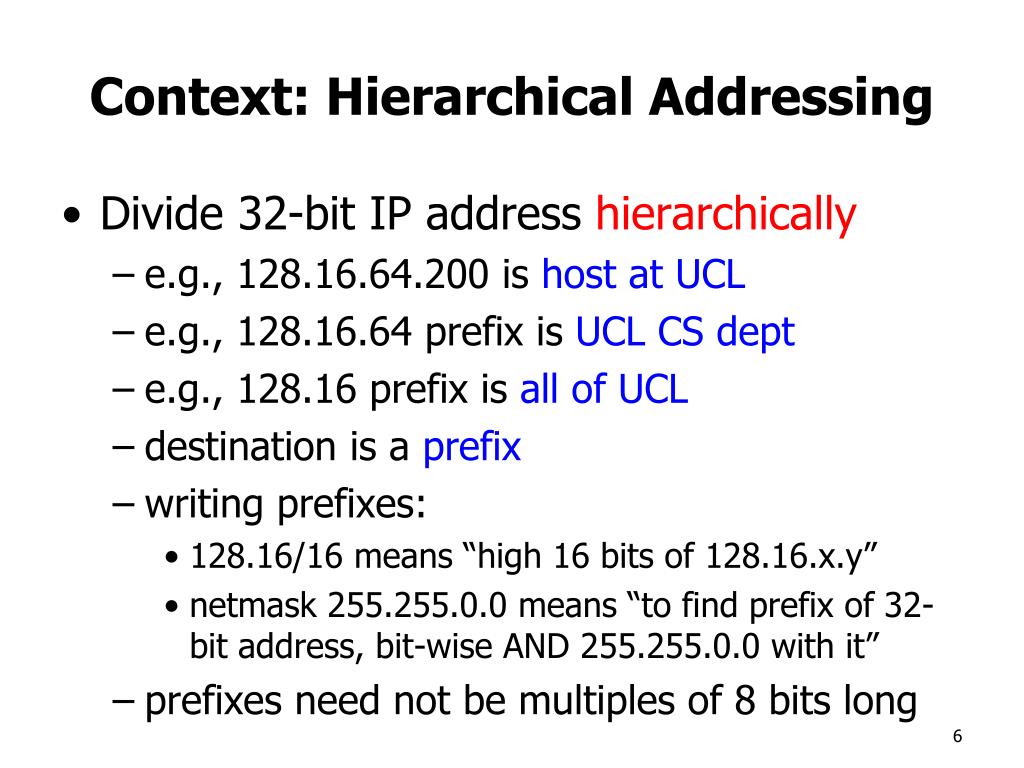

Context: Hierarchical Addressing • Divide 32-bit IP address hierarchically • e.g., 128.16.64.200 is host at UCL • e.g., 128.16.64 prefix is UCL CS dept • e.g., 128.16 prefix is all of UCL • destination is a prefix • writing prefixes: • 128.16/16 means “high 16 bits of 128.16.x.y” • netmask 255.255.0.0 means “to find prefix of 32-bit address, bit-wise AND 255.255.0.0 with it” • prefixes need not be multiples of 8 bits long

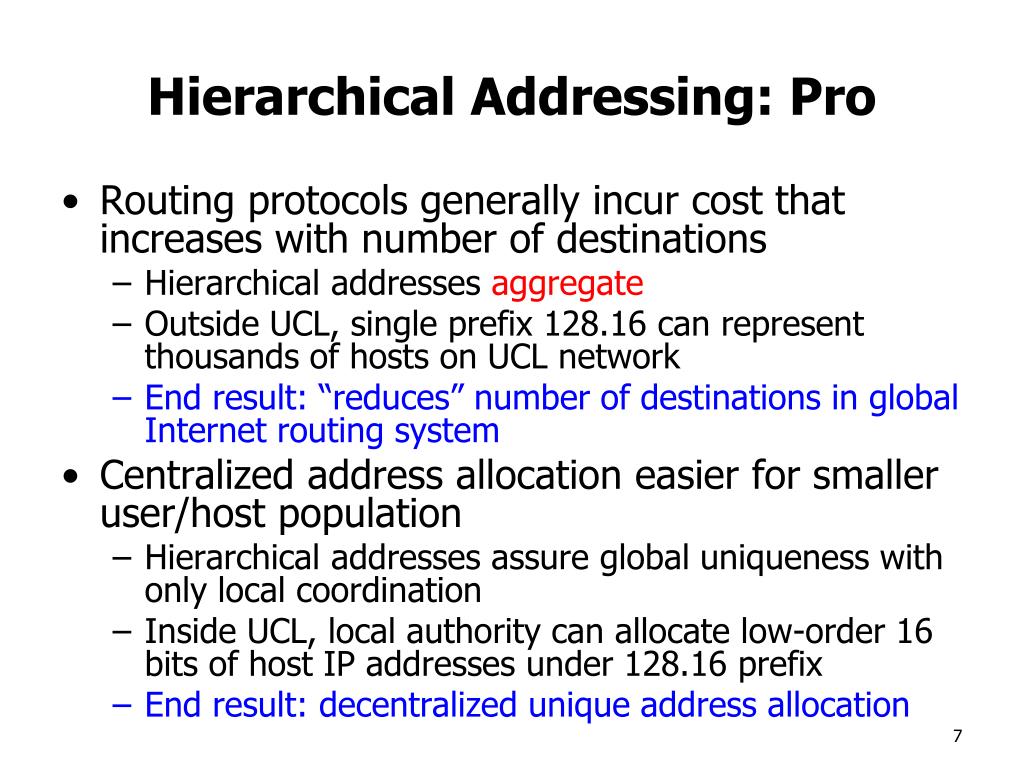

Hierarchical Addressing: Pro • Routing protocols generally incur cost that increases with number of destinations • Hierarchical addresses aggregate • Outside UCL, single prefix 128.16 can represent thousands of hosts on UCL network • End result: “reduces” number of destinations in global Internet routing system • Centralized address allocation easier for smaller user/host population • Hierarchical addresses assure global uniqueness with only local coordination • Inside UCL, local authority can allocate low-order 16 bits of host IP addresses under 128.16 prefix • End result: decentralized unique address allocation

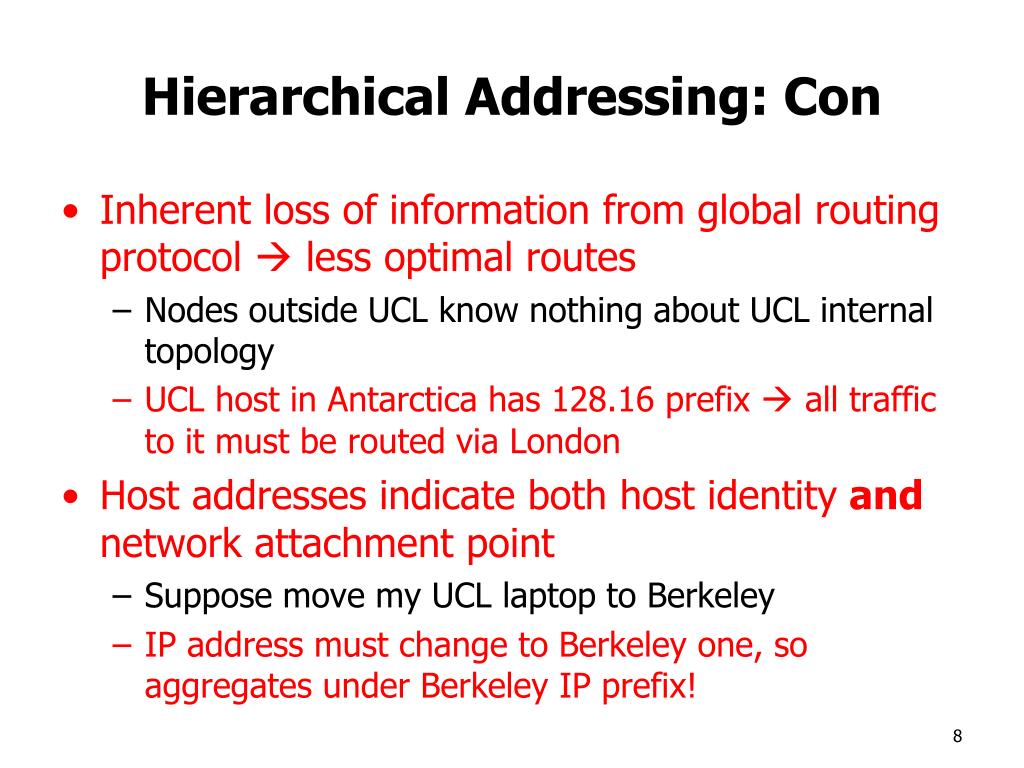

Hierarchical Addressing: Con • Inherent loss of information from global routing protocol  less optimal routes • Nodes outside UCL know nothing about UCL internal topology • UCL host in Antarctica has 128.16 prefix  all traffic to it must be routed via London • Host addresses indicate both host identity and network attachment point • Suppose move my UCL laptop to Berkeley • IP address must change to Berkeley one, so aggregates under Berkeley IP prefix!

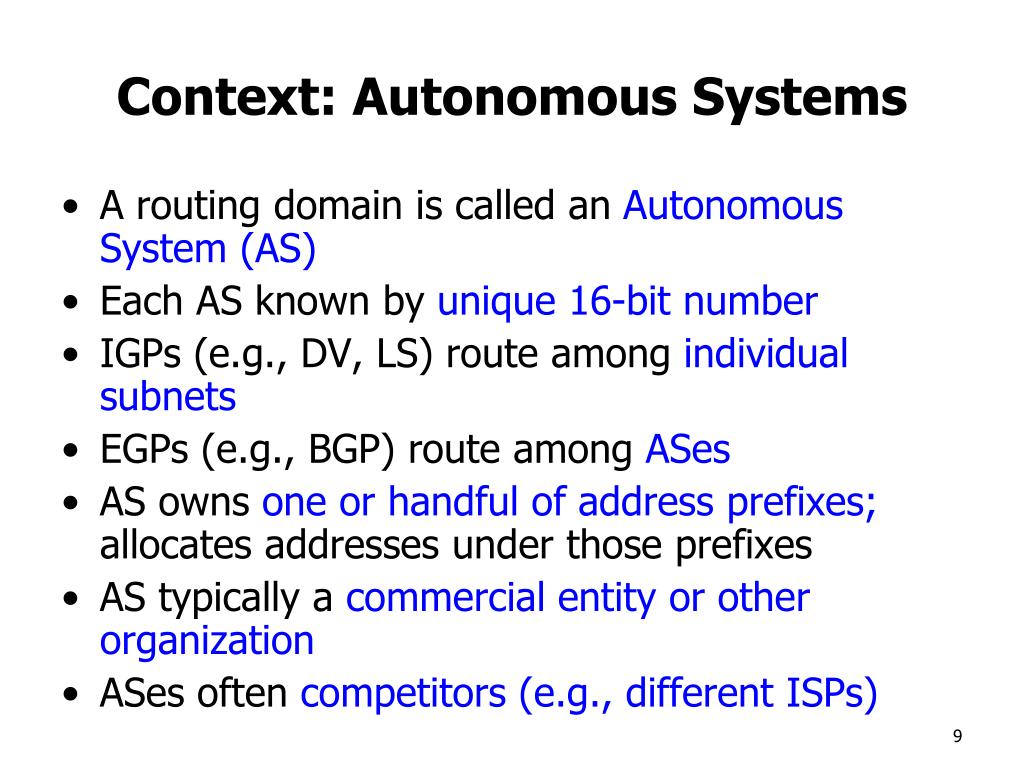

Context: Autonomous Systems • A routing domain is called an Autonomous System (AS) • Each AS known by unique 16-bit number • IGPs (e.g., DV, LS) route among individual subnets • EGPs (e.g., BGP) route among ASes • AS owns one or handful of address prefixes; allocates addresses under those prefixes • AS typically a commercial entity or other organization • ASes often competitors (e.g., different ISPs)

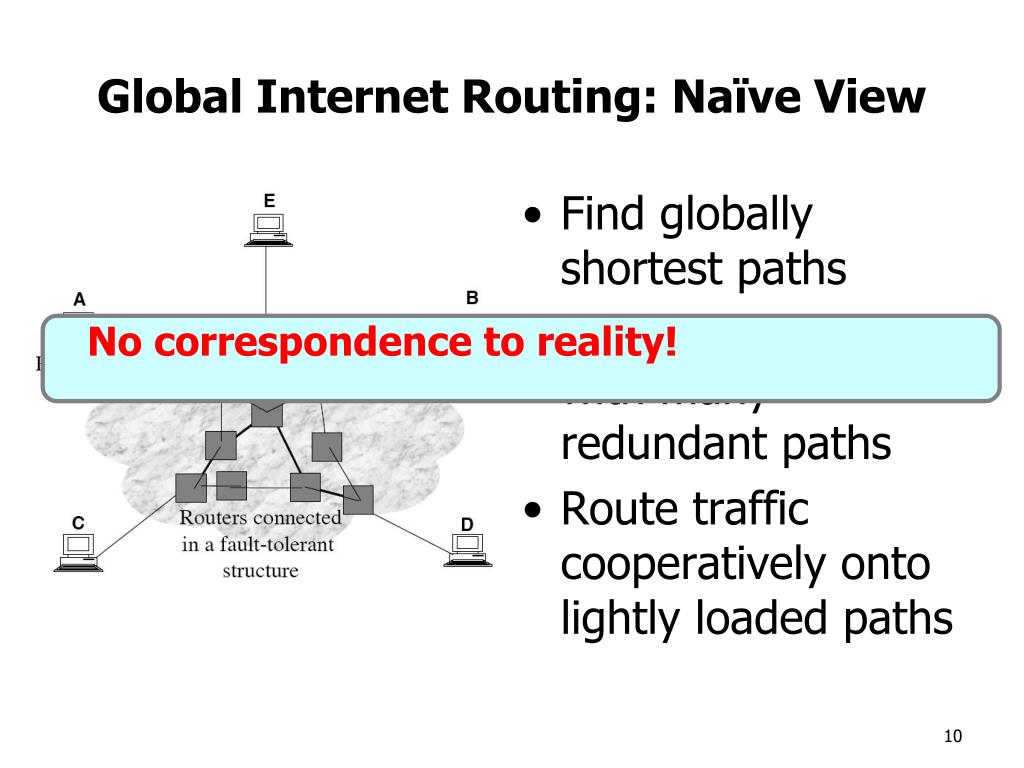

No correspondence to reality! Global Internet Routing: Naïve View • Find globally shortest paths • Dense connectivity with many redundant paths • Route traffic cooperatively onto lightly loaded paths

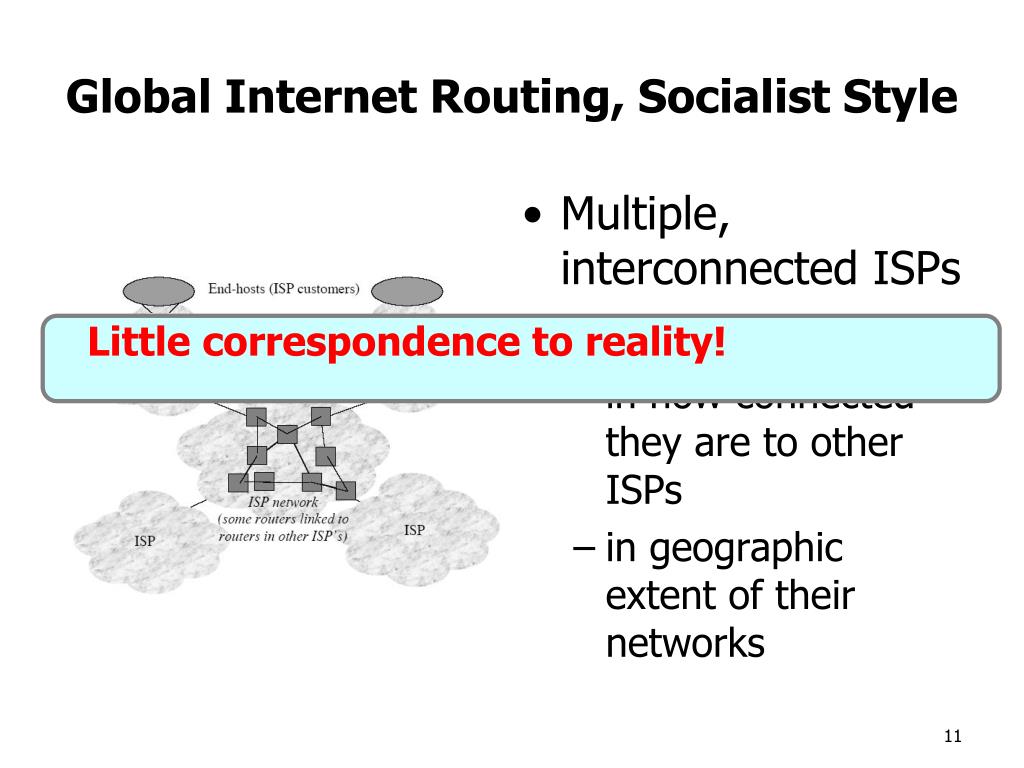

Little correspondence to reality! Global Internet Routing, Socialist Style • Multiple, interconnected ISPs • ISPs all equal: • in how connected they are to other ISPs • in geographic extent of their networks

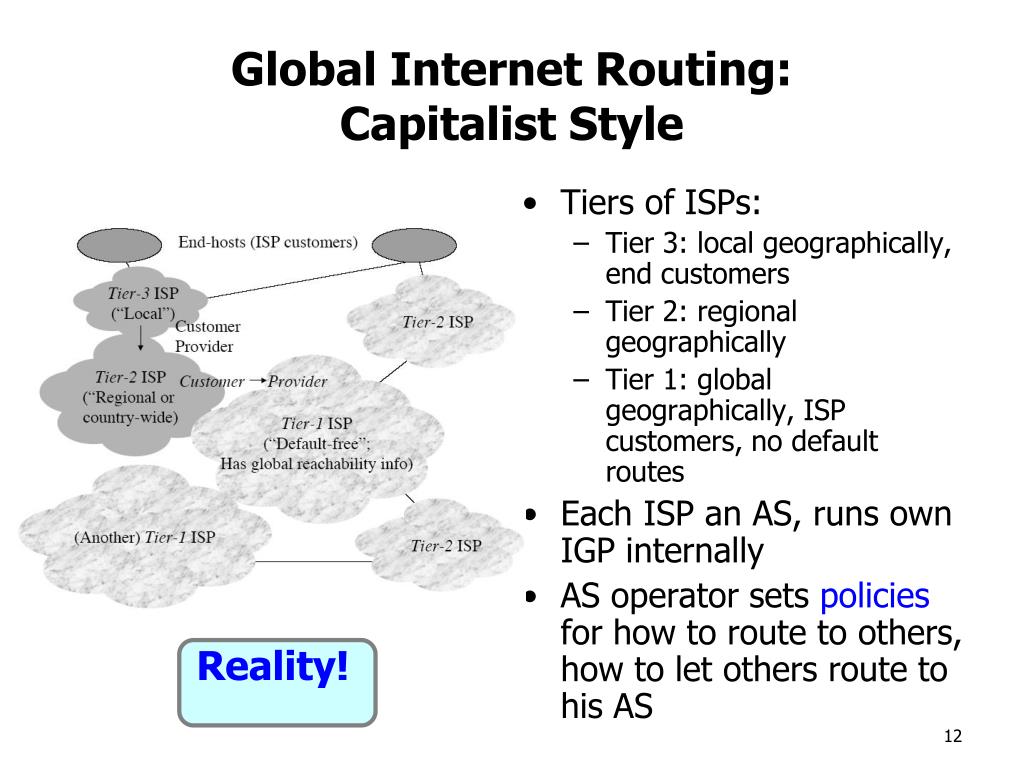

Reality! Global Internet Routing:Capitalist Style • Tiers of ISPs: • Tier 3: local geographically, end customers • Tier 2: regional geographically • Tier 1: global geographically, ISP customers, no default routes • Each ISP an AS, runs own IGP internally • AS operator sets policies for how to route to others, how to let others route to his AS

AS-AS Relationships:Customers and Providers • Smaller ASes (corporations, universities) typically purchase connectivity from ISPs • Regional ISPs typically purchase connectivity from global ISPs • Each such connection has two roles: • Customer: smaller AS paying for connectivity • Provider: larger AS being paid for connectivity • Other possibility: ISP-to-ISP connection

AS-AS Relationship:Transit • Provider-Customer AS-AS connections: transit • Provider allows customer to route to (nearly) all destinations in its routing tables • Transit nearly always involves payment from customer to provider

AS-AS Relationship:Peering • Peering: two ASes (usually ISPs) mutually allow one another to route to some of the destinations in their routing tables • Typically these are their own customers (whom they provide transit) • By contract, but usually no money changes hands, so long as traffic ratio is narrower than, e.g., 4:1

Financial Motives: Peering and Transit • Peering relationship often between competing ISPs • Incentives to peer: • Typically, two ISPs notice their own direct customers originate a lot of traffic for the other • Each can avoid paying transit costs to others for this traffic; shunt it directly to one another • Often better performance (shorter latency, lower loss rate) as avoid transit via another provider • Easier than stealing one another’s customers • Tier 1s must typically peer with one another to build complete, global routing tables

Financial Motives: Peering and Transit(cont’d) • Disincentives to peer: • Economic disincentive: transit lets ISP charge customer; peering typically doesn’t • Contracts must be renegotiated often • Need to agree on how to handle asymmetric traffic loads between peers

The Meaning of Advertising Routes • When AS A advertises a route for destination D to AS B, it effectively offers to forward all traffic from AS B to D • Forwarding traffic costs bandwidth • ASes strongly motivated to control which routes they advertise • no one wants to forward packets without being compensated to do so • e.g., when peering, only let neighboring AS send to specific own customer destinations enumerated peering contract

Advertising Routes for Transit Customers • ISP motivated to advertise routes to its own customers to its transit providers • Customers paying to be reachable from global Internet • More traffic to customer, faster link customer must buy • If ISP hears route for its own customer from multiple neighbors, should favor advertisement from own customer

Routes Heard from Providers • If ISP hears routes from its provider (via a transit relationship), to whom does it advertise them? • Not to ISPs with peering relationships; they don’t pay, so no motivation to provide transit service for them! • To own customers, who pay to be able to reach global Internet

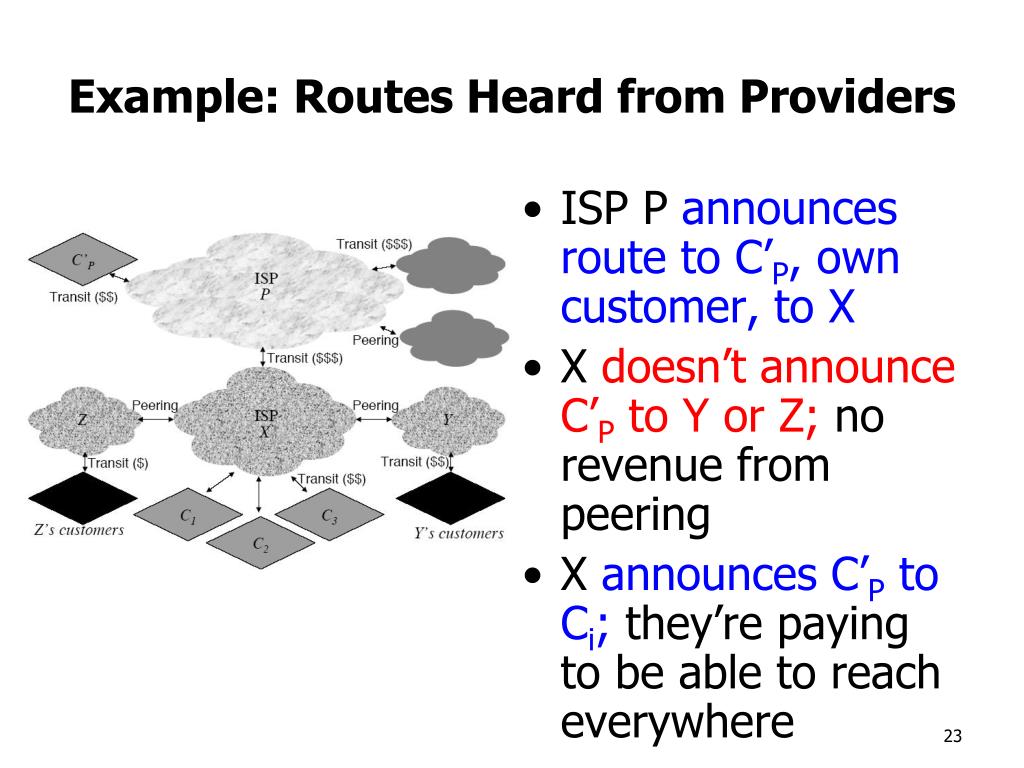

Example: Routes Heard from Providers • ISP P announces route to C’P, own customer, to X • X doesn’t announce C’P to Y or Z; no revenue from peering • X announces C’P to Ci; they’re paying to be able to reach everywhere

Routes Advertised to Peers • Which routes should an ISP advertise to ASes with whom it has peering relationships? • Routes for all own downstream transit customers • Routes to ISP’s own addresses • Not routes heard from upstream transit provider of ISP; peer might route via ISP for those destinations, but doesn’t pay • Not routes heard from other peering relationships (same reason!)

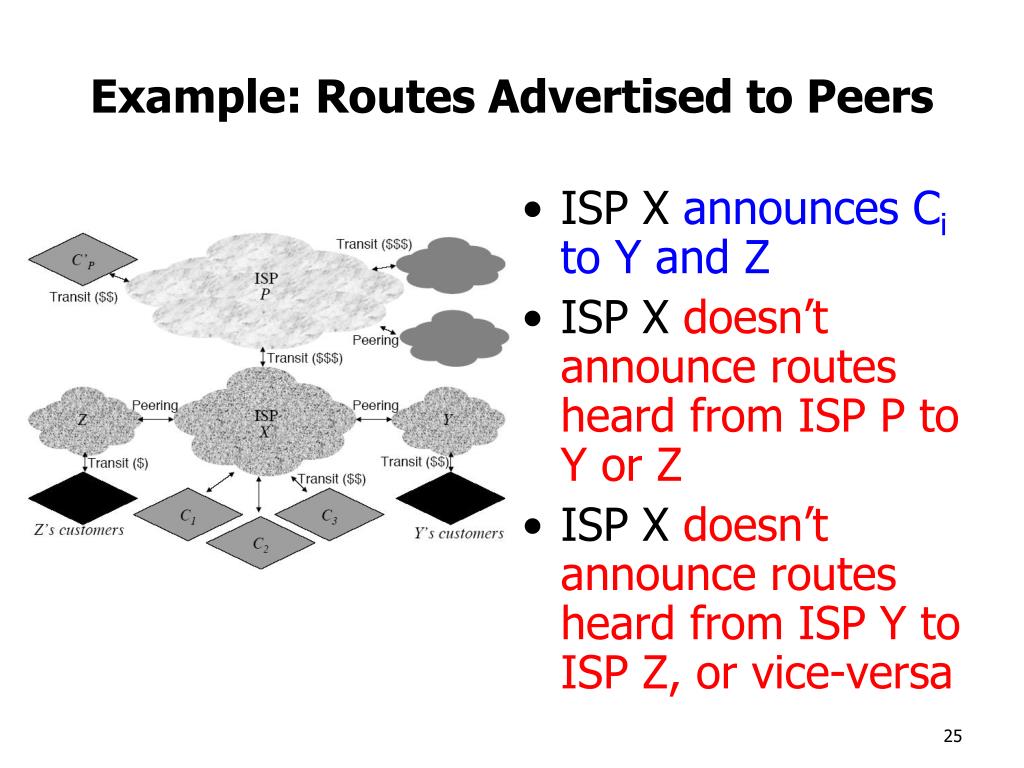

Example: Routes Advertised to Peers • ISP X announces Ci to Y and Z • ISP X doesn’t announce routes heard from ISP P to Y or Z • ISP X doesn’t announce routes heard from ISP Y to ISP Z, or vice-versa

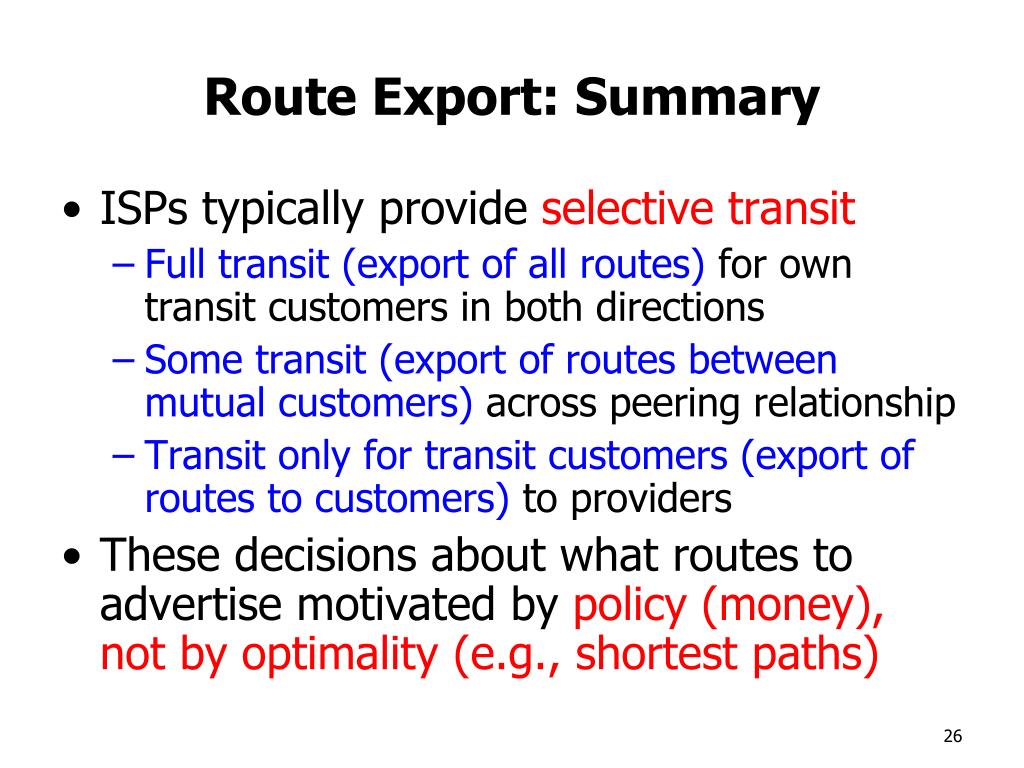

Route Export: Summary • ISPs typically provide selective transit • Full transit (export of all routes) for own transit customers in both directions • Some transit (export of routes between mutual customers) across peering relationship • Transit only for transit customers (export of routes to customers) to providers • These decisions about what routes to advertise motivated bypolicy (money), not by optimality (e.g., shortest paths)

Route Import • Router may hear many routes to same destination network • Identity of advertiser very important • Suppose router hears advertisement to own transit customer from other AS • Shouldn’t route via other AS; longer path! • Customer routes higher priority than routes to same destination advertised by providers or peers • Routes heard over peering higher priority than provider routes • Peering is free; you pay provider to forward via them • customer > peer > provider

Border Gateway Protocol (BGP):Design Goals • Scalability in number of ASes • Support for policy-based routing • tagging of routes with attributes • filtering of routes • Cooperation under competitive pressure • BGP designed to run on successor to NSFnet, the former single, government-run backbone

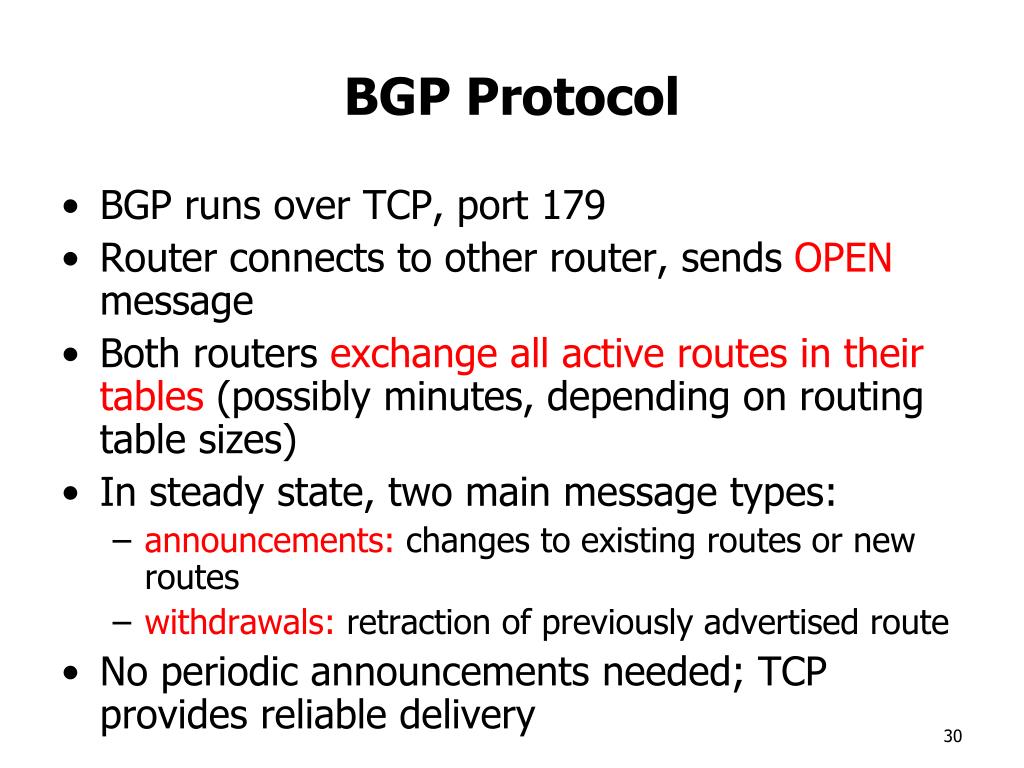

BGP Protocol • BGP runs over TCP, port 179 • Router connects to other router, sends OPEN message • Both routers exchange all active routes in their tables (possibly minutes, depending on routing table sizes) • In steady state, two main message types: • announcements: changes to existing routes or new routes • withdrawals: retraction of previously advertised route • No periodic announcements needed; TCP provides reliable delivery

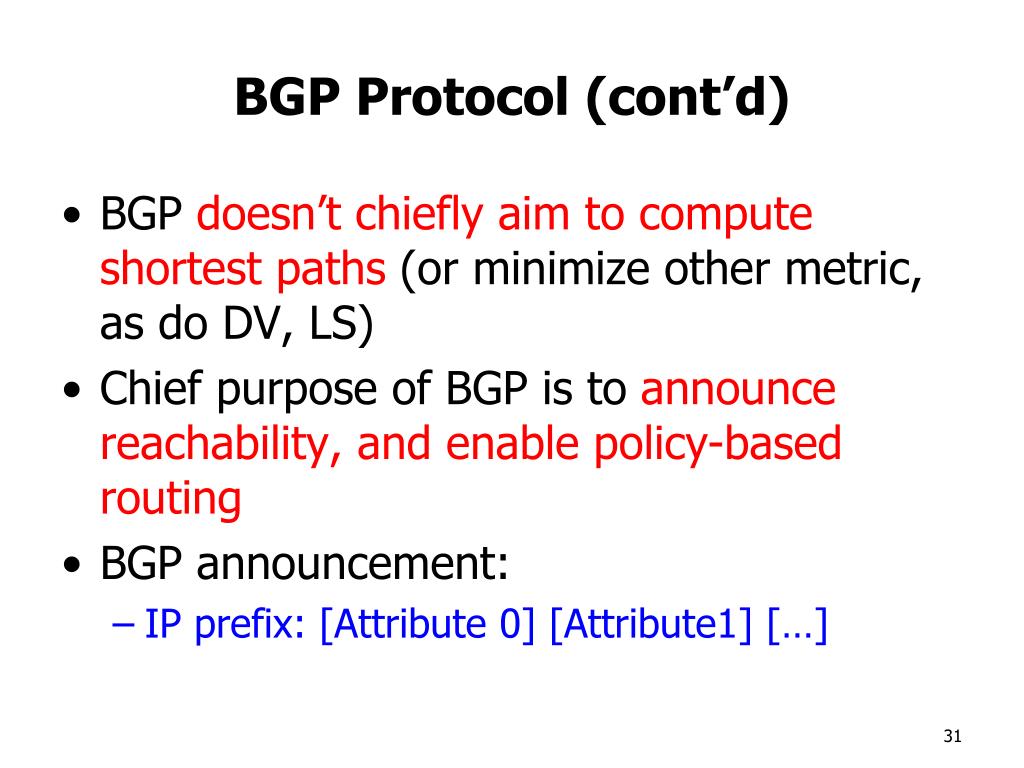

BGP Protocol (cont’d) • BGP doesn’t chiefly aim to compute shortest paths (or minimize other metric, as do DV, LS) • Chief purpose of BGP is to announce reachability, and enable policy-based routing • BGP announcement: • IP prefix: [Attribute 0] [Attribute1] […]

eBGP and iBGP • eBGP: external BGP advertises routes between ASes • iBGP: internal BGP propagates external routes throughout receiving AS

Within AS1, choosing external route to destination in AS2 amounts to choosing egress router within AS1 eBGP and iBGP (cont’d) • Each eBGP participant hears different advertisements from neighboring ASes • Must propagate routes learned via eBGP throughout AS • Design goals: • Loop-free forwarding: forwarding paths over routes learned via eBGP should not loop • Complete visibility: all routers within AS must choose same, best route to destination learned via eBGP

Pro: simple Con: scales badly in intra-AS router count: O(e2 + ei) iBGP sessions (where e eBGP routers, i iBGP routers) More scalable iBGP uses route reflectors or confederations; details in lecture notes Simple iBGP: Full Mesh • How to achieve complete visibility? • Push all routes learned via eBGP to all internal routers using iBGP • Full Mesh: each eBGP router floods routes it learns to all other routers in AS • Flooding done over TCP, using intra-AS routing provided by IGP (e.g., link state routing)

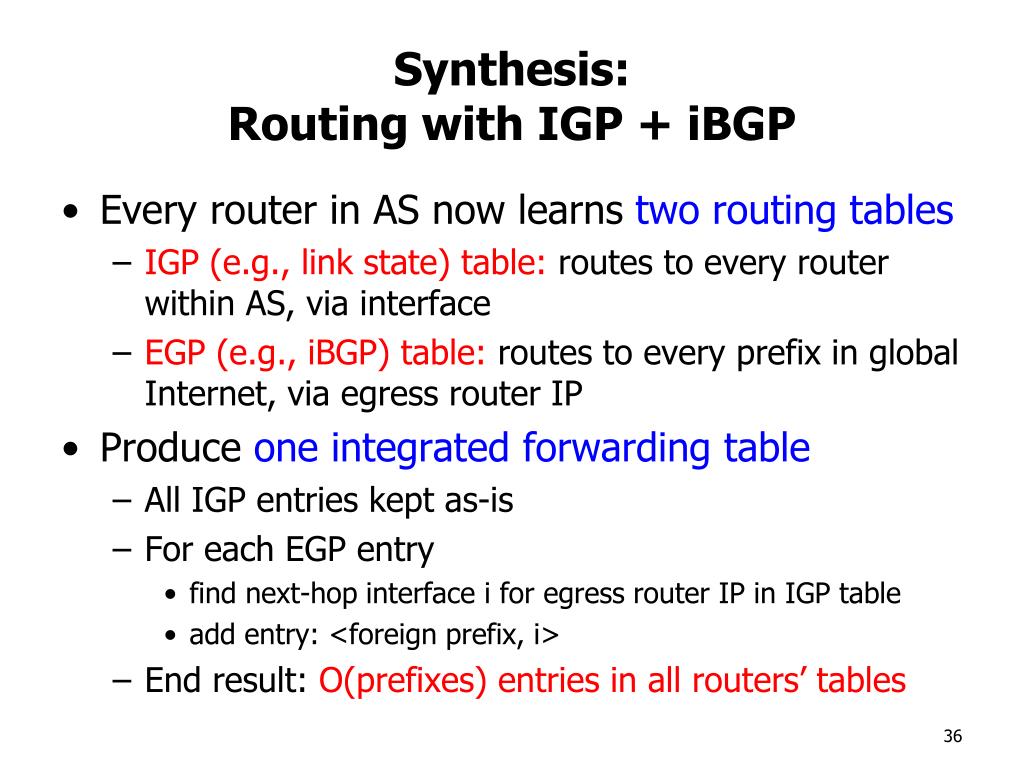

Synthesis:Routing with IGP + iBGP • Every router in AS now learns two routing tables • IGP (e.g., link state) table: routes to every router within AS, via interface • EGP (e.g., iBGP) table: routes to every prefix in global Internet, via egress router IP • Produce one integrated forwarding table • All IGP entries kept as-is • For each EGP entry • find next-hop interface i for egress router IP in IGP table • add entry: <foreign prefix, i> • End result: O(prefixes) entries in all routers’ tables

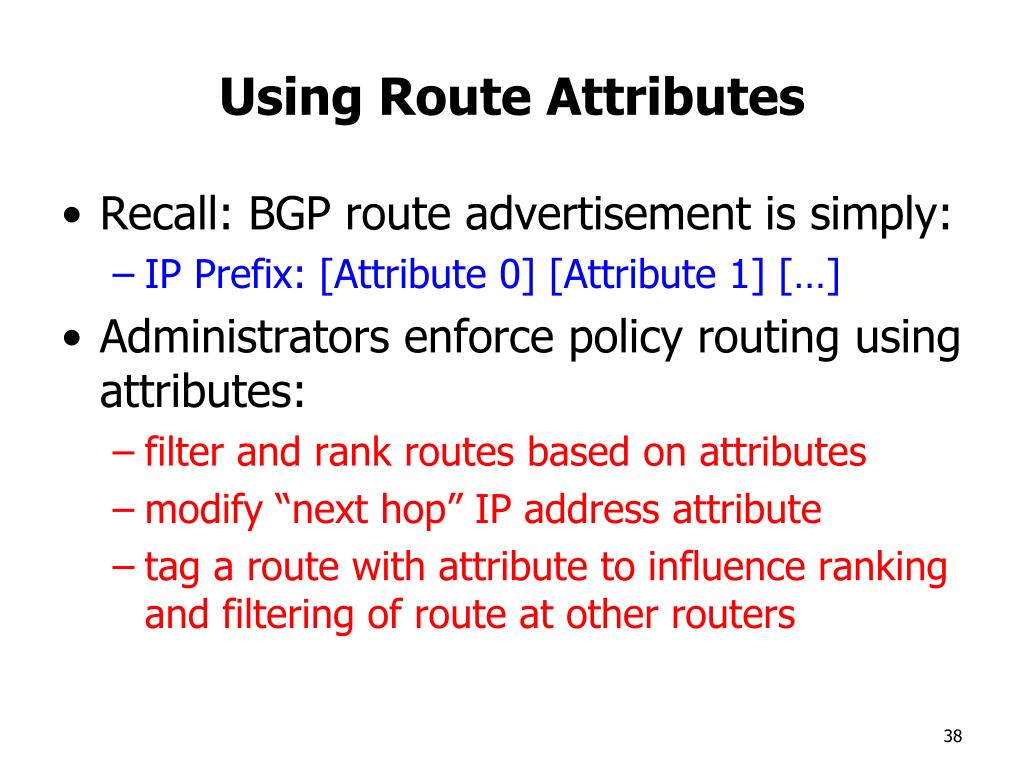

Using Route Attributes • Recall: BGP route advertisement is simply: • IP Prefix: [Attribute 0] [Attribute 1] […] • Administrators enforce policy routing using attributes: • filter and rank routes based on attributes • modify “next hop” IP address attribute • tag a route with attribute to influence ranking and filtering of route at other routers

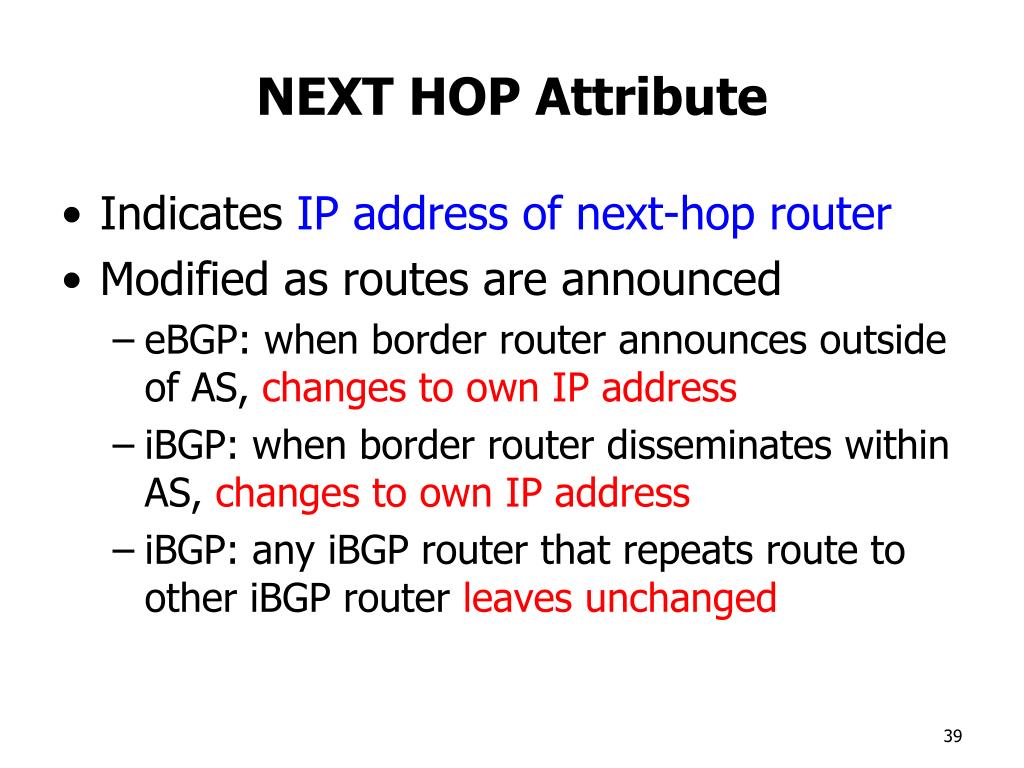

NEXT HOP Attribute • Indicates IP address of next-hop router • Modified as routes are announced • eBGP: when border router announces outside of AS, changes to own IP address • iBGP: when border router disseminates within AS, changes to own IP address • iBGP: any iBGP router that repeats route to other iBGP router leaves unchanged

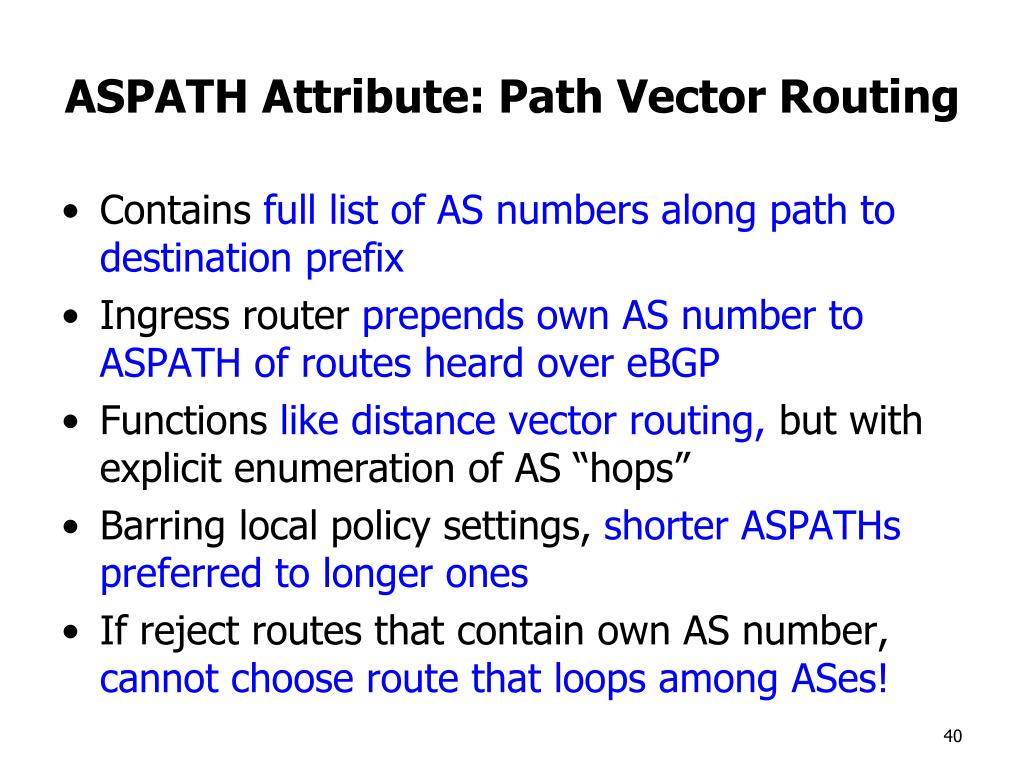

ASPATH Attribute: Path Vector Routing • Contains full list of AS numbers along path to destination prefix • Ingress router prepends own AS number to ASPATH of routes heard over eBGP • Functions like distance vector routing, but with explicit enumeration of AS “hops” • Barring local policy settings, shorter ASPATHs preferred to longer ones • If reject routes that contain own AS number, cannot choose route that loops among ASes!

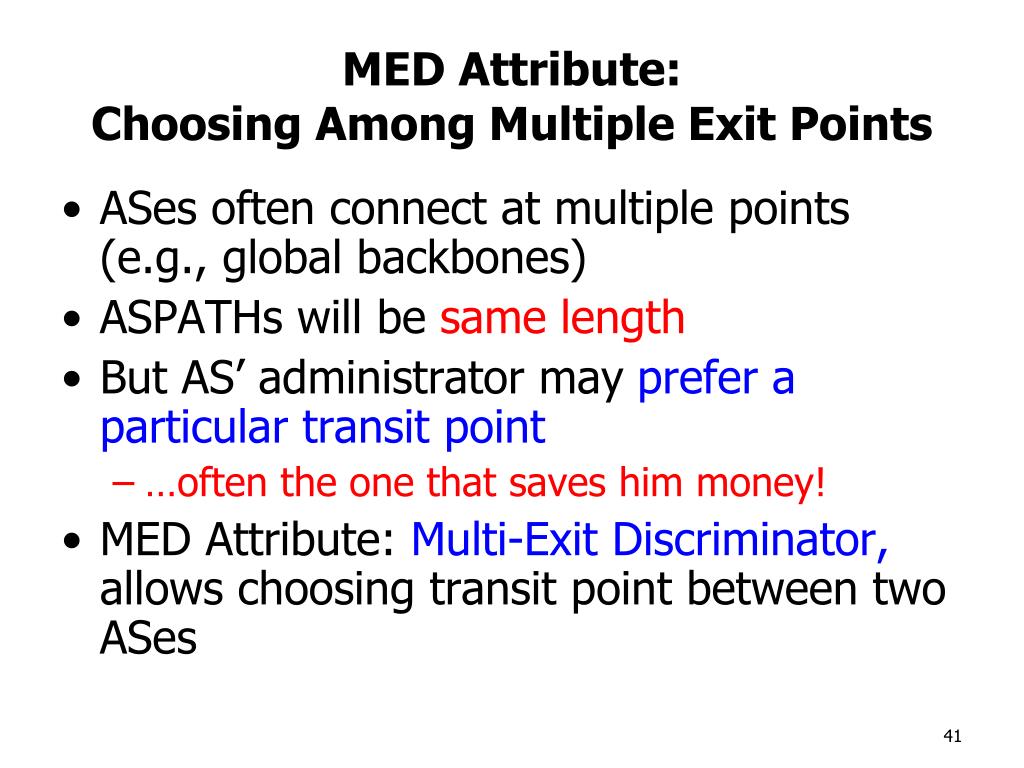

MED Attribute:Choosing Among Multiple Exit Points • ASes often connect at multiple points (e.g., global backbones) • ASPATHs will be same length • But AS’ administrator may prefer a particular transit point • …often the one that saves him money! • MED Attribute: Multi-Exit Discriminator, allows choosing transit point between two ASes

MED Attribute: Example • Provider P, customer C • Source: Boston on P, Destination: San Francisco on C • Whose backbone for cross-country trip? • C wants traffic to cross country on P

AS need not honor MEDs from neighbor AS only motivated to honor MEDs from other AS with whom financial settlement in place; i.e., not done in peering arrangements Most ISPs prefer shortest-exit routing: get packet onto someone else’s backbone as quickly as possible Result: highly asymmetric routes! (why?) MED Attribute: Example (cont’d) • C adds MED attribute to advertisements of routes to DSF • Integer cost • C’s router in SF advertises MED 100; in BOS advertises 500 • P should choose MED with least cost for destination DSF • Result: traffic crosses country on P

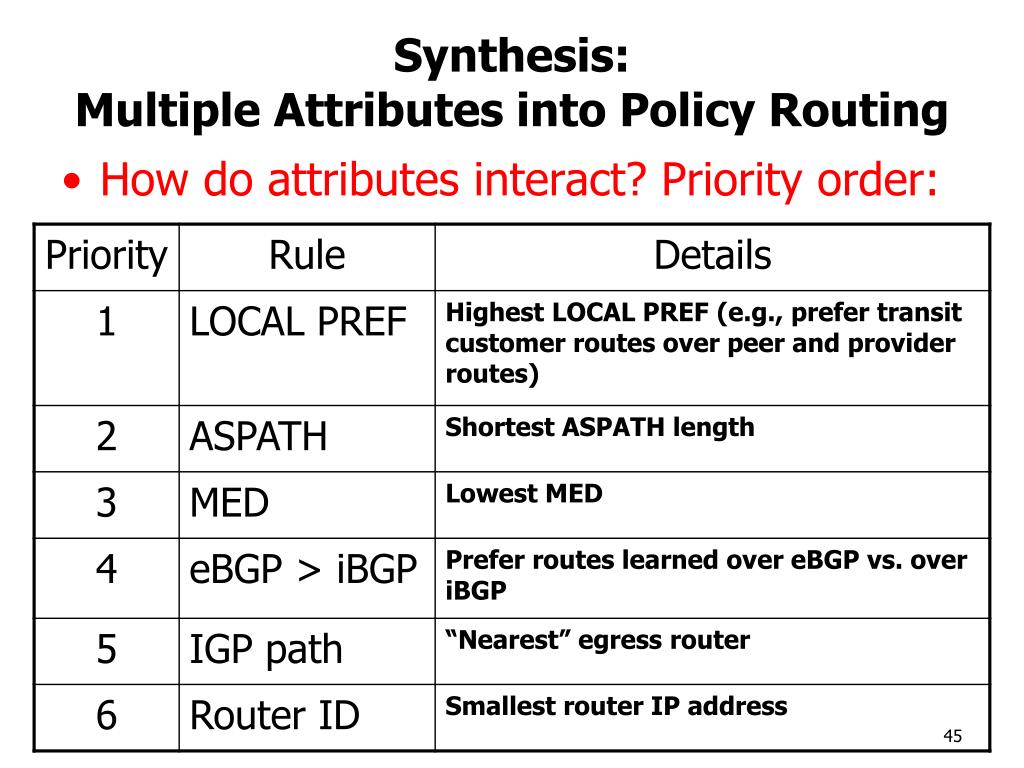

Synthesis:Multiple Attributes into Policy Routing • How do attributes interact? Priority order:

Summary:Inter-Domain Routing with BGP • Inter-domain routing chiefly concerned with policy, not optimality • Economic motivation: cost of carrying traffic • Different relationships demand different routing: customer-provider vs. peering • BGP: Path-Vector inter-domain routing protocol • Scalable in number of ASes • Route attributes support policy routing • Loop-free at AS granularity • Shortest ASPATHs achieved, after policy enforced • Behavior and configuration of BGP very complex and poorly understood; open research problem!
