Understanding Slope: Calculation and Interpretation of Line Equations

adrienne-burke avatar
adrienne-burke
28 diapositives · 426 Views · Nov 13, 2014

In this lecture, we delve into the concept of slope, defined as "rise over run," and explore its calculation based on two points on a line. Through practical examples, we demonstrate how to find the slope of lines passing through specific coordinates and verify these slopes graphically. Additionally, we discuss how to identify the slope and y-intercept from the equation of a line in the form Y = mx + b. By the end of this lecture, learners will be equipped with the skills to calculate and interpret slope effectively.

#understanding slope: calculation and interpretation of line equations #understanding slope: calculation and interpretation of line equations ppt #powerpoint #presentation
Understanding Slope: Calculation and Interpretation of Line Equations - slide 1
01 / 28Understanding Slope: Calculation and Interpretation of Line Equations
1 / 17

Télécharger la présentation

Understanding Slope: Calculation and Interpretation of Line Equations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Unit 2 Lecture 16Slope Slope Lecture 16

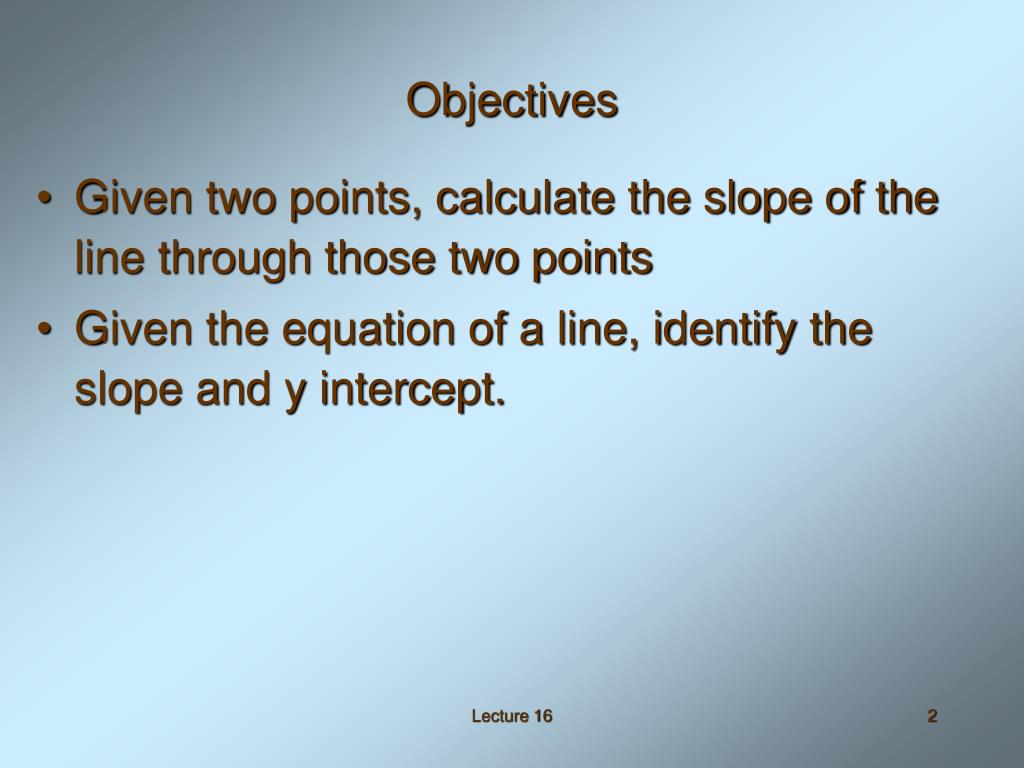

  2. Objectives • Given two points, calculate the slope of the line through those two points • Given the equation of a line, identify the slope and y intercept. Lecture 16

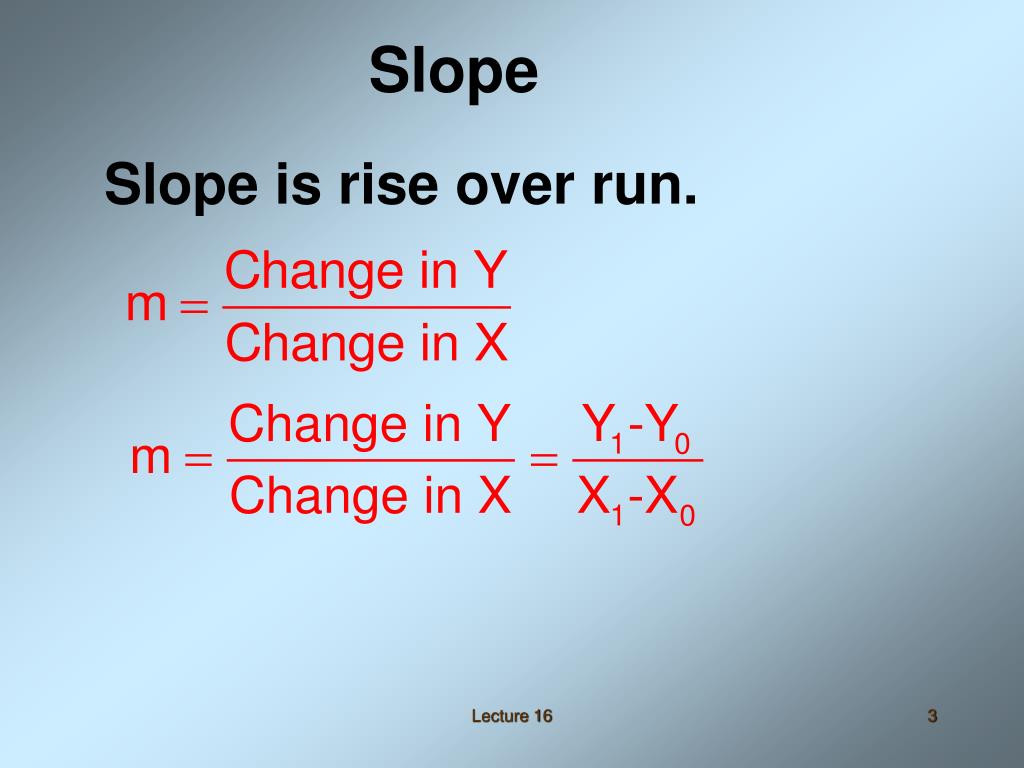

  3. Slope Slope is rise over run. Lecture 16

  4. Slope Find the Slope of the line that passes through (6, -2) and (5, 7). Lecture 16

  5. Plot the points and verify the slope of -9 (6, -2) (5, 7) 4 2 2 4 -2 Lecture 16

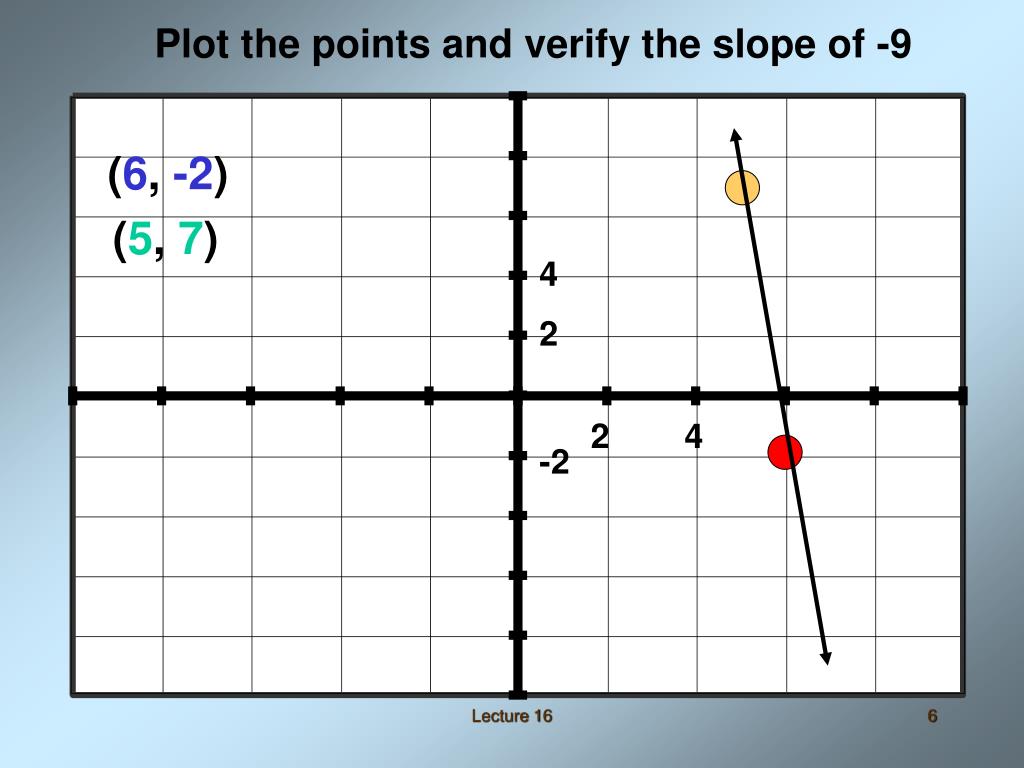

  6. Plot the points and verify the slope of -9 (6, -2) (5, 7) 4 2 2 4 -2 Lecture 16

  7. Slope Find the Slope of the line that passes through (8, 2) and (4, -12). Lecture 16

  8. Plot the points and verify the slope of 3.5 (8, 2) (4, -12) 6 3 2 4 -3 -6 -9 -12 Lecture 16

  9. Plot the points and verify the slope of 3.5 (8, 2) (4, -12) 6 3 2 4 -3 -6 -9 -12 Lecture 16

  10. Slope Find the Slope of the line that passes through (2, 4) and (2, -5). Lecture 16

  11. Plot the points and verify the slope. (2, 4) (2, -5) 2 1 1 2 -1 Lecture 16

  12. Plot the points and verify the slope. (2, 4) (2, -5) 2 1 1 2 -1 Lecture 16

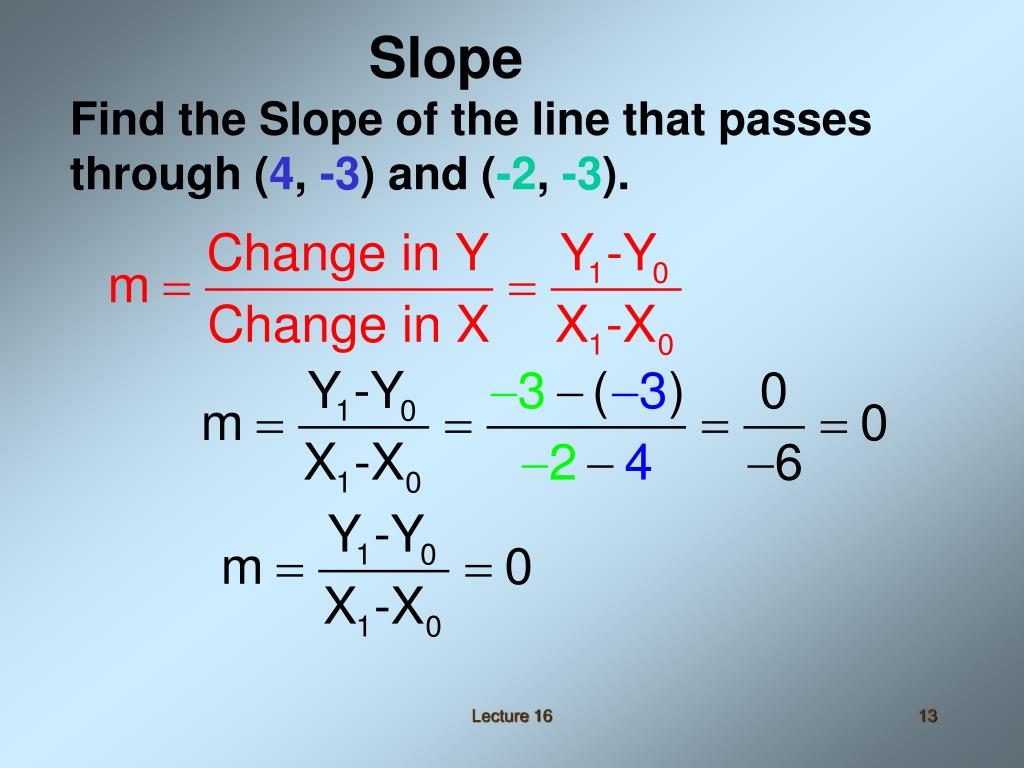

  13. Slope Find the Slope of the line that passes through (4, -3) and (-2, -3). Lecture 16

  14. Plot the points and verify the slope is 0. (4, -3) (-2, -3) 2 1 1 2 -1 -2 Lecture 16

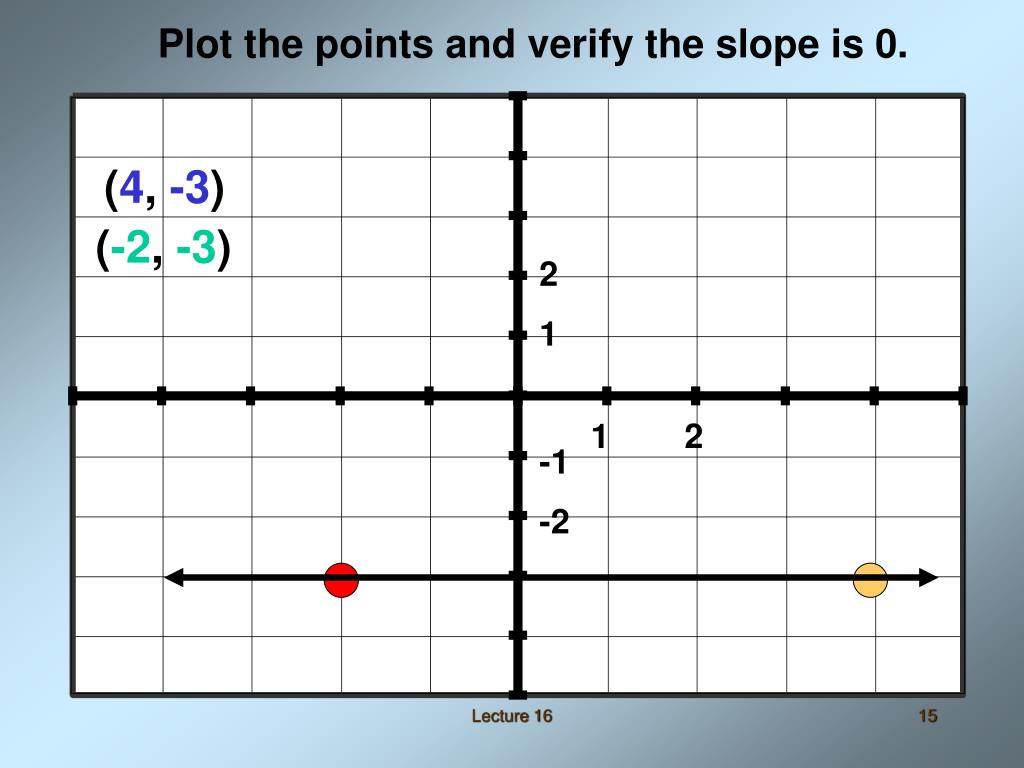

  15. Plot the points and verify the slope is 0. (4, -3) (-2, -3) 2 1 1 2 -1 -2 Lecture 16

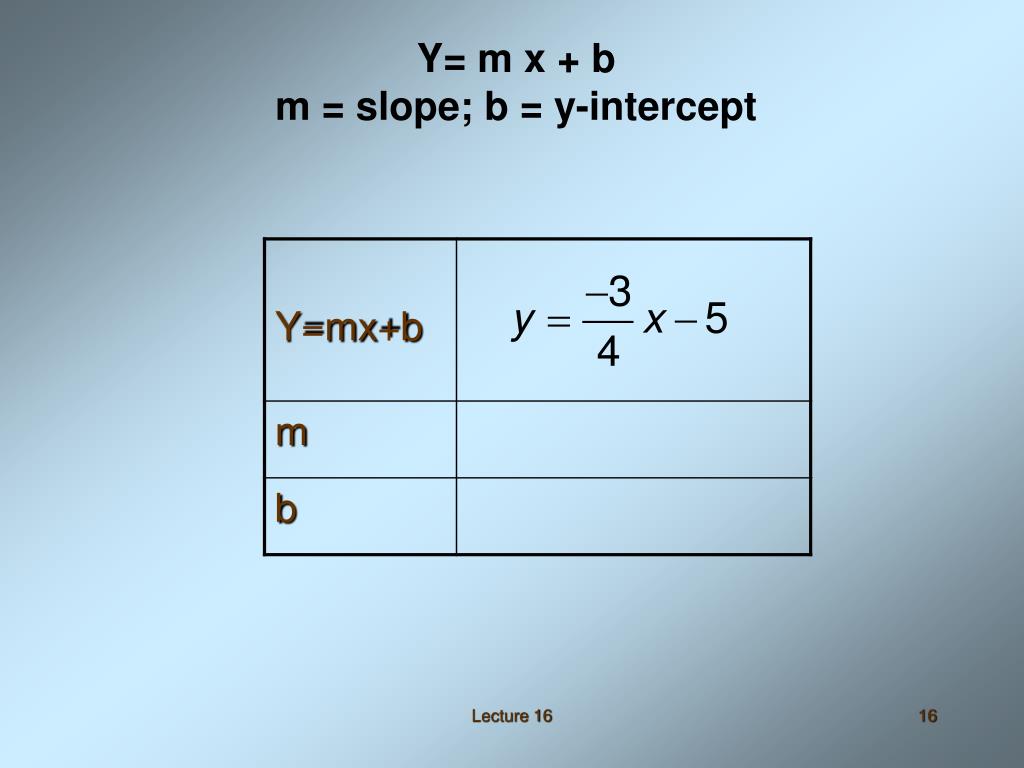

  16. Y= m x + b m = slope; b = y-intercept Lecture 16

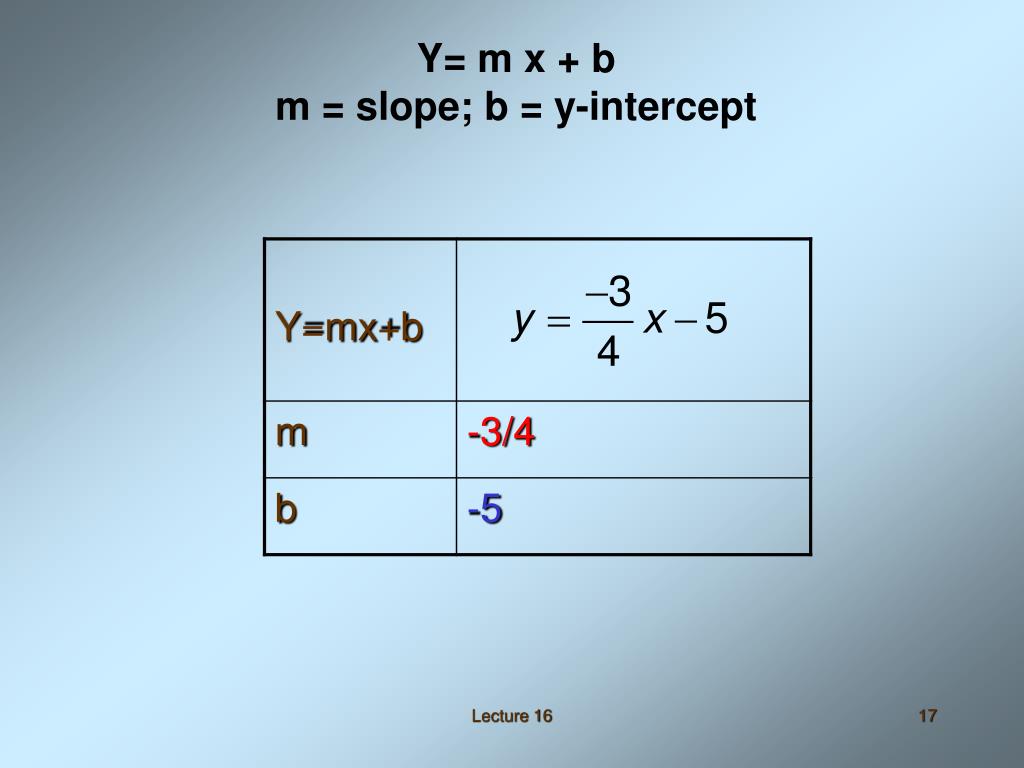

  17. Y= m x + b m = slope; b = y-intercept Lecture 16

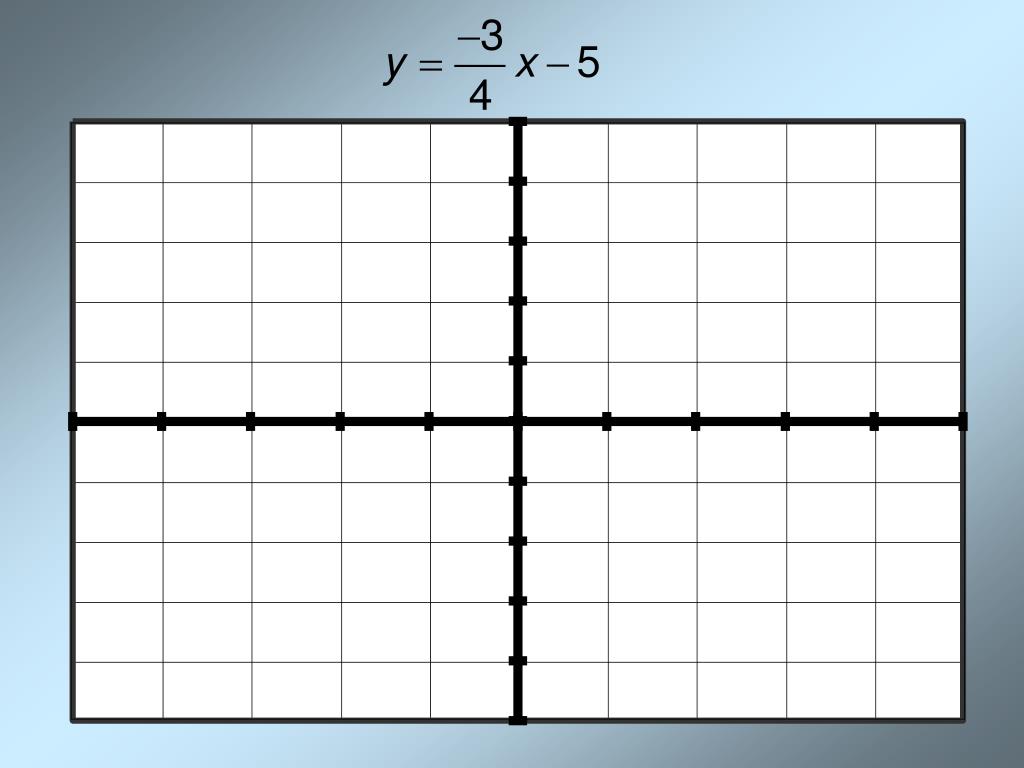

  18. Lecture 16

  19. (4, -8) (0, -5) 4 2 2 4 -2 Lecture 16

  20. Y= m x + b m = slope; b = y-intercept Lecture 16

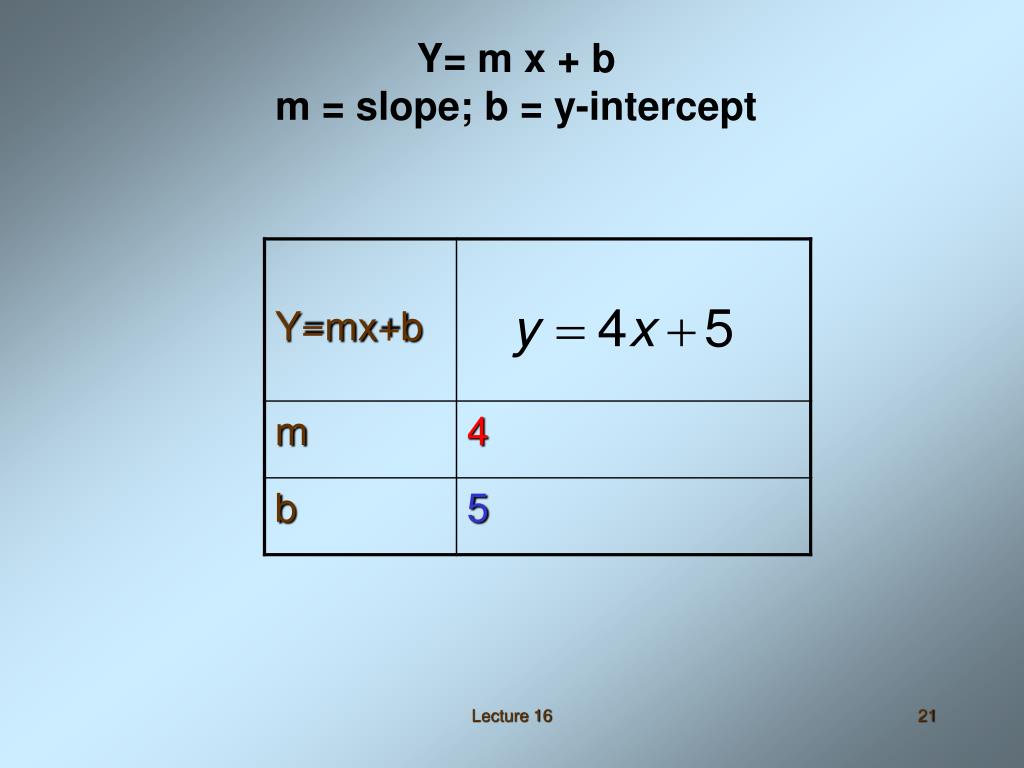

  21. Y= m x + b m = slope; b = y-intercept Lecture 16

  22. y = 4x + 5 Lecture 16

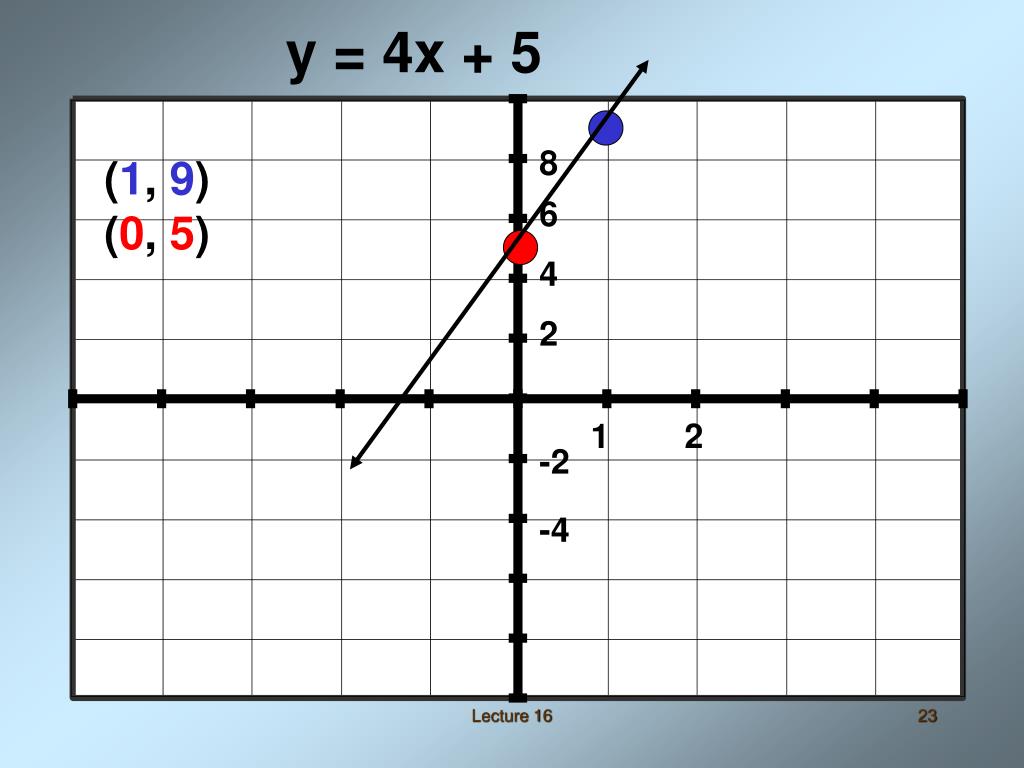

  23. y = 4x + 5 8 (1, 9) 6 (0, 5) 4 2 1 2 -2 -4 Lecture 16

  24. y = 4x + 5 Lecture 16

  25. Solve for y in terms of x 3x + 2y = 6 3x + 2y = 6 2y = 6-3x Subtract 3x from both sides y = (6-3x)/2 Divide both sides by 2 Write in y = mx + b form Lecture 16

  26. Y= m x + b m = slope; b = y-intercept Lecture 16

  27. 3x + 2y = 6 Lecture 16

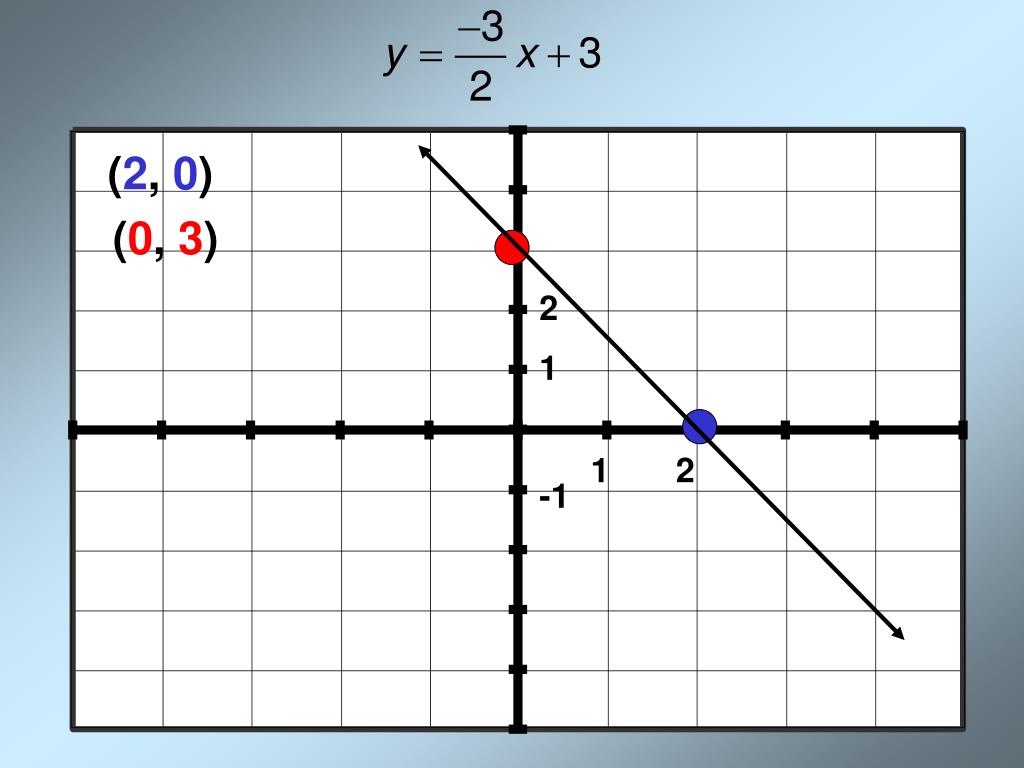

  28. (2, 0) (0, 3) 2 1 1 2 -1 Lecture 16
