  1. New! 3D Rupture Dynamics Code Validation Workshop Ruth Harris and Ralph Archuleta Sept. 11, 2005 SCEC Workshop

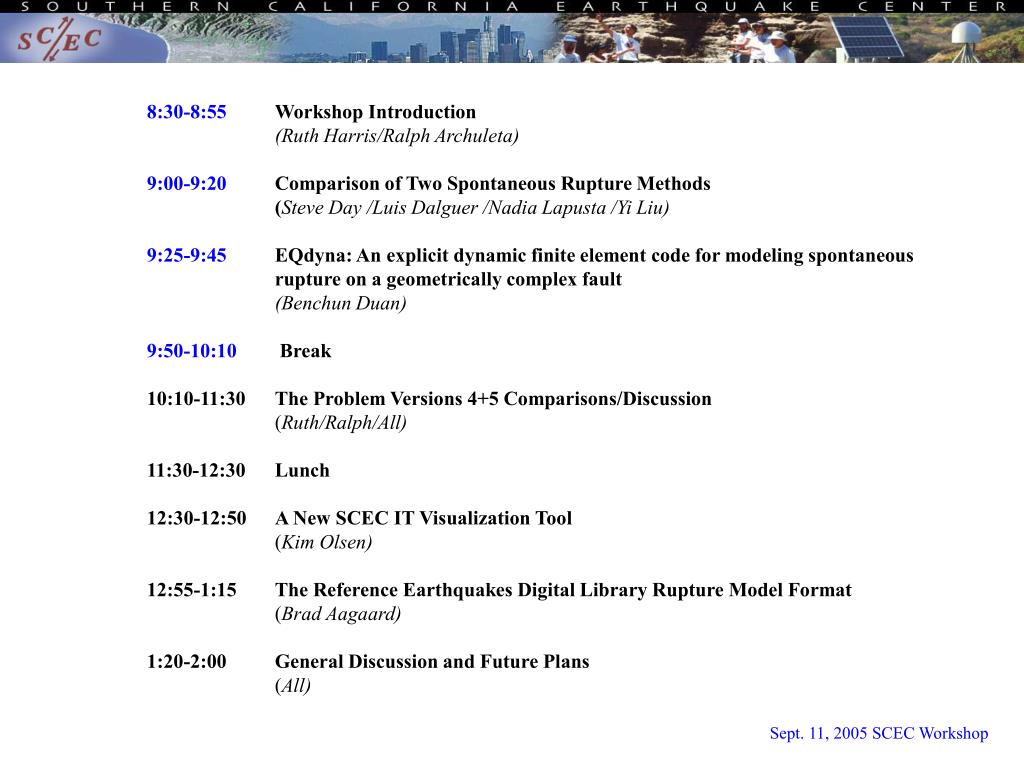

  2. 8:30-8:55 Workshop Introduction (Ruth Harris/Ralph Archuleta) 9:00-9:20 Comparison of Two Spontaneous Rupture Methods (Steve Day /Luis Dalguer /Nadia Lapusta /Yi Liu) 9:25-9:45 EQdyna: An explicit dynamic finite element code for modeling spontaneous rupture on a geometrically complex fault (Benchun Duan) 9:50-10:10 Break 10:10-11:30The Problem Versions 4+5 Comparisons/Discussion (Ruth/Ralph/All) 11:30-12:30 Lunch 12:30-12:50A New SCEC IT Visualization Tool (Kim Olsen) 12:55-1:15The Reference Earthquakes Digital Library Rupture Model Format (Brad Aagaard) 1:20-2:00General Discussion and Future Plans (All) Sept. 11, 2005 SCEC Workshop

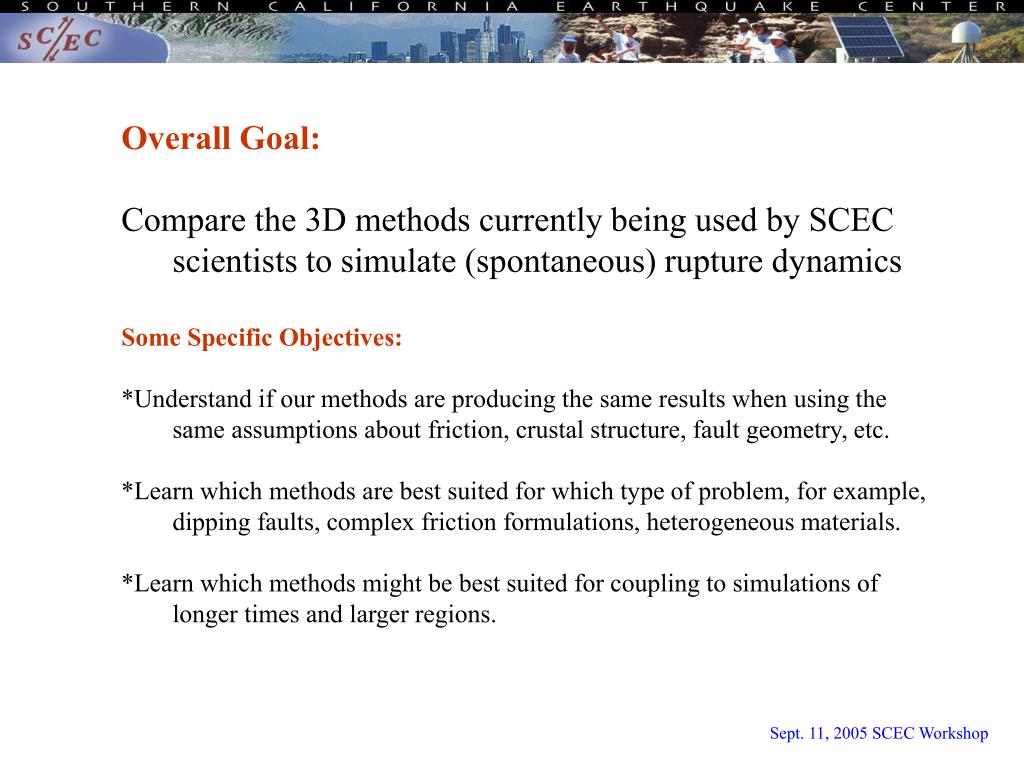

  3. Overall Goal: Compare the 3D methods currently being used by SCEC scientists to simulate (spontaneous) rupture dynamics Some Specific Objectives: *Understand if our methods are producing the same results when using the same assumptions about friction, crustal structure, fault geometry, etc. *Learn which methods are best suited for which type of problem, for example, dipping faults, complex friction formulations, heterogeneous materials. *Learn which methods might be best suited for coupling to simulations of longer times and larger regions. Sept. 11, 2005 SCEC Workshop

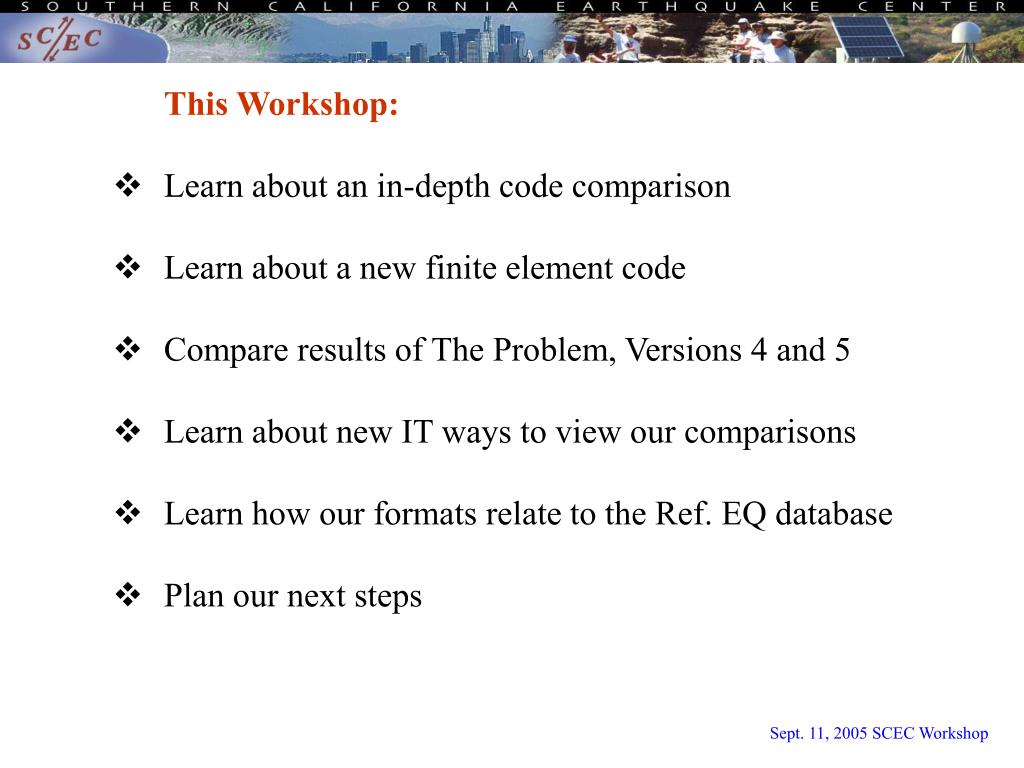

  4. This Workshop: • Learn about an in-depth code comparison • Learn about a new finite element code • Compare results of The Problem, Versions 4 and 5 • Learn about new IT ways to view our comparisons • Learn how our formats relate to the Ref. EQ database • Plan our next steps Sept. 11, 2005 SCEC Workshop

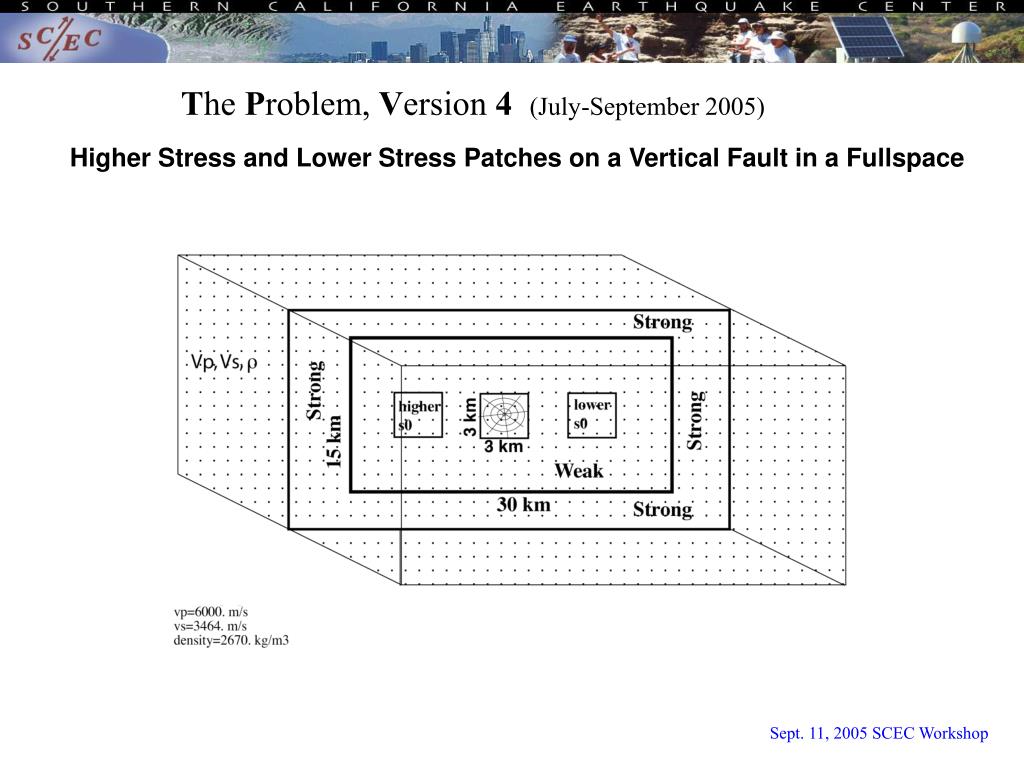

  5. The Problem, Version 4(July-September 2005) Higher Stress and Lower Stress Patches on a Vertical Fault in a Fullspace Sept. 11, 2005 SCEC Workshop

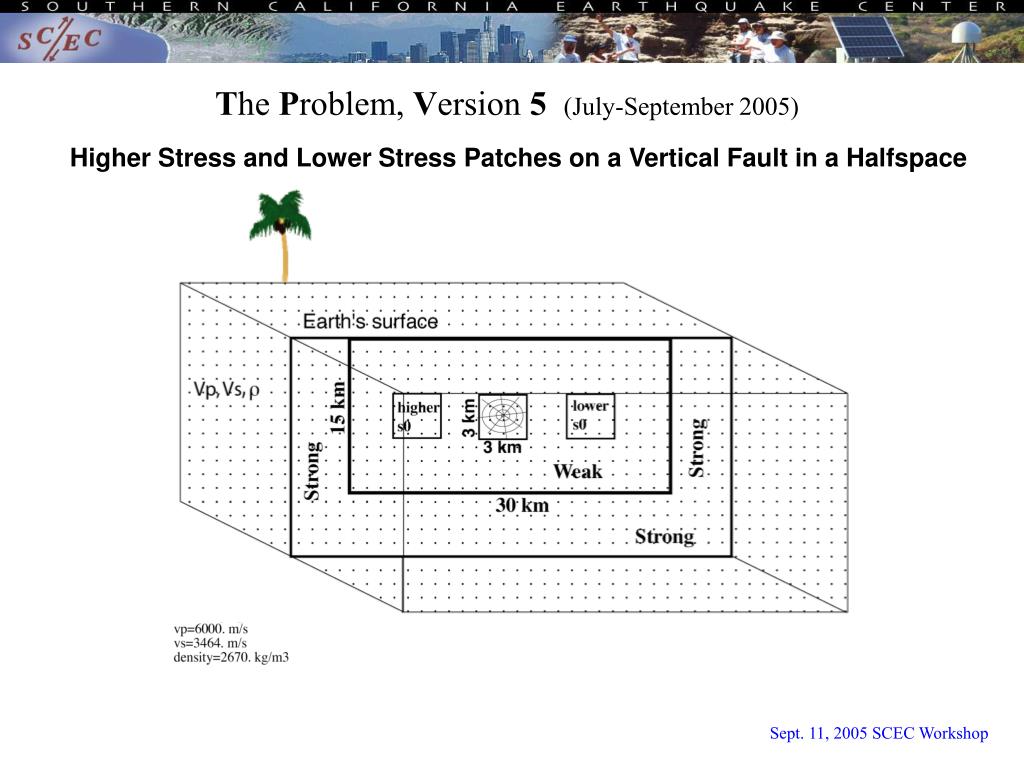

  6. The Problem, Version 5(July-September 2005) Higher Stress and Lower Stress Patches on a Vertical Fault in a Halfspace Sept. 11, 2005 SCEC Workshop

  7. Rupture Dynamics Code Validation Source Physics for The Problem, Version 4 Sept. 11, 2005 SCEC Workshop

  8. Rupture Dynamics Code Validation Source Physics for The Problem, Version 5 Sept. 11, 2005 SCEC Workshop

  9. Rupture Dynamics Code Validation Station Locations for The Problem, Version 4 Sept. 11, 2005 SCEC Workshop

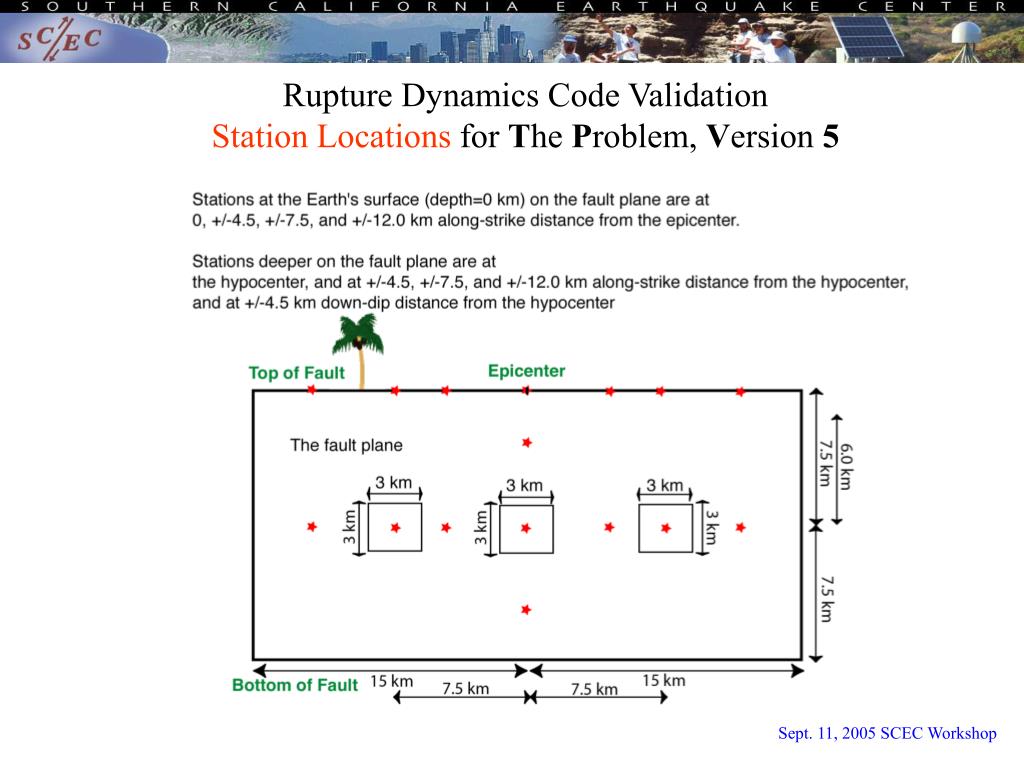

  10. Rupture Dynamics Code Validation Station Locations for The Problem, Version 5 Sept. 11, 2005 SCEC Workshop

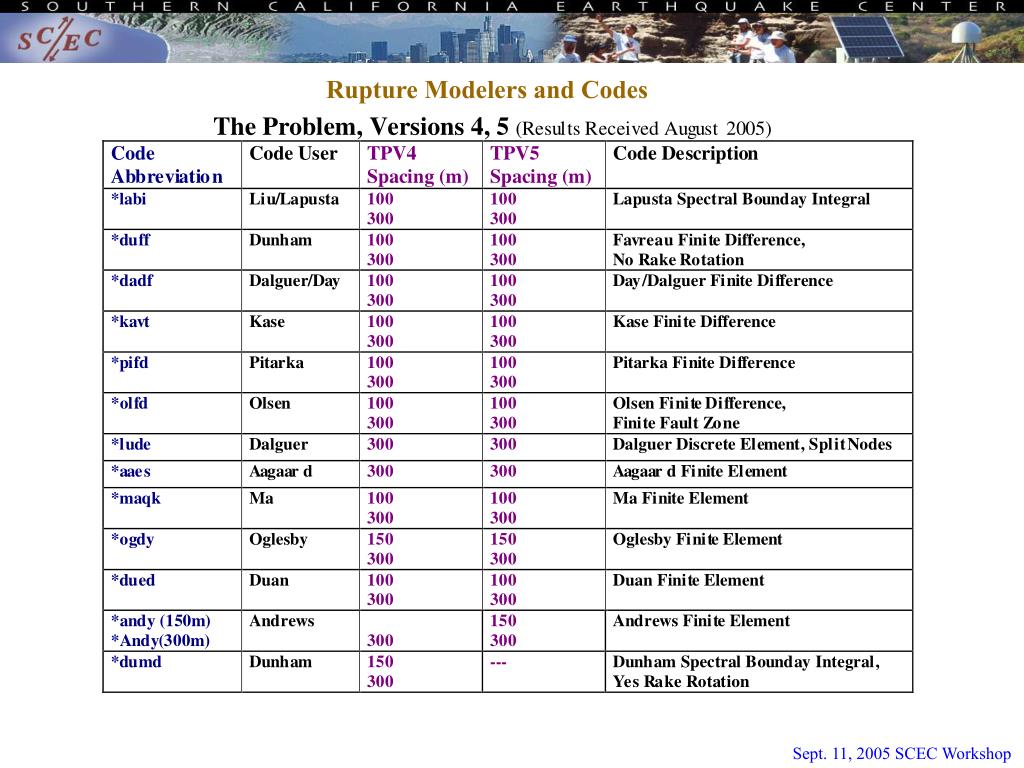

  11. Rupture Modelers and Codes Sept. 11, 2005 SCEC Workshop

  12. Comparison of Two Spontaneous Rupture Methods * Steve Day, Luis Dalguer, Nadia Lapusta, Yi Liu Sept. 11, 2005 SCEC Workshop

  13. EQdyna: An Explicit Dynamic Finite Element Code For Modeling Spontaneous Rupture On a Geometrically Complex Fault *Benchun Duan Sept. 11, 2005 SCEC Workshop

  14. Morning Break Sept. 11, 2005 SCEC Workshop

  15. 8:30-8:55 Workshop Introduction (Ruth Harris/Ralph Archuleta) 9:00-9:20 Comparison of Two Spontaneous Rupture Methods (Steve Day /Luis Dalguer /Nadia Lapusta /Yi Liu) 9:25-9:45 EQdyna: An explicit dynamic finite element code for modeling spontaneous rupture on a geometrically complex fault (Benchun Duan) 9:50-10:10 Break 10:10-11:30The Problem Versions 4+5 Comparisons/Discussion (Ruth/Ralph/All) 11:30-12:30 Lunch 12:30-12:50A New SCEC IT Visualization Tool (Kim Olsen) 12:55-1:15The Reference Earthquakes Digital Library Rupture Model Format (Brad Aagaard) 1:20-2:00General Discussion and Future Plans (All) Sept. 11, 2005 SCEC Workshop

  16. Comparisons Sept. 11, 2005 SCEC Workshop

  17. Rupture Modelers and Codes Sept. 11, 2005 SCEC Workshop

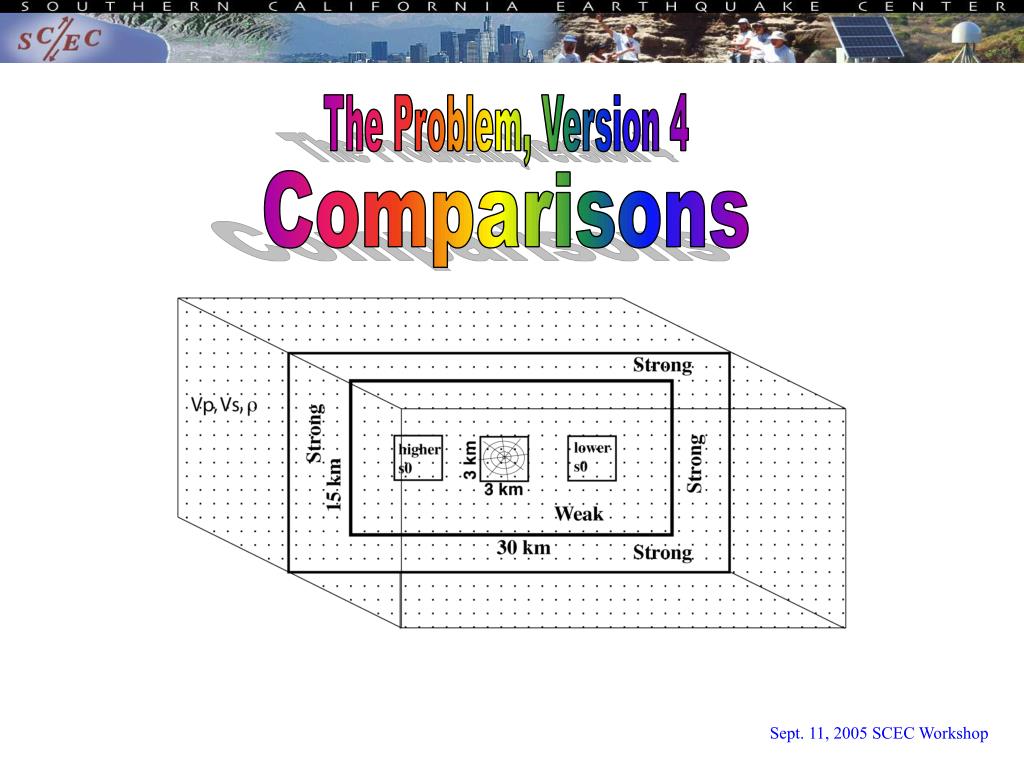

  18. The Problem, Version 4 Comparisons Sept. 11, 2005 SCEC Workshop

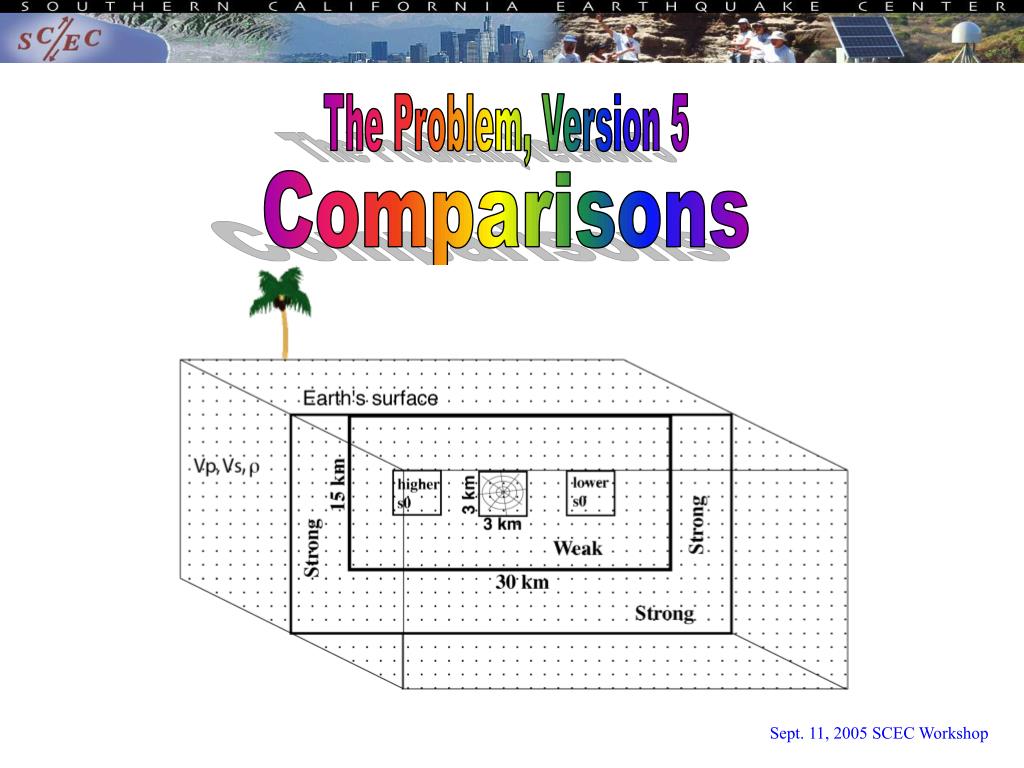

  19. The Problem, Version 5 Comparisons Sept. 11, 2005 SCEC Workshop

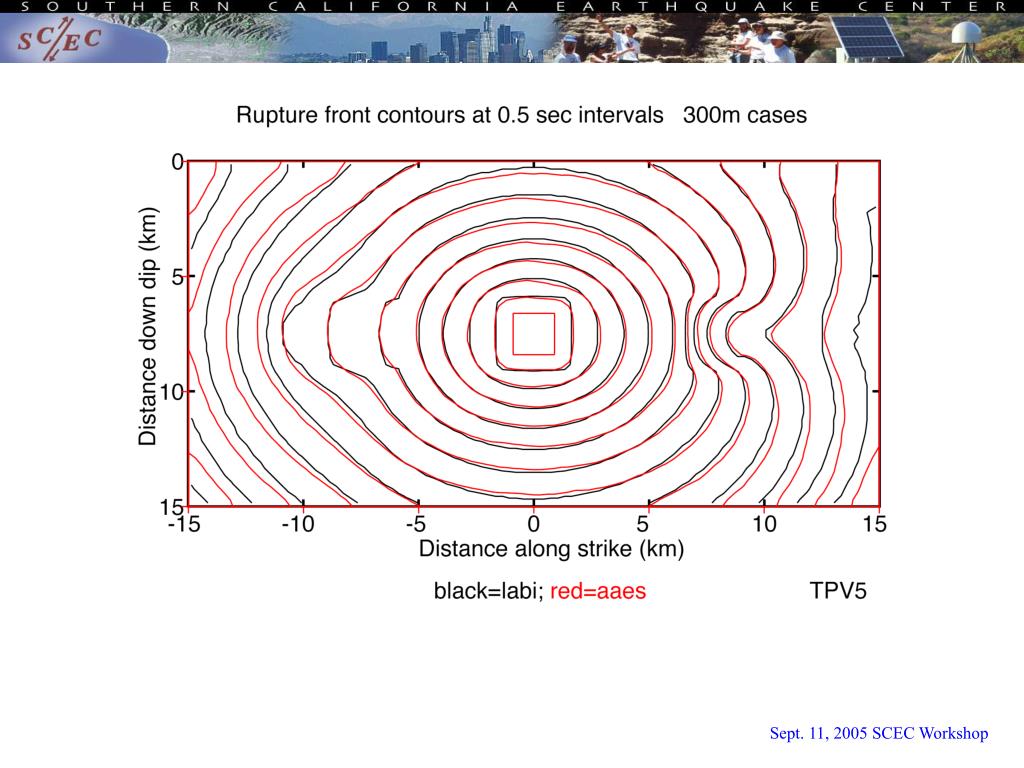

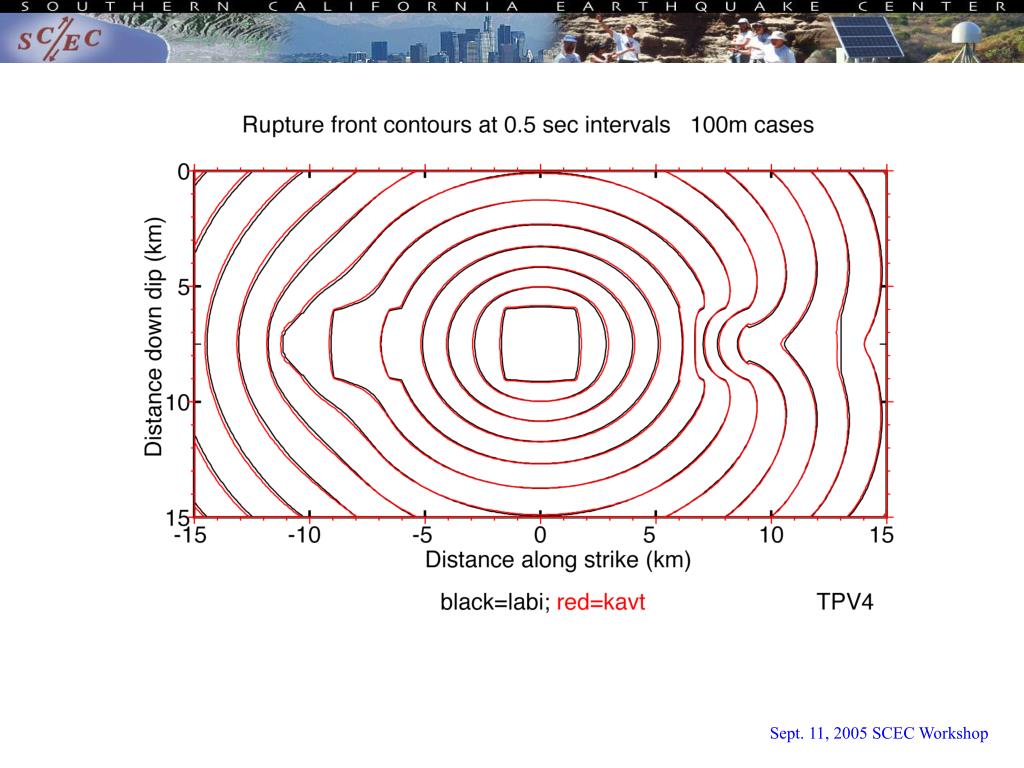

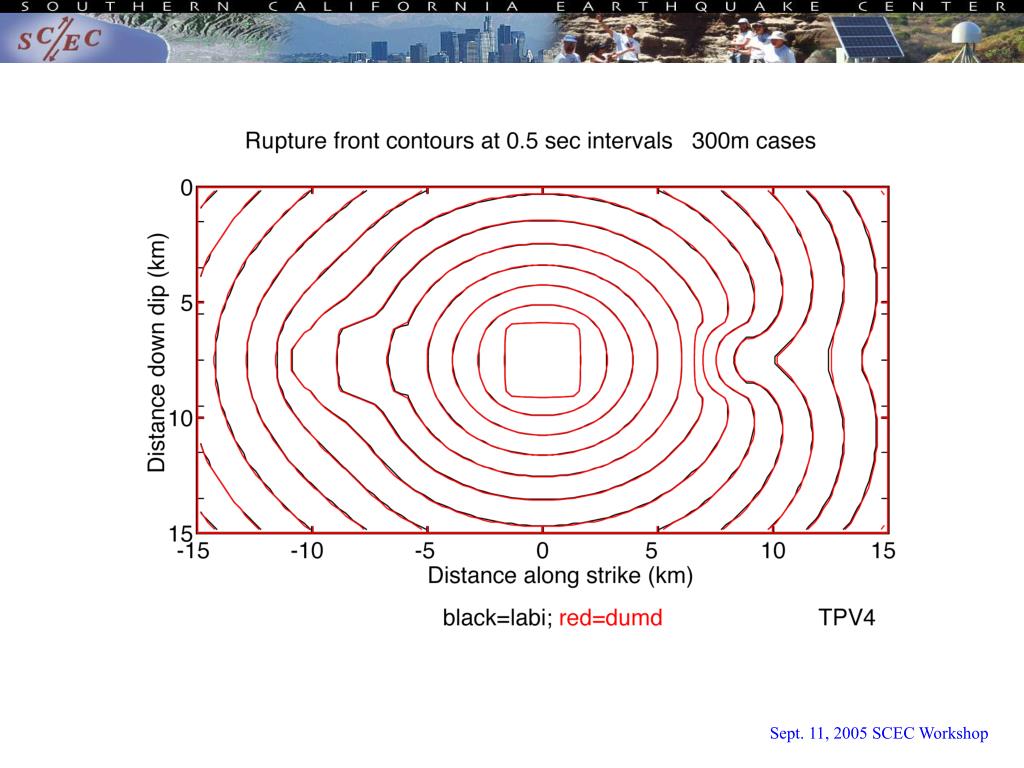

  20. Rupture Front Times Sept. 11, 2005 SCEC Workshop

  21. The Problem, Version 4 Sept. 11, 2005 SCEC Workshop

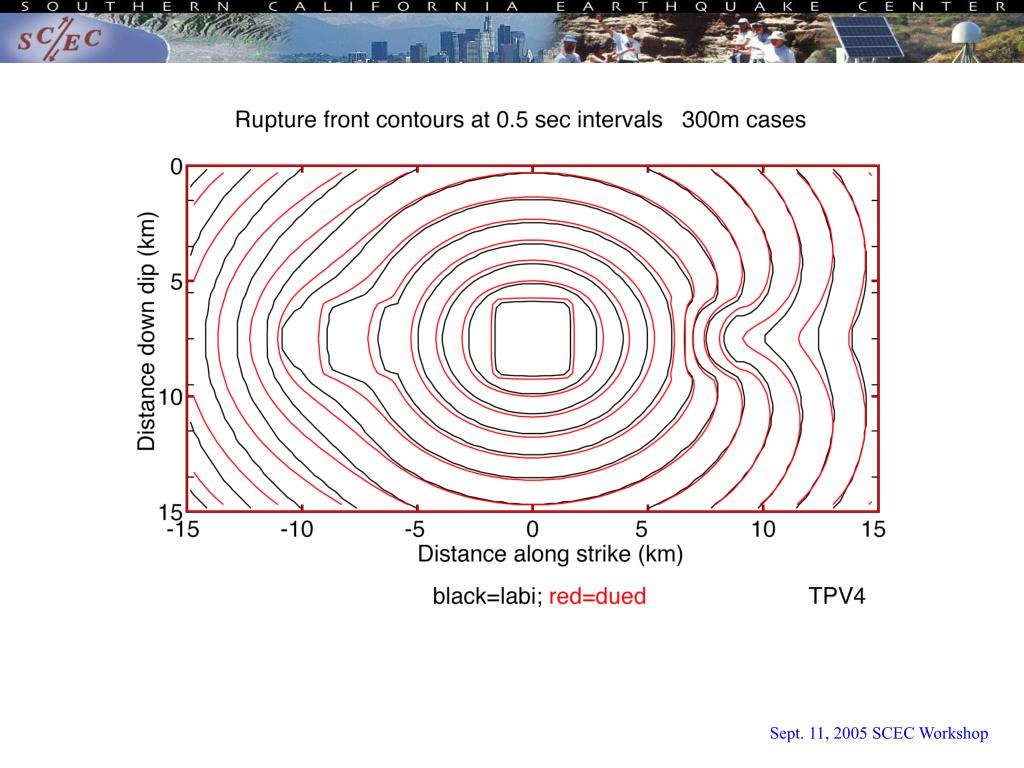

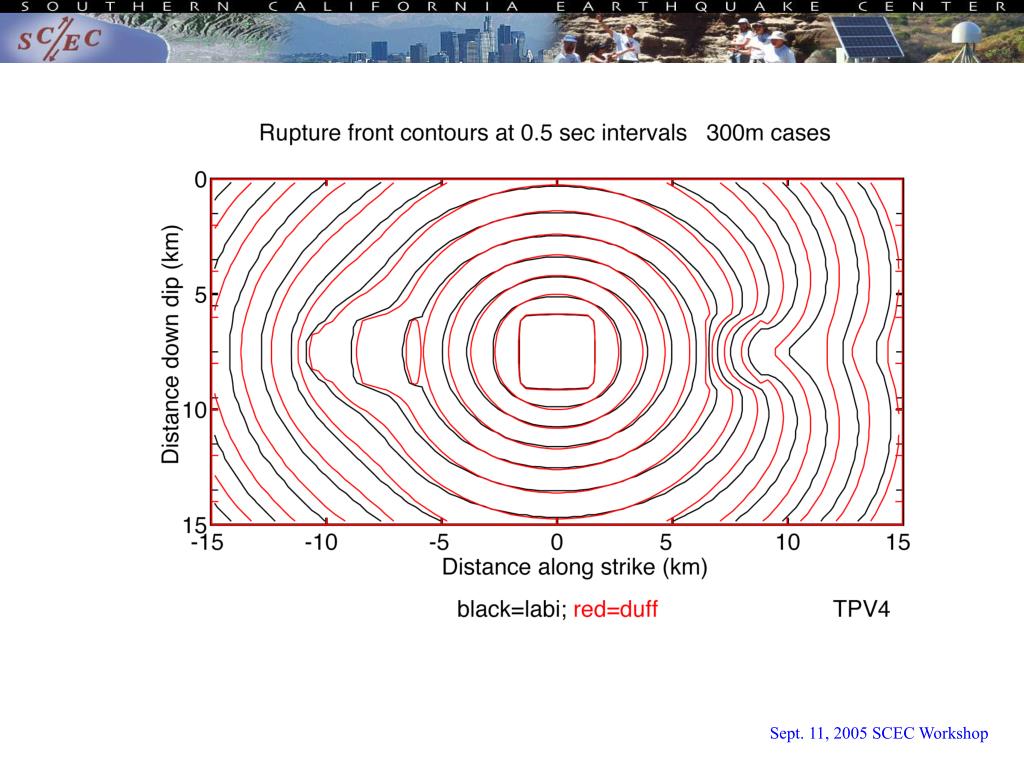

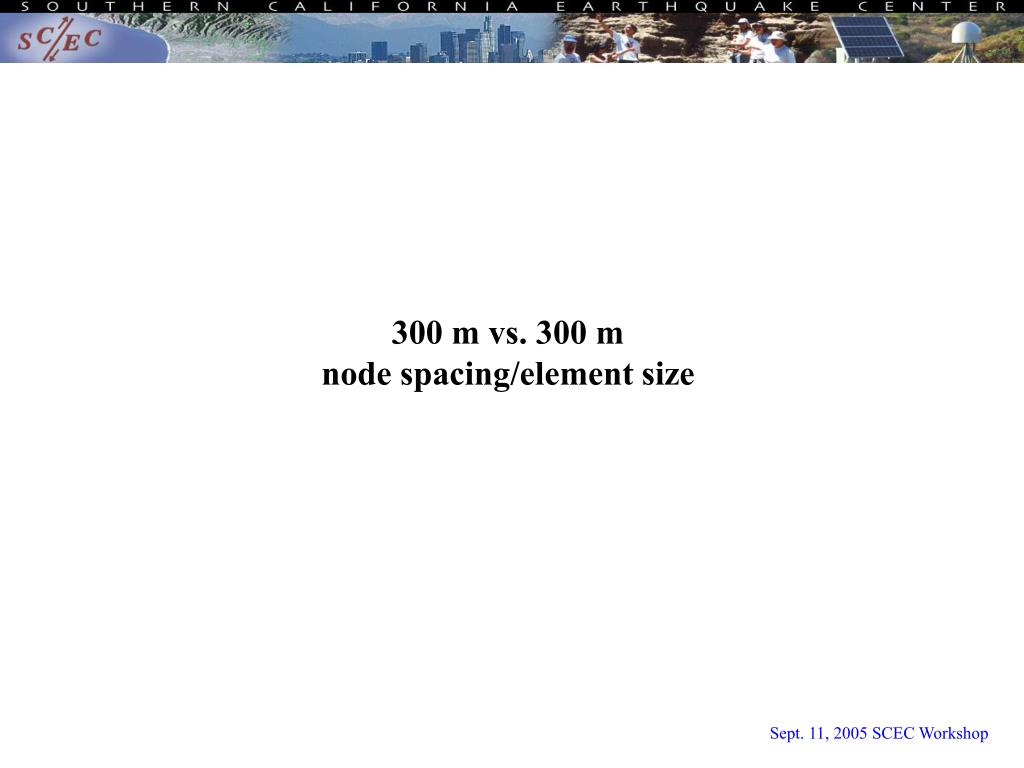

  22. 300 m vs. 300 m node spacing/element size Sept. 11, 2005 SCEC Workshop

  23. Sept. 11, 2005 SCEC Workshop

  24. Sept. 11, 2005 SCEC Workshop

  25. Sept. 11, 2005 SCEC Workshop

  26. Sept. 11, 2005 SCEC Workshop

  27. Sept. 11, 2005 SCEC Workshop

  28. Sept. 11, 2005 SCEC Workshop

  29. Sept. 11, 2005 SCEC Workshop

  30. Sept. 11, 2005 SCEC Workshop

  31. Sept. 11, 2005 SCEC Workshop

  32. Sept. 11, 2005 SCEC Workshop

  33. Sept. 11, 2005 SCEC Workshop

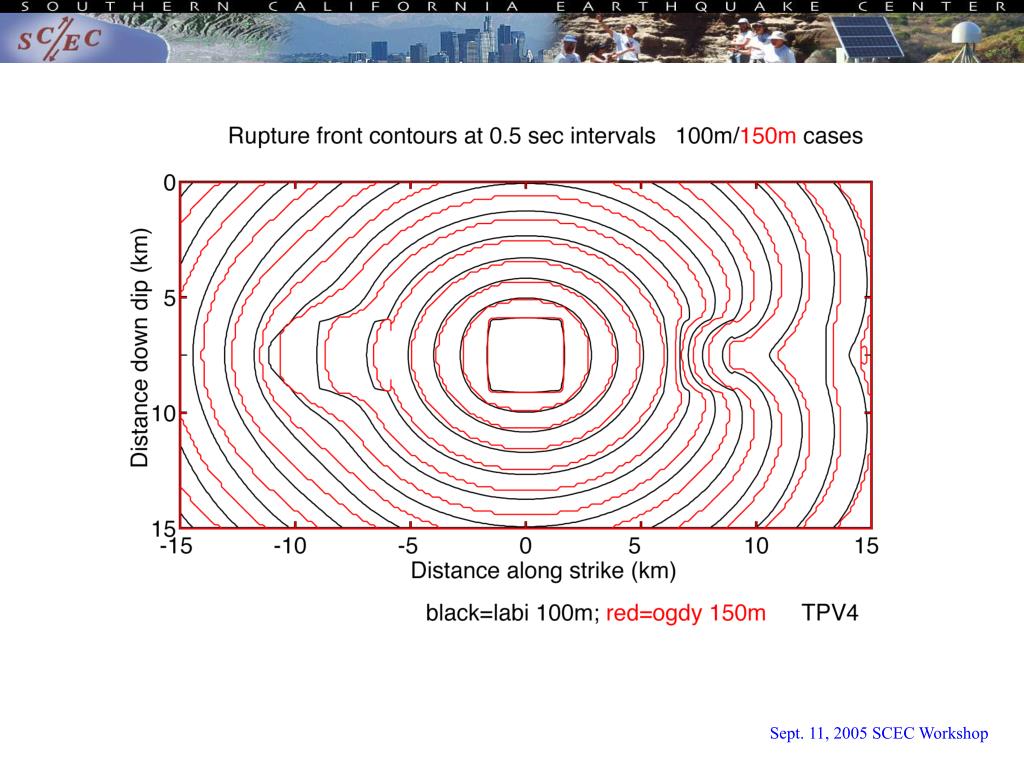

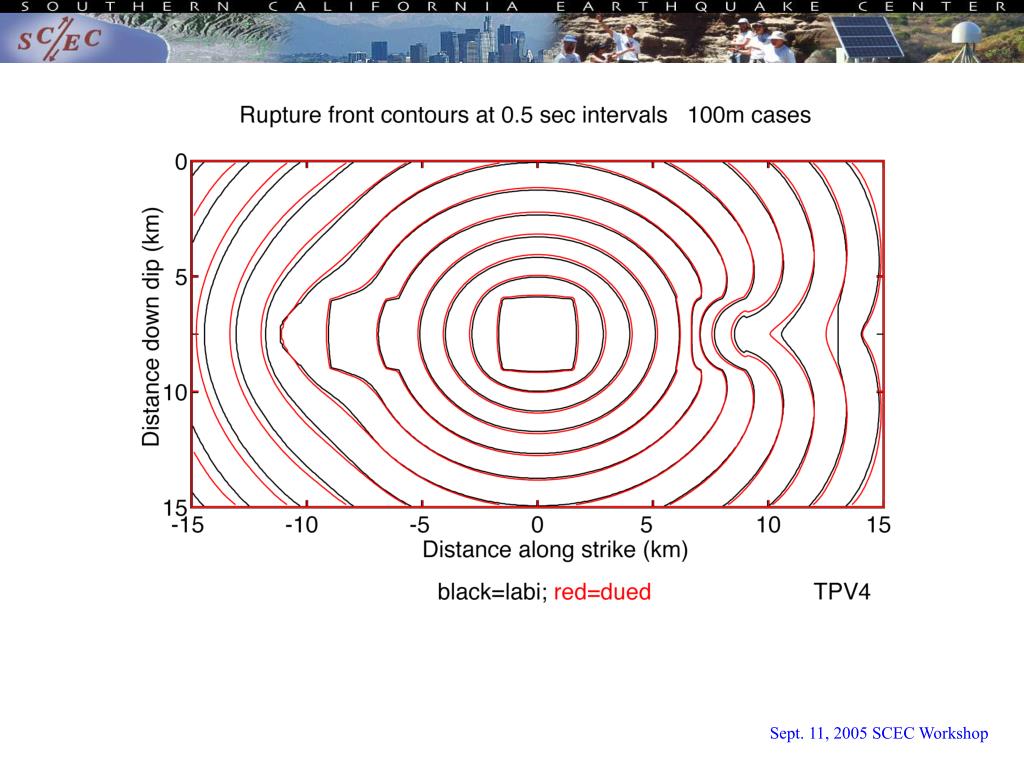

  34. 100 m (150m) vs. 100 m node spacing/element size Sept. 11, 2005 SCEC Workshop

  35. Sept. 11, 2005 SCEC Workshop

  36. Sept. 11, 2005 SCEC Workshop

  37. Sept. 11, 2005 SCEC Workshop

  38. Sept. 11, 2005 SCEC Workshop

  39. Sept. 11, 2005 SCEC Workshop

  40. Sept. 11, 2005 SCEC Workshop

  41. Sept. 11, 2005 SCEC Workshop

  42. Sept. 11, 2005 SCEC Workshop

  43. Sept. 11, 2005 SCEC Workshop

  44. Sept. 11, 2005 SCEC Workshop

  45. The Problem, Version 5 Sept. 11, 2005 SCEC Workshop

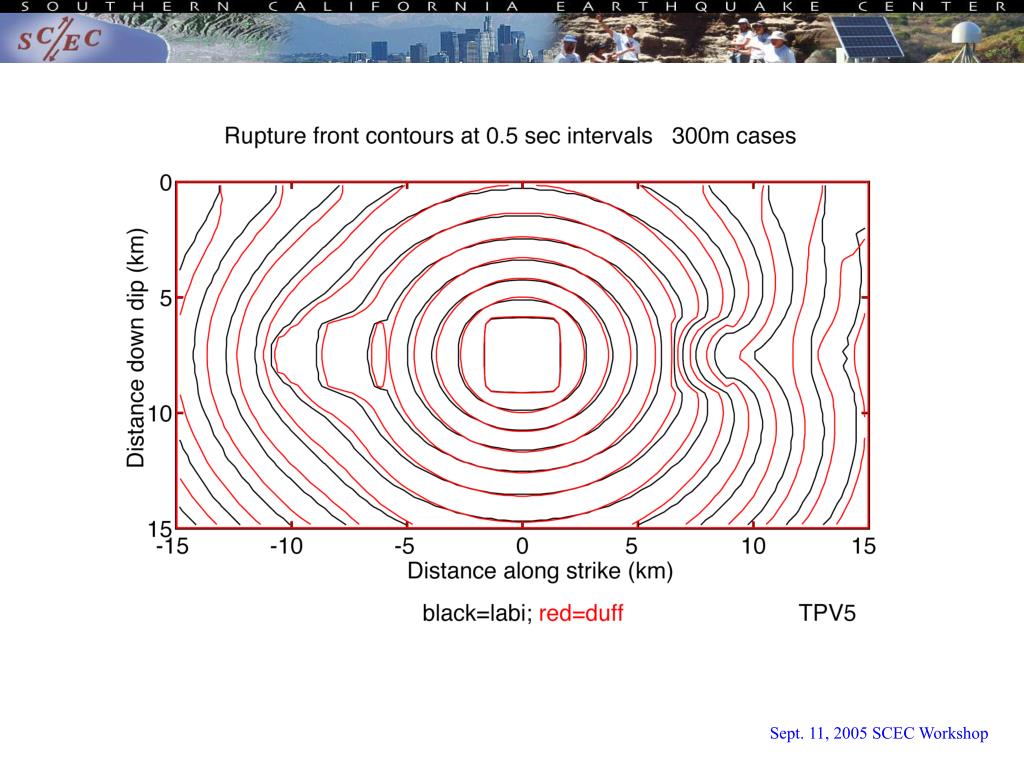

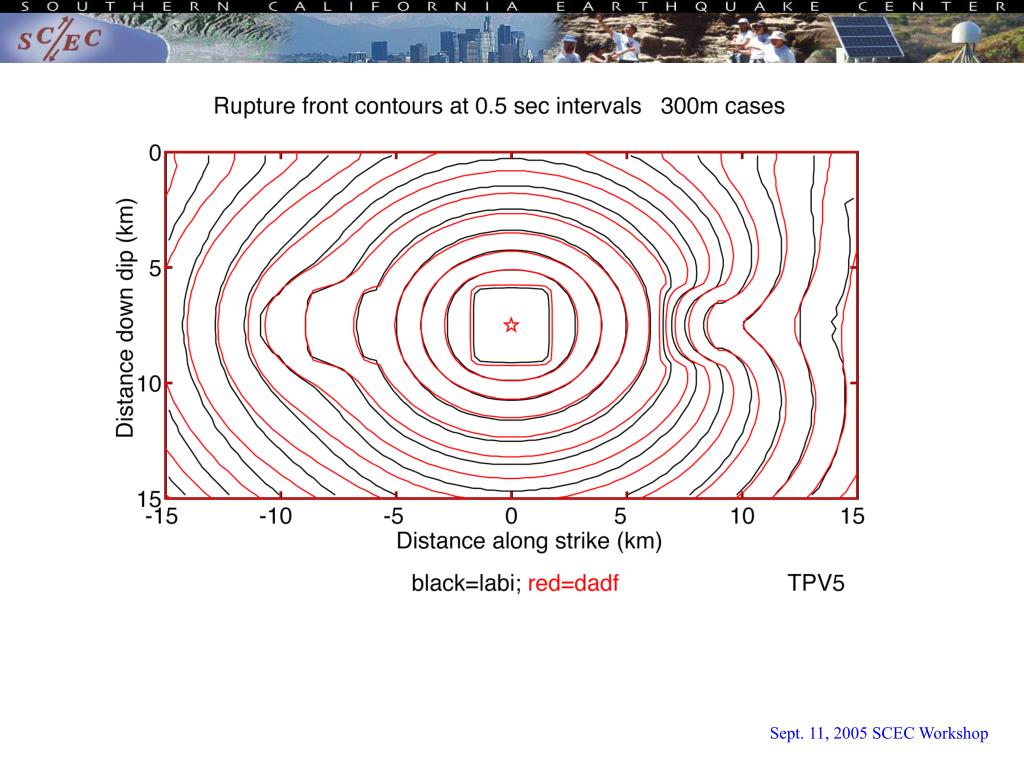

  46. 300 m vs. 300 m node spacing/element size Sept. 11, 2005 SCEC Workshop

  47. Sept. 11, 2005 SCEC Workshop

  48. Sept. 11, 2005 SCEC Workshop

  49. Sept. 11, 2005 SCEC Workshop

  50. Sept. 11, 2005 SCEC Workshop
