Digitization and Analysis of Tafilalt Geological Profiles Using Advanced 3D Mapping Techniques

This project outlines the digitization of geological profiles from Tafilalt, initiated in September 2013, using advanced data processing and mapping techniques. The process includes scanning and digitizing formation codes, holding XSec data, and refining the digitized cross-section with a 25m grid. The generated data is plotted onto maps and digital elevation models (DEMs), including extraction of formation thickness in multiple coordinate systems. It utilizes GeoPaths in KML format for accurate representation and analysis of geological structures.

afra
Télécharger la présentation

Digitization and Analysis of Tafilalt Geological Profiles Using Advanced 3D Mapping Techniques

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

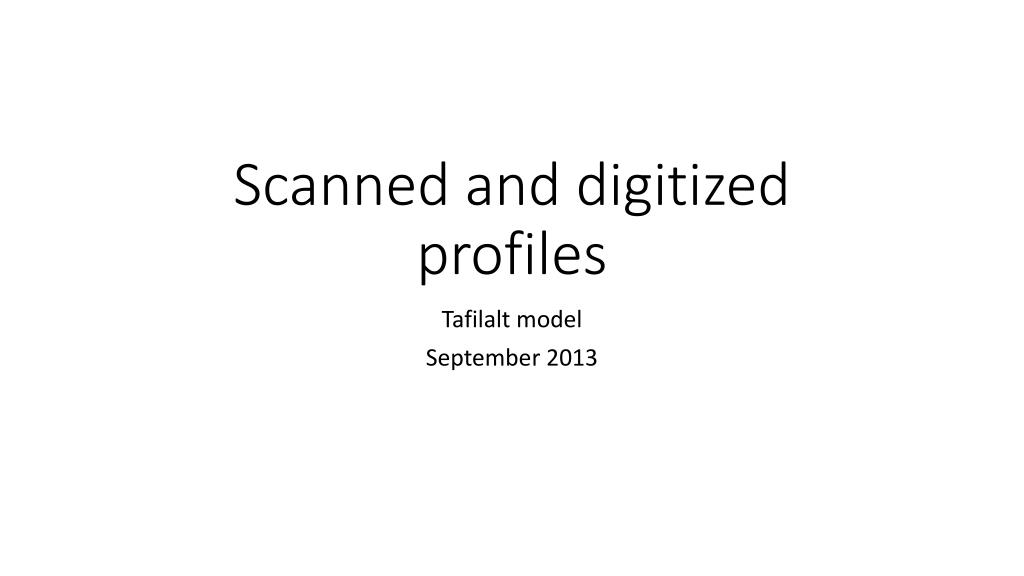

  1. Scanned and digitized profiles Tafilalt model September 2013

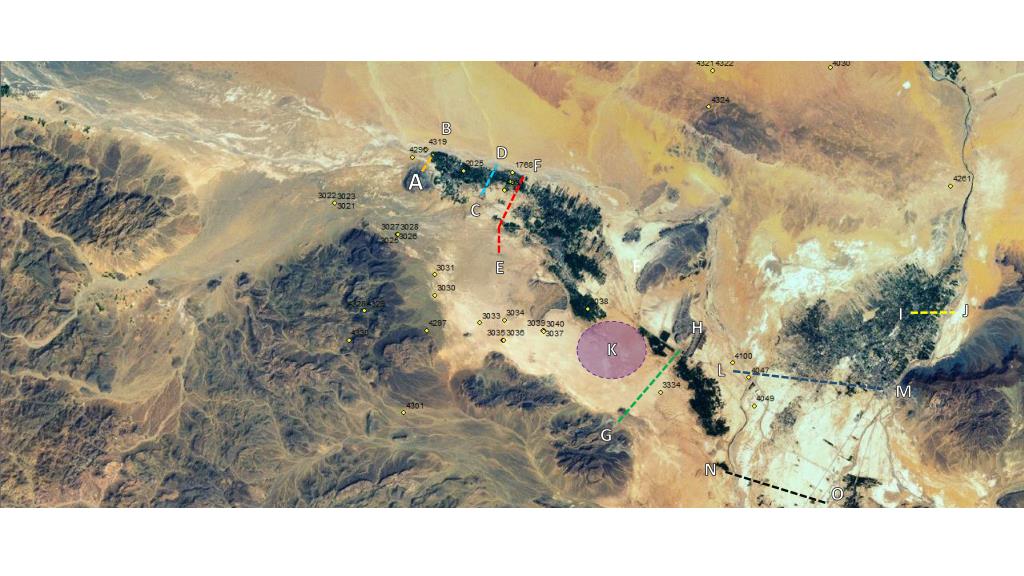

  2. B D F A C F E J I H K L M G N O

  3. A B C D E F

  4. A B C D E F

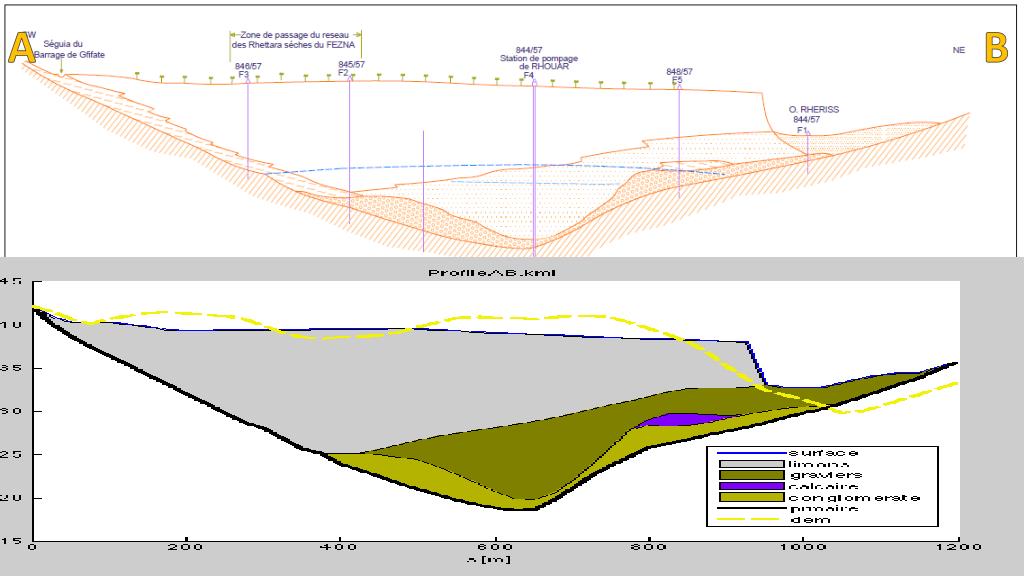

  5. A B

  6. Digitaliserings code voordoorsnedes Get object holding XSec data, and digitize the formations. 100 and 10 are lengths of x and z scale on figure respectively Refine digitzedXSection an 25 m grid Plot the digitized XSec Put the grid onto a Map and DEM ProfileAB.kml is GE path for this XSec Strm_36_sub.asc the DEM ascii file Show XSec in abs DEM coordinates Get the thickness of the different formations separately with x and y in UTM Same but latlon coordinates instead Same in 3 column array with latlon and D in the three adjacent columns
