  1. D*C*C* Simplified Inspection Program • Simplified Inspection Program "SIP" is a "low cost" Tank Inspection Program, and designed as a "simple to use, simple to read" program. • SIP is designed to make the process of tank condition inspections and reporting easy for crew and superintendents • covers WBT incl. FPT/APT, Cargo Tanks, Cargo Holds, FWT, Technical tanks, Slops etc. Reports confirms with IMO PSPC • Email notification, Alerts on tanks due for insp, and Filing system can work alongside any ”Management System” in place Please allow us to present to you our version of a practical tool for documenting your „in-service tank inspections” -- It only takes 3 min. --

  2. D*C*C* Simplified Inspection Program 3: SAVE SKETCH BY ADD UNIQUE TANK NUMBER. PRINT A COPY OF SKETCH FOR TAKE NOTES AT INSP. 1: START PROGRAM ONLY FIRST TIME ENTER ENCRYPTED KEY FILE FROM LOCATION WHERE YOU SAVED IT THE KEY FILE CONTAINS VESSEL NAME, IMO No., WHICH THEN APPEARS IN ALL REPORT HEADERS 2: CHOOSE TANK TYPE FROM LIST. CREATE SKETCH OF TANK FOR INSP, BY ADD BULKHEADS AS PR TANK PLAN.

  3. D*C*C* Simplified Inspection Program 4: NOW ENTER THE TANK (SORRY BUT YOU STILL HAVE TO DO THIS YOURSELVES) BRING THE SKETCH FOR TAKE NOTES, MARK LOCATIONS FOR DEFECTS IF ANY. KEEP IN MIND PROCEDURES FOR SAFE CONFINED SPACE ENTRY WHICH tanks to inspect, then?? Once installed and sketches made, an automatic”Alert List” is generated, givingyounotice 2 months prior to scheduledinspection. Easyto follow. REMEMBER: BE PREPARED! Lights, camera and gas meter charged? Frame No’s already on your sketch – maybe useful to add locations of misc. outfit items, e.g. gauges, valves, plugs, for easy ID during insp?

  4. D*C*C* Simplified Inspection Program 6: Now enter all your findings. Corrosion % in each box, use red dots for specific defects. All as pr. manual. Good/fair/poor rating fills in automatically. 5: AFTER inspection, back to the computer - Go to OPEN SAVED SKETCH, mark your tank, Open Go Page 2: Tick check-boxes for anodes, pipes etc., add comments, photos. Addmore photos at pg. 3 if required

  5. D*C*C* Simplified Inspection Program 7: On completion of reporting, click Save Final Report – Congrats, now you’re done with this tank.Ready for filing next inspection, by choose Open Saved Sketch for new entry. You can always open any saved pdf file from menu; click Show Final Report, mark a saved file for view or for print, file hard copy. Instructions on report filing can be tailor made to meet your needs and PMS. Finally, atnext slide you see anexampleof report with additional (optional) photo page, and stats page, in this caseas after 3 inspections

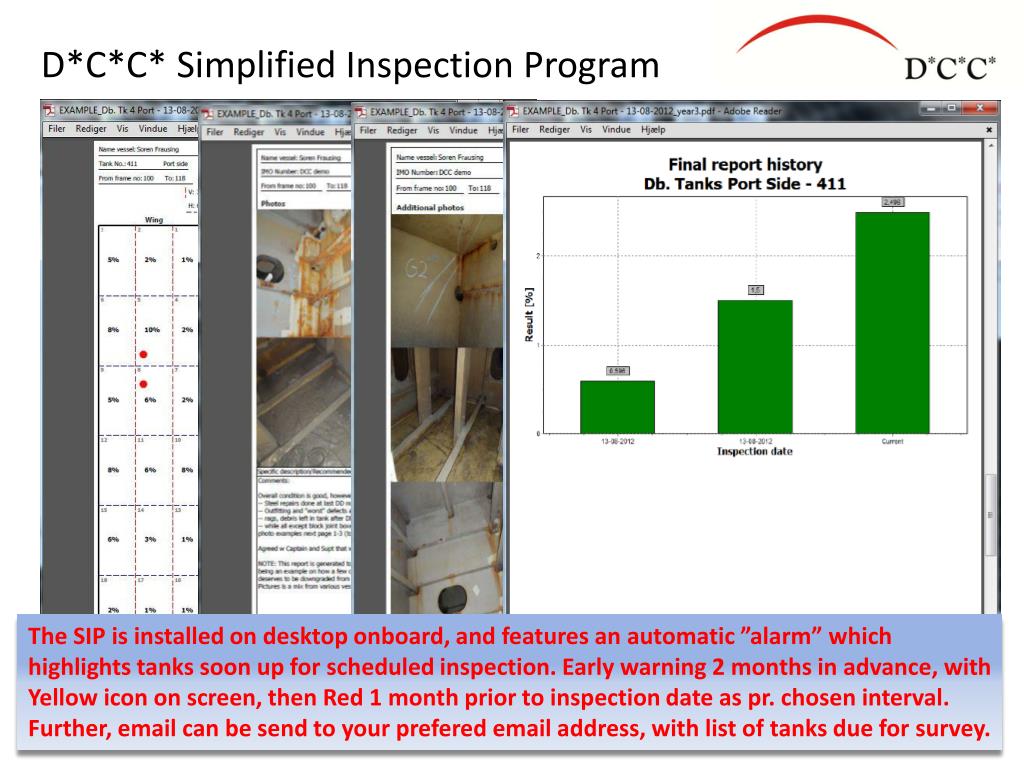

  6. D*C*C* Simplified Inspection Program The SIP is installed on desktop onboard, and features anautomatic ”alarm”whichhighlights tanks soon up for scheduledinspection. Earlywarning 2 months in advance, with Yellow icon on screen, then Red 1 month prior to inspection date as pr. chosen interval. Further, emailcanbe send to yourpreferedemail address, with list of tanks due for survey. Pg 1: Box-by-box corrosion %, defects. Pg 3: Additional photos Pg 2: Check-boxes, photos, comments Pg. 4: Stats, insp by insp

  7. D*C*C* Simplified Inspection Program -- SIP More info and download demo at D*C*C* Danish Corrosion Control (click at link for see now!) THANK YOU for watching! Sincerely, Kim Christiansen Linked-In profile: http://pl.linkedin.com/pub/kim-christiansen/19/a85/5a1 Mail: kim@d-c-c.eu Skype: kim.dcc Phone: +48 500 150 031 Soren E. Frausing Linked-In profile: http://pl.linkedin.com/pub/soren-e-frausing/13/66a/125 Mail: frausing@d-c-c.eu Skype: dcc.soren Phone: +45 20 10 10 28 ...and please note: If you still don’twantthe crew onboard to carry out the inspectionsthemselves, wecan, of course, offer to do this for you instead!
