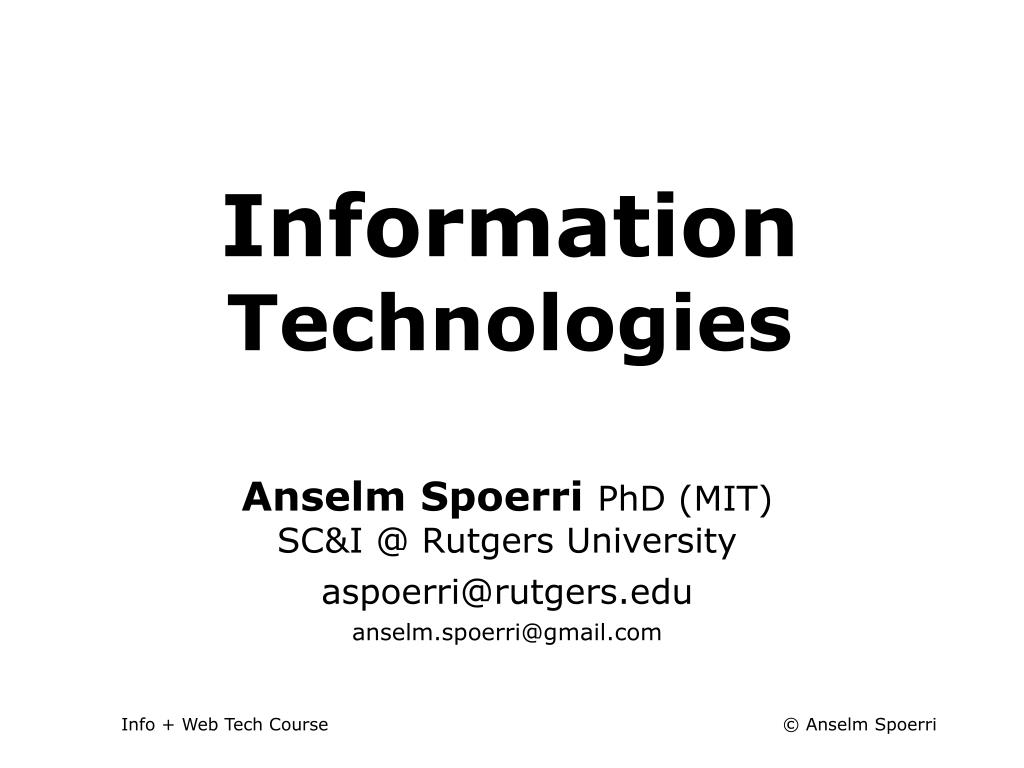

  1. Info + Web Tech Course • Information • Technologies • Anselm Spoerri PhD (MIT) • SC&I @ Rutgers University • aspoerri@rutgers.edu • anselm.spoerri@gmail.com

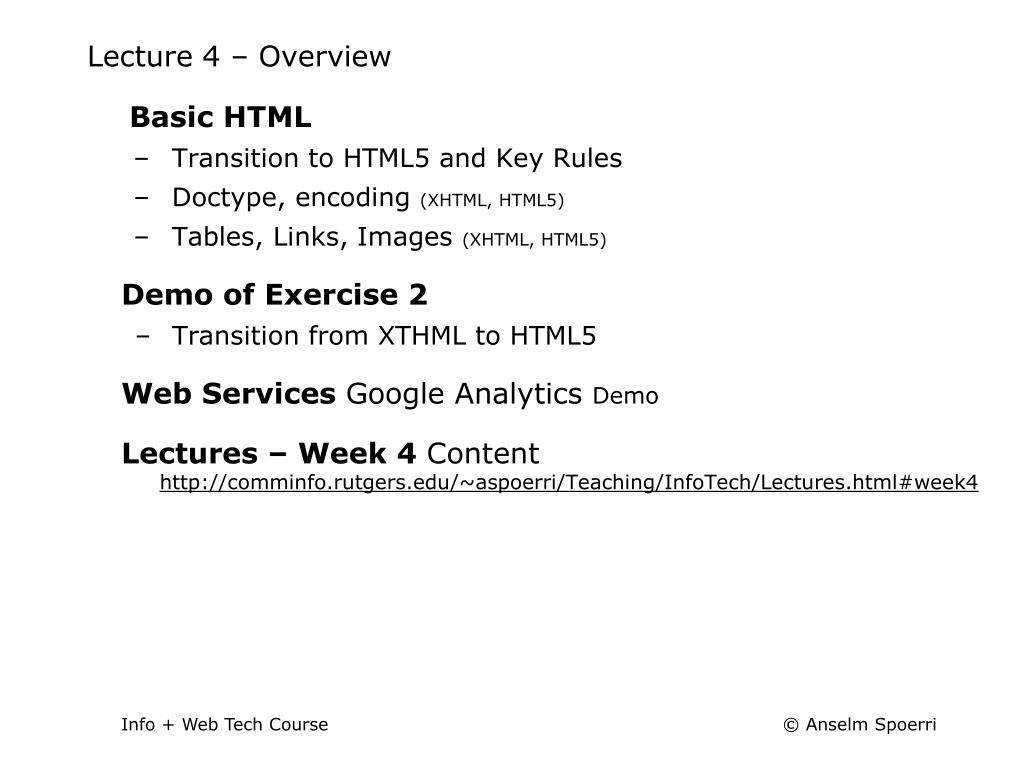

  2. Lecture 4 – Overview Basic HTML • Transition to HTML5 and Key Rules • Doctype, encoding (XHTML, HTML5) • Tables, Links, Images (XHTML, HTML5) Demo of Exercise 2 • Transition from XTHML to HTML5 Web Services Google Analytics Demo Lectures – Week 4 Contenthttp://comminfo.rutgers.edu/~aspoerri/Teaching/InfoTech/Lectures.html#week4

  3. HTML – Big Picture • Page DesignProgressive Enhancement • Create HTML structure  Add CSS  Add JavaScript • Transition to HTML5  Markup with Meaning • HTML 4, XHTML: use tags to structure the content • HTML5: use tags to structure and describe meaning of content • New semantic elements: <header>, <nav>, <main>, <article> , <section>, <figure>, <aside>, <footer> • Redefines existing tags or eliminates others • More forgiving than XHTML: /> optional and <b> and <i> are back • Still true and necessary • HTML elements must be properly nested • HTML elements should have closing tag

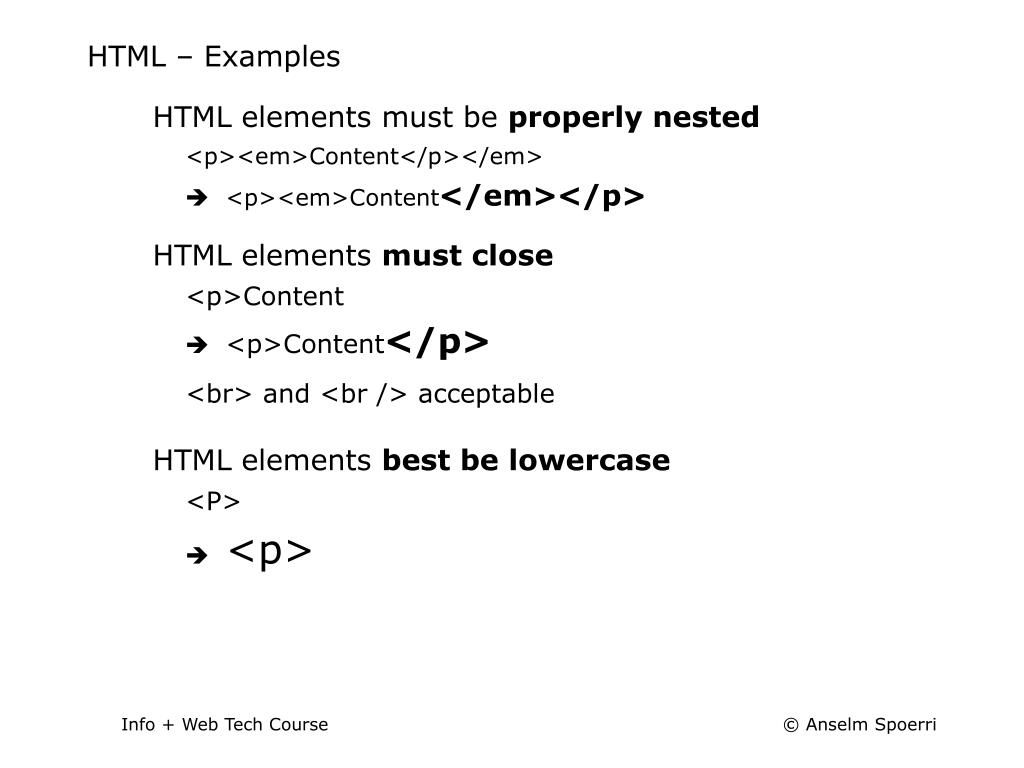

  4. HTML – Examples • HTML elements must be properly nested • <p><em>Content</p></em> •  <p><em>Content</em></p> • HTML elements must close • <p>Content •  <p>Content</p> • <br> and <br /> acceptable • HTML elements best be lowercase • <P> •  <p>

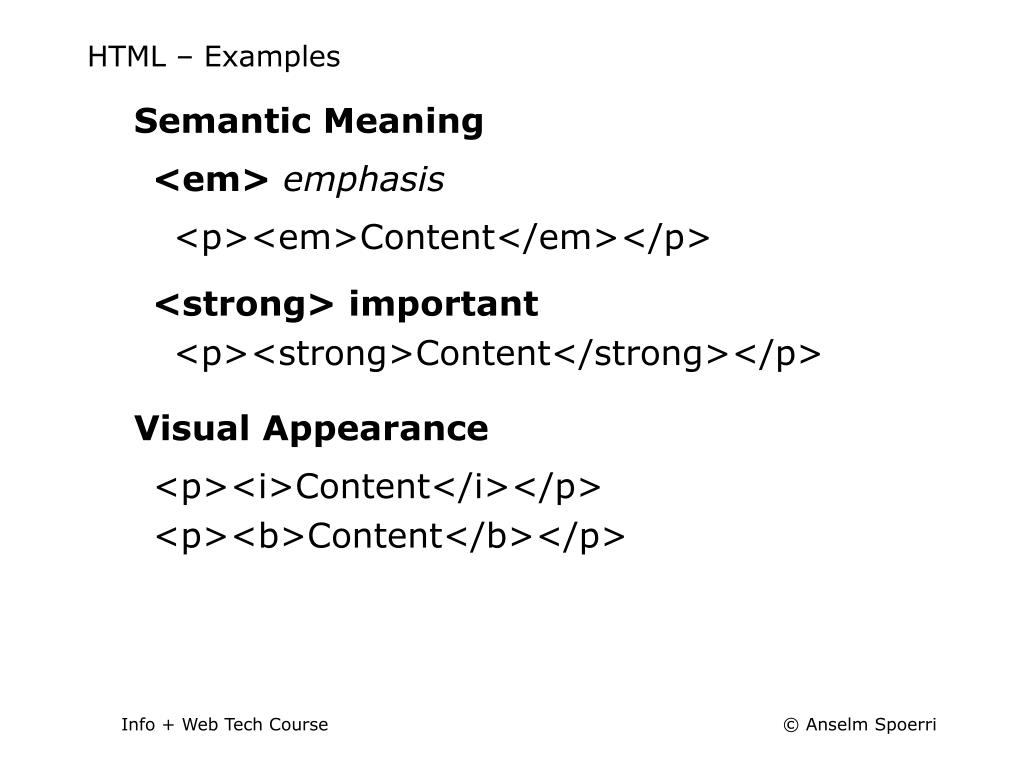

  5. HTML – Examples • Semantic Meaning • <em>emphasis • <p><em>Content</em></p> • <strong>important • <p><strong>Content</strong></p> • Visual Appearance • <p><i>Content</i></p> • <p><b>Content</b></p>

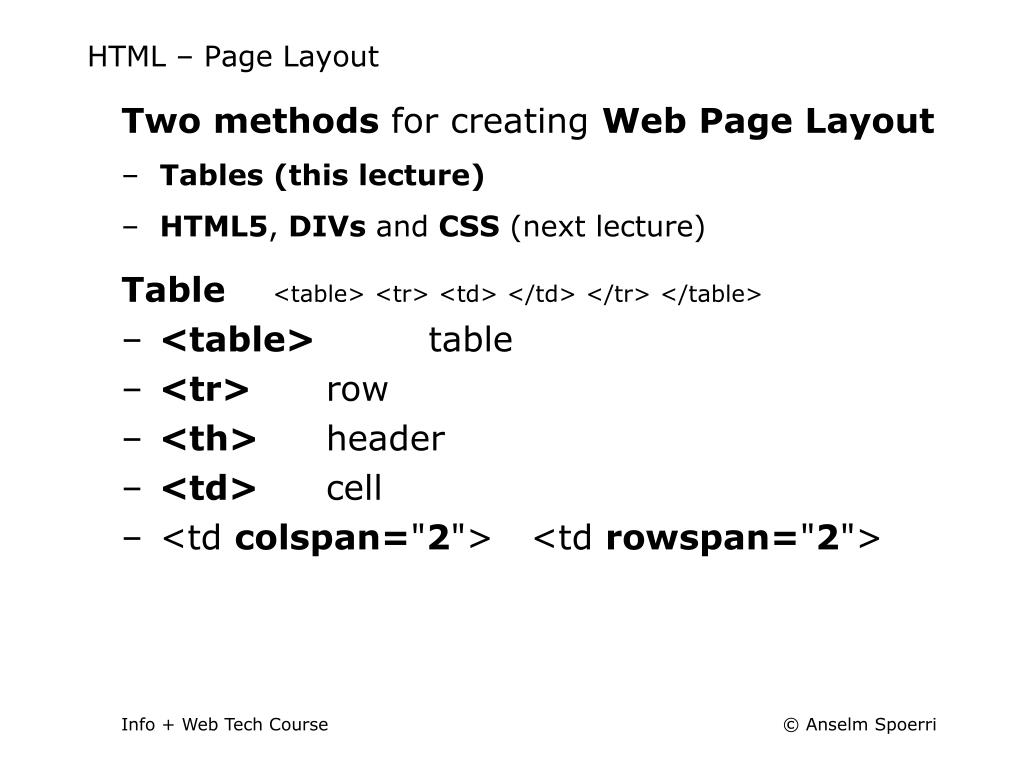

  6. HTML – Page Layout • Two methods for creating Web Page Layout • Tables (this lecture) • HTML5, DIVs and CSS (next lecture) • Table <table> <tr> <td> </td> </tr> </table> • <table> table • <tr> row • <th> header • <td> cell • <td colspan="2"> <td rowspan="2">

  7. Table Example <table> <tr> <td> </td> <td> </td> <td> </td> </tr> <tr> <td> </td> <td> </td> <td> </td> </tr> <tr> <td> </td> <td> </td> <td> </td> </tr> </table>

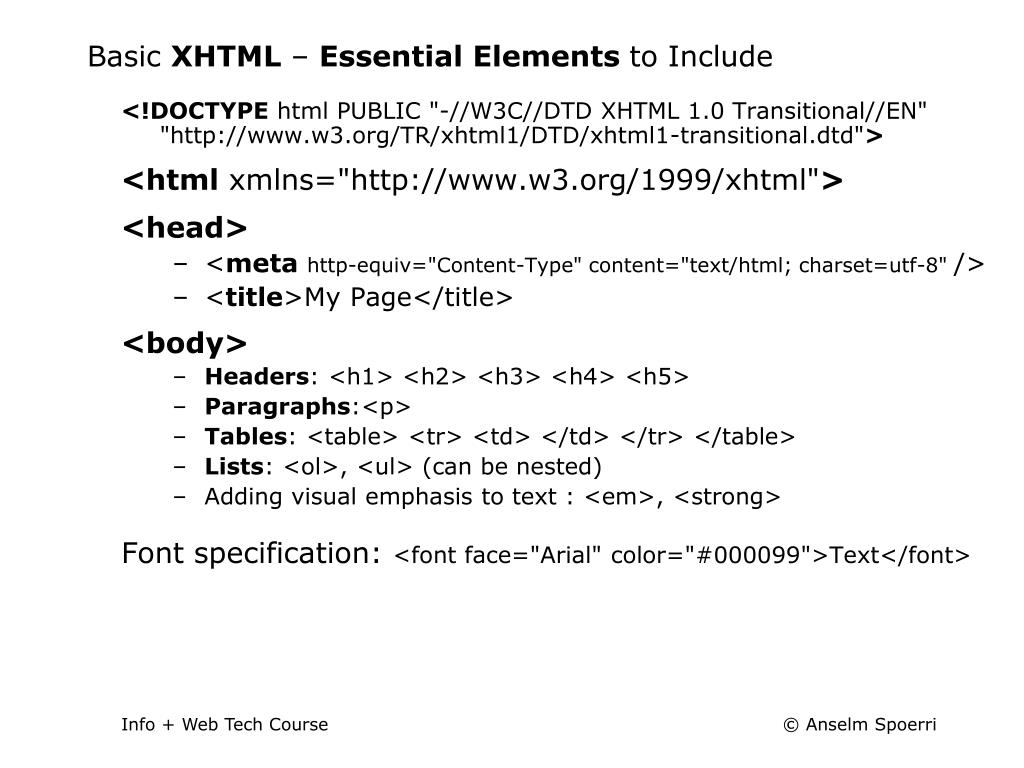

  8. Basic XHTML – Essential Elements to Include • <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> • <html xmlns="http://www.w3.org/1999/xhtml"> • <head> • <meta http-equiv="Content-Type" content="text/html; charset=utf-8" /> • <title>My Page</title> • <body> • Headers: <h1> <h2> <h3> <h4> <h5> • Paragraphs:<p> • Tables: <table> <tr> <td> </td> </tr> </table> • Lists: <ol>, <ul> (can be nested) • Adding visual emphasis to text : <em>, <strong> • Font specification: <font face="Arial" color="#000099">Text</font>

  9. Basic HTML5 – Essential Elements to Include • <!DOCTYPE html> • <html lang="en"> • <head> • <meta charset=utf-8" /> • <title>My Page</title> • <body> • <header> <nav> • <main> <article> <section> <figure> • <aside> • <footer> • Headers: <h1> <h2> <h3> <h4> <h5> • Paragraphs:<p> • Tables: <table> <tr> <td> </td> </tr> </table> • Lists: <ol>, <ul> (can be nested) • Adding semantic emphasis to text : <em>, <strong>. <i>, <b> • Font specification: use CSS

  10. Hyperlinks • <a> hyperlink tag • Use Attributes and Values • <a href="absolute or relative pathname"target="_self" [opens page in same browser window] target="_blank" [opens page in new browser window]>Text of Hyperlink</a> • Create Anchor: <a name="anchor name"> • Link to Anchor: <a href="#anchor name">

  11. Images • <img> image tag • Use Attributes and Values (src and alt are required to be valid HTML) • <imgsrc="pathname"alt="my image" [text to appear if image does not show]height="100" width="100" [improves time to load page] • align="left" [image floats on left, text flows on right … deprecated in HTML5 for CSS]hspace="5" [deprecated in HTML5 for CSS] vspace="5" [deprecated in HTML5 for CSS] • /> [XHTML requires />] • Floating image needs to be placed right before text that needs to flow or wrap around it.

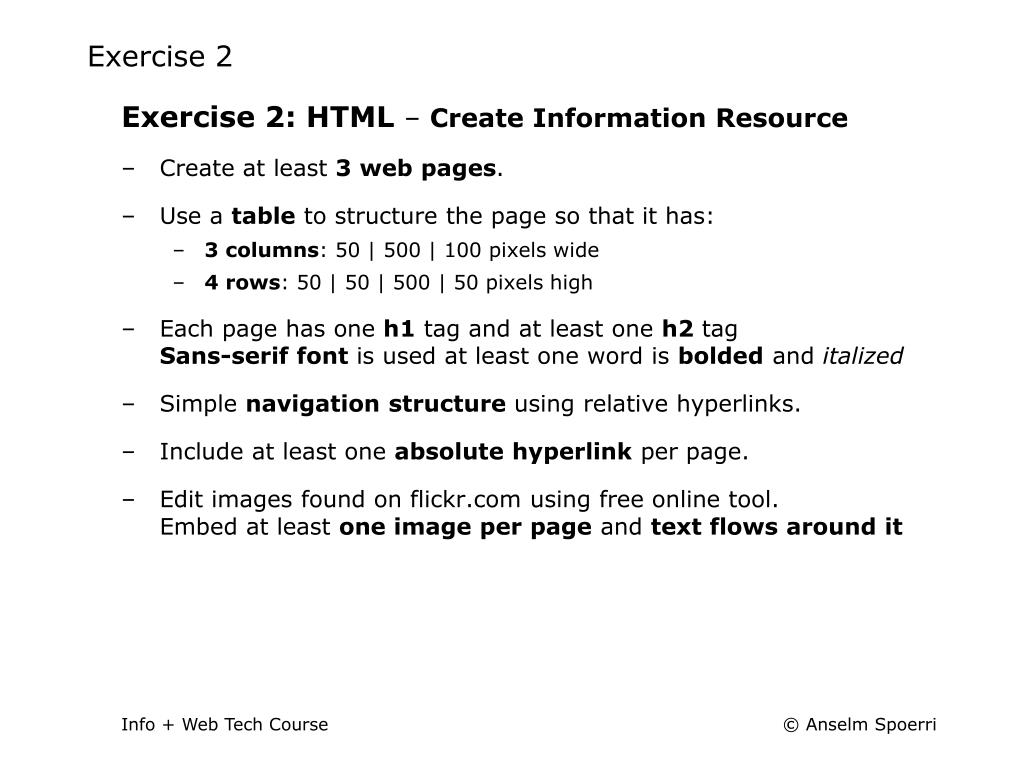

  12. Exercise 2 • Exercise 2: HTML– Create Information Resource • Create at least 3 web pages. • Use a table to structure the page so that it has: • 3 columns: 50 | 500 | 100 pixels wide • 4 rows: 50 | 50 | 500 | 50 pixels high • Each page has one h1 tag and at least one h2 tagSans-serif font is used at least one word is bolded and italized • Simple navigation structure using relative hyperlinks. • Include at least one absolute hyperlink per page. • Edit images found on flickr.com using free online tool.Embed at least one image per page and text flows around it

  13. Exercise 2 Demo – Step 1 • Create folder = “ex2” inside your “550” folder • Open New File with Notepad++ / TextWrangler • Save as type – All files (otherwise saves it as .txt by default) • File name - ex2_page1.html • Add doctype, encoding and title and essential elements (make sure to have closing tags) • Upload File to Eden, Set Permissions, Test in Browser

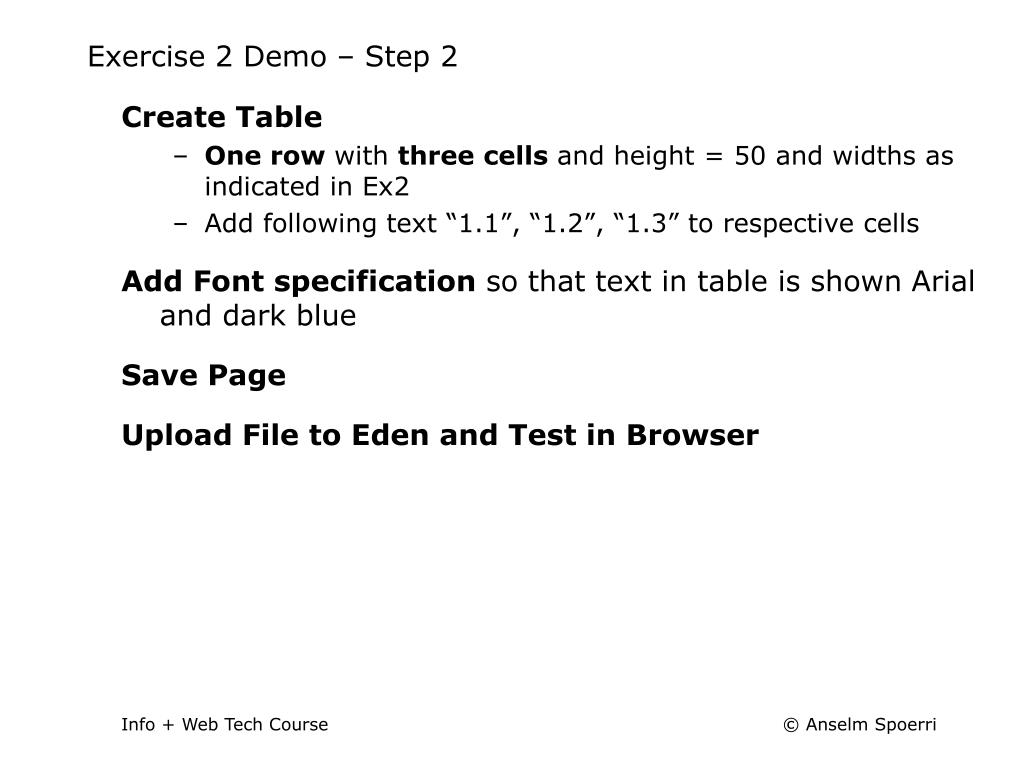

  14. Exercise 2 Demo – Step 2 • Create Table • One row with three cells and height = 50 and widths as indicated in Ex2 • Add following text “1.1”, “1.2”, “1.3” to respective cells • Add Font specification so that text in table is shown Arial and dark blue • Save Page • Upload File to Eden and Test in Browser

  15. Exercise 2 Demo – Step 3 • Copy 1st Row code • Create 2nd Row by pasting copied code and customize • Height = 50 and widths as indicated in Ex2 • Add following text “2.1”, “2.2”, “2.3” to respective cells • Create 3rd Row by pasting copied code and customize • Height = 500 and widths as indicated in Ex2 • Add following text “3.1”, “3.2”, “3.3” to respective cells • Create 4th Row by pasting copied code and customize • Height = 50 and widths as indicated in Ex2 • Add following text “4.1”, “4.2”, “4.3” to respective cells • Save Page • Upload File to Eden and Test in Browser

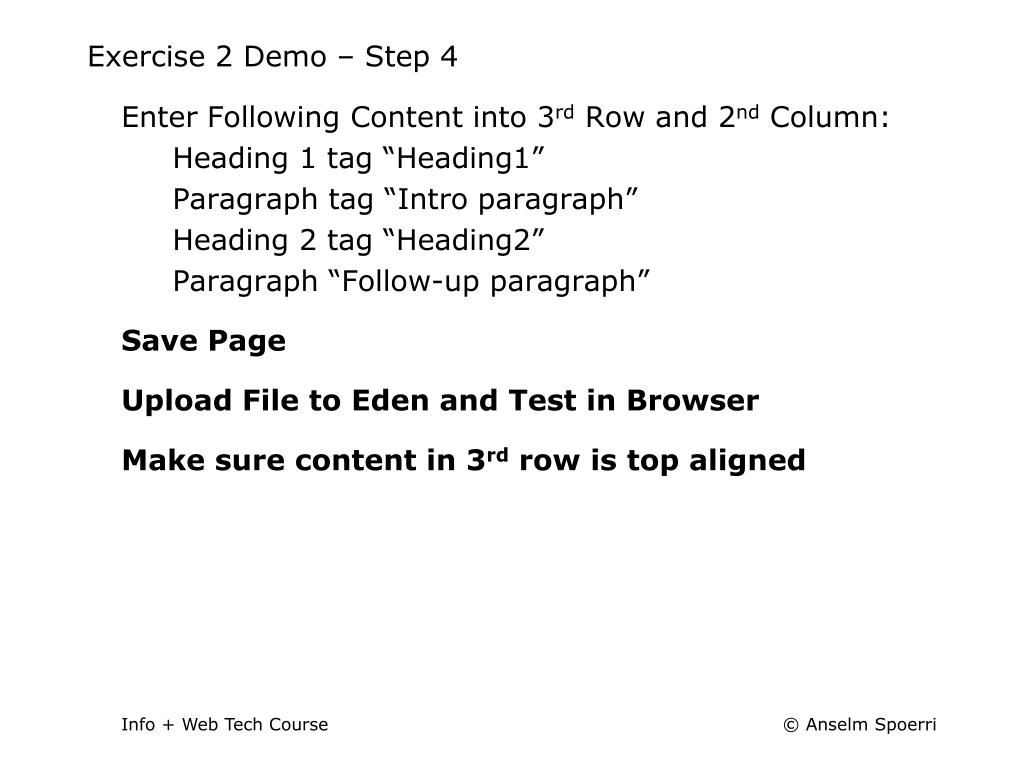

  16. Exercise 2 Demo – Step 4 • Enter Following Content into 3rd Row and 2nd Column: Heading 1 tag “Heading1” Paragraph tag “Intro paragraph” Heading 2 tag “Heading2” Paragraph “Follow-up paragraph” • Save Page • Upload File to Eden and Test in Browser • Make sure content in 3rd row is top aligned

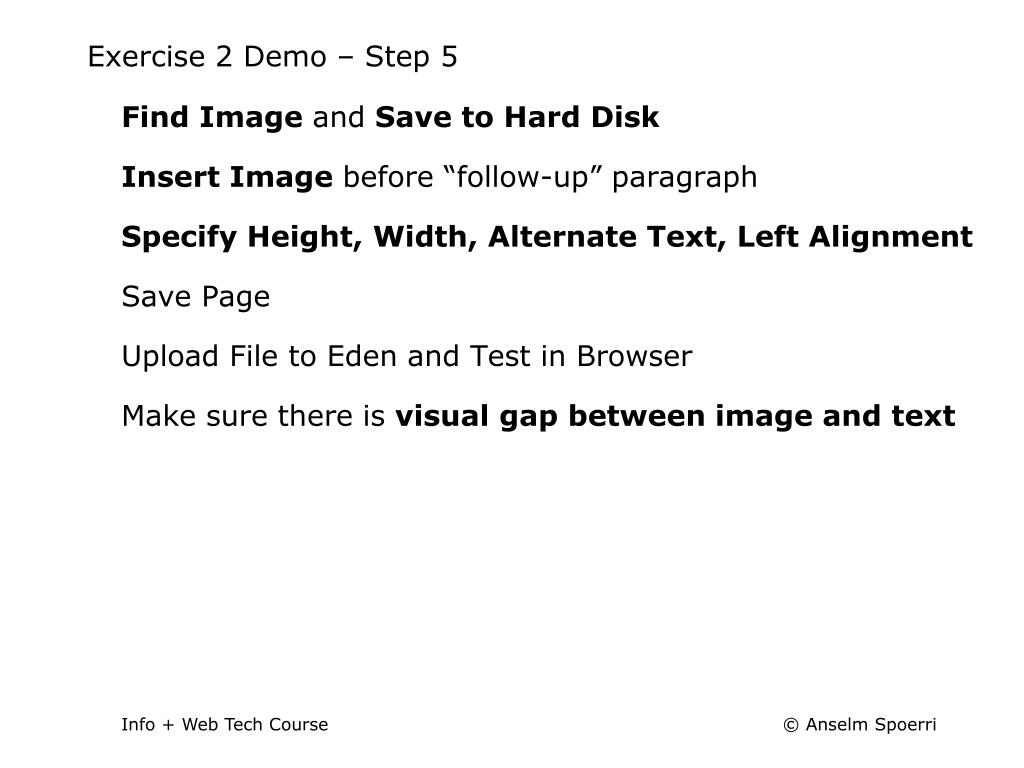

  17. Exercise 2 Demo – Step 5 • Find Image and Save to Hard Disk • Insert Image before “follow-up” paragraph • Specify Height, Width, Alternate Text, Left Alignment • Save Page • Upload File to Eden and Test in Browser • Make sure there is visual gap between image and text

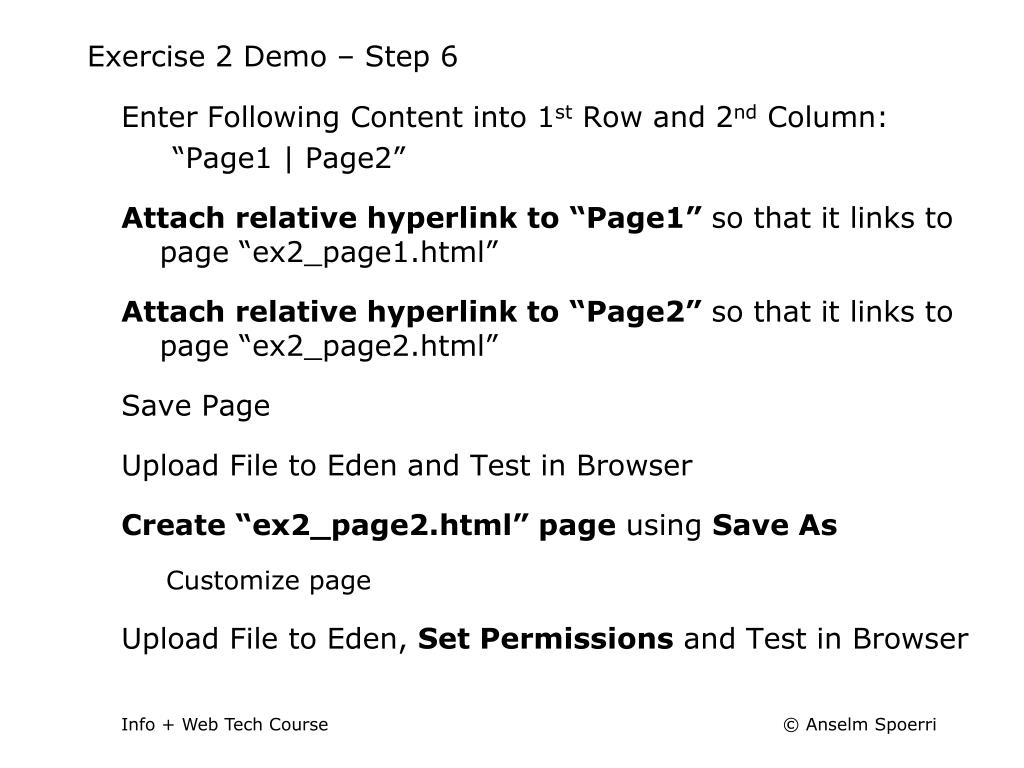

  18. Exercise 2 Demo – Step 6 • Enter Following Content into 1st Row and 2nd Column: “Page1 | Page2” • Attach relative hyperlink to “Page1” so that it links to page “ex2_page1.html” • Attach relative hyperlink to “Page2” so that it links to page “ex2_page2.html” • Save Page • Upload File to Eden and Test in Browser • Create “ex2_page2.html” page using Save As Customize page • Upload File to Eden, Set Permissions and Test in Browser

  19. Exercise 2 Demo – Step 7 • Create “you are here” indicator in Navigation Structure • Select “PageN” on “ex2_pageN” and remove hyperlink • Select “PageN” and make it bold • Select “PageN” and set font color to red ["#FF0000"] • Save Page • Upload File to Eden and Test in Browser • You will need to Validate Your Pages usinghttp://validator.w3.org/ • [instructor will let you know which errors you can ignore]

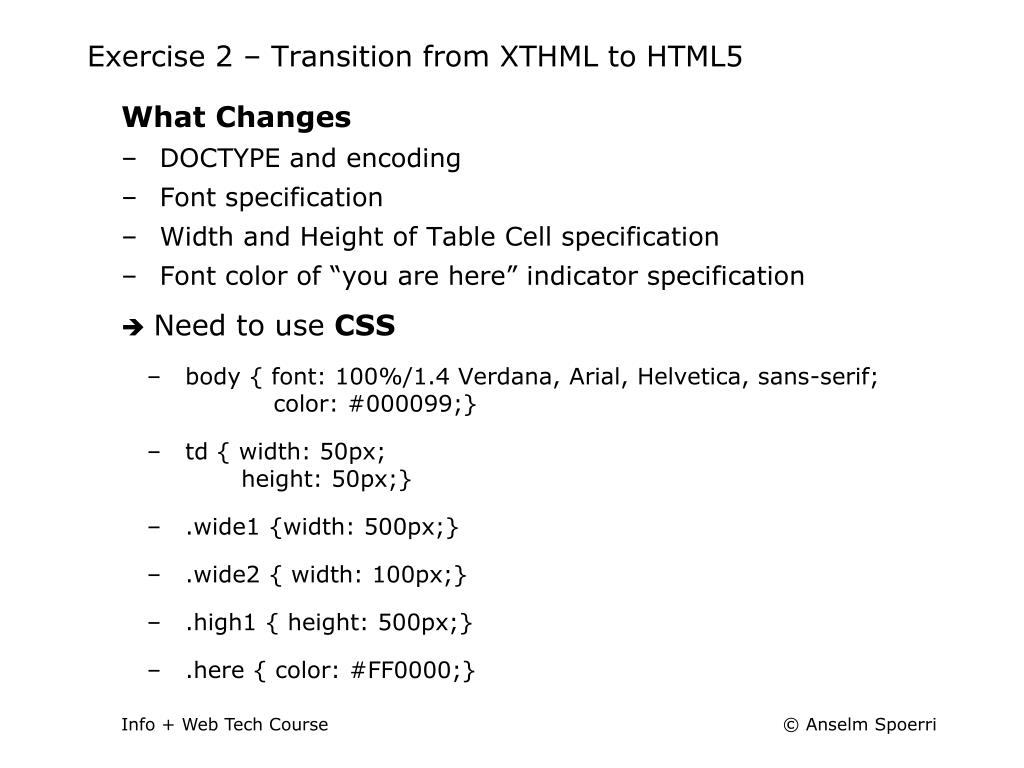

  20. Exercise 2 – Transition from XTHML to HTML5 • What Changes • DOCTYPE and encoding • Font specification • Width and Height of Table Cell specification • Font color of “you are here” indicator specification •  Need to use CSS • body { font: 100%/1.4 Verdana, Arial, Helvetica, sans-serif; color: #000099;} • td { width: 50px; height: 50px;} • .wide1 {width: 500px;} • .wide2 { width: 100px;} • .high1 { height: 500px;} • .here { color: #FF0000;}

  21. Web Services • Google Analytics Demo • Log into Your Google Account • Add Analytics to your set of tools • In Accounts bar, click on “Add New Account” orUse “Select an account” pull down menu in top right corner • Analytics: New Account Signup dialog : Specify URL • Track: Single Domain • Copy Embed code (consult “common question” links) • Paste at bottom of web page before </body>

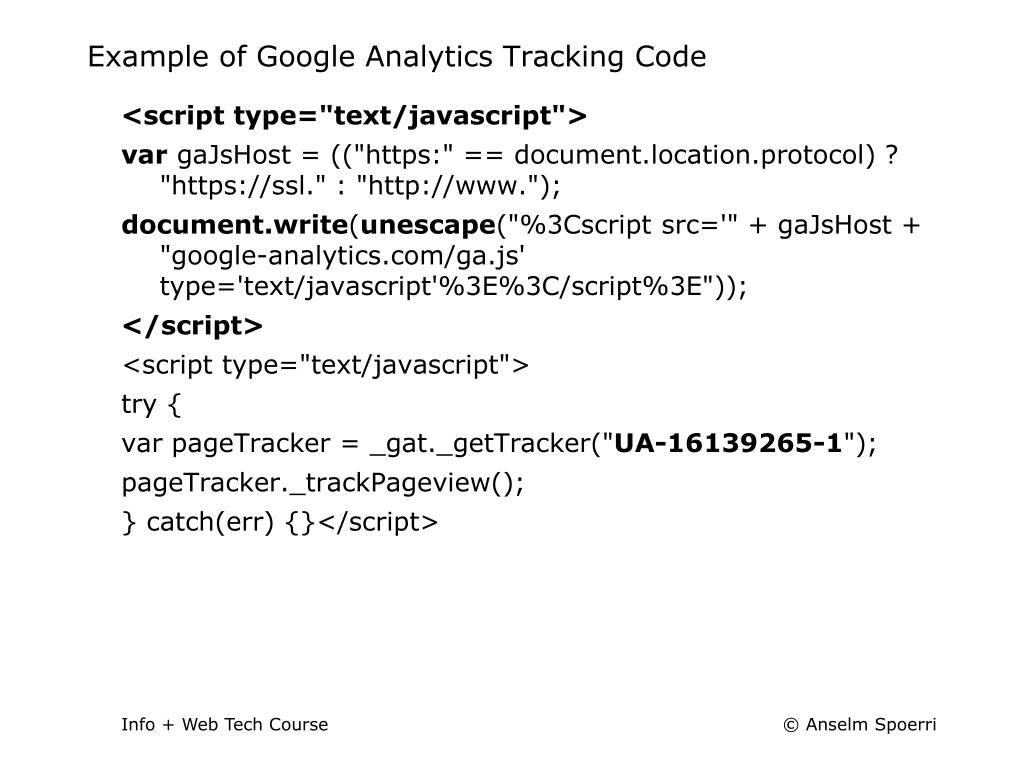

  22. Example of Google Analytics Tracking Code • <script type="text/javascript"> • var gaJsHost = (("https:" == document.location.protocol) ? "https://ssl." : "http://www."); • document.write(unescape("%3Cscript src='" + gaJsHost + "google-analytics.com/ga.js' type='text/javascript'%3E%3C/script%3E")); • </script> • <script type="text/javascript"> • try { • var pageTracker = _gat._getTracker("UA-16139265-1"); • pageTracker._trackPageview(); • } catch(err) {}</script>
