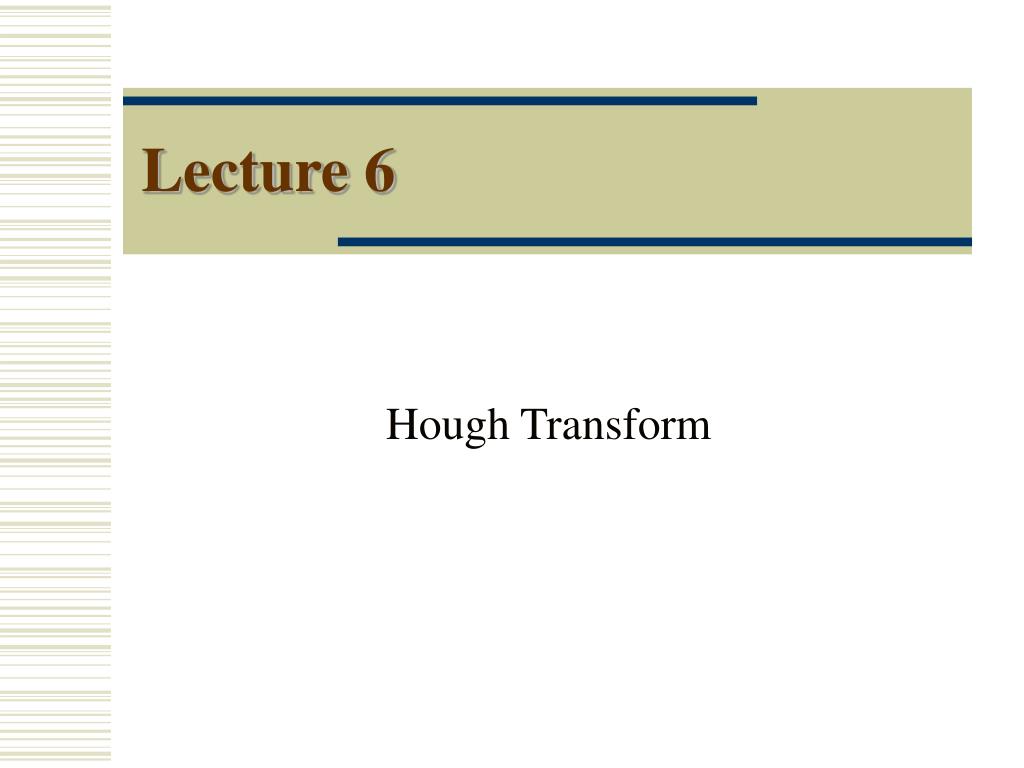

  1. Lecture 6 Hough Transform

  2. Detecting lines y = mx + b 3 lines : y1 = m1x + b1 y2 = m2x + b2 y3 = m3x + b3

  3. Detecting Lines • For example, Given 7 points, find m, b Initial an empty array indexed by (m,b)

  4. Detecting Lines 1. (0,1), 1 = 0+b b = 1 2. (1,2), 2 = m+b b = 2 -m Max Vote - Peak in Hough Space Report (m,b) here 3. (1,3), 3 = m+b b = 3 - m 4. …… 5. …… … ... increase the array at each calculated (m,b)

  5. Problem: Vertical Lines Solution: xcosq + ysinq q = 0 .. 359 degree

  6. Hough Transform For Detecting Circles (x0,y0) - center, r - radius

  7. Hough Transform For Detecting Circles a = ... b = … r = … For all a,b,r A[a,b,r]++ Problem: How to find peak in 3D array Clustering Algorithm

  8. Hough Transform For Detecting Circles x = a + rcosq (1) y = b + rsinq (2) a = x - rcosq (3) b = y - rsinq (4) (1) *sinq xsinq = asinq + rsinqcosq (3) (2) *cosq ycosq = bcosq + rsinqcosq (4) (3) - (4) xsinq - ycosq = asinq - bcosq (5) (5) / cosq xtanq - y = atanq - b (6) b = (a-x)tanq + y

  9. Hough Transform For Detecting Circles b = (a-x)tanq + y still have 3 unknowns : a, b, q Using Sobel Edge Detector: Finding Gx and Gy q q = gradient direction

  10. bright dark Hough Transform For Detecting Circles Gradient Direction is perpendicular to edge direction q Known tanq at each edge element So, tanq is known There remains only 2 unknowns: a, b
