  1. Machine Specific Courses Course: PVSS Vacuum Control for the PS complex Isabelle Laugier, TE/VSC/ICM Section March 11th 2009

  2. Summary • History • Complex PS including Clex • SPS • LHC • Main functionalities • Demonstration • Conclusion Isabelle Laugier, TE/VSC March 11th 2009

  3. History • Since 2002, Vacuum group homogenize their control system by using the same hardware (Siemens PLCs and power supplies) and the same software (PVSS Servers) on all accelerators. • It started in 2002 by SPS followed by LEIR (2005), LHC (2006) and complex PS in 2008. • PS Machine will be the next one if possible during shutdown 2009-10. • The main advantage is an important reduction of maintenance problems, interventions and spares management. The complex PS, the SPS and the 4 LHC vacuum control systems are identically. Isabelle Laugier, TE/VSC March 11th 2009

  4. Complex PS Contents: • Ion pumps, Pirani/Penning gauges and sectors valves for Linac2&3, PSB, lines TT2, lines BI-BT and BTY, and LEIR. Isabelle Laugier, TE/VSC March 11th 2009

  5. PS Linux Version Isabelle Laugier, TE/VSC March 11th 2009

  6. Clex Isabelle Laugier, TE/VSC March 11th 2009

  7. SPS and Transfer Lines Contents: • SPS, North area and CNGS ion pumps, Piranni/Penning gauges and sectors valves • TI2 and TI8 ion pumps and sectors valves Isabelle Laugier, TE/VSC March 11th 2009

  8. LHC Contents: • The QRL and Cryo Vacuum systems with triplet of gauges and fixed pumping groups • The 2 beam vacuum systems with Pirani/Penning gauges, ion gauges, ion pumps, mobil equipments (pumping groups or bakeout racks) and sector valves • The 2 dump lines with Pirani/Pening gauges, ion pumps and sector valves • The 4 experimental areas with vacuum equipment and Gas Injection System. In LHCb, Velo is specific. Isabelle Laugier, TE/VSC March 11th 2009

  9. Main functionalities • On the main view: • State of all sector valves • State of our PLCs • History of actions • Actions menu to open/close sector valves Isabelle Laugier, TE/VSC March 11th 2009

  10. State of PLCs and Devices List Isabelle Laugier, TE/VSC March 11th 2009

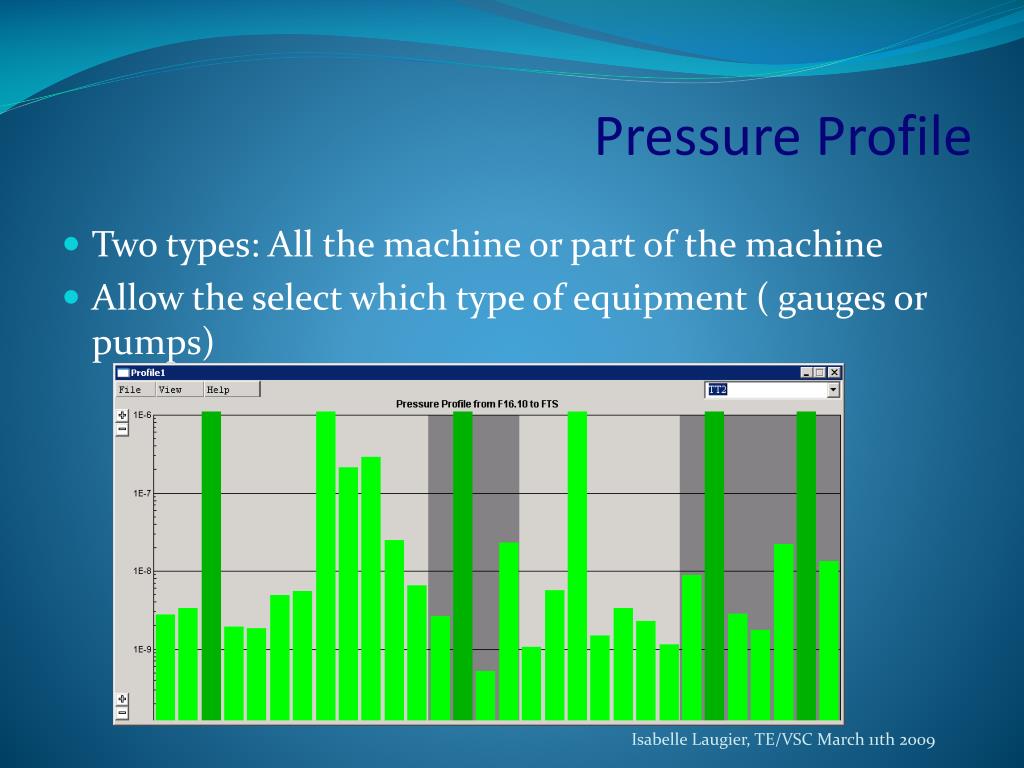

  11. Pressure Profile • Two types: All the machine or part of the machine • Allow the select which type of equipment ( gauges or pumps) Isabelle Laugier, TE/VSC March 11th 2009

  12. All machine Profile for SPS Isabelle Laugier, TE/VSC March 11th 2009

  13. Synoptic • Layout of a part of the machine with state of equipment. Isabelle Laugier, TE/VSC March 11th 2009

  14. Detail window and comment window • For each type of equipment Isabelle Laugier, TE/VSC March 11th 2009

  15. Pressure and State History Isabelle Laugier, TE/VSC March 11th 2009

  16. Global actions • To open/close valves • To start/stop ion pumps & gauges Isabelle Laugier, TE/VSC March 11th 2009

  17. Meaning of icons Isabelle Laugier, TE/VSC March 11th 2009

  18. Interface to control system • Publishing data to Logging Database to be used by Timber • Sending alarms to Laser • Publication of interlocks and gauges pressure to CMW and DIP Isabelle Laugier, TE/VSC March 11th 2009

  19. Documentation • Help on line available directly from the application on Window; a direct link from each window • Documentation will be soon available from Linux. • Software user manual document available in EDMS number 904272 Isabelle Laugier, TE/VSC March 11th 2009

  20. Vacuum sector valves interlocks Isabelle Laugier, TE/VSC March 11th 2009

  21. Conclusion • A Linux version is there for the complex PS, the one for SPS and LHC will be available mid 2009. • Ready to receive from comments and to implement your new requirements Isabelle Laugier, TE/VSC March 11th 2009
