  1. Grid provisioning from cloned golden boot images Alan G. Yoder, Ph.D. Network Appliance Inc.

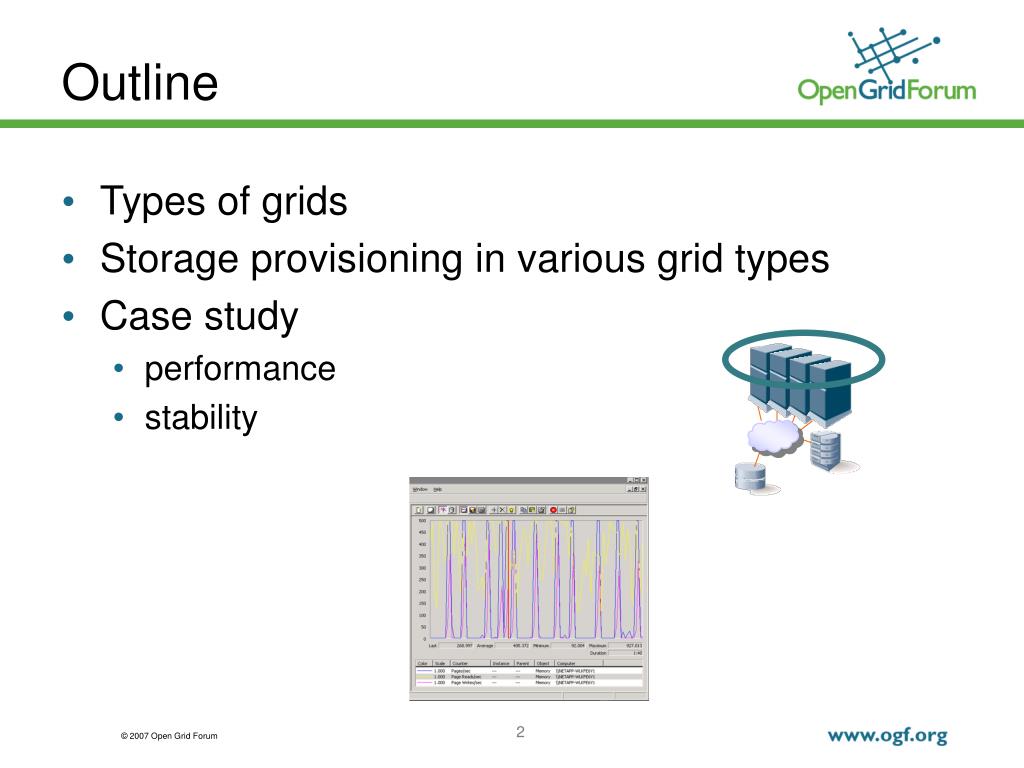

  2. Outline • Types of grids • Storage provisioning in various grid types • Case study • performance • stability 2

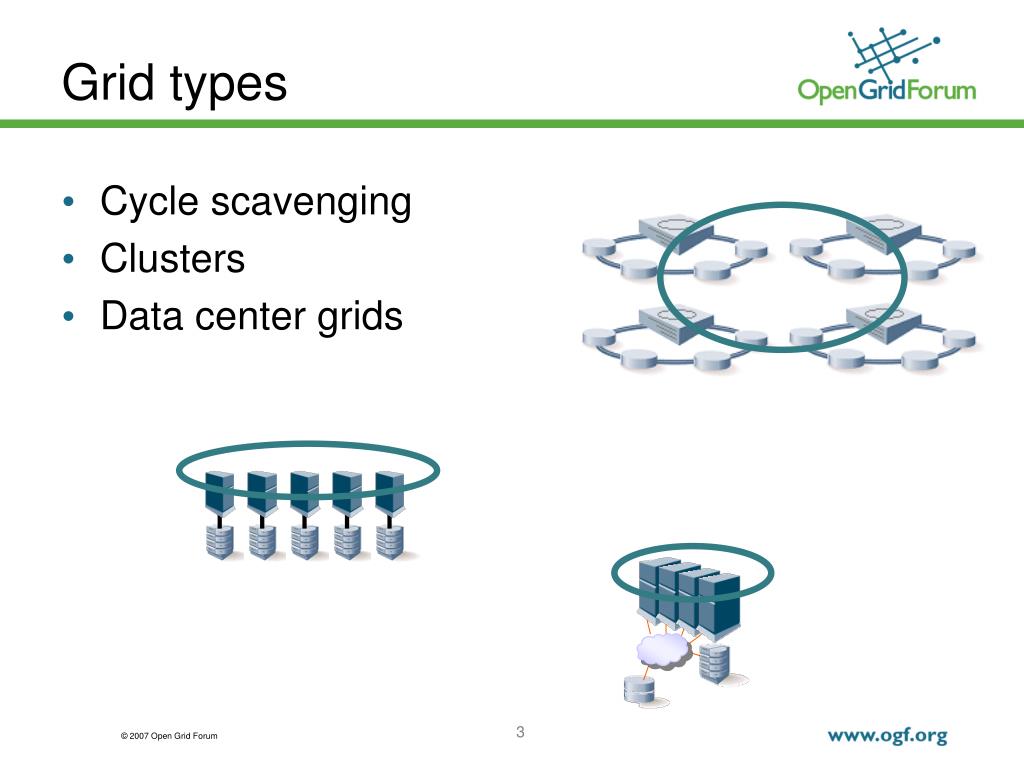

  3. Grid types • Cycle scavenging • Clusters • Data center grids 3

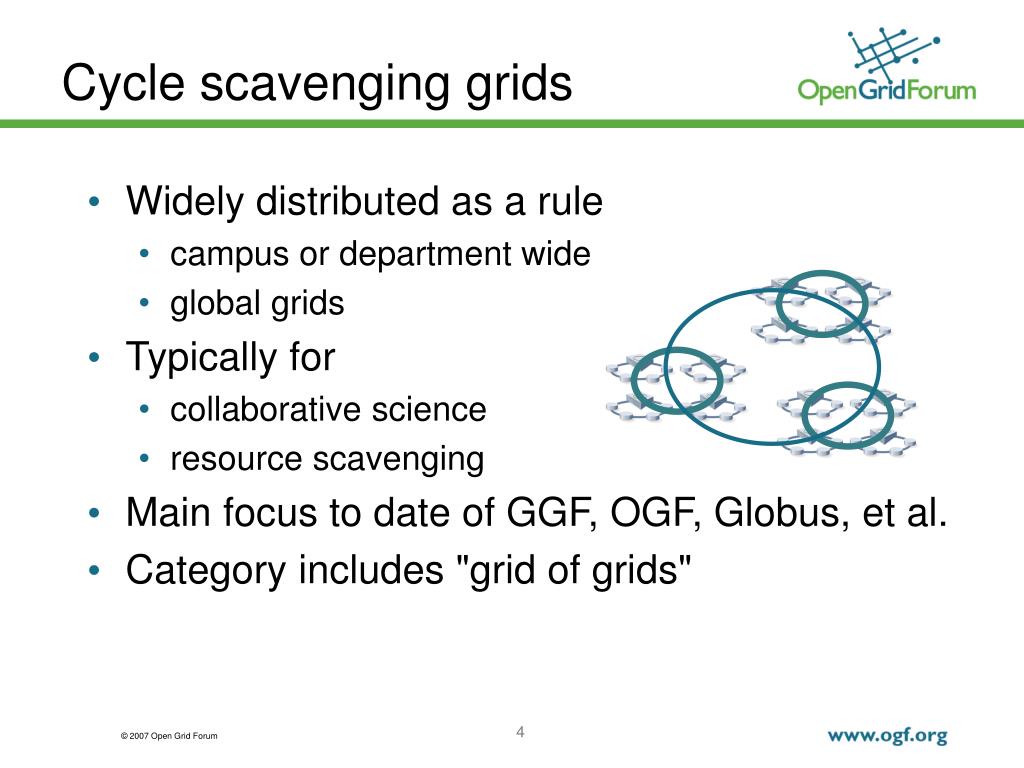

  4. Cycle scavenging grids • Widely distributed as a rule • campus or department wide • global grids • Typically for • collaborative science • resource scavenging • Main focus to date of GGF, OGF, Globus, et al. • Category includes "grid of grids" 4

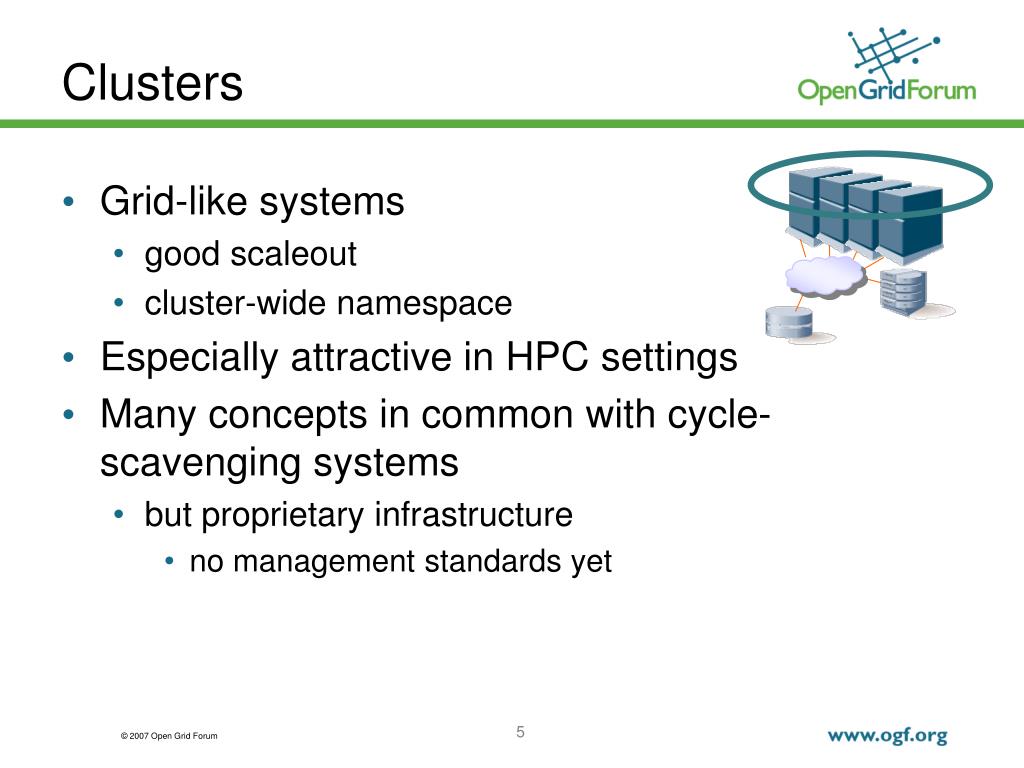

  5. Clusters • Grid-like systems • good scaleout • cluster-wide namespace • Especially attractive in HPC settings • Many concepts in common with cycle-scavenging systems • but proprietary infrastructure • no management standards yet 5

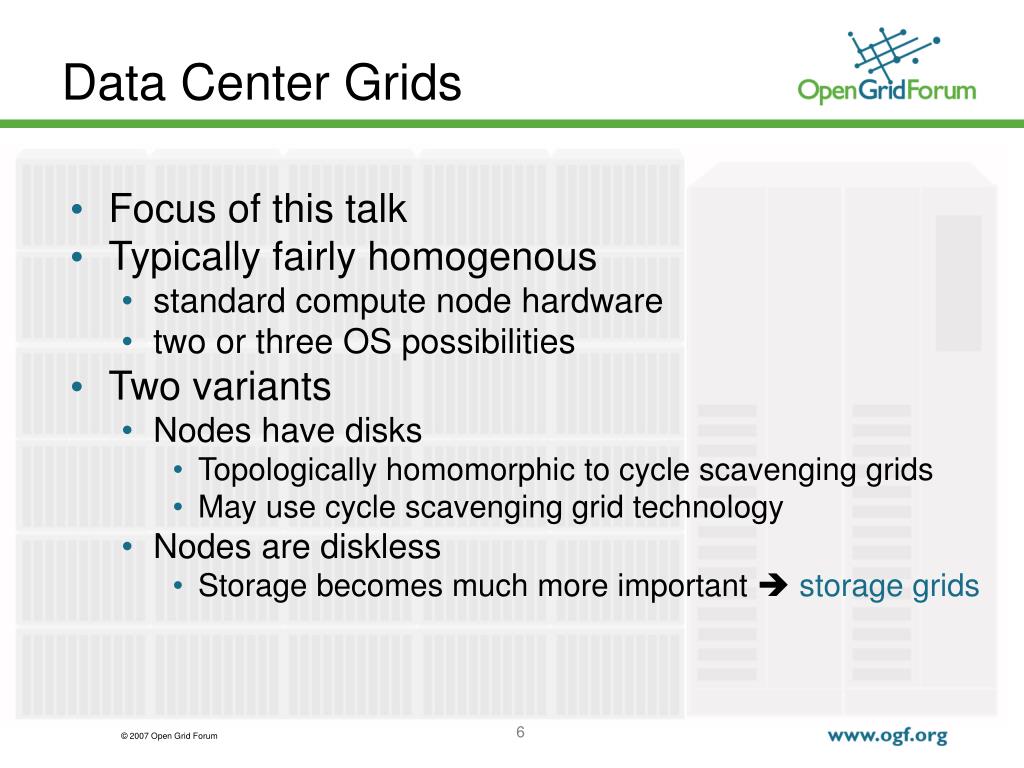

  6. Data Center Grids • Focus of this talk • Typically fairly homogenous • standard compute node hardware • two or three OS possibilities • Two variants • Nodes have disks • Topologically homomorphic to cycle scavenging grids • May use cycle scavenging grid technology • Nodes are diskless • Storage becomes much more important  storage grids 6

  7. Storage technology adoption curves Enterprise Storage Market Today Grid Frameworks Today ? Global StorageNetwork StorageGrids NetworkedStorage Direct attachedStorage Focus of this talk Market Adoption Cycles 7

  8. Diskless compute farms • Connected to storage grids • Boot over iSCSI or FCP • OS is provisioned in a boot LUN on a storage array • Applications can be provisioned as well • Key benefit – nodes can be repurposed at any time from a different boot image • Key benefit – smart storage and provisioning technology can use LUN cloning to deliver storage efficiencies through block sharing • Key benefit – no rotating rust in compute nodes • reduced power and cooling requirements • no OS/applications to provision on new nodes 8

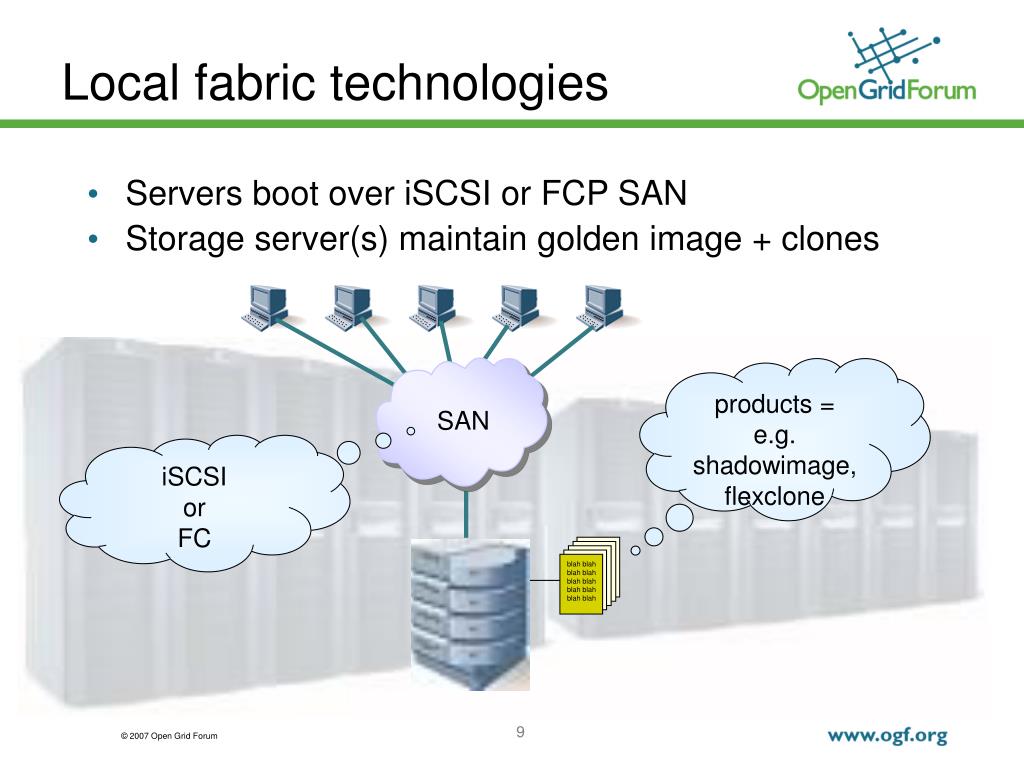

  9. SAN Local fabric technologies • Servers boot over iSCSI or FCP SAN • Storage server(s) maintain golden image + clones products = e.g. shadowimage, flexclone iSCSIorFC blah blah blah blah blah blah blah blah blah blah 9

  10. iSAN iSAN iSAN iSAN WAN Global deployment technologies Long-haul replication from central data center to local centers products e.g. snapmirror,trucopy 10

  11. Diskless booting • Node shuts down • Storage maps desired image to LUN 0 for the zone (FCP) or initiator group (iSCSI) the node is in • Node restarts • Node boots from LUN 0 • mounts scratch storage space if also provided • starts up grid-enabled application • Node proceeds to compute until done or repurposed LU – Logical UnitLUN – Logical Unit Number Mapping – LUNs :: initiator portsMasking – Initiators :: LUNs (“views”) 11

  12. Example gridsrv1 gridsrv2 gridsrv3 compute grid /vol/vol1/mysql_on_linuxLUN 0mapped to gridsrv2 /vol/vol1/geotherm2LUN 0mapped to gridsrv1 /vol/vol1/mysql_on_linuxLUN 0mapped to gridsrv3 storage grid 12

  13. What makes this magic happen? gridsrv1 gridsrv2 gridsrv3 compute grid /vol/vol1/mysql_on_linuxLUN 0mapped to gridsrv2 /vol/vol1/geotherm2LUN 0mapped to gridsrv1 /vol/vol1/mysql_on_linuxLUN 0mapped to gridsrv3 SGME storage grid 13

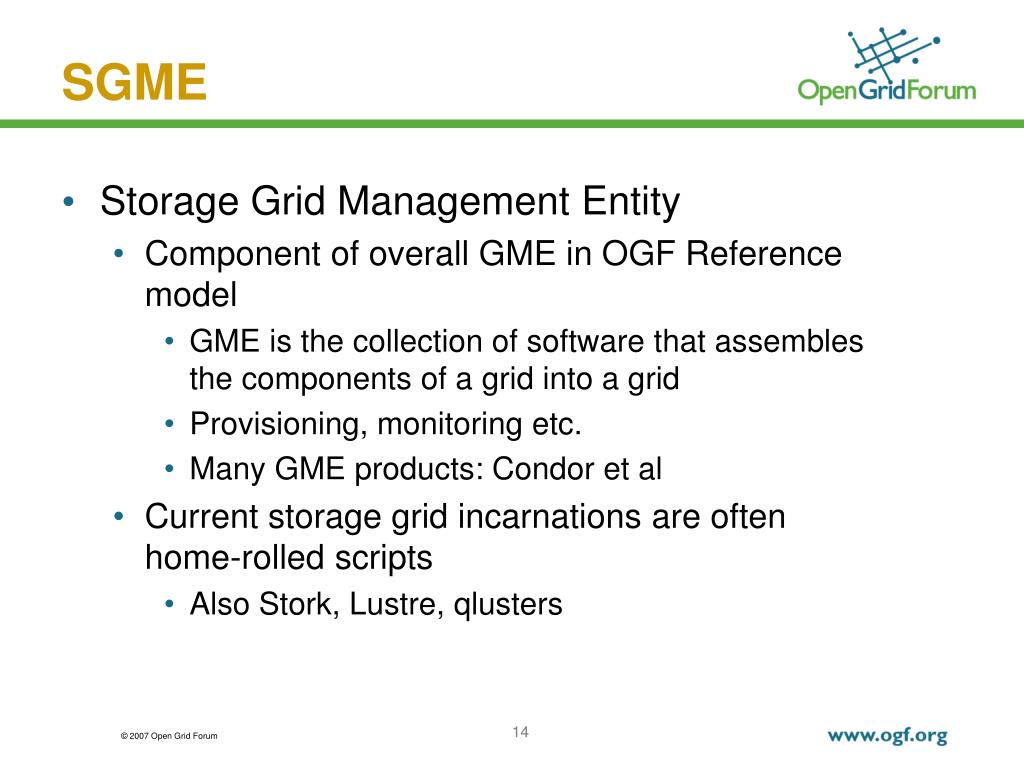

  14. SGME • Storage Grid Management Entity • Component of overall GME in OGF Reference model • GME is the collection of software that assembles the components of a grid into a grid • Provisioning, monitoring etc. • Many GME products: Condor et al • Current storage grid incarnations are often home-rolled scripts • Also Stork, Lustre, qlusters 14

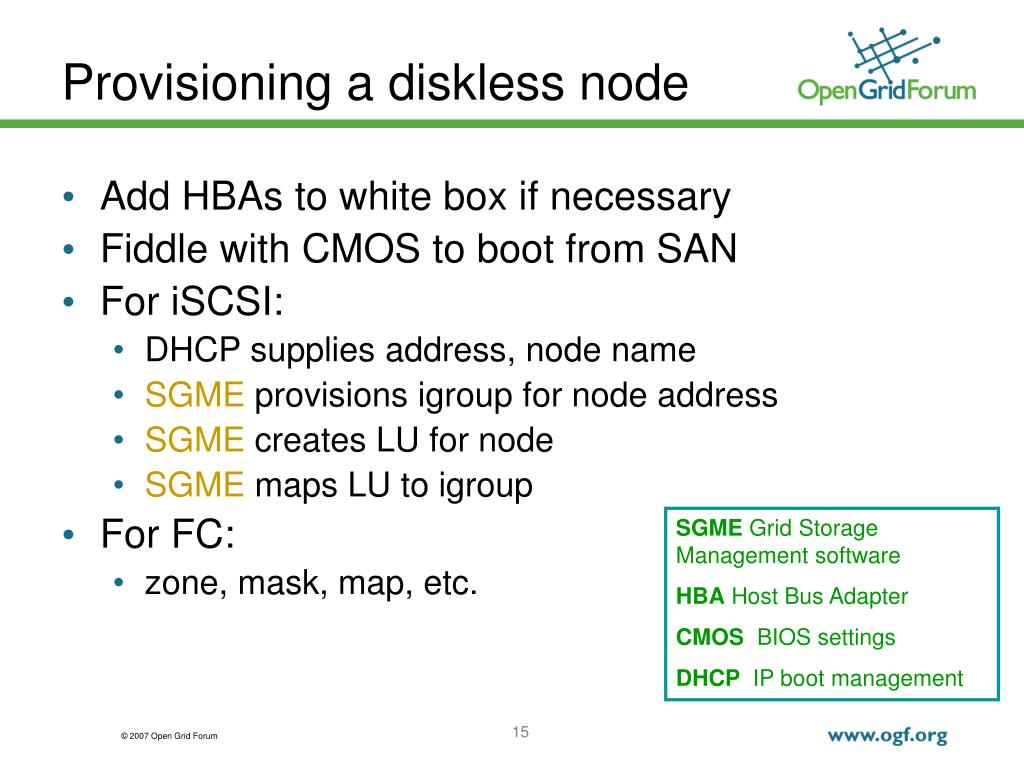

  15. Provisioning a diskless node • Add HBAs to white box if necessary • Fiddle with CMOS to boot from SAN • For iSCSI: • DHCP supplies address, node name • SGME provisions igroup for node address • SGME creates LU for node • SGME maps LU to igroup • For FC: • zone, mask, map, etc. SGME Grid Storage Management software HBA Host Bus Adapter CMOS BIOS settings DHCP IP boot management 15

  16. Provisioning a diskless node • Add HBAs to white box if necessary • We used QLogic 4052 adapters • Fiddle with CMOS to boot from SAN • Get your white box vendor to do this • Blade server racks generally easily configurable for this as well 16

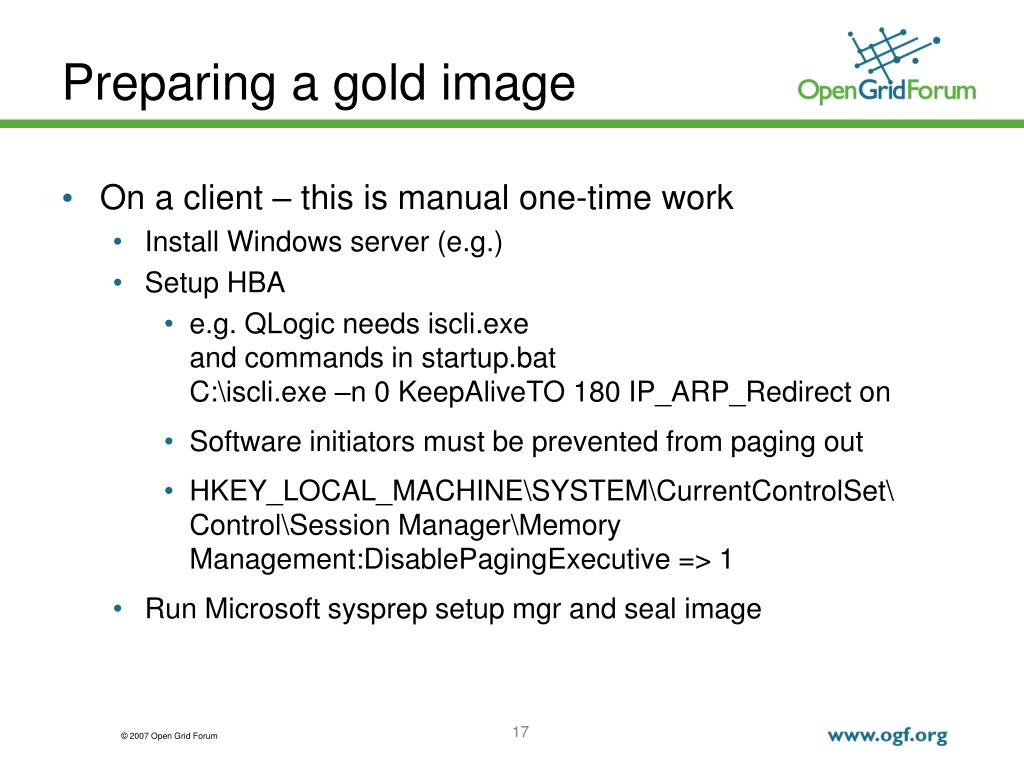

  17. Preparing a gold image • On a client – this is manual one-time work • Install Windows server (e.g.) • Setup HBA • e.g. QLogic needs iscli.exeand commands in startup.batC:\iscli.exe –n 0 KeepAliveTO 180 IP_ARP_Redirect on • Software initiators must be prevented from paging out • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management:DisablePagingExecutive => 1 • Run Microsoft sysprep setup mgr and seal image 17

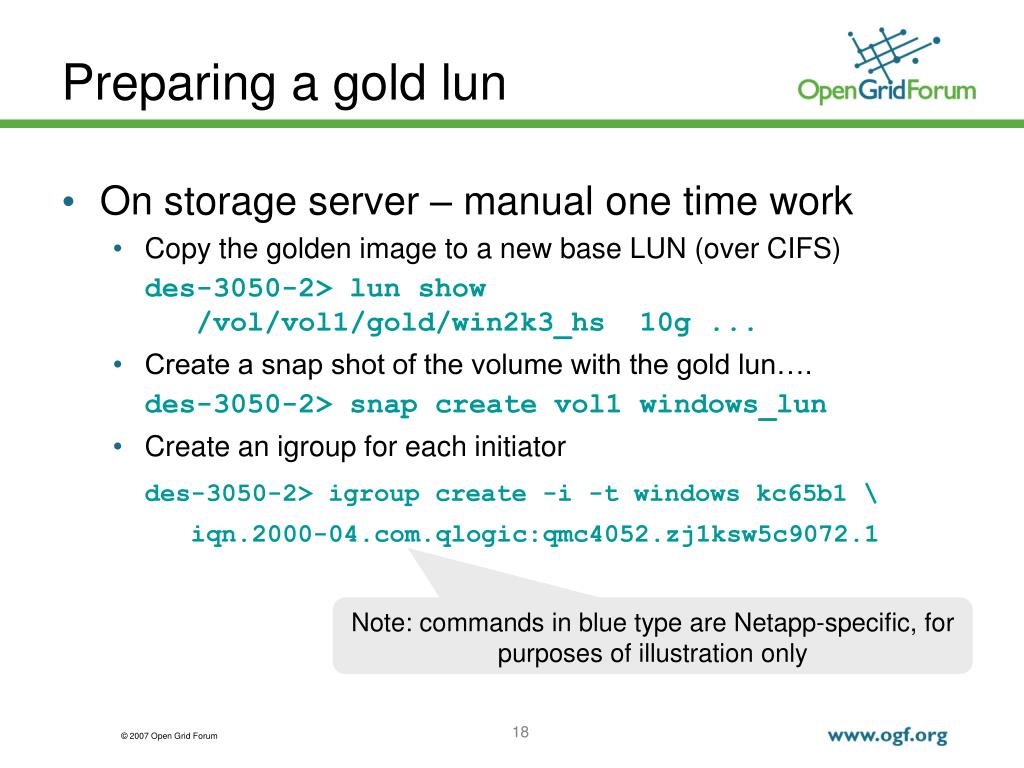

  18. Preparing a gold lun • On storage server – manual one time work • Copy the golden image to a new base LUN (over CIFS) des-3050-2> lun show    /vol/vol1/gold/win2k3_hs  10g ... • Create a snap shot of the volume with the gold lun…. des-3050-2> snap create vol1 windows_lun • Create an igroup for each initiator des-3050-2> igroup create -i -t windows kc65b1 \ iqn.2000-04.com.qlogic:qmc4052.zj1ksw5c9072.1 Note: commands in blue type are Netapp-specific, for purposes of illustration only 18

  19. Preparing cloned LUNs • SGME: for each client • create a qtree des-3050-2> qtree create /vol/vol1/iscsi/ • Create a lun clone from the gold lun des-3050-2> lun create –b \ /vol/vol1/.snapshot/windows_lun/gold/win2k3_hs \ /vol/vol1/iscsi/kc65b1 • Map the lun to the igroup. des-3050-2> lun map /vol/vol1/iscsi/kc65b1 kc65b1 0 19

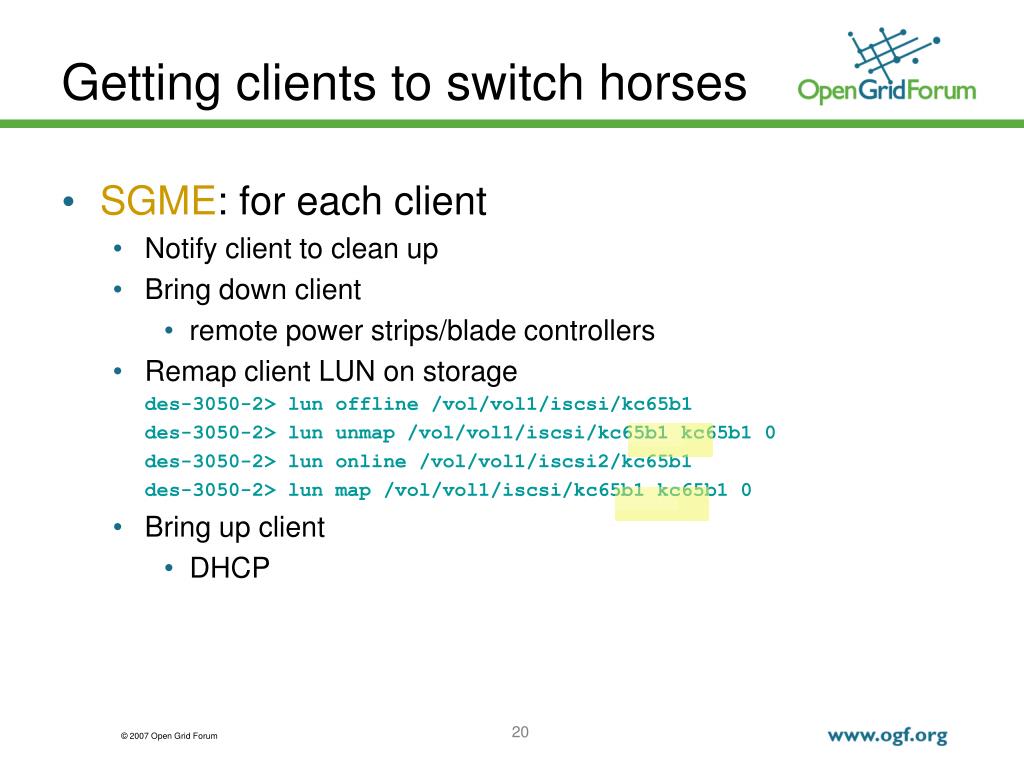

  20. Getting clients to switch horses • SGME: for each client • Notify client to clean up • Bring down client • remote power strips/blade controllers • Remap client LUN on storage des-3050-2> lun offline /vol/vol1/iscsi/kc65b1 des-3050-2> lun unmap /vol/vol1/iscsi/kc65b1 kc65b1 0 des-3050-2> lun online /vol/vol1/iscsi2/kc65b1 des-3050-2> lun map /vol/vol1/iscsi/kc65b1 kc65b1 0 • Bring up client • DHCP 20

  21. Lab results • Experiment conducted at Network Appliance • FAS 3050 clustered system • 224 clients (112 per cluster node) • dual core 3.2GHz/2GB Intel Xeon IBM H20 Blades • Qlogic QMC 4052 adapters • Windows Server 2003 SE SP1 • Objectives • determine robustness and performance characteristics of configuration, under conditions of storage failover and giveback • determine viability of keeping paging file on central storage 21

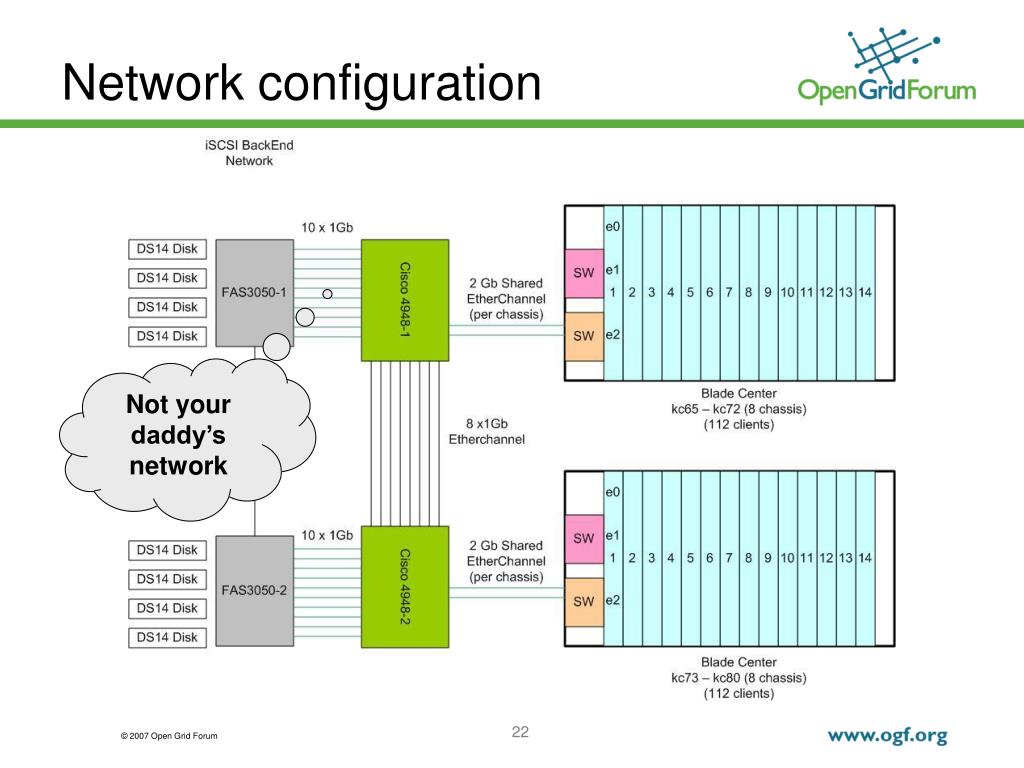

  22. Network configuration Not your daddy’s network 22

  23. Client load • Program to generate heavy CPU and paging activity (2 GB memory area, lots of reads and writes) • Several instances per client 23

  24. Client load, cont. • ~400 pages/sec 24

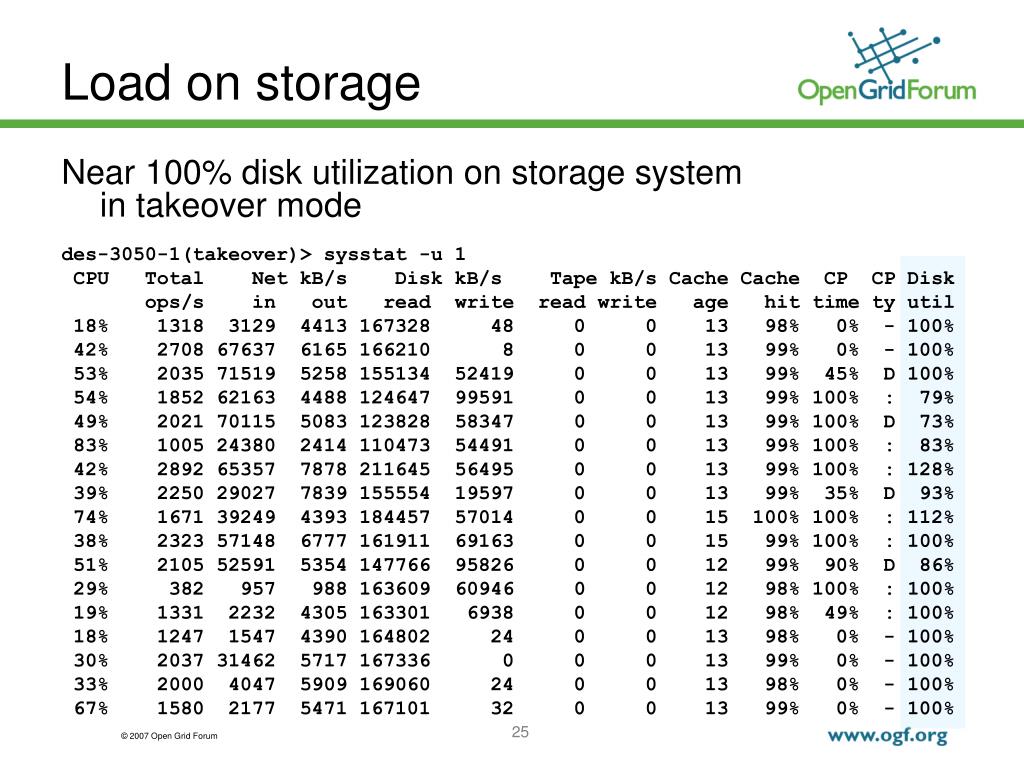

  25. Load on storage Near 100% disk utilization on storage systemin takeover mode des-3050-1(takeover)> sysstat -u 1 CPU Total Net kB/s Disk kB/s Tape kB/s Cache Cache CP CP Disk ops/s in out read write read write age hit time ty util 18% 1318 3129 4413 167328 48 0 0 13 98% 0% - 100% 42% 2708 67637 6165 166210 8 0 0 13 99% 0% - 100% 53% 2035 71519 5258 155134 52419 0 0 13 99% 45% D 100% 54% 1852 62163 4488 124647 99591 0 0 13 99% 100% : 79% 49% 2021 70115 5083 123828 58347 0 0 13 99% 100% D 73% 83% 1005 24380 2414 110473 54491 0 0 13 99% 100% : 83% 42% 2892 65357 7878 211645 56495 0 0 13 99% 100% : 128% 39% 2250 29027 7839 155554 19597 0 0 13 99% 35% D 93% 74% 1671 39249 4393 184457 57014 0 0 15 100% 100% : 112% 38% 2323 57148 6777 161911 69163 0 0 15 99% 100% : 100% 51% 2105 52591 5354 147766 95826 0 0 12 99% 90% D 86% 29% 382 957 988 163609 60946 0 0 12 98% 100% : 100% 19% 1331 2232 4305 163301 6938 0 0 12 98% 49% : 100% 18% 1247 1547 4390 164802 24 0 0 13 98% 0% - 100% 30% 2037 31462 5717 167336 0 0 0 13 99% 0% - 100% 33% 2000 4047 5909 169060 24 0 0 13 98% 0% - 100% 67% 1580 2177 5471 167101 32 0 0 13 99% 0% - 100% 25

  26. Observations • Failover and giveback transparent • No BSOD when times within windows • recall: KeepAliveTO = 180 • some tuning opportunities here • actual failover was < 60 seconds • iscsi stop+start used to increase “failover time” for testing • Slower client access during takeover • expected behavior • Heavy paging activity not an issue • Higher number of clients / storage server an option, depending on application behavior 26

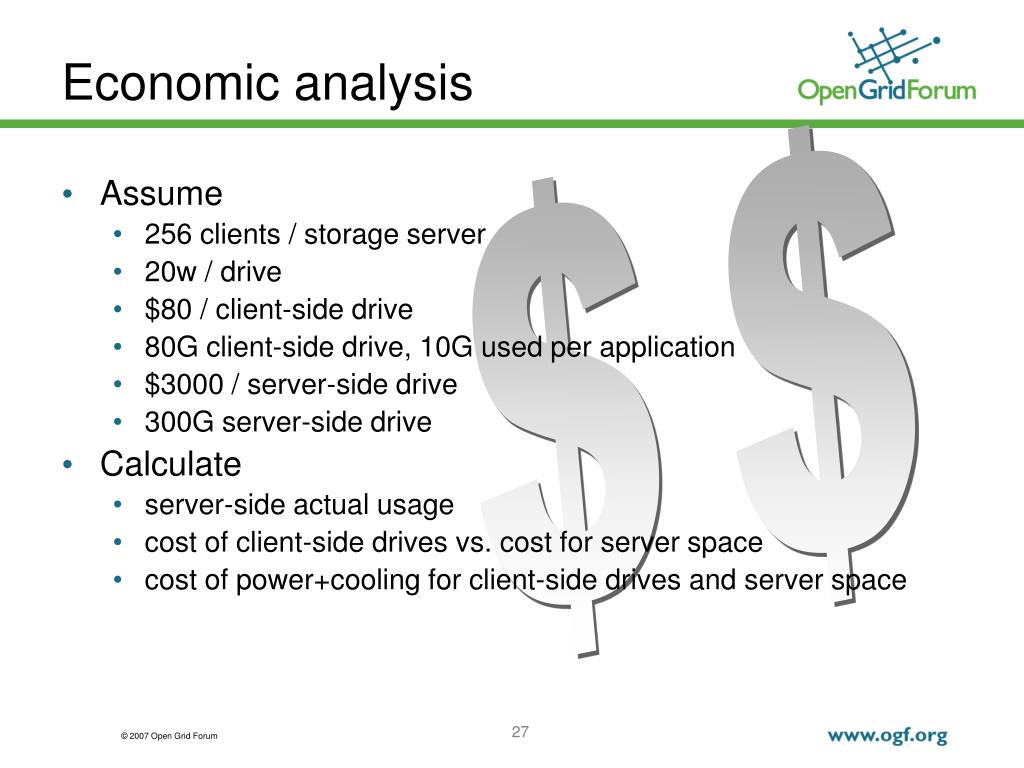

  27. Economic analysis $$ • Assume • 256 clients / storage server • 20w / drive • $80 / client-side drive • 80G client-side drive, 10G used per application • $3000 / server-side drive • 300G server-side drive • Calculate • server-side actual usage • cost of client-side drives vs. cost for server space • cost of power+cooling for client-side drives and server space 27

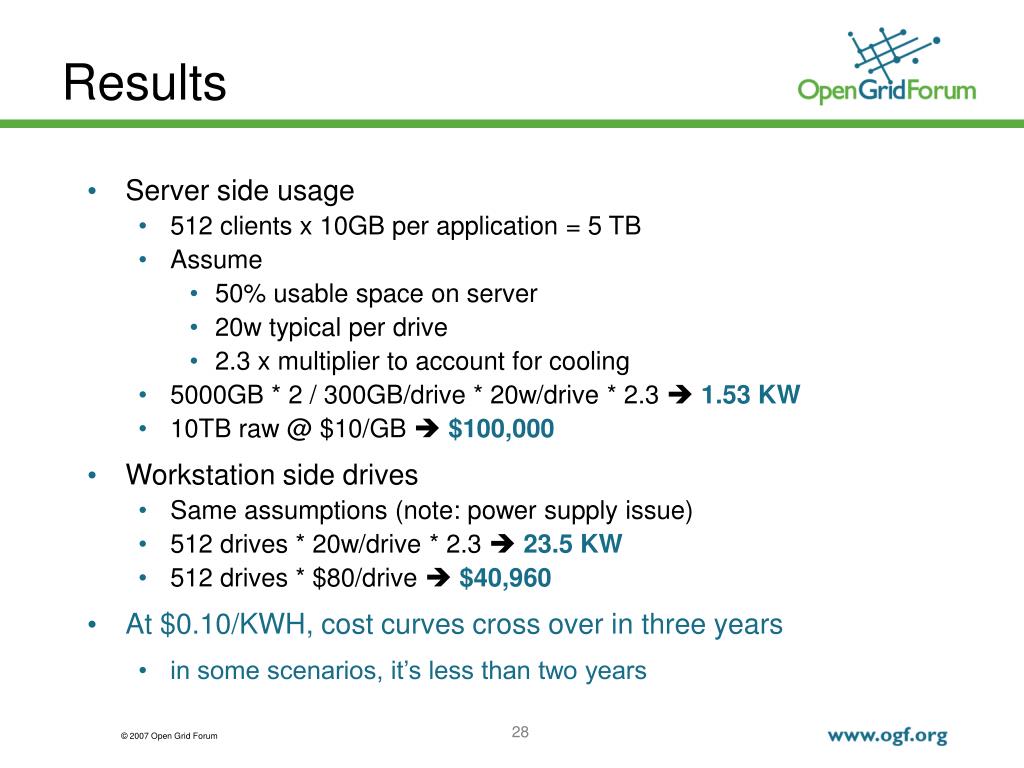

  28. Results • Server side usage • 512 clients x 10GB per application = 5 TB • Assume • 50% usable space on server • 20w typical per drive • 2.3 x multiplier to account for cooling • 5000GB * 2 / 300GB/drive * 20w/drive * 2.3  1.53 KW • 10TB raw @ $10/GB  $100,000 • Workstation side drives • Same assumptions (note: power supply issue) • 512 drives * 20w/drive * 2.3  23.5 KW • 512 drives * $80/drive  $40,960 • At $0.10/KWH, cost curves cross over in three years • in some scenarios, it’s less than two years 28

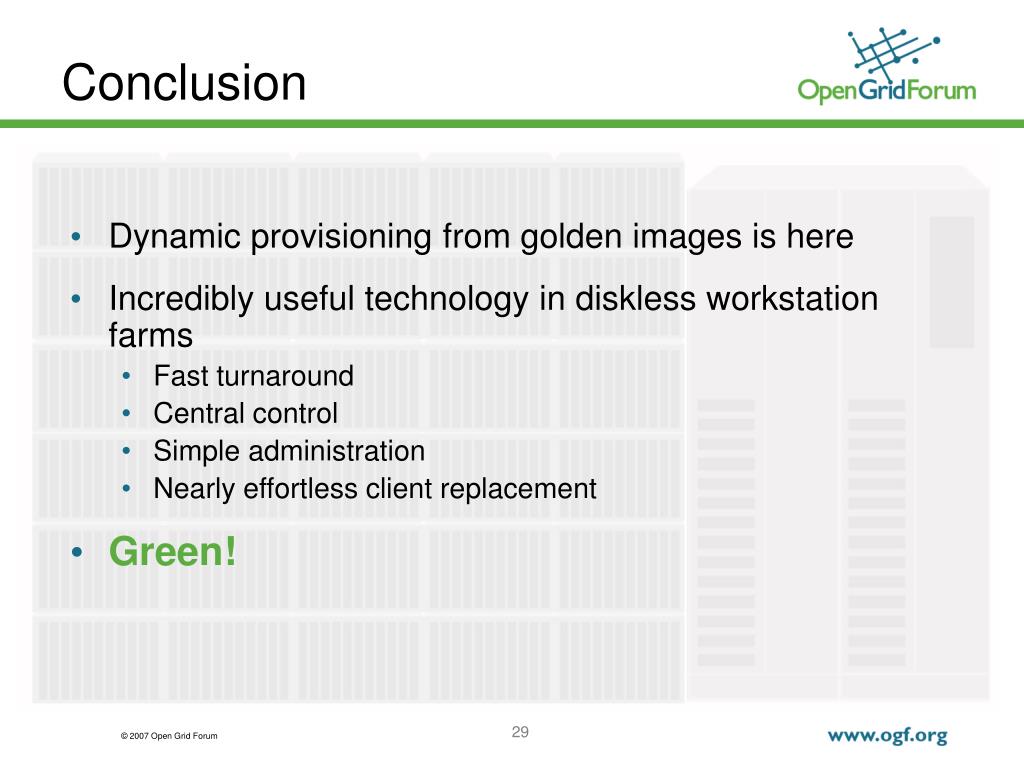

  29. Conclusion • Dynamic provisioning from golden images is here • Incredibly useful technology in diskless workstation farms • Fast turnaround • Central control • Simple administration • Nearly effortless client replacement • Green! 29

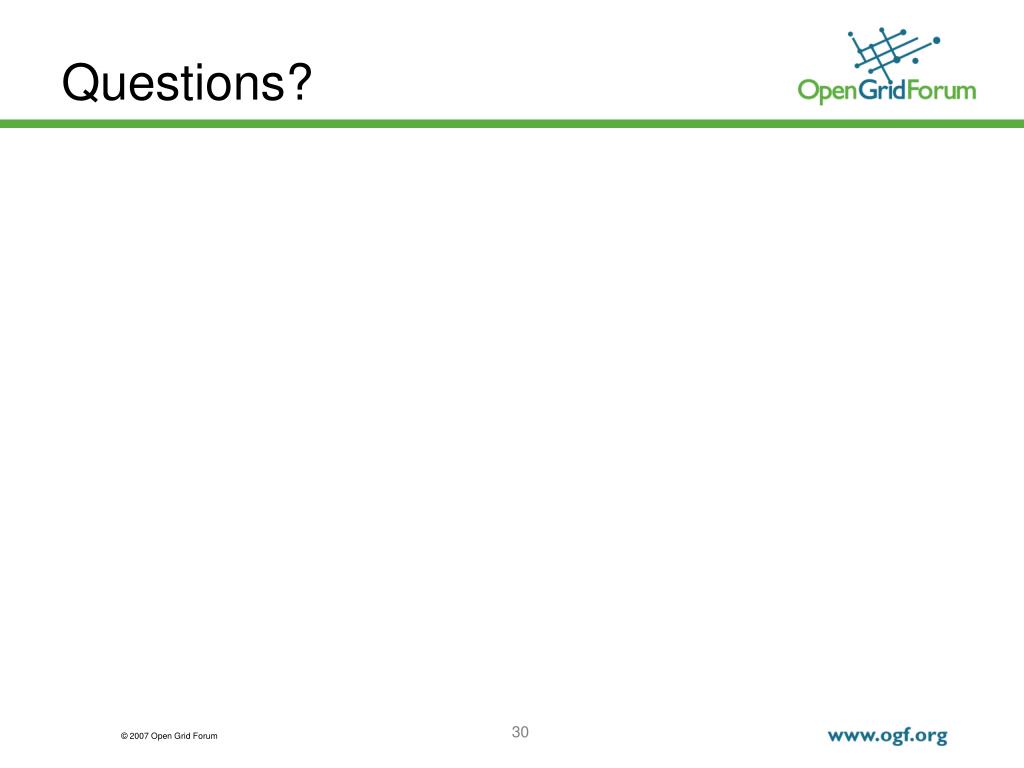

  30. Questions? 30
