What is a physical quantity?

1. This set of slides may be updated this weekend. I have given you my current slides to get you started on the PreAssignment. Check back here frequently to see if updates have been made. I will post here a record of updates that have been made.

2. What is a physical quantity? A physical quantity is any quantity that can be measured with a certain mathematical precision. Example: Force What is a dimension? The product or quotient of fundamental physical quantities, raised to the appropriate powers, to form a derived physical quantity. Example: mass x length / time2 (ML/T2) What is a unit? A precisely defined (standard) value of physical quantity against which any measurements of that quantity can be compared. Example: Newton = kilogram x meters / second2

3. Sytème International • length • meters (m) • time • seconds (s) • mass • kilograms (kg) • temperature • Kelvin (K) • current • Amperes (A) • amount of substance • Mole (mol) • luminous intensity • candela (cd)

4. US Customary System • length • inches (in, ") • time • seconds (s) • mass • pounds (lb) • temperature • Fahrenheit (F) • current • Amperes (A) • amount of substance • Mole (mol) • luminous intensity • candela (cd)

5. Other units • length • Feet (ft, '), mile (m, mi), furlong, hand • time • minute (m, min), hour (hr), second (s), fortnight, while • force • Newton (N) • temperature • Celsius (C) • energy • Joule (J) • power • Watt (W) • pressure • Pascal (P) • magnetic field • Tesla (T), Gauss (G)

6. Common conversion factors • length • 1 in = 2.54 cm • time • 60 s = 1 min, 60 min = 1 hr, 24 hours = 1 day, 365.25 days= 1 yr • force • 1 N = 0.2248 lb • energy • 1 J = 107 erg, 1 eV = 1.602x10-19 J • power • 1 hp = 746 W • pressure • 1 atm = 101.3 kPa • magnetic field • 1 T = 104 G

7. How to convert units

8. Most commonly used prefixes for powers of 10 tera T 1,000,000,000,000 1012 giga G 1,000,000,000 109 mega M 1,000,000 106 kilo k 1000 103 centi c 0.01 10-2 milli m 0.001 10-3 micro μ 0.000001 10-6 nano n 0.000000001 10-9

9. Common physical quantities Mass Distance Time Speed / Velocity Acceleration Force

10. What is scientific notation? 1,562,788.  1.562788x106 0.0012789  1.2789x10-3

11. Using scientific notation in calculators • When putting numbers in a calculator, it is best to covert them to non-prefixed units first (e.g. 1mm  1x10-3 m) and then convert back to the desired units when the problem is complete. • When using a calculator, it is also better to put in the full number (e.g. 1350x10-3 m instead of 1.35 m for 1350 mm). In this way you will avoid many of the “decimal place errors” so common in this class.

12. Significant figures defined Significant figures in a number indicate the certainty to which a number is known. (For example 1350 mm is known to within ~0.5 mm.) Other than leading zeros, all digits in a number are significant. (For example 0.003450900000 has 10 significant figures.) Numbers are rounded up or down to the nearest significant figure.

13. Significant figures are used because any further digits added to your number have no physical meaning. Any physically measured number (including physical constants) will be written with the correct number of significant figures unless otherwise noted. Numerical constants, such as the 4 or the π in the equation have an infinite number of significant figures because they are NOT measured.

14. Using significant figures When multiplying or dividing numbers, the calculated number has the same number of significant figures as the number with the least significant figures used in the calculation.

15. Using significant figures When adding or subtracting numbers, the number of significant figures in the calculated number must be such that the decimal place of the result is not beyond the least decimal number in the numbers used in the calculation.

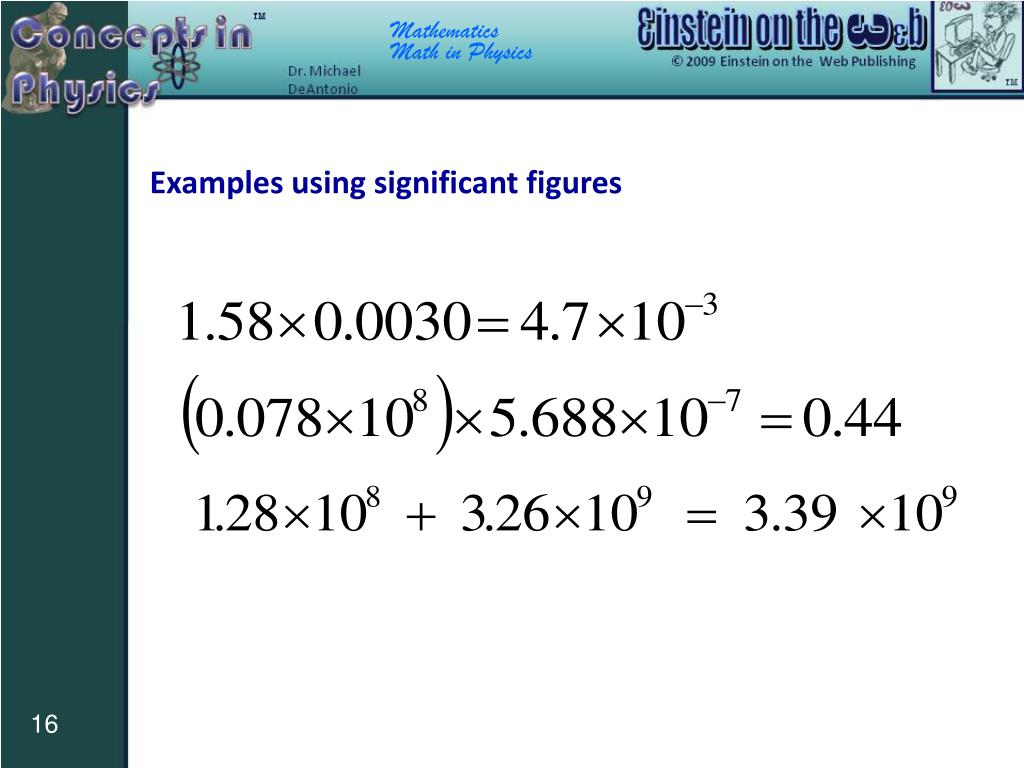

16. Examples using significant figures

17. Why do we use order of magnitude? Order of magnitude is used to make estimates. For example: How many professors are there in the U.S.? (These kinds of questions are named for Enrico Fermi, who first proposed them.) Order of magnitude is also used to check calculations.

18. Order of magnitude defined To determine the order of magnitude of a number, you must put the number in scientific notation using one digit before the decimal. (e.g. 1345  1.345x103 0.00845090  8.45090x10-3) If the decimal number is less than five, the order of magnitude is then the exponent. If it is greater than or equal to five, the order of magnitude is the exponent plus one. 1345 has order of magnitude 3 0.00845090 has order of magnitude -2

19. Estimation Estimation is not the same as calculation. However, it will almost always be within one exponent of the calculated answer. An estimate is a fast way to check a number or choose between two numbers given as an answer Actual Estimate

20. An Example Fermi Problem • To within an order of magnitude how many bars of soap are • sold in the United States each year? • There are about 1x108 people in the U.S. (the actual number is closer to 3x108). • Each person lives in a family of about 1 person (the average is really closer to 3). • Each family uses about 1 bar of soap each week (a better number would be 0.5). • There are about 100 weeks in a year (the number is actually 52). • Compare this to the actual answer
