  1. Saia® System CatalogueSection B3 – Saia® S-Web Technology

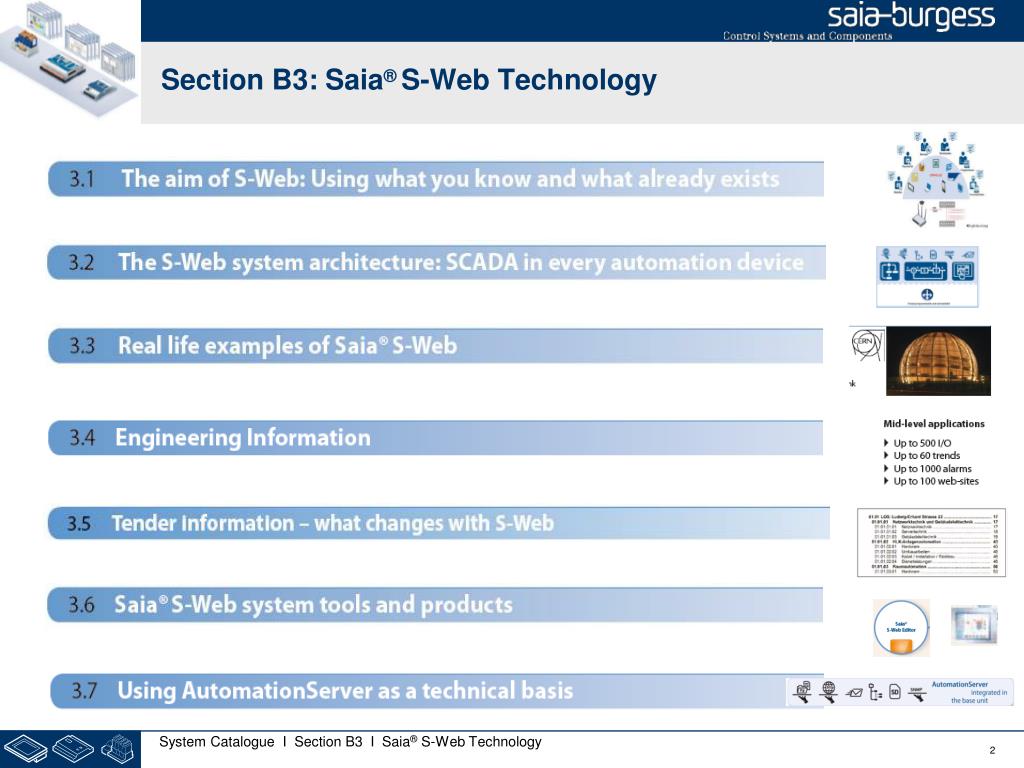

  2. Section B3: Saia® S-Web Technology System Catalogue I Section B3 I Saia® S-Web Technology

  3. 3.1 The aim of Saia® S-Web: use of existing and known • Benefit of Saia® S-Web • Control and SCADA functionality included in every Automation devices  Lean and flexible automation solutions  More automation with less resources' Saia® S-Web optimises use of • existing software • existing human resources • existing Infrastructure and end devices System Catalogue I Section B3 I Saia® S-Web Technology

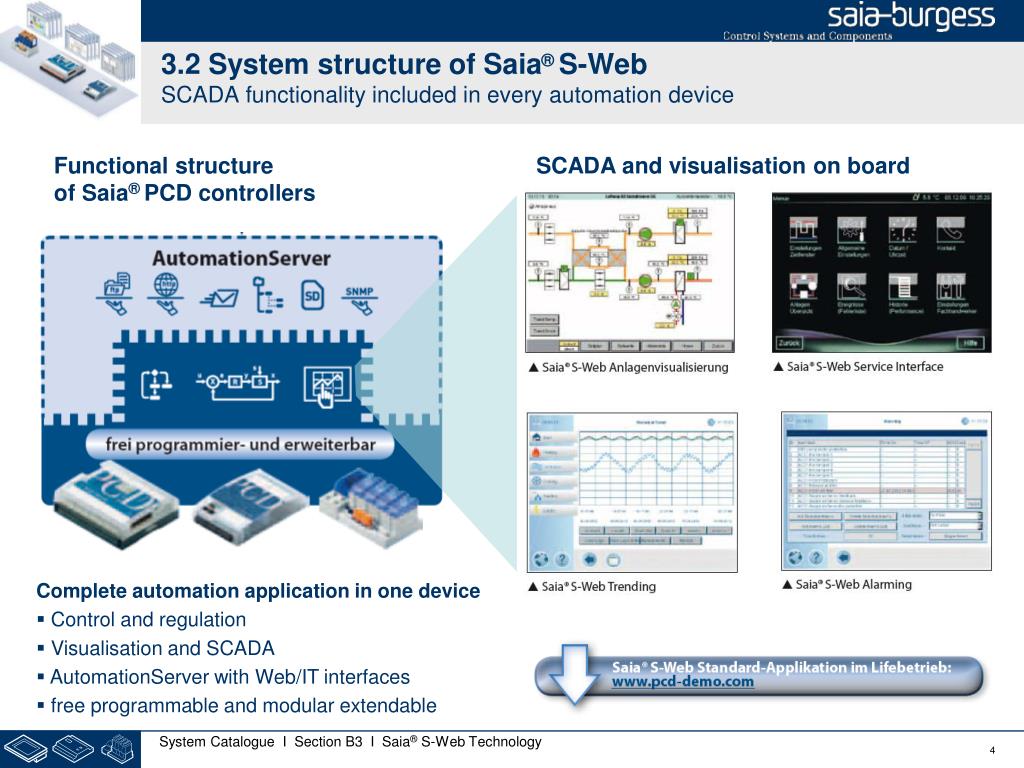

  4. 3.2 System structure of Saia® S-WebSCADA functionality included in every automation device Functional structure of Saia® PCD controllers SCADA and visualisation on board Complete automation application in one device • Control and regulation • Visualisation and SCADA • AutomationServer with Web/IT interfaces • free programmable and modular extendable System Catalogue I Section B3 I Saia® S-Web Technology

  5. 3.3 Real life examples of Saia® S-Web Used since years in small and large scale applications Academic Medical Centre Amsterdam/NetherlandsOne of the top ten academic hospitals in the world relies on Saia® PCD controllers for a better climate and reduced energy consumption European Research Centre CERNGeneva/SwitzerlandThe entire enormous CERN site consisting of 430 operational buildings relies entirely on Saia® S-Web (www.saia-info.com Webcode: 1357). Thanks to Web+IT standards, it has no need for a dedicated central office or master control/management layer. System Catalogue I Section B3 I Saia® S-Web Technology

  6. 3.4 Engineering informationWhich resources does a Saia® PCD require for Saia® S-Web? Basic orientation for device selection System Catalogue I Section B3 I Saia® S-Web Technology

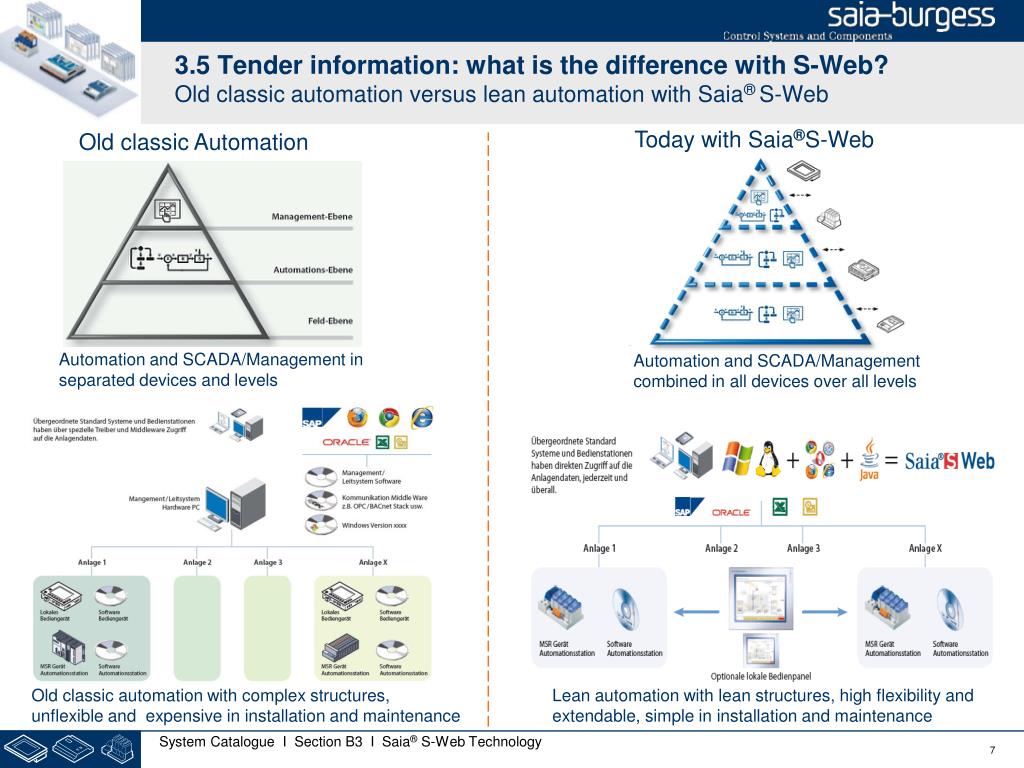

  7. 3.5 Tender information: what is the difference with S-Web?Old classic automation versus lean automation with Saia® S-Web Today with Saia®S-Web Old classic Automation Automation and SCADA/Management in separated devices and levels Automation and SCADA/Management combined in all devices over all levels Old classic automation with complex structures, unflexible and expensive in installation and maintenance Lean automation with lean structures, high flexibility and extendable, simple in installation and maintenance System Catalogue I Section B3 I Saia® S-Web Technology

  8. Lean automation system with Saia® S-Web All automation devices with the same functional structure and features allow integration and interaction of all devices over all levels • No central PC based Scada system required • Every device already has ist own integrated control/management function • S-Web allows to have the operation and monitoring where it is needed • S-Web requires less fixed on-site panels than classic technology • Central PC based management system can be combined with S-Web More benefit with less investment and high flexibilty over the whole life cycle! System Catalogue I Section B3 I Saia® S-Web Technology

  9. 3.6 Products and tools for Saia® S-Web System Catalogue I Section B3 I Saia® S-Web Technology

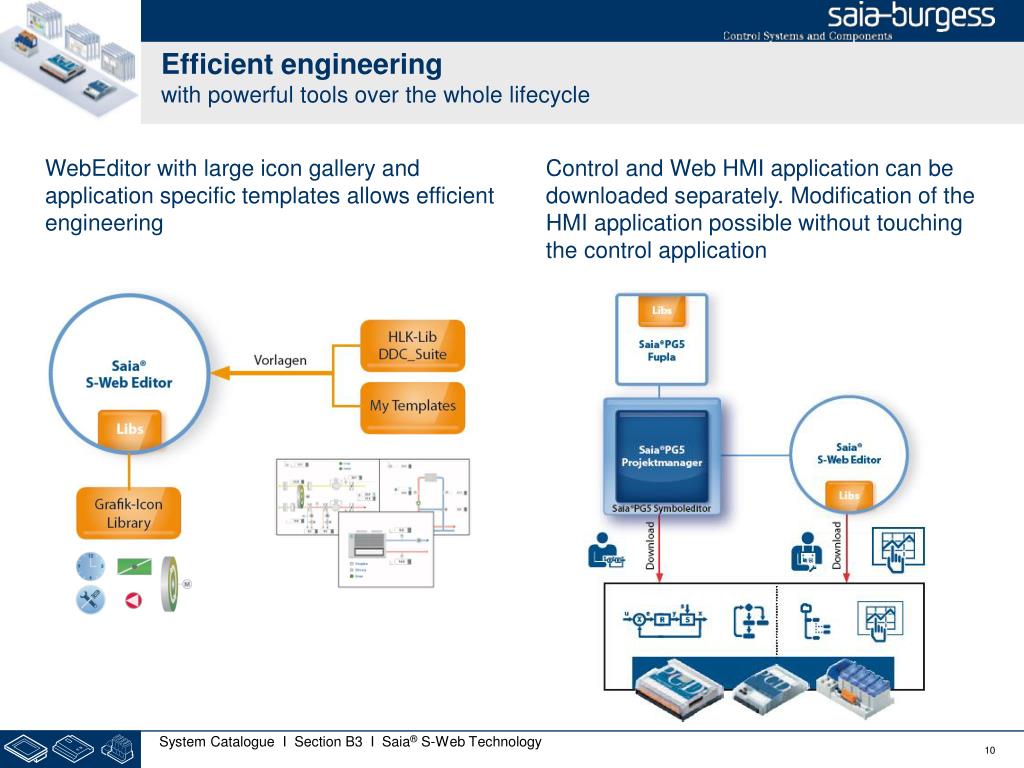

  10. Efficient engineering with powerful tools over the whole lifecycle WebEditor with large icon gallery and application specific templates allows efficient engineering Control and Web HMI application can be downloaded separately. Modification of the HMI application possible without touching the control application System Catalogue I Section B3 I Saia® S-Web Technology

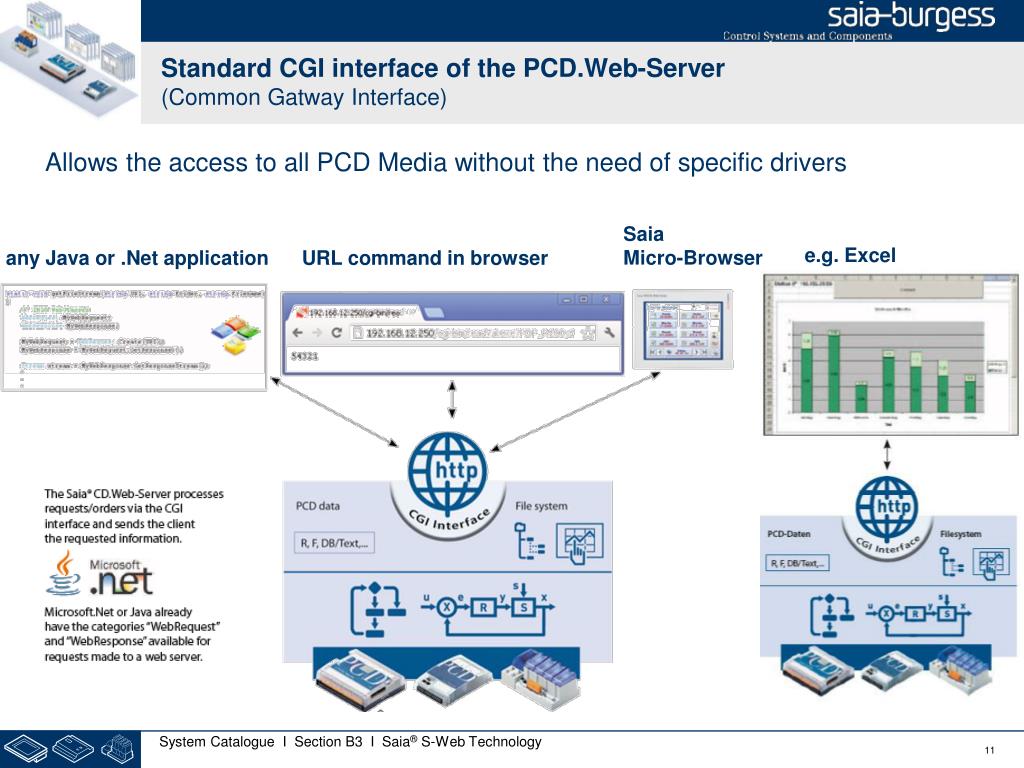

  11. Standard CGI interface of the PCD.Web-Server(Common Gatway Interface) Allows the access to all PCD Media without the need of specific drivers Saia Micro-Browser e.g. Excel any Java or .Net application URL command in browser System Catalogue I Section B3 I Saia® S-Web Technology

  12. 3.7 AutomationServer as technical basis for S-Web Web Serverfor installation/process visualisation and operation FTP-Servereasy access to files using external FTP clients (e.g. Filezilla) SD Flash memoryup to 4 GByte data storage capacity per PCD system SNMP agentaccess to automation data with IT management system File systemto store/record data in standard formats E-mailcritical system status, alarms and log data can be sent by email System Catalogue I Section B3 I Saia® S-Web Technology
