### Automating Testing in Functional Programming: Generating Test Data Systematically ###

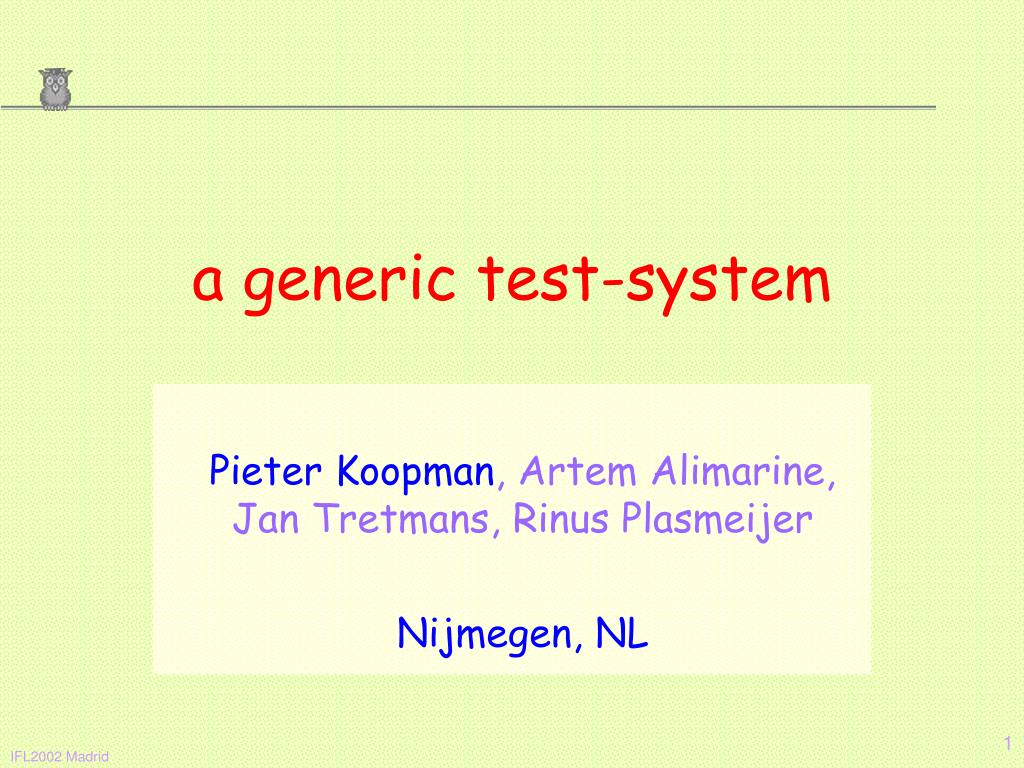

a generic test-system Pieter Koopman, Artem Alimarine, Jan Tretmans, Rinus Plasmeijer Nijmegen, NL

overview testing: • why • what will be tested • how do we test • by an automatic system • generic testing by a generic system • automatic and systematic generation of test data • research question: can we make such a system • conclusions / related & future work

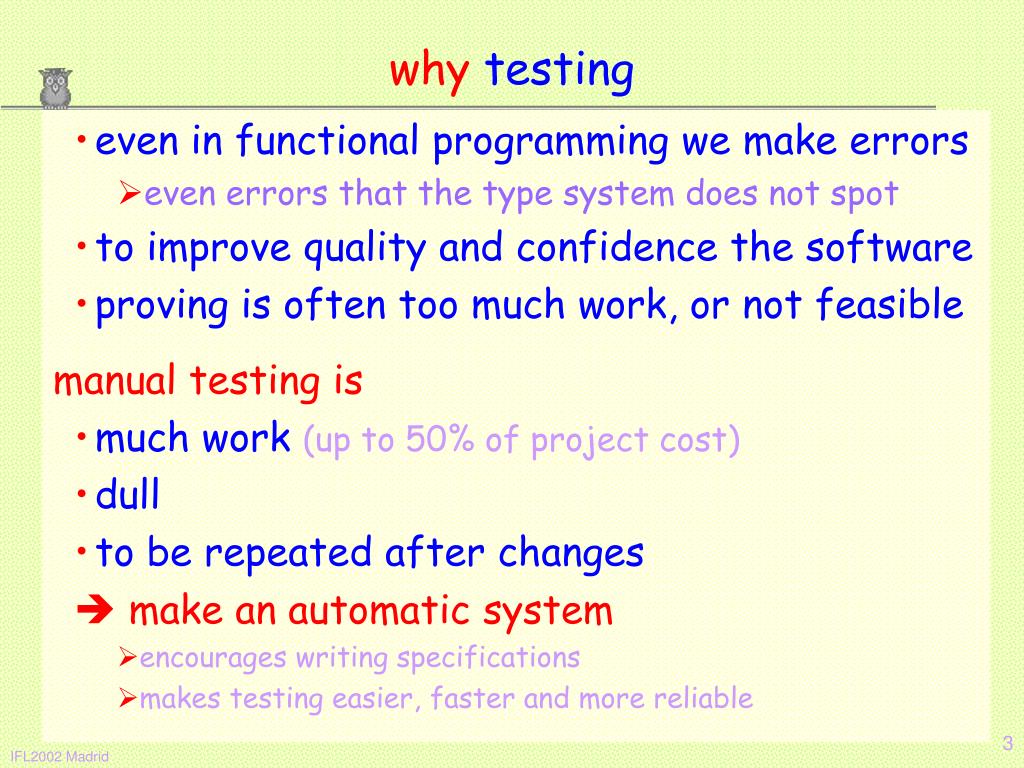

why testing • even in functional programming we make errors • even errors that the type system does not spot • to improve quality and confidence the software • proving is often too much work, or not feasible • manual testing is • much work (up to 50% of project cost) • dull • to be repeated after changes  make an automatic system • encourages writing specifications • makes testing easier, faster and more reliable

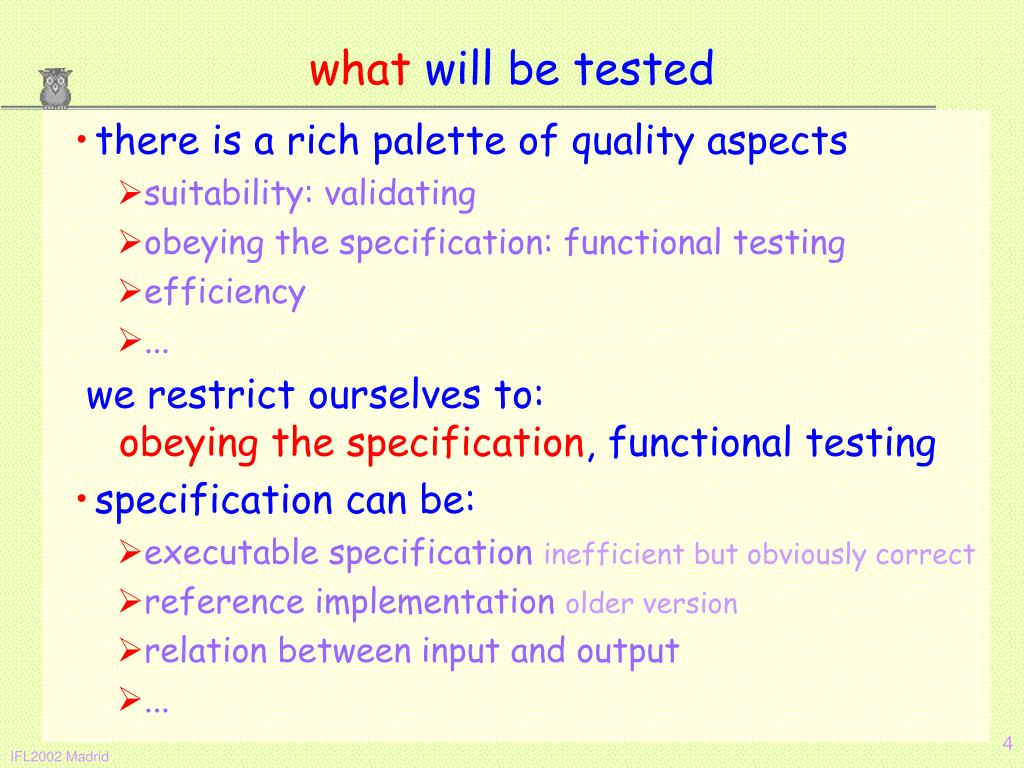

what will be tested • there is a rich palette of quality aspects • suitability: validating • obeying the specification: functional testing • efficiency • ... we restrict ourselves to:obeying the specification, functional testing • specification can be: • executable specification inefficient but obviously correct • reference implementation older version • relation between input and output • ...

specification • specification by functions in Clean • prop_DeMorgan :: Bool Bool -> Boolprop_DeMorgan x y = x && y == not (not x || not y) semantics:x,y•x&&y==not(notx||not y) • prop_DropDrop :: Int Int [Int] -> Boolprop_DropDrop m n xs = drop n (drop m xs) == drop (n+m) xs • prop_Sqrt :: Real -> Propertyprop_Sqrt x = x>=0.0 ==>let r = sqrt x in r*r == x • monomorph in order to generate test data • for polymorphic functions this tests all types • for overloaded functions the instance does matter

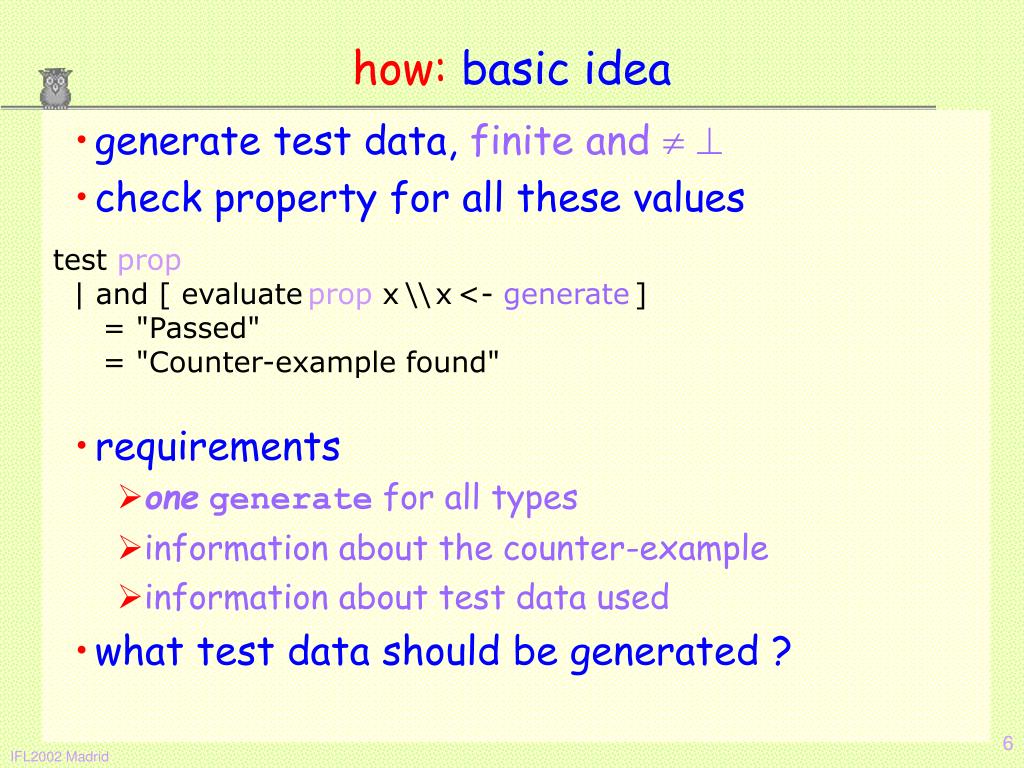

how: basic idea • generate test data, finite and   • check property for all these values • test prop | and [ evaluateprop x\\x<- generate] = "Passed" = "Counter-example found" • requirements • onegenerate for all types • information about the counter-example • information about test data used • what test data should be generated ?

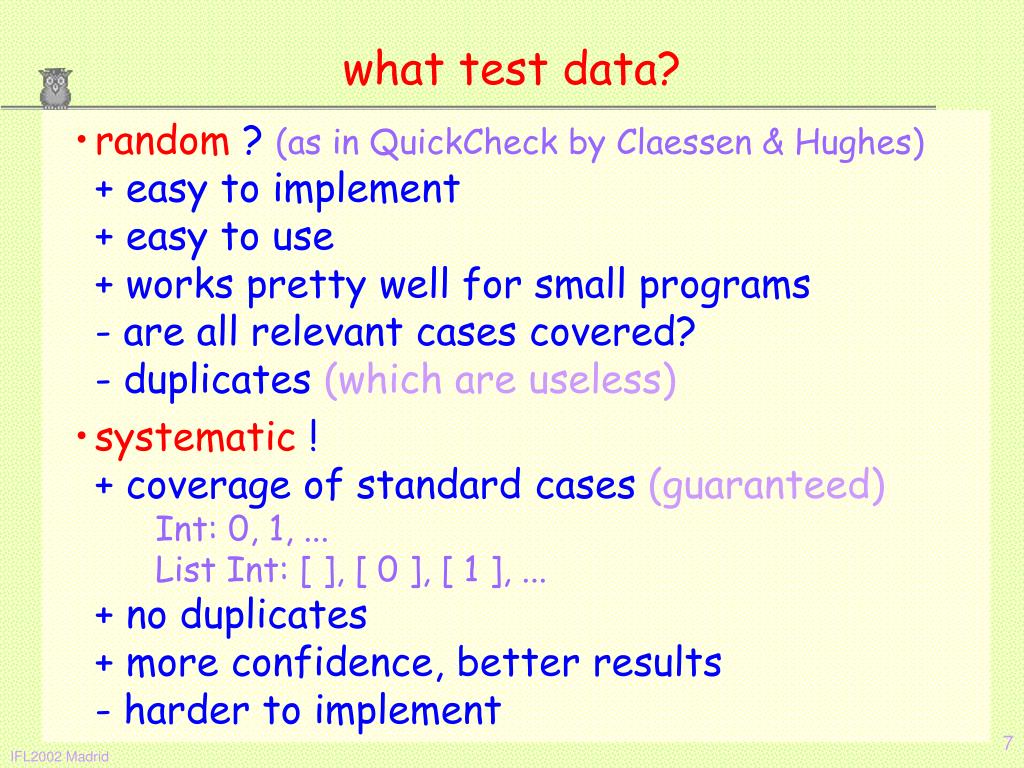

what test data? • random ? (as in QuickCheck by Claessen & Hughes)+ easy to implement+ easy to use+ works pretty well for small programs- are all relevant cases covered?- duplicates (which are useless) • systematic !+ coverage of standard cases (guaranteed) Int: 0, 1, ... List Int: [ ], [ 0 ], [ 1 ], ...+ no duplicates+ more confidence, better results- harder to implement

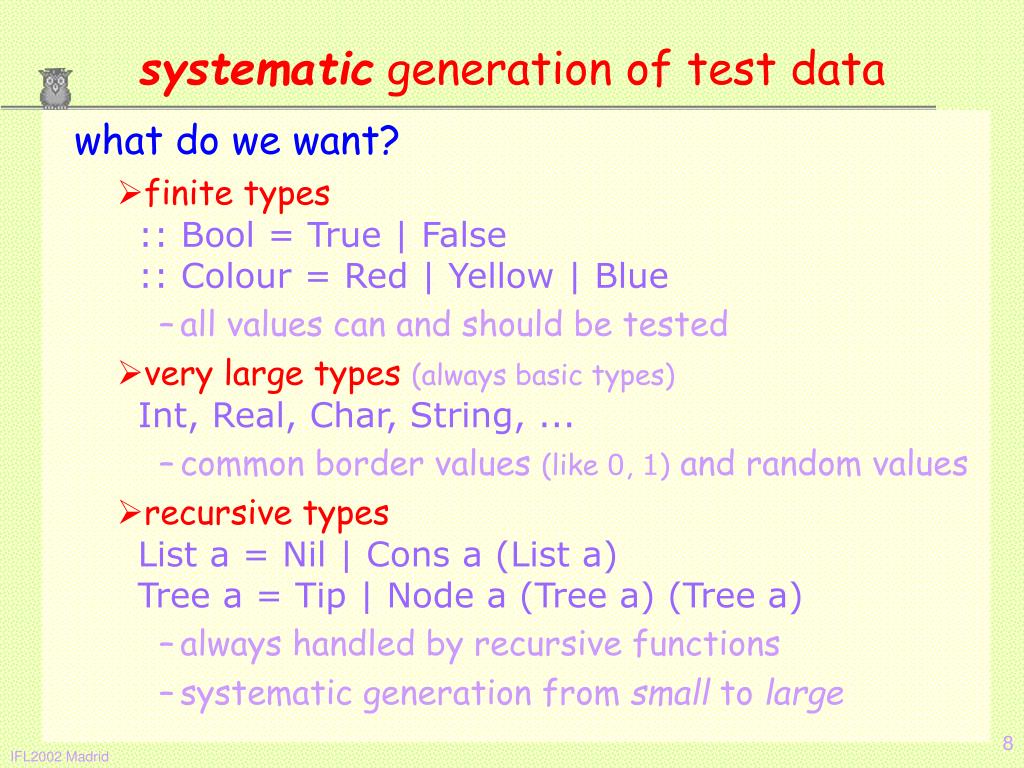

systematic generation of test data what do we want? • finite types:: Bool = True | False:: Colour = Red | Yellow | Blue • all values can and should be tested • very large types (always basic types)Int, Real, Char, String, ... • common border values (like 0, 1) and random values • recursive typesList a = Nil | Cons a (List a)Tree a = Tip | Node a (Tree a) (Tree a) • always handled by recursive functions • systematic generation from small to large

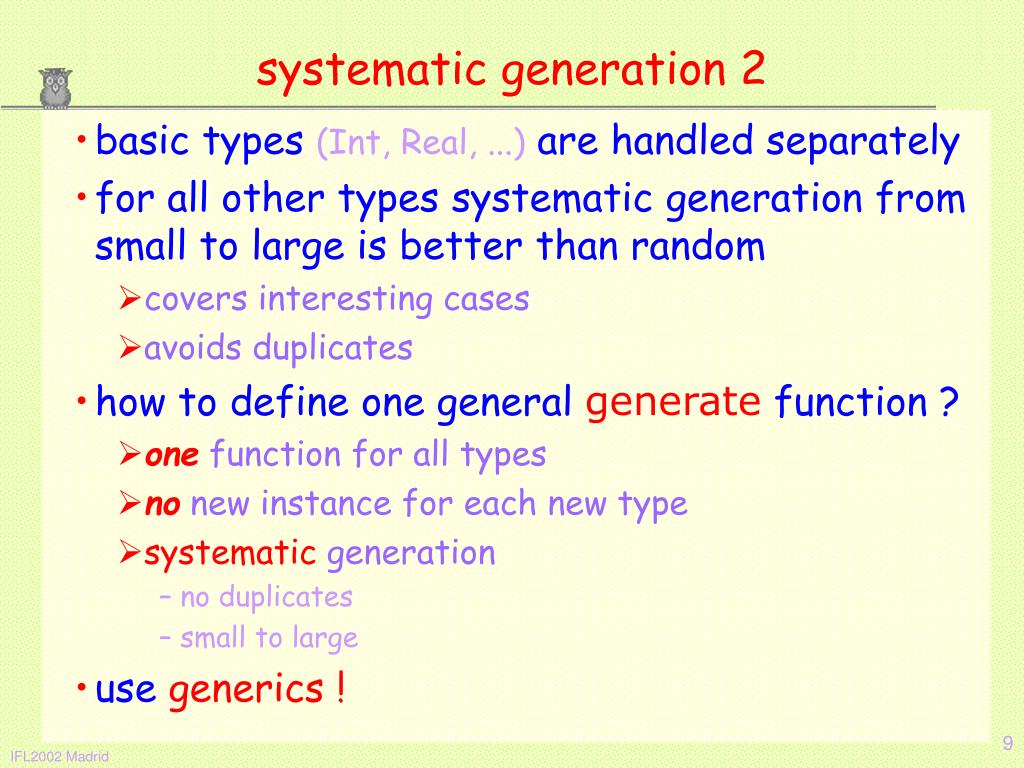

systematic generation 2 • basic types (Int, Real, ...) are handled separately • for all other types systematic generation from small to large is better than random • covers interesting cases • avoids duplicates • how to define one general generate function ? • one function for all types • no new instance for each new type • systematic generation • no duplicates • small to large • use generics !

what are generics • uniform tree representation of types • conversion between actual type and tree representation by system • tree representation can be manipulated in generic functions • we use standard generics • See Hinze, Alimarine, ... • enables us to define onegenerate function • systematic generation of generic trees • automatic conversion of trees to needed types

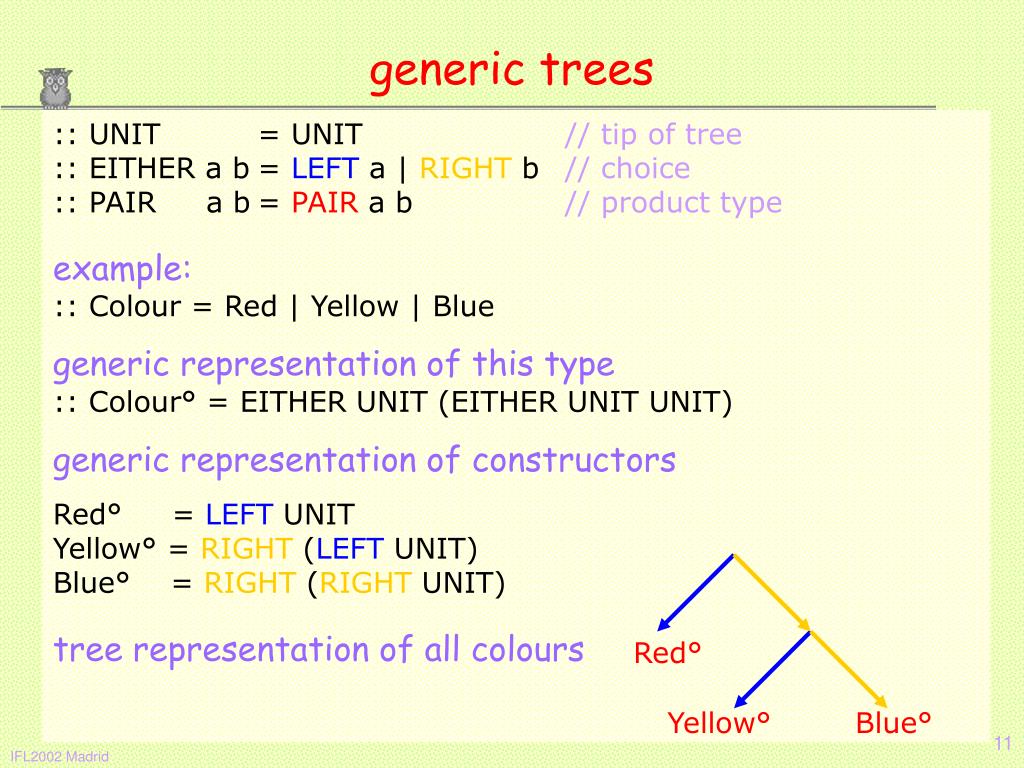

Red° Yellow° Blue° tree representation of all colours generic trees • :: UNIT= UNIT // tip of tree:: EITHER a b= LEFT a | RIGHT b // choice:: PAIRa b= PAIR a b // product type • example::: Colour = Red | Yellow | Blue • generic representation of this type:: Colour° = EITHER UNIT (EITHER UNIT UNIT) • generic representation of constructorsRed° = LEFT UNITYellow° = RIGHT (LEFT UNIT)Blue° = RIGHT (RIGHT UNIT)

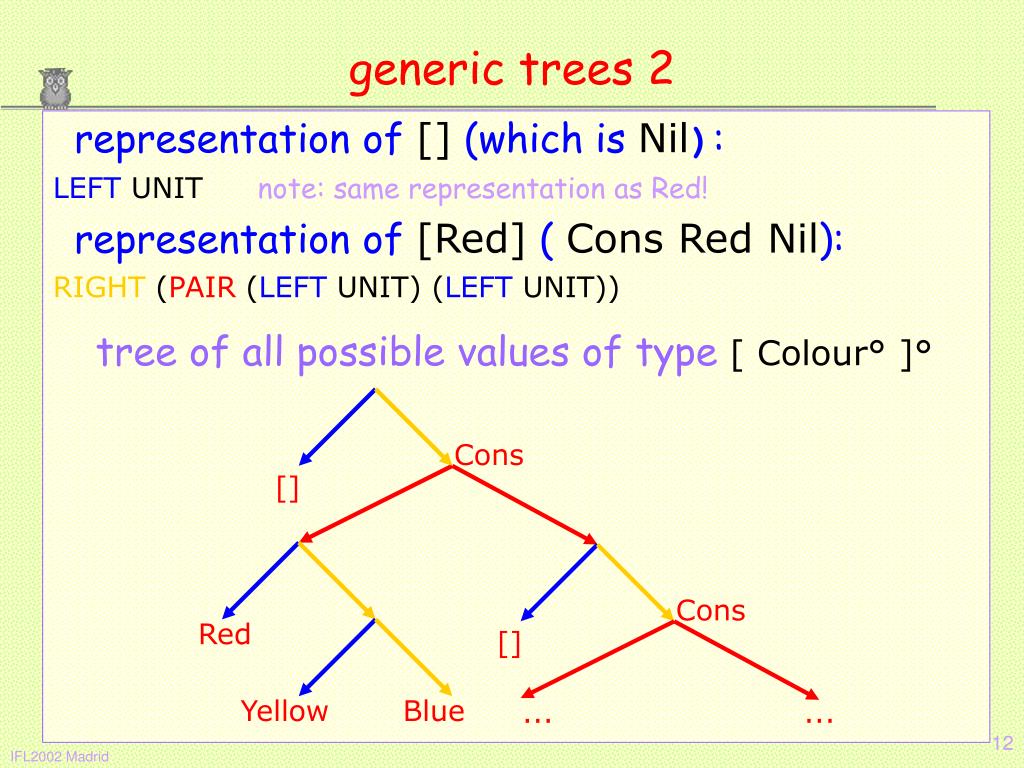

tree of all possible values of type [ Colour° ]° Cons [] Cons Red [] Yellow Blue ... ... generic trees 2 representation of [] (which is Nil): • LEFT UNIT note: same representation as Red! representation of [Red] ( Cons Red Nil): • RIGHT (PAIR (LEFT UNIT) (LEFT UNIT))

F A B toGen fromGen A° B° F° generic functions • Basic idea: • instead of a function F :: A -> B for each A and B • we define a generic function F° • we implement F as GenToB o F° o AToGen • transformations are generated by the compiler

eq T T Bool eq T° T° Bool Example a generic equality • generic eq a :: a a -> Bool • instances for generic type: eq{|UNIT|}UNITUNIT = True • eq{|PAIR|} eqx eqy (PAIR x1 y1) (PAIR x2 y2) = eqx x1 x2 && eqy y1 y2 • eq{|EITHER|} eql eqr (LEFT x) (LEFT y) = eql x yeq{|EITHER|} eql eqr (RIGHT x) (RIGHT y) = eqr x yeq{|EITHER|} eql eqr e1 e2 = False • eq{|Int|} n m = n == m // similar for other basic types • for each type T we either use the generic version:derive eq T • or define an own instance:eq{|T|} t1 t2 = ...

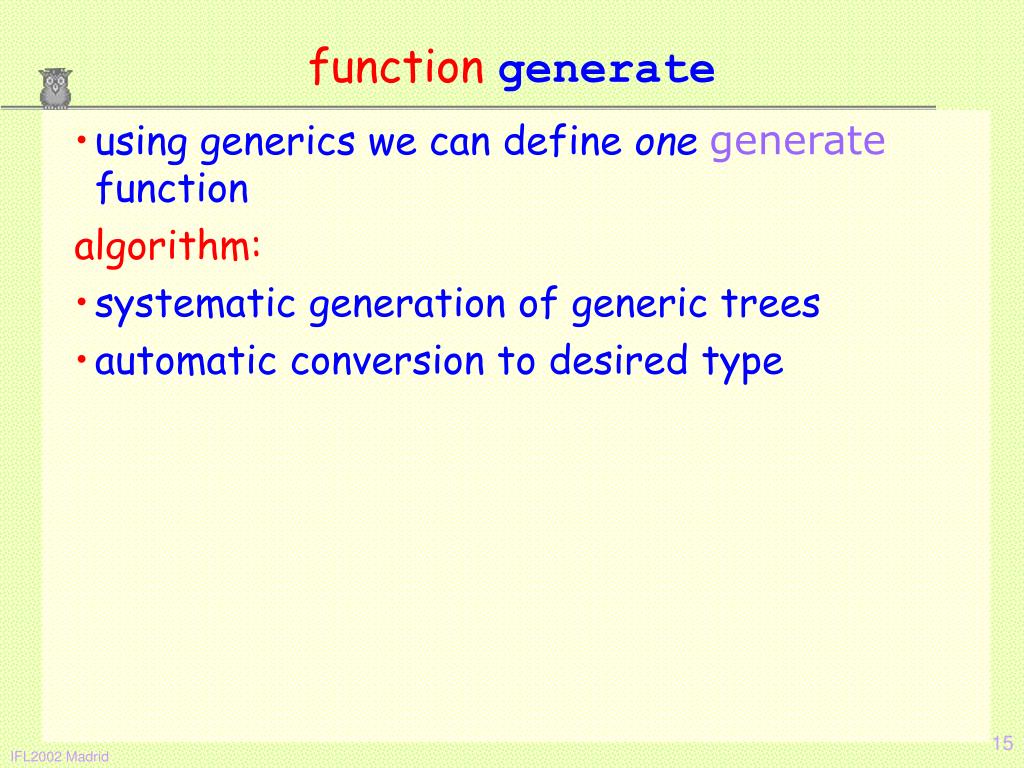

function generate • using generics we can define onegenerate function algorithm: • systematic generation of generic trees • automatic conversion to desired type

systematic generation of generic trees • preorder traversal • remember current tree • first all subtrees starting with LEFT • then all subtrees starting with RIGHT • works fine for Colour, [ Colour], ... • problems if left generic subtree is infinite • Tree a = Tip | Node a (Tree a) (Tree a)using :: T = CTree Tgenerates: Tip, NodeCTip Tip, Node C (Node C Tip Tip) Tip, Node C (Node C (Node C Tip Tip) Tip) Tip, ...never generates Node C Tip (Node C Tip Tip),... • [[T]]generates: [ ], [[ ]], [[C]], [[C, C]], [[C, C, C]],...never generates [[ ], [ ]], [[ ], [C]], [[C], [ ]],...

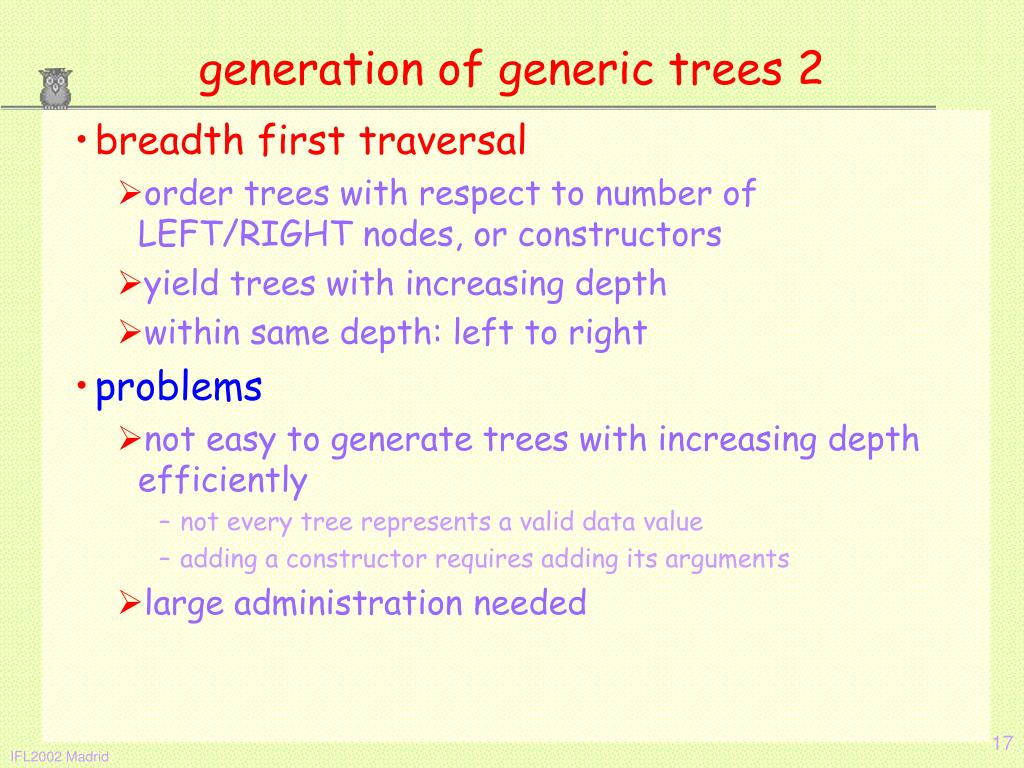

generation of generic trees 2 • breadth first traversal • order trees with respect to number of LEFT/RIGHT nodes, or constructors • yield trees with increasing depth • within same depth: left to right • problems • not easy to generate trees with increasing depth efficiently • not every tree represents a valid data value • adding a constructor requires adding its arguments • large administration needed

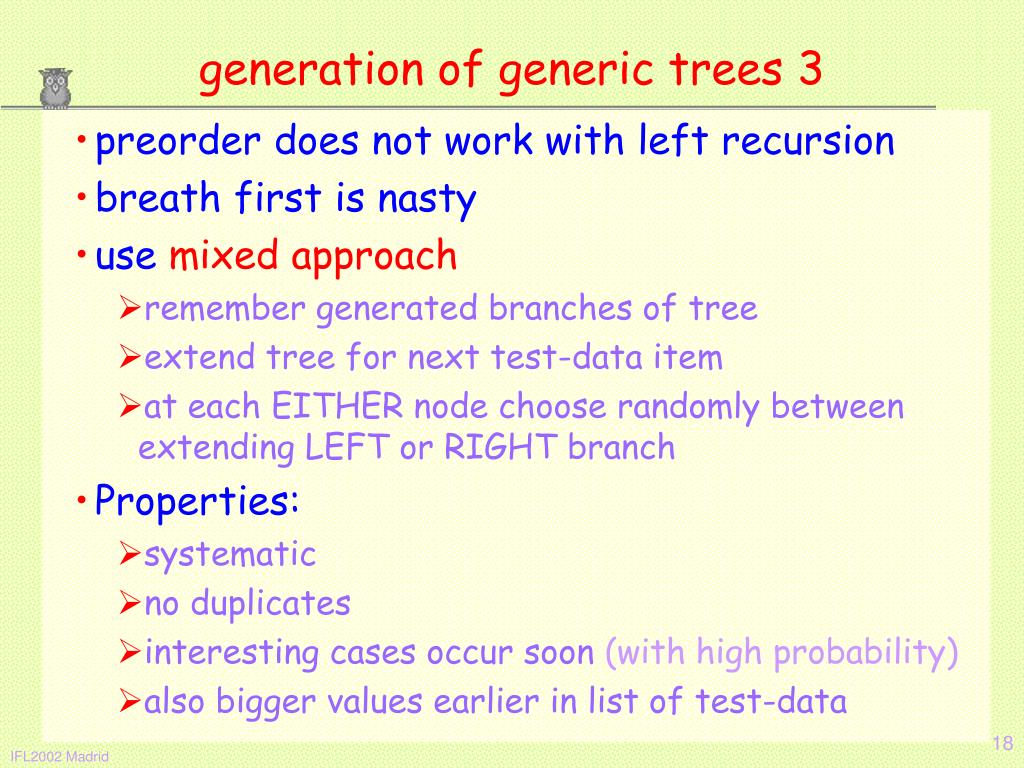

generation of generic trees 3 • preorder does not work with left recursion • breath first is nasty • use mixed approach • remember generated branches of tree • extend tree for next test-data item • at each EITHER node choose randomly between extending LEFT or RIGHT branch • Properties: • systematic • no duplicates • interesting cases occur soon (with high probability) • also bigger values earlier in list of test-data

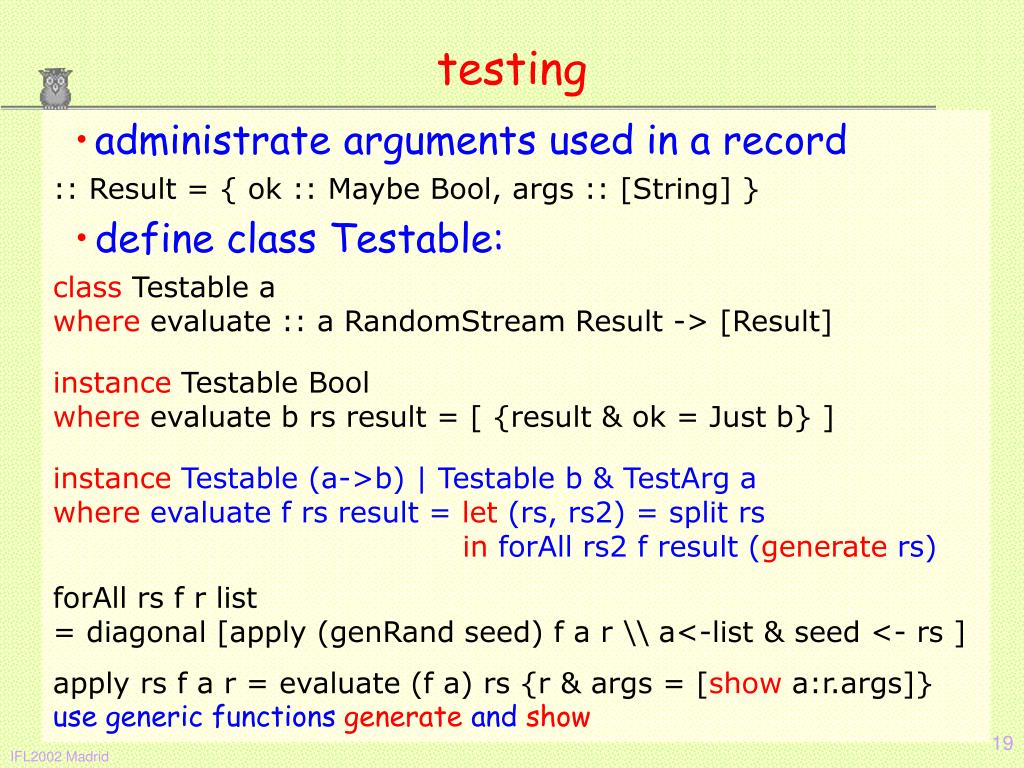

testing • administrate arguments used in a record • :: Result = { ok :: Maybe Bool, args :: [String] } • define class Testable: • class Testable awhere evaluate :: a RandomStream Result -> [Result] • instance Testable Boolwhere evaluate b rs result = [{result & ok = Just b}] • instance Testable (a->b) | Testable b & TestArg a where evaluate f rs result = let (rs,rs2) = split rsin forAll rs2 f result (generate rs)forAll rs f r list= diagonal [apply (genRand seed) f a r \\ a<-list & seed <- rs ]apply rs f a r = evaluate (f a) rs {r & args = [show a:r.args]}use generic functions generate and show

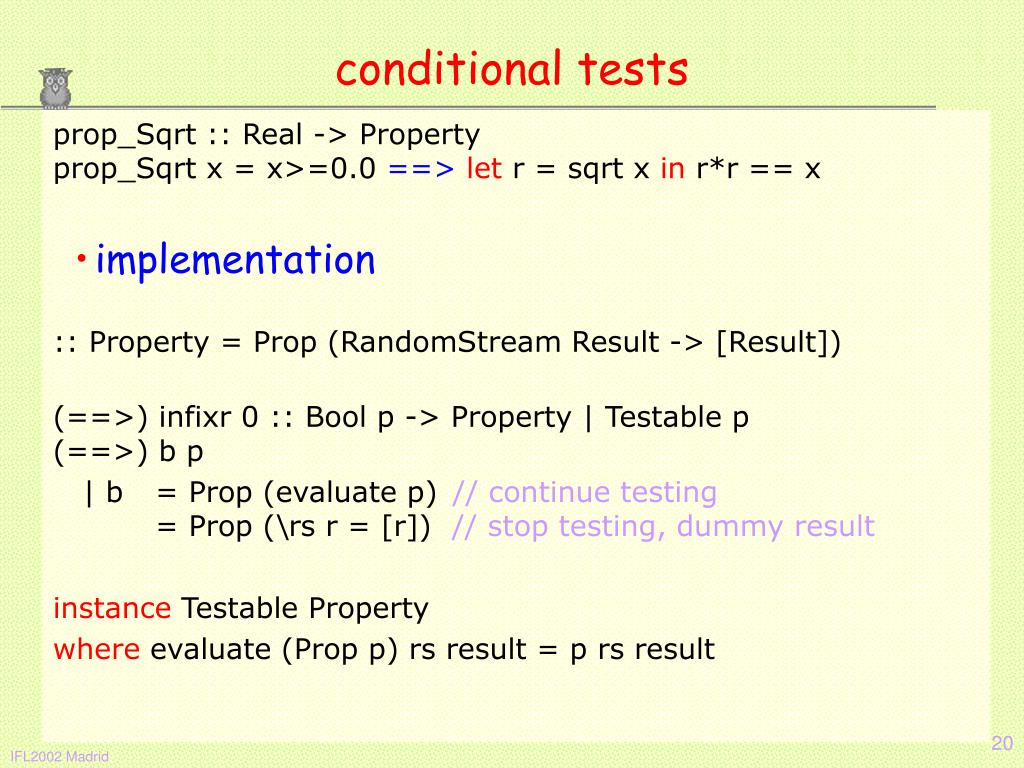

conditional tests • prop_Sqrt :: Real -> Propertyprop_Sqrt x = x>=0.0 ==>letr = sqrt x inr*r == x • implementation • :: Property = Prop (RandomStream Result -> [Result]) • (==>) infixr 0 :: Bool p -> Property | Testable p(==>) b p • | b= Prop (evaluate p)// continue testing= Prop (\rs r = [r])// stop testing, dummy result • instance Testable Property • where evaluate (Prop p) rs result = p rs result

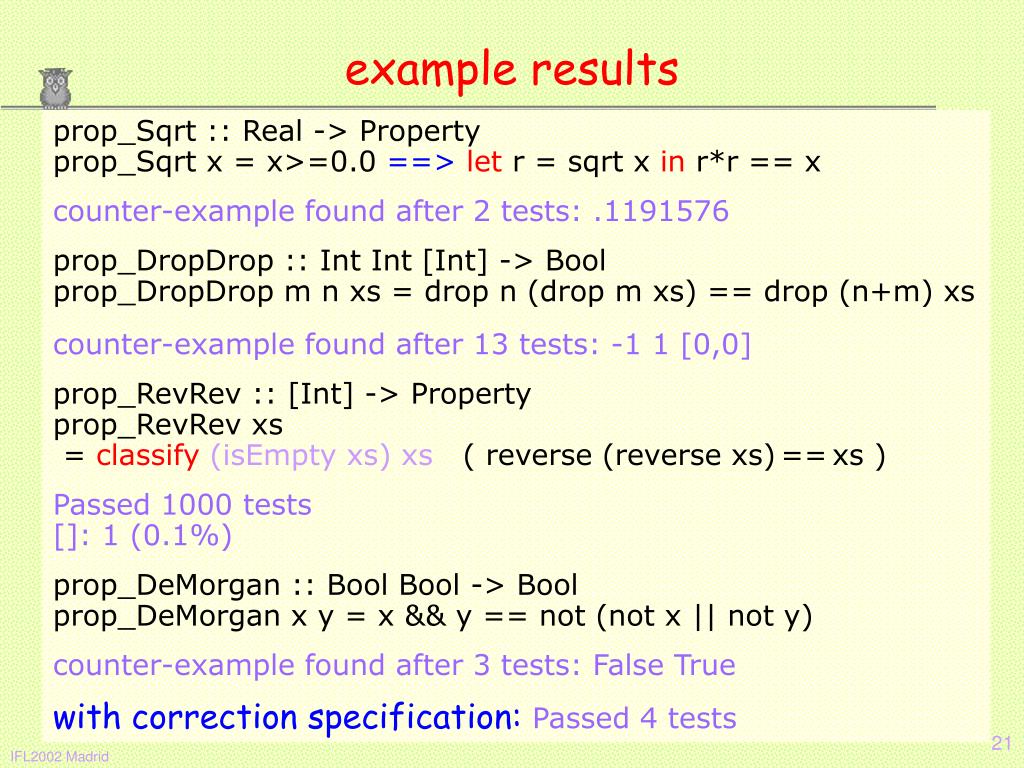

example results • prop_Sqrt :: Real -> Propertyprop_Sqrt x = x>=0.0 ==>letr = sqrt x inr*r == x • counter-example found after 2 tests: .1191576 • prop_DropDrop :: Int Int [Int] -> Boolprop_DropDrop m n xs = drop n (drop m xs) == drop (n+m) xs • counter-example found after 13 tests: -1 1 [0,0] • prop_RevRev :: [Int] -> Propertyprop_RevRev xs = classify(isEmpty xs) xs(reverse (reverse xs)==xs ) • Passed 1000 tests[]: 1 (0.1%) • prop_DeMorgan :: Bool Bool -> Boolprop_DeMorgan x y = x && y == not (not x || not y) • counter-example found after 3 tests: False True • with correction specification: Passed4 tests

conclusions • a test system is useful • writing specifications is encouraged • testing improves quality and confidence • a generic test system is useful • property is arbitrary Clean function • system applies predicate to test-data • system generates test-data automatically • use generics to generate, show and compare values • systematic generation of test data • no duplicated tests • covers interesting cases • stops if all cases are tested

related work • for FPL: QuickCheck • advantages of our generic approach • one generate function for all types • no user defined instances needed • generate • show • equal • systematic generation of data • no duplicates • covers interesting cases • stops when all cases are tested

future work • handling  • generating better functions • prop_Map :: (Int->Int) (Int->Int) [Int] -> Boolprop_Map f g xs = map f (map g xs) == map (f o g) xs • easier user control over test-data • better info about test-data used • case studies • GUI • testing application specified in Clean but written in some other programming language • integration with proof-system • ...
