  1. Generic API Test tool By Moshe Sapir Almog Masika

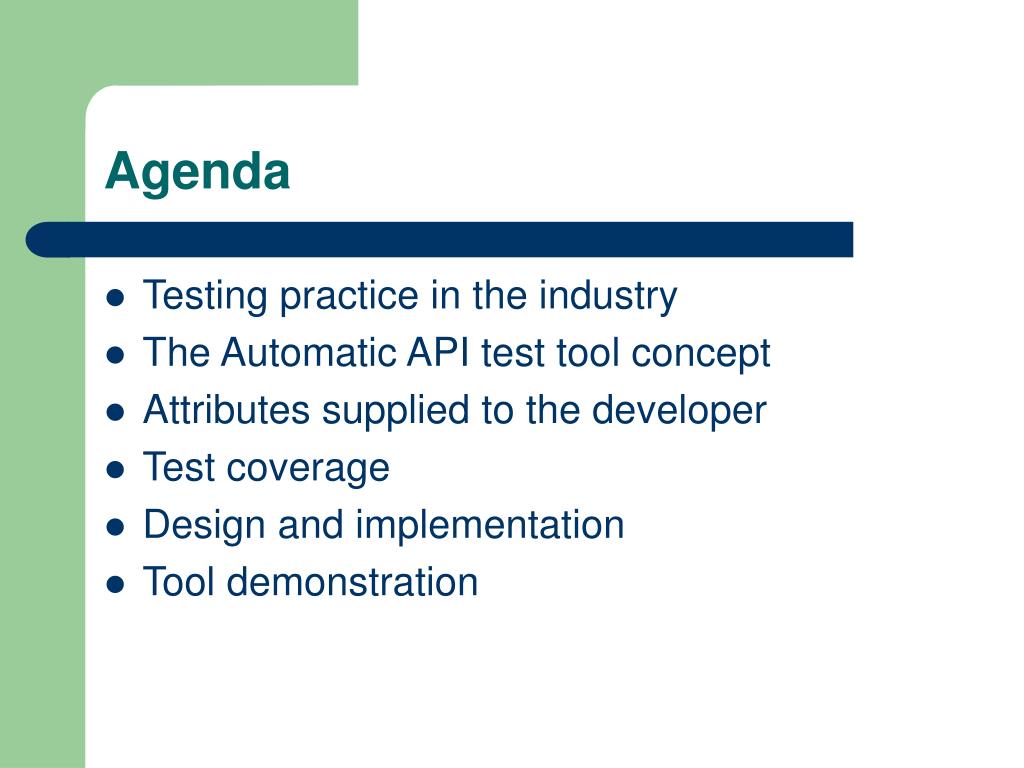

  2. Agenda • Testing practice in the industry • The Automatic API test tool concept • Attributes supplied to the developer • Test coverage • Design and implementation • Tool demonstration

  3. Testing practice in the industry • Testing software module requires deep understanding of the module’s inner logic and its interfaces’ semantics • Currently, dedicated tests are written to each software component • Usually the tests do not try to retrieve functional information from the module’s code • Changes in the software logic are resulted in changes in the test automation logic

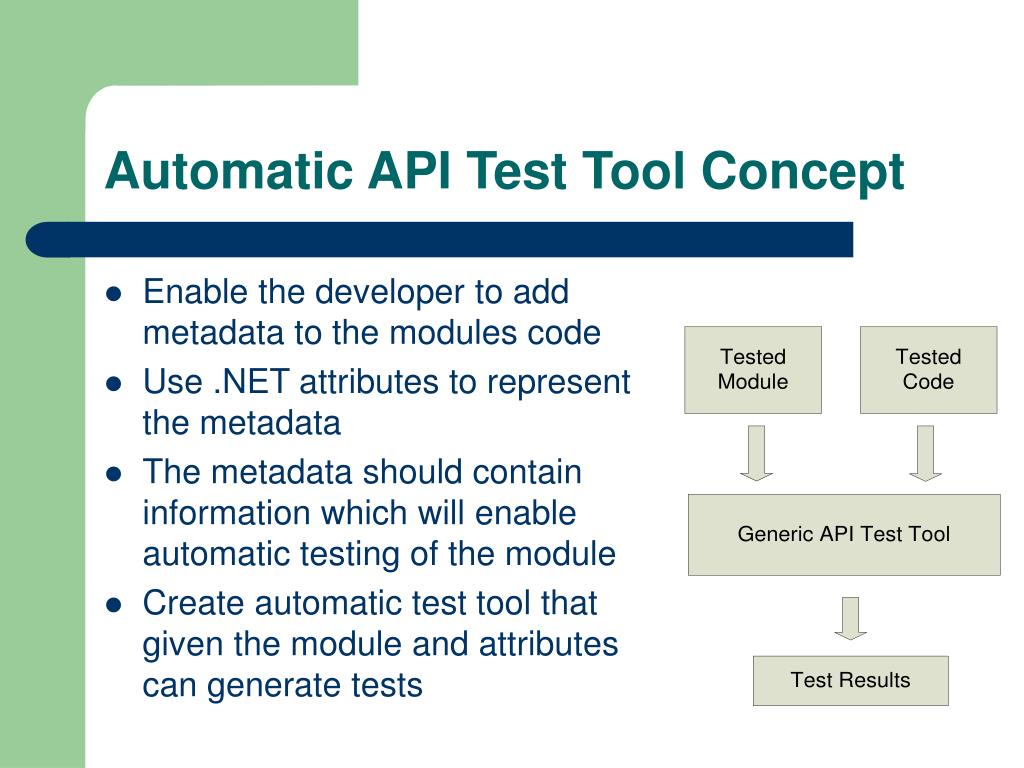

  4. Automatic API Test Tool Concept • Enable the developer to add metadata to the modules code • Use .NET attributes to represent the metadata • The metadata should contain information which will enable automatic testing of the module • Create automatic test tool that given the module and attributes can generate tests

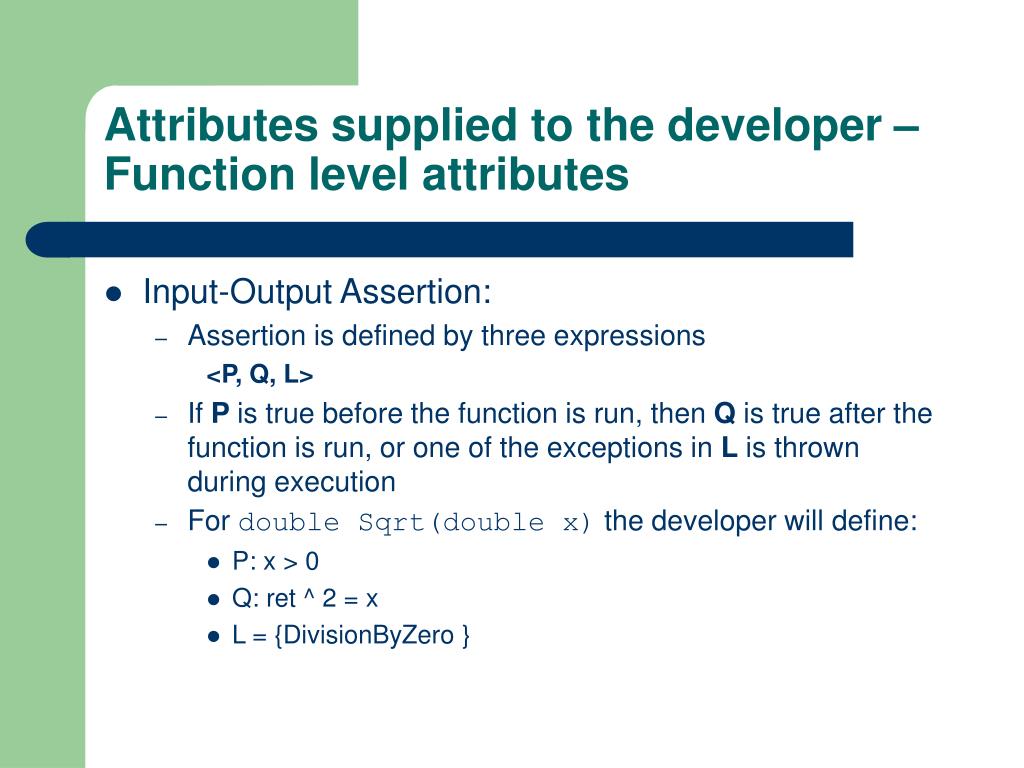

  5. Attributes supplied to the developer – Function level attributes • Input-Output Assertion: • Assertion is defined by three expressions <P, Q, L> • If P is true before the function is run, then Q is true after the function is run, or one of the exceptions in L is thrown during execution • For double Sqrt(double x) the developer will define: • P: x > 0 • Q: ret ^ 2 = x • L = {DivisionByZero }

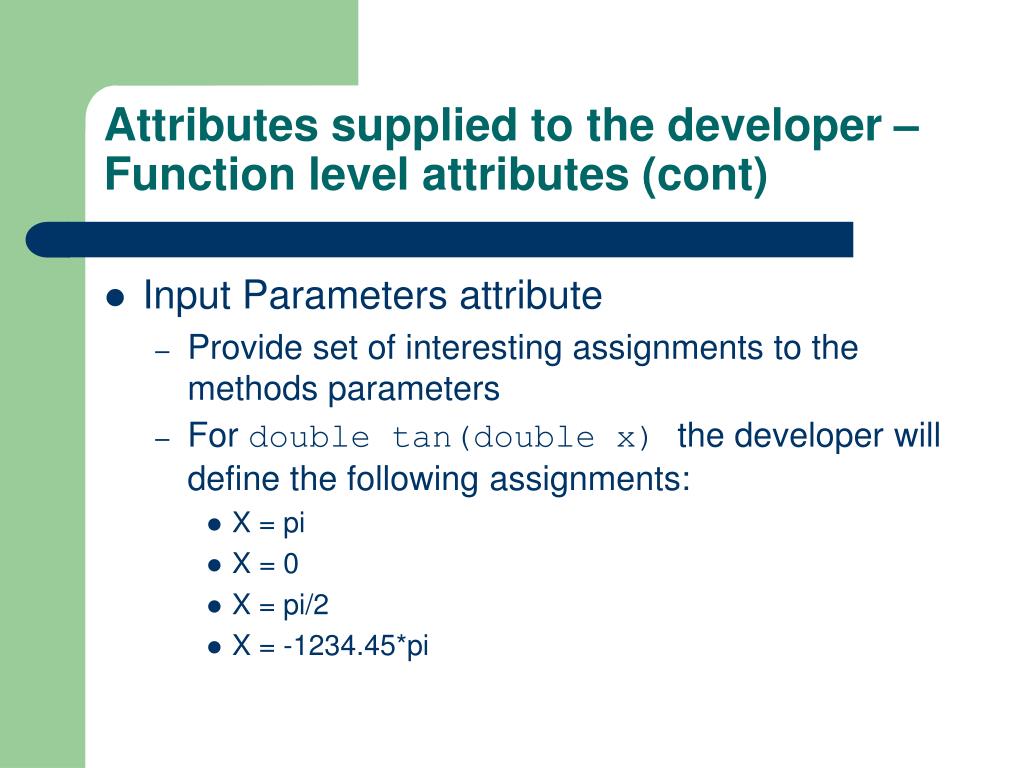

  6. Attributes supplied to the developer – Function level attributes (cont) • Input Parameters attribute • Provide set of interesting assignments to the methods parameters • For double tan(double x) the developer will define the following assignments: • X = pi • X = 0 • X = pi/2 • X = -1234.45*pi

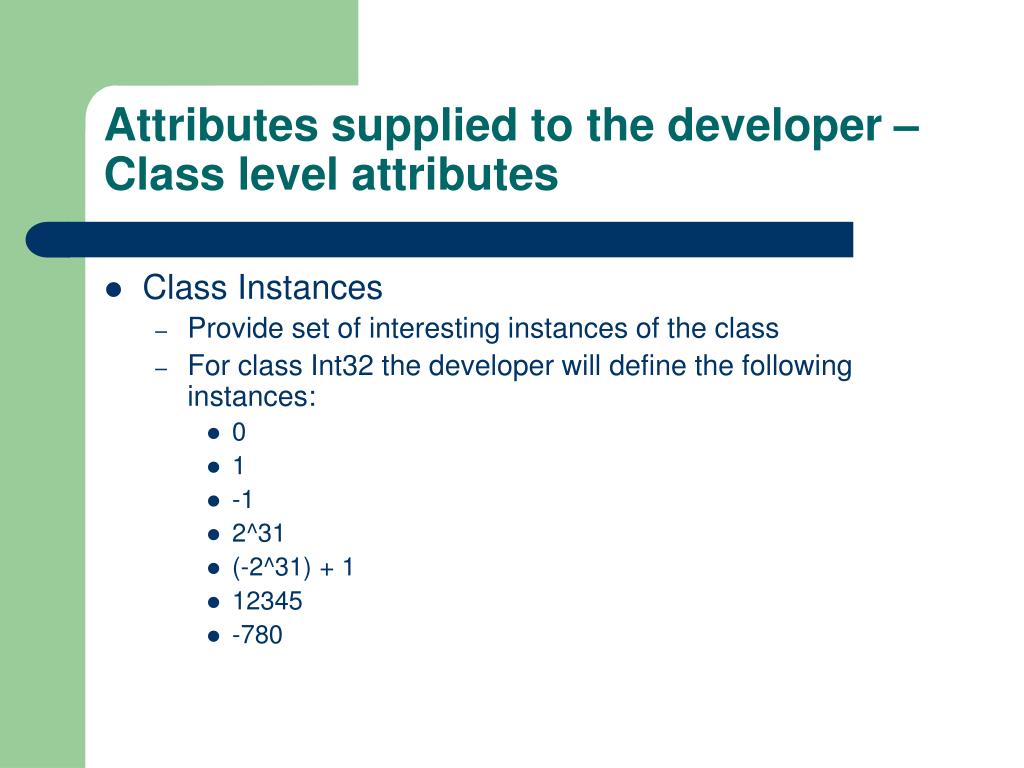

  7. Attributes supplied to the developer – Class level attributes • Class Instances • Provide set of interesting instances of the class • For class Int32 the developer will define the following instances: • 0 • 1 • -1 • 2^31 • (-2^31) + 1 • 12345 • -780

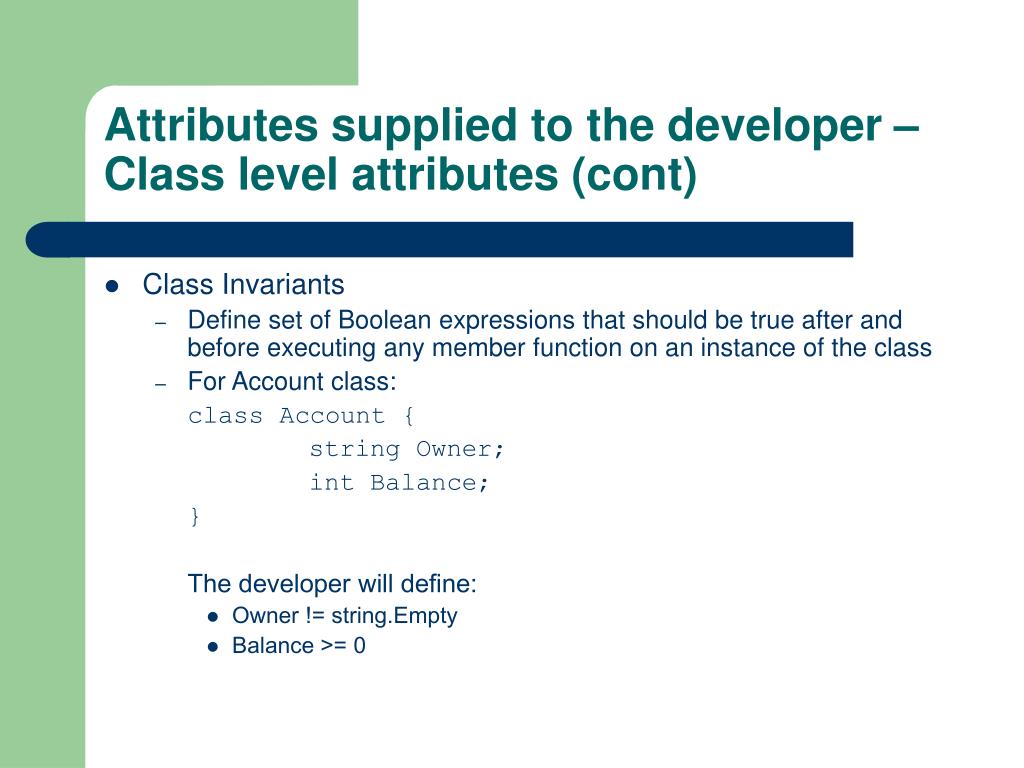

  8. Attributes supplied to the developer – Class level attributes (cont) • Class Invariants • Define set of Boolean expressions that should be true after and before executing any member function on an instance of the class • For Account class: class Account { string Owner; int Balance; } The developer will define: • Owner != string.Empty • Balance >= 0

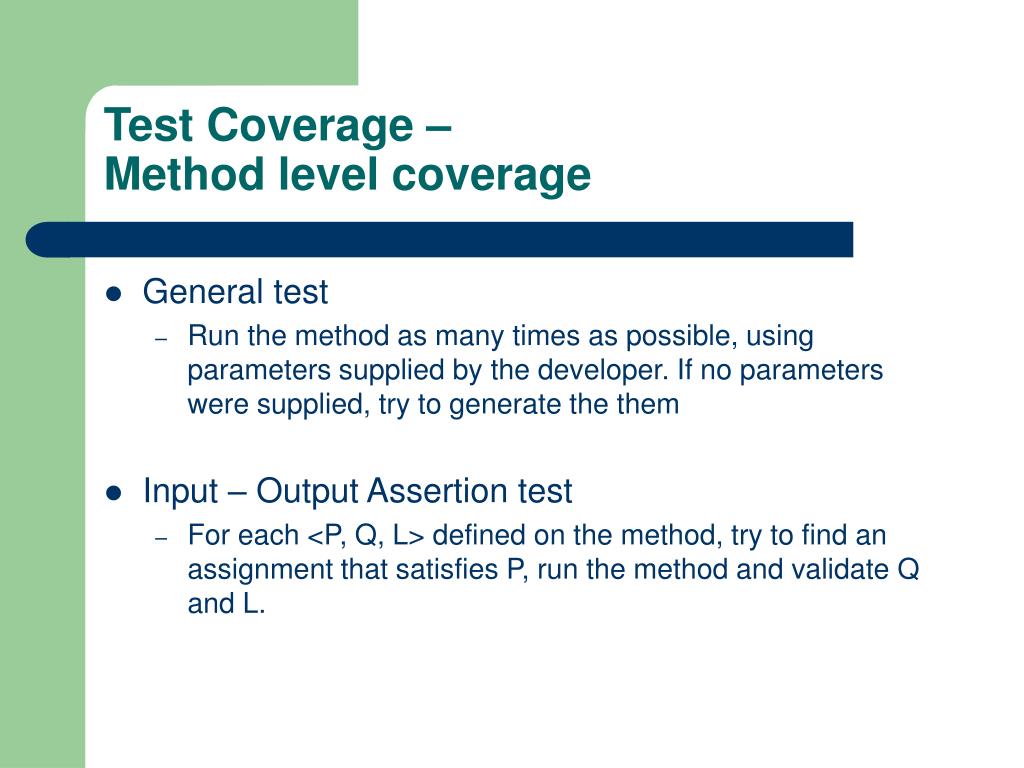

  9. Test Coverage – Method level coverage • General test • Run the method as many times as possible, using parameters supplied by the developer. If no parameters were supplied, try to generate the them • Input – Output Assertion test • For each <P, Q, L> defined on the method, try to find an assignment that satisfies P, run the method and validate Q and L.

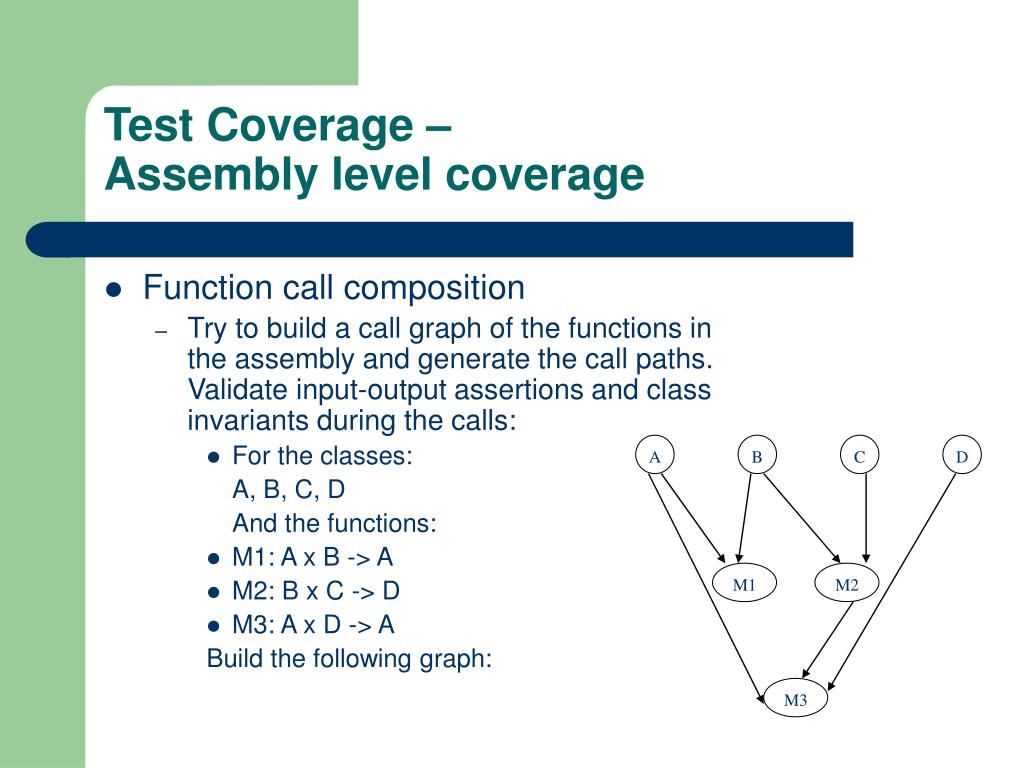

  10. A B C D M1 M2 M3 Test Coverage – Assembly level coverage • Function call composition • Try to build a call graph of the functions in the assembly and generate the call paths. Validate input-output assertions and class invariants during the calls: • For the classes: A, B, C, D And the functions: • M1: A x B -> A • M2: B x C -> D • M3: A x D -> A Build the following graph:

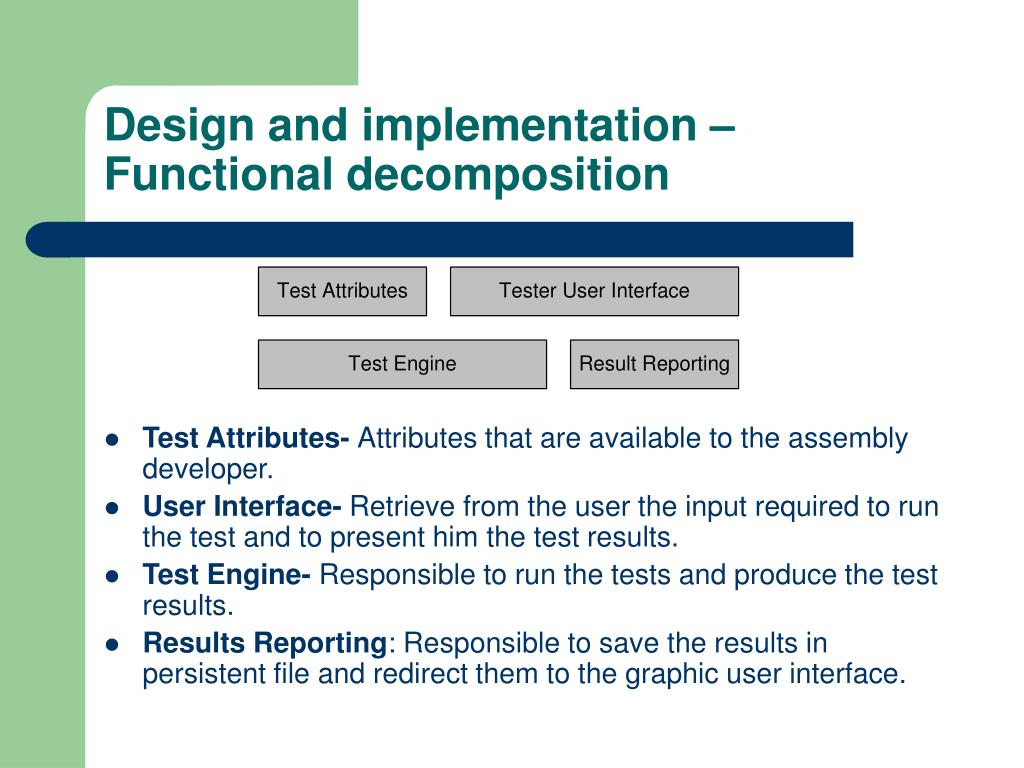

  11. Design and implementation – Functional decomposition • Test Attributes- Attributes that are available to the assembly developer. • User Interface- Retrieve from the user the input required to run the test and to present him the test results. • Test Engine- Responsible to run the tests and produce the test results. • Results Reporting: Responsible to save the results in persistent file and redirect them to the graphic user interface.

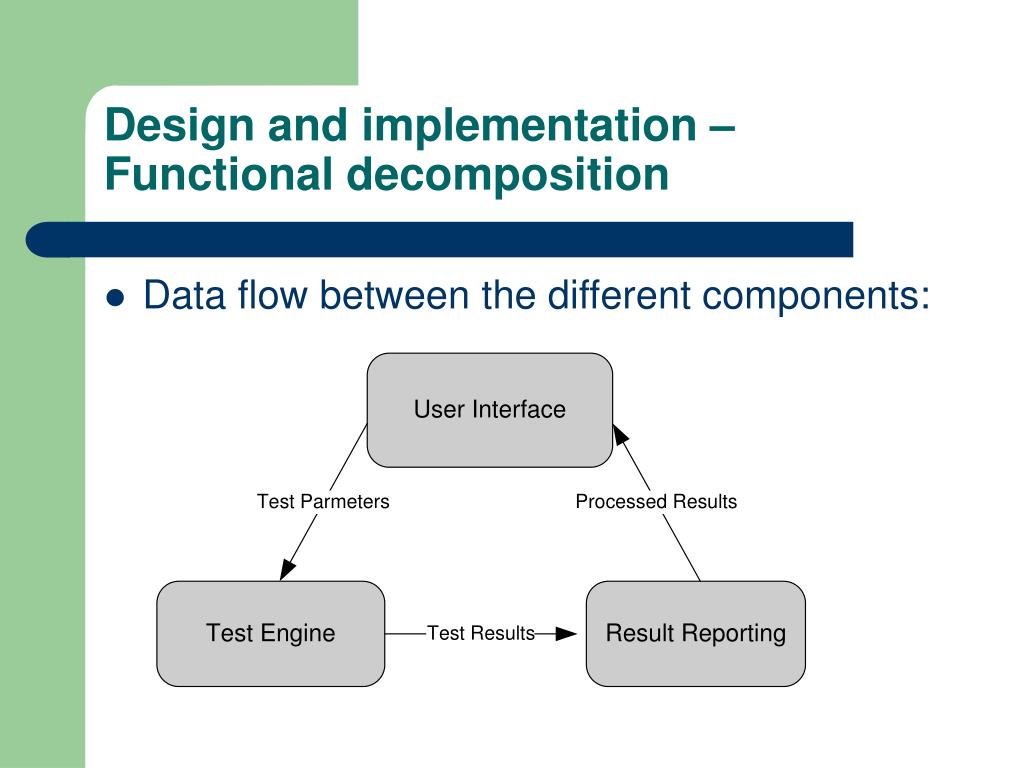

  12. Design and implementation – Functional decomposition • Data flow between the different components:

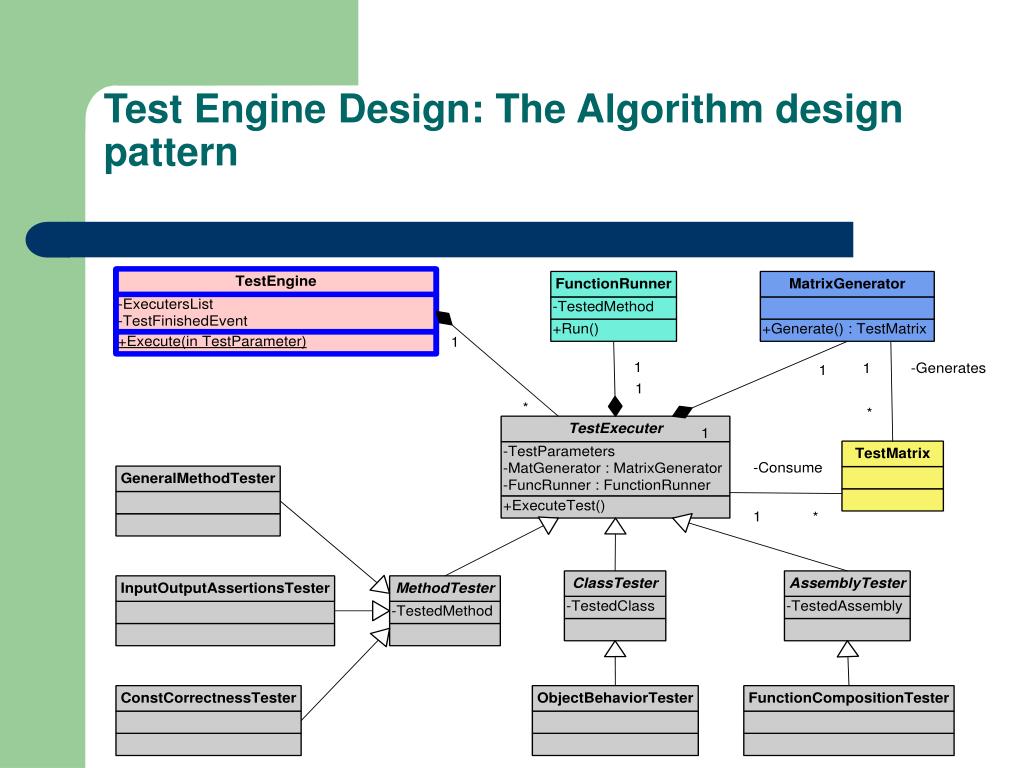

  13. Test Engine Design: The Algorithm design pattern

  14. Test Attributes Hierarchy

  15. Design and implementation – User Interface Structure

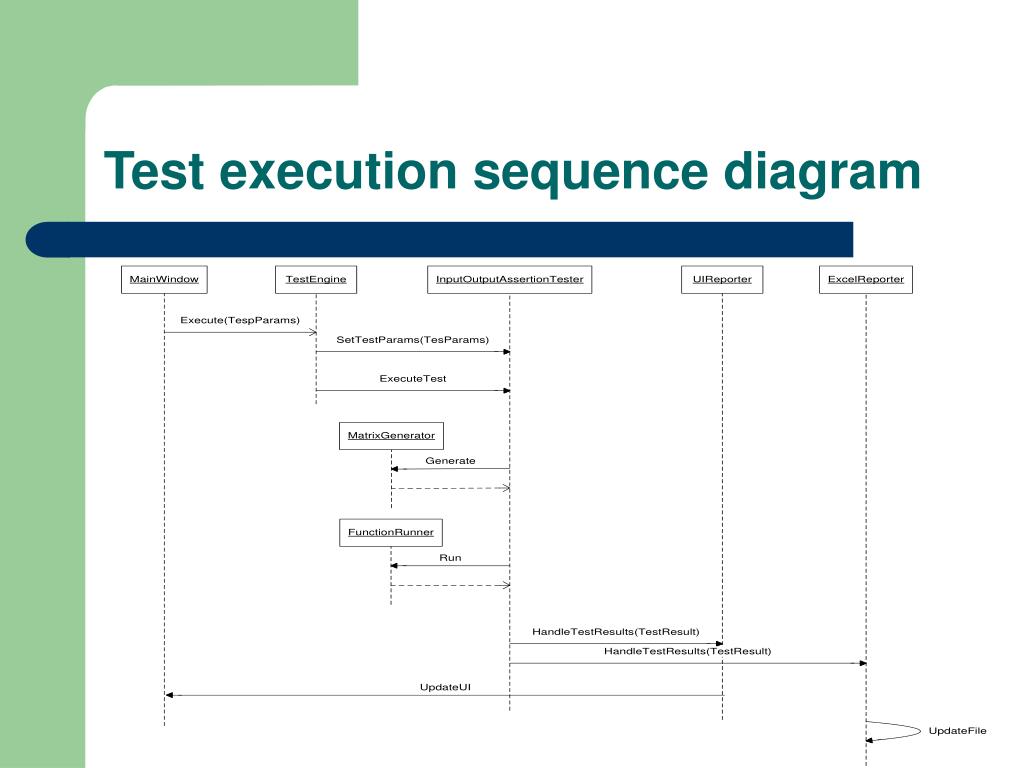

  16. Test execution sequence diagram

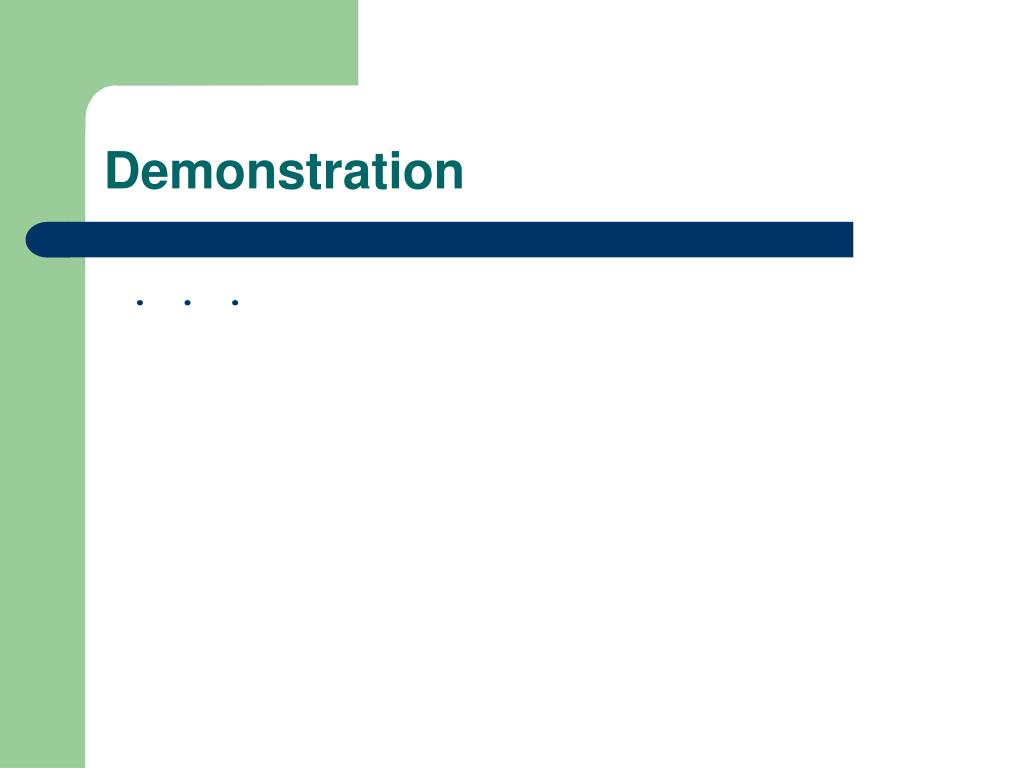

  17. Demonstration . . .

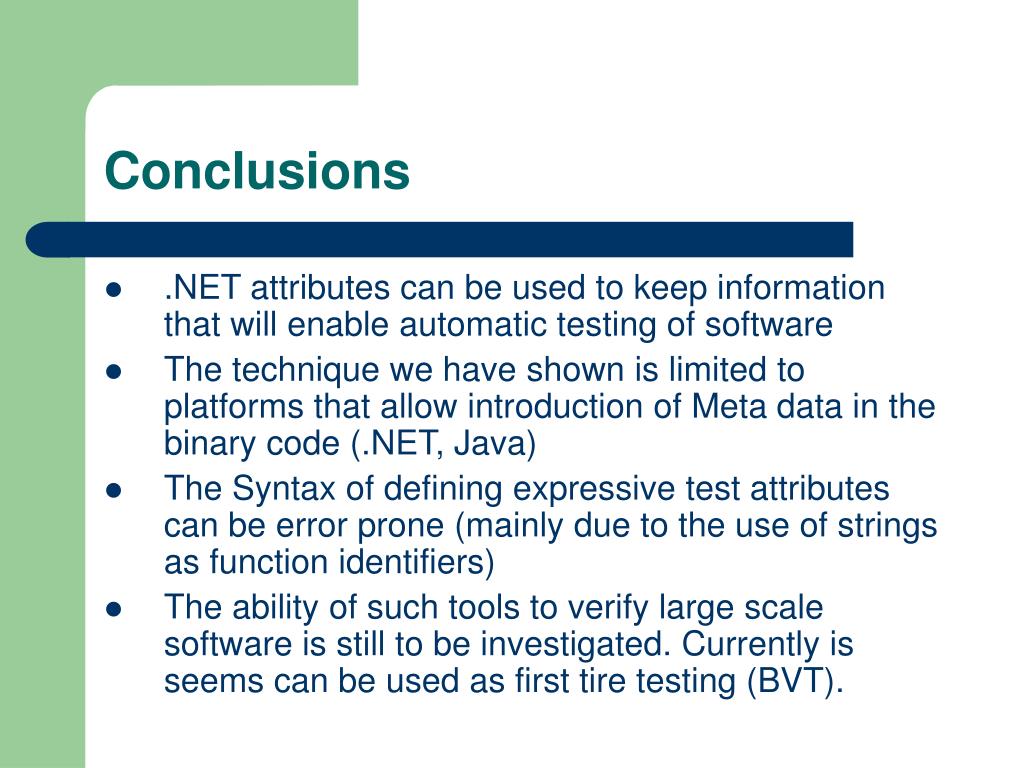

  18. Conclusions • .NET attributes can be used to keep information that will enable automatic testing of software • The technique we have shown is limited to platforms that allow introduction of Meta data in the binary code (.NET, Java) • The Syntax of defining expressive test attributes can be error prone (mainly due to the use of strings as function identifiers) • The ability of such tools to verify large scale software is still to be investigated. Currently is seems can be used as first tire testing (BVT).
