### Generic Workflow API for Streamlined Notification Management ###

jabir avatar
jabir
8 diapositives · 224 Views · Sep 26, 2014

The Generic Workflow API simplifies the management of notification tasks by allowing developers to use a unified interface for a variety of notification requirements without the need to create new workflows for each instance. It supports static text messages, HTML messages, and dynamically generated content from query results. Notifications can be a mix of static content and output from multiple queries, enabling developers to construct complex notifications on-the-fly. The API is easy to use, promotes error handling, and enhances efficiency across development teams. ###

#### generic workflow api for streamlined notification management ### #### generic workflow api for streamlined notification management ### ppt #powerpoint #presentation
### Generic Workflow API for Streamlined Notification Management ### - slide 1
01 / 8### Generic Workflow API for Streamlined Notification Management ###
1 / 17

Télécharger la présentation

### Generic Workflow API for Streamlined Notification Management ###
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

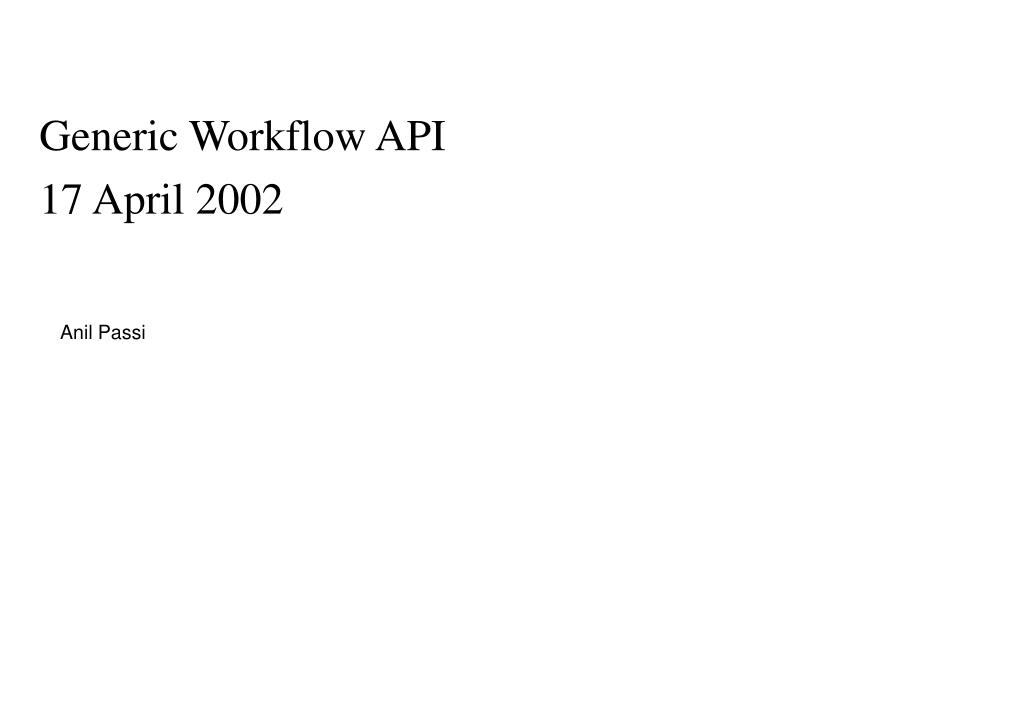

  1. Anil Passi Generic Workflow API 17 April 2002

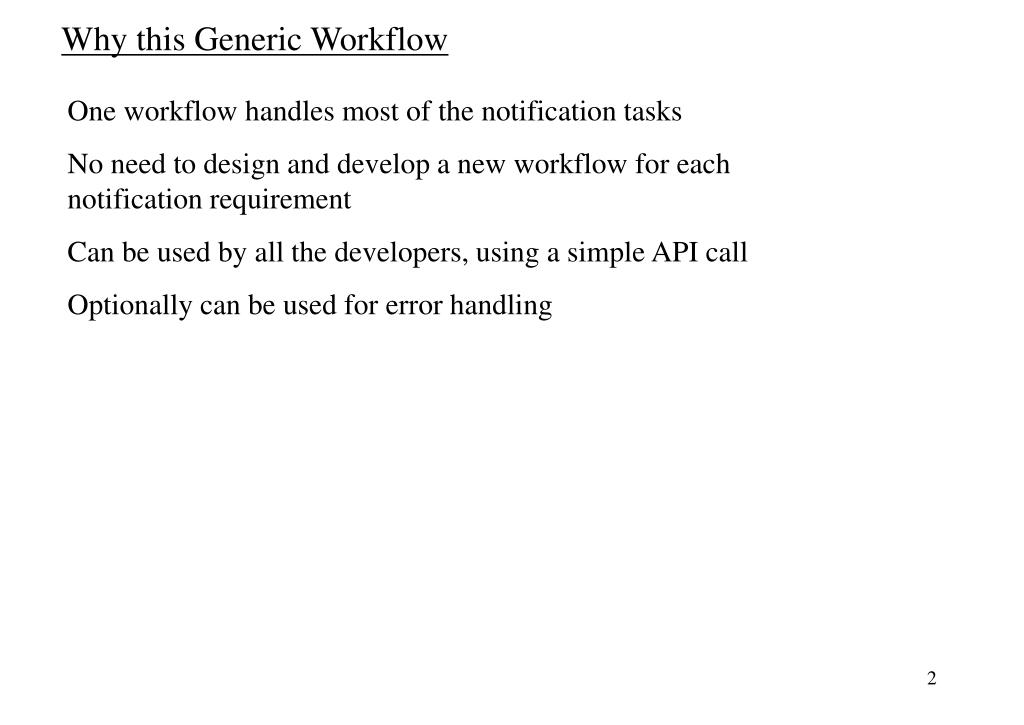

  2. Why this Generic Workflow One workflow handles most of the notification tasks No need to design and develop a new workflow for each notification requirement Can be used by all the developers, using a simple API call Optionally can be used for error handling

  3. Notification can be a Static Text Notification can be a Static HTML Text Notification can be an output of a query. Result of Select Statements displayed nicely in tabular format Notification can be an output of more than one Select Queries Notification can be the combination of Static HTML/Text and SELECT Statement Notification contents will be dynamically built at runtime from the parameters passed to API. Main Features

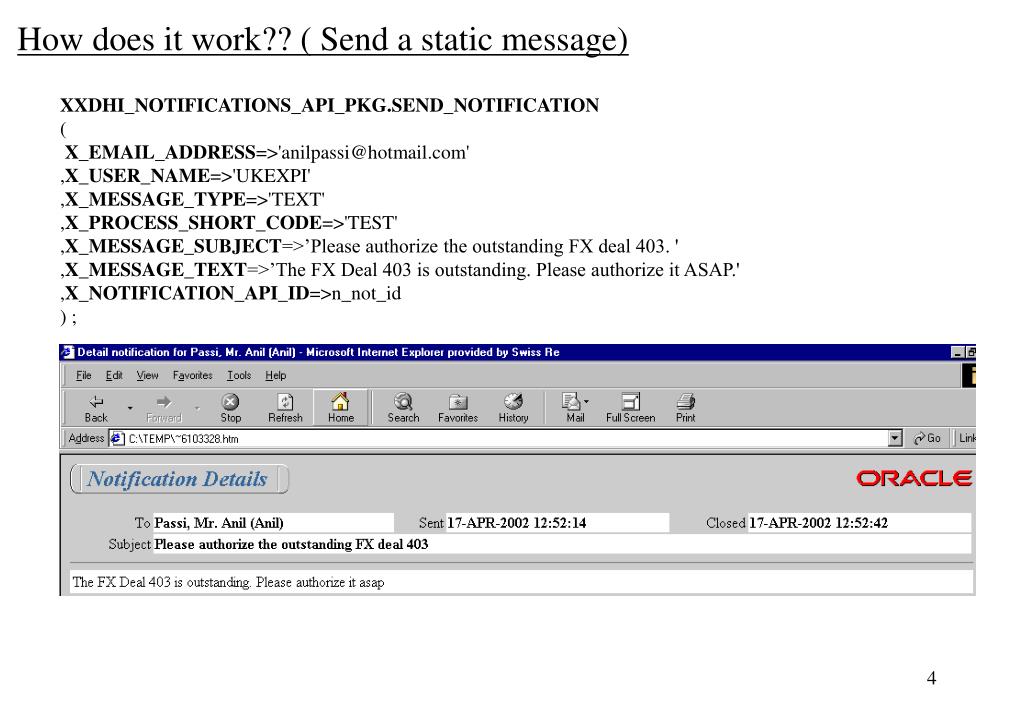

  4. How does it work?? ( Send a static message) XXDHI_NOTIFICATIONS_API_PKG.SEND_NOTIFICATION ( X_EMAIL_ADDRESS=>'anilpassi@hotmail.com' ,X_USER_NAME=>'UKEXPI' ,X_MESSAGE_TYPE=>'TEXT' ,X_PROCESS_SHORT_CODE=>'TEST' ,X_MESSAGE_SUBJECT=>’Please authorize the outstanding FX deal 403. ' ,X_MESSAGE_TEXT=>’The FX Deal 403 is outstanding. Please authorize it ASAP.' ,X_NOTIFICATION_API_ID=>n_not_id ) ;

  5. Dynamic Role Creation(If needed) How does it work?? ( Send a message static HTML) XXDHI_NOTIFICATIONS_API_PKG.SEND_NOTIFICATION ( X_EMAIL_ADDRESS=>'anil_passi@rcomext.com' ,X_USER_NAME=>'UKEXPI' ,X_MESSAGE_TYPE=>'TEXT' ,X_PROCESS_SHORT_CODE=>'TEST' ,X_MESSAGE_SUBJECT=>’ Please resolve the Receipt Number 2032402 ' ,X_MESSAGE_TEXT=> '<body> <p>Please note that you must resolve the Receipt Number 2032402.<br> This receipt is worth USD 32,434,000/-<br> This receipt has been unallocated in INBOX since 23Days.<br> Please use Triage to allocate this receipt to appropriate Technical System.<br> Free text on the SWIFT message is: <br> Treaty TOW10043, paying the premium<br> </p> <p><font color="#0000FF">Thanks<br> Delphi Treasury Team<br> 22-APRIL-2002<br> </font></p> </body>' ,X_NOTIFICATION_API_ID=>n_not_id ) ;

  6. How does it work?? ( Send a message static plus dynamic) XXDHI_NOTIFICATIONS_API_PKG.SEND_NOTIFICATION ( X_EMAIL_ADDRESS =>'anilpassi@hotmail.com' ,X_USER_NAME =>'UKEXPI' ,X_MESSAGE_TYPE =>'TEXT' ,X_PROCESS_SHORT_CODE =>'TEST' ,X_MESSAGE_SUBJECT =>’Please authorize the outstanding FX deal 403. ' ,X_MESSAGE_TEXT =>’The FX Deal 403 is outstanding. Please authorize it ASAP.' ,X_NOTIFICATION_API_ID =>n_not_id ) ; XXDHI_notifications_api_pkg.add_query ( X_NOTIFICATION_API_ID => n_not_id ,X_QUERY_TITLE_TEXT => 'These are the recent deals' ,X_FROM_CLAUSE => 'xtr_deals' ,X_WHERE_CLAUSE => 'ROWNUM < 5 AND dealer_code = ''UKEXPI''' ,X_BIND_VALUES => NULL ,x_column_title_1 => 'Counter Party' ,x_column_name_1 => 'CPARTY_CODE' ,x_column_title_2 => 'Deal Number' ,x_column_name_2 => 'deal_no' ,x_column_title_3 => 'Buy Amount' ,x_column_name_3 => 'buy_amount' ) ; This API call will dynamically generate from tables the following notification

  7. Notification Subject Query Title Static Text First Query Result Second Query Result How does it work?? ( More than one queries can be used) XXDHI_notifications_api_pkg.SEND_NOTIFICATION ( X_EMAIL_ADDRESS =>'anilpassi@hotmail.com' ,X_USER_NAME =>'UKEXPI' ,X_MESSAGE_TYPE =>'TEXT_AND_QUERY' ,X_PROCESS_SHORT_CODE =>'TEST' ,X_MESSAGE_SUBJECT =>'Please authorize the outstanding FX deal 403' ,X_MESSAGE_TEXT =>'The FX Deal 403 is outstanding. Please authorize it ASAP.' || 'Please see the table for details of your recent deals. ' || 'Also listed are the payment terms' ,x_notification_api_id =>n_not_id ) ; XXDHI_notifications_api_pkg.add_query ( X_NOTIFICATION_API_ID => n_not_id ,X_QUERY_TITLE_TEXT => 'These are the recent deals' ,X_FROM_CLAUSE => 'xtr_deals' ,X_WHERE_CLAUSE => 'ROWNUM < 5 AND dealer_code = ''UKEXPI''' ,X_BIND_VALUES => NULL ,x_column_title_1 => 'Counter Party' ,x_column_width_1 => 10 ,x_column_name_1 => 'CPARTY_CODE' ,x_column_title_2 => 'Deal Number' ,x_column_width_2 => 5 ,x_column_name_2 => 'deal_no' ) ; XXDHI_notifications_api_pkg.add_query ( X_NOTIFICATION_API_ID => n_not_id ,X_QUERY_TITLE_TEXT => 'This is the data in payment terms' ,X_FROM_CLAUSE => 'ap_terms' ,X_WHERE_CLAUSE => 'ROWNUM < 5' ,X_BIND_VALUES => NULL ,x_column_title_1 => 'TERM ID' ,x_column_width_1 => 10 ,x_column_name_1 => 'TERM_ID' ,x_column_title_2 => 'Term Name' ,x_column_width_2 => 5 ,x_column_name_2 => 'name' ) ; This API call will dynamically generate from tables the following notification The query can be a complex query with various tables and joins

  8. Developer’s World Check validity of parameters Insert records in tables XXDHI_NOTIFICATIONS_API XXDHI_NOTIFICATION_QUERIES XXDHI_NOTIFICATION_COLUMNS API World Internally handled by API Database trigger initiates workflow Workflow builds the information SQL STATEMENT based documents are generated in real time from browser/email client How does it work technically? Call API (xxdhi_notifications_api_pkg)
